GE 4PE350A3 User manual
.94a/Auctiow4
COLOR CAMERA CHANNEL
MODEL 4PE350A3
EBI-6350
(Volume 2 of 3)
GENERAL ELECTRIC
EBI-6350
INSERTS
(Volume 2)
EBI-6351 Color Camera, Model 4PC19D3
EBI-6209 Angenieux Zoom Lens, Type 10X18J-1
Plumbicon* Tube Bulletin XQ1020
*Registered trademark of N.V. Philips' Gloeilampenfabrieken of the Netherlands.
ii
GENERAL SERVICE INFORMATION
SAFETY NOTICE
Ikt,RNI NG
VOLTAGES USED FOR THE OP-
TILIS EQUIPMENT
ARE DANGEROUS TO HUMAN
LIFE.
This instruction manual is written for the
general guidance of maintenance and service
personnel Who are familiar with ane. aware
of the dangers of handling electric and elec-
tronic circuits. It does not purport to in-
clude a complete statement of the safety
precautions which should be observed in
servicing this or other electronic equipment.
The servicing of this equipment by inade-
quately trained or inexperienced personnel
involves risks to such personnel and to the
equipment for which the manufacturer can
not accept responsibility. Personnel ser-
vicing this equipment should familiarize
themselves with first -aid treatment for elec-
trical burns and electrical shock.
PRODUCTION CHANGES
From time to time it becomes necessary
to make changes in the equipment described
in this book. Such changes are made to im-
prove performance or meet component short-
ages and are identified by a revision letter
following the model number stamped on the
nameplate. The changes in the equipment as
they affect the instruction book are listed on
a Production Change Sheet included in the
book. If no Production Change Sheet is in-
cluded, no changes have been made. The
revision letter appearing on the title page
indicates the equipment revision to which
the book corresponds.
This inforrna;loil is provided as servIc-
ing aid; it should not be used to modify
earlier equipments to incorporate later re-
visions except under specific instructions.
Please mentio.n the revision letter in any
correspondence.
REPLACEMENT PARTS
The parts list contained in this book in-
cludes all principal replacement parts. The
symbol numbers are the same as those ap-
pearing on e7ernentary and other drawings.
Wnenever possible, replac parts should
be obtained from a local electronics supply
dealer. If it is necessary to order a part
(other than a tube or transistor) from the
General Electric Company, please include
the symbol number, description, and draw-
ing number of the part and model number of
the unit. Orders may be sent to the nearest
office appearing on the list at the end of the
book or the General Electric Company,
Visual Communication Products, Electronics
Park, Syracuse, N.Y.
REPLACEMENT TUBES AND
TRANSISTORS
In all cases replacements must be or-
dered from a local distributor.
These instructions do not purport to cover all details or variations in equipment nor to provide for every
possible contingency to be met in connection with installation, operation, or maintenance. Should further
information be desired or should particular problems arise which are not covered sufficiently for the pur-
chaser's purposes, the matter should be referred to the General Electric Company.
VISUAL COMMUNICATION PRODUCTS DEPARTMENT
CONSUMER ELECTRONICS DIVISION
GENERAL ELECTR!C
ELECTRONICS PARK, SYRACUSE, N. Y.
E BI -17C

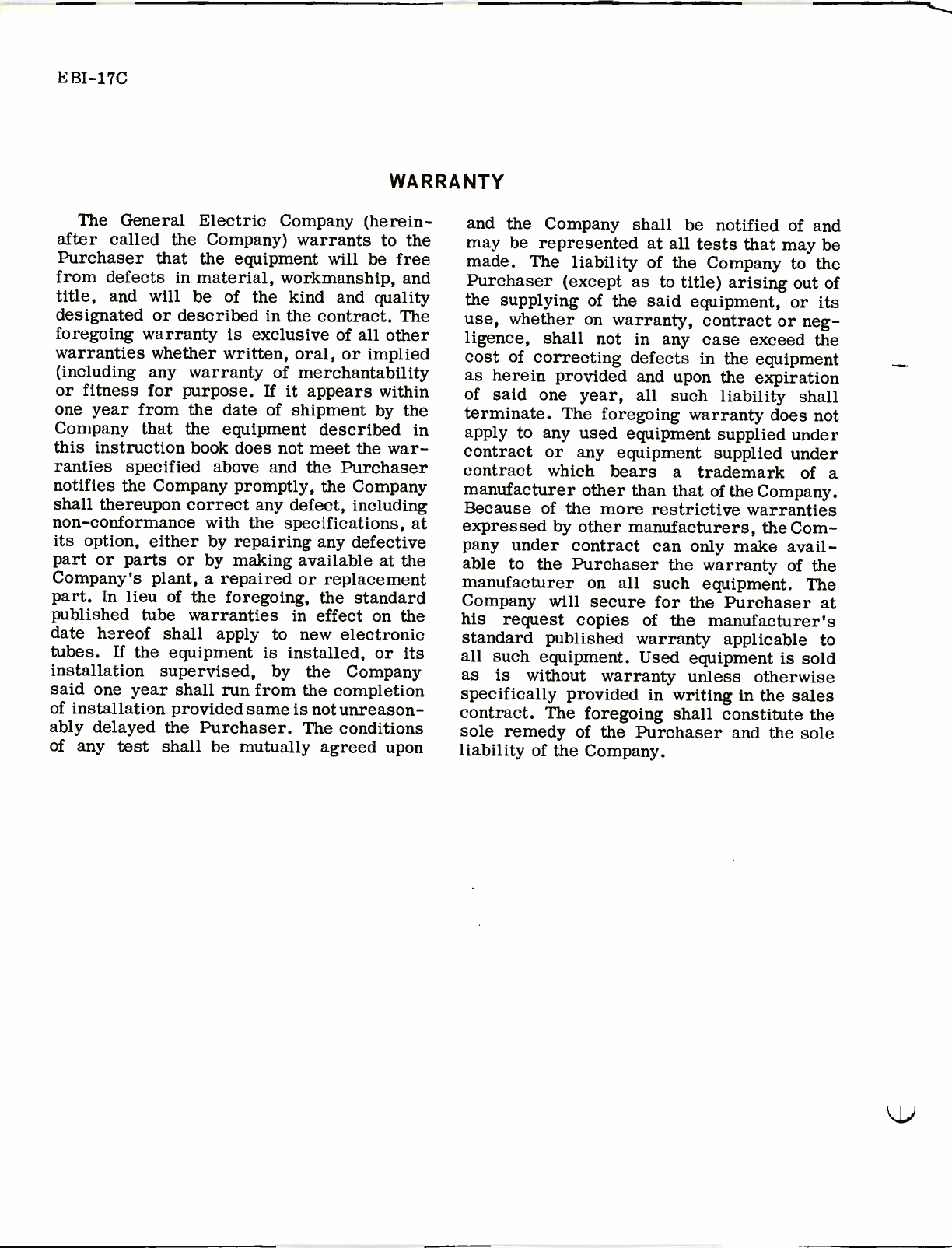

WARRANTY
The General Electric Company (herein-
after called the Company) warrants to the
Purchaser that the equipment will be free
from defects in material, workmanship, and
title, and will be of the kind and quality
designated or described in the contract. The
foregoing warranty is exclusive of all other
warranties whether written, oral, or implied
(including any warranty of merchantability
or fitness for purpose. If it appears within
one year from the date of shipment by the
Company that the equipment described in
this instruction book does not meet the war-
ranties specified above and the Purchaser
notifies the Company promptly, the Company
shall thereupon correct any defect, including
non-conformance with the specifications, at
its option, either by repairing any defective
part or parts or by making available at the
Company's plant, a repaired or replacement
part. In lieu of the foregoing, the standard
published tube warranties in effect on the
date hereof shall apply to new electronic
tubes. If the equipment is installed, or its
installation supervised, by the Company
said one year shall run from the completion
of installation provided same is not unreason-
ably delayed the Purchaser. The conditions
of any test shall be mutually agreed upon
and the Company shall be notified of and
may be represented at all tests that may be
made. The liability of the Company to the
Purchaser (except as to title) arising out of
the supplying of the said equipment, or its
use, whether on warranty, contract or neg-
ligence, shall not in any case exceed the
cost of correcting defects in the equipment
as herein provided and upon the expiration
of said one year, all such liability shall
terminate. The foregoing warranty does not
apply to any used equipment supplied under
contract or any equipment supplied under
contract which bears a trademark of a
manufacturer other than that of the Company.
Because of the more restrictive warranties
expressed by other manufacturers, the Com-
pany under contract can only make avail-
able to the Purchaser the warranty of the
manufacturer on all such equipment. The
Company will secure for the Purchaser at
manufacturer's
standard published warranty applicable to
all such equipment. Used equipment is sold
as is without warranty unless otherwise
specifically provided in writing in the sales
contract. The foregoing shall constitute the
sole remedy of the Purchaser and the sole
liability of the Company.

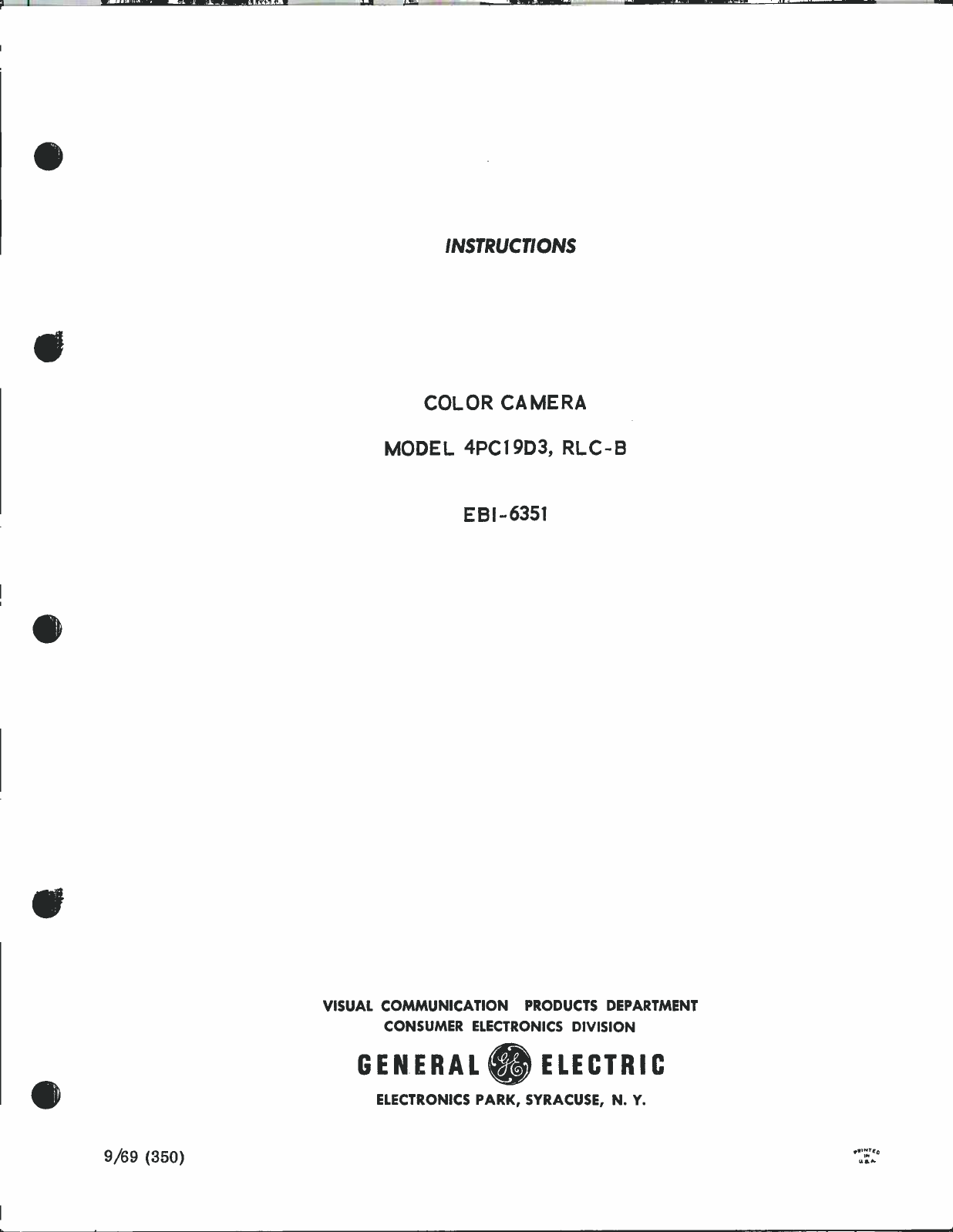

INSTRUCTIONS
COLOR CAMERA
MODEL 4PC19D3, RLC-B
EBI-6351
VISUAL COMMUNICATION PRODUCTS DEPARTMENT
CONSUMER ELECTRONICS DIVISION
GENERAL ELECTRIC
ELECTRONICS PARK, SYRACUSE, N. Y.
9/69 (350)
EBI-6351

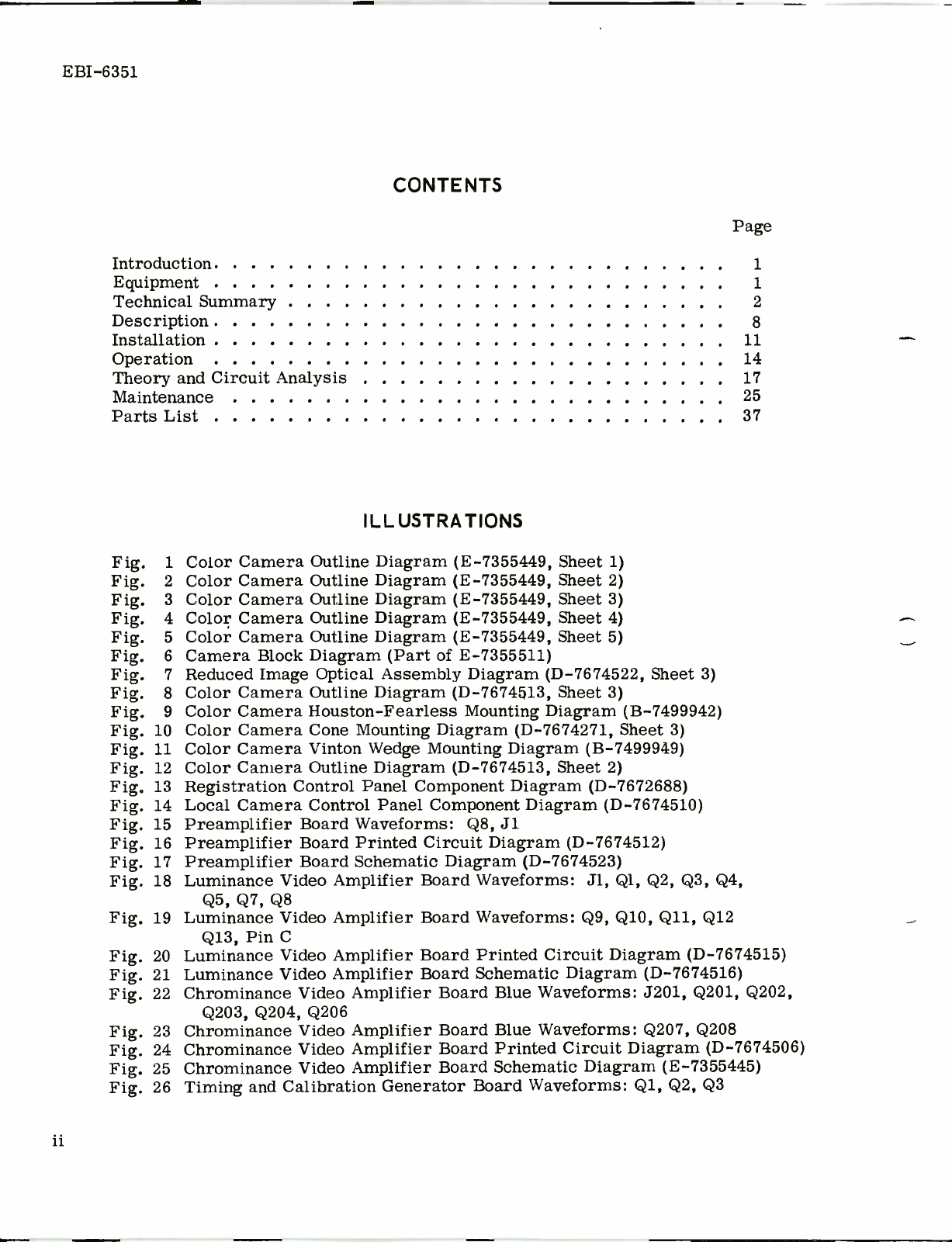

CONTENTS
Page
Introduction 1
Equipment 1
Technical Summary 2
Description 8
Installation 11
Operation 14
Theory and Circuit Analysis 17
Maintenance 25
Parts List 37
ILLUSTRATIONS
Fig. 1 Color Camera Outline Diagram (E-7355449, Sheet 1)
Fig. 2 Color Camera Outline Diagram (E-7355449, Sheet 2)
Fig. 3 Color Camera Outline Diagram (E-7355449, Sheet 3)
Fig. 4 Color Camera Outline Diagram (E-7355449, Sheet 4)
Fig. 5 Color Camera Outline Diagram (E-7355449, Sheet 5)
Fig. 6 Camera Block Diagram (Part of E-7355511)
Fig. 7 Reduced Image Optical Assembly Diagram (D-7674522, Sheet 3)
Fig. 8 Color Camera Outline Diagram (D-7674513, Sheet 3)
Fig. 9 Color Camera Houston -Fearless Mounting Diagram (B-7499942)
Fig. 10 Color Camera Cone Mounting Diagram (D-7674271, Sheet 3)
Fig. 11 Color Camera Vinton Wedge Mounting Diagram (B-7499949)
Fig. 12 Color Camera Outline Diagram (D-7674513, Sheet 2)
Fig. 13 Registration Control Panel Component Diagram (D-7672688)
Fig. 14 Local Camera Control Panel Component Diagram (D-7674510)
Fig. 15 Preamplifier Board Waveforms: Q8, J1
Fig. 16 Preamplifier Board Printed Circuit Diagram (D-7674512)
Fig. 17 Preamplifier Board Schematic Diagram (D-7674523)
Fig. 18 Luminance Video Amplifier Board Waveforms: 31, Ql, Q2, Q3, Q4,
Q5, Q7, Q8
Fig. 19 Luminance Video Amplifier Board Waveforms: Q9, Q10, Q11, Q12
Q13, Pin C
Fig. 20 Luminance Video Amplifier Board Printed Circuit Diagram (D-7674515)
Fig. 21 Luminance Video Amplifier Board Schematic Diagram (D-7674516)
Fig. 22 Chrominance Video Amplifier Board Blue Waveforms: J201, Q201, Q202,
Q203, Q204, Q206
Fig. 23 Chrominance Video Amplifier Board Blue Waveforms: Q207, Q208
Fig. 24 Chrominance Video Amplifier Board Printed Circuit Diagram (D-7674506)
Fig. 25 Chrominance Video Amplifier Board Schematic Diagram (E-7355445)
Fig. 26 Timing and Calibration Generator Board Waveforms: Ql, Q2, Q3
ii
C
EBI-6351
Fig. 27 Timing and Calibration Generator Board Waveforms: Q6, Q7, Q8, Q9,
Q10, Q11
Fig. 28 Timing and Calibration Generator Board Waveforms: Q11, Pin 13,
Pin P, Pin R, Pin 14
Fig. 29 Timing and Calibration Generator Board Printed Circuit Diagram
(D-7674518)
Fig. 30 Timing and Calibration Generator Board Schematic Diagram (D-7674519)
Fig. 31 Camera Sweep Board Waveforms: Ql, Q2, Q3, Q4, Q5, Q6
Fig. 32 Camera Sweep Board Waveforms: Q7, Q8, Q9, Q12, Q13
Fig. 33 Camera Sweep Board Waveforms: Q10, Q14, Q15, Q16
Fig. 34 Camera Sweep Board Waveforms: Q16, Q17, Q18, Q19
Fig. 35 Camera Sweep Board Printed Circuit Diagram (D-7674639)
Fig. 36 Camera Sweep Board Schematic Diagram (DD -7674118)
Fig. 37 Skew Generator Board Waveforms: Q1
Fig. 38 Skew Generator Board Printed Circuit Diagram (C-7781891)
Fig. 39 Skew Generator Board Schematic Diagram (C-7781890, Sheet 2)
Fig. 40 Camera Power Supply Board Waveforms: Power Supply Input Trigger,
Q11, Ql, Q2, Q3, Q4
Fig. 41 Camera Power Supply Board Waveforms: 04. Q3, Pin H. 018. 012
Fig. 42 Camera Power Supply Board Printed Circuit Diagram (D-7675097)
Fig. 43 Camera Power Supply Board Schematic Diagram (E-7355675)
Fig. 44 Viewfinder Switcher Board Waveforms: Ql, Q2, Q3
Fig. 45 Viewfinder Switcher Board Waveforms: Q3, Q4, Q5, Pin 9
Fig. 46 Viewfinder Switcher Board Printed Circuit Diagram (D-7674416)
Fig. 47 Viewfinder Switcher Board Schematic Diagram (D-7674431, Sheet 3)
Fig. 48 Sync Adder Board Printed Circuit Diagram (C-7782688)
Fig. 49 Viewfinder Video Amplifier Board Waveforms: Q1, Q2, Q3, Q4, Q5
Fig. 50 Viewfinder Video Amplifier Board Printed Circuit Diagram (D-7674379)
Fig. 51 Viewfinder Video Amplifier Board Schematic Diagram (D-7674381)
Fig. 52 Viewfinder Sweep Board Waveforms: H Sine Input, Q1, Q2, Q3, Q4, Q5
Fig. 53 Viewfinder Sweep Board Waveforms: Q5, Q6, Q7, H Sweep Return, Q12
Fig. 54 Viewfinder Sweep Board Waveforms: Q13, Q14, Q15, Q16, Q17, Q18
Fig. 55 Viewfinder Sweep Board Waveforms: Q18, Q19, Q20, Q21, Q22
Fig. 56 Viewfinder Sweep Board Component Diagram (D-7673797, Sheet 2)
Fig. 57 Viewfinder Sweep Board Schematic Diagram (D-7355381)
Fig. 58 Viewfinder High -Voltage Power Supply Board Component Diagram
(C-7781684, Sheet 1)
Fig. 59 Viewfinder High -Voltage Power Supply Board Schematic' Diagram
(C-7781684, Sheet 2)
Fig. 60 Iris Servo Amplifier Board Printed Circuit Diagram (C-7782673)
Fig. 61 Iris Servo Amplifier Board Schematic Diagram (C-7782672)
Fig. 62 Iris Servo Power Supply Board Component and Schematic Diagram
(D-7672613, Sheet 2)
Fig. 63 Intercom Amplifier Board Component Diagram (C-7781675, Sheet 1)
Fig. 64 Intercom Amplifier Board Schematic Diagram (C-7781675, Sheet 3)
Fig. 65 Registration Control Panel Waveforms: P2 -EE, P2 -Z, P2 -W, P2 -T,
P2 -AA, P2 -X, P2 -U, P2 -R
Fig. 66 Registration Control Panel Board Printed Circuit Diagram (D-76740461
Fig. 67 Registration Control Panel Schematic Diagram (D-7674580)
Fig. 68 Simplified Sweep Circuit Schematic Diagram (D-7674355)
Fig. 69 Local Camera Control Panel Board Printed Circuit Diagram (D-7674059)
Fig. 70 Local Camera Control Panel Schematic Diagram (E-7355446)
iii
EBI-6351

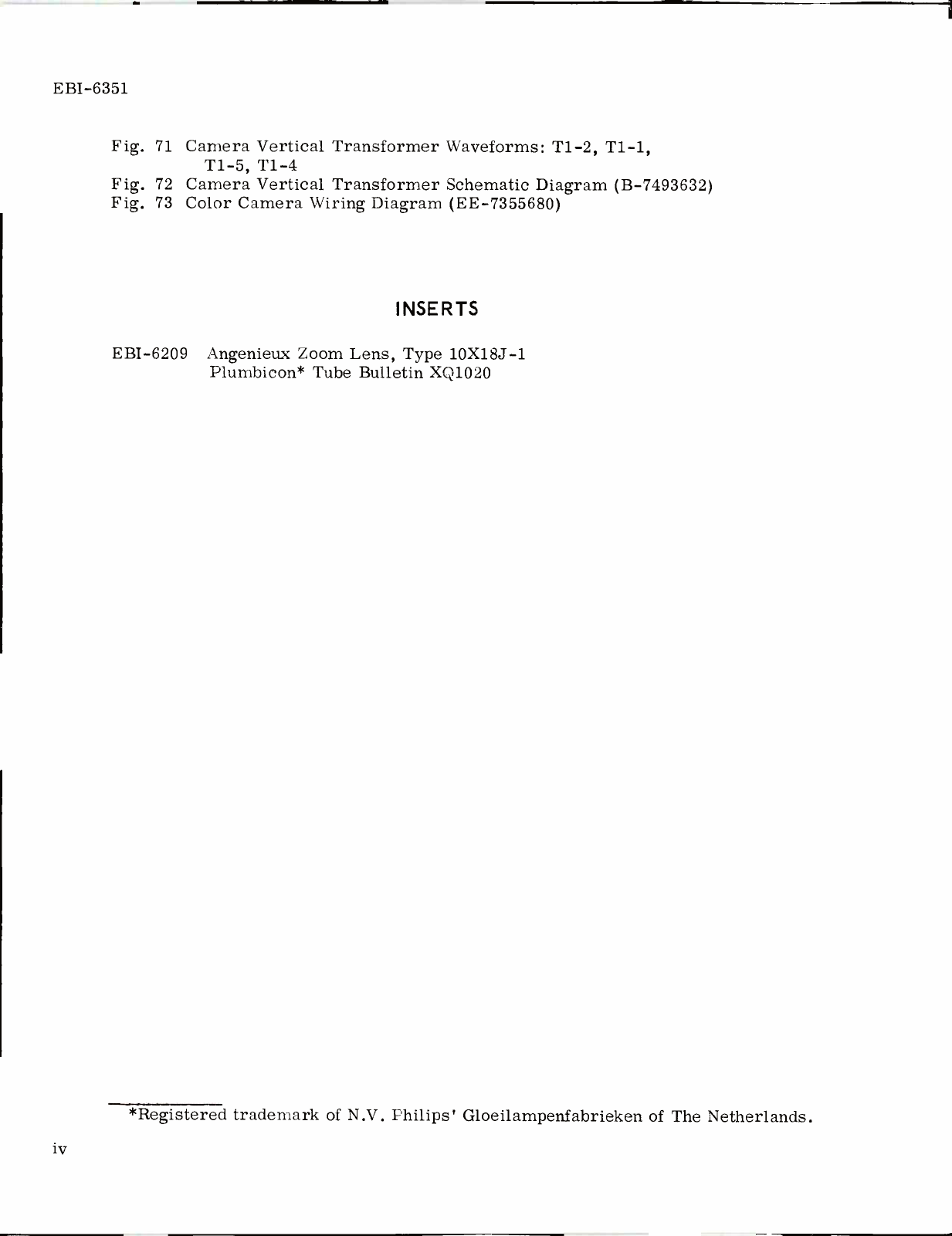

Fig. 71 Camera Vertical Transformer Waveforms: T1-2, T1-1,
T1-5, T1-4
Fig. 72 Camera Vertical Transformer Schematic Diagram (B-7493632)
Fig. 73 Color Camera Wiring Diagram (EE -7355680)
INSERTS
EBI-6209 Angenieux Zoom Lens, Type 10X18J-1
Plumbicon* Tube Bulletin XQ1020
*Registered trademark of N.V. Philips' Gloeilampenfabrieken of The Netherlands.
iv
EBI-6351
PRODUCTION CHANGE SHEET
COLOR CAMERA
MODEL 4PC19D3
RLC-A
MECHANICAL
The locations of the tally lights have been changed to make them visible when the lens
shade is used. To effect this change on Cameras shipped before this Production Change,
communicate with VCPD Service Engineering Section.
RLC-B
MECHANICAL
The sync adder board, PL -7782689G1, was relocated just inside the hatch in the top of
the Camera, adjacent to J10 (see Fig. 5) and the opposite side of the partition to the view-
finder video amplifier board, PL -7672681G3.
FBI -6351
PRODUCTION CHANGE SHEET
COLOR CAMERA
MODEL 4PC19D3
CHROMINANCE VIDEO AMPLIFIER BOARD
PL -767450501
RLC-A
Schematic Diagram, Fig. 25
The values of resistors 8122 and 8123 were changed from 7500 and 820 ohms to 3600
ando680 ohms, respectively, to increase the gain of the red channel.
Parts List
Symbol Was
R122 Composition; 7500 ohms ± 5%,
4 w. GE Drawing
C-3R152-P752J.
R123 Composition; 820 ohms ± 5%,
w. GE Drawing
C-3R152-P821J.
Chancred To
Composition; 3600 ohms ± 5%, 4 w.
GE Drawing C-3R152-P362J.,
Composition; 680 ohms ± 5%, ;14- w.
GE Drawing C-3R152-P681J.
13)

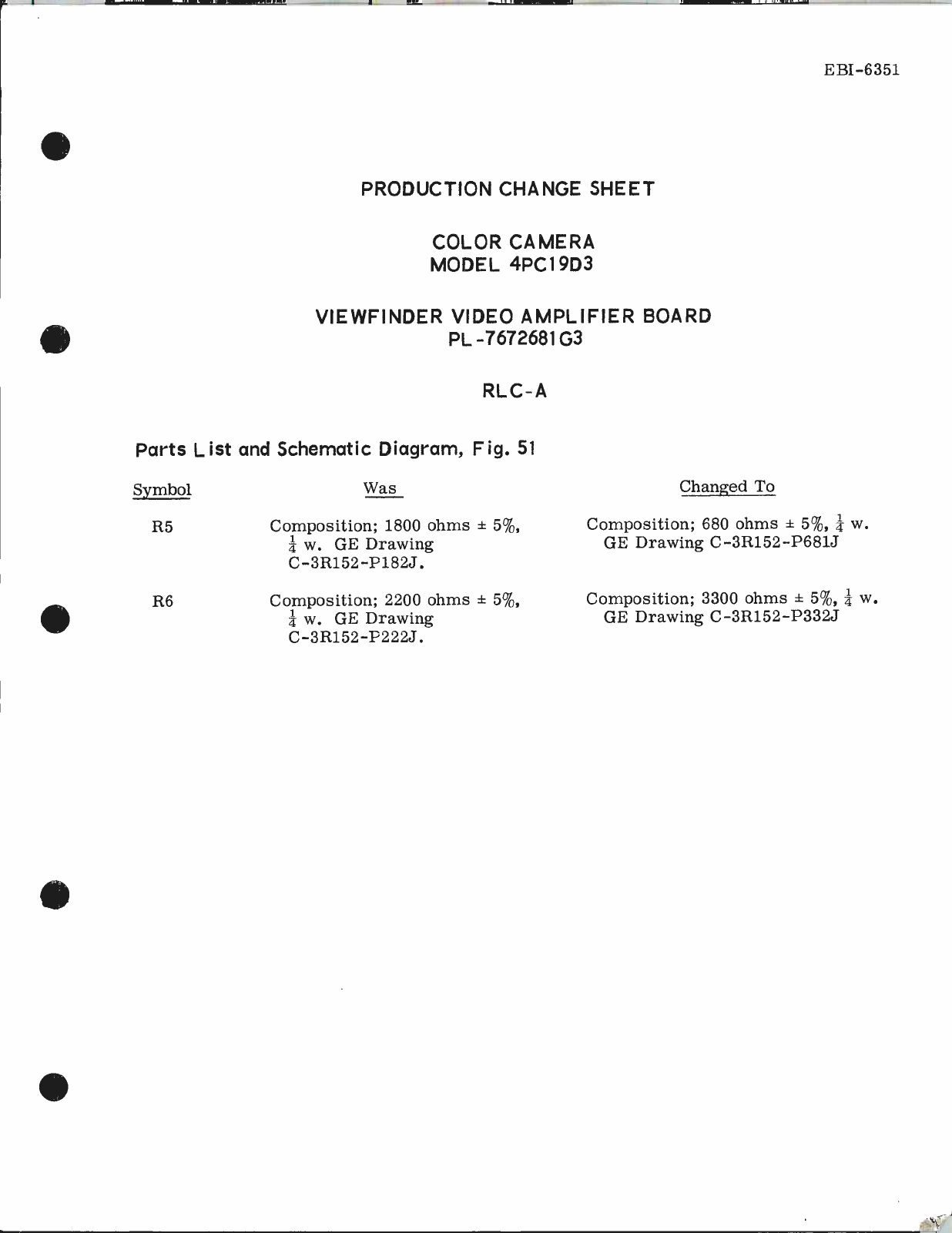

EBI-6351
PRODUCTION CHANGE SHEET
COLOR CAMERA
MODEL 4PC19D3
VIEWFINDER VIDEO AMPLIFIER BOARD
PL -7672681G3
RLC-A
Parts List and Schematic Diagram, Fig. 51
Symbol
R5
Was
Composition; 1800 ohms ± 5%,
4 w. GE Drawing
C-3R152-P182J.
R6 Composition; 2200 ohms ± 5%,
4 w. GE Drawing
C-3R152-P222J.
Changed To
Composition; 680 ohms ± 5%, 4 w.
GE Drawing C -3R152 -P6813
Composition; 3300 ohms ± 5%, 4 w.
GE Drawing C-3R152-P332J
0

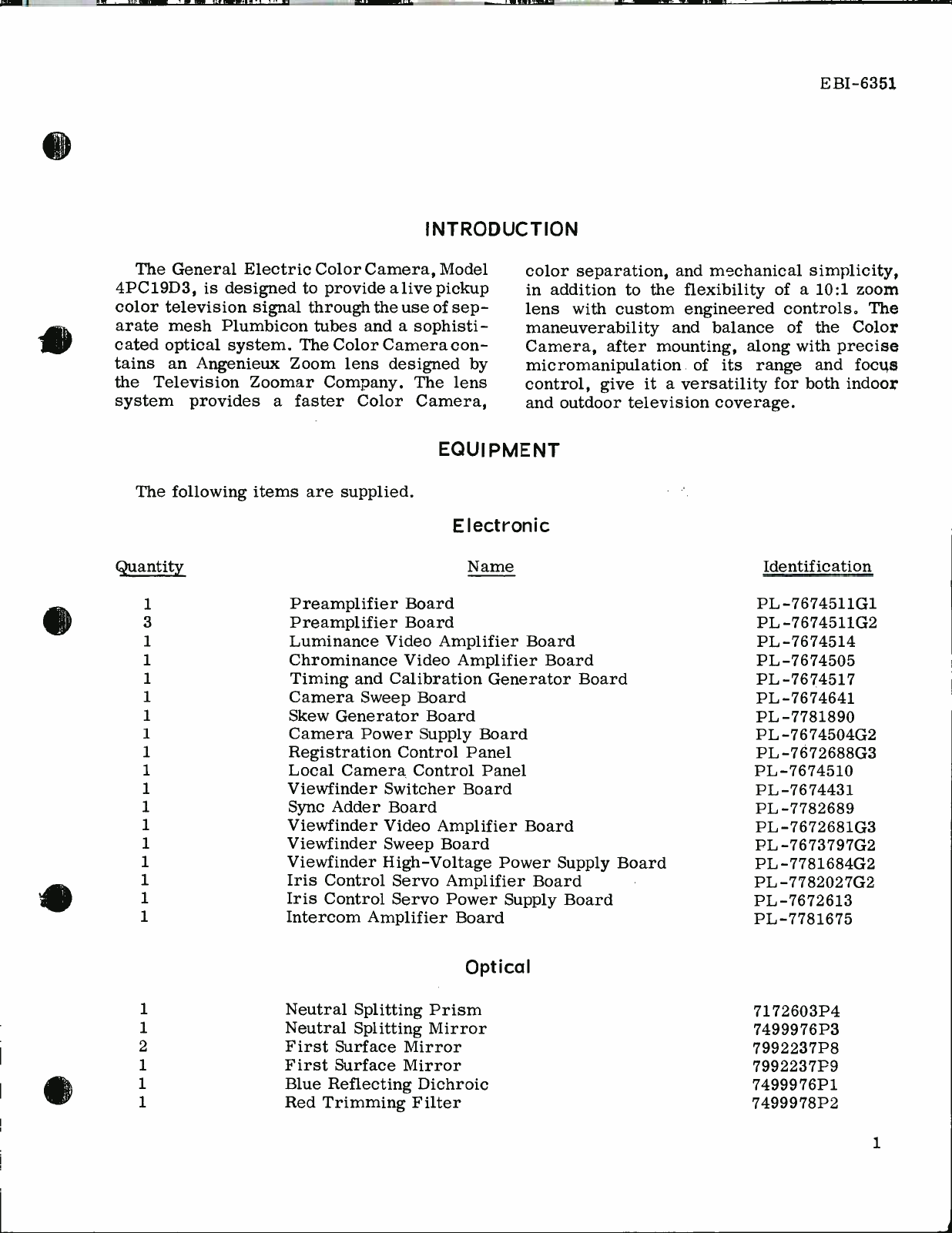

INTRODUCTION
The General Electric Color Camera, Model
4PC19D3, is designed to provide alive pickup
color television signal through the use of sep-
arate mesh Plumbicon tubes and a sophisti-
cated optical system. The Color Camera con-
tains an Angenieux Zoom lens designed by
the Television Zoomar Company. The lens
system provides a faster Color Camera,
The following items are supplied.
E BI -6351
color separation, and mechanical simplicity,
in addition to the flexibility of a 10:1 zoom
lens with custom engineered controls. The
maneuverability and balance of the Color
Camera, after mounting, along with precise
micromanipulation of its range and focus
control, give it a versatility for both indoor
and outdoor television coverage.
EQUIPMENT
Electronic
Quantity Name Identification
1Preamplifier Board PL -7674511G1
3Preamplifier Board PL -7674511G2
1Luminance Video Amplifier Board PL -7674514
1Chrominance Video Amplifier Board PL -7674505
1Timing and Calibration Generator Board PL -7674517
1Camera Sweep Board PL -7674641
1Skew Generator Board PL -7781890
1Camera Power Supply Board PL -7674504G2
1Registration Control Panel PL -7672688G3
1Local Camera Control Panel PL -7674510
1Viewfinder Switcher Board PL -7674431
1Sync Adder Board PL -7782689
1Viewfinder Video Amplifier Board PL -7672681G3
1Viewfinder Sweep Board PL -7673797G2
1Viewfinder High -Voltage Power Supply Board PL -7781684G2
1Iris Control Servo Amplifier Board PL -7782027G2
1Iris Control Servo Power Supply Board PL -7672613
1Intercom Amplifier Board PL -7781675
Optical
1Neutral Splitting Prism 7172603P4
1Neutral Splitting Mirror 7499976P3
2First Surface Mirror 7992237P8
1First Surface Mirror 7992237P9
1Blue Reflecting Dichroic 7499976P1
1Red Trimming Filter 7499978P2
1
EBI-6351
Quantity
COLOR CAMERA
Name Identification
1Green Trimming Filter 7499978F3
1Blue Trimming Filter 7499978P1
1First Relay Lens 7176463P1
2Second Relay Lens 7176463P3
1Second Relay Lens 7176463P4
1Filter, Position 1 7172908P5
1Filter, Position 2 7172908P8
1Filter, Position 3 7172908P9
1Filter, Position 4 7172908P10
1Filter, Position 5 7172908F1
1Filter, Position 6 7172908P3
1Filter, Position 7 7172908P11
1Filter, Position 8 7172908P12
TECHNICAL SUMMARY
Color Camera, Model 4PC19D3
ELECTRICAL
1. Power Input
115 volts d -c.
2. Signal Inputs
15 kHz Sine Wave:
20 volts peak -to -peak minimum.
Vertical Drive:
4.0 volts ± 0.5 peak -to -peak into
75 ohms.
3. Signal Outputs
One 51 -ohm for each channel.
MECHANICAL
1. Length
44.65 inches, including zoom lens han-
dle. Add 13 to 14 inches without the extender.
Add 15 to 16.5 inches with the 2X
extender.Add 17 to 18.5 inches with the 3X
extender.
2. Width
17.55 inches, less zoom lens handle.
3. Height
29.0 inches, including tally light and
zoom lens handle.
4. Weight
Approximately 155 pounds
OPERATING CONDITIONS
1. Maximum Room Ambient for Continuous
Operation45 C (113 F).
2. Maximum Relative Humidity
95 percent.
3. Altitude
10,000 feet.
Preamplifier Board, PL -7674511G1, G2
ELECTRICAL
1. Power Inputs
+600 volts d -c.
+100 volts d -c.
COLOR CAMERA EBI-6351
+20 volts d -c.
-20 volts d -c.
-6 volts d -c.
2. Signal Inputs
Camera Blanking:
60 volts ± 5.0 peak -to -peak.
Calibrate:
15 -kHz sawtooth, adjustable from
0.4 to 1.0 volt peak -to -peak.
Control Voltage -Beam:
Plumbicon Grid 1.
Control Voltage -Focus:
Plumbicon Grid 3.
Filament Voltage:
-6.0 volts d -c.
3. Signal Output
Typically 0.20 volt peak -to -peak into
51 ohms (luminance) and 0.30 volt peak -to -
peak into 75 ohms (chrominance).
MECHANICAL
Length: 7.00 inches
Width: 2.50 inches
Height: 1.00 inch
Luminance Video Amplifier Board,
PL -7674514
ELECTRICAL
1. Power Inputs
+20 volts d -c.
-20 volts d -c.
2. Signal Inputs
Video:
Typically 0.20 volt peak -to -peak.
Squash Pulse:
4.0 volts ± 0.5, 15 -kHz rate, 7 mi-
croseconds wide, negative going.
3. Signal Outputs
Luminance Video:
0.7 volt ± 0.1 peak -to -peak into 51
ohms.
Video Level:
0.7 volt d -c, across 100,000 ohms
(d -c metering).
MECHANICAL
Length: 9.00 inches
Width: 2.50 inches
Height: 1.00 inch
Chrominance Video Amplifier Board,
PL -7674505
ELECTRICAL
1. Power Inputs
+20 volts d -c.
-20 volts d -c.
2. Signal Inputs
Video from Red, Blue, and Green Pre-
amplifiers:Typically 0.30 volt peak -to -peak.
Squash Pulse:
4.0 volts ± 0.5, 15 -kHz rate, 7 mi-
croseconds wide, negative going.
3. Signal Outputs
Red, Blue, Green Video, Two Outputs
Each: 0.7 volt ± 0.1 peak -to -peak into 51
ohms.
Video Level (Red, Blue, and Green;
DC Metering):
0.7 volt d -c across 100,000 ohms.
3
EBI-6351 COLOR CAMERA
MECHANICAL
Length: 9.00 inches
Width: 5.25 inches
Height: 1.00 inch
Timing and Calibration Generator
Board, PL -7674517
ELECTRICAL
1. Power Inputs
+20 volts d -c.
-20 volts d -c.
28 volts a -c.
2. Signal Inputs
Camera Sine Wave:
15 -kHz sine wave, approximately 20
volts peak -to -peak.
Horizontal Blanking:
Approximately 4.0 volts peak -to -
peak.
Auxiliary Video:
Noncomposite, approximately 0.7
volt peak -to -peak.
3. Signal Outputs
Calibration Signal:
15 -kHz sawtooth, adjustable from
0.4 to 1.0 volt peak -to -peak.
To High -Voltage Power Supply:
15 -kHz sine wave, approximately 20
volts peak -to -peak.
To Camera Sweep:
15 -kHz, approximately 20 volts peak -
to -peak.
To Viewfinder Sweep:
15 -kHz sine wave, phaseable over
range of 5 microseconds.
4
Squash Pulse:
15 -kHz pulse, 4.0 volts ± 0.5 peak -
to -peak, 7 microseconds wide, negative go-
ing.
Camera Power Supply Trigger:
15 -kHz pulses, -15 to -20 volts peak -
to -peak, approximately one microsecond
wide, negative going.
Tally Light Supply:
20 volts.
MECHANICAL
Length: 9.25 inches
Width: 2.50 inches
Height: 1.25 inches
Camera Sweep Board, PL -7674641
ELECTRICAL
1. Power Inputs
+100 volts d -c.
+20 volts d -c.
-20 volts d -c.
-6 volts d -c.
-1.5 volts d -c.
2. Signal Inputs
Vertical Drive:
4.0 volts ± 0.5 peak -to -peak.
Horizontal Sine Wave:
At least 20 volts peak -to -peak.
3. Signal Outputs
Vertical Sweep:
Sweep HEIGHT control set fully CW
(clockwise), 3.0 volts peak -to -peak.
aSweep HEIGHT control setfully CCW
(counterclockwise) 5.0 volts peak -to -peak.

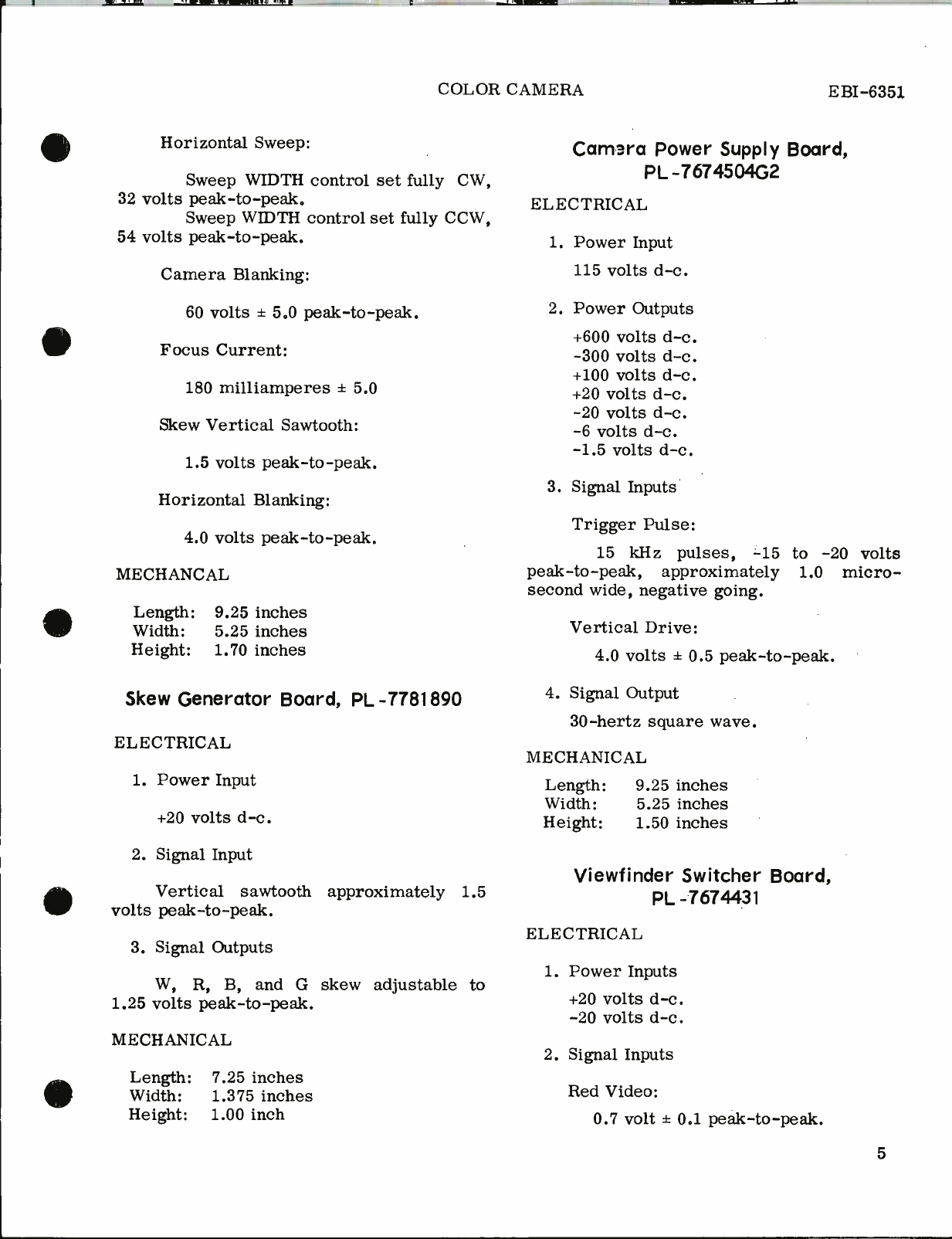

COLOR CAMERA EBI-6351
Horizontal Sweep:
Sweep WIDTH control set fully CW,
32 volts peak -to -peak.
Sweep WIDTH control set fully CCW,
54 volts peak -to -peak.
Camera Blanking:
60 volts ± 5.0 peak -to -peak.
Focus Current:
180 milliamperes ± 5.0
Skew Vertical Sawtooth:
1.5 volts peak -to -peak.
Horizontal Blanking:
4.0 volts peak -to -peak.
MECHANCAL
Length: 9.25 inches
Width: 5.25 inches
Height: 1.70 inches
Skew Generator Board, PL -7781890
ELECTRICAL
1. Power Input
+20 volts d -c.
2. Signal Input
Vertical sawtooth approximately 1.5
volts peak -to -peak.
3. Signal Outputs
W, R, B, and G skew adjustable to
1.25 volts peak -to -peak.
MECHANICAL
Length: 7.25 inches
Width: 1.375 inches
Height: 1.00 inch
Cam3ra Power Supply Board,
PL -7674504G2
ELECTRICAL
1. Power Input
115 volts d -c.
2. Power Outputs
+600 volts d -c.
-300 volts d -c.
+100 volts d -c.
+20 volts d -c.
-20 volts d -c.
-6 volts d -c.
-1.5 volts d -c.
3. Signal Inputs
Trigger Pulse:
15 kHz pulses, -15 to -20 volts
peak -to -peak, approximately 1.0 micro-
second wide, negative going.
Vertical Drive:
4.0 volts ± 0.5 peak -to -peak.
4. Signal Output
30 -hertz square wave.
MECHANICAL
Length: 9.25 inches
Width: 5.25 inches
Height: 1.50 inches
Viewfinder Switcher Board,
PL -7674431
ELECTRICAL
1. Power Inputs
+20 volts d -c.
-20 volts d -c.
2. Signal Inputs
Red Video:
0.7 volt ± 0.1 peak -to -peak.
5
EBI-6351 COLOR CAMERA
Blue Video:
0.7 volt ± 0.1 peak -to -peak.
Green Video:
0.7 volt ± 0.1 peak -to -peak.
Luminance Video:
0.7 volt ± 0.1 peak -to -peak.
Auxiliary Video:
0.7 volt + 0.1 peak -to -peak.
3. Signal Outputs
Auxiliary Monitor Output:
0.7 volt peak -to -peak into 75 ohms.
Viewfinder Output:
0.7 volt peak -to -peak.
MECHANICAL
Width:
Height:
8.00 inches
2.50 inches
0.875 inch
Sync Adder Board, PL -7782689
ELECTRICAL
1. Power Input
-20 volts d -c.
2. Signal Input
60 -volt peak -to -peak pulses (from the
viewfinder sweep board).
3. Signal Output
Typically 0.5 to 1.0 volt peak -to -peak
pulses.
MECHANICAL
Length:
Width:
Height:
6
1.90 inches
1.40 inches
1.00 inch
Viewfinder Video Amplifier Board,
PL -7672681G3
ELECTRICAL
1. Power Inputs
+100 volts d -c.
+20 volts d -c.
-6 volts d -c.
2. Signal Input
Noncomposite video signal (white posi-
tive), with an amplitude of between 0.3 and
0.7 volt peak -to -peak (adjustable with view-
finder CONTRAST control.)
3. Signal Output
Noncomposite high -impedance video
signal (white negative), with an amplitude
of 50 volts nominal peak -to -peak.
MECHANICAL
Length:
Width:
Height:
6.125 inches
2,50 inches
1.00 inch
Viewfinder Sweep Board, PL -7673797G2
ELECTRICAL
1. Power Inputs
+100 volts d -c.
+20 volts d -c.
-20 volts d -c.
-1.5 volts d -c.
2. Signal Inputs
Horizontal Sine Wave:
Greater than 20 volts peak -to -peak.
Vertical Drive:
4.0 volts + 0.5 peak -to -peak.
3. Signal Outputs
Horizontal Sweep:
Sweep WIDTH control set fully CW,
210 volts or less.
