TRASSIR TR-D7121IR1W User manual

2MP Cube wireless camera
TR-D7121IR1W
Specification
TR-D7121IR1W
1/2.7" CMOS 2MP
FullHD(1920x1080)
FullHD@25fps
1/2 ~ 1/1 000 s
Mechanical ICR
0.005Lux (F1.8)
up to 10 m
2.8
100˚±5˚ / 54˚±5˚
Real WDR (120dB)
3D DNR
Н.265+ / Н.265 / H.264+ / H.264
up to 8Mbps
MicroSD up to 128GB
Built-in microphone
Built-in speaker
Yes
Digital
2.4 Ghz
Human detection
Line crossing
Intrusion detection
12V DC
2.4 W
Plastic
60 x 32.8 x 99
85 / 280
-10°C … +50°C
Model
Image sensor
Resolution
Frame rate
Electronic shutter speed
Day/Night mode
Sensitivity
IR range
Lens (mm)
Field of view (horiz./vert.)
WDR
Digital Noise Reduction
Video compression
Bitrate
Local storage
Audio
Corridor mode
Motion detector
Wi-Fi
IVS
Power
Power consumption
Casing material
Dimensions (mm)
Net/Gross weight (g)
Working temperature 2МP
Note: read user manual before using
Website: www.trassir.com
For any inquiry: inf[email protected]
Technical support
www: helpdesk.trassir.com
mail: helpd[email protected]
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

Manual setting of network parameters
In order to connect to the IP camera, the PC should be in the same local
network as the camera. The IP address of the camera, the PC and any
other device on the network should not match.
The IP camera has the following default settings:
- IP address: 192.168.1.188
- Subnet mask: 255.255.0.0
- Gateway: 192.168.1.1
- HTTP-port: 80
- username: admin
- password: admin
PC network settings example:
- IP address: 192.168.1.10;
- Subnet mask: 255.255.0.0.
There are 3 options to set up your camera:
1. Change IP address of a camera manually.
Start your browser, connect to IP camera and enter your
username and password. Choose appropriate menu item and change
network settings of IP camera.
2. Set up camera IP address using fast configuration utility that can
be downloaded from www.trassir.com.
3. Change IP camera settings using TRASSIR professional software.
You can find detailed camera settings instructions in User Manual that
can be downloaded from trassir.com.
Introduction
Congratulations on purchasing TR-D7121IR1W IP camera.
Please read the User Manual before using the camera.
Key features
• Supports H.265 codec
• Wide Dynamic Range (Real WDR 120dB)
• IR range up to 10 m
• Built-in video archive (Edge Storage) - local recording to MicroSD card
up to 128 GB*
• Built-in microphone and speaker
• Both Wi-Fi and Ethernet video transmission
• TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, UPnP, SMTP,
NTP, PPPoE, Onvif protocols
• 12V DC power supply
___________________________
* MicroSD card is not included into camera package
Camera package
1. IP camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
2. Screw Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
3. User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
4. Mounting Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
5. Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 pc.
Attention!
The power supply should meet the following requirements: output
voltage, current, polarity, and working temperature. When using the
camera in thunderstorm conditions, make sure there is a lightning rod or
unplug the power connector.
Pay attention to the temperature requirements for IP camera operation.
Avoid using the device in excessively high or low temperatures.
Do not install the camera near heaters. Do not point the camera lens at
the sun or at bright objects as this can damage the image sensor. .
794-21.9.21
Quick start
1. Plug in power adaptor from a package. Camera will turn on in a minute.
2. Create your user account at cloud.trassir.com.
3. Download TRASSIR app for your smartphone from Google Play or
AppStore.
4. Launch TRASSIR app and sign in to your account.
5. Settings > Add camera > TRASSIR >
then follow the instructions in the application.
* IP cam's WiFi password: 12345678

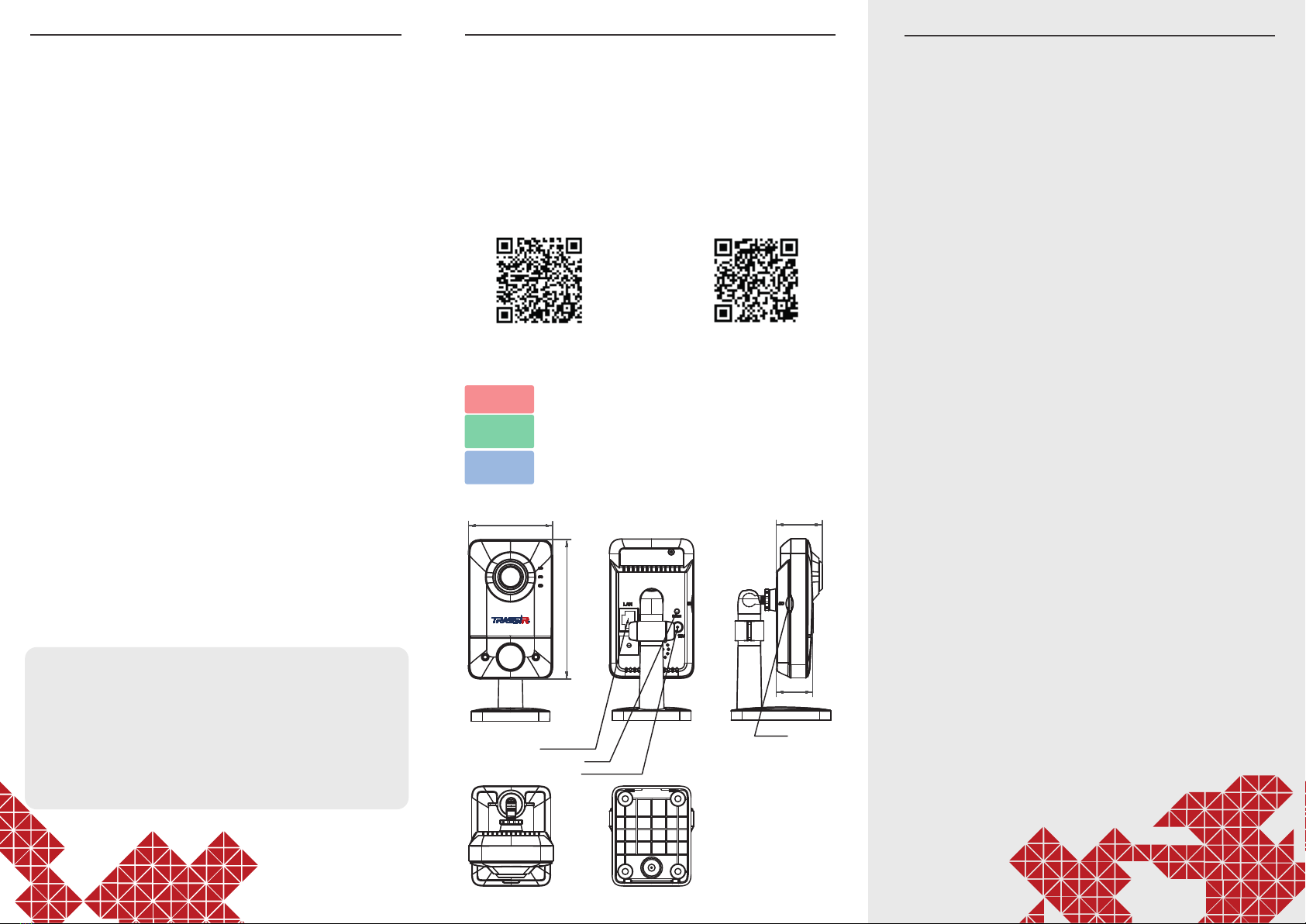

Dimensions
GooglePlayAppStore
POWER
(red)
STATUS
(green)
Flashes quickly every 0.5 seconds: camera is ready for WiFi setup
Flashes slowly every 1.5 seconds: camera is connecting to WiFi
ON: camera is connected to WiFi
ON or flashes: LAN cable is connected
OFF: LAN cable is not connected
ON: camera is powered
OFF: camera is not powered
LINK
(blue)
Camera LEDs
60
99
Network (RJ45)
Power (DC 12V)
Reset
32,8
26
microSD
