Travis Industries Fire Garden 94900432 User manual

F0
By Travis Industries, Inc.
Fire Garden™
Outdoor Linear Complete Fire Pit
Manual
48x24 Complete Fire Pit 94900432
72x24 Complete Fire Pit 94900449
10
8
x24 Complete Fire Pit 94900461
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GM127S
ANSI Z21.97-2017 /CSA 2.41-2017, CSA 2.17-2017
Outdoor Decorative Gas Appliances



DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area
immediately.
• After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
in
j
ur
y
, or death. 

WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or an
y
other appliance.
WARNING: For outdoor use only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.

WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Read the installation,
operating, and maintenance
instructions thoroughly before
installin
g
or servicin
g
this equipment.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car, or home.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
dama
g
e, personal in
j
ur
y
, or loss of life.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference
Frenchlanguagemanualsatoutdoorfiregarden.com.ManuelsdelangueFrançaiseàoutdoorfiregarden.com
Travis Industries, Inc. 12521 Harbour Reach Dr., Mukilteo, WA 98275 www.travisproducts.com
$10.00 Copyright 2022, T.I. Part # 100-01579

2 Introduction
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Overview
This manual details the installation, operation, and
routine maintenance of the Outdoor Linear Fire Pit.
Listing Details
This appliance was tested to ANSI Z21.97-2017 / CSA
2.41-2017 “Outdoor Decorative Gas Appliances”,
CSA
2.17-2017 - “Gas-Fired Appliances for Use at High

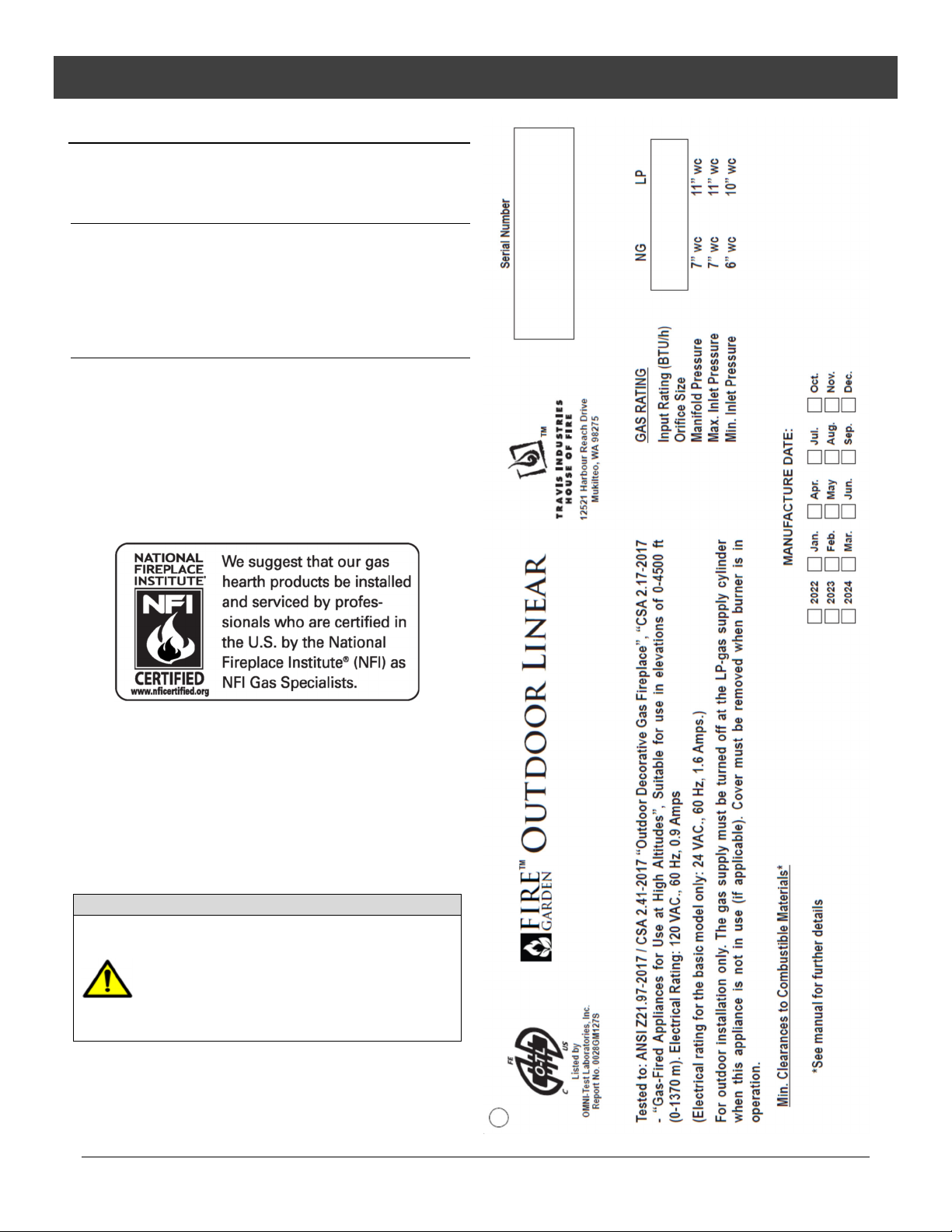

Altitudes”. The listing label is chained to the appliance.
A
cop
y
is shown to the ri
g
ht.
Important Registration & Service Info
No other appliance has the same serial number as
yours. The serial number is on the safety label attached
by a chain under the media screen. This serial number
will be needed in case you require service of any type.
To receive full warranty coverage, you will need to show
evidence of the date of purchase. Visit
traviswarranty.com to register your appliance. If any
service issues arise, contact your dealer for assistance.
National Fireplace Institute
Dealer Information
Please record your dealer information here for future
reference:
Dealer Name: _________________________________
Dealer Address: _______________________________
Dealer E-Mail: _________________________________
Dealer Phone #________________________________
CALIFORNIA RESIDENTS

WARNING: This product can expose you to
chemicals including Carbon Monoxide and
Benzene, which are known to the State of
California to cause cancer, birth defects, or
other reproductive harm. For more
information go to
www.P65Warnin
g
s.ca.
g
ov.

Table of Contents 3
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Overview........................................................................ 2
Listing Details ................................................................ 2
Important Registration & Service Info............................ 2
Safety Precautions ........................................................ 4
Features:........................................................................ 5
Installation Options: ....................................................... 5
Electrical Specifications:................................................ 5
Appliance Weight:.......................................................... 5
Gas Specifications:........................................................ 5
Linear Fire Pit Dimensions: ........................................... 6
Installation Warnings: .................................................... 7
Recommended Order of Installation.............................. 8
Packing List ................................................................... 8
Additional Items Required ............................................. 9
Weatherproofing the Installation.................................... 10
Appliance Placement Requirements ............................. 10
Clearances..................................................................... 11
Enclosure Ventilation Requirements ............................. 12
Gas Line Requirements................................................. 13
LP Conversion ............................................................... 14
Electrical Connection Requirements ............................. 15
24VAC Transformer.................................................. 15
Installation Details ......................................................... 16
Using More than One 24-volt Appliance........................ 21
Wiring Multiple Transformers to One Switch ................. 21
Wiring Multiple Appliances to One Transformer............ 22
Daisy-Chain Example ............................................... 22
Direct-Run Example.................................................. 22
Daisy-Chain Wire Length Chart..................................... 23
Direct-Run Wire Length Chart ....................................... 24
Wiring Examples:........................................................... 24
Daisy-Chain Installations: ......................................... 24
Direct Run Installations:............................................ 24
Steps for Finalizing the Installation................................ 25
Crushed Glass Installation ............................................ 25
Rock Ember Installation................................................. 26
Tumbled Stone Installation............................................ 27
Assembling the Glass Wind Guard ............................... 28
Assembling the Glass Wind Guard (48” & 72” units) .... 28
Assembling the Glass Wind Guard (108” units) ............ 29
Before the First Fire....................................................... 32
Operating Instructions ................................................... 32
Location of Controls....................................................... 33
Maintaining Your Appliance........................................... 34
Accessing Components................................................. 35
Removing the Media Trays....................................... 35
Accessing the Pressure Tap..................................... 36
Removing the Burner................................................ 36
Accessing Pilot Components .................................... 36
Winterizing the Appliance.............................................. 37
Yearly Service Procedure.............................................. 37
Replacement Parts List ................................................. 38
Troubleshooting Table................................................... 39
Wiring Diagram.............................................................. 41
Index.............................................................................. 44

4Safety Precautions
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Safety Precautions
! This appliance must be installed in
accordance with all local codes if any; if
not, follow ANSI Z223.1.
! This appliance must only be used outdoors
in a well-ventilated area. It may not be used
in a building, garage, or other enclosed
space.
This appliance is not for use with solid fuel.
The appliance must be kept clean and free of
leaves and debris to ensure safe operation.
Any hose or gas supply line that is damaged or
shows evidence of excessive abrasion or wear
must be replaced prior to use of the appliance.
If using a gas supply line to the appliance, make
sure it is properly located away from any walkway
or in an area where it may be subject to accidental
damage.
Educate all children and adults about the dangers
of the appliance. Young children should be
supervised when they are in the same area as the
appliance. Do not let children play with the
appliance.
Do not place clothing or other flammable items on
or near the appliance.
Any screen or guard removed for servicing must
be replaced prior to operating the appliance.
This unit must be installed and repaired by a
qualified installer to prevent the possibility of an
explosion. Your dealer will know the requirements
in your area and can inform you of those people
considered qualified. The appliance should be
inspected before use and at least annually by a
qualified service person. More frequent cleaning
may be required due to excessive debris from
leaves, dirt, insects, etc.
Do not use this appliance if any part has been
underwater. Immediately call a qualified service
technician to inspect the appliance and replace
any part of the control system and any gas control
that has been underwater.
The instructions in this manual must be strictly
adhered to. Do not use makeshift methods or
compromise in the installation. Improper
installation will void the warranty and safety listing.
This appliance is approved for either natural gas
(NG) or propane (LP). Burning the incorrect fuel
will void the warranty and safety listing and may
cause an extreme safety hazard. Direct questions
about the type of fuel used to your dealer. A label
is placed on the control panel to show which fuel
the appliance is designed for.
Contact your local building officials to obtain a
permit and information on any installation
restrictions or inspection requirements in your
area.
If the flame becomes sooty, dark orange in color,
or extremely tall, do not operate the appliance.
Call your dealer and arrange for proper servicing.
Do not operate the appliance if it is not operating
properly in any fashion or if you are uncertain.
Call your dealer for a full explanation of your
appliance and what to expect.
Do not store or use gasoline or other flammable
liquids in the vicinity of this appliance.
Never remove, replace, modify, or substitute any
part of the appliance unless instructions are given
in this manual for routine maintenance and
cleaning. A trained technician must do all other
work. Do not modify or replace orifices.
Allow the appliance to cool before carrying out any
maintenance or cleaning.
Operate the appliance according to the
instructions included in this manual.
If the burner does not start correctly turn the gas
off at the gas control valve and call your dealer for
service.
Do not use this appliance to cook food.
Instruct everyone in the house on how to shut the
gas off to the appliance and at the gas main
shutoff valve. The gas main shutoff valve is usually
next to the gas meter or propane tank and requires
a wrench to shut off.
Do not operate the appliance during a lightning
storm or a possible lightning storm.
Do not operate the appliance during high wind
conditions.
Do not install in or on recreational vehicles and/or
boats.
Do not throw this manual away. This manual has
important operating and maintenance instructions
that you will need at a later time. Always follow
the instructions in this manual.
Travis Industries, Inc. grants no warranty,
implied or stated, for the installation or
maintenance of your appliance, and assumes
no responsibility for any consequential
damage(s).

Features and Specifications 5
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Features:
- Electronic Ignition (switch turns appliance on or off)
-Tempered glass wind guard
-Stainless Steel Construction
-Automatic Gas Shutoff Valve for Safety
Installation Options:
-For Outdoor Installation Only
-For Fixed Gas Line Installations Only
Electrical Specifications:
24 VAC., 60 Hz, 1.6 Amps.
Appliance Weight:
48x24
Complete Fire Pit 125 lbs (56.7 kg)
72x24
Complete Fire Pit 175 lbs (79.4 kg)
108x24
Complete Fire Pit 260 lbs (117.9 kg)
Gas Specifications:
All Fire Pits
Gas Pressures NG LP
Manifold Pressure 7" wc 11" wc
Max. Inlet Pressure 7" wc 11" wc
Min. Inlet Pressure 6" wc 10" wc
48x24
Fire Pit
Input Rating NG LP
Input Rating (BTU/h) 65,000 65,000
Orifice Size (DMS) (1) - #29 (1) - #41
72x24
Fire Pit
Input Rating NG LP
Input Rating (BTU/h) 120,000 120,000
Orifice Size (DMS) (2) - #30 (2) - #43
108x24
Fire Pit
Input Rating NG LP
Input Rating (BTU/h) 185,000 185,000
Orifice Size (DMS) (2) - #30
(1) - #41
(2) - #43
(1) - #41


6 Features and Specifications
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Linear Fire Pit Dimensions:
48x24 Fire Pit
72x24 Fire Pit

Features and Specifications 7
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
108x24 Fire Pit

Installation Warnings:
! This appliance is designed for outdoor use only, in well-ventilated areas.
! Failure to follow all the requirements may result in property damage, bodily injury, or
even death.
! This appliance must be installed by a qualified installer.
! This appliance is designed to operate on natural gas, or propane (LP).
! This appliance requires a switched, 110v AC, GFCI (ground-fault circuit interrupter)
protected power supply. This circuit provides power to the 24v AC transformer.
! Notify your insurance company before hooking up this appliance. All relevant
information on the appliance is located on page 2, Important Information. You provide
them page 2.
! The requirements listed below are divided into sections. All requirements must be met
simultaneously. The order of installation is not rigid – the qualified installer should
follow the procedure best suited for the installation.

8Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Recommended Order of Installation
1. CAREFULLY PLAN THE INSTALLATION. Determine the location of the Linear Fire Pit and the controls
Make sure all clearances are met, (see page 11).
2. Supply Gas: The appliance requires:
65,000 BTU input (natural gas or LP) for a 48x24 Fire Pit
120,000 BTU input (natural gas or LP) for a 72x24 Fire Pit
185,000 BTU input (natural gas or LP) for the 108x24 Fire Pit
A 34-inch flex line and 3/4" MPT (male pipe thread) x flare fitting adapter are provided to assist connection
from the supply line to the appliance valve. Before turning the gas on to the appliance, leak-test all gas line
connections. Convert the appliance to LP gas if applicable.
3. Supply Electrical:The appliance uses 24VAC power and draws approximately 1.6 amps - Make sure the
circuit and wiring are appropriately sized (see diagrams starting on pg. 21.). If multiple appliances are
powered through a single switch the control modules for each of the individual appliances may be daisy-
chained together. Make sure to leave slack in the electrical line so the appliance or linear burner tray can be
removed for service.
4. Bleed the gas line and start the appliance by switching on the electrical power to the control module. Leak test
the gas lines. Verify the appliance works correctly and there are no gas leaks.
5. Finalize the installation. Install the enclosure facing, glass wind guard, and crushed glass or stone media.
6. Give the manual to the homeowner and explain the operation of the appliance.
Packing List
Glass Wind Guard, mounting brackets, and set screws.
48” & 72” Pit - (2) ends and (2) sides
108” Pit – (2) ends, (2) sides with logos, and (2) sides without logos
LP Conversion Kit - see “LP Conversion” on page 14 for details.
Wall Switch and wall switch cover.
3” gas shutoff key.

Installation (qualified installers only) 9
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Additional Items Required
Gas Line Equipment.
24volt transformer – (sku# 94800830)
Low voltage wire (from transformer to appliance)
High voltage wire (from house circuit to transformer)
Weatherproof enclosure for wall switch (only needed if the switch is to be installed outdoors).
Media (Crushed Glass, Ember Rock, or Tumbled Stones)
Travis Industries offers the following Crushed Glass Options:
Platinum sku# 94500580 Cobalt sku# 94500582
Bronze sku# 94500581 Black sku# 94500583
NOTE: The part numbers above are for 10 lbs. of crushed glass so make sure to order the appropriate number of
boxes of the desired part number (see chart below).
Appliance Amount of Media needed # of boxes needed
48x24 Fire Pit 15 lbs. (6.8kg) 2
72x24 Fire Pit 25 lbs. (11.34kg) 3
108x24 Fire Pit 35 lbs. (15.9kg) 4
Travis Industries offers the following Ember Rock Option:
Rock Embers - Small sku# 94500987
Rock Embers - Large sku# 94500988
NOTE: The part numbers above provide 10lb bags of media for each size respectively. Make sure to order the
appropriate number of boxes for the appliance (see chart below).
Appliance Amount of Media needed # of 94500987
needed
# of 94500988
needed
48x24 Fire Pit 5 lbs. (2.27 kg) small & 10 lbs. large (4.54 kg) 1 1
72x24 Fire Pit 10 lbs. (4.54 kg) small & 20 lbs. large (9.07 kg) 1 2
108x24 Fire Pit 15 lbs. (6.8 kg) small & 30 lbs. large (13.6 kg) 2 3
Travis Industries offers the following Stone Option:
Tumbled Stone - Small sku# 94500985
Tumbled Stone - Large sku# 94500986
NOTE: The part numbers above provide 10 lbs. of small and 20 lbs. of large Tumbled Stone respectively. Make
sure to order the appropriate number of boxes for the appliance (see chart below).
Appliance Amount of Media needed # of 94500985
needed
# of 94500986
needed
48x24 Fire Pit 30 lbs. (13.61 kg) small & 20 lbs. large (9.07 kg) 3 1
72x24 Fire Pit 50 lbs. (22.68 kg) small & 20 lbs. large (9.07 kg) 5 1
108x24 Fire Pit 80 lbs. (36.29 kg) small & 40 lbs. large (18.14 kg) 8 2

10 Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Weatherproofing the Installation
This appliance is designed to withstand being installed outdoors in the elements; however, the enclosure will need
to be designed and constructed to withstand the same. The builder must provide a means for water to escape the
enclosure that is appropriate and specific to the site of the installation. This may necessitate improving ground
drainage, the fabrication of a drain pan, the creation of weep holes in the base of the enclosure, or building a roof
over the appliance (covers over the appliance must meet all the requirements detailed in this manual).
Appliance Placement Requirements
! For Outdoor Use Only. Install in well-ventilated areas.
WARNING
The appliance is considered to be “outdoors” if installed with shelter no more inclusive than:
Walls on all sides, but with no overhead cover.
Within a partial enclosure that includes an
overhead cover and no more than two sidewalls.
The sidewalls may be parallel, as in a breezeway,
or at right angles to each other.
Within a partial enclosure that includes an
overhead cover and three sidewalls, as long as 30
percent or more of the horizontal periphery of the
enclosure is permanently open.
The appliance must be installed on a level surface capable of supporting the appliance's weight.
The appliance must be placed directly on wood or non-combustible surface.
The appliance should be located out of traffic and away from furniture and draperies.
The distance from the top of the burner to a ceiling above the appliance must be a minimum of 65" (1651mm) for
a 48x24 or 72x24 appliance, or 75" (1905mm) for a 108x24 appliance.
Do Not Locate the Appliance:
In high traffic areas.
Under or near trees, plants, and buildings where debris may constantly fall into the appliance. Excessive debris
will require high maintenance and/or cause malfunctioning of the appliance.
In places where people, children, and pets may contact the appliance. Guards or fences around the appliance in
these locations are recommended.
In places where the controls beneath the appliance may be submerged underwater. Submerging any part of its
controls may require the complete replacement of the controls.

Installation (qualified installers only) 11
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits

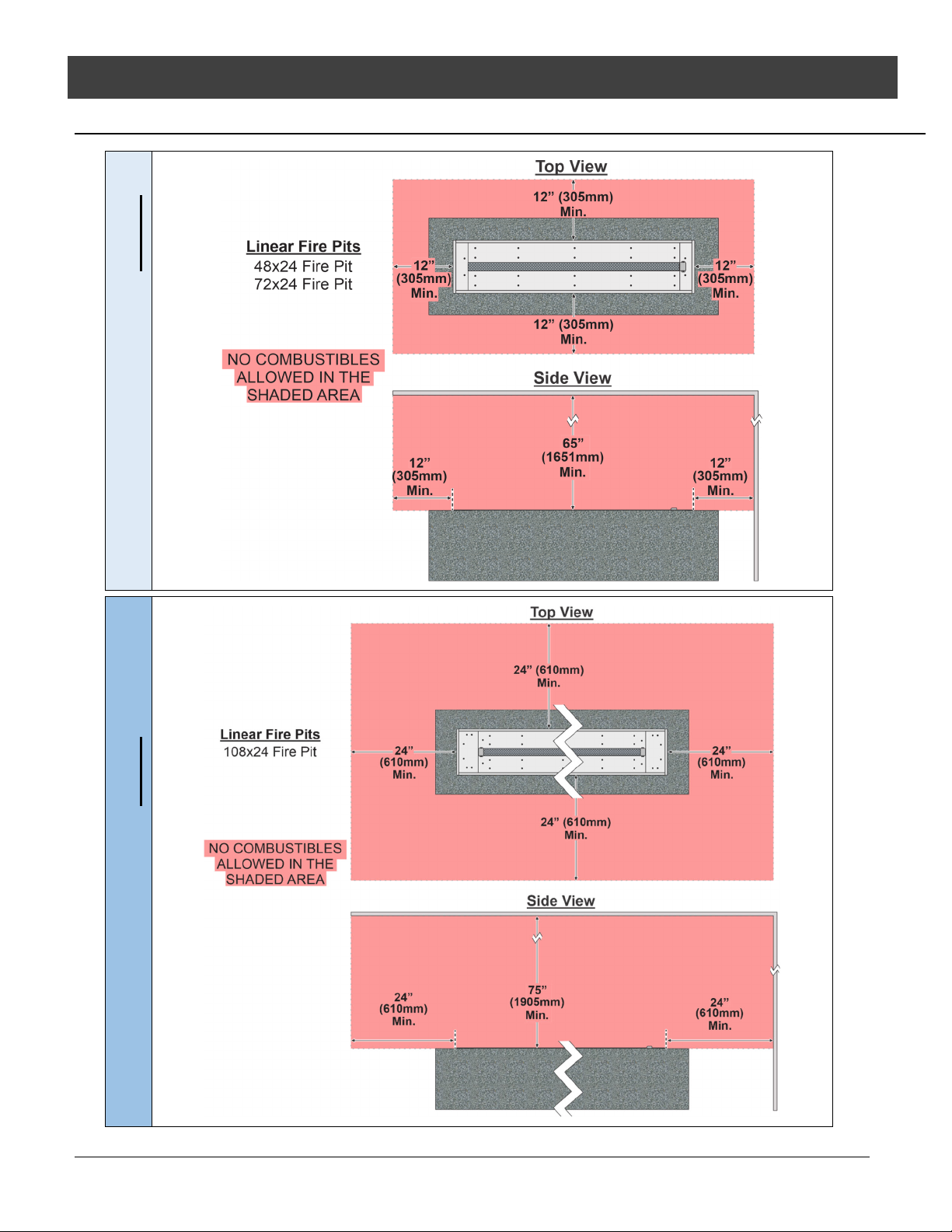

Clearances
48x24 & 72x24 Fire Pits ONLY

108x24 Fire Pit ONLY

12 Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Enclosure Ventilation Requirements
The fire pit enclosure must be ventilated to properly cool the fire pit (see illustration below for details).
WARNING
The enclosure must be ventilated in accordance with the requirements listed below to allow the appliance
to cool. Failure to provide this ventilation will create a severe fire risk.
Enclosure Ventilation Overview
The fire pit enclosure rests on adjustable leveling legs that provide a minimum 1/2" gap on the bottom of the
enclosure. This 1/2" minimum gap must be maintained to provide cooling air to the appliance components.
Failure to maintain the gap will create a severe fire risk and will void the appliance warranty.
The height of the leveling legs can be adjusted by turning the leveling leg foot. The legs will adjust from 1/2"
to 1"


Installation (qualified installers only) 13
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH
OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
Flexible connector must not be longer than 36 inches.
Shutoff must be a “T” handle gas cock.
Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.
A carbon monoxide (CO) detector is required in the same room as the appliance.
! The gas line must be installed in accordance with all local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, International Fuel Gas Code, Natural Gas, and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, as applicable. Consult your local gas supplier or propane gas dealer for code
regulations and recommended procedures.
! The appliance and gas control module must be disconnected from the gas supply piping during any pressure testing of that
system at test pressures in excess of 1/2 psig. For pressures less than 1/2 psig, isolate the gas supply piping by closing the
manual shut-off valve.
! Leak test all gas line joints and the gas control valve prior to and after starting the appliance.
Gas Line Connection
Installation must be performed by a qualified installer, service agency, or the gas supplier (In Massachusetts a licensed
plumber/gasfitter).
An accessible manual gas shutoff valve is required on the gas supply to the appliance and must be installed upstream
of the appliance gas valve. Check with the local authority having jurisdiction for any additional requirements. A key
valve is supplied and installed on the enclosure.
The supply regulator (the regulator that attaches
directly to the residence inlet or the propane
tank) should supply gas at the required input
pressure detailed in the section “LP Conversion”
on page 5. Contact the local gas supplier if the
regulator is at an improper pressure.

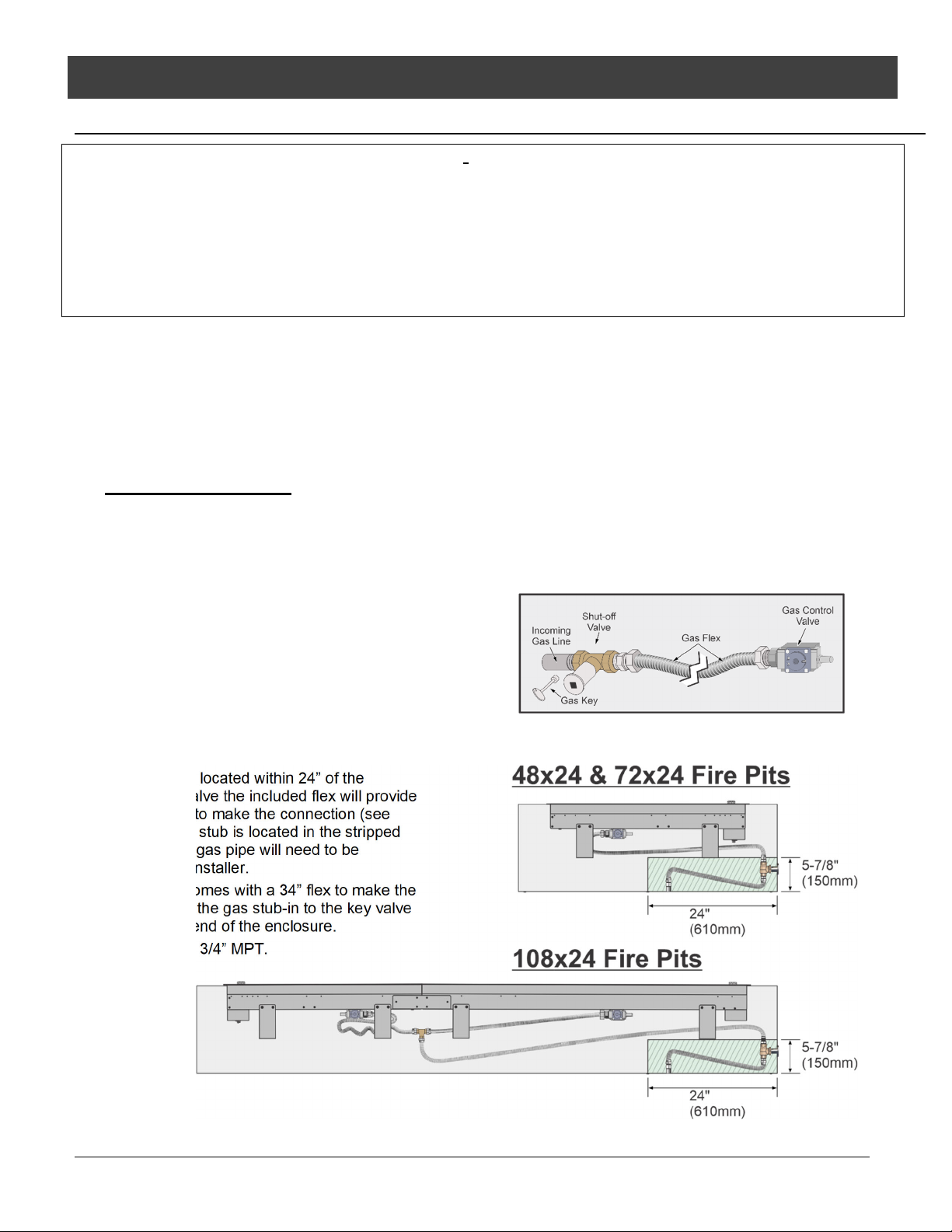

The gas should be stubbed into the area under
the appliance indicated by the shaded boxes
(see diagrams to the right and below).
If the gas stub is located within 24” of the
appliance gas valve the included flex will provide
sufficient length to make the connection (see
right). If the gas stub is located in the stripped
areas additional gas pipe will need to be
supplied by the installer.
The appliance comes with a 34” flex to make the
connection from the gas stub-in to the key valve
installed on the end of the enclosure.
The flex accepts 3/4” MPT.



14 Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
LP Conversion
The appliance is configured for NG gas from the factory but comes with a kit to convert the unit from natural gas to
propane
The LP conversion kit contains:
Qty. Size
48x24 Fire Pit (1) #41
72x24 Fire Pit (2) #43
108x24 Fire Pit (2)
(1)
#43
#41
WARNING
This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s
instructions and all applicable codes and requirements of the authority having jurisdiction. If the
information in these instructions is not followed exactly, a fire, explosion, or production of carbon
monoxide may result causing property damage, personal injury, or loss of life. The qualified service
agency is responsible for the proper installation of this kit. The installation is not proper and complete
until the operation of the converted appliance is checked as specified in the manufacturer’s instructions
supplied with the kit.
Remove the glass
wind guard and
glass media (if
already installed).
Remove the
media trays (see
“Removing the
Media Trays”
section on page
35)
Convert the
appliance using
the instructions to
the right.

Installation (qualified installers only) 15
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Electrical Connection Requirements
! The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence
of local codes with the National Electrical Code, ANSI/NFPA 70; or the Canadian Electrical Code, CSA C22.1
! The electrical line must be installed by a qualified installer and must meet all local codes. Consult your local
building official for code regulations and recommended procedures.
! The 24VAC transformer may require a circuit protected by a GFCI (see local building codes).
! Use a transformer to convert 120VAC power to 24VAC power for the appliance. Supply the transformer with
120VAC at approximately 0.9 amps - make sure the circuit and wiring is appropriately sized. The power supply
must be routed through a switch to turn the appliance on and off (see pg. 41). Multiple Travis Industries, Inc.
24-volt appliances may be placed on a single circuit. Each appliance uses 24VAC at approximately 1.6 amps -
Make sure the circuit and wiring is appropriately sized (see diagrams starting on pg. 21.). If multiple
appliances are powered through a single switch the control modules for each of the individual appliances may
be daisy-chained together.
24VAC Transformer
This appliance must be used with a 24VAC switched circuit. The transformer is sold separately.
Travis Industries offers the following transformer:
-- sku# 94800830 (120v input only with 24v, 26v, and 28v output leads). See the instruction sheet
included with the transformer for details.
See the overview to the right. Consult the
instruction sheet that comes with the
transformer for details.


16 Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Installation Details
We recommend outdoor-suitable electrical connectors (silicone-filled wire connectors, dielectric grease,
etc.) on the power-in connections to the control module to prevent corrosion.

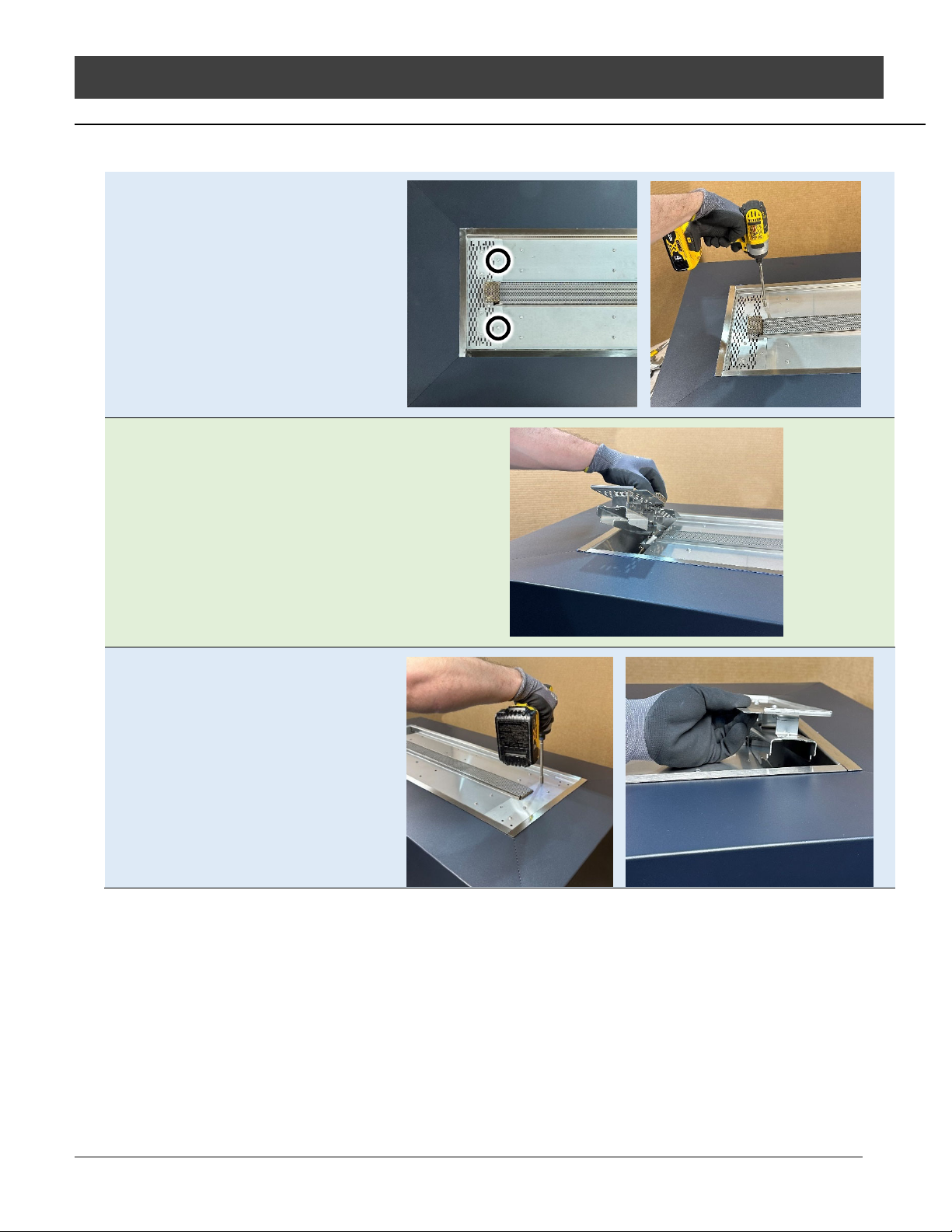

Remove the (2) 1/4" screws that
secure the media tray ends to the
media tray sides (set aside for
reinstallation). Remove the media
tray end with the pilot cover
attached.

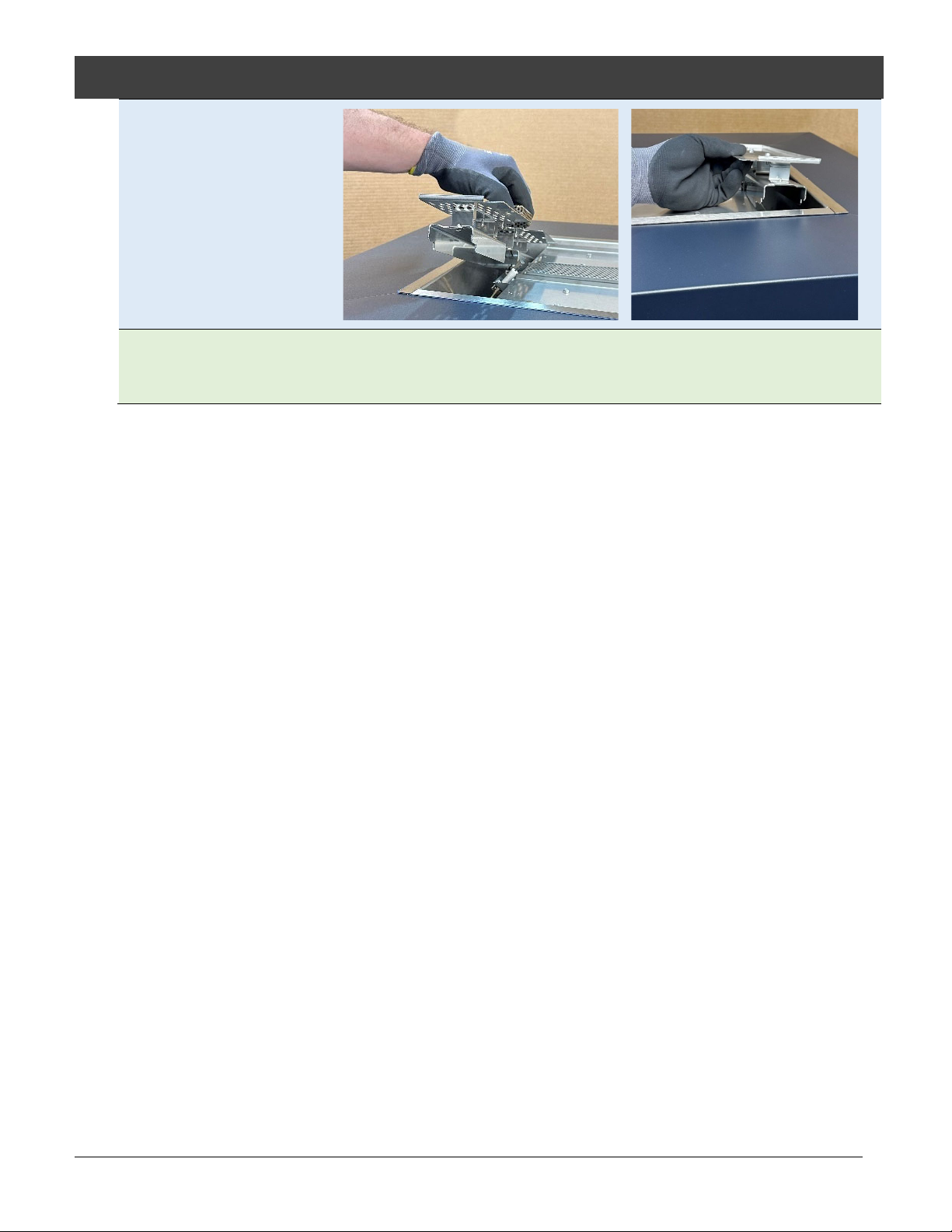

Lift the media tray end and set it
aside for reinstallation
Repeat the previous (2) steps
with the other end media tray.

Installation (qualified installers only) 17
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits

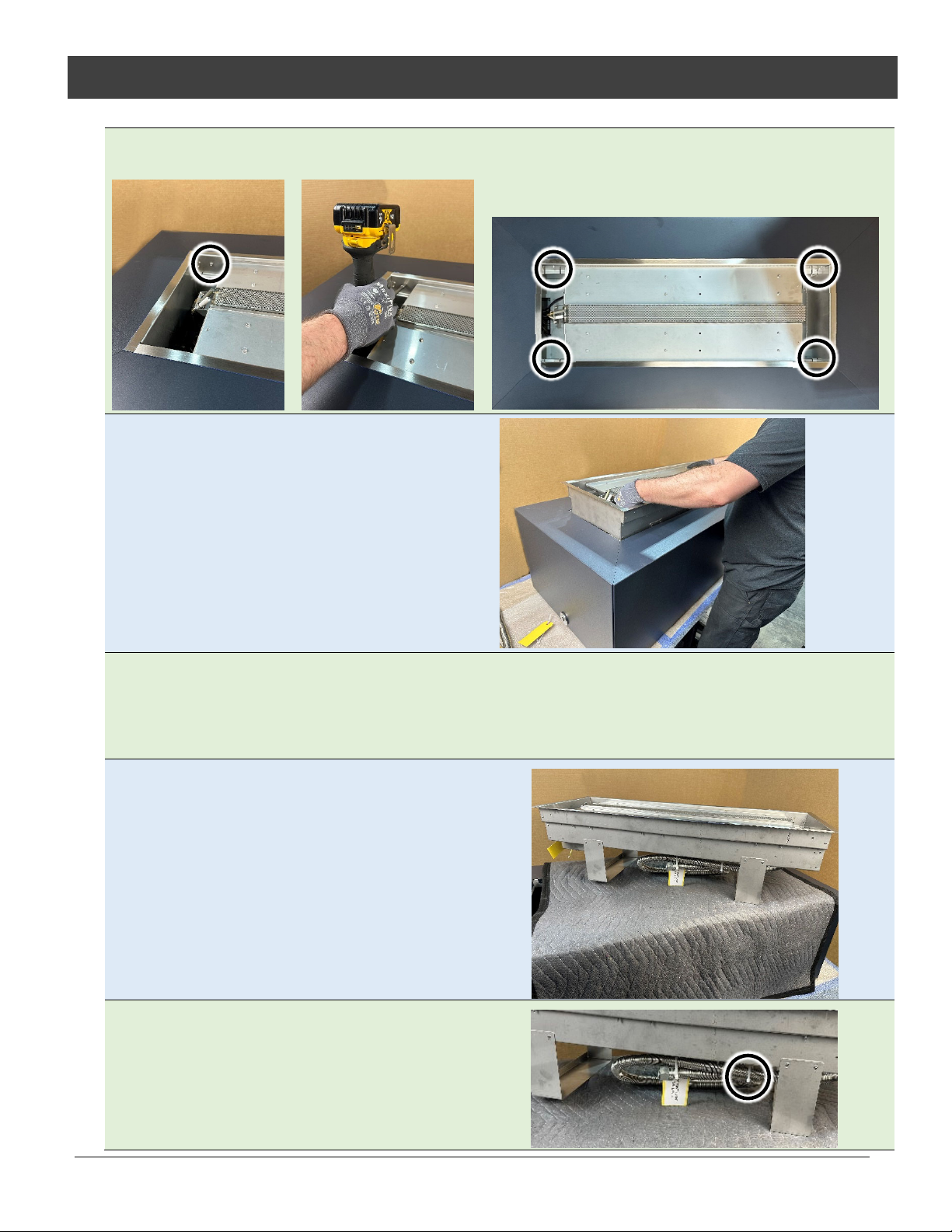

There are (4) screws that secure the burner tray to the enclosure (see pictures below). Use a 1/4” driver to
remove the screws. Set the screws aside for reinstallation.
Grab the burner assembly by the media trays
on either end. Lift the burner assembly out of
the enclosure.
Set the firepit enclosure over the incoming gas supply and low voltage electrical supply wires from the
required 24v transformer.
Spread a blanket or cardboard over the top of
the enclosure to protect the powder coat finish
and rest the burner assembly on the blanket
diagonally over the opening of the enclosure
that you lifted it out of.
•Cut the zip ties that secure the coiled up gas flex
line on the burner tray assembly and the coiled up
flex line attached to the key valve on the firepit
enclosure.

18 Installation (qualified installers only)
© Travis Industries, Inc. 6/14/23 - 1579 Outdoor Complete Linear Fire Pits
Connect the gas flex from the key valve (preinstalled
on the inside of the enclosure) to the incoming gas
supply line.
Connect the Gas flex from the burner assembly to
the pre-installed key valve.
NOTE: Leak test all joints before putting the firepit into
service.
108x24 Fire Pit ONLY
With the 108X24 fire pit only, the installer must install the gas “tee” fitting as well as the flex from the tee to the key
valve (see illustration below). The tee and flex are included and shipped in the applinace hardware pack. Make
sure to leak test these connections.
Route the wires from the 24VAC transformer up through the opening in
the enclosure and through the strain relief on the bottom of the electrical
junction box (below the igniter). Use listed low voltage wiring. Make sure
to provide slack in the wire for removal and service. Use wire nuts to
connect the low voltage wires to the white and yellow/white striped wires
from the control module.

Installation (qualified installers only) 19
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Use wire nuts to
connect the wires from
the 24VAC transformer
to the yellow and the
yellow/white striped
wires on the control
module (polarity does
not matter for this
connection). When the
connections are secure,
coil the wires and push
them back into the
electrical box.
Set the burner assembly into the
enclosure. Take care not to scratch the
powder coat on the enclosure.
Reinstall the screws that secure the burner
assembly into the enclosure.
Make sure wires are in the
electrical box under the burner tray.
This will ensure they do not touch
anything hot.

20 Installation (qualified installers only)
© Travis Industries, Inc. 5/15/23 - 1579 Outdoor Complete Linear Fire Pits
Reinstall the end media
tray covers and secure
them to the appliance
with the screws removed
earlier.
The appliance uses approximately 40 watts during startup (1.6 amps at 24 VAC). Make sure the circuit
and wires are sized appropriately. The appliance requires a minimum of 22 VAC to operate (if the
voltage drops below this, the appliance may not start).

