HAMPTON BAY GFT-31802 User manual

THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Gas Fire Pit Table
1-800-841-1350
HOMEDEPOT.COM
CUS
R
DANGER ·FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP- GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT THE LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING ·FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE THE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
from the cylinder and call the Fire Department.
Do not attempt repairs.
,
Caution your LP-gas supplier to:
Be certain the cylinder is purged of trapped air prior to
LP-gas is heavier than air and may settle in low places
when dissipating.
Contact with the liquid contents of the cylinder will cause
freeze burns to the skin.
Do not allow children to tamper or play with the cylinder.
When not connected for use, keep the cylinder valve
turned off. Self contained appliances shall be limited to a
cylinder of 30 lb capacity or less.
Do not use, store or transport the cylinder where it would
be exposed to high temperatures. The relief valve may
When transporting, keep the cylinder secured in an upright
position with the cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER.Do not store a spare LP cylinder under or near a barbecue grill, or other
serious injury may occour.
WHEN CONNECTING FOR USE:
Use only in compliance with applicable codes.
Read and follow the manufacturer’s instructions.
Consult the manufacturer’s instructions
concerning the cylinder connection provided
with your appliance.
Be sure the regulator vent is not pointing up.
Turn off all the valves on the appliance.
Do not check for gas leaks with a match or open
Open the cylinder valve. If bubbles appear, close
the valve and have an LP-gas service person
make any needed repairs. Also, check the
appliance valves and connections to make sure
they do not leak before lighting the appliance.
Light the appliance(s) following the
manufacturer’s instructions.
When the appliance is not in use, keep the
cylinder valve closed.
X
X
X
X
X
Cylinder
Pressure relief valve
Cylinder valve hand wheel
Point of connection
Liquid level indicator
(optional)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Item #1006 351 087
Model #GFT-31802
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

2
Table of Contents
Read the instructions before use. This appliance must be installed in accordance with such regulations as are enforced.
Table of Contents ..........................................
..........................2
Safety Information......
.........................................................2
Warranty............................................................................ 5
What is Covered..............................................................5
What is Not Covered.........................................................5
Pre-Assembly........……………………...……………………. 5
Planning Assembly......
.....................................................5
Tools Required......
...........................................................5
Hardware Included......
..................................................... 5
Package Contents........................................................... 6
Assembly......………………………………………………….7
Operating Instructions ......................................................... 11
Maintenance.......................................................................14
Care and Cleaning...............................................................14
Troubleshooting.................................................................. 15
Service Parts..................................................................... 16
Safety Information
CAUTION:
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
DANGER:
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or re
department.
Failure to follow these instructions could result in re or
explosion, which could cause property damage, personal
injury, or death.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car or home.
WARNING:
FOR YOUR SAFETY:
If the information in this manual is not followed exactly, a
personal injury or loss of life.
Do not try to light this appliance without reading the
“LIGHTING” instructions section of this manual.
WARNING: FOR OUTDOOR USE ONLY!
installer, service agency, or the gas supplier.
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal
injury, or loss of life. Read the installation, operating, and
maintenance instructions thoroughly before installing or
servicing this gas appliance.
WARNING: Do not store or use gasoline, or other
any other appliance. An LP-gas cylinder not connected
for use shall not be stored in the vicinity of this or any
other appliance.
DANGER
□
□
□
□
Extinguish any open ame.
ammable vapors and liquids, in the vicinity of this or
re or explosion may result causing property damage,
Installation and service must be performed by a qualied

3
Safety Information (continued)
You must provide the propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling of Liqueed
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never
use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation (D.O.T)
Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve.
Do not store a spare LP gas cylinder under or near this appliance.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN
EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND
CAUSE BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.
ADVERTENCIA: LOS COMBUSTIBLES USADOS EN EQUIPOS PARA LICUAR GAS PROPANO, ASÍ COMO LOS PRODUCTOS DE SU
COMBUSTIÓN, PUEDEN EXPONERTE A SUSTANCIAS QUÍMICAS, ENTRE ELLAS EL BENCENO, QUE EL ESTADO DE CALIFORNIA
RECONOCE COMO CAUSA DE CÁNCER Y DE MALFORMACIONES CONGÉNITAS Y OTROS DAÑOS AL SISTEMA REPRODUCTOR.
Para más información, visite www.P65Warnings.ca.gov
HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
Petroleum Gas, ANS/NFPA 58. Your local library or re department should have this book.

4
Safety Information (continued)
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Max. gas supply 6791.3 in. wc (1725 kPa). Manifold pressure 11 in wc (2.74 kPa).
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the appliance.

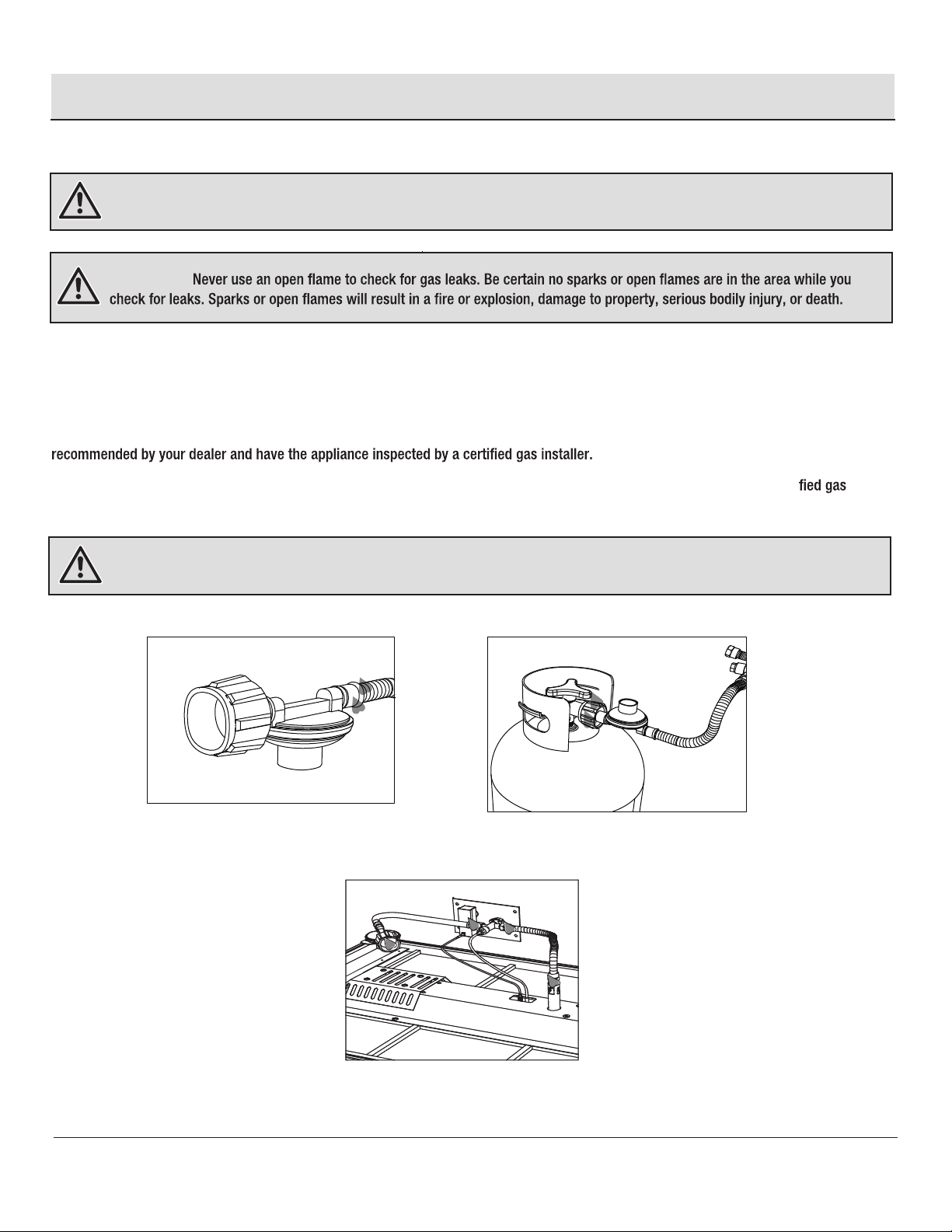

All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the appliance to avoid
burns or clothing ignition. This appliance comes with a heat shield which is an important safety component preventing contact with
Young children should be carefully supervised when they are in the area of the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
ually by
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and circulating air
passageways of the heater be kept clean.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway, or at right angles
to each other.

5
Warranty
1 YEAR LIMITED WARRANTY
WHAT IS COVERED
We warrant the metal frame to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charge to and from our service center. This warranty does not cover
s warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Contact the Customer Service Team at 1-800-841-1350 or visit www.homedepot.com.
Pre-Assembly
PLANNING ASSEMBLY
Carefully remove all the pieces from the carton and make sure that you have all the parts (refer the hardware and package contents list). If
you are missing parts, please contact 1-800-841-1350 for further assistance.
NOTE: Please read and understand the entire manual
TOOLS REQUIRED
Phillips
screwdriver M6 Wrench
HARDWARE INCLUDED
NOTE: Hardware is not shown to actual size.
Part
Description
Quantity
AA M6 x 12 mm Bolt 26
AA
BB M5 x 12 mm Bolt 4
BB
HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
CC M6 x 20 mm Bolt 1
CC

6
Pre-Assembly (continued)
PACKAGE CONTENTS
Part
Quantity
A
1
B
1
C
1
D1
E1
Description
Lid

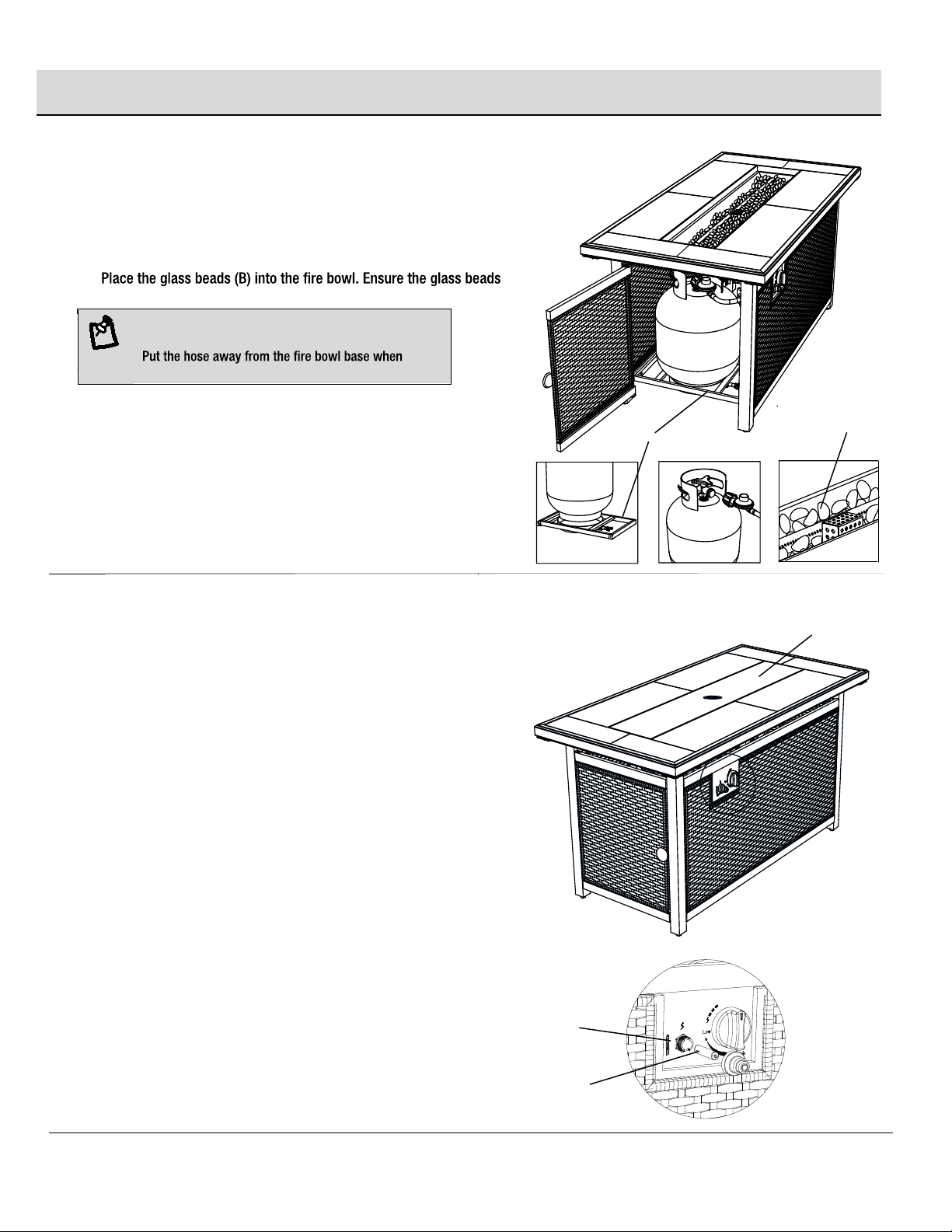

Glass beads
Table top with burner
Leg D
Leg E
H
1
I
1
J
1
K1
L1
Description
Side panel
Side panel with window
Back panel
Door
Gas tank support
F1
Leg F
Part Quantity
M1
Cross bar
L
A
B
C
D
E
I
G
F
G1
Leg G
H
J
K
M
N
NAAA battery 1

7
1
Assembling the legs
□Attach leg (D), leg (E), leg (F) and leg (G) to the table top with burner
(C) using eight (8) M6 x12 mm bolts (AA).
□Do not tighten the bolts at this step.
2
Assembling the side panels
□Attach each side panel ( H/I ) to the legs using eight (8) M6 x 12 mm
bolts (AA).
□Do not tighten the bolts at this step.
Assembly
AA
□Attach the control panel to the side panel with window (I) using four (4)
M5 x12 mm bolts (BB).
AA
H
I
D
E
G
F
HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
BB

8
3

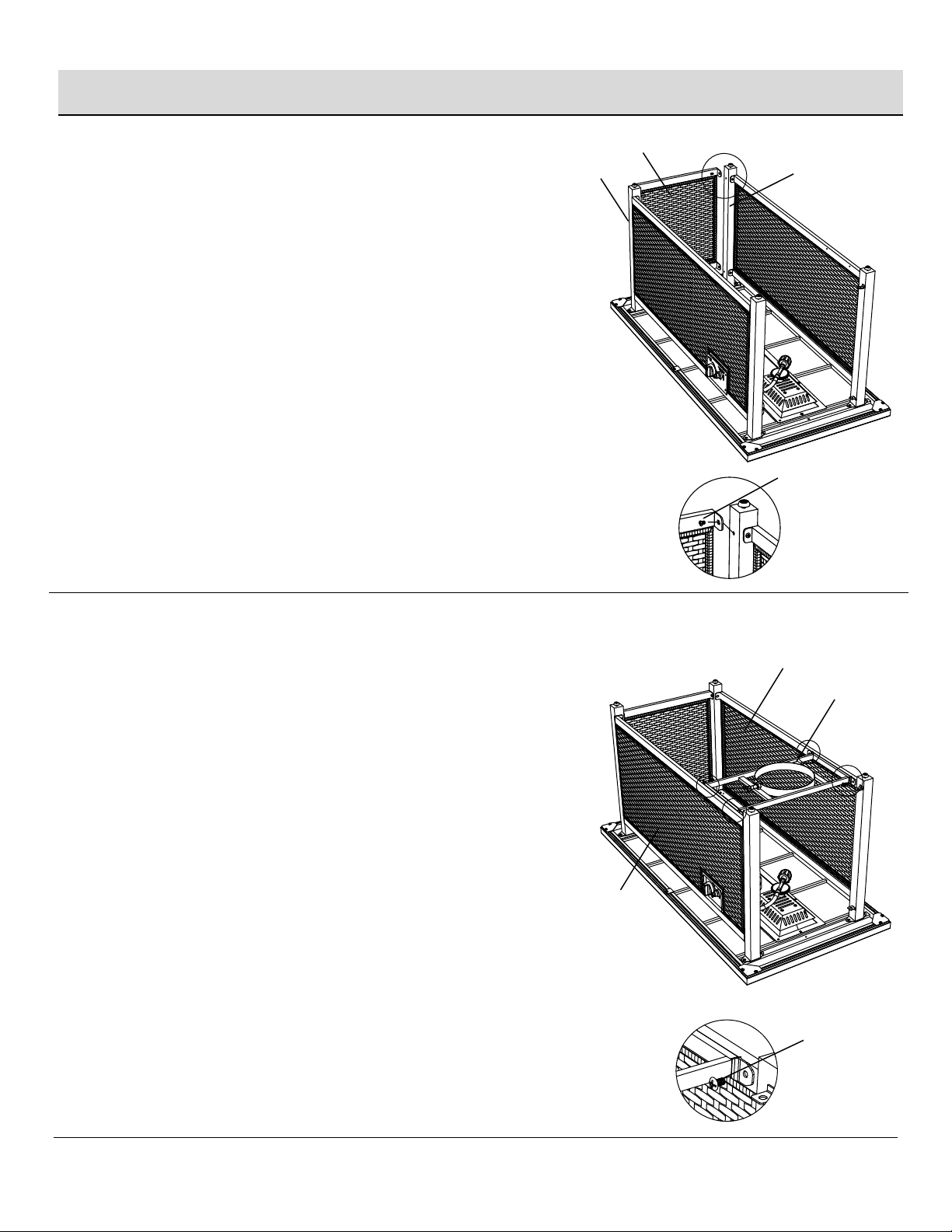

Assembling the back panel
□Attach the back panel (J) to legs (E/D) using four (4) M6 x 12 mm bolts (AA).
4
Assembling the gas tank support
□Attach the gas tank support (L) to the side panels (H/I) using four (4)
M6 x 12 mm bolts (AA).
Assembly (continued)
J
AA
L
AA
E D
H
I

9
5
Assembling the cross bar
□
6
Assembling the door
Assembly (continued)
□
□
Attach the cross bar (M) to the bottom of the back panel (J) and
to the gas tank support (L) using two (2) M6 x 12 mm bolts (AA).
Tighten all the bolts (AA) with a Phillips screwdriver (not included).
M
AA
K
CC
Insert the door (K) to the leg (F), and attach it with one (1)
M6 x 20 mm bolt (CC).
HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
L
J
F

10
7
8
Assembling the cylinder
Assembly (continued)
Installing the AAA battery
□Open the igniter and place the AAA battery (N) into the igniter.
Then tighten clockwise.
□Put the cylinder into the gas tank support (L), and secure the cyliner
by tightening the screw in the gas tank support (L). Connect the hose
and regulator to the cylinder.
NOTE: The propane cylinder is sold separately.
Use a standard 20 lb. propane cylinder only.
connecting the propane cylinder.
□
are not placed on the ignition portion of the burner.
□The lid (A) must be removed when the burner is in operation.
Wait until the unit cools before replacing the cover (not included).
A
LB
Igniter
N
Off
Igniter-Push

Operation
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare food.
WARNING:
Initial Lighting:
of internal paints and lubricants used in the manufacturing process and does not occur again. Simply run the main burner on high for
approximately one-half hour.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the appliance to avoid burns
or clothing ignition. The appliance comes with a heat shield which is an important safety component preventing contact with the
when adjusting the propane valve.
Children should be carefully supervised when they are in the area of the appliance.
pit may be extremely hot. Direct contact with these surfaces should be avoided in order to prevent burns or clothing ignition.
Any guard or protective device removed for servicing the appliance must be replaced prior to operating the appliance.
y be
required necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance be kept clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when it is raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use. Ensure that no debris such as leaves, grass or
other objects have entered or are on the appliance. If the burner is damaged it must be replaced prior to using this appliance with a
Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the hose is damaged it must be
WARNING:
Special concern is as follows:
Do not bypass the thermocouple safety.
appliance
and replace any part of the control system, and any gas control, which has been under water.
11 HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
replaced with a replacement hose assembly specied by your dealer prior to using the appliance.

12
Operation (continued)
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
LEAK TESTING OPERATION
WARNING:
WARNING: DO NOT USE NEAR AN OPEN FLAME.
LEAK TESTING: This must be done before initial use, annually, and whenever any gas components are replaced or serviced. Do not
of the regulator, hose, manifolds and valves. Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the appliance inspected by a certi
installer or dealer. Do not use the appliance until the leaks have been corrected.
smoke while performing this test, and remove all sources of ignition. See the leak testing diagrams for areas to check. Turn all burner
controls to the off position. Turn gas supply valve on. Brush a half-and-half solution of liquid soap and water onto all joints and connections

Operation (continued)
WARNING

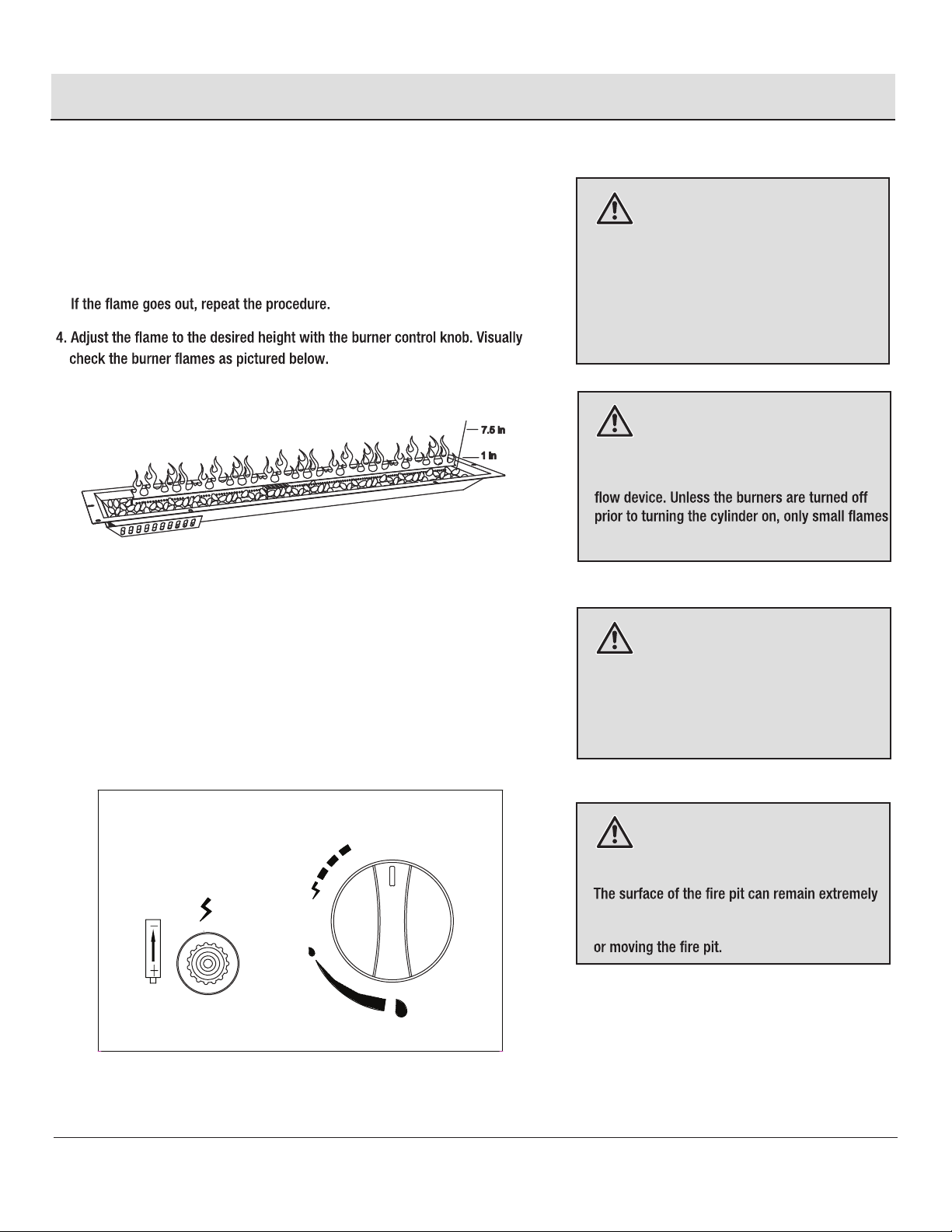

LIGHTING INSTRUCTIONS
FOR YOUR SAFETY:
Keep face and body away from burner area
when lighting.
Ensure burner controls are in the off position.
Slowly turn on the gas supply valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped with an excess
and low heat will be achievable.
WARNING
FOR YOUR SAFETY:
If the burner does not light within 10 seconds,
turn the valve off and wait 5 minutes for any gas
to dissipate before repeating the procedure.
1. Press and hold electronic igniter button.
2. Turn the burner control to the low position, press and hold. When the burner
lights, release the electronic igniter button.
3. Continue to depress the burner control knob for 30 seonds and then release.
5. If the burner will not light with the electronic igniter, hold a lit long match or
lit long butane lighter to the ignition area of the burner and continue with
step 2.
6. To shut down the burner, turn the burner control knob clockwise to the off
position. Then turn the gas off at the source (propane cylinder valve).
Normal
WARNING
FOR YOUR SAFETY:
hot for a period after use.
Allow 45 minutes to cool down before touching
13
Igniter-Push
Low
Off
High
HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.

14
Maintenance
Storage between uses:
□ Turn the control knob to the “OFF” position.
□ Disconnect the LP source.
□
□
Storage during periods of extended inactivity or when transporting:
□ Turn the control knob to the “OFF” position.
□ Disconnect the LP source and move to a secure, well ventilated location outdoors. DO NOT store in a location that will exceed 125 ° F.
□
□
Care and Cleaning
To enjoy years of outstanding performance from your re pit, make sure you perform the following maintenance
activities on a regular basis:
□ Keep the exterior surface clean.
□
□ While washing your unit, be sure to keep the area around the burner dry at all times. If the gas control is exposed to water, do NOT try to
use it. It must be replaced.
□
□ At least once a year, the unit should be inspected for the presence of spiders, spider webs or other insects.
□
Fire pit does NOT reach the desired temperature.
Heat glow is excessively uneven.
Heat makes popping noises.
□. Clean the
burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
□
□The burner is made from stainless steel, but extreme heat and a corrosive environment can cause surface corrosion to occur. This can be
tion.
removed with a brass wire brush. Inspect the burner at least annually for cracks, insect nests, excessive corrosion or any other damage.
NOTE:
NOTE:
posits
develop.
Store the re pit upright in an area sheltered from direct contract with inclement weather( such as rain, sleet, hail, snow dust and debris).
If desired, cover the re pit to protect the exterior surfaces and to help prevent debris build up in the air passages.
Store the re pit upright in an area sheltered from direct contract with inclement weather( such as rain, sleet, hail, snow dust and debris).
If desired, cover the re pit to protect the exterior surfaces and to help prevent debris build up in the air passages.

Troubleshooting
15 HOMEDEPOT.COM
Please contact 1-800-841-1350 for further assistance.
PROBLEM PROBLEM CAUSE SOLUTION
when the valve is turned to
high.
The propane lighting procedure
was not followed correctly. Ensure the lighting procedure is followed carefully. The valve must be
in the off position when the tank valve is turned on. Turn the tank on
slowly to allow the pressure to equalize. See the Lighting Instructions
in the Operating section.
The burners burn with a yellow
smell of gas.
There is possibly a spider web or
other debris. Thoroughly clean the burner venturi. See the Maintenance section.
The burner will not light with
the igniter, but will light with
a match.
The battery is either dead or
installed incorrectly.
There is a loose electrode wire or
switch terminal wires.
Check the installation or replace with a new battery.
the back of the igniter. Check that the lead wires from the module to
respective terminals.
The burner will not stay lit
when the control knob is
released.
The knob is not being held in long
enough.
It is too windy outside.
Glass beads or debris are in the
ignition area of the burner
preventing the thermocouple from
Either the thermocouple or the
thermocouple connection is dirty.
Either the thermocouple or the
valve is faulty.
The thermocouple must have time to heat up. Hold the knob in for
30 seconds after the burner lights, then release.
The unit will shut down if winds are greater than 10 mph (16 km/h).
windy.
Ensure there are no glass beads or other debris in the ignition area,
and that the small hole below the thermocouple is unobstructed.
Clean the thermocouple and clean the connection between the valve
and the thermocouple. Ensure the connection is properly tightened.
Replace the thermocouple and/or valve.
The regulator is humming. This is a normal occurrence on hot
days.
This is not a defect. It is caused by internal vibrations in the regulator
pit. A humming regulator will not be replaced.
The valve is set to high but
there is low heat output.
There is also a rumbling noise
the burner surface.
There is not enough gas.
The supply hose is pinched.
clogged.
There are spider webs or other
matter in the venturi tube.
The propane regulator is in a “low
Check the gas level in the propane cylinder.
Reposition the supply hose as necessary.
Clean out the venturi tube.
Ensure the lighting procedure is followed carefully. All valves must
be in the off position when the tank valve is turned on. Turn tank on
slowly to allow the pressure to equalize. See the Lighting Instructions
in the Operating section.
The burner opening is either dirty or
Carbon deposits on the burner. Gas not fully burned because gas
glass.
burner when in use. The carbon deposits can be cleaned by a
stainless steel scrubber.

16
Service Parts
Part
Quantity
A
1
B
1
C
1
D1
E1
Description
Lid
Glass beads
Table top with burner
Leg D
Leg E
F1
Leg F
G1
Leg G
H1
Side panel
Part Quantity
J1
K1
L
1
M1
N1
Description
Back panel
Door
Gas tank support
Cross bar
AA 26
AAA battery
BB 4
M5 x 12 mm bolt
CC 1
M6 x 20 mm bolt
AA BB
L
A
B
C
D
E
I
G
F
H
J
K
M
N
CC
I1
Side panel with window
M6 x 12 mm bolt

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-841-1350
HOMEDEPOT.COM
Retain this manual for future use.
