Tree Frogs 5.4 Jaguar Playcenter Manual

Tools Needed for Assembly
Tape Measure 24” Level Angle Square
Phillips Screw Driver
3/8” Cordless Drill or Electric Drill 3/8” Drive Ratchet or Electric Impact Gun
Claw Hammeror Rubber Mallet
Pliers or Vise Grips 7/16” Deep Well Socket
9/16” Deep Well Socket 3/4” Deep Well Socket 1/8”, 1/4”, and 9/16” Drill Bits
Phillips Head Screw Bits An Adult with two Adult Helpers
Please familiarize yourself with the install manual, parts/components and general construction process of your new swing set before
getting started. Approximate assembly time: 6 to 8 hours. 6 foot unobstructed safety perimeter around swing set recommended.
5.4 Jaguar Playcenter
Install Manual
Version 4.15
+2867217;:::75(()52*66:,1*6(76&20.,'6758&785(6,1&

When choosing a location for your swing set, always keep your child or children’s safety in mind. Here
are some recommendations to help you locate and install a safe play area.
Ɣ
This play set is designed for the use of 4 occupants who have a combined weight not exceeding 800 pounds
RQWKHHOHYDWHGÀRRURFFXSDQWVZKRKDYHDFRPELQHGZHLJKWRISRXQGVRQWKHVZLQJDUHDIRUDWRWDO8QLW
capacity of 5 occupants who have a combined weight of 1325. (this weight is not including the picnic table area)
Ɣ 2QVLWHDGXOWVXSHUYLVLRQLVUHTXLUHG
Ɣ
The swing set should be located on level ground. The stationary components such as ladders and slides
are required to be a minimum of six feet from any structure or obstruction such as a fence, garage, house,
tree, overhanging branches, electrical wires, clotheslines, etc. Any swinging equipment is also required to be a
minimum distance twice the height of the swing beam away from these obstructions or structures as well. The
swing set should be located a safe distance from any water hazards, such as a lake, river, bayou, swimming pool, etc.
Ɣ 'RQRWLQVWDOOWKLVUHVLGHQWLDOVZLQJVHWLQDFRPPHUFLDOVHWWLQJ7KLVVZLQJVHWLVQRWPDQXIDFWXUHG
 IRUFRPPHUFLDOXVDJHDQGZLOOYRLGDOOZDUUDQWLHV7UHH)URJV:RRGHQ6ZLQJ6HW)DFWRU\LVQRW
responsible for any damages or injuries resulting from this swing set being used in a commercial setting.
Ɣ 1HYHULQVWDOOWKLVVZLQJVHWLQGRRUVRURYHUFRQFUHWHDVSKDOWSDFNHGHDUWKJUDVVFDUSHWRUDQ\RWKHU
hard surface. A fall onto a hard surface can result in serious or fatal injury.
Ɣ
The U.S. Consumer Product Safety Commission (CPSC) recommends that you install and maintain a resilient
surface under your swing set. The CPSC’s Consumer Information Sheet for Playground Surfacing Materials is on
the next page. A resilient surface, should be installed after the swing set has been completely assembled according
to these instructions. The swing set must rest on solid ground. Please note that this swing set has a maximum fall height of 7’.
Here are some maintenance tips required to insure safe play on your swing set for years of fun.
Ɣ
At the beginning of each usage season and every two weeks during, check: nuts and bolts and tighten as needed,
swing seats, chains, ladders, slides, rope and wood components for sign of deterioration and replace if necessary.
Ɣ On a yearly basis, we recommend that you coat your swing set with a sealant or preservative. You may also want
to spot sand any areas prior to sealing.
** Special note: Although we recommend that you reseal your swing set annually, you may have to touch up the high
WUDI¿FDUHDVDQGRUDUHDVWKDWKDYHDKLJKH[SRVXUHWRGLUHFWVXQOLJKW
Ɣ %HVXUHWKDWWKHVHDODQW\RXVHOHFWLVQRQWR[LFDQGFKLOGVDIH<RXUORFDO7UHH)URJV:RRGHQ6ZLQJ6HW)DFWRU\
dealer may offer a complete power wash and reseal and maintenance program.
Ɣ Do not use line trimmers or “weed eaters” around your swing set. The line will remove both paint and wood from
uprights and base pieces. Any damage resulting from this type of abuse is not covered under our limited warranty.
Ɣ 5HPRYHSODVWLFVZLQJVHDWVDQGWDNHLQGRRUVRUGRQRWXVHZKHQWHPSHUDWXUHGURSVEHORZ)
Please keep this install manual for future reference.
Weight Limits for Tree Frogs Swing Sets
)RUW3ODWIRUP/EV7RWDO:HLJKW 6ZLQJ%HOWV/EV  7UDSH]H/EV
)XOO%XFNHW6ZLQJ/EV  7RGGOHU%XFNHW6ZLQJ/EV 7LUH6ZLQJ/EV7RWDO:HLJKW
Rope Ladder: 75 Lbs. Rock Wall: 150 Lbs. All Slides: 125 Lbs.
7UHH)URJVUHFRPPHQGVWKDWWKHZHLJKWOLPLWVIRUDOOFRPSRQHQWVPXVWQRWEHH[FHHGHG)DLOXUHWRDGKHUHWRWKHVHDQG
other safety guidelines could result in damage to the swing set and/or injury to the users.

7RLQVXUH6$)(3/$<DGXOWVPXVWWHDFKFKLOGUHQ
Ɣ 1RWWRZDONFORVHWRLQIURQWRIEHKLQGRUEHWZHHQPRYLQJLWHPV
Ɣ 1RWWRVZLQJHPSW\VZLQJVHDWV
Ɣ 1RWWRVZLQJVLGHZD\VLQWRWKHSDWKRIDGMDFHQWVZLQJV
Ɣ 1RWWRXVHWKHVZLQJVHWLQDPDQQHURWKHUWKDQWKDWIRUZKLFKLWLVLQWHQGHG
Ɣ 1RWWRJHWRIIWKHHTXLSPHQWZKLOHLWLVLQPRWLRQ
Ɣ 1RWWRMXPSRIIWKHWRZHU
Ɣ 1RWWRVWDQGLQWKHVZLQJVHDWV
Ɣ 1RWWRVZLQJVRKLJKWKDWFKDLQVEHFRPHVODFNRUDERYHWKHKHLJKWRIWKHVZLQJVXSSRUW
Ɣ 1RWWRMXPSRQDVOLGH
Ɣ 1RWWRFOLPERQWRSRIWKHVZLQJVXSSRUW
Ɣ 1RWWRDWWDFKWRWKHVZLQJVHWDQ\LWHPWKDWLVQRWVSHFL¿FDOO\GHVLJQHGIRUXVHZLWKWKHHTXLSPHQW
such as (but not limited to) jump ropes, clotheslines, pet leashes, cables, and chains. These may
become strangulation hazards.
Ɣ 7RKROGRQWRVZLQJVDQGFOLPEHUVZLWKERWKKDQGV
Ɣ 7RVOLGHIHHW¿UVWQHYHUKHDG¿UVW
Ɣ 7RZDWFKIRURWKHUFKLOGUHQZKLOHVZLQJLQJRUSOD\LQJQHDUWKHVZLQJVHW
7RDOVRLQVXUH6$)(3/$<DGXOWVPXVW
Ɣ /LPLWFOLPELQJDQGVZLQJLQJKHLJKWVWRHDFKFKLOG¶VDELOLW\
Ɣ 9HULI\WKDWVXVSHQGHGFOLPELQJURSHVDUHVHFXUHGDWERWKHQGV
Ɣ 9HULI\WKDWVXVSHQGHGFOLPELQJURSHVFDQQRWEHORRSHGEDFNRQWKHPVHOYHV
Ɣ 'UHVVFKLOGUHQDSSURSULDWHO\IRUSOD\8VHZHOO¿WWHGVKRHVWKDWGRQRWKDYHVOLSSHU\VROHV
Ɣ $YRLGSRQFKRVVFDUYHVKRRGVORRVH¿WWLQJFORWKLQJQHFNWLHVDQGDQ\FORWKLQJZLWKDGUDZVWULQJ
Serious injury could result should any part of the children’s clothing become entangled in the swing set.
Ɣ 'RQRWDOORZFKLOGUHQWRSOD\ZHDULQJKHOPHWV
Ɣ
Remember that children are inventive. When they develop games that are unsafe, be alert and change the rules.
,03257$173/($6(5($'
As fresh lumber acclimates to its new environment, the natural tendencies of the tree can show itself in the form of
checks, or “cracks” in the lumber. In almost all cases this is normal and it will not affect the structural integrity of your
play set.
Cosmetic defects that do not affect the structural integrity of the product, or natural defects of wood such as warping,
checking or any other physical properties of wood that do not present a safety hazard, are not covered by this warranty.
Defects that develop because the product is exposed to extreme climate conditions are not covered by this warranty.
Defects that develop as a result of faulty or improper installation of the product are also not covered by this warranty.
Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this
QDWXUDORFFXUUHQFHSOHDVHFRQWDFWWKH7UHH)URJV6ZLQJ6HW'HDOHUWKDW\RXSXUFKDVHG\RXUVZLQJVHWIURP
We appreciate your purchase and know that you will enjoy your play system for many years to come.

Ɣ Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after
 LQYHQWRU\RISDUWVWKHUHIRUHZHUHFRPPHQG\RXVHWDVLGHDIXOOWZRGD\VIRUDVVHPEO\
Ɣ ,GHQWLI\DOORIWKHSDUWVIRU\RXUSOD\VHW(PSW\HDFKER[DQGOD\RXWERDUGVVR\RXFDQVHHHDFKSDUW<RXULQVWUXFWLRQERRNZLOO
 KDYHGHWDLOHGGUDZLQJVWKDWZLOOPDNHLWHDV\IRU\RXWRUHFRJQL]HLQGLYLGXDOSDUWV.HHSDOOKDUGZDUHDQGPHWDOSDUWVVHSDUDWH
from wooden pieces.
Ɣ $IWHUHYHU\WKLQJLVODLGRXWFKHFNFDUHIXOO\WRHQVXUHDOOSDUWVDUHSUHVHQW0DNHVXUHWKHUHDUHQREURNHQERDUGV
Ɣ )LQGDQDUHDWRVRUW\RXUKDUGZDUH,WLVEHVWWRRSHQWKHKDUGZDUHRQDVROLGVXUIDFHVRWKDW\RXGRQRWORVHDQ\SLHFHVLQWKHJUDVV
This will save time and familiarize you with all the different pieces in the hardware bag.
**Important note: Wood has some natural defects such as knots, surface cracks, etc... We reject parts that are structurally defective. We use
DKLJKTXDOLW\OXPEHULQRXUVWUXFWXUHVKRZHYHU\RXVKRXOGLQVSHFWHDFKSDUWIRUVSOLQWHUVRUURXJKVSRWVDQGVDQGWKHPVPRRWKWRSUHYHQW
injury.**
Ɣ $IWHUIDPLOLDUL]LQJ\RXUVHOIZLWKDOORIWKHFRPSRQHQWVUHDGDOOLQVWUXFWLRQVWKRURXJKO\5HDGLQJLQVWUXFWLRQVDIWHU\RXKDYH
studied the parts will help you understand more clearly the installation process, and help to eliminate unnecessary mistakes.
Ɣ 3D\FORVHDWWHQWLRQWRWKHGLDPHWHUDQGOHQJWKRIHDFKEROWDQGVFUHZ
Ɣ 1HYHUWLJKWHQKDUGZDUHFRPSOHWHO\DW¿UVW,WKHOSVWRKDYHVRPHDGMXVWPHQWIRUEROWDOLJQPHQWZKLOH\RXDUHDWWDFKLQJSDUWV
together. After everything is square, tighten each joint.
Ɣ $IWHUWKHPDLQXQLWLVDVVHPEOHGLWLVFULWLFDOWKDWWKHÀRRULVOHYHODQGVTXDUH,IWKHPDLQIUDPHLVQRWOHYHOWKHZDOOVDQGÀRRU
will be out of square.
Ɣ $IWHU\RXFRPSOHWHLQVWDOODWLRQPDNHVXUHHYHU\EROWVFUHZDQGQXWLVWLJKWDQGHYHU\ERDUGLVVHFXUH:RRGZLOOH[SDQGDQG
contract with the seasons.
Ɣ 3ODFHWKHVHWRQOHYHOJURXQGQRWOHVVWKDQIWIURPDQ\VWUXFWXUHRUREVWUXFWLRQVXFKDVDIHQFHJDUDJHKRXVHRYHUKDQJLQJ
branches, laundry lines, or electrical wires.
Ɣ $OO´DQG´ODJEROWVPXVWKDYHSUHGULOOHGKROHV´WR´GHHS8VHD´GULOOELWIRUWKH´ODJEROWVDQG´GULOOELW
 IRU´ODJEROWV8VHSUHGULOOHGKROHVLQIDFLDVDVDUHIHUHQFHIRUSODFLQJODJEROWSLORWKROHV
Ɣ ,IDERDUGOLIWVRUULVHVFDXVLQJDJDSEHWZHHQERDUGVZKHQUXQQLQJLQODJEROWVRUVFUHZVEDFNRXWWKHVFUHZRUODJEROWDQGSUHVV
or apply pressure (but not enough to crack or break board) while re¬running in the lag bolt or screw in the same hole.
Ɣ 'RQRWRYHUWLJKWHQEROWVODJEROWVRUVFUHZV<RXFDQGDPDJHERDUGVEUHDNKDUGZDUHDQGRUVWULSRXWWKHKDUGZDUH
Ɣ :KHQXVLQJKDPPHUGRQRWEHDWRQWKHKDUGZDUHEXWJHQWO\WDSLWLQ1HYHUEHDWRQWKHZRRGDVLWZLOOOHDYHPDUNV
Ɣ &RPSOHWHWKHVWHSVZKLFKZLOOEHWKHEDVLFIUDPHRIWKHIRUW^LHIRXUFRUQHUSRVWVZLWKEDVHVDQGER[ERDUGVDQGGHFNVXSSRUWV`
Ɣ
Position in the most level area chosen for the play set, keeping in mind the location and size of the swing beam, ladder, slides, etc. that extend off the fort.
Ɣ 2QFHWKHIUDPHLVLQWKH¿QDOSRVLWLRQFKHFNIRUYHUWLFDODQGKRUL]RQWDOOHYHOQHVVWRGHWHUPLQHZKLFKVLGHVZLOOQHHGWREHGXJLQWRWKHJURXQGWROHYHOWKHSOD\VHW
Ɣ :LWKDVKRYHOVFRUHWKHJURXQGDURXQGWKHRXWVLGHHGJHVRIWKHVDQGER[ERDUGVRQWKHµKLJK¶VLGHRIWKHIRUW7KLVLVWKHDUHDWKDW
 ZLOOEHGXJLQ0DNHVXUHWRVFRUHGHHSHQRXJKWKHVFRUHGOLQHVZLOOEH\RXUGLJJLQJWHPSODWH
Ɣ 3XVKWKHIUDPHRIIDQGDZD\IURPWKHVFRUHGDUHDIDUHQRXJKWRGLJDQGUHPRYHGLUWWRUHDFKWKHDSSURSULDWHGHSWK
Ɣ
Dig a channel along the scored line(s) for the base of the fort (corner post and sandbox boards) to rest into. Dig the channel(s) to the same level
depth. The bottom of the channel(s) should be level to each other so your frame doesn’t teeter or rock because the channel(s) are uneven.
Ɣ 2QFH\RXKDYHUHPRYHGHQRXJKJUDVVDQGGLUWVOLGHSXVKWKHIUDPHLQWRWKHFKDQQHOV3ODFHDOHYHORQWKHYHUWLFDODQGKRUL]RQWDO
boards of the frame to determine if enough soil, or too much, was removed.
Ɣ 5HSHDWWKLVSURFHVVXQWLOWKHEDVLFIUDPHLVSOXPEDQGOHYHODQGLQLWV¿QDOSRVLWLRQEHIRUHFRPSOHWLQJWKHUHVWRIWKHDVVHPEO\
Ɣ 0HDVXUHWRPDNHVXUHIRUWLVVTXDUH
** Important: if you require a channel depth of more than 6”,
then we recommend you have your play set area professionally graded before completing assembly. **

&21680(5,1)250$7,216+((7)253/$<*5281'685)$&,1*0$7(5,$/6
The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related
injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms.
Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the
potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment
FDQEHDPDMRUIDFWRULQGHWHUPLQLQJWKHLQMXU\FDXVLQJSRWHQWLDORIDIDOO,WLVVHOIHYLGHQWWKDWDIDOORQWRDVKRFN
absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. However, it should be
recognized that some injuries from falls will occur no matter what playground surfacing material is used.
Playground equipment should never be placed on hard surfaces such as concrete or asphalt. Grass may appear to be
DFFHSWDEOHEXWFDQWXUQWRKDUGSDFNHGHDUWKLQDUHDVRIKLJKWUDI¿F6KUHGGHGEDUNPXOFKZRRGFKLSVRU¿QHJUDYHO
DUHFRQVLGHUHGWREHDFFHSWDEOHVKRFNDEVRUELQJVXUIDFHVZKHQLQVWDOOHGDQGPDLQWDLQHGDWDVXI¿FLHQWGHSWKXQGHUDQG
around play equipment.
7$%/(&5,7,&$/+(,*+76LQIHHW2)7(67('0$7(5,$/
MATERIAL UNCOMPRESSED DEPTH COMPRESSED DEPTH
6 Inch 9 Inch 12 Inch 9 inch
Wood Chips 7 10 11 10
Double Shredded Bark Mulch 6 10 11 7
(QJLQHHUHG:RRG)LEHUV    !   
)LQH6DQG         
Coarse Sand 5 5 6 4
)LQH*UDYHO         
Medium Gravel 5 5 6 5
6KUHGGHG7LUHV   1$ 1$   1$
** This is data from tests conducted by independent testing laboratories on a 6 inch depth of uncompressed shredded
tire samples produced by four manufacturers. The test reported critical heights, which varied from 10 feet to greater
than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test data
IURPWKHVXSSOLHUVKRZLQJWKHFULWLFDOKHLJKWRIWKHPDWHULDOZKHQLWZDVWHVWHGLQDFFRUGDQFHZLWK$670)
Table 1 should be read as follows: If, for example, uncompressed wood chips are used at a minimum of 6 inches, the
Critical Height is 7 feet. If 9 inches of uncompressed wood chips are used, the Critical Height is 10 feet. It should
be noted that, for some materials, the Critical Height decreases when the material is compressed. It is recommended
that a shock absorbing material should extend a minimum of 6 feet in all directions from the perimeter of stationary
equipment such as climbers and slides. However, because children may deliberately jump from a moving swing, the
shock absorbing material should extend in the front and rear of a swing a minimum distance of 2 times the height of the
pivot point measured from a point directly beneath the pivot on the supporting structure.
7KLVLQIRUPDWLRQLVLQWHQGHGWRDVVLVWLQFRPSDULQJWKHUHODWLYHVKRFNDEVRUELQJSURSHUWLHVRIYDULRXVPDWHULDOV1R
particular material is recommended over another. However, each material is only effective when properly maintained.
Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your
equipment. The choice of a material depends on the type and height of the playground equipment, the availability in
your area, and its cost.
7KLVLQIRUPDWLRQKDVEHHQH[WUDFWHGIURPWKH&36&SXEOLFDWLRQV³3OD\JURXQG6XUIDFLQJ7HFKQLFDO,QIRUPDWLRQ*XLGH´
and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to:
2I¿FHRI3XEOLF$IIDLUV
U.S. Consumer Product Safety Commission
Washington, D.C. 20207
7ROOIUHH+RWOLQHRUDWKWWSZZZFSVFJRY

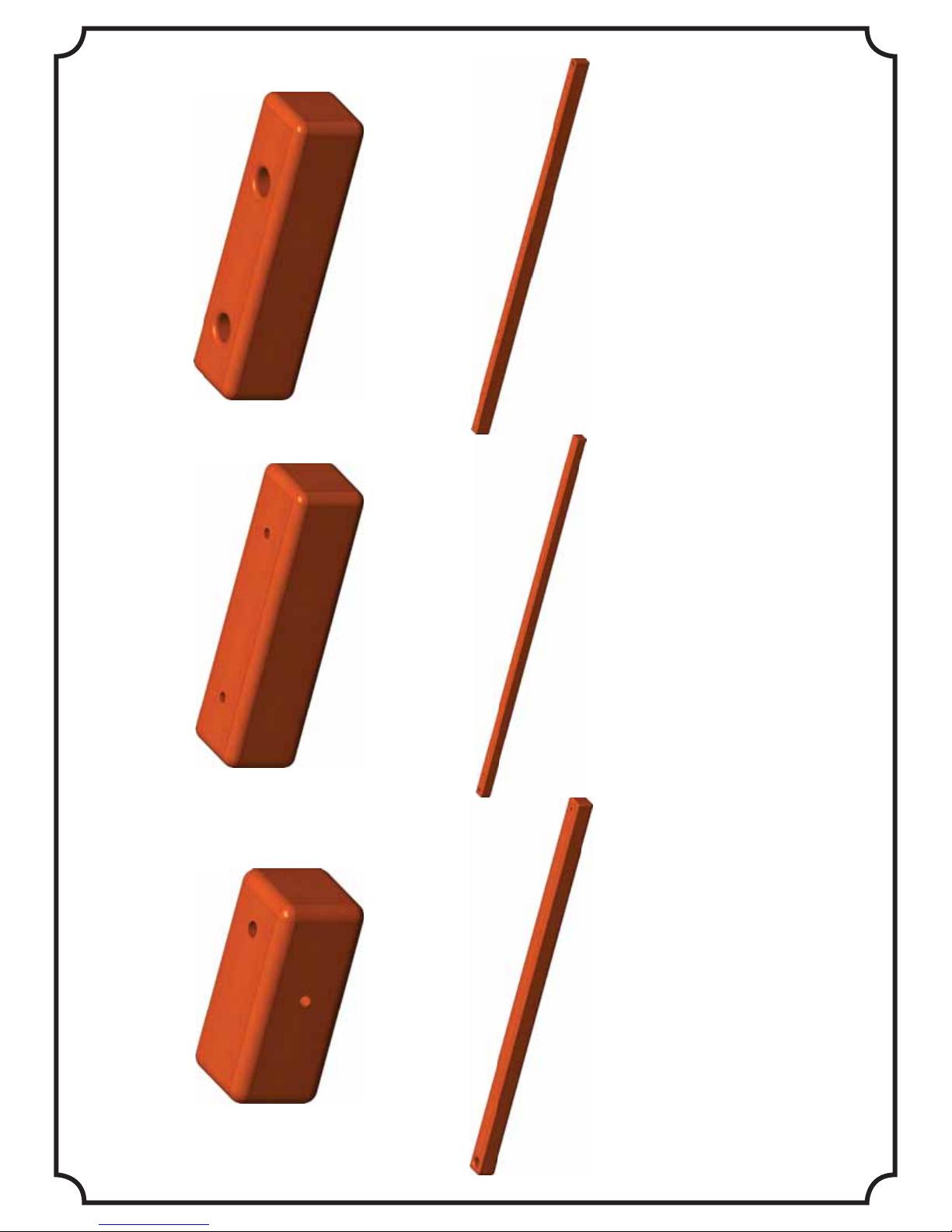

+VGO0Q 2CTV0Q 2CTV&GUETKRVKQP 36;




























41%-9#..$1#4&9412'*1.'
41%-9#..$1#4&Ä$.#0-
41%-9#..$1#4&
4#+.52+0&.'
4#+.$1661/
4#+.612
412'470)
&'%-4700'45
&'%-$1#4&Ä5.+/
%'06'46#42$1#4&
6#42$1#4&
&'%-5722146
&'%-$1#4&Ä(#6
412'$.1%-
.'(6)755'6
4+)*6)755'6
'064#2/'06$.1%-
%140'42156
)4170&4700'4
%'06'42156
722'4412'#4/
64#2'<'#4/
.19'4412'#4/
612,1+56
612,1+56959+0)$'#/*1.'5
.'(6)755'6
4+)*6)755'6
/#+0$'#/
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,2$Ä
,CIWCT2NC[EGPVGTÄ$CUG.WODGT
,CIWCT2NC[EGPVGTÄ.WODGT






.#&&'456'2
.'(641%-9#...')
4+)*641%-9#...')
%'06'456'22+2'.#&&'4.')
.'(656'2.#&&'4.')
4+)*62+2'.#&&'4.')
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä
,2Ä

Item No. Part No. Part Description QTY.
,CIWCT2NC[EGPVGTÄ5YKPIDGCO.WODGT






%'06'4#Ä(4#/'$.1%-
#Ä(4#/'$.1%-
#Ä(4#/'$.1%-5+0-'&
#Ä(4#/'%4155/'/$'4
#Ä(4#/'.')
215+6+1059+0)$'#/
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,5$Ä
,CIWCT2NC[EGPVGTÄ5VCPFCTF$QZ#EEGUUQTKGU












:%*#+0.#&&'4Ä;'..19
:2.#;)4+267$'
:2.#;)4+267$'
&7%6+.'+41059+0)*#0)'4
2.#;)4+25#('6;*#0&.'
2.#;)4+2.#&&'4*#0&.'
59+0)$'#/6Ä$4#%-'6
59+0)$'#/&')4''$4#%-'6
6+4'59+0)';'$1.6
524+0)%.+25://
&+5-59+0)Ä;'..19
6'.'5%12'
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,$#Ä
,CIWCT2NC[EGPVGTÄ$QZ#/WNVKEQNQT









2.#56+51.%1#6'&%*#+0Ä;'..19
6+4'59+8'.
.#4)'41%-Ä/7.6+%1.14
5*+259*''.Ä;'..19
%1#6'&%*#+0'&$'.659+0)Ä$.7'
%1#6'&%*#+0$'.659+0)Ä4'&
64#2'<'$#4Ä;'..19
;'..19412'
;'..19412'
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
,#/Ä
,#/Ä
,#/Ä
,#/Ä
,#/Ä
,#/Ä
,#/Ä
,#/Ä
,#/Ä

+VGO0Q 2CTV0Q 2CTV&GUETKRVKQP 36;
4QEMYCNN*CTFYCTG,2$Ä







%1#6'&&'%-5%4'9
:*':.#)5%4'9
:*':.#)5%4'9
:2#02*+..+25/5
2410)6Ä076
755(.#69#5*'4
755(.#69#5*'4
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
49*Ä
49*Ä
49*Ä
49*Ä
49*Ä
49*Ä
49*Ä








2.#56+51.%1#6'&%*#+0Ä;'..19
6+4'59+8'.
.#4)'41%-Ä)4''0
5*+259*''.Ä)4''0
%*#+0'&$'.659+0)Ä)4''0
64#2'<'$#4Ä;'..19
;'..19412'
;'..19412'
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
,#)Ä
,#)Ä
,#)Ä
,#)Ä
,#)Ä
,#)Ä
,#)Ä
,#)Ä
,CIWCT2NC[EGPVGTÄ$QZ$)TGGP
,CIWCT2NC[EGPVGTÄ$CUG*CTFYCTG,2$Ä





















#%1400762.#6'&
#%1400762.#6'&
:%#44+#)'$1.6
:%#44+#)'$1.6
%1#6'&&'%-5%4'9
*':076
:*':$1.6
:*':.#)5%4'9
:*':.#)5%4'9
:*':.#)5%4'9
:*':.#)5%4'9
0;.10+05'46.1%-076
:2#02*+..+2565
52.+6.1%-9#5*'4
52.+6.1%-9#5*'4
755(.#69#5*'4
755(.#69#5*'4
755(.#69#5*'4
755(.#69#5*'4
:%#44+#)'$1.6
$1.6%72
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä
,2*Ä

Item No. Part No. Part Description QTY.
5VGR%QODQ.CFFGT*CTFYCTG,2$Ä







:*':.#)5%4'9
:*':.#)5%4'9
:*':.#)5%4'9
:2#02*+..+2565
755(.#69#5*'4
755(.#69#5*'4
/'6#.6#25%4'9
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
5%*Ä
5%*Ä
5%*Ä
5%*Ä
5%*Ä
5%*Ä
5%*Ä
5YKPIDGCO*CTFYCTG,2$Ä

















#%1400762.#6'&
#%1400762.#6'&
:%#44+#)'$1.6
:%#44+#)'$1.6
*':076
*':076
:*':.#)5%4'9
0;.10+05'46.1%-076
52.+6.1%-9#5*'4
52.+6.1%-9#5*'4
755(.#69#5*'4
755(.#69#5*'4
755(.#69#5*'4
:*':$1.6
:2#02*+..+2565
:*':$1.6
$1.6%72
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
ÄÄ
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5$*Ä
5NKFG*CTFYCTG,2$Ä


:2#02*+..+2565
755(.#69#5*'4
ÄÄ
ÄÄ
5.*Ä
5.*Ä
5YKPIDGCO*CTFYCTG,2Ä



:%#44+#)'$1.6
:%#44+#)'$1.6
:*':$1.6
ÄÄ
ÄÄ
ÄÄ
5$Ä
5$Ä
5$Ä

Jaguar Playcenter- Base Lumber
JPB-9
54” Small Deck Board
QTY. 8
JPB-6
25” Rail Top
QTY. 3
JPB-3
43 7/8” RW Board w/ Rock Holes
QTY. 8
JPB-2
43 7/8” Rockwall Board- Blank
QTY. 5
JPB-5
25” Rail Bottom
QTY. 6
JPB-8
30” Deck Runners
QTY. 4
JPB-7
30” Rope Rung
QTY. 6
JPB-4
27 1/2” Rail Spindle
QTY. 15
JPB-1
43 7/8” Rockwall Board w/ Rope
QTY. 1

JPB-18
38 7/8” Corner Post
QTY. 4
JPB-17
25” Entrapment Block
QTY. 1
JPB-16
19” Right Gusset
QTY. 5
JPB-13
54” Large Deck Board
QTY. 6
JPB-14
11” Rope Block
QTY. 1
JPB-15
19” Left Gusset
QTY. 5
JPB-12
30” Deck Supprt
QTY. 2
JPB-11
67 1/2” Tarp Board
QTY. 2
JPB-10
60 3/4” Center Tarp Board
QTY. 1
Jaguar Playcenter- Base Lumber

JPB-28
107” Main Beam
QTY. 2
JPB-26
16” Left Gusser
QTY. 2
JPB-25
125” SB Top Joist
QTY. 1
JPB-22
105 3/4” Trapeze Arm
QTY. 1
JPB-23
107 3/4” Lower Rope Arm
QTY. 1
JPB-24
125” Top Joist
QTY. 1
JPB-21
105 3/4” Upper Rope Arm
QTY. 1
JPB-20
87 7/8” Center Post
QTY. 2
JPB-19
71 1/4” Ground Runner
QTY. 1
Jaguar Playcenter- Base Lumber
JPB-27
16” Right Gusser
QTY. 2

54JP-4
75” Center Step & Pipe Ladder Leg
QTY. 1
54JP-5
75” Left Step Ladder Leg
QTY. 1
54JP-6
75” Right Pipe Ladder Leg
QTY. 1
54JP-3
75” Right Rockwall Leg
QTY. 1
54JP-2
75” Left Rockwall Leg
QTY. 1
54JP-1
18 1/2” Ladder Step
QTY. 6
5.4 Jaguar Playcenter Lumber

54JSB-6
132 5/8” 3 Position Swingbeam
QTY. 1
54JSB-5
120” A-Frame Leg
QTY. 2
54JSB-4
72” A-Frame Crossmember
QTY. 1
54JSB-3
12 7/8” A-Frame Block Sinked
QTY .1
54JSB-2
12 7/8” A-Frame Block
QTY. 1
54JSB-1
7 5/8” Center A-Frame Block
QTY. 1
5.4 Jaguar Playcenter Swingbeam Lumber

,#)7#42.#;%'06'4$#5'*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
,2*Ä
ÄÄ
#EQTP0WV2NCVGF
36;
,2*Ä
ÄÄ
#EQTP0WV2NCVGF
36;
,2*Ä
ÄÄ
Z%CTTKCIG$QNV
36;
,2*Ä
ÄÄ
Z%CTTKCIG$QNV
36;
,2*Ä
ÄÄ
%QCVGF&GEM5ETGY
36;
,2*Ä
ÄÄ
*GZ0WV
36;
,2*Ä
ÄÄ
Z*GZ$QNV
36;

,#)7#42.#;%'06'4$#5'*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
,2*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
,2*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
,2*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
,2*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
,2*Ä
ÄÄ
0[NQP+PUGTV.QEMPWV
36;
,2*Ä
ÄÄ
Z2CP2JKNNKRU65
36;
,2*Ä
ÄÄ
5RNKV.QEMYCUJGT
36;
,2*Ä
ÄÄ
5RNKV.QEMYCUJGT
36;

,#)7#42.#;%'06'4$#5'*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
,2*Ä
ÄÄ
755(NCVYCUJGT
36;
,2*Ä
ÄÄ
755(NCVYCUJGT
36;
,2*Ä
ÄÄ
755(NCVYCUJGT
36;
,2*Ä
ÄÄ
755(NCVYCUJGT
36;
,2*Ä
ÄÄ
$QNV%WR
36;
,2*Ä
ÄÄ
Z%CTTKCIG$QNV
36;

,#)7#42.#;%'06'441%-9#..*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
49*Ä
ÄÄ
%QCVGF&GEM5ETGY
36;
49*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
49*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
49*Ä
ÄÄ
Z2CP2JKNNKRU/5
36;
49*Ä
ÄÄ
2TQPI6Ä0WV
36;
49*Ä
ÄÄ
755(NCVYCUJGT
36;
49*Ä
ÄÄ
755(NCVYCUJGT
36;

,#)7#42.#;%'06'456'2%1/$1.#&&'4*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
5%*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
5%*Ä
ÄÄ
*GZ.CI5ETGY
36;
5%*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
5%*Ä
ÄÄ
Z2CP2JKNNKRU65
36;
5%*Ä
ÄÄ
755(NCVYCUJGT
36;
5%*Ä
ÄÄ
755(NCVYCUJGT
36;
5%*Ä
ÄÄ
/GVCN6CR5ETGY
36;

,#)7#42.#;%'06'459+0)$'#/*#4&9#4'$#),2$Ä
+056#..'4016';17/756#55'/$.'6*+5241&7%6+0#%%14&#0%'9+6*6*'5'#55'/$.;+05647%6+1059*'0%1/2.'6')+8'
/#07#.61190'4
/'#574'/'066#-'0(41/$1661/1($1.6*'#&616*'$1661/1($1.6
75'6*'47.'461/'#574';174$1.65#0&5%4'95*#4&9#4'8+'955*190#$18'#4'5%#.'#0&%#0$'75'&61/#6%**#4&9#4'5+<'5
5$*Ä
ÄÄ
#EQTP0WV
36;
5$*Ä
ÄÄ
#EQTP0WV
36;
5$*Ä
ÄÄ
Z%CTTKCIG$QNV
36;
5$*Ä
ÄÄ
Z%CTTKCIG$QNV
36;
5$*Ä
ÄÄ
*GZ0WV
36;
5$*Ä
ÄÄ
*GZ0WV
36;
5$*Ä
ÄÄ
Z*GZ.CI5ETGY
36;
