Tree Frogs 6-4 Quad Climber Manual
Tools Needed for Assembly
Tape Measure 24” Level Angle Square
Phillips Screw Driver
3/8” Cordless Drill or Electric Drill
3/8” Drive Ratchet or Electric Impact Gun
Claw Hammeror Rubber Mallet
Pliers or Vise Grips 7/16” Deep Well Socket
9/16” Deep Well Socket 3/4” Deep Well Socket 1/8”, 1/4”, and 9/16” Drill Bits
Phillips Head Screw Bits An Adult with two Adult Helpers
Please familiarize yourself with the install manual, parts/components and general construction process of your new swing set before
getting started. Approximate assembly time: 6 to 8 hours. 6 foot unobstructed safety perimeter around swing set recommended.
6-4 Quad Climber Install Manual
Version 5.14
When choosing a location for your swing set, always keep your child or children’s safety in mind. Here
are some recommendations to help you locate and install a safe play area.
This play set is designed for the use of 4 occupants who have a combined weight not exceeding 800 pounds
capacity of 5 occupants who have a combined weight of 1325. (this weight is not including the picnic table area)
The swing set should be located on level ground. The stationary components such as ladders and slides
are required to be a minimum of six feet from any structure or obstruction such as a fence, garage, house,
tree, overhanging branches, electrical wires, clotheslines, etc. Any swinging equipment is also required to be a
minimum distance twice the height of the swing beam away from these obstructions or structures as well. The
swing set should be located a safe distance from any water hazards, such as a lake, river, bayou, swimming pool, etc.
responsible for any damages or injuries resulting from this swing set being used in a commercial setting.
hard surface. A fall onto a hard surface can result in serious or fatal injury.
The U.S. Consumer Product Safety Commission (CPSC) recommends that you install and maintain a resilient
surface under your swing set. The CPSC’s Consumer Information Sheet for Playground Surfacing Materials is on
the next page. A resilient surface, should be installed after the swing set has been completely assembled according
to these instructions. The swing set must rest on solid ground. Please note that this swing set has a maximum fall height of 7’.
Here are some maintenance tips required to insure safe play on your swing set for years of fun.
At the beginning of each usage season and every two weeks during, check: nuts and bolts and tighten as needed,
swing seats, chains, ladders, slides, rope and wood components for sign of deterioration and replace if necessary.
On a yearly basis, we recommend that you coat your swing set with a sealant or preservative. You may also want
to spot sand any areas prior to sealing.
** Special note: Although we recommend that you reseal your swing set annually, you may have to touch up the high
dealer may offer a complete power wash and reseal and maintenance program.
Do not use line trimmers or “weed eaters” around your swing set. The line will remove both paint and wood from
uprights and base pieces. Any damage resulting from this type of abuse is not covered under our limited warranty.
Please keep this install manual for future reference.
Weight Limits for Tree Frogs Swing Sets
Rope Ladder: 75 Lbs. Rock Wall: 150 Lbs. All Slides: 125 Lbs.
other safety guidelines could result in damage to the swing set and/or injury to the users.
such as (but not limited to) jump ropes, clotheslines, pet leashes, cables, and chains. These may
become strangulation hazards.
Serious injury could result should any part of the children’s clothing become entangled in the swing set.
Remember that children are inventive. When they develop games that are unsafe, be alert and change the rules.
IMPORTANT - PLEASE READ
As fresh lumber acclimates to its new environment, the natural tendencies of the tree can show itself in the form of
checks, or “cracks” in the lumber. In almost all cases this is normal and it will not affect the structural integrity of your
play set.
Cosmetic defects that do not affect the structural integrity of the product, or natural defects of wood such as warping,
checking or any other physical properties of wood that do not present a safety hazard, are not covered by this warranty.
Defects that develop because the product is exposed to extreme climate conditions are not covered by this warranty.
Defects that develop as a result of faulty or improper installation of the product are also not covered by this warranty.
Most cracks are not warrantable, however if you believe that the integrity of your play set is compromised by this
We appreciate your purchase and know that you will enjoy your play system for many years to come.
Depending on your experience, assembly of our play sets can take as little as 6 hours up to 24 hours, depending on size, after
from wooden pieces.
This will save time and familiarize you with all the different pieces in the hardware bag.
**Important note: Wood has some natural defects such as knots, surface cracks, etc... We reject parts that are structurally defective. We use
injury.**
studied the parts will help you understand more clearly the installation process, and help to eliminate unnecessary mistakes.
together. After everything is square, tighten each joint.
will be out of square.
contract with the seasons.
branches, laundry lines, or electrical wires.
for 3/8” lag bolts. Use pre-drilled holes in facias as a reference for placing lag bolt pilot holes.
or apply pressure (but not enough to crack or break board) while re¬running in the lag bolt or screw in the same hole.
Position in the most level area chosen for the play set, keeping in mind the location and size of the swing beam, ladder, slides, etc. that extend off the fort.
Dig a channel along the scored line(s) for the base of the fort (corner post and sandbox boards) to rest into. Dig the channel(s) to the same level
depth. The bottom of the channel(s) should be level to each other so your frame doesn’t teeter or rock because the channel(s) are uneven.
boards of the frame to determine if enough soil, or too much, was removed.
** Important: if you require a channel depth of more than 6”,
then we recommend you have your play set area professionally graded before completing assembly. **
The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment related
injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms.
Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the
potential to be fatal, particularly when the injury is to the head. The surface under and around playground equipment
can be a major factor in determining the injury-causing potential of a fall. It is self-evident that a fall onto a shock-
absorbing surface is less likely to cause a serious injury than a fall onto a hard surface. However, it should be
recognized that some injuries from falls will occur no matter what playground surfacing material is used.
Playground equipment should never be placed on hard surfaces such as concrete or asphalt. Grass may appear to be
around play equipment.
MATERIAL UNCOMPRESSED DEPTH COMPRESSED DEPTH
6 Inch 9 Inch 12 Inch 9 inch
Wood Chips 7 10 11 10
Double Shredded Bark Mulch 6 10 11 7
Coarse Sand 5 5 6 4
Medium Gravel 5 5 6 5
Shredded Tires** 10-12 N/A N/A N/A
** This is data from tests conducted by independent testing laboratories on a 6 inch depth of uncompressed shredded
tire samples produced by four manufacturers. The test reported critical heights, which varied from 10 feet to greater
than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface request test data
Table 1 should be read as follows: If, for example, uncompressed wood chips are used at a minimum of 6 inches, the
Critical Height is 7 feet. If 9 inches of uncompressed wood chips are used, the Critical Height is 10 feet. It should
be noted that, for some materials, the Critical Height decreases when the material is compressed. It is recommended
that a shock absorbing material should extend a minimum of 6 feet in all directions from the perimeter of stationary
equipment such as climbers and slides. However, because children may deliberately jump from a moving swing, the
shock absorbing material should extend in the front and rear of a swing a minimum distance of 2 times the height of the
pivot point measured from a point directly beneath the pivot on the supporting structure.
This information is intended to assist in comparing the relative shock-absorbing properties of various materials. No
particular material is recommended over another. However, each material is only effective when properly maintained.
Materials should be checked periodically and replenished to maintain correct depth as determined necessary for your
equipment. The choice of a material depends on the type and height of the playground equipment, the availability in
your area, and its cost.
This information has been extracted from the CPSC publications “Playground Surfacing-Technical Information Guide”
and “Handbook for Public Playground Safety.” Copies of these reports can be obtained by sending a postcard to:
U.S. Consumer Product Safety Commission
Washington, D.C. 20207
Toll-free Hotline: 1-800-638-2772 or at http://www.cpsc.gov
Playcenter Universal Bundle 1 of 2
Item No.
UB1-1
UB1-2
UB1-3
UB1-4
UB1-5
UB1-6
UB1-7
UB1-8
UB1-9
Part Number
17-4-00186
16-4-00213
16-4-00216
16-4-00217
17-4-00106
17-4-00107
16-4-00215
12-4-00141
16-4-00218
Part Description
UNIVERSAL PLAYCENTER MAINBEAM
UNIVERSAL PC CENTER POST
(L) PC SUPPORT GUSSET
(R) PC SUPPORT GUSSET
UNIVERSAL RAIL BOTTOM
QTY.
2
2
2
2
2
2
1
3
1
Playcenter Universal Bundle 2 of 2
UB2-1
UB2-2
UB2-3
UB2-4
UB2-5
16-4-00214
16-4-00216
16-4-00217
16-4-00223
16-4-00224
UNI. PC. CORNER POST
UNIVERSAL PC TOP JOIST W/ SWING HOLES
UNI. PC. TOP JOIST
4
3
3
1
1
Quad Climber PC. Bundle
QCB-1
QCB-2
QCB-3
QCB-4
QCB-5
QCB-6
QCB-7
QCB-8
17-4-00187
12-4-00147
12-4-00148
16-4-00234
16-4-00232
16-4-00233
16-4-00235
16-4-00231
QC PC CENTER MAIN BEAM
QC PC TARP BOARD
QC PC CENTER TARP BOARD
QC PC UPPER ROPE ARM
QC PC UPPER ACCESSORY ARM
QC PC GROUND RUNNER
QC PC LOWER ROPE RUNNER
QC PC CENTER UPRIGHT
1
2
1
1
1
1
1
2
6.4 Quad Climber PC. Bundle B.
6QB-1
6QB-2
6QB-3
6QB-4
6QB-5
6QB-6
6QB-7
6QB-8
6QB-9
6QB-10
6QB-11
17-4-00166
17-4-00174
17-4-00175
20-4-00004
17-4-00168
17-4-00176
17-4-00177
11-4-00105
11-4-00106
11-4-00107
64-6-00003
88 1/2” (R) PC LADDER LEG
QC PC 88 1/2” CENTER CHAIN/ WOOD STEP LEG
QC PC 88 1/2” (L) WOOD STEP LADDER LEG
QC PC WOOD STEP
88 1/2” (L) RW LADDER LEG
QC PC 88 1/2” CENTER PIPE RUNG/ RW LEG
QC PC 88 1/2” (R) PIPE RUNG LEG
QC PC RW BOARD W/ ROPE HOLE
QC PC RW BOARD NO HOLES
ROPE RUNG
1
1
1
7
1
1
1
1
9
6
7
Quad Climber PC. Deck Bundle
Item No.
Part Number
12-4-00138
13-4-00063
12-4-00142
12-4-00143
13-4-00065
Part Description
QTY.
4
2
2
8
6
Quad Climber PC. Rail Bundle
RAIL-1
RAIL-2
RAIL-3
12-4-00140
12-4-00141
15-4-00008
UNIVERSAL RAIL TOP
UNIVERSAL RAIL BOTTOM
3
3
15
Quad Climber PC. Wood Roof Bundle
WR-1
WR-2
WR-3
WR-4
WR-5
WR-6
WR-7
WR-8
WR-9
WR-10
WR-11
WR-12
WR-13
WR-14
WR-15
WR-16
WR-17
WR-18
WR-19
WR-20
WR-21
12-4-00204
12-4-00205
16-4-00252
11-4-00116
19-4-00088
19-4-00089
19-4-00090
19-4-00091
10-4-00345
12-4-00208
12-4-00209
10-4-00346
10-4-00347
12-4-00210
20-4-00005
10-4-00209
10-4-00212
10-4-00210
10-4-00213
10-4-00214
10-4-00211
2
2
2
1
16
16
1
1
1
4
4
2
2
2
2
2
2
2
2
2
2
Quad Climber PC Standard Box
Item No.
QCS-1
QCS-2
QCS-3
QCS-4
QCS-5
QCS-6
QCS-7
QCS-8
QCS-9
QCS-10
Part Number
53-1-00013
54-2-00003
54-2-00002
57-2-00004
57-2-00005
56-1-00012
59-1-00011
59-1-00013
37-1-00021
59-1-00008
Part Description
31 1/2” X 63” CHAIN LADDER- YELLOW
1 1/4” DIA. X 36 1/2” PLAYGRIP TUBE
1 1/4” DIA. X 25” PLAYGRIP TUBE
1 1/4” PLAYGRIP LADDER HANDLE
DUCTILE IRON SWING HANGER
SPRING CLIPS 10X100MM
TELESCOPE
TIRE SWING EYE BOLT
QTY.
1
2
6
6
4
2
5
1
1
3
6.4 Quad Climber PC Box A
6BA-1
6BA-2
6BA-3
6BA-4
6BA-5
6BA-6
6BA-7
6BA-8
6BA-9
36-1-00023
65-7-00018
65-7-00020
37-1-00018
51-1-00033
56-1-00015
60-1-00006
54-2-00003
54-2-00002
16’ YELLOW ROPE
18’ YELLOW ROPE
19” SHIP’S WHEEL- YELLOW
66” PLASTISOL COATED CHAIN- YELLOW
TIRE SWIVEL
20” TRAPEZE BAR - YELLOW
1 1/4” DIA. X 36 1/2” PLAYGRIP TUBE
1 1/4” DIA. X 25” PLAYGRIP TUBE
18
1
3
1
3
1
1
1
1
6.4 Quad Climber PC Box B
6BB-1
6BB-2
6BB-3
6BB-4
6BB-5
6BB-6
6BB-7
6BB-8
6BB-9
36-1-00024
65-7-00018
65-7-00020
37-1-00019
51-1-00034
56-1-00015
60-1-00006
54-2-00003
54-2-00002
16’ YELLOW ROPE
18’ YELLOW ROPE
19” SHIP’S WHEEL- GREEN
66” PLASTISOL COATED CHAIN- GREEN
TIRE SWIVEL
20” TRAPEZE BAR - YELLOW
1 1/4” DIA. X 36 1/2” PLAYGRIP TUBE
1 1/4” DIA. X 25” PLAYGRIP TUBE
18
1
3
1
3
1
1
1
1
Quad Climber PC Hdwr. Bag
Item No.
QCH-1
QCH-2
QCH-3
QCH-4
QCH-5
QCH-6
QCH-7
QCH-8
QCH-9
QCH-10
QCH-11
QCH-12
QCH-13
QCH-14
QCH-15
QCH-16
QCH-17
QCH-18
QCH-19
QCH-20
Part Number
40-1-00001
40-1-00002
40-1-00012
40-1-00013
40-1-00028
40-1-00043
40-1-00055
40-1-00056
40-1-00059
40-1-00061
40-1-00064
40-1-00069
40-1-00070
40-1-00073
40-1-00074
40-1-00081
40-1-00082
40-1-00083
40-1-00084
41-1-00025
Part Description
3/8” ACORN NUT
1/2” ACORN NUT
1/2” X 4 1/2” CARRIAGE BOLT
1/2” X 7” CARRIAGE BOLT
1/2” HEX NUT
3/8” X 5” HEX BOLT
1/4” X 3” HEX LAG SCREW
1/4” X 4 1/2” HEX LAG SCREW
3/8” X 3 1/2” HEX LAG SCREW
3/8” X 5” HEX LAG SCREW
#14 X 1 1/4” PAN PHILLIPS
#14 X 2” PAN PHILLIPS
3/8” BOLT CUP
QTY.
4
24
2
22
24
4
12
24
36
16
4
2
23
4
24
59
56
24
24
4
6.4 Quad Climber PC Hdwr. Bag
6QH-1
6QH-2
6QH-3
6QH-4
6QH-5
6QH-6
40-1-00022
40-1-00056
40-1-00067
40-1-00077
40-1-00081
40-1-00111
1/4” X 4 1/2” HEX LAG SCREW
1/4” X 1 1/2” PAN PHILLIPS M/S
1/4” 4 PRONG T-NUT
2” METAL TAP SCREW
64
28
36
36
64
20
Quad Climber PC Wood Roof Hdwr.
Item No.
WRH-1
WRH-2
WRH-3
WRH-4
WRH-5
WRH-6
WRH-7
WRH-8
WRH-9
WRH-10
WRH-11
WRH-12
WRH-13
Part Number
40-1-00081
40-1-00056
40-1-00083
40-1-00115
40-1-00082
40-1-00059
40-1-00073
40-1-00054
40-1-00022
40-1-00020
40-1-00001
40-1-00026
40-1-00055
Part Description
1/4” X 4 1/2” HEX LAG SCREW
3/8” X 5 1/2” CARRIAGE BOLT
3/8” X 3 1/2” HEX LAG SCREW
1/4” X 2” HEX LAG SCREW
3/8” ACORN NUT PLATED
3/8” HEX NUT
1/4” X 3” HEX LAG SCREW
QTY.
40
24
4
4
6
2
4
14
12
214
4
4
2
Playcenter Bundle 1 of 2
PB1-1
17-4-00186
Universal PC Main Beam
QTY. 2
PB1-2
16-4-00213
Universal PC Center Post
QTY. 2
PB1-3
16-4-00216
(L) Gusset Bracket
QTY. 2
PB1-4
16-4-00217
(R) Gusset Bracket
QTY. 2
PB1-5
17-4-00106
(L) PC Support Gusset
QTY. 2
PB1-6
16-4-00217
(R) Gusset Bracket
QTY. 2
PB1-7
16-4-00215
Universal Rope Block
QTY. 1
PB1-8
12-4-00141
Universal Rail Bottom
QTY. 3
PB1-9
16-4-00218
Universal Ent. Block
QTY. 1
Playcenter Bundle 2 of 2
PB2-1
16-4-00214
Uni. PC Corner Post
QTY. 4
PB2-2
16-4-00216
(L) Gusset Bracket
QTY. 3
PB2-3
16-4-00217
(R) Gusset Bracket
QTY. 3
PB2-4
16-4-00223
UNI PC Top Joist w/ Swing Holes
QTY. 1
PB2-5
16-4-00224
Uni PC Top Joist
QTY. 1
Quad Climber Playcenter Bundle
QCB-1
17-4-00187
QC PC Center Main Beam
QTY. 1
QCB-2
12-4-00147
QC PC Tarp Board
QTY. 2
Quad Climber Playcenter Bundle Cont.
QCB-3
12-4-00148
QC PC Center Tarp Board
QTY. 1
QCB-4
16-4-00234
QC PC Upper Rope Arm
QTY. 1
QCB-5
16-4-00232
QC PC Upper Accessory Arm
QTY. 1
QCB-6
16-4-00233
QC PC Gropund Runner
QTY. 1
QCB-7
16-4-00235
QC PC Lower Rope Runner
QTY. 1
QCB-8
16-4-00231
QC PC Center Upright
QTY. 2
6.4 Quad Climber PC Bundle B.
6QB-1
17-4-00166
88 1/2” (R) PC Ladder Leg
QTY. 1
6QB-2
17-4-00174
88 1/2” Center Chain/ Wood Step Leg
QTY. 1
6.4 Quad Climber PC Bundle B. Cont.
6QB-3
17-4-00175
88 1/2” (L) Wood Step Ladder Leg
QTY. 1
6QB-4
20-4-00004
QC PC Wood Step
QTY. 7
6QB-5
17-4-00168
88 1/2” (L) Rockwall Leg
QTY. 1
6QB-6
17-4-00176
88 1/2” PC Pipe/RW Ladder Leg
QTY. 1
6QB-7
17-4-00177
88 1/2” (R) Pipe Rung Leg
QTY. 1
6QB-8
11-4-00105
RW Board w/ Rope Hole
QTY. 1
6QB-9
11-4-00106
RW Board w/ Rock Holes
QTY. 9
6QB-10
11-4-00107
RW Board/ No Holes
QTY. 6
6QB-11
64-6-00003
Rope Rung
QTY. 7
Quad Climber PC Deck Bundle
DECK-1
12-4-00138
Deck Runner
QTY. 4
DECK-2
13-4-00063
Large Deck Supports
QTY. 2
DECK-3
12-4-00142
Small Deck Supports
QTY. 2
DECK-4
12-4-00143
Small Deck Boards
QTY. 8
DECK-5
13-4-00065
Large Deck Boards
QTY. 6
Quad Climber PC Rail Bundle
RAIL-1
12-4-00140
Universal Rail Top
QTY. 3
RAIL-2
12-4-00141
Universal Rail Bottom
QTY. 3
RAIL-3
15-4-00008
Universal Rail Picket
QTY. 15
Quad Climber Playcenter Wood Roof Bundle
QWR-1
12-4-00204
Uni. PC (L) WR Support
QTY. 2
QWR-2
12-4-00205
Uni. PC (R) WR Support
QTY. 2
QWR-3
16-4-00252
QC PC Wood Roof Upright
QTY. 2
QWR-4
11-4-00116
QC PC WR Peak Board
QTY. 1
QWR-5
19-4-00088
QC PC WR Board (L)
QTY. 16
QWR-6
19-4-00089
QC PC WR Board (R)
QTY. 16
QWR-7
19-4-00090
QC PC WR Board (R) Ripped
QTY. 1
QWR-8
19-4-00091
QC PC WR Board (L) Ripped
QTY. 1
QWR-9
10-4-00345
QC PC WR Tarp Board
QTY. 1
Quad Climber Playcenter Wood Roof Bundle Cont.
QWR-10
12-4-00208
QC PC WR Runner
QTY. 4
QWR-11
12-4-00209
QC PC WR Runner 2
QTY. 4
QWR-12
10-4-00346
QC PC WR Center Support
QTY. 2
QWR-13
10-4-00347
QC PC WR Center Support 2
QTY. 2
QWR-14
12-4-00210
QC PC WR Center Support 3
QTY. 2
QWR-15
20-4-00005
Uni. Center Fan Board
QTY. 2
QWR-16
10-4-00209
UNI. PC. Bottom Fan Board
QTY. 2
QWR-17
10-4-00212
Uni. PC Center Fan Board
QTY. 2
QWR-18
10-4-00210
Uni. PC Long (L) Side Fan Board
QTY. 2
Quad Climber Playcenter Wood Roof Bundle
QWR-19
12-4-00213
Uni. PC Long (R) Side Fan Board
QTY. 2
QWR-20
10-4-00214
Uni PC Short (R) Side Fan Board
QTY. 2
QWR-21
10-4-00211
Uni PC Short (L) Side Fan Board
QTY. 2
Quad Climber PC Standard Box
QCS-1
53-1-00013
31 1/2” x 63” Chain Ladder-Yellow
QTY. 1
QCS-2
54-2-00003
1 1/4” Dia. x 36 1/2” Playgrip Tube
QTY. 2
QCS-3
54-2-00002
1 1/4” Dia. x 25” Playgrip Tube
QTY. 6
QCS-4
57-2-00004
1 1/4” Playgrip Safety Handles
QTY. 6
QCS-5
57-2-00005
1 1/4” Ladder Handles
QTY. 4
QCS-6
56-1-00012
Ductile Iron Swing Hanger
QTY. 2
QCS-7
59-1-00011
Spring Clip 10x100mm
QTY. 2
QCS-8
59-1-00013
Tree Frog’s Plaque
QTY. 1
QCS-9
37-1-00021
Telescope
QTY. 1
QCS-10
59-1-00008
Tire Swing Eye Bolt
QTY. 3
6.4 Quad Climber PC Box A.
6BA-1
36-1-00023
Large Rocks- Multi Color
QTY. 18
6BA-2
65-7-00018
16’ Yellow Rope
QTY. 1
6BA-3
65-7-00020
18’ Yellow Rope
QTY. 1
6BA-4
37-1-00018
19” Ship’s Wheel
QTY. 1
6BA-5
51-1-00033
43” Plastisol Coated Chain- Yellow
QTY. 3
6BA-6
56-1-00031
Tire Swivel
QTY. 1
6BA-7
60-1-00006
20” Trapeze Bar- Yellow
QTY. 1
6BA-8
54-2-00003
1 1/4” x 36 1/2” Playgrip Tube
QTY. 1
6BA-9
54-2-00002
1 1/4” x 25” Playgrip Tube
QTY. 1
Table of contents
Other Tree Frogs Swing Set manuals
Popular Swing Set manuals by other brands
Action Sports
Action Sports S000664 Assembly, Installation, Care, Maintenance, and Use Instructions
Creative Playthings
Creative Playthings Playtime PS18EAS Assembly manual
SportsPlay
SportsPlay 581-840HD installation guide
SereneLife
SereneLife SLSWNG100GN user manual
Argos
Argos 450/4272 Assembly instructions
Plum
Plum woolly monkey II Assembly instructions
Swing-N-Slide

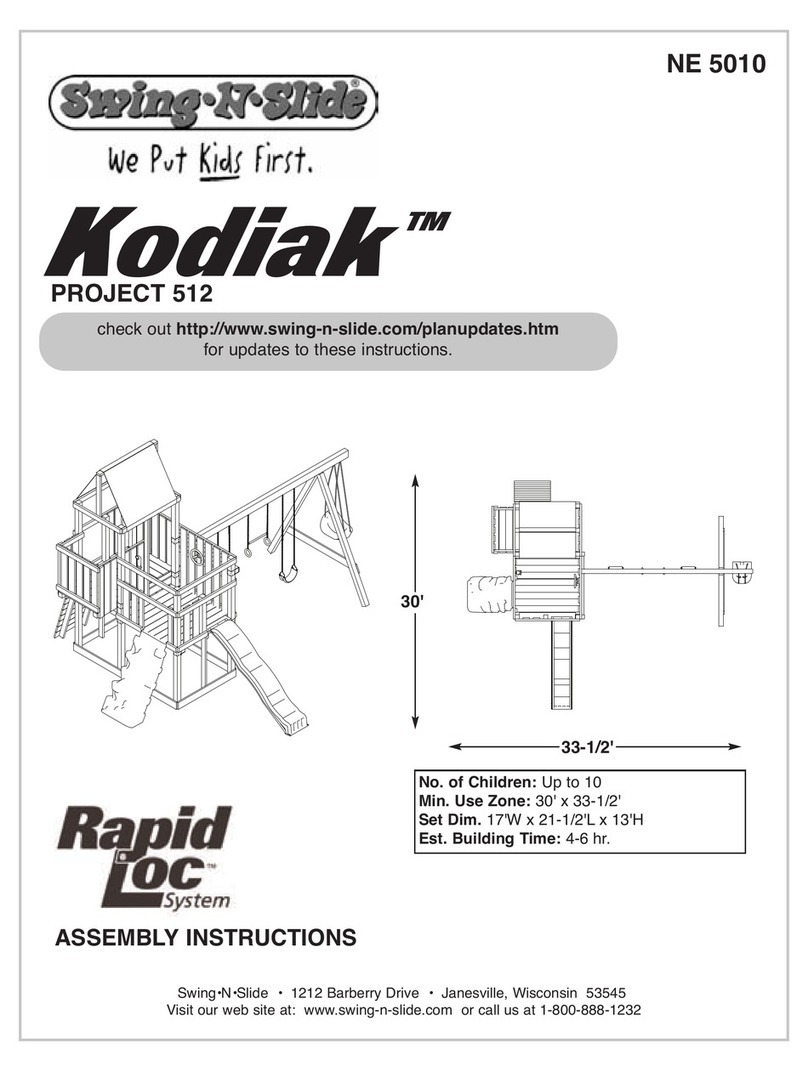

Swing-N-Slide Kodiak PROJECT 512 Assembly instructions
Terra Bound Solutions
Terra Bound Solutions 581-706 quick start guide
Action Sports
Action Sports S000463 Assembly, Installation, Care, Maintenance, and Use Instructions
Lemeks
Lemeks Palmako BRENDA MV80-5120 Assembly, installation and maintenance instructions
gartenpirat
gartenpirat Premium 4.1 GP1304 Assembly instructions
Dea

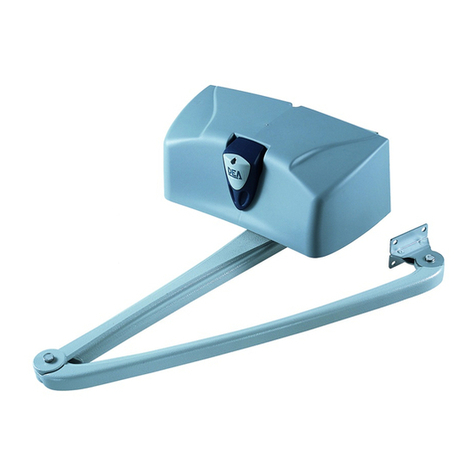

Dea LIVI 500 operating instructions
