TREELINE FDR0350AS User manual

OWNER’S MANUAL
CORN FEEDER
ASSEMBLY AND OPERATING INSTRUCTIONS
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE FEEDER OWNER FOR
FUTURE REFERENCE.
Models FDR0350AS & FDR0600AS
SAVE THIS MANUAL FOR FUTURE REFERENCE
FDR0350AS_OM.indd 1FDR0350AS_OM.indd 1 11/15/2022 1:21:52 PM11/15/2022 1:21:52 PM

1
WARNING
• You should never attempt to assemble this feeder alone. We recommend having a minimum of at least two adults for the
assembly of this feeder. Failure to follow these instructions may result in serious injury or death.
• This feeder must be placed on firm and level ground. Before filling the feeder, we recommend installing ground stakes (not
included) through the holes located in the feet.
• Refer to the drawings in this manual for visualization of the assembly process in addition to reading the instructions.
• Some parts may contain sharp edges. Wear appropriate clothing and gloves during assembly.
• Do not fill feeder under and/or during bad weather such as storms, snow, lightning, or thunderstorms. Failure to follow these
instructions may result in serious injury or death.
• Do not sit or stand on or inside the hopper.
• Do not fill feeder until it is completely assembled and standing up in place.
• Make sure hands and arms are out of the way of the feeder body and lid when filling the feeder. Failure to follow these instructions
may result in serious injury.
• BEFORE STANDING UP THE FEEDER, YOU MUST:
•Check all hardware to be sure it is in place and tightened.
•Check all bolts and nuts to be sure they are secure and tight.
IMPORTANT! The manufacturer of this feeder is not responsible for any inaccurate information you have received regarding state
feeding regulations. Please always keep your information up-to-date and reliable. Many state laws change and are
amended without notice. Always double check your state and specific county feeding laws regarding the use of feeders.
• Contact your local or state wildlife agency if you have any questions concerning feeding wildlife.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR FEEDER.
FAILURE TO ADHERE TO SAFETY WARNING AND GUIDELINES IN THIS MANUAL COULD RESULT
IN BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT SAFETY WARNINGS
WE WANT YOU TO ASSEMBLE AND USE YOUR FEEDER AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL
IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR FEEDER.
WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR FEEDER.
FDR0350AS_OM.indd 2FDR0350AS_OM.indd 2 11/15/2022 1:21:53 PM11/15/2022 1:21:53 PM

ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR FEEDER.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 855-735-9922.
Inspect contents of the box to ensure all parts are included and undamaged.
2
We recommend two people work together when assembling this unit.
The following tools are required (not included) to assemble this
Corn Feeder:
• Pliers
• Phillips & Flathead Screwdrivers
• Adjustable Wrench
11 Hopper
21 Spring Latch
31 Motor Assembly
41 Funnel Plate
51 Spinner Plate Assembly
61 Spinner Bracket
72 Front Right and Rear Left Legs
82 Front Left and Rear Right Legs
2 Leg Braces
2 Front Skids
2 Rear Skids
1
2
3
4
5
6
7
8
9
9
10 10
11 11
8
7
Component Pack Contents:
Part Contents:
350 & 600 LB Corn Feeder Parts Card
M6 x 15 mm Bolt - 1 pc
Washers - 2 pcs
Rubber Washer - 1 pc
M6 Lock Nut - 1 pc
M6 x 75 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 8 m Bolts - 4 pcs
M6 x 15 mm Hex Bolts - 16 pcs
Washers - 16 pcs
FDR0350AS & FDR0600AS
M6 x 12 mm Hex Bolt - 1 pc M6 x 15 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 50 mm Hex Bolts - 4 pcs
Washers - 8 pcs
M6 Lock Nuts - 4 pcs
M6 x 12 mm Hex Bolts - 4 pcs
Washers - 4 pcs
M6 x 12 mm Hex Bolts - 2 pcs
For missing parts, please call Customer Service at 855-735-9922
9
10
11
FDR0350AS_OM.indd 3FDR0350AS_OM.indd 3 11/15/2022 1:21:53 PM11/15/2022 1:21:53 PM

3
Choose a good, cleared assembly area and get a
friend to help you put your feeder together. Lay
cardboard down to protect feeder finish and
assembly area.

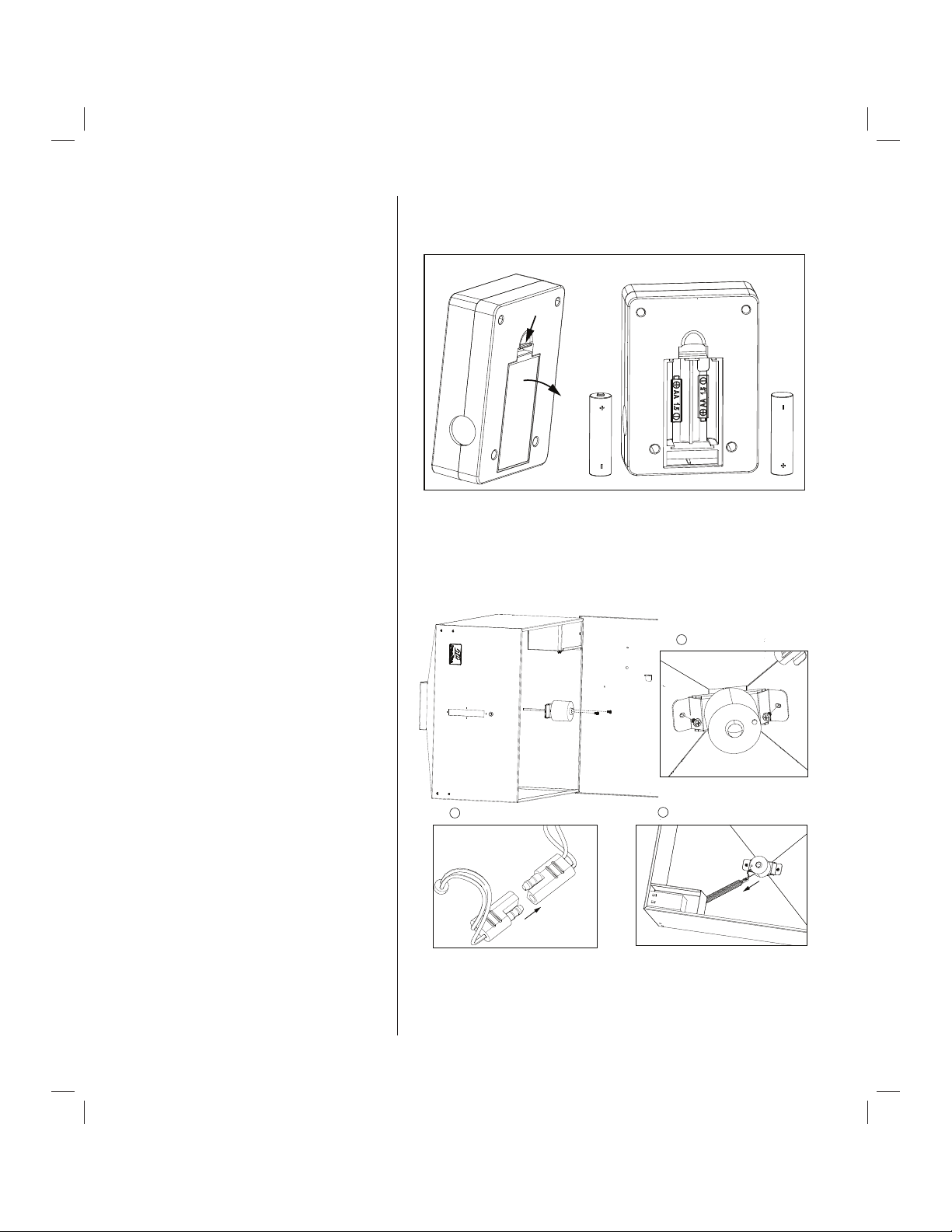

Step 1
Install 2 AA batteries in back of timer. Set aside
for later use.
Step 2
Lay hopper on its side and attach motor
assembly to bottom of hopper using two M6 x
12 mm hex bolts. Connect motor assembly to
battery wire in plastic conduit.
Note: Feed wire connectors inside plastic
conduit.
3
2
1
FDR0350AS_OM.indd 4FDR0350AS_OM.indd 4 11/15/2022 1:21:54 PM11/15/2022 1:21:54 PM

4

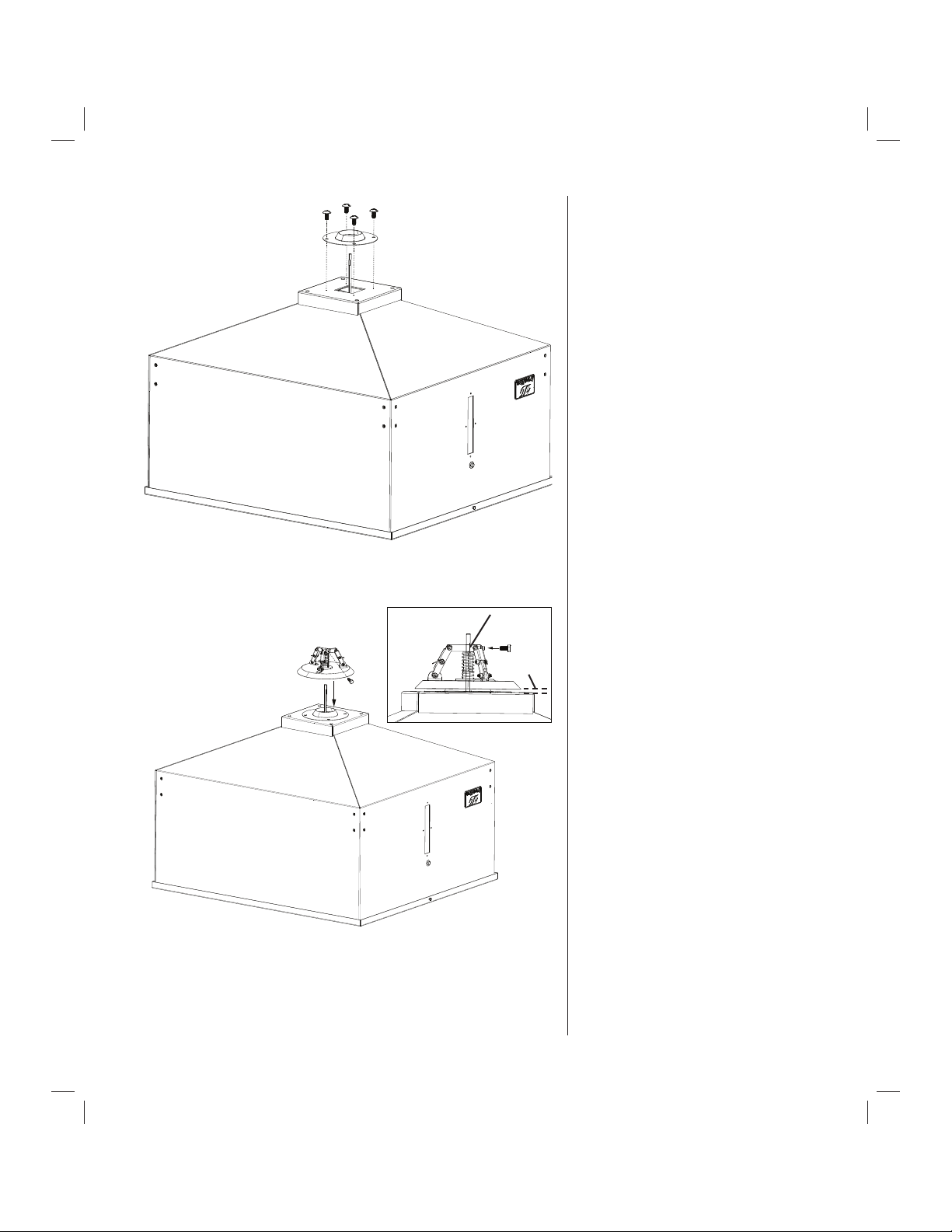

Step 3
Attach funnel plate to bottom of hopper
using four M6 x 8 mm bolts.
Note: Take extra care to protect solar panel
when laying hopper on lid.
Step 4
Slide spinner plate assembly onto motor
shaft and secure with one M6 x 12 mm hex
bolt. Align bolt with flat section of motor
shaft.
Note: Make sure spinner plate has a 1/8
inch gap between the plate and funnel
plate. (See illustration)
Flat Section
1/8 inch
FDR0350AS_OM.indd 5FDR0350AS_OM.indd 5 11/15/2022 1:21:54 PM11/15/2022 1:21:54 PM

5

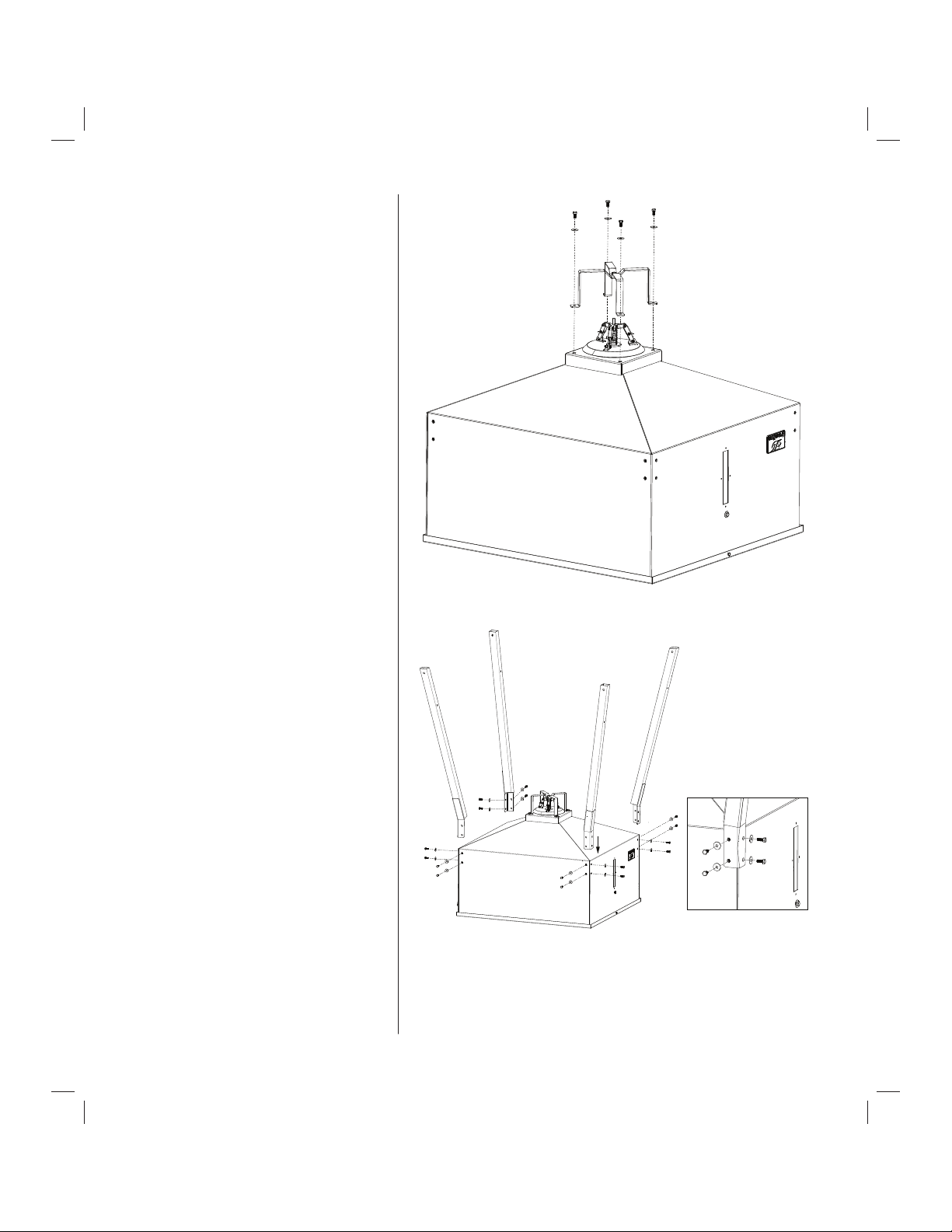

Step 5
Slide spinner bracket onto shaft and secure
with four M6 x 12 mm hex bolts and washers.
Step 6
Attach legs to hopper using sixteen M6 x 15
mm hex bolts and washers.
Note: Make sure the holes in the bottom of the
legs are oriented with the sides of the hopper
as shown.
FDR0350AS_OM.indd 6FDR0350AS_OM.indd 6 11/15/2022 1:21:55 PM11/15/2022 1:21:55 PM

6

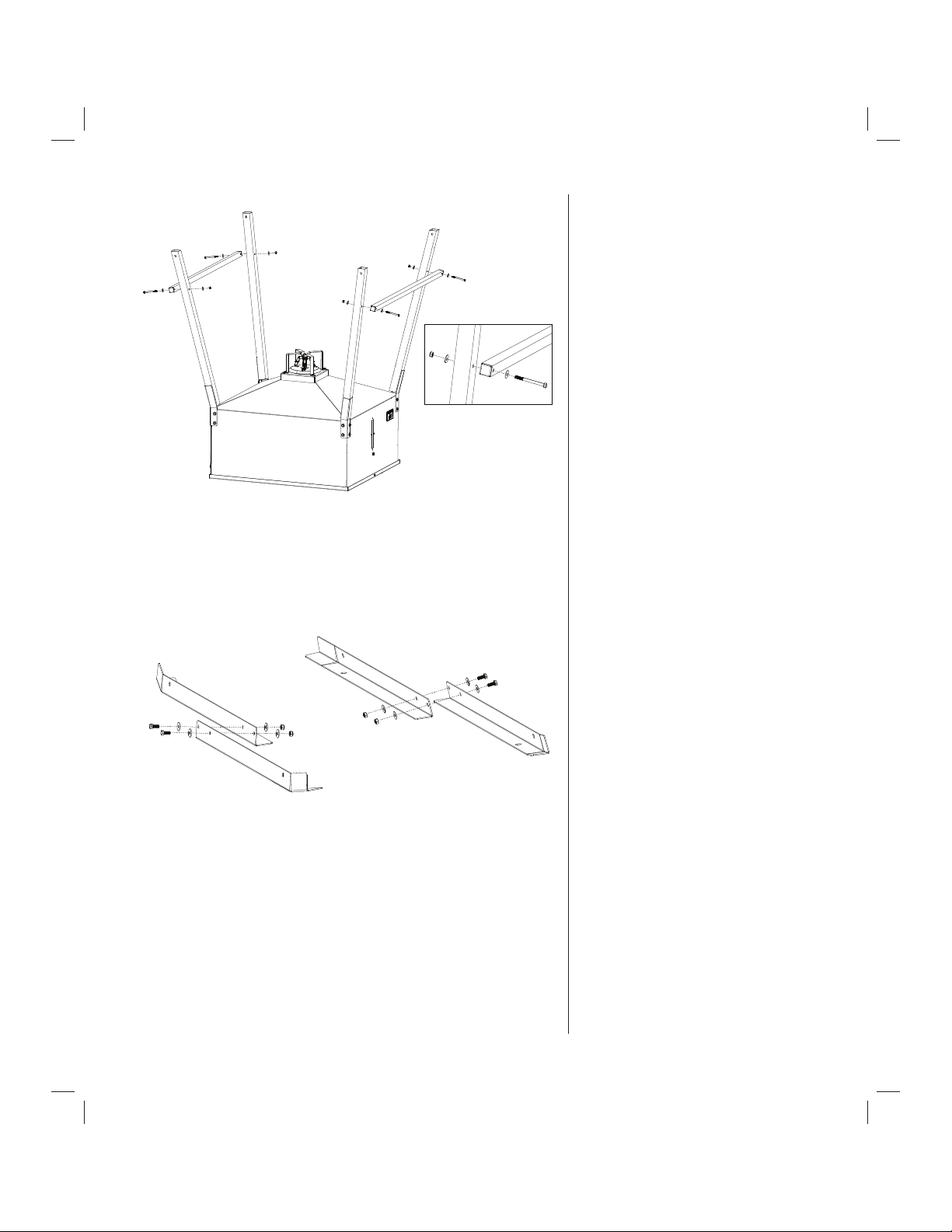

Step 7
Attach leg braces to front legs and rear legs
using four M6 x 75 mm hex bolts, eight
washers and four M6 lock nuts.
Step 8
Attach front and rear skid sections together
using four M6 x 15 mm hex bolts, eight
washers and four M6 lock nuts.
FDR0350AS_OM.indd 7FDR0350AS_OM.indd 7 11/15/2022 1:21:55 PM11/15/2022 1:21:55 PM

7

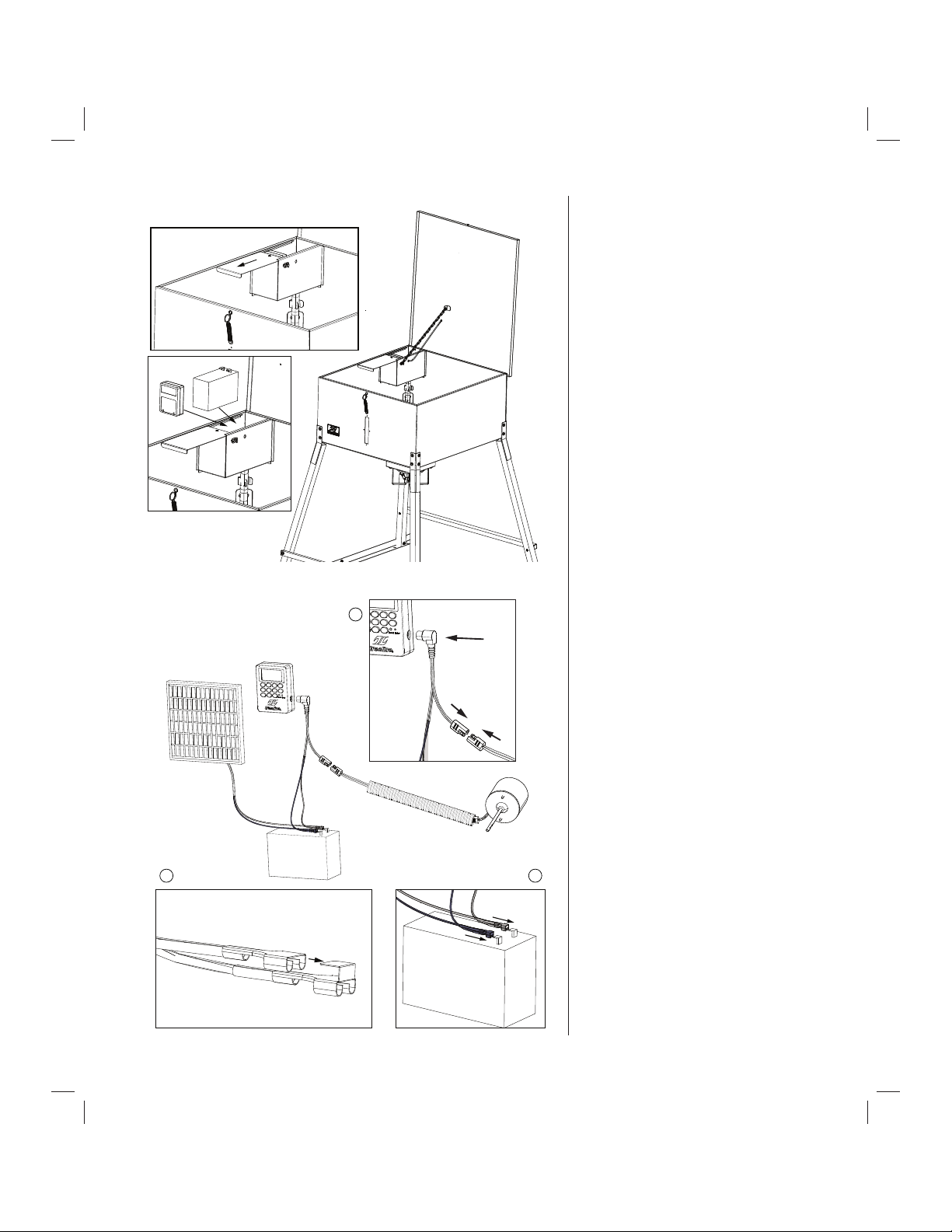

Step 9
Attach skids to the bottom of the legs using
four M6 x 50 mm hex bolts, eight washers and
four M6 lock nuts. With the help of others, turn
the feeder to the upright position.
Step 10
Attach spring latch to front of hopper using one
M6 x 15 mm bolt, washer (outside hopper) and
one rubber washer, washer and M6 lock nut
(inside hopper).
FDR0350AS_OM.indd 8FDR0350AS_OM.indd 8 11/15/2022 1:21:56 PM11/15/2022 1:21:56 PM

8
Step 11
Slide component cover back and insert 12
volt battery (not included) and timer.
Step 12
Connect wire (from motor) to timer plug
wire and insert plug into timer.
Attach red piggyback connector from timer
to red connector from solar panel together.
Then attach black piggyback connector
from timer to black connector from solar
panel together.
Attach red connectors to (+) positive
terminal on battery and attach black
connectors to (-) negative terminal on
battery.
1
23
FDR0350AS_OM.indd 9FDR0350AS_OM.indd 9 11/15/2022 1:21:56 PM11/15/2022 1:21:56 PM

9
CORN FEEDER ASSEMBLED
FDR0350AS_OM.indd 10FDR0350AS_OM.indd 10 11/15/2022 1:21:57 PM11/15/2022 1:21:57 PM

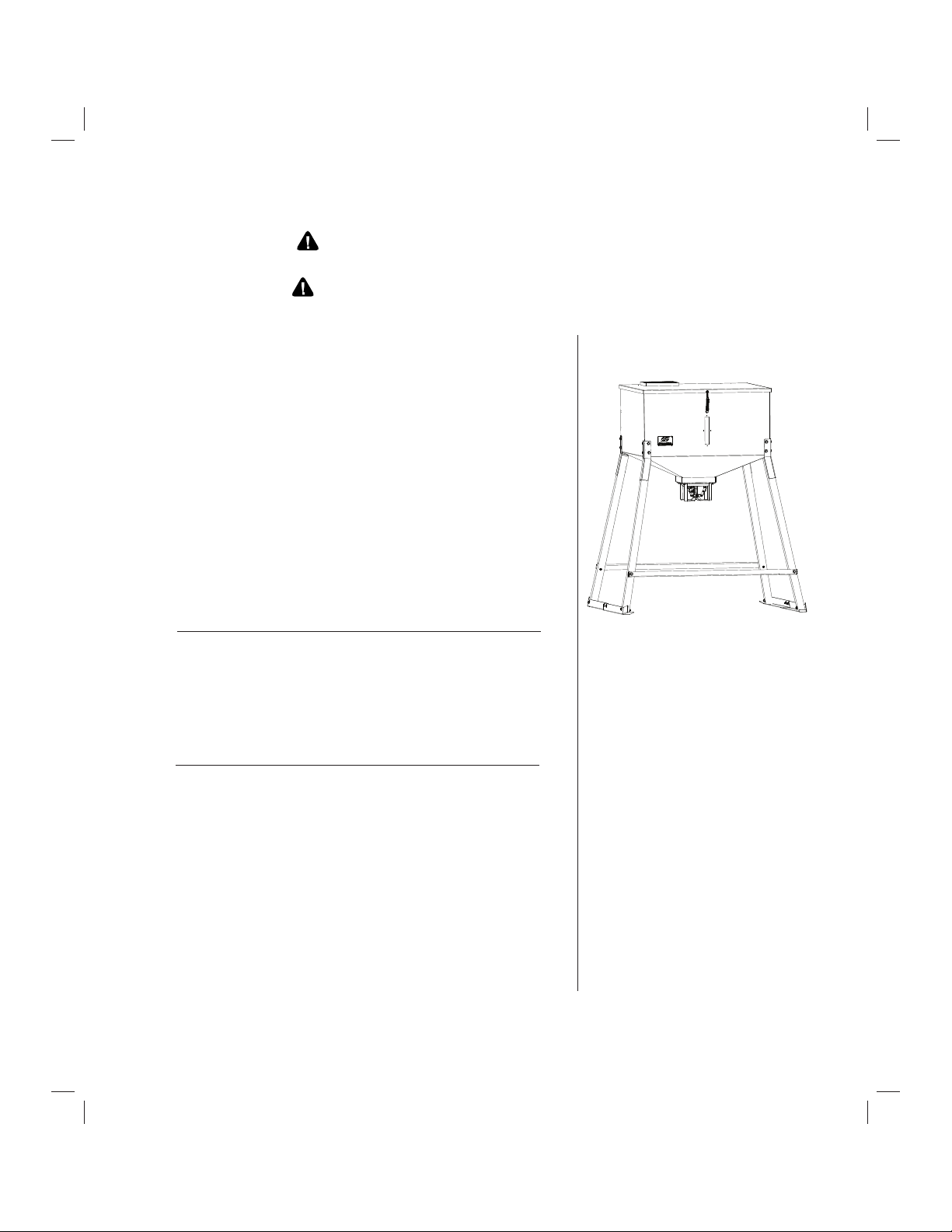

OPERATING INSTRUCTIONS
PLACE THE FEEDER OUTDOORS ON A HARD, LEVEL SURFACE
IN AN AREA THAT IS PROTECTED FROM THE WIND.
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE OPERATING YOUR FEEDER.
• The proper spacing between the spinner plate and the funnel plate should be
around 1/8 inch. This is very important for service free operation.
• To test your feeder, follow the instructions on the back of the timer.
How to Load Your Feeder:
• Open the lid and pour feed into the hopper. After filling, carefully close the lid
and install the latch.
• What kind of feed to use – whole kernel corn is recommended. Corn mixed
with soybeans, pelleted feed, and milo is also effective for attracting deer and
other wildlife.
Note: When not mixed with corn, some types of pelleted feed can take on
moisture and clog the feeder.
How to Install Your Battery:
• Slide the door open and install a 12 volt battery (not included). The red clip
goes to the (+) positive terminal and the black clip goes to the (-) negative
terminal.
How to Operate the Timer:
• Read the instructions located on the back of the timer.
•Inspect feeder for any loose parts or hardware.
•If rust appears on the exterior surface of the feeder, clean and buff the
affected areas with a stiff bristle brush or steel wool. Then, touch-up the area
with a good quality paint.
•Always store excess feed indoors and check the quality of the feed before
pouring it into feeder.
•Make sure feeder is empty before testing.
•Check the battery level showing on the timer display. If the battery is showing
2 bars or less, it needs to be replaced. You can also use a volt meter to check
the voltage.
•Check the solar panel using a volt meter to ensure the solar panel is reading
more than 12 volts when in full direct sunlight.
•If your battery is fully charged, you can check if the motor is working
properly. Directly connect the motor to the battery using the spare wire.
Connect the wire ends to each battery terminals, if the motor is working, the
spinner plate will spin immediately.
•If your battery, solar panel and motor are working properly the issue will be
the timer. The timer should be replaced.
Instructions
10
Proper Care
& Maintenance
Troubleshooting
FDR0350AS_OM.indd 11FDR0350AS_OM.indd 11 11/15/2022 1:21:57 PM11/15/2022 1:21:57 PM

©2022 The Boltz Group LLC.
Carrollton, Texas 75006 U.S.A.
www.evenembers.com
Owner’s Manual for Models
FDR0350AS & FDR0600AS
OM0350AS
1122
For 1-year from date of purchase, The Boltz Group warrants the Corn Feeder against defects due to workmanship or materials to the original
purchaser.
The Boltz Group’s obligations under this warranty are limited to the following guidelines:
• This warranty does not cover feeders that have been altered/modified or damaged due to: normal wear, rust, abuse, improper
maintenance and/or improper use.
• This warranty does not cover surface scratches or sun damage to the finish, which is considered normal wear.
• The Boltz Group may elect to repair or replace damaged units covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
The Boltz Group requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or invoice. To
obtain replacement parts for your Corn Feeder under the terms of this warranty, please call Customer Service Department at 855-735-9922
for a Return Authorization Number and further instructions. A receipt or proof of purchase will be required. The Boltz Group will not be
responsible for any feeders forwarded to us without prior authorization.
EXCEPT AS ABOVE STATED, THE BOLTZ GROUP MAKES NO OTHER EXPRESS WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO 1-YEAR
FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE CORN FEEDER TO
COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE
PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
1-YEAR LIMITED WARRANTY
