Treesat FMC003 User manual
Installation manual FMC003 - version 23.07
WARNINGS
Please read this manual before proceeding with the installation. All
connection activities should be performed with extreme caution. For
safety reasons, the module should be installed by qualified specialists.
DESCRIPTION

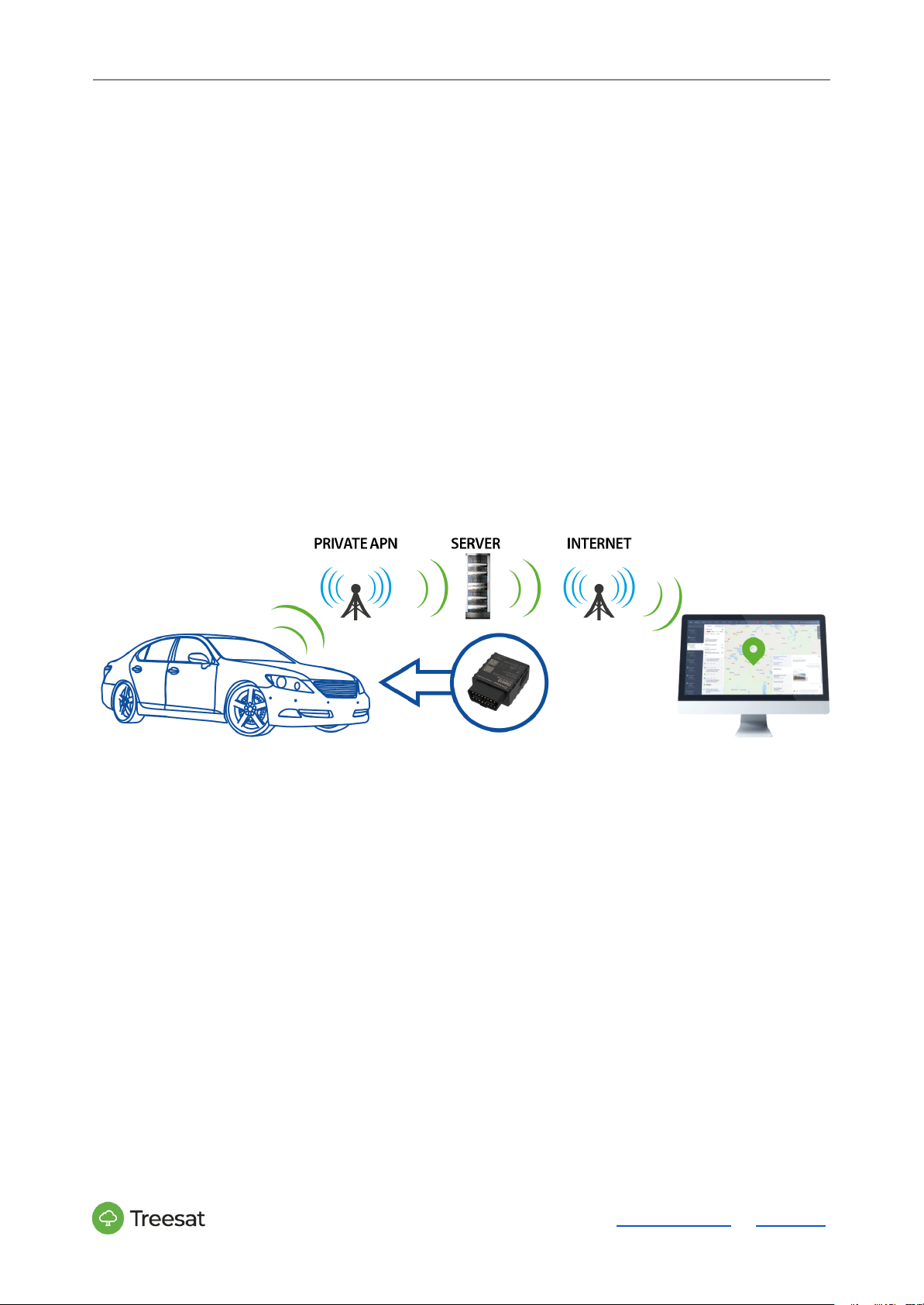

The kit consists of a small electronic device and a mobile or web application. The
communication module is mounted in the vehicle. The communication module monitors
the GPS position in real time with GNSS and GSM connectivity, collects device coordinates
and other useful data, and sends them via the GSM network to the server. Communication
with the server and the application via the mobile network means that the user receives a
number of functions, e.g. a theft alarm with a map or an accident detection system
informing about a possible collision. The map and navigation will also help you find a
vehicle left in a parking lot or in a foreign city. There is also an ignition lock function.
Detailed functionalities of individual products can be found at treesat.io.
The device is ideal for applications where location acquisition of distant objects is
required. It can be used by companies with a car fleet, car rental companies, taxi
companies, and ordinary users using their own passenger cars.
MOUNTING THE DEVICE IN THE VEHICLE
Before installing the device, locate the OBDII connector in the car, it is usually hidden
behind a plug. Connect the device by inserting it directly into the OBDII connector, or if it is
not possible to insert the plug correctly, using the OBDII extension cable, in this case the
device should be horizontally attached with the print facing upwards to the elements of the
car.
[email protected] treesat.io
Installation manual FMC003 - version 23.07
OPERATION CHECK
After connecting the device, check its correct operation by observing the diodes.
Behavior of the “Status” LED (GSM):
●The LED blinks every second – normal operation, GSM signal has been stabilized.
●The LED flashes every two seconds – the device is in sleep mode.
●The LED flashes quickly for a short time – the device is sending data to the server.
●The LED is off – the device is damaged or is in update mode.
Behavior of the “Navigate” LED (GPS):
●LED flashes every second – normal operation, GPS signal has been stabilized.
●The LED is lit continuously – no GPS signal, the module is searching for satellites.
●The LED is not lit at all – the GPS module is turned off, the GPS is in a deep sleep
mode.
START PINS
1. Download the application on your phone, create an account, then log in.
2. Add the car (device) to your account in the app. The serial number is located on
the device, below the code QR.
3. It may take up to 24 hours for your device to activate. Using the user manual,
install the device in the vehicle after receiving a notification in the application about
the activation of the SIM card.
[email protected] treesat.io
Installation manual FMC003 - version 23.07
STARTING CAR ASSISTANT
1. Download the application on your phone, create an account, then log in.
2. Add the car (device) to your account in the app. The serial number is located on
the device, below the code QR.
3. It may take up to 24 hours for your device to activate. Using the user manual,
install the device in the vehicle after receiving a notification in the application about
the activation of the SIM card.
4. Check the operation of the device by arming and triggering an alarm in the
application. The device is ready for operation.
5. If the functional test did not take place under the target account in the application
(fitter test account), then Delete the vehicle (device) from the test account: go to
Vehicle details > click on the Settings icon (gear in the upper right corner) > click on
Delete vehicle . All data will be erased. Then add the device to your customer account
again.
STARTING FLEET MANAGER
1. Using the manual, install the device in the vehicle.
2. Log in to the Web application – you will receive login details by e-mail (Fleet
Manager).
3. The device has been added to your account by Treesat. Create a vehicle in the
system and assign the number of the mounted device. Your devices are in the
drop-down list.
[email protected] treesat.io
Installation manual FMC003 - version 23.07
TECHNICAL SPECIFICATIONS
GSM
●2G/4G: B1, B2, B3, B5, B7, B8, B20, B28,
B38, B40, B41
●LTE CAT 1
Information
●Connected via OBDII connector
●accelerometer
●Internal high-gain GSM antenna
●Internal high-gain GNSS antenna
●2 device status LEDs
●Operating temperature: -20 °C to +45 °C
●Humidity: 5% to 95%
●IP41
●Dimensions: L(79mm) x W(43mm) x
H(12mm)
GNSS
●GPS, GLONASS, GALILEO, BEIDOU,
SBAS, QZSS, DGPS, AGPS
●Tracking 33 channels
●Sensitivity -165 dBM
●Accuracy 3m
●Hot start <1s
●warm start <25s
●Cold start <35s
Energy consumption
●Power supply 10~30VDC
●Integrated backup battery: 170 mAh
Li-Ion 3.7 V (0.63 Wh)
Current consumption at 12V
●Sleep: <5mA
●Nominal operation: <33mA
●Maximum: 250mA
[email protected] treesat.io
Installation manual FMC003 - version 23.07
SIGNS
CE mark. This marking informs that the device complies with the terms of
Directive 2014/30/EU regarding the compliance of Member States with
electromagnetic compatibility regulations and the terms of Directive
2014/35/EU regarding compliance by Member States with low voltage
regulations and safety related to the operation of electrical equipment.
The symbol of the crossed-out waste bin attached to the product means that
the product is covered by the European Directive 2012/19/EU. Information on
separate collection points for waste electrical and electronic products can be
obtained from the place of residence. Please follow the guidelines of your
local authorities and do not dispose of this type of equipment with other
household waste. The correct disposal of your old products helps prevent
environmental pollution and loss of health.
If this logo is found on the product, it means that the fees related to the
appropriate recycling and recovery system have been paid.
This logo informs that the device is compliant with the terms of Directive
2011/65/EU (commonly known as the Restriction of Hazardous Substances
Directive or RoHS). The RoHS Directive covers restrictions at the production
stage on the introduction of hazardous substances in electronics.
CONTACT DETAILS
Treesat sp. z o.o
st. Wędkarska 38b
10-180 Olsztyn
[email protected] treesat.io
