TREND T18S/AG115 User manual

T18S/AG115
EN Original Instructions
DE Übersetzung Der Originalanleitung
FR Traduction Des Instructions Originales
NL Vertaling Van De Originele Instructies
Översättning Av De Ursprungliga Instruktionerna
SE
P.7
P.21
P.37
P.52
P.67

T18S/AG115
-2-
AK
B
I
M
J
CD
H G EF
figure 1
L
figure 2
figure 3

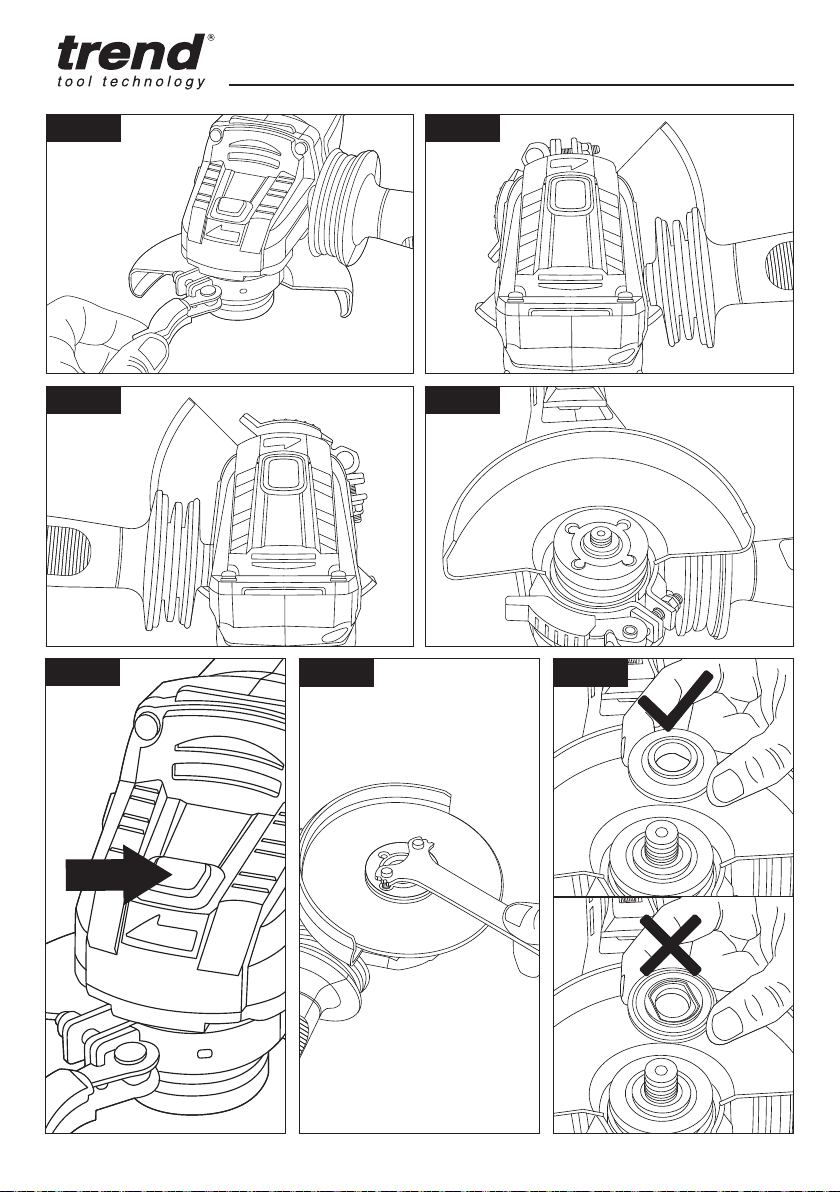

Fig. 1
Fig. 2 Fig. 3
figure 2
figure 2
figure 2a
figure 3a
Fig. 2a
Fig. 3a

T18S/AG115
-3-
figure 4
figure 4c
figure 4d
figure 4a
figure 4b
Fig. 4
Fig. 4b
Fig. 4d
Fig. 4a
Fig. 4c
Fig. 5
figure 5

T18S/AG115
-4-
EN - Depressed centre grinding disc
DE - Schleifscheibe mit vertiefter mitte
FR - Meule à moyeu déporté
NL - Slijpschijf met niet ingedrukt midden
SE - Slipskiva med försänkt nav
EN - Flap wheel
DE - Schleifmoppteller
FR - Disque à lamelles
NL - Flapwiel
SE - Rondelltrissa
EN - Wire wheels
DE - Drahtscheiben
FR - Brosse métallique circulaire
NL - Draadwielen
SE - Trådtrissor
EN - Wire wheels with threaded nut
DE - Drahtscheiben mit gewindemutter
FR - Brosse métallique à écrou taraudé
NL - Draadwielen met moer met schroefdraad
SE - Trådtrissor med gängad mutter
EN - Wire cup with threaded nut
DE - Drahttopf mit gewindemuttert
FR - Brosse coupelle à écrou taraudé
NL - Draadbus met moer met schroefdraad
SE - Trådkopp med gängad mutter
EN - Backing pad/Sanding sheet
DE - Polierteller/Sandpapier
FR - Tampon de soutien/disque abrasif
NL - Steunkussen/ schuurblad
SE - Stödrondell/sandpapper
EN - Masonry cutting disc, bonded
DE - Mauerwerk schleifscheibe, gebunden
FR - Disque de coupe de maçonnerie, liaisonné
NL - Zaagschijf voor metselwerk, gelijmd
SE - Betongkapskiva, belagd
EN - Metal cutting disc, bonded
DE - Metalltrennscheibe, gebunden
FR - Disque à métal, liaisonné
NL - Zaagschijf voor metaal, gelijmd
SE - Metallkapskiva, belagd
EN - Diamond cutting wheels
DE - Diamanttrennscheibe
FR - Meule à tronçonner diamantée
NL - Diamanten snijdwielen
SE - Kaptrissor med diamanter
Fig. 6
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
E
L
L
F
F
G
M
E
E
E
E
L
EN - Grinding disc
DE - Schleifscheibe
FR - Meule
NL - Slijpschijf
SE - Slipskiva
EN - Cutting disc
DE - Schneidscheibe
FR - Disque à tronçonner
NL - Doorslijpschijf
SE - Skärskiva
EN - Spanner
DE - Zweilochschlüssel
FR - Clé à ergots
NL - Tweegaatssleutel
SE - Spännyckel
EN - Spanner
DE - Zweilochschlüssel
FR - Clé à ergots
NL - Tweegaatssleutel
SE - Spännyckel

T18S/AG115
-5-
figure 6
figure 6a

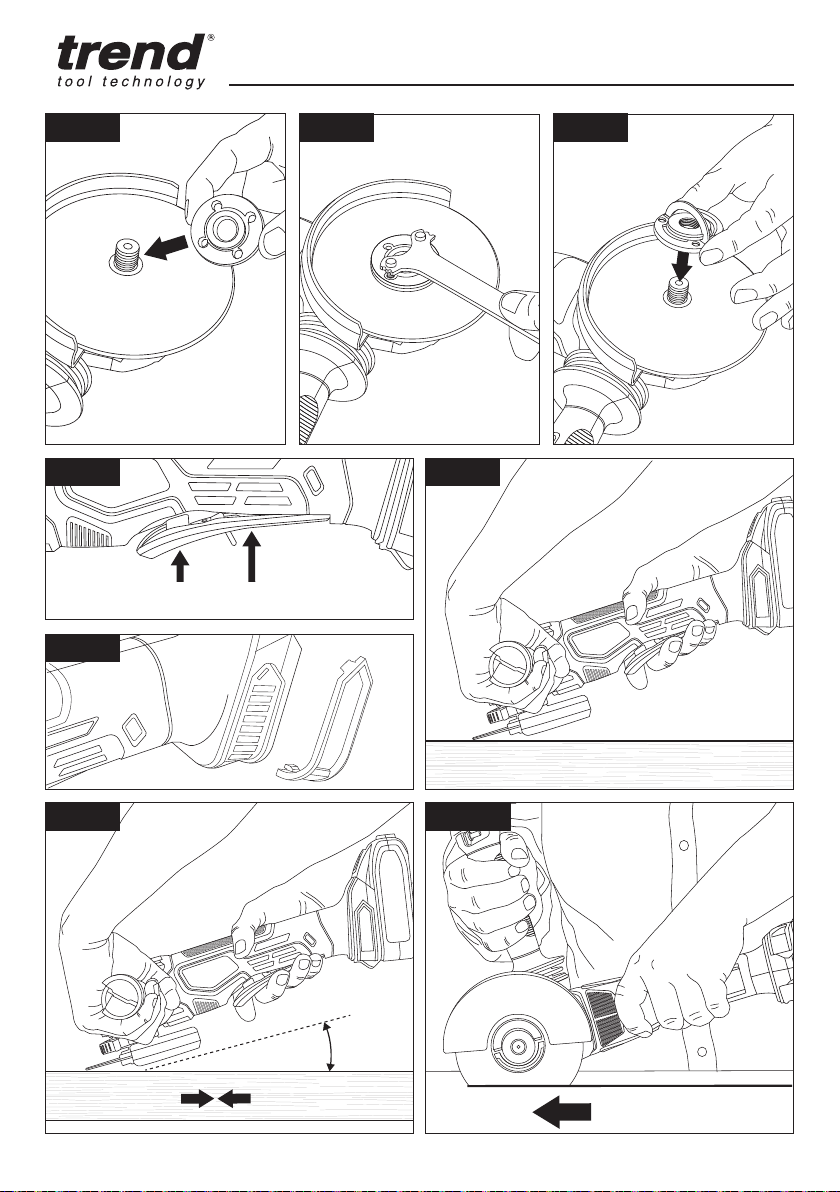

Fig. 7 Fig. 7a
figure 6b
figure 7
Fig. 7b Fig. 8
Fig. 8b
figure 8c
figure 8c
Fig. 8c
Fig. 8a

T18S/AG115
-6-
15o
A B
figure 11
figure 11a
Fig. 13
Fig. 12
Fig. 13a
figure 10
Fig. 11
12
figure 9
Fig. 10
figure 8b
Fig. 9b
figure 8a
Fig. 9aFig. 9

EN - T18S/AG115
-7-
EN – T18S/AG115
Thank you for purchasing this Trend product, we hope
you enjoy many years of creative and productive use.
Please remember to return your guarantee card within 28
days of purchase.
TECHNICAL DATA
Voltage VDC 18
Battery type Li-Ion
Blade size mm 115
Bore size mm 22.2
Spindle thread mm M14
Rated speed min-1 8,500
Weight Kg 1.87
Battery*
Capacity of the battery Ah 4
Ah 5
Charger*
Input voltage V 220 - 240
Mains frequency Hz 50/60
Rated power W 150
Output voltage VDC 21
Output current A 6
Charge time T18S/BA4AM** min 48
Charge time T18S/BA5A** min 54
* only for models equipped with
battery and charger
** charging time applies only to the
battery with a capacity listed in table
Noise values and vibration values (triax vector sum) according to EN
60745-2-3: 2011+A13:2015
Emission sound pressure level LpA dB (A) 88
Sound power level LWA dB (A) 99
KpA (uncertainty for the given sound pressure) dB (A) 1.5
Vibration emission Value ah =
Uncertainty K =
m/s2
m/s2
4.9
1.5
The vibration and/or noise emission level given in this
information sheet has been measured in accordance
with a standardised test given in EN60745 and may be
used to compare one tool with another. It may be used
for a preliminary assessment of exposure.
WARNING: The declared vibration emission
level represents the main application of the tool.
However if the tool is used for different applications, with
different accessories or poorly maintained, the vibration
emission may differ.
This may significantly increase the exposure level over
the total working period. An estimation of the level of
exposure to vibration should also take into account the
times when the tool is switched off or when it is running
but not actually doing the job. This may significantly
reduce the exposure level over the total working
period. Identify additional safety measures to protect
the operator from the side effects of vibration such as:
maintain the tool and the accessories, keep hands warm,
organisation of work patterns.
EC DECLARATION OF CONFORMITY
MACHINERY DIRECTIVE
CORDLESS ANGLE GRINDER
T18S/AG115
Trend declares that the product described under
Technical Data is in compliance with 2006/42/EC,
EN60745-1:2009+A11:2010, EN60745-2-3:2011
+A2:2013 +A11:2014 +A12:2014 +A13:2015.
These products also comply with Directive 2014/30/EU
and 2011/65/EU. For more information please contact
Trend at the following address or refer to back of manual.
The undersigned make this declaration on behalf of
Trend Tool Technology Ltd.
Neil McMillan
Technical Director
Trend Tool Technology Ltd,
Odhams Trading Estate,
Watford, WD24 7TR,
England
01/08/2021
Technical File Contact
Trend Tool Technology Ltd,
3rd Floor, Kilmore House,
Park Lane, Spencer Dock,
Dublin 1, Ireland

EN - T18S/AG115
-8-
UK DECLARATION OF
CONFORMITY
The undersigned, representing the following
manufacturer
Manufacturer:
Trend Tool Technology Ltd, Watford, England WD24 7TR
declares that the product(s):
Product Identification:
Product: Cordless Angle Grinder
Brand: Trend
Model: T18S/AG115
Conforms to the following UK Regulations
• The Supply of Machinery (Safety) Regulations, 2008,
S.I. 2008/1597 (as amended).
• Electromagnetic Compatibility Regulations, 2016, S.I.
2016/1901 (as amended).
• The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment
Regulations 2012, S.I. 2012/3032 (as amended).
and the following Designated Standards:
S.I. 2008/1597: EN 60745-1: 2009+A11:2010
EN 60745-2-3: 2011+A13:2015
The undersigned is responsible for compilation of the
technical file and makes this declaration on behalf of
Trend Tool Technology Ltd.
Neil McMillan
Technical Director
Trend Tool Technology Ltd,
Odhams Trading Estate,
Watford, WD24 7TR,
England
01/08/2021
WARNING: To reduce the risk of injury, read
the instruction manual.
Definitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and pay
attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.
NOTICE: Indicates a practice not related
to personal injury which, if not avoided, may result in
property damage.
Denotes risk of electric shock.
Denotes risk of fire.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire
and/or serious injury.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your
mains- operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work Area Safety
a) Keep work area clean and well lit. Cluttered or
dark areas invite accidents
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.
2) Electrical Safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.

EN - T18S/AG115
-9-
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal Safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger
on the switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
4) Power Tool Use and Care
a) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for which
it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the powersource and/
or the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power
tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar with
the power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits,
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for operations
different from those intended could result in a hazardous
situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5) Battery Tool Use and Care
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid maybe
ejected from the battery; avoid contact. If contact

EN - T18S/AG115
-10-
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified batteries
may exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and increase
the risk of fire.
6) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
b) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
ADDITIONAL SPECIFIC SAFETY
RULES
Safety Instructions for
All Operations
a) This power tool is intended to function as a
grinder, sander, wire brush or cut-off tool. Read
all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
b) Operations such as polishing are not
recommended to be performed with this power
tool. Operations for which the power tool was not
designed may create a hazard and cause personal injury.
c) Do not use accessories which are not
specifically designed and recommended by the
tool manufacturer. Just because the accessory can
be attached to your power tool, it does not assure safe
operation.
d) The rated speed of the accessory must be at
least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated
speed can break and fly apart.
e) The outside diameter and the thickness of your
accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories can not
be adequately guarded or controlled.
f) Threaded mounting of accessories must match
the grinder spindle thread. For accessories
mounted by flanges, the arbour hole of the
accessory must fit the locating diameter of the
flange. Accessories that do not match the mounting
hardware of the power tool will run out of balance,
vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive wheel
for chips and cracks, backing pad for cracks, tear
or excess wear, wire brush for loose or cracked
wires .If power tool or accessory is dropped,
inspect for damage or install an undamaged
accessory. After inspecting and installing an
accessory, position yourself and bystanders away
from the plane of the rotating accessory and run
the power tool at maximum no-load speed for one
minute. Damaged accessories will normally break apart
during this test time.
h) Wear personal protective equipment. Depending
on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask,
hearing protectors, gloves and workshop apron
capable of stopping small abrasive or workpiece
fragments. The eye protection must be capable of
stopping flying debris generated by various operations.
The dust mask or respirator must be capable of filtrating
particles generated by your operation. Prolonged
exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from
work area. Anyone entering the work area must
wear personal protective equipment. Fragments of
workpiece or of a broken accessory may fly away and
cause injury beyond immediate area of operation.
j) Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting tool may contact hidden wiring.
Contact with a “live” wire will also make exposed metal
parts of the power tool “live” and could give the operator
an electric shock.
k) Never lay the power tool down until the
accessory has come to a complete stop. The
spinning accessory may grab the surface and pull the
power tool out of your control.
l) Do not run the power tool while carrying it
at your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
m ) Regularly clean the power tool’s air vents. The
motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may cause
electrical hazards.
n) Do not operate the power tool near flammable
materials. Sparks could ignite these materials.

EN - T18S/AG115
-11-
o) Do not use accessories that require liquid
coolants. Using water or other liquid coolants may
result in electrocution or shock.
FURTHER SAFETY INSTRUCTIONS
FOR ALL OPERATIONS
Causes and Operator
Prevention of Kickback
Kickback is a sudden reaction to a pinched or snagged
rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling
of the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched
by the workpiece, the edge of the wheel that is entering
into the pinch point can dig into the surface of the
material causing the wheel to climb out or kick out. The
wheel may either jump toward or away from the operator,
depending on direction of the wheel’s movement at the
point of pinching. Abrasive wheels may also break under
these conditions.
Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions and can be avoided
by taking proper precautions as given below:
a) Maintain a firm grip on the power tool and
position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if
provided, for maximum control over kickback or torque
reaction during start up. The operator can control torque
reaction or kickback forces, if proper precautions are
taken.
b) Never place your hand near the rotating
accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where
power tool will move if kickback occurs. Kickback
will propel the tool in direction opposite to the wheel’s
movement at the point of snagging.
d) Use special care when working corners ,sharp
edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory and cause loss
of control or kickback.
e) Do not attach a saw chain woodcarving blade
or toothed saw blade. Such blades create frequent
kickback and loss of control.
Safety Warnings Specific for
Grinding and Abrasive Cutting-Off
Operations
a) Use only wheel types that are recommended
for your power tool and the specific guard
designed for the selected wheel. Wheels for which
the power tool was not designed cannot be adequately
guarded and are unsafe.
b) The grinding surface of centre depressed
wheels must be mounted below the plane of the
guard lip. An improperly mounted wheel that projects
through the plane of the guard lip cannot be adequately
protected.
c) The guard must be securely attached to the
power tool and positioned for maximum safety, so
the least amount of wheel is exposed towards the
operator. The guard helps to protect the operator from
broken wheel fragments, accidental contact with wheel
and sparks that could ignite clothing.
d) Wheels must be used only for recommended
applications. For example: do not grind with the
side of cut-off wheel. Abrasive cut-off wheels are
intended for peripheral grinding, side forces applied to
these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are
of correct size and shape for your selected wheel.
Proper wheel flanges support the wheel thus
reducing the possibility of wheel breakage. Flanges
for cut-off wheels may be different from grinding wheel
flanges.
f) Do not use worn down wheels from larger
power tools. Wheel intended for larger power tool is
not suitable for the higher speed of a smaller tool and
may burst.
Additional Safety Warnings
Specific for Abrasive Cutting-Off
Operations
a) Do not “jam” the cut-off wheel or apply
excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting or
binding of the wheel in the cut and the possibility of
kickback or wheel breakage.
b) Do not position your body in line with and
behind the rotating wheel. When the wheel, at the
point of operations, is moving away from your body, the
possible kickback may propel the spinning wheel and
the power tool directly at you.
C) When wheel is binding or when interrupting a
cut for any reason, switch off the power tool and
hold the power tool motionless until the wheel
comes to a complete stop. Never attempt to
remove the cut- off wheel from the cut while the
wheel is in motion otherwise kickback may occur.
Investigate and take corrective action to eliminate the
cause of wheel binding.

EN - T18S/AG115
-12-
d) Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in the
workpiece.
e) Support panels or any oversized work piece to
minimize the risk of wheel pinching and kickback.
Large workpieces tend to sag under their own
weight. Supports must be placed under the workpiece
near the line of cut and near the edge of the workpiece
on both sides of the wheel.
f) Use extra caution when making a “pocket
cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical
wiring or objects that can cause kickback.
Safety Warnings Specific for
Sanding Operations
• Do not use excessively oversized sanding disc
paper. Follow manufacturer’s recommendations,
when selecting sanding paper. Larger sanding
paper extending beyond the sanding pad presents a
laceration hazard and may cause snagging, tearing of
the disc or kickback.
Safety Warnings Specific for
Wire Brushing Operations
• Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive load
to the brush. The wire bristles can easily penetrate
light clothing and/ or skin.
• If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to work and
centrifugal forces.
Additional Safety Instructions
for Grinders
• Do not use Type 11 (flaring cup) wheels on this
tool. Using inappropriate accessories can result in
injury.
• Always use side handle. Tighten the handle
securely. The side handle should always be used to
maintain control of the tool at all times.
RESIDUAL RISKS
In spite of the application of the relevant safety
regulations and the implementation of safety devices,
certain residual risks cannot be avoided. These are:
• Impairment of hearing.
• Risk of personal injury due to flying particles.
• Risk of burns due to accessories becoming hot during
operation.
• Risk of personal injury due to prolonged use.
SAVE THESE INSTRUCTIONS
Electrical Safety
The electric motor has been designed for one voltage
only. Always check that the battery pack voltage
corresponds to the voltage on the rating plate. Also
make sure that the voltage of your charger corresponds
to that of your mains.
Your Trend charger is double insulated in
accordance with EN60335; therefore no earth wire is
required.
If the supply cord is damaged, it must be replaced by
a specially prepared cord available through the Trend
service organisation.
Mains Plug Replacement (U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.
WARNING: No connection is to be made to
the earth terminal.Follow the fitting instructions supplied
with good quality plugs. Recommended fuse: 3 A.
Using an Extension Cable
An extension cord should not be used unless absolutely
necessary. Use an approved extension cable suitable for
the power input of your charger (see Technical Data).
The minimum conductor size is 1 mm2; the maximum
length is 30 m. When using a cable reel, always unwind
the cable completely.
Important Safety
Instructions for all Battery Chargers
• Before using charger, read all instructions and
cautionary markings on charger, battery pack, and
product using battery pack.
WARNING: Shock hazard. Do not allow any
liquid to get inside charger. Electric shock may result.

EN - T18S/AG115
-13-
WARNING: We recommend the use of a
residual current device with a residual current rating of
30mA or less.
CAUTION: Burn hazard. To reduce the risk
of injury, charge only Trend rechargeable batteries. Other
types of batteries may burst causing personal injury and
damage.
CAUTION: Children should be supervised to
ensure that they do not play with the appliance.
NOTICE: Under certain conditions, with the charger
plugged in to the power supply, the charger can be
shorted by foreign material. Foreign materials of a
conductive nature such as, but not limited to, grinding
dust, metal chips, steel wool, aluminum foil, or any
buildup of metallic particles should be kept away from
charger cavities. Always unplug the charger from the
power supply when there is no battery pack in the cavity.
Unplug charger before attempting to clean.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons
(including children) suffering from diminished physical,
sensory or mental abilities, or for lack of experience
and/or for want of knowledge or skills unless they are
supervised by a person responsible for their safety.
Children should never be left alone to play with this
product.
• DO NOT attempt to charge the battery pack with
any chargers other than the ones in this manual.
The charger and battery pack are specifically designed
to work together.
• These chargers are not intended for any
uses other than charging Trend rechargeable
batteries. Any other uses may result in risk of fire,
electric shock or electrocution.
• Do not expose charger to rain or snow.
• Pull by plug rather than cord when
disconnecting charger. This will reduce risk of
damage to electric plug and cord.
• Make sure that cord is located so that it will
not be stepped on, tripped over, or otherwise
subjected to damage or stress.
• Do not use an extension cord unless it is
absolutely necessary. Use of improper extension
cord could result in risk of fire,electric shock, or
electrocution
• Do not place any object on top of charger
or place the charger on a soft surface that
might block the ventilation slots and result in
excessive internal heat. Place the charger in a
position away from any heat source. The charger is
ventilated through slots in the top and the bottom of
the housing.
• Do not operate charger with damaged cord or
plug — have them replaced immediately.
• Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in
any way. Take it to an authorised service centre.
• Do not disassemble charger; take it to an
authorised service centre when service or repair
is required. Incorrect reassembly may result in a risk
of electric shock, electrocution or fire.
• In case of damaged power supply cord the supply cord
must be replaced immediately by the manufacturer, its
service agent or similar qualified person to prevent any
hazard.
• Disconnect the charger from the outlet before
attempting any cleaning. This will reduce the
risk of electric shock. Removing the battery pack
will not reduce this risk.
• NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard
230V household electrical power. Do not attempt
to use it on any other voltage. This does not apply
to the vehicular charger.
• Take care to ensure that the charger is standing
in a steady, secure position. A falling battery or
charger may present a risk of injury to yourself and/
or others.
SAVE THESE INSTRUCTIONS
Chargers
Trend chargers require no adjustment and are designed
to be as easy as possible to operate.
The T18S/CH6A charger accepts 18V Li-Ion Trend
battery packs (T18S/BA2A, T18S/BA4AM and T18S/
BA5A).
WARNING: Only charge in compatible
18V chargers. Use of other chargers may result in fire,
damage or serious personal injury.
Charging a Battery and
Operation - (Fig. 4 – 4d)
• The battery pack for this tool has been shipped in a
low charge condition to prevent possible problems.
Therefore, you should charge it until the green LED on
the front right hand side of the charger comes on.
• NOTE: Batteries will not reach full charge the first
time they are charged. Allow several cycles (operation
followed by recharging) for them to become fully
charged.
• First read the safety instructions then follow the
charging instructions.

EN - T18S/AG115
-14-
• Plug the charger into a standard 230V~50Hz mains
socket outlet, the green LED on the front left hand side
of the charger will illuminate.
• Do not allow the cable to become knotted or kinked.
• Place the battery pack into the charger base. (Note
the battery has raised ribs which allows it to fit into
the charger only one way). Time the charge 32, 48, 54
minutes only.
• The red LED on the front right hand side of the charger
will illuminate to indicate charging is in progress. A
green LED will illuminate when the battery is fully
charged.
• Unplug the charger when not in use and store it in a
suitable storage cabinet.
• Avoid charging your battery in freezing conditions as
charging power will not be sufficient.
• When charging more than one battery pack in
succession allow at least 30 minutes for the charger to
cool down before charging an additional battery.
• Always remove the battery pack and store it safely
when the tool is not in use.
CAUTION: If at any point during the charging
process none of the LEDs are lit, remove the battery
pack from the charger to avoid damaging the product.
DO NOT insert another battery.
Cooling System
The charger is equipped with an internal fan designed
to cool the charger. Never operate the charger if the
fan does not operate properly or if ventilation slots are
blocked. Do not permit foreign objects to enter the
interior of the charger.
Hot/cold Pack Delay
When the charger detects a battery pack that is too
hot or too cold, it automatically starts a Hot/Cold Pack
Delay, suspending charging until the battery pack has
reached an appropriate temperature. The charger then
automatically switches to the pack charging mode. This
feature ensures maximum battery pack life.
Electronic Protection system
Trend Li-Ion tools are designed with an Electronic
Protection System that will protect the battery pack
against overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic
Protection System engages.
Battery Charging Indoors
This charger is designed to be used indoors. We do not
recommend that it is used inside your home. Ideally
batteries should be charged on a bench in a workshop,
garage or shed. If the charging operation is to be carried
out in your home the area must be well ventilated and
the charger must be placed on a non combustible
surface ensuring that the ventilation slots are not
blocked
Wall Mounting
These chargers are designed to be wall mountable or to
sit upright on a table or work surface. If wall mounting,
locate the charger within reach of an electrical outlet,
and away from a corner or other obstructions which
may impede air flow. Use the back of the charger as a
template for the location of the mounting screws on the
wall. Mount the charger securely using suitable fixings
depending on wall type, a head diameter of 7 – 9mm
and length of 25mm is recommended. Leave a suitable
length of the screw exposed to allow the charger to be
fitted. Align the slots on the back of the charger with the
exposed screws and fully engage them in the slots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the
charger from the AC outlet before cleaning. Dirt and
grease may be removed from the exterior of the charger
using a cloth or soft non-metallic brush. Do not use
water or any cleaning solutions. Never let any liquid get
inside the tool; never immerse any part of the tool into
a liquid.
Battery Packs
Important Safety Instructions for All Battery Packs
When ordering replacement battery packs, be sure to
include product reference and voltage.
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read
the safety instructions below. Then follow charging
procedures outlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Inserting or
removing the battery from the charger may ignite the
dust or fumes.
• Never force battery pack into charger. Do not
modify battery pack in any way to fit into a non-
compatible charger as battery pack may rupture
causing serious personal injury.
• Charge the battery packs only in Trend chargers.
• DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack
in locations where the temperature may fall
below 4ºC (34ºF) (such as outside sheds or metal
buildings in winter), or reach or exceed 40ºC
(104ºF) (such as outside sheds or metal buildings
in summer).

EN - T18S/AG115
-15-
• Do not incinerate the battery pack even if it is
severely damaged or is completely worn out. The
battery pack can explode in a fire. Toxic fumes and
materials are created when lithium-ion battery packs
are burned.
• If battery contents come into contact with the
skin, immediately wash area with mild soap and
water. If battery liquid gets into the eye, rinse water
over the open eye for 15 minutes or until irritation
ceases. If medical attention is needed, the battery
electrolyte is composed of a mixture of liquid organic
carbonates and lithium salts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persists, seek medical attention.
WARNING: Burn hazard. Battery liquid
may be flammable if exposed to spark or flame.
WARNING: Never attempt to open the
battery pack for any reason. If battery pack case is
cracked or damaged, do not insert into charger. Do
not crush, drop or damage battery pack. Do not use a
battery pack or charger that has received a sharp blow,
been dropped, run over or damaged in any way (i.e.,
pierced with a nail, hit with a hammer, stepped on).
Electric shock or electrocution may result. Damaged
battery packs should be returned to service centre for
recycling.
WARNING: Fire hazard. Do not store or
carry the battery pack so that metal objects can
contact exposed battery terminals. For example,
do not place the battery pack in aprons, pockets, tool
boxes, product kit boxes, drawers, etc., with loose nails,
screws, keys, etc.
CAUTION: When not in use, place tool on its
side on a stable surface where it will not cause a tripping
or falling hazard. Some tools with large battery packs
will stand upright on the battery pack but may be easily
knocked over.
Battery Operation
Charge Status
To display the amount of charge left in the battery, press
the charge level indicator button, (Fig.2). Fig. 2a shows
the relation between the LED indication and charge left.
NOTE: The battery charge level indicator is only an
indication of the charge left on the battery pack. It does
not indicate tool functionality and is subject to variation
based on product components, temperature and end-
user application.
Self-Discharge
A lithium battery can self discharge and lose its stored
charge. Typically it can lose approximately 5% of its
charge in the first month after fully charging (when stored
at room temperature), and then loses it by a further 3%
per month. When stored at higher temperatures the self-
discharge rate will be accelerated.
Transportation
WARNING: Fire hazard. Transporting
batteries can possibly cause fire if the battery terminals
inadvertently come in contact with conductive materials.
When transporting batteries, make sure that the battery
terminals are protected and well insulated from materials
that could contact them and cause a short circuit.
NOTE: Lithium-ion batteries should not be put in
checked baggage.
Trend batteries comply with all applicable shipping
regulations as prescribed by industry and legal standards
which include UN Recommendations on the Transport
of Dangerous Goods; International Air Transport
Association (IATA) Dangerous Goods Regulations,
International Maritime Dangerous Goods (IMDG)
Regulations, and the European Agreement Concerning
The International Carriage of Dangerous Goods by
Road (ADR). Lithium-ion cells and batteries have been
tested to section 38.3 of the UN Recommendations on
the Transport of Dangerous Goods Manual of Tests and
Criteria.
In most instances, shipping a Trend battery pack will
be excepted from being classified as a fully regulated
Class 9 Hazardous Material. In general, only shipments
containing a lithium-ion battery with an energy rating
greater than 100 Watt Hours (Wh) will require being
shipped as fully regulated Class 9.
All lithium-ion batteries have the Watt Hour rating
marked on the pack. Furthermore, due to regulation
complexities, Trend does not recommend air shipping
lithium-ion battery packs alone regardless of Watt Hour
rating. Shipments of tools with batteries (combo kits) can
be air shipped as excepted if the Watt Hour rating of the
battery pack is no greater than 100 Whr.
Regardless of whether a shipment is considered
excepted or fully regulated, it is the shipper’s
responsibility to consult the latest regulations for
packaging, labelling/marking and documentation
requirements.
The information provided in this section of the manual
is provided in good faith and believed to be accurate
at the time the document was created. However, no
warranty, expressed or implied, is given. It is the buyer’s
responsibility to ensure that its activities comply with the
applicable regulations.

EN - T18S/AG115
-16-
Storage Recommendations
The best storage place is one that is cool and dry
away from direct sunlight and excess heat or cold. For
optimum battery performance and life, store battery
packs at room temperature when not in use.
For long storage, it is recommended to store a fully
charged battery pack in a cool, dry place out of the
charger for optimal results.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be
recharged before use.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the
labels on the charger and the battery pack may show the
following pictographs: -
Read instruction manual before use.
See Technical Data for charging time.
Battery charging.
Battery charged.
Battery defective.
Delay charge (Battery cooling or too cold battery).
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4ºC and 40ºC.
Only for indoor use.
Discard the battery pack with due care for the
environment.
Do not incinerate the battery pack.
ITEMS ENCLOSED
1 x Angle grinder
1 x Blade changing spanner
1 x Handle
1 x Instruction manual
1x Quick release flange
1 x Cutting guard
1 x Grinding guard
NOTE: Battery packs, chargers and kit boxes are not
included with B models.
• Check for damage to the tool, parts or accessories
which may have occurred during transport.
• Take the time to thoroughly read and understand this
manual prior to operation.
MARKINGS ON TOOL
The following pictograms are shown on the tool:
Read instruction manual before use.
Wear ear protection.
Wear eye protection.
Date Code Position
The year of manufacture is on the rating plate.
DESCRIPTION OF PARTS - (Fig. 1)
A. Hand grip
B. Battery port
C. Spanner and spanner storage point
D. Handle
E. Guard
F. Backing washer
G. Disc clamping nut
H. Guard clamp lever
I. On / Off trigger with safety latch
J. Spindle lock
K. Air vent
L. Quick release flange
M. Cutting guard
INTENDED USE
This angle grinder has been designed for cutting,
grinding of metal , sanding and wire brush applications.
DO NOT use grinding wheels other than centre
depressed wheels and flap discs.
DO NOT use under wet conditions or in the presence of
flammable liquids or gases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators
use this tool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons
(including children) suffering from diminished physical,
sensory or mental abilities; lack of experience,
knowledge or skills unless they are supervised by a

EN - T18S/AG115
-17-
person responsible for their safety. Children should
never be left alone with this product.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious
personal injury, turn tool off and disconnect
battery pack before making any adjustments or
removing/ installing attachments or accessories.
An accidental start-up can cause injury.
WARNING: Use only Trend battery packs
and chargers.
Battery Charge Level Status
- (Fig. 2 – 2a)
To display the amount of charge left in the battery, press
the charge level indicator button
NOTE: The battery charge level indicator is only an
indication of the charge left on the battery pack. It does
not indicate tool functionality and is subject to variation
based on product components, temperature and end-
user application.
Inserting and Removing the
Battery Pack from the Tool
- (Fig. 3 – 3a)
NOTE: Make sure your battery pack is fully charged.
NOTE: To avoid serious personal injury, always remove
the battery pack and keep hands clear of the lock button
when carrying or transporting the tool.
Improper installation of the battery pack can cause
damage to internal components.
Inserting the Battery Pack into
the Tool - (Fig. 3)
• Align the battery pack with the rails inside the sander’s
battery port.
• Slide it into the battery port until the battery pack is
firmly seated and ensure that you hear the lock snap
into place.
Removing the Battery Pack
from the Tool - (Fig. 3a)
• Press the release button and firmly pull the battery
pack out of the battery port.
• Insert battery pack into the charger as described in the
charger section of this manual.
Installing the Handle - (Fig. 5)
WARNING: Always be sure that the side
handle is installed securely before operation.
The side handle can be fitted to either side of the
machine to suit the operator ensure that the side handle
is secured but do not over tighten.
Cutting and Grinding Guards - (Fig 6)
Guard Adjustment - (Fig. 7 – 7b)
NEVER use the angle grinder without the guard in place
and properly adjusted.
• Remove the battery. Using the wrench provided,
loosen and remove backing washer, grinding disc, and
disc clamping nut from spindle if necessary.
• Unlock the guard clamp lever (Fig. 7).
• Rotate the guard to its correct position as shown (Fig.
7a – 7b).
• Lock the guard clamp lever and retighten clamp screw
securely.
WARNING: Never place the guard so that it
is on the front of the angle grinder. This could result in
serious injury because sparks and loose particles thrown
from the grinding wheel would be directed toward the
operator Never use your grinder with the guard removed.
It has been designed for use only with the guard
installed. Attempting to use grinder with guard removed
will result in loose particles being thrown against the
operator resulting in serious personal injury.
Installing Grinding Discs
- (Fig. 8 – 8c)
• Make sure that the tool is switched off and the battery
is removed. Turn the angle grinder onto its back
(Fig. 8).
• Locate and depress the spindle lock button. (Fig. 8a).
Using the spanner supplied insert the pins into the
holes on the disc clamping nut. Turn the spanner anti-
clockwise to release the disc clamping nut. (Fig. 8b).
• If the disc backing washer is removed it must be
replaced the correct way round. (Fig. 8c).
NOTE: There are different types of discs used for
different applications. Select the correct one for the work
being done. Make sure the disc backing washer flats are
located correctly with the flats on the shaft. The grinding
disc should be placed onto the angle grinder with the
writing facing upwards.

EN - T18S/AG115
-18-
Installing a New Disc
- (Fig. 9 – 9b)
• Place the disc over the shaft locating it onto the disc
backing washer. It can be seen that the backing
washer has a raised lip. The hole in the disc should
match the diameter of the raised lip, keeping the disc
mounted central; refit the disc clamping nut (Fig. 9).
• Tighten with fingers until the disc is clamped. Locate
and depress the spindle lock and using the supplied
spanner.
• Tighten the locking washer in a clockwise direction
until the disc is firmly clamped but do not over tighten.
Release the spindle lock and turn the angle grinder
over. (Fig. 9a)
Quick Change Flange - (Fig. 9b)
Only tighten the (tool-free) clamping nut (M)
manually.
For the machine to operate, the clip must
always lie flat on clamping nut.
To secure the (tool-free) clamping nut:
Do not use the (tool-free) clamping nut if
the accessory has a clamping shank thicker than
6 mm! In this case, use the clamping nut (G) with 2- hole
spanner (C).
• Lock the spindle (Fig. 8a)
• Flip up the clip on the clamping nut.
• Fit the clamping nut (L) on the spindle
• Tighten the clamping nut on the clip manually in a
clockwise direction.
• Flip down the clip again .
To release the (tool-free) clamping nut :
• Lock the spindle (Fig. 8a)
• Flip up the clip on the clamping nut.
• Unscrew the clamping nut , turning it anticlockwise
manually .
WARNING: Always install grinding disc and
abrasive with the depressed center against the backing
washer. Failure to do so will cause the grinding disc
to crack when tightening the disc clamping nut. This
could result in serious personal injury because of loose
particles breaking off and being thrown from the angle
grinder. Do not overtighten.
Starting and Stopping - (Fig. 10)
CAUTION: Before inserting the battery
cartridge into the tool, always check to see that the
trigger switch actuates properly and returns to the “OFF”
position when the switch trigger is depressed.
• To start the tool, pull back the safety lever (1) towards
the rear of the machine and then squeeze the On/Off
trigger (2).
• To stop the tool, release the trigger.
Air Vent Cleaning - (Fig. 11)
The tool and its air vents have to be kept clean.
Regularly clean the tool’s air vents or whenever the vents
start to become obstructed.
NOTE: Clean out the dust cover when it is clogged
with dust or foreign matters. Continuing operation
with a clogged dust cover may damage the tool.
OPERATION
WARNING: To reduce the risk of serious
personal injury, ALWAYS hold securely in anticipation of
a sudden reaction.
WARNING: It should never be necessary to
force the tool. The weight of the tool applies adequate
pressure. Forcing and excessive pressure could cause
dangerous disc breakage.
ALWAYS replace disc if tool is dropped while grinding.
NEVER bang or hit grinding disc or wheel onto the work
piece. Avoid bouncing and snagging the disc, especially
when working corners, sharp edges etc. This can cause
loss of control and kickback.
NEVER use tool with wood cutting blades and other
sawblades. Such blades when used on a grinder
frequently kick and cause loss of control leading to
personal injury. After operation, always switch off the
tool and wait until the wheel has come to a complete
stop before putting the tool down. If the tool is operated
continuously until the battery has discharged, allow the
tool to rest for 15 minutes before proceeding with a fresh
battery.
Proper Hand Position - (Fig. 12)
WARNING: To reduce the risk of serious
personal injury, ALWAYS use proper hand position as
shown.

EN - T18S/AG115
-19-
WARNING: To reduce the risk of serious
personal injury, ALWAYS hold securely in anticipation of
a sudden reaction.
Proper hand position requires one hand on the side
handle, with the other hand on the body of the tool.
Grinding - (Fig. 13)
WARNING: Always use the Grinding
guard. (E)
Secure all work before beginning any operation. Secure
small workpieces in a vice or clamp to a workbench.
The key to efficient operation is controlling the pressure
and surface contact between the grinding wheel and
workpiece.
ALWAYS hold the tool firmly with one hand on housing
and the other on the side handle. Turn the tool on and
then apply the disc to the workpiece.
In general, keep the edge of the disc at an angle of about
15 degrees to the workpiece surface. During the break-in
period with a new disc, do not work the grinder in the B
direction or it will cut into the workpiece. Once the edge
of the wheel has been rounded off by use, the wheel may
be worked in both A and B direction. (Fig. 13)
If the angle grinder is held in one spot too long, it will
gouge and cut grooves in the workpiece.
If the angle grinder is held at too sharp an angle, it will
also gouge the workpiece because of concentration of
pressure on a small area.
Use just enough pressure to keep the angle grinder from
chattering or bouncing. Heavy pressure will decrease its
speed and put a strain on the motor. Normally the weight
of the tool alone is adequate for most grinding jobs.
Use light pressure when grinding jagged edges or loose
bolts where there is the potential for the angle grinder to
snag on the metal edge.
Lift the angle grinder away from the workpiece before
turning the angle grinder off.
Rough Grinding - (Fig. 13)
NEVER use a cutting disc for roughing.
The best roughing results are achieved when setting the
machine at an angle of 30° to 40°. Move the machine
back and forth with moderate pressure. In this manner,
the workpiece will not become too hot, does not
discolour and no grooves are formed.
Cutting Stone - (Fig. 13a)
The machine shall be used only for dry cutting.
For cutting stone, it is best to use a diamond cutting
disc. Operate the machine only with additional dust
protection mask.
Cutting Metal - (Fig. 13a)
WARNING: For cutting with bonded
abrasives, always use the cutting guard. (M)
When cutting, work with moderate feed, adapted to
the material being cut. Do not exert pressure onto the
cutting disc, tilt or oscillate the machine.
Do not reduce the speed of running down cutting discs
by applying sideward pressure.
The machine must always work in an up grinding
motion. Otherwise, the danger exists of it being pushed
uncontrolled out of the cut.
When cutting profiles and square bar, it is best to start at
the smallest cross section
MAINTENANCE
Please use only Trend original spare parts and
accessories.
The power tool has been designed to operate over a
long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper
tool care and regular cleaning.
WARNING: To reduce the risk of serious
personal injury, turn tool off and disconnect battery pack
before making any adjustments or removing/ installing
attachments or accessories. An accidental start-up can
cause injury.
The charger and battery pack are not serviceable.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake
fluids, gasoline, petroleum based products, penetrating
oils, etc., come in contact with plastic parts. Chemicals
can damage, weaken or destroy plastic which may result
in serious personal injury.
Electric tools used on fiberglass material, wallboard,
spackling compounds, or plaster are subject to
accelerated wear and possible premature failure because

EN - T18S/AG115
-20-
the fiberglass chips and grindings are highly abrasive to
bearings, brushes, commutators, etc. Consequently, we
do not recommended using this tool for extended work
on these types of materials. However, if you do work with
any of these materials, it is extremely important to clean
the tool using compressed air.
Always keep your sander clean, regularly clean out the
ventilation slots.
Always keep the dust extraction holes in the vibrating
plate free of dirt or other obstructions.
Lubrication
• Your power tool requires no additional lubrication.
Cleaning
WARNING: Blow dirt and dust out of
the main housing with dry air as often as dirt is seen
collecting in and around the air vents. Wear approved
eye protection and approved dust mask when
performing this procedure.
WARNING: Never use solvents or other
harsh chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the materials
used in these parts. Use a cloth dampened only with
water and mild soap. Never let any liquid get inside the
tool; never immerse any part of the tool into a liquid.
Storage
• After use return the tool to its packaging.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as
waste.
Accessories and packaging should be sorted for
environmental-friendly recycling.
Separate collection. This product must not be disposed
of with normal household waste.
Batteries and the Environment
This unit uses Lithium Ion (Li-Ion) batteries.
When battery pack needs replacing, we
recommend the following: Discharge the energy
from the batteries by running them down
completely and then remove from the tool.
Li-Ion cells are recyclable so do not throw them away
with household waste. They may end up in an incinerator
or landfill, which must be avoided.
Instead, take the batteries to a Trend Service Agent,
your local Trend Stockist or a local recycling station. If
necessary contact your local municipality for disposal
information. The collected batteries will be disposed of
properly and/or used for recycling purposes.
Household User
Local regulations may provide for separate collection
of electrical products from the household, at municipal
waste sites or by retailer when you purchase a new
product. Please call Trend Customer Services for advice
as to how to dispose of unwanted Trend electrical
products in an environmentally safe way or visit
www.trend-uk.com
Business Users
Please call Trend Customer Services for disposal of
unwanted Trend electrical products.
GUARANTEE
The unit carries a manufacturers guarantee in
accordance with the conditions on the enclosed
guarantee card.
For the location of your nearest Trend Service Agent,
please call Trend Customer Services or see our stockist
locator at www.trend-uk.com
