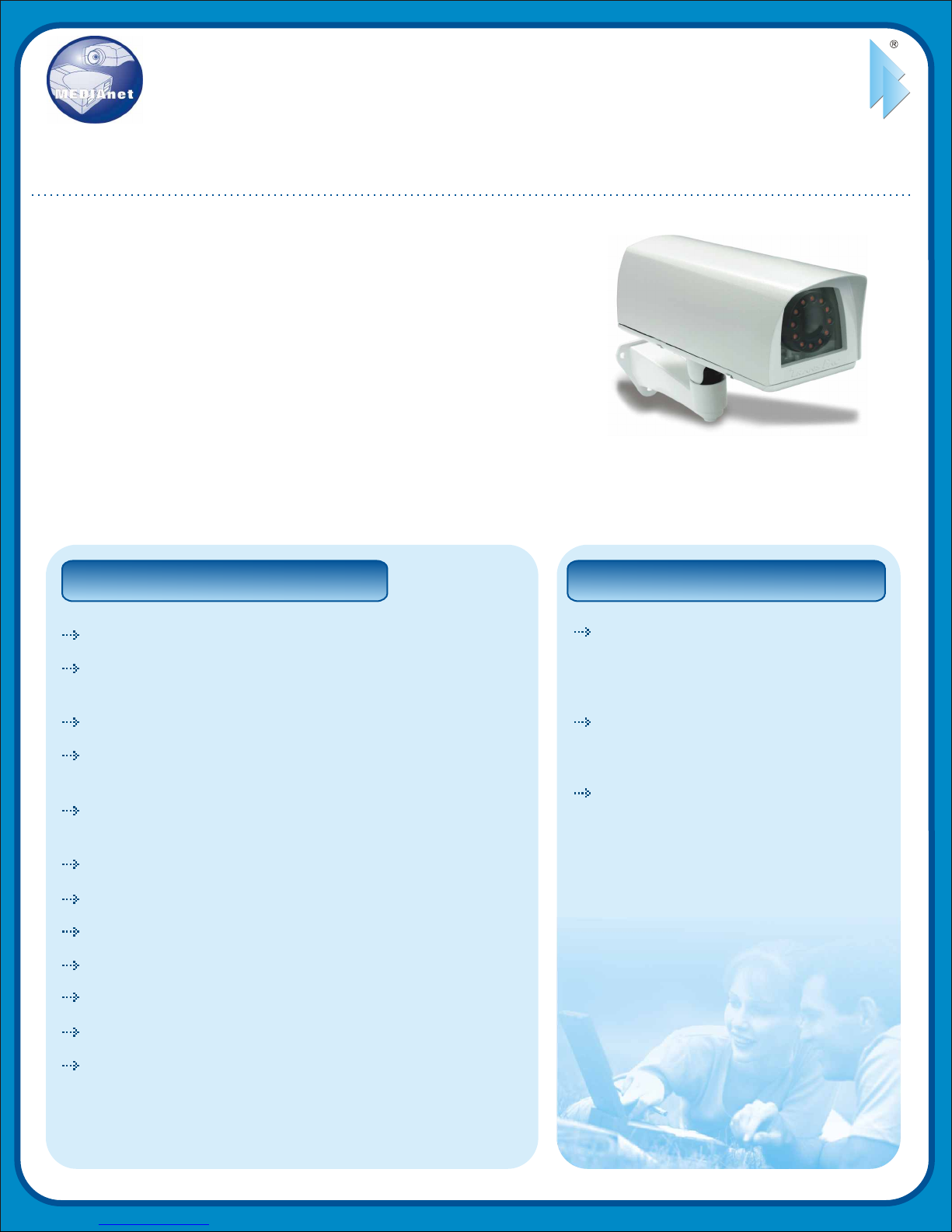

TRENDnet TPH-5000 User manual

The TRENDnet TPH-5000 provides the perfect solution to
transform regular indoor cameras into outdoor surveillance
systems. Made from die-cast aluminum and designed for the
highest level of protection (IP 67), the TPH-5000 completely
shields cameras from dust and water immersion. Virtually
weatherproof, it also comes complete with an adjustable
Fully-Cable-Managed mounting bracket, protecting camera
wiringfromtheweather.
TPH-5000
Outdoor Camera Housing
FEATURES
Weather resistant with IP67 protection rating
Protects valuable camera from dust, rain, and
snow
Holds most indoor non-weatherproof cameras
Supports camera size up to 300 (L) x 105 (W) x
80 (H) mm (11.8 x 4.13 x 3.14 inches)
Optional Blower and Heater keep the front
window clear of moisture and frost
Hinged Flip-Top housing with support arm
Adjustable camera mounting plate
Die-cast aluminum housing and mounting bracket
Light ivory powder coating finish
Built-in terminal blocks for wirings
Cables are routed inside the mounting bracket
2-Year warranty
TPH-5000 (01-26-2005)
TRENDnet
TRENDware, USA
What's Next in Networking
( )Camera Sold Separately
Integration Friendly:
Cost-Effectiveness:
Performance:
Flip-Top housing with support arm for
easy access and installation of the
camera
Turn most indoor or non-weatherproof
camera into outdoor unit
Robust and Weatherproof
BENEFITS

RELATED PRODUCT
To Order Please Call:
1-888-326-6061
TV-IP100:
Internet Camera Server
TV-IP200:
Internet Camera Server
TV-IP300:
Advanced Day/Night Internet Camera Server
NETWORKING SOLUTIONS
SPECIFICATIONS
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit ____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.TRENDNET.com
ORDERING INFORMATION
TRENDnet
TRENDware, USA
R
TPH-5000
TPH-5000
Outdoor Camera Housing
Outdoor Camera Housing

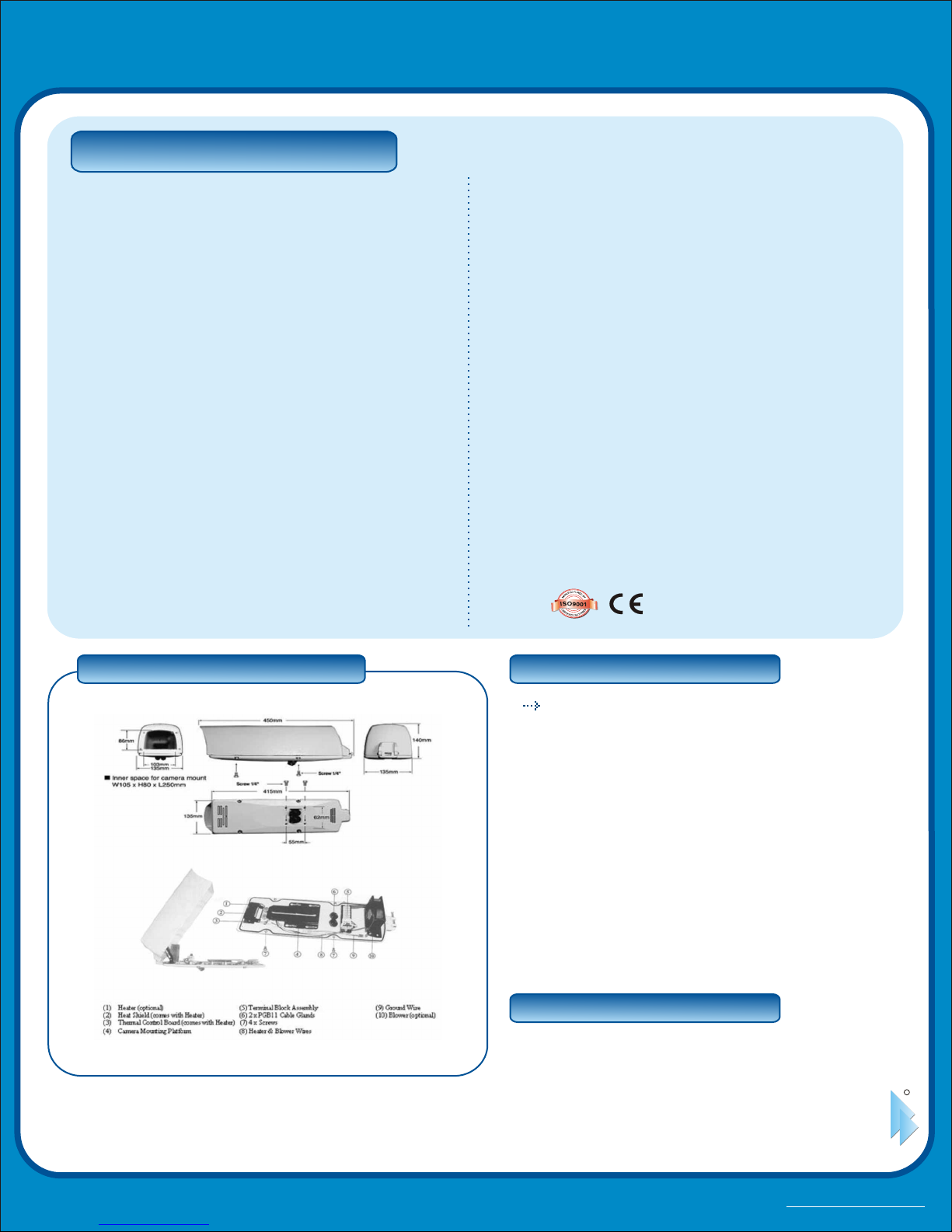

Inside Dimensions:
• 300 (L) x 105 (W) x 80 (H) mm (11.8 x 4.13 x 3.15 inches)
Glass Dimensions:
• 95 (L) x 80 (W) x 4 (TH) mm (3.74 x 3.15 x 0.16 inches)
Weight:
• Housing: 2.9 Kg (6.4 lb)
• Bracket: 0.75 Kg (1.65 lb)
Hardware Pack:
• Installing Camera inside the housing: 1/4 “ UNC stainless
hex head cap screw with washer x 1, cushion pad x 1
• Mounting Bracket to the wall: wall anchor with galvanized
bolt x 3
• Mounting Housing to the Bracket: 1/4 “ UNC stainless hex
head cap screw with washers x 4
• Tool:Allen wrench x 1
Certification:
• CE
Range ofApplication:
• Indoor / outdoor installations
Protection Level:
• Weatherproof to IP 67
Optional Blower Fan and Heater (not included):
• Heater: automatic activates ON at 15 ° C (59 ° F); OFF
at 25 ° C (77 ° F)
• Blower Fan: automatic activates ON at 35 ° C (95 ° F);
OFF at 25 ° C (77 ° F)
Terminal Block:
• 3-way terminal block with 3Amp Fuse plus 6-way terminal
block
Housing:
• Die-CastAluminum with light ivory powder coated finished
Cable Glands:
• 2 x PGB11 Nylon Cable Gland
Housing Dimensions:
• 450 (L) x 135 (W) x 158 (H) mm (17.7 x 5.3 x 6.22 inches)
