TRENDWOO SoundCup-L User manual

08070605
SoundCup-L
IPX4 Portable Bluetooth Speaker
with Replaceable Fabric Covering
User Manual
• Sound track: dual track
• Water Resistant: IPX4
• Signal to noise ratio S / N: ≥80dB
• Frequency Range: 180Hz-20KHz
• Distortion THD: ≤ 1%
• Speaker unit: outer diameter 45mm, inner magnet, 4Ω, 12W x 2
Parameters of power
• Battery: built-in lithium battery, 4000mAh
• Charging Voltage/Current: 5V ± 0.25V / 1A
• Charging time: 4~5 hours
• Playing time: 7~8 hours
Power ON / OFF Press long to power on/o.
Volume – or + Turn clockwise to turn up the Volume and
counterclockwise to turn the Volume down.
Next/Previous
In the Bluetooth mode, slide to the right to get
to the next track and to the left to get to
the previous track .
Play/Pause When playing music, press short to Pause/
Play.
Note:
1. Under Bluetooth mode when the 3.5mm audio plug is inserted, the
speaker will switch to line in status automatically;
2. Please turn o the speaker if you don’t use it to prevent power drain.
TROUBLE SHOOTINGS
1. My mobile phone can't nd any new Bluetooth devices?
a) Make sure the Bluetooth speaker has entered pairing mode;
b) Ensure the speaker is within the eective working range;
2. Bluetooth devices can't pair up
a) Make sure your mobile phone allows new connection, did not reach the
maximum allowed connection number, please ref to your mobile's user
manual;
b) Make sure you click the right Bluetooth pairing name.
3. My mini speaker does not play music / answer call when it connected
to a Bluetooth mobile phone?
a) Make sure your Bluetooth mobile phone supports A2DPand HSF(hands-
free) prole;
b) Ensure your Bluetooth cell phone is within eective working range.
4. When paired with my computer, windows ask for new driver? Can you
supply?
a) We can't supply. The Bluetooth A2DP/HSF drivers may require playing
stereo sound via Bluetooth Connection. But the driver is actually needed for
the Bluetooth module on your PC, instead of the speaker. Dierent Bluetooth
module may require dierent drivers. Please contact your PC or Bluetooth
module’s manufacturer for driver update.
5. Why can’t I remotely control the pause, play, previous song and skip
track functions with the speaker when playing music?
a) When you are using 3.5mm AUX audio in connection, you can’t pause,
change volume or skip tracks with the buttons on the speaker;
WORKING TEMPERATURE STORAGE CONDITION
Temperature: 0º C ~ 40º C
Humidity: 0% ~ 85% RH
Temperature: -30º C ~ 60º C
Humidity: 0% ~ 90% RH
b) This feature needs the Bluetooth devices paired with the speaker to
support AVRCP (Audio/Video Remote Control Prole). Please make sure
your cell phone or other Bluetooth device supports AVRCP.
SAFETY NOTICES
Read the following recommendations before using the Bluetooth
speaker.
a) Keep it dry and don’t take it to damp places to avoid the product’s
internal circuit being aected.
b) Keep the product away from direct sunlight or hot places. High
temperatures will shorten the life of electronic devices, destroy the battery
or distort certain plastic parts.
c) Don’t expose the product to extremely cold area. It may damage the
internal circuit board.
d) Don’t try to disassemble the product as it may get damaged if you are
not professional. The internal circuit might get damaged.
f) Don’t use intensive chemical products or detergent to clean the product.
g) Don’t scratch the surface with sharp tips.
Answering a call When a call comes in, press short to pick up
the call and press it again to hang up.
Refuse a call When a call comes in, press twice “quickly” to
refuse the call.
EQ mode Press
MODE
to select the mode to OUTDOOR or
INDOOR, the icon will be illuminate accordingly.

04030201
[email protected]
MADE IN CHINADesigned by Trendwoo in Los Angeles.
www.trendwoo.com
ACCESSORIES
1x SoundCup-L Bluetooth Speaker
1x User Manual
1x USB Charging Cable
1x AUX 3.5mm Audio Cable
HIGHLIGHTS
SoundCup-L is a compact Bluetooth speaker that can be wirelessly connected
to Bluetooth devices such as smart phones, tablets and computers to
playback any music collection stored on them. Thanks to the powerful battery
and passive radiator, the system delivers typical bass sound. The speaker
with its substantial battery life oers 7 to 8 hours play time and is the perfect
companion for you to put at home, or for camping. The process control helps
you get rid of complicated connections and wiring distance constraints.
Therefore, users can enjoy high-quality music anytime and anywhere.
BLUETOOTH CONNECTION
Turn the speaker on by pressing the power for several seconds, then the blue
led ashes quickly. The speaker now has entered the Bluetooth pairing mode.
CONNECT TO MOBILE PHONES/TABLET PCs/COMPUTERS
1. Activate your phone's Bluetooth.
2. Go to your phone's Bluetooth settings, scan for new Bluetooth devices.
3. Upon device found (SoundCup-L), click the device name and pair with it.
4. If your phone ask for pairing code , please enter ”0000”and conrm it.
5. After successful pairing, the speaker will make a prompt sound and the
LED light turns blue.
Note:
Pairing time is varied with dierent mobile phones. It only needs pairing at
the first time and it will auto connect the devices which have already been
paired before (The speaker only can remember the last 8 paired devices’names)
AUX AUDIO-IN CONNECTOR
The speaker also features 1x AUX audio in port, simply connect the speaker
with your non-Bluetooth mobile phone/MP3 player/PC/laptop with the
3.5mm jack audio cable. The green light will be on, and then you can play
music via wired connection.
LOW POWER INDICATION
The speaker will indicate a beep sound to remind you to charge if battery is
low (battery only left 10%).Users need to charge the speaker timely.
CHARGING
Connect the micro USB charging cable to a computer or USB charger, red LED
indication for charging status. Green LED turns on upon charging nished. (4~5
hours for charging)
NFC Function
There is a built-in NFC chip in the speaker. Activate the NFC function on the
phone and put the phone close onto the NFC position of the speaker. Then,
do according to the phone instructions to fast connect the phone with the
Bluetooth speaker via NFC function.
SPECIFICATIONS
Speaker Interfaces
Audio input connector: 3.5mm
AUX cable: support aux external audio input.
Charging interface: Micro USB; Input 5V
Dimensions and Basic Parameters
Length: 77.8mm ± 0.2mm
Width: 74.7mm ± 0.2mm
Height: 190.8mm ± 0.2mm
Material: ABS + Fabric
Weight: 560g ± 5g
ELECTRICAL SPECIFICATIONS
• Bluetooth Compatibility: It is compatible with Bluetooth 4.2 Class II and
supports A2DP V1.2, AVRCPV1.4 proles agreement.
• Transmission distance: up to 10 m

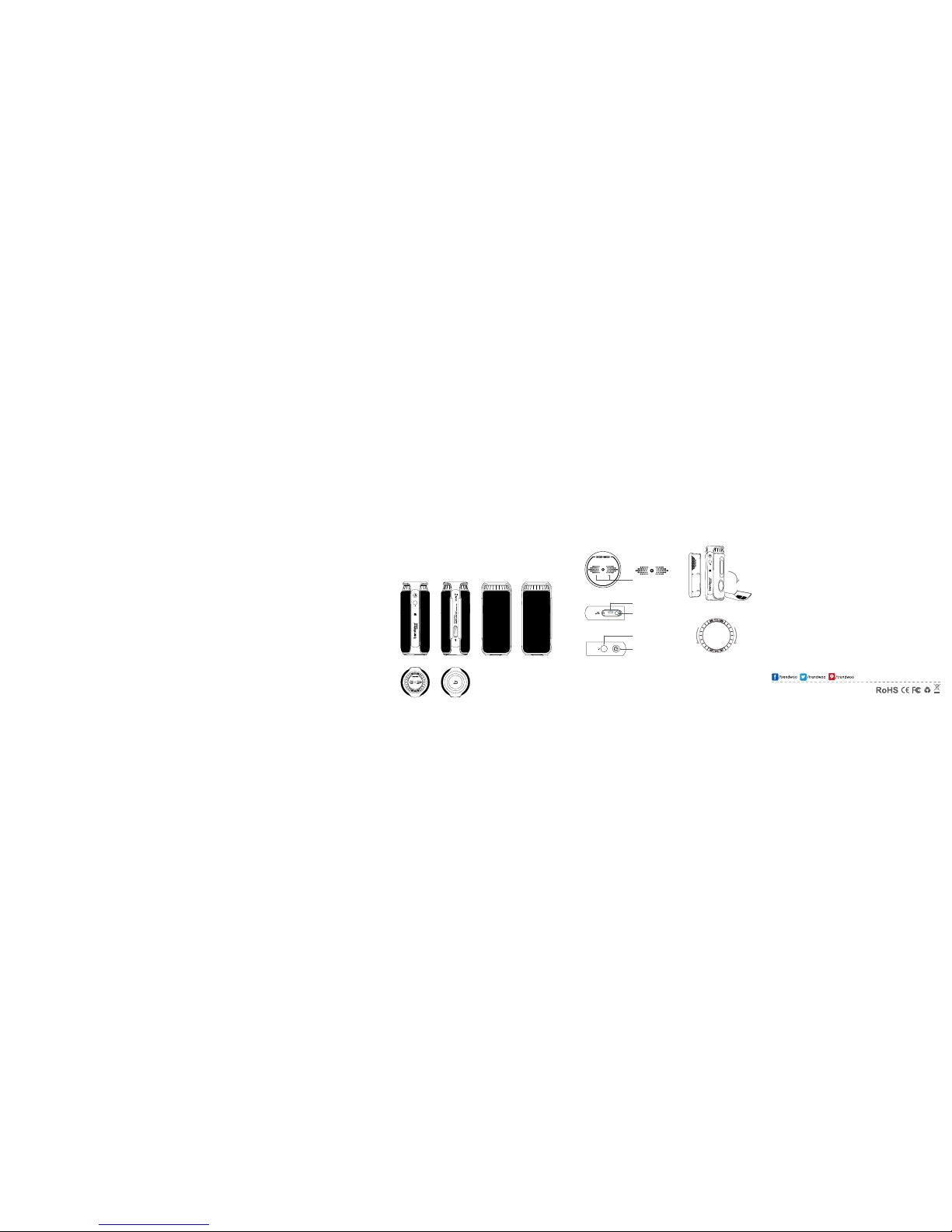

FUNCTION ANALYSIS
Front
Top Bottom
Back Left Right
MODE
OUTDOOR
INDOOR
Play / Pause &
Calls Handsfree
Slide Next/Previous
USB Charging
LINE IN
Power ON/OFF
Mode Change Button
(OUTDOOR / INDOOR)
Rotary Volume +/-
Fabric Covering replaceable
MODE
OUTDOOR
INDOOR
MODE
OUTDOOR
INDOOR
