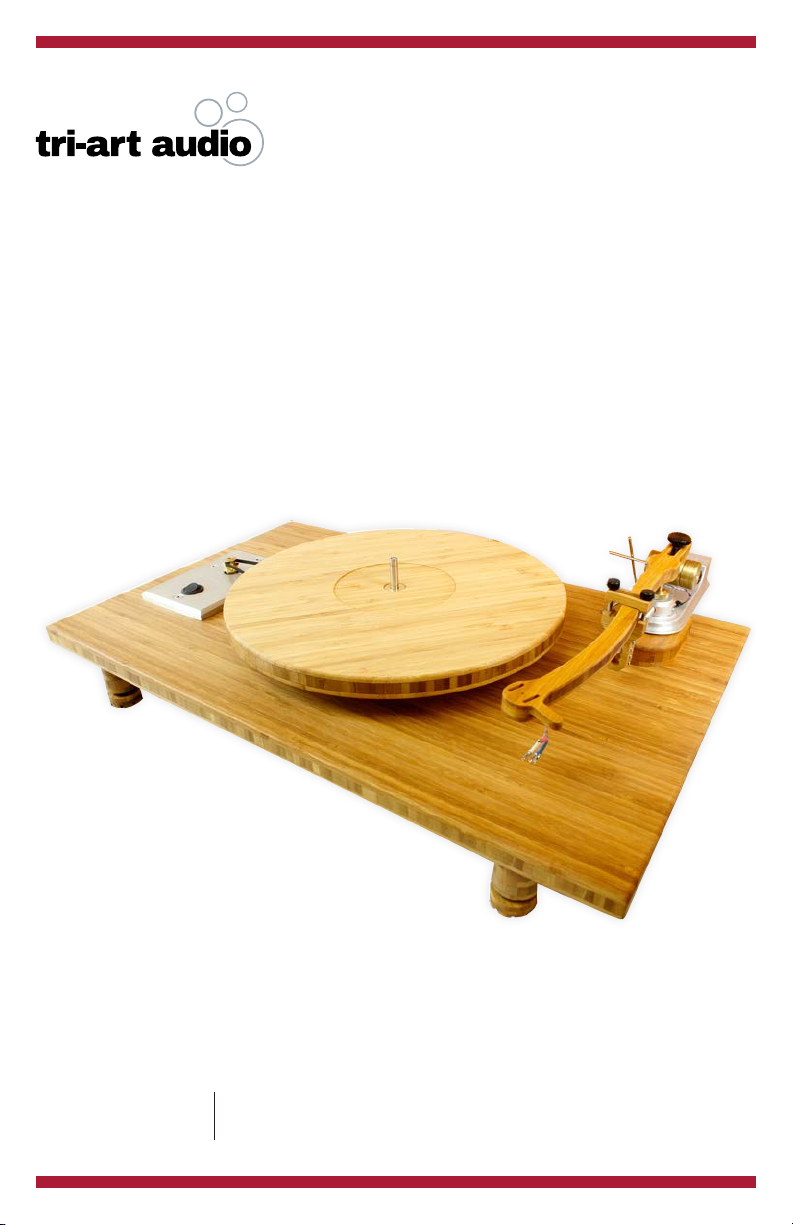

tri-art audio P Series User manual

ta 1
turntable
P-Series
User Manual
Product #7228
*Read the user manual
before operating.

safety
information
Before you start...
Warning of a hazard for the user, the unit or possible misuse. Important notice.
Thank you for buying a Tri-Art Audio product. Please read through this manual to
understand and operate this product correctly. Please keep this manual in a safe place so
that you may refer to it whenever necessary. Please ensure the product you are using is
rated for your country’s electrical system, or it will not be covered under our warranty.
Warning:
To prevent re or shock hazard, do not expose this product to rain or moisture.
Important Notice:
The serial number for this equipment is located on the bottom of this component. Please
write this serial number on the enclosed warranty card and follow the instructions to register
your product for our three (3) year limited warranty.
This equipment is designed for consumer use, such as home audio systems. It is not
designed to operate in a business environment or a mobile application. Mobile, pro or
commercial businesses such as restaurants will not be covered under warranty.
Caution:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable
parts inside. Refer servicing to qualied service personnel.

safety
information
Safety Instructions
Read Instructions:
All the safety and operating instructions should be read before operating this equipment.
Retain Instructions:
The safety and operating instructions should be retained for future reference.
Heed All Warnings:
All warnings, set up procedures, and operating instructions should be strictly adhered to.
Follow all instructions carefully.
Water and Moisture:
Under no circumstances should this audio component be used near water.
It is not to be used in a bathroom, water closet, shower, kitchen, wet basement,
pool/spa/sauna area, or outside.

safety
information
Safety Instructions
Ventilation:
Please ensure that the location of this equipment is such that in no way does it prevent adequate
ventilation. Do not enclose this in fabric or enclose in a cabinet where there is no adequate
ventilation. In no instance should the product be located where the ow of air is impeded or cannot
allow proper ventilation.
Heat:
This product should be located well away from all the heat sources such as but not limited to
heaters, forced air heat, radiators, stoves, and replaces.
Power Sources:
The Tri-Art component should be connected to a power supply as listed on the actual component
and manual.
Cleaning:
Your Tri-Art product was soaked in hemp oil and sealed in beeswax. Only use the Tri-Art Beeswax
and Hemp Oil in moderate amounts as per the instructions to freshen up the appearance from time
to time as needed. Do not use lacquers or aerosol wax products with this product. Do not pour
water on the surface at any time.
Heavy Objects:
Do not place heavy objects on this component.

turntable front
1
45 6
7
8
2
3
16
27
38
4
5
Power Switch
Plinth
Iso Feet
Dual Pulley (33/45)
Removable Spindle Cap
Bamboo Platter
Arm Clamp
TA-1 Tonearm

turntable back
1 2 3 4 5 6 7
1 6
2 7
3
4
5
RCA Outputs
Azsimuth Adjustment
Bamboo Plinth
Removable Spindle Cap
Bamboo Platter
Dual Pulley (33/45)
Iso Feet
Sub Platter
*Located under the Platter

turntable specs
Table Details:
Plinth: 3 Ply Bamboo laminate 19.05mm (3/4″)
Motor: Single 24 Pole Synchronous AC Motor
Speed: 33.3 & 45 RPM
Drive: Belt Drive
Platter: Bamboo Platter
Sub Platter: Aluminum Sub Platter with Bronze Shaft
Legs: Leveling Legs and Sorbothane Iso Feet
Bearing: Bronze Collar Spike Bearing with ABEC7 Carbonized Ceramic Ball Bearing
Dimensions: 54.61cm x 35.56cm / 21.5" x 14"
Weight: 4kg or 9lbs
Arm Details: 9" TA-1 Tonearm
Material: Three Ply Bamboo Laminate 12mm Thick
Settings: VTA & Azimuth Adjustments
Bearing: Bronze with Brass Collar Spike and Synthetic, High Viscosity Grease Bearing
Arm Wire: Cardas Wire 33 AWG Uninterrupted from Headshell Clips to Brass Female RCA
Arm Length: 9″ / 222 mm
Tone Arm Mass: 10g
Anti-Skate: Anti-Skating Mechanism
Weights: Brass counter and Brass Azimuth Weights
Crafted with bamboo and natural sheep’s wool.
Learn more at triartaudio.com

Arm Details: 9" TA-2 Tonearm
Material: 3-Ply Bamboo Laminate 19mm Thick
Settings: Simple To Use VTA and Azimuth Adjustments
Bearings: Bronze VTA Adjustable Spike and Grease Universal Pivot Bearing
Anti-Skating: Yes
Headshell: Brass Headshell
Cueing Device: Fully Adjustable Manual Cueing Device
Arm Plinth: Hand-Brushed Aluminium Arm Plinth with Left and Right Brass RCA Out
Wiring: Cardas Wire 33 AWG Uninterrupted from Headshell Clips (Silver Plated)
to Brass RCA
Shielding: Shielding Provided with Inconel Tubing, Mu-METAL and Brass
Arm Lock: Tone Arm Lock Down
Set Up: Bamboo Pivot to Spindle Setup Jig Included
Level: Micro Bubble
Tone Arm Length: 222mm (9")
Tone Arm Mass: 15g
Counter Weight: Brass Counter and Brass Azimuth Weights
Resonance Frequencies: 8 – 12hz
use &
guidelines
The P-series TA-1 Tone Arm features the same, handmade bamboo design as our
table. It is available together or separately and can also replace the arm of most
other tables. The 9" version mounts on both P-series and B-series Turntables. The
12" version only mounts on the B-series Turntable.

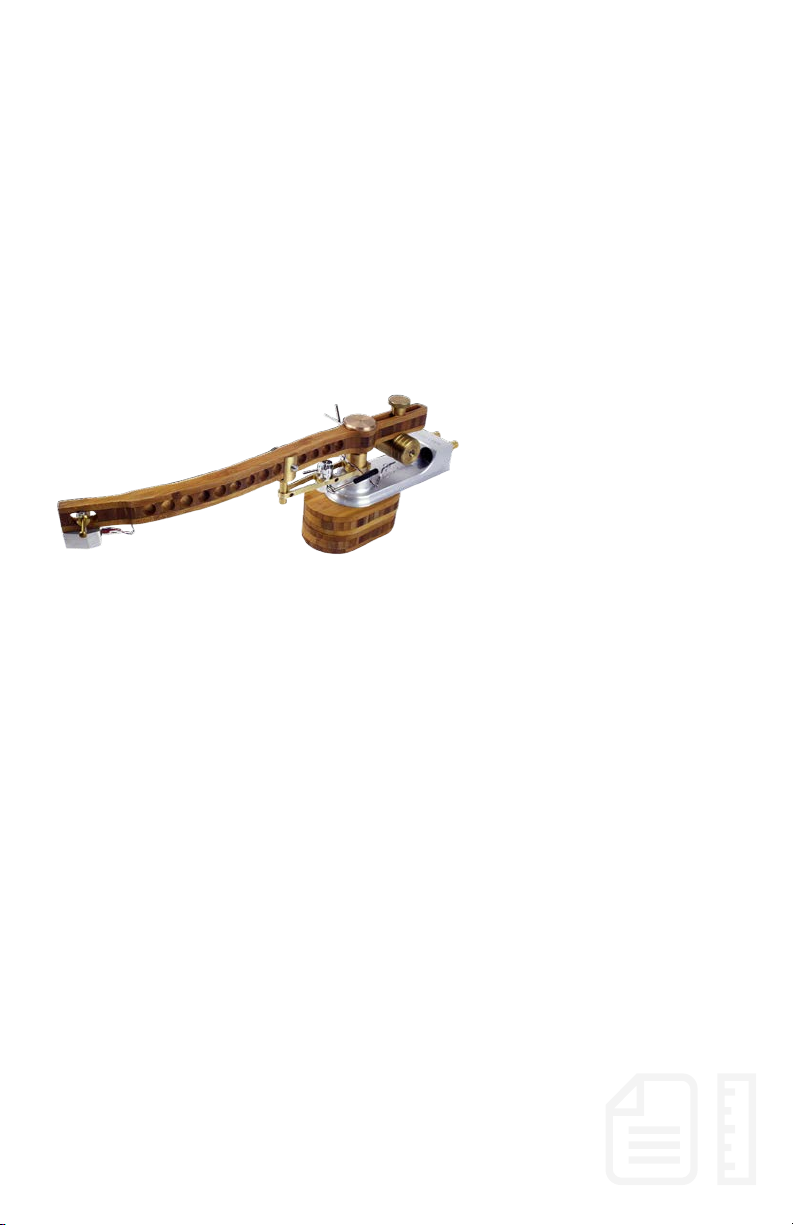

9" TA-2 Tonearm
#10726

use &
guidelines
Option #1
The video has a link within the product listings for the Pebbles Series
visit www.triartaudio.com
Option #2
YouTube Link: https://bit.ly/30XSNUS
Video Time Sheet
00:00 – 01:04 Opening Introduction
01:04 – 03:05 Plinth, Feet, RCA, Assemble
03:06 – 07:43 Platter Bearing Cleaning and Greasing
07:44 – 08:40 Platter Bearing Grease Description and Mounting
8:41 – 11:49 Tonearm Mounting to Arm Board
11:50 – 12:46 Mounting Arm Board with Tonearm to Turntable Plinth
12:47 – 14:08 Tonearm Distance to Platter Spindle Jig Set Up
14:09 – 15:17 Platter Height Adjustment with Jig
15:18 – 16:52 Sub Platter, Belt and Motor Pulley Set Up, 33.3 to 45 Change
16:53 – 18:05 Finishing Arm Board Set Up and Tightening
18:06 – 19:27 Mounting RCA’s to Table
19:28 – 20:55 Other Ways to Set Up Arms on Table
20:56 – 25:09 Finishing to Assemble Tonearm
25:10 – 28:10 Setting Up Tonearm Height and Azimuth
with Bubble Level on Platter
28:11 – 29:18 Stylus to Pivot Point Set Up
29:19 – 30:15 Last Look Before Adding Tonearm Grease, and Adjusting Speed
30:16 – 34:36 Platter Speed Adjustment
34:37 – 39:19 Applying Grease to Tonearm Pivot Point
39:20 – 39-51 Final Looks, Fine Tuning
39:52 – End Closing Words

use &
guidelines
Safety Use Guidelines
Set-up
Only place the unit on a stable, level surface.
Do not place heavy object on the unit.
Do not attempt to modify or service the turntable.
Do not place wet objects on the plinth as it may mark the nish.
Clean only with a dry cloth to avoid electrical exposure to water and possible
water marks.
Do not install near water or directly on a heat source.The table is supplied partially
disassembled and carefully packaged for safe transport. Carefully remove all parts
from the transport packaging. Make sure the surface you wish to use the turntable on
is level (use a spirit level) before placing the turntable on it. Fit the drive belt around
the platter and the smaller diameter part of the motor pulley. Avoid getting sweat or
grease on the belt as these will deteriorate the performance and reduce the belts
lifespan. Use absorbent kitchen paper to remove any oil or grease from the outer
edge of the platter and the belt. Fit the mat over the spindle of the platter.
Main Power Connection
The turntable is supplied with a power supply suitable for your country’s mains
supply. Check the label before connecting to ensure compliance with the mains
rating in your house. Connect the low voltage plug from the power supply to the
socket on the rear of the turntable before connecting the power to the mains.
Switching On and Off
Pressing the power switch alternately stops the motor. Refrain from rapid cycling.
Maintenance and Cleaning
If the player is not used over a long period of time, the drive belt can be removed
to prevent unequal stretching.

congratulations!
Your Tri-Art Audio turntable is operational
and fully set up.
Now, go play your favourite record!
Our Bamboo Design
We have selected bamboo to construct many of the structural parts of our systems rather
than metal or plastic. In addition to being aesthetically pleasing, it has a vital function.
The sonic virtues of bamboo are evident. We use the latest CNC machinery to manufacture
to precise tolerances. Due to the nature of the material, there may be slight variations that
do not comprise the sound. Every component is hand nished and then inspected by the
designer before it leaves the factory.
Crafted with bamboo and natural sheep’s wool.
Learn more at triartaudio.com

warranty
information
For Your Protection:
Completely and immediately mail the product registration card so that we may contact you
directly in the event a safety notication is issued in accordance with the 1972 Consumer
Safety Act, or for other reasons Tri-Art Audio may deem necessary.
Technical Support Hotline
1-877-541-0299
Our technical department will gladly answer any questions you may have about our
products. Monday through Thursday, 9am to 5pm and Friday, 9am to 3pm EST.
Manufacturer’s Limited Three
Year Warranty:
Tri-Art Audio warrants this unit to be free from defective material or workmanship and will
repair or replace this unit or any part thereof if it proves defective in normal use or service
within three (3) years from the date of original purchase.
Audio at the address below. This warranty will be considered void if the unit has been
tampered with, improperly serviced, subjected to abuse or misuse or if installed in a
commercial vehicle. This warranty does not cover accidental damage.
For all warranty information please see Tri-Art Audio’s warranty
information card included with your new equipment.

thank you for
your purchase!

triartaudio.com
Designed . Fabricated . Assembled
In Canada
