Tricity Bendix SB463 Product guide

SPLASHBACK ELECTRIC COOKER
SB463
PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE
OPERATING & INSTALLATION
INSTRUCTIONS

2
MODEL NO. SB463
Voltage: 230-240 Volts AC 50Hz
Wattage: 10.3-11.2 kW
Height: 1290mm
Width: 550mm
Depth: 595mm
Weight: 62 kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
Manufacturer TRICITY BENDIX
Model Number
SB463
Energy Efficiency on a Scale A (more efficient) to G (less efficient) B
Energy Consumption in kWh (1) 0.73
Useable Volume - Litres 33
Oven Size (2) Small
Time Taken to 'Cook' Standard Load - Minutes 42
Top Oven - Conventional
The Area of the largest Baking Sheet -cm² (3) 1440
Energy Efficiency on a Scale A (more efficient) to G (less efficient) C
Energy Consumption in kWh (1) 1.10
Useable Volume - Litres 61
Oven Size (2) Medium
Time Taken to 'Cook' Standard Load - Minutes 57
Bottom Oven (4)
The Area of the largest Baking Sheet -cm² (3) 1440
TECHNICAL DETAILS
(1) Based on the test results for a standard load in accordance with EN50304
(2) Small:12l < 35l Medium : 35l < 65l Large : 65l+
(3) Surface Area of Shelf
(4) Forced Air Convection Function unless stated

3
Technical Details .................................................................................................................................... 2
Contents .................................................................................................................................................. 3
Preface ..................................................................................................................................................... 5
Safety ....................................................................................................................................................... 6
Before Installation ........................................................................................................................... 6
During Operation ............................................................................................................................. 6
After Use ......................................................................................................................................... 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................. 8
Rating Plate .................................................................................................................................... 8
Installation ....................................................................................................................................... 8
General Notes on Using Your Appliance ........................................................................................ 9
About Condensation and Steam ..................................................................................................... 9
Control Panel Indicator Neon(s) ..................................................................................................... 9
Cookware ........................................................................................................................................ 9
Grill and Oven Furniture .................................................................................................................. 9
Getting to Know Your Appliance .......................................................................................................... 10
The Control Panel ........................................................................................................................... 10
The Timer ........................................................................................................................................ 11
The Ceramic Hob .................................................................................................................................... 13
Recommended Saucepans ............................................................................................................ 13
Hints and Tips ................................................................................................................................. 14
The Dual Grill .......................................................................................................................................... 15
Uses of the Grill .............................................................................................................................. 15
Selecting the Grill ............................................................................................................................ 15
Things to Note ................................................................................................................................. 15
The Grill Pan and Handle ............................................................................................................... 15
Hints and Tips ................................................................................................................................. 16
Grilling Chart ................................................................................................................................... 16
The Top Oven .......................................................................................................................................... 17
Uses of the Top Oven ..................................................................................................................... 17
Selecting the Top Oven .................................................................................................................. 17
Things to Note ................................................................................................................................. 17
To Fit the Top Oven Shelf ............................................................................................................... 17
Hints and Tips ................................................................................................................................. 18
The Main Oven ........................................................................................................................................ 19
Uses of the Fan Oven ..................................................................................................................... 19
Selecting the Fan Oven .................................................................................................................. 19
Things to Note ................................................................................................................................. 19
To Fit the Main Oven Shelves ........................................................................................................ 19
Hints and Tips ................................................................................................................................. 20
Oven Cooking Chart ............................................................................................................................... 21
Roasting Chart ........................................................................................................................................ 22
CONTENTS

4
Defrost Feature ....................................................................................................................................... 23
Uses of Defrost Feature .................................................................................................................. 23
Selecting Defrost ............................................................................................................................. 23
Things to Note ................................................................................................................................. 23
Hints and Tips ................................................................................................................................. 23
Care and Cleaning .................................................................................................................................. 24
Cleaning Materials .......................................................................................................................... 24
Cleaning the Ceramic Hob .............................................................................................................. 24
Hints and Tips ................................................................................................................................. 25
Cleaning the Outside of the Appliance ........................................................................................... 25
Cleaning the Grill and Oven Furniture ............................................................................................ 25
Cleaning Inside the Oven and Grill Compartments ........................................................................ 25
Care of Stayclean Surfaces ............................................................................................................ 26
Hints and Tips ................................................................................................................................. 26
Cleaning the Door Glass ................................................................................................................. 26
Replacing the Oven Light Bulb ....................................................................................................... 27
Something Not Working? ...................................................................................................................... 28
Service and Spare Parts ........................................................................................................................ 29
Guarantee Conditions ............................................................................................................................ 30
Notes ........................................................................................................................................................ 31
CONTENTS

5
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures, which may differ, from your previous
appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
PREFACE

6
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance slipping from
the base.
Do not try to lift or move the
appliance by pulling the door
handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking, disconnect the appliance
immediately from the electricity
supply and contact your local Service
Force Centre.
Do not place foil or plastic containers
on ceramic glass.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
DURING OPERATION
This appliance is not intended to be
operated by means of an external
timer or remote control system.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
SAFET
Y

7
Take care to follow the
recommendations given for tending
the food when grilling.
Always support the grill pan when it
is in the withdrawn or partially
withdrawn position.
Do not leave the handle in position
when grilling, as it will become hot.
Always use oven gloves to remove
and replace the grill pan handle when
grilling.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure the anti-tilt shelves are put in
place correctly.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the door is open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls and
cabinets may overheat.
You must ensure that the grill control
is in the 'OFF' position when the
timer control has been set for
automatic cooking.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched on.
Appliances and hobs become very
hot, and retain their heat for a long
period of time after use. Children
should be kept well away from the
appliance until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Always switch OFF the appliance at
its power point and allow the
appliance to cool before any
maintenance or cleaning work is
carried out.
Only clean this appliance in
accordance with the instructions
given in this book.
Extreme care must be taken when
using a ceramic hob scraper.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
Customer Care Department
Telephone [phone]

8
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
This is situated on the front frame of the appliance
and can be seen upon opening the door.
Alternatively the rating plate may also be found on
the back or top of some models (where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high cross-
sectional area to prevent overheating and
deterioration.
The recommended cross-section is six square
millimetres (6.00mm2).

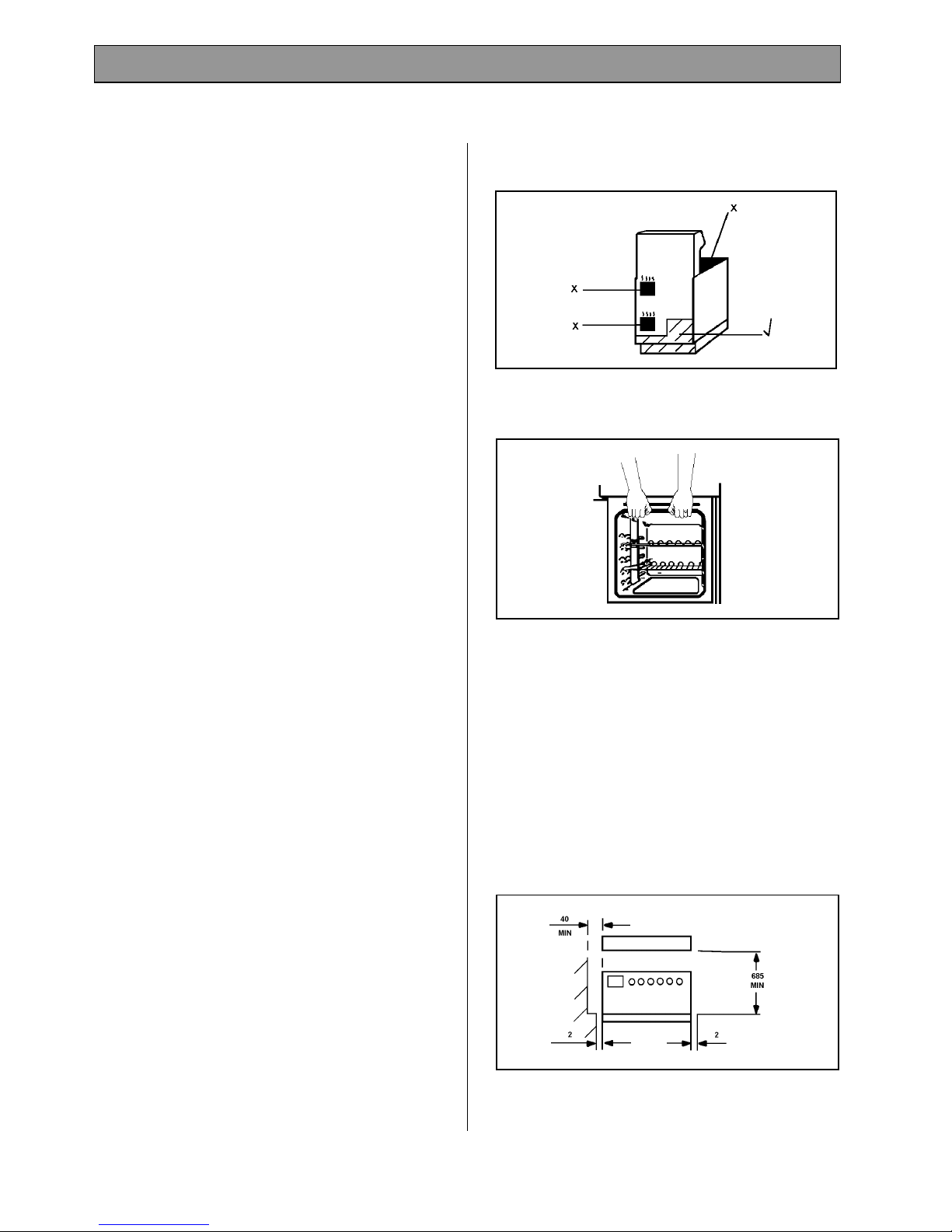

The cable must be routed away from potentially hot
areas marked by X in the diagram below.
To move the appliance, open the main oven door,
and lift the appliance by holding inside the top of the
compartment.
This is a type Y appliance which means it is free-
standing and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the appliance is
required to enable the appliance to be moved into
position.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
INTRODUCTION

9
GENERAL NOTES ON USING YOUR
APPLIANCE
We suggest that you run the oven elements for 10 –
15 minutes at 220oC to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
CONTROL PANEL INDICATOR NEON(S)
The indicator neon will operate when the grill (where
applicable) or oven(s) is switched on. The indicator
neon will glow. It may turn on and off during use to
show that the setting is being maintained. If the neon
does not operate as the instructions indicate the
controls have been incorrectly set. Return all
controls to zero and reset following the instructions
for the required setting.
COOKWARE
Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back
of the oven.
Do not use baking trays larger than 30cm x 35cm
(12” x 14”) as they will restrict the circulation of heat
and may affect performance.

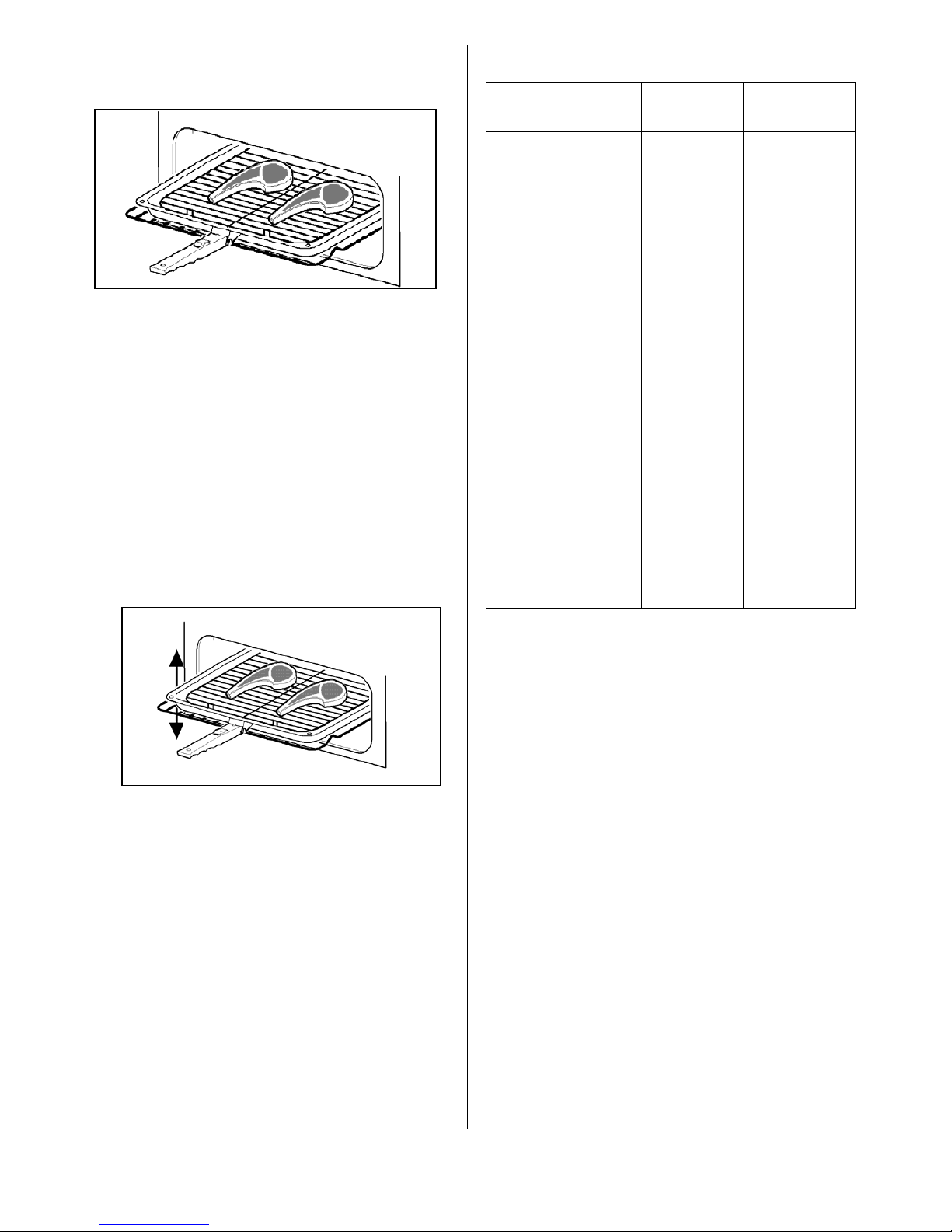

GRILL AND OVEN FURNITURE

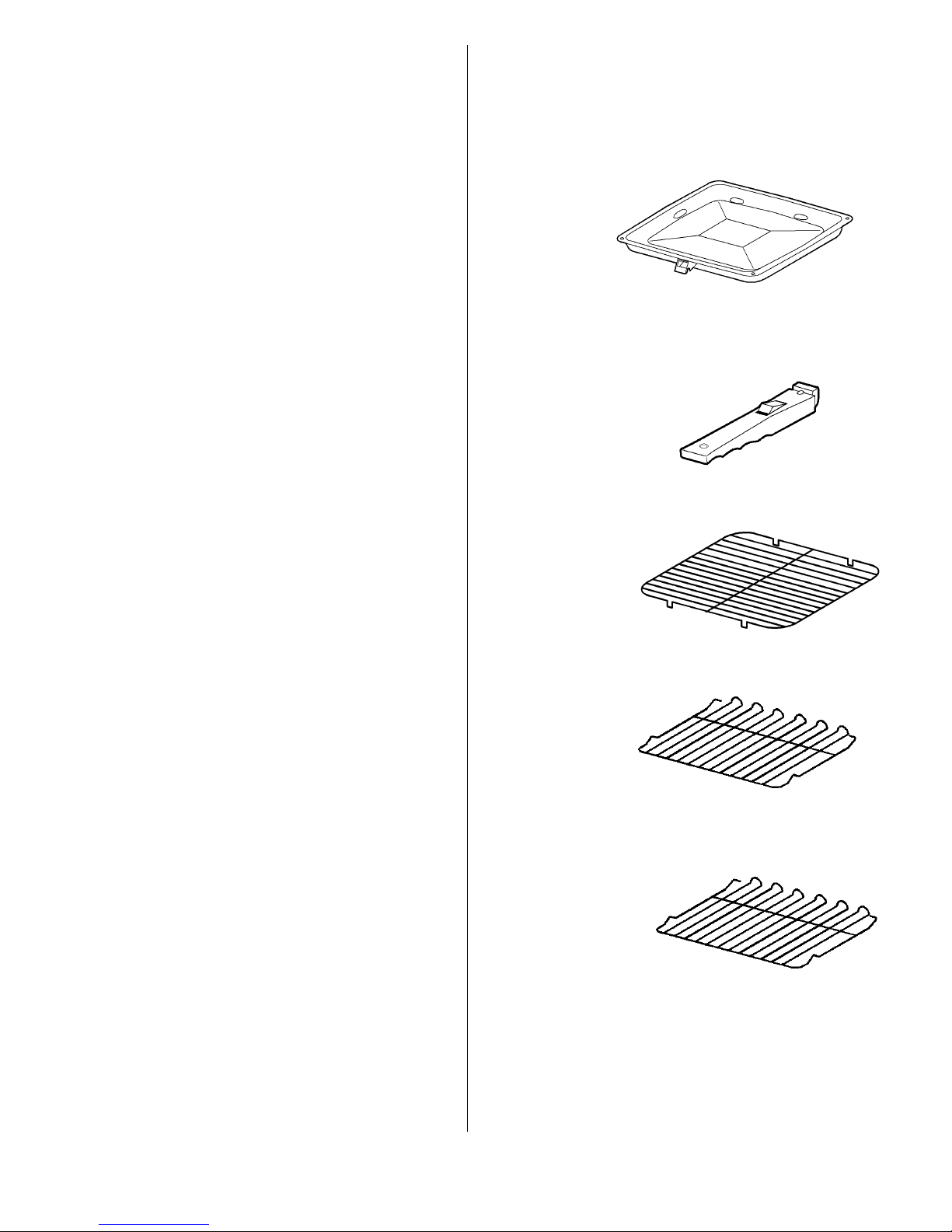

The following items of grill/oven furniture have been
supplied with the appliance:-
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf
for grilling
2 straight shelves
for oven cooking
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.

10
THE CONTROL PANEL

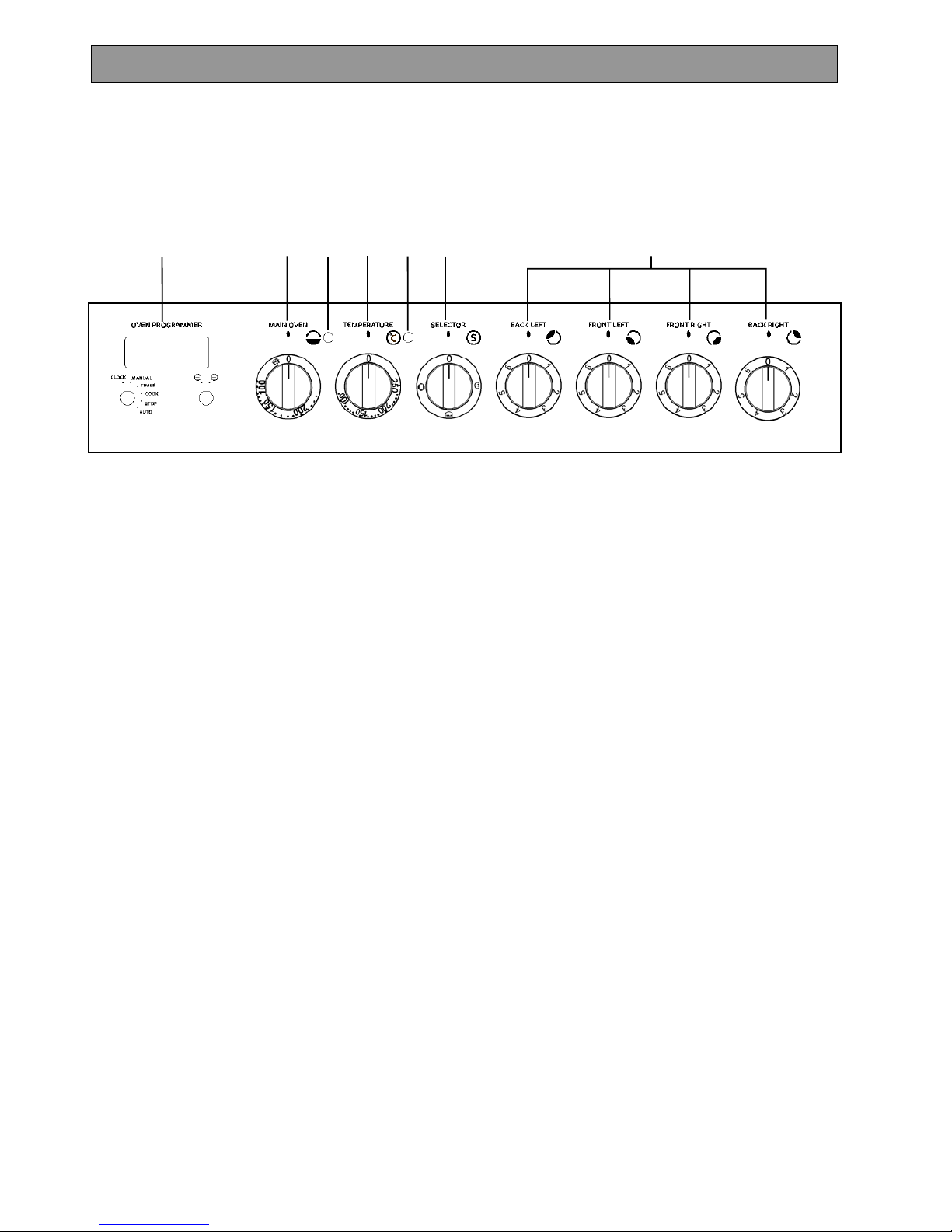

FEATURES
A-Timer
B - Main Fan Oven Temperature Control
C - Main Oven Indicator Neon
D - Top Oven Temperature Control
E - Top Oven Indicator Neon
F - Selector Control
G - Hotplate Controls
12.30
GETTING TO KNOW YOUR APPLIANCE
ADG
BCF
E

11
Bell symbol
Se
l
ecto
r
Please note that this is a 24 hour clock, for example
2.00pm is shown as 1400.
In the following pages we explain how to set the
controls. Read through them a few times until you
are familiar with the procedure.
If the appliance is switched off on the wall, or there is
a loss of power, the clock will stop and you will not be
able to use the main oven. When you first switch the
electricity supply on, the timer display will flash.
TO SET THE TIME OF DAY
Turn the selector knob to ‘Manual’ then turn to
‘Clock’.
Set the correct time by turning and holding the setting
knob clockwise. Adjust the time by turning the
setting knob in either direction.
Turn the selector knob back to ‘Manual’.
TO USE THE TIMER
Turn the selector knob to ‘Timer’. Turn the setting
knob clockwise until the display shows the time you
want. The bell symbol ( ) will be showing and this
will stay lit up during the time. Our diagram shows
the timer set to 5 minutes.
If you change your mind and want to cancel the time
you have set, simply turn the setting knob
anticlockwise. Then turn the selector to ‘Manual’.
When you are using the countdown you can make
the clock show the time of day by turning the selector
knob to ‘Manual’. The bell symbol will stay on to
remind you that the 'Timer' is set. At the end of the
timed period an alarm will sound and the bell symbol
will go out.
Switch off the alarm by turning the selector knob to
'Clock'. Then turn to 'Manual' and the time of day will
show in the display.
Note:
You can use the minute minder when an automatic
sequence has been set, as long as you remember
the following point.
1. Turn the selector knob to ‘Auto’ as soon as you
have entered the timed period into the display.
THE TIMER
Cookpot symbol
Setting knob

12
AUTOMATIC CONTROL
You can only use the automatic control for the main
oven. When you use the automatic controls for the
first time it’s probably best to choose a time when
you are at home. That way you can check to make
sure you've set everything correctly and you'll feel
much more confident when you are away from home
in the future.
SETTING THE CONTROLS FOR
AUTOMATIC USE
This is very easy. All you have to do is work through
the steps below. The clock will work out the rest for
itself.
1 Is the electricity supply on?
2 Is the clock
showing the
correct time?
To adjust turn the selector knob
to ‘Manual’ then to ‘Clock’. Turn
the setting knob in either
direction.
3 How long
will the food
take to cook?
Turn the selector knob to ‘Cook’.
Then turn the setting knob until
the length of time you want the
food to cook shows in the
display. The maximum cooking
time is 10 hours. ‘Auto’ will show
in the display.
4 What time do
you want the
food to be
cooked by?
Turn the selector knob to ‘Stop’.
Turn the setting knob until the
time the oven is to switch off
shows in the display. The
cookpot ( ) will go out.
The ‘Stop’ time must not be
more than 23 hours 59 minutes
from the time of day. For
example if the time of day is 9.00
am the latest ‘Stop’ time will be
8.59 am the next day.
5 Set to
automatic.
Turn the selector knob to ‘Auto’.
6 Turn on the
oven control.
Turn the oven control to the
required temperature.
The time shown on the right gives an example of
setting the automatic controls when the time is 9.00
am, the food is to be cooked for 2½ hours and the
food is needed at 6.00 pm (1800 hours).
The clock will work out what time the oven will switch
itself on and it will turn the oven off at the end. Once
the automatic sequence is finished there will be an
alarm to remind you that you need to set the oven for
manual operation. To do this turn the selector knob
to ‘Manual’. Turn off the oven control.
If you change your mind and want to cancel a
programme that you have set simply turn to ‘Clock’
and then to ‘Manual’.

13
CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A
FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE
APPLIANCE IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR
LOCAL SERVICE FORCE CENTRE.
USING THE HOB
·To operate the hotplates turn the control knob in
either direction to vary the heat setting.
·The highest number represents the hottest
setting and the lowest number represents the
coolest setting. Choose a setting appropriate to
the quantity and type of food to be cooked.
·This model has the added feature of two Reflex
hotplates which react more quickly than the other
ceramic hotplates and are easily identified by
their instant red glow.
RECOMMENDED SAUCEPANS
For speed and economy only good quality saucepans
with flat bases and close fitting lids are
recommended. The saucepan base should be
approximately the same size as the cooking area, a
base diameter of up to 225mm (9”) may be used on a
180mm (7”) heated area.
Ensure that new saucepans are well scrubbed to
remove edges and take off any deposits left from
manufacture.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
NOTE:
Occasionally the heated areas may be seen to switch
ON and OFF when higher heat settings are being
used. This is due to a safety device which prevents
the glass from overheating. Some switching ON and
OFF when cooking at high temperatures, e.g. deep
fat frying is quite normal, causes no damage to the
hob and little delay in cooking times.
Excessive switching may however be caused by the
use of an unsuitable saucepan or a saucepan which
is smaller than the heated area. If excessive
switching occurs, discontinue use of the saucepan.
THE CERAMIC HOB
12.30

14
HINTS AND TIPS
·Lift, rather than slide saucepans on and off the
heated areas. This will reduce the risk of
scratches and metal marks from saucepans with
aluminium bases. Metal marks can be easily
cleaned off providing they are not allowed to burn
on.
·Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
·Avoid using thin, badly dented or distorted
saucepans. Those with uneven bases should not
be used.
·To prolong the life of the hotplates:-
·Never use utensils with a skirt, e.g. a bucket.
·Never use an asbestos mat.
·Never leave the hotplates ON when not
covered with a saucepan.
·Ensure that the hob and saucepans are clean
and dry before the start of cooking to reduce
cleaning.
·Follow the cleaning instructions very closely to
keep the hob looking like new.
·If spillage occurs with sugar solutions, e.g.
jams and syrups, it must be wiped from the
hob before it sets and becomes hard
otherwise damage to the hob will occur.

15
USES OF THE GRILL
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.
The grill is a dual circuit grill which means that the full area of the grill can be used for economy purposes, the
centre section only can be used when cooking smaller quantities of food.
SELECTING THE GRILL
·Select the grill function for full grill.
·Select the grill function for centre section only.
·To use the grill at lower settings, turn the
temperature control knob so that 110°C or 150°C
on the knob lines up with the off dot on the panel.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING.
Some smoke from fat splashes may be evident as
the grill cleans itself.
The top oven cannot be operated when the grill is in
use. If the grill and top oven controls are selected at
the same time, only the top oven will operate.
The inner element may appear to glow slightly
brighter than the outer element. This is quite normal.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into the widest part of the bracket.
Move the handle towards the left, lower into position
and release the button.
Ensure the handle is positively located.
When removing the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
Ensure your hand is protected when removing
the grill pan handle as the control panel trim and
grill element can become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING.
To correctly locate the grill pan on the shelf, ensure
that the cut out on the underside of the handle
bracket locates over the front bar of the shelf.
THE DUAL GRILL
12.30

16
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking.
HINTS AND TIPS
·In order to become acquainted with the
performance of the Dual Grill it is advisable to
check food regularly when grilling.
·Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
·Adjust the height of the grilling grid and grill pan
runner position to allow for different thicknesses
of foods.
·Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
·When toasting bread use the shelf in position 2
with the grid in the high position.
·Preheat the grill on a full setting for a few minutes
before sealing steaks or toasting. Adjust the heat
setting and the shelf as necessary during
cooking.
·The food should be turned over during cooking
as required.
·When using the centre section of the dual grill,
ensure food is positioned centrally on the grill
pan grid in the grill pan.
GRILLING CHART
FOOD SHELF GRILL TIME
(mins in total)
Bacon Rashers 5-6
Beefburgers 10-15
Chicken Joints 30-40
Chops – Lamb 15-20
Pork 20-30
Fish Whole
Trout/Mackerel 15-25
Fillets – Plaice/Cod 10-15
Kebabs 20-30
Kidneys – Lamb/Pig 8-12
Liver Lamb/Pig 10-20
Sausages 20-30
Steaks – Rare 6-12
Medium 12-16
Well Done 14-20
Toasted sandwiches
Adjust
shelf
position
and
grill
pan
grid
to
suit
different
thicknesses
of
food
3-4
The times quoted above are given as a guide and
should be adjusted to suit personal taste.

17
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook
fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use the lowest
setting on the top oven temperature control.
SELECTING THE TOP OVEN
·Turn the top oven function selector to.
·Turn the top oven temperature control to the
required setting.
THINGS TO NOTE
1. The indicator neon will glow. It may turn ON and
OFF during use to show that the setting is being
maintained.
TO FIT THE TOP OVEN SHELF
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE TOP OVEN
12.30

18
HINTS AND TIPS
·Most cooking should be carried out using an
oven shelf positioned in one of the shelf runners.
·Larger roasts and casseroles should normally be
cooked in the main oven. However, they may be
cooked on a flat shelf placed on the base of the
top oven provided there is sufficient room for air
circulation around the food.
·Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
·There should always be at least 2.5cm (1”)
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings etc.
·When cooking cakes, pastry, scones, bread etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
·DO NOT place dishes or baking trays directly
onto the oven base as it becomes very hot and
damage may occur.
·The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
·DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
·Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required.
·For economy leave the door open for the shortest
possible time, particularly when placing food into
a pre-heated oven.

19
USES OF THE FAN OVEN
The oven is heated by an element around the fan situated behind the back panel. The fan draws air from the oven
and the element heats the air which circulates in the oven via the vents in the back panel. The advantages of fan
oven cooking are:
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperature
recommended in the oven cooking chart. As a guide reduce temperatures by about 20°C - 25°C for your own
recipes, using a conventional oven.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE MAIN OVEN
·Turn the main oven temperature control to the
required setting.
THINGS TO NOTE
1. The indicator neon will glow. It may turn ON and
OFF during use to show that the setting is being
maintained.
2. The interior oven light will come ON when the
temperature is selected.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE MAIN OVEN
12.30

20
HINTS AND TIPS
·Arrange the shelves in the required positions
before switching the oven ON. Shelf positions
are numbered from the bottom upwards.
·When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
·When batch baking one type of food e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
·It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
·DO NOT place dishes or baking trays directly on
the oven base as it interferes with the oven air
circulation and can lead to base burning; use the
lower shelf position.
·The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart.
