Tricity Bendix SIE401 Product guide

SLIP IN ELECTRIC COOKER
SIE401
PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE
OPERATING & INSTALLATION
INSTRUCTIONS

2
MODEL NO. SIE 401
Voltage: 230-240 Volts AC 50Hz
Wattage: 11.5-12.5kW
Height: 900mm
Width: 550mm
Depth: 600mm
Weight: 60 kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC
TECHNICAL DETAILS

3
Technical Details .................................................................................................................................... 2
Contents .................................................................................................................................................. 3
Preface ..................................................................................................................................................... 5
Safety ....................................................................................................................................................... 6
Before Installation ........................................................................................................................... 6
During Operation ............................................................................................................................. 6
After Use ......................................................................................................................................... 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................. 8
Rating Plate .................................................................................................................................... 8
Installation ....................................................................................................................................... 8
Reversible Main Oven Door ............................................................................................................ 9
General Notes on Using Your Appliance ........................................................................................ 9
About Condensation and Steam ..................................................................................................... 9
The Cooling Fan for the Controls .................................................................................................... 9
Grill and Oven Furniture .................................................................................................................. 9
Getting to Know Your Appliance .......................................................................................................... 10
The Control Panel ........................................................................................................................... 10
The Sealed Hotplates ............................................................................................................................. 11
Recommended Saucepans ............................................................................................................ 11
Hints and Tips ................................................................................................................................. 11
Deep Fat Frying ...................................................................................................................................... 12
Preserving ............................................................................................................................................... 12
The Dual Grill .......................................................................................................................................... 13
Uses of the Grill .............................................................................................................................. 13
Selecting the Grill ............................................................................................................................ 13
Things to Note ................................................................................................................................. 13
The Grill Pan and Handle ............................................................................................................... 13
Hints and Tips ................................................................................................................................. 14
Grilling Chart ................................................................................................................................... 14
The Top Oven .......................................................................................................................................... 15
Uses of the Top Oven ..................................................................................................................... 15
Selecting the Top Oven .................................................................................................................. 15
Things to Note ................................................................................................................................. 15
To Fit the Top Oven Shelf ............................................................................................................... 15
Hints and Tips ................................................................................................................................. 16
The Main Fan Oven ................................................................................................................................. 17
Uses of the Fan Oven ..................................................................................................................... 17
Selecting Fan Oven ........................................................................................................................ 17
Things to Note ................................................................................................................................. 17
To Fit the Main Oven Shelves ........................................................................................................ 18
Hints and Tips ................................................................................................................................. 18
CONTENTS

4
Oven Cooking Chart ............................................................................................................................... 19
Oven Roasting Chart .............................................................................................................................. 20
Defrost Feature ....................................................................................................................................... 21
Uses of Defrost Feature .................................................................................................................. 21
Selecting Defrost ............................................................................................................................. 21
Things to Note ................................................................................................................................. 21
Hints and Tips ................................................................................................................................. 21
Care and Cleaning .................................................................................................................................. 22
Cleaning Materials .......................................................................................................................... 22
Cleaning the Brass Plated Handles ................................................................................................ 22
Cleaning the Outside of the Appliance ........................................................................................... 22
Cleaning the Sealed Hotplates and Hotplate Trims ........................................................................ 22
Things to Note ................................................................................................................................. 22
Cleaning the Grill and Oven Furniture ............................................................................................. 23
Cleaning Inside the Grill and Oven Compartments ........................................................................ 23
Care of Stayclean Surfaces ............................................................................................................ 23
Hints and Tips ................................................................................................................................. 23
Something Not Working? ...................................................................................................................... 24
Service and Spare Parts ........................................................................................................................ 25
Guarantee Conditions ............................................................................................................................ 26
Notes ........................................................................................................................................................ 27
CONTENTS

5
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures, which may differ, from your previous
appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
PREFACE

6

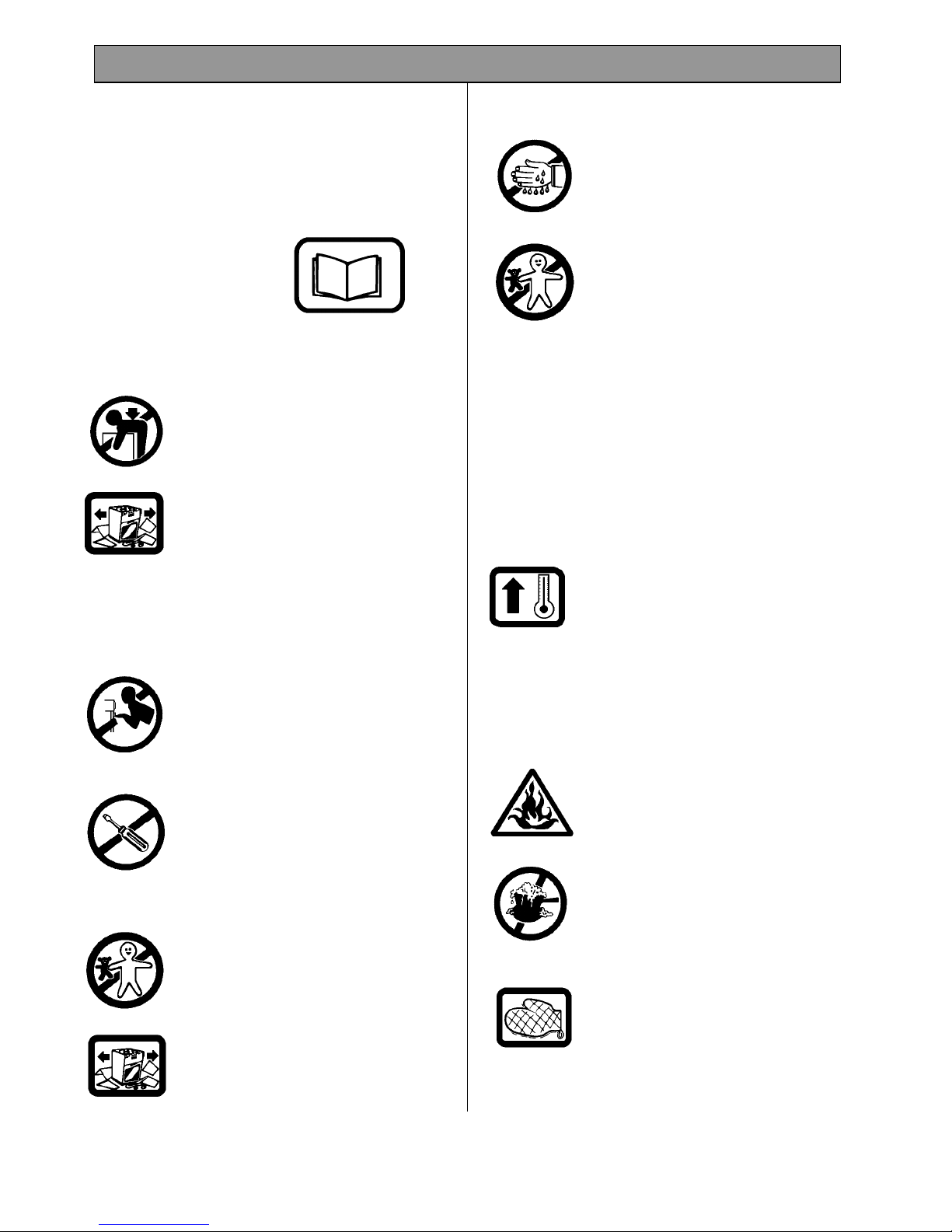

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance slipping from
the base.
Do not try to lift or move the
appliance by pulling the door
handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
SAFET
Y

7
Take care to follow the
recommendations given for tending
the food when grilling.
Always use oven gloves to remove
and replace food in the oven.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on pages 15 and 18.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the oven doors
are open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
ON for long periods when not
covered by a saucepan. The controls
and cabinets may overheat.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 25 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Only clean this appliance in
accordance with the instructions
given in this book.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
Customer Care Department
Telephone [phone]

8
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
This is situated on the lower front frame of the
appliance and can be seen upon opening the cavity
door. Alternatively the rating plate may also be found
on the back or top of some models (where
applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high cross-
sectional area to prevent overheating and
deterioration.
The recommended cross-section area is six square
millimetres (6.00mm2).
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the appliance, open the main oven door,
and lift the appliance by holding inside the top of the
compartment.
This is a type Y appliance, which means it is free-
standing and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at either side of the
appliance is required to enable the appliance to be
moved into position.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
INTRODUCTION
Air gap

9
REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. PLEASE NOTE that a charge will
be made.
GENERAL NOTES ON USING YOUR
APPLIANCE
We suggest that you run the oven elements for 10 –
15 minutes at 220oC to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape between the wall and the rear of
the appliance. However, always stand back from the
appliance when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wall coverings at the rear of the
appliance should be securely fixed to the wall.
THE COOLING FAN FOR THE CONTROLS
The cooling fan comes on immediately when the grill
or top oven are switched on and after a time when
the main fan oven is in use. The operation of the
cooling fan is temperature dependent in the case of
the main oven and the cooling fan may not switch in
at all at low temperature settings or where the main
oven has only been used for a short time.
The cooling fan may run on, after the control knobs
have been switched off, until the appliance has
cooled.
Do not switch the appliance off at its power point
until the fan has cooled the appliance down.
GRILL AND OVEN FURNITURE

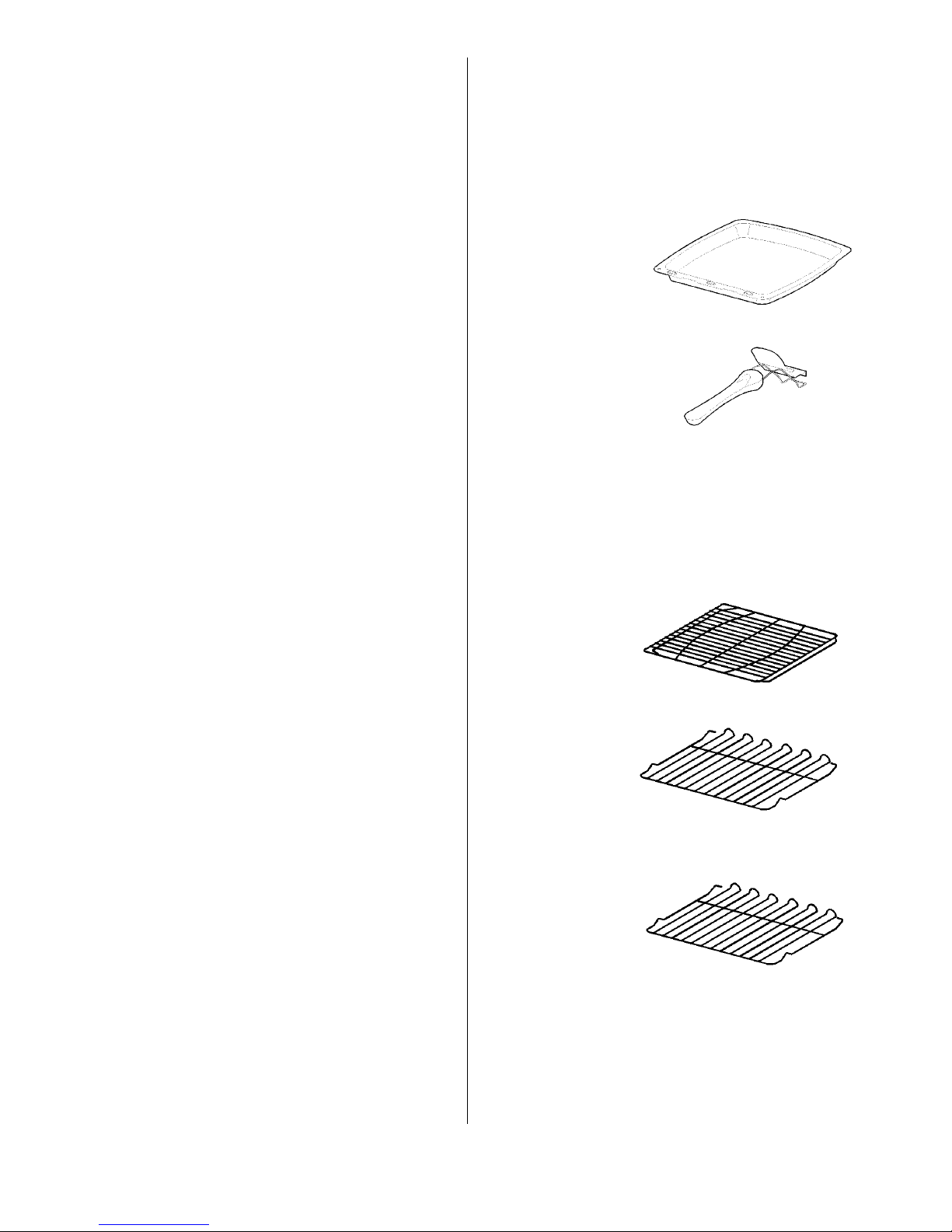

The following items of grill/oven furniture have been
supplied with the appliance. If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.
1 grill pan
(311409401)
1 grill pan handle
(311468100)
Note:
If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.
1 grill pan grid
(311419801)
1 straight shelf
for grilling and top
oven cooking
2 straight shelves
for main oven cooking
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.

10

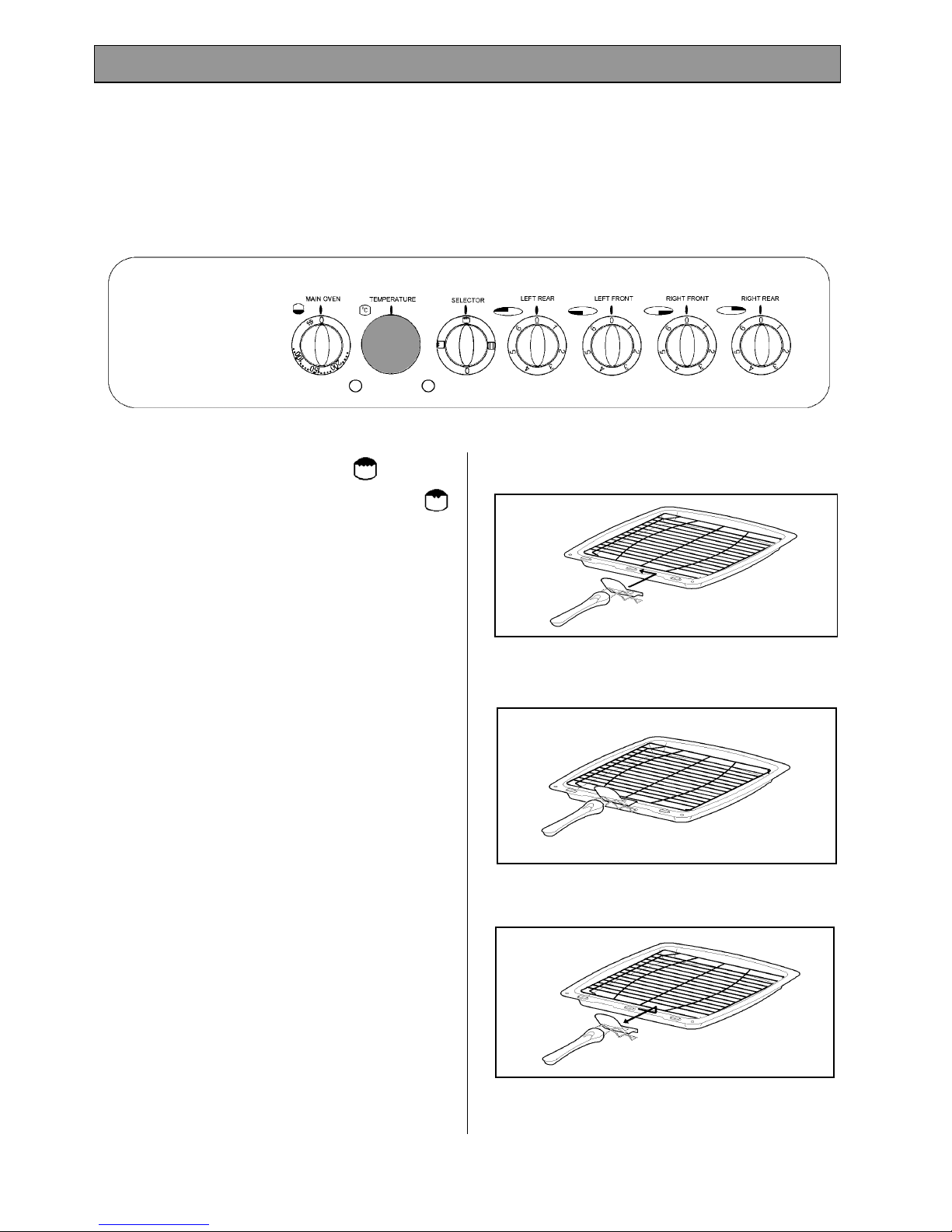

THE CONTROL PANEL
FEATURES
A - Main Oven Temperature Control
B - Top Oven Temperature Control
C - Main Oven Indicator Neon
D - Selector Control
E
F
-
-
Top Oven Indicator Neon
Hotplate Controls
GETTING TO KNOW YOUR APPLIANCE
A
B
C
D
E
F

11

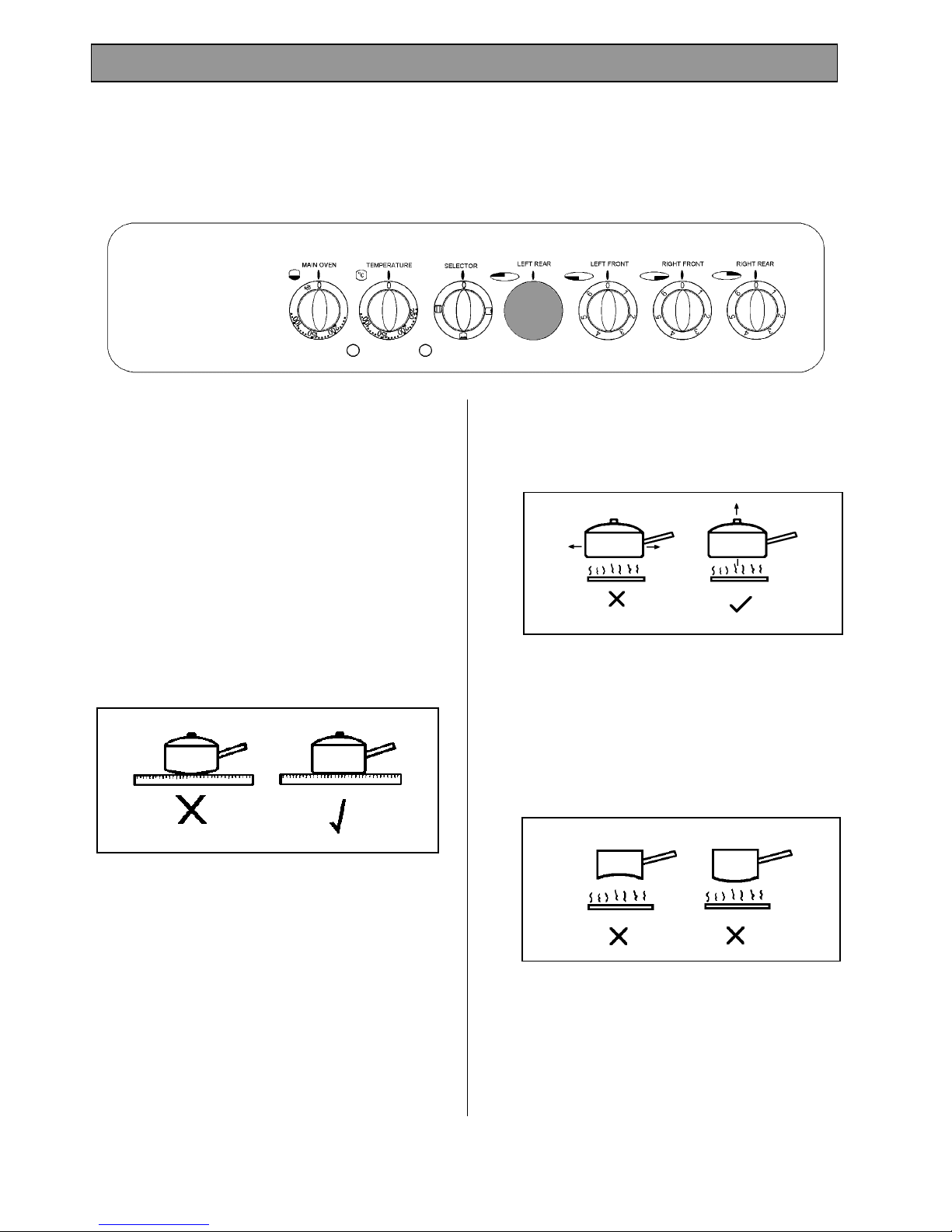

BEFORE USING THE HOTPLATES FOR THE FIRST TIME
Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5
minutes. This hardens the protective coating on the hotplates and makes it more resistant to normal use. A
harmless smoke will be given off from the hotplates.
·To operate the hotplates turn the control knobs in
either direction to vary the heat setting.
·The highest number represents the hottest
setting and the lowest number represents the
coolest setting. Choose a setting appropriate to
the quantity and type of food to be cooked.
RECOMMENDED SAUCEPANS
For speed and economy only good quality saucepans
with flat bases and close fitting lids are
recommended.
To check the flatness of the saucepan, place a ruler
across the pan base, hold at eye level and look for
light showing. There should be very little or no light
visible between the ruler and the pan base.
The size of the base of the saucepan should be the
same or up to 2.5cm/1 inch larger than the hotplate.
If the base is too small, energy will be wasted,
boilovers will also be more difficult to deal with as
spillage will fall directly onto the hotplate.
Pressure cookers, preserving pans etc., should
comply with the recommendations given above.
Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
HINTS AND TIPS
·Lift, rather than slide saucepans on and off the
hob to help reduce scratches and maintain the
efficiency of the hotplates.
·Avoid the use of decorative covers as they can
cause condensation to form on the hotplates
which may lead to deterioration.
·Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
·Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
·To prolong the life of the hotplates:
·Never use utensils with a skirt, e.g. a bucket.
·Never use an asbestos mat.
·Never leave the hotplates ON when not
covered with a saucepan.
THE SEALED HOTPLATES

12
DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan
one third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch the appliance OFF
at the electricity supply and cover the pan with a lid
or damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food.
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil.
For safety purposes fill the pan only one-third full
of oil.
3. Testing the temperature of the oil.
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a
small cube of bread into the oil which should
brown in just under a minute if the oil is at the
correct temperature of 190°C/375°F.
4. Cooking the food.
Lower the food gently into the oil. Do Not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips.
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
6. Frying temperatures
Celsius Fahrenheit
Scale (°C)
150
Scale (°F)
300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is at setting point.
7. The scum should be removed as soon as
possible after setting point has been reached.
Marmalade should be allowed to cool before
potting to prevent the peel rising.

13
USES OF THE GRILL
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.
The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the
centre section only can be used when cooking smaller quantities of food.
SELECTING THE GRILL
·Select the grill function for full grill.
·Select the grill function for centre section only.
·Turn the temperature control knob to the right as
far as it will go. This is the hottest setting.
·To use the grill at lower settings, turn the
temperature control knob so that 110°C or 150°C
on the knob lines up with the off dot on the panel.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT FULLY OPEN
DURING GRILLING.
·Some smoke from fat splashes may be evident
as the grill cleans itself.
·The top oven cannot be operated when the grill
is in use.
·The inner grill element may appear to glow
slightly brighter than the outer element. This is
quite normal.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the
cut out in the pan so that the metal hooks over the
top of the grill pan.
Slide the handle to the left and over the central bump
on the grill pan.
Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.
To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.
Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.
THE DUAL GRILL

14
HINTS AND TIPS
·In order to become acquainted with the
performance of the Dual grill, it is advisable to
check food regularly when grilling.
·Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
·Adjust the height of the grilling grid and grill pan
runner position to allow for different foods.
·Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
·When toasting bread use the shelf in position 1
with the grid in the high position.
·Preheat the grill on a full setting for a few minutes
before cooking. Adjust the heat setting and
runner position as necessary during cooking.
·The food should be turned over during cooking
as required.
·When using the centre section of the dual grill,
ensure food is positioned centrally on the grill
pan grid in the grill pan.
NOTE:
If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.
GRILLING CHART
FOOD SHELF GRILL TIME
(mins in total)
Bacon Rashers 1 2-3 each side
Beefburgers 1 6-10 each side
Chicken Joints 1 15-20 each side
Chops - Lamb 1 7-10 each side
Pork 1 10-15 each side
Fish - Whole
Trout/Mackerel 1 8-12 each side
Fillets - Plaice/Cod 1 4-6 each side
Kebabs 1 10-15 each side
Kidneys - Lamb/Pig 1 4-6 each side
Liver - Lamb/Pig 1 5-10 each side
Sausages 1 10-15 each side
Steaks - Rare 1 3-6 each side
Medium 6-8 each side
Well Done 1 7-10 each side
Toasted Sandwiches 1 1¼-1½ each side
Shelf positions are counted from the bottom upwards.
The times quoted above are given as a guide and should
be adjusted to suit personal taste.

15
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or
savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a
temperature setting of 80C° -100°C on the top oven control dial.
SELECTING THE TOP OVEN
·Turn the top oven function selector to
·Turn the top oven temperature control to the
required setting.
·The cooling fan will operate immediately with the
top oven. For more details on cooling fan
operation see page 9.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. If the grill and top oven controls are
selected at the same time, only the top oven will
operate.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the oven
temperature is being maintained.
3. The cooling fan will operate immediately with the
top oven. For more details about the cooling fan
see page 9.
4. Always place plates on the oven shelf to warm.
Never place dishes directly on the top oven base
as becomes very hot and damage may occur.
TO FIT THE TOP OVEN SHELF
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE TOP OVEN

16
HINTS AND TIPS
·Most cooking should be carried out using an
oven shelf positioned in one of the shelf runners.
·Larger roasts and casseroles should normally be
cooked in the main oven. However, they may be
cooked on a flat shelf placed on the base of the
top oven provided there is sufficient room for air
circulation around the food.
·Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
·There should always be at least 2.5cm (1”)
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
·When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
·DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
·The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
·DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
·Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on pages 19 and 20.
·For economy leave the door open for the shortest
possible time, particularly when placing food into
a pre-heated oven.

17
USES OF THE FAN OVEN
The oven is heated by the element around the fan situated behind the back panel. The fan draws air from the
oven, the element heats the air which is circulated into the oven via the vents in the back panel. The advantages of
fanned oven cooking are:
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 19. As a guide reduce temperatures by about 20°C – 25°C for your own
recipes, using a conventional oven.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
·Turn the fan oven temperature control to the
required setting.
THINGS TO NOTE
·The main oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
·The cooling fan for the controls may switch in
after a time. See page 9 for more information on
the operation of the cooling fan.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THE MAIN FAN OVEN

18
HINTS AND TIPS

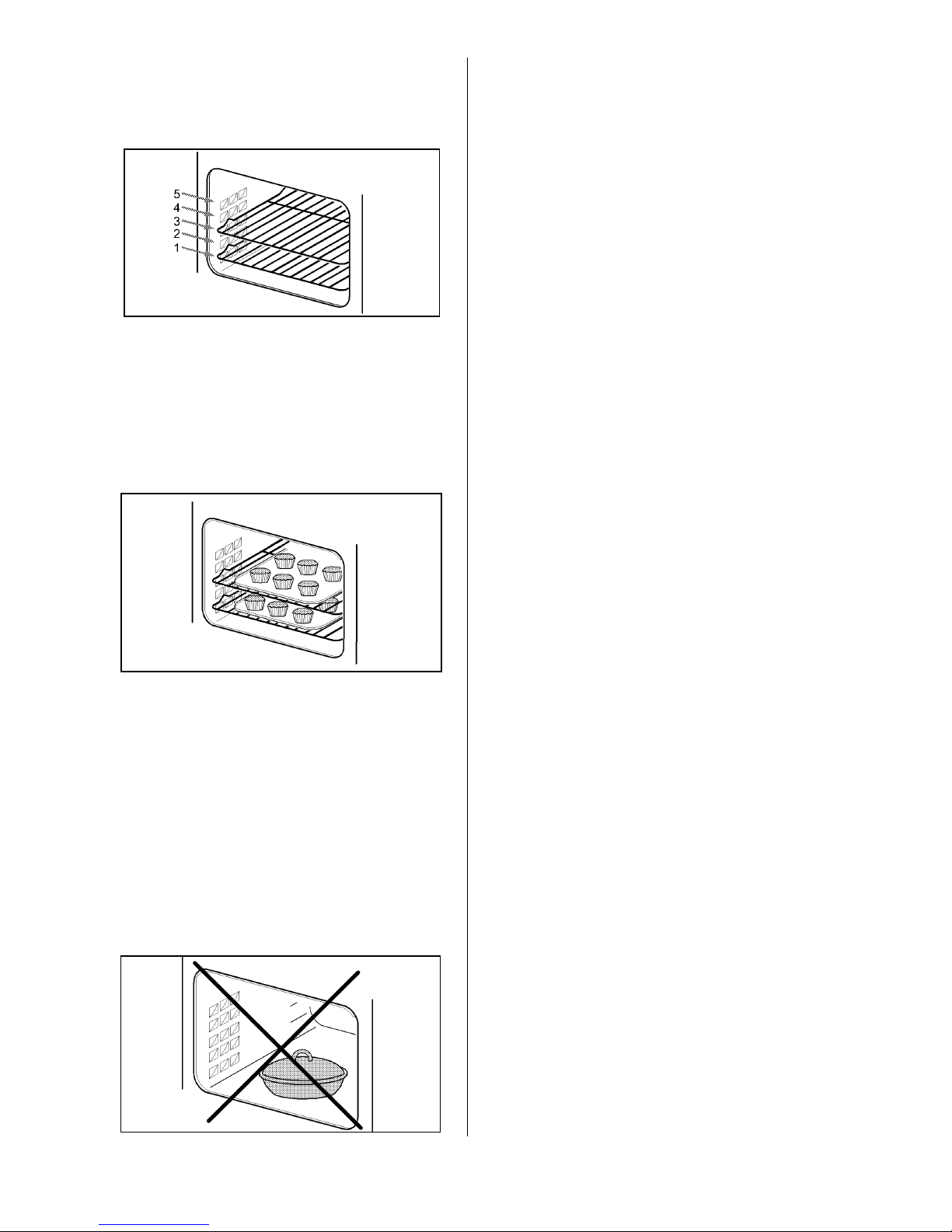

·Arrange the shelves in the required positions
before switching the oven ON. Shelf positions
are numbered from the bottom upwards.
·When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
·When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
·It is recommended that when baking larger
quantities the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
·The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart, see pages 19 and 20.
·Do not place baking trays directly on the oven
floor as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position.

19
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual preferences and requirements.
FAN OVEN TOP OVEN
FOOD SHELF
POSITION
COOKING
TEMP °C
SHELF
POSITION
COOKING
TEMP°C
APPROX
COOK TIME (m)
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen
Shelf
180 - 190
200 - 220
200 - 220
160 - 170
1
1*
1
1
170 - 190
200 - 220
200 - 220
180 - 190
10 - 20
25 - 30
15 - 20
18 - 25
Sponges 160 - 170 1 160 - 170 18 - 20
Victoria Sandwich positions 160 - 170 1 160 - 170 18 - 25
Madeira 140 - 150 1 140 - 150 1¼ - 1½h
Rich Fruit 130 - 140 1 140 - 150 2¼ - 2½h
Christmas are not 130 - 140 1 130 - 140 3 - 4½h
depends on size
Gingerbread 140 - 150 1 140 - 150 1¼ - 1½h
Meringues critical 80 - 100 1 90 - 100 2½ - 3h
Flapjack 170 - 180 1 170 - 180 25 - 30
Shortbread 130 - 140 1 140 - 150 45 - 65
Casseroles: Beef/Lamb but ensure 140 - 160 1* 140 - 160 2½ - 3h
Chicken 180 - 190 1* 180 - 190 1¼ - 1½h
Convenience Foods Follow manufacturer’s instructions
Fish that oven 170 - 190 1 170 - 190 20 - 30
Fish Pie (Potato Topped) 190 - 200 1* 190 - 200 20 - 25
Fruit Pies, Crumbles 190 - 200 1 190 - 200 40 - 50
Milk Puddings shelves 130 - 140 1 140 - 150 1½ - 2h
Pasta Lasagne etc. 190 - 200 1 170 - 180 40 - 45
Pastry: Choux are 190 - 200 1 180 - 190 30 - 35
Eclairs, Profiteroles 170 - 180 1 170 - 180 20 - 30
Flaky/Puff Pies 210 - 220 1* 210 - 220 25 - 40
Shortcrust Mince Pies evenly 190 - 200 1 190 - 200 15 - 20
Meat Pies 190 - 210 1* 190 - 210 25 - 35
Quiche, Tarts, Flans 180 - 210 1 180 - 200 25 - 45
spaced
Roasting Meat, Poultry 160 - 180 1* 160 - 180 see roasting chart
Scones when more 210 - 220 1 220 - 230 8 - 12
Shepherd’s Pie 190 - 200 1* 190 - 200 30 - 40
Soufflés 170 - 180 1 170 - 180 20 - 30
Vegetables: Baked Jacket Potatoes than one is 180 - 190 1 180 - 190 1 - 1½h
Roast Potatoes 180 - 190 1 180 - 190 1 - 1½h
Yorkshire Puddings: Large used 210 - 220 1 200 - 210 25 - 40
Individual 200 - 210 1 200 - 210 15 - 25
* = Shelf on the oven base
Note: Shelf positions are counted from the bottom of the oven.
OVEN COOKING CHARTOVEN COOKING CHART

20
ROASTING CHART
INTERNAL TEMPERATURES –
Rare : 50-60°C, Medium : 60-70°C, Well done : 70-80°C
MEAT SECOND/FAN OVEN COOKING TIME
Beef 160-180°C 20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Beef, boned 160-180°C 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Mutton and Lamb 160-180°C 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork and Veal 160-180°C 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Ham 160-180°C 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken 160-180°C 15-20 minutes per ½kg (1lb)
and 20 minutes over
Turkey and Goose 160-180°C 15-20 minutes per ½kg (1lb) up
to 3½kg (7lb) then 10 minutes
per ½kg (1lb) over 3½kg (7lb)
Duck 160-180°C 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pheasant 160-180°C 35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit 160-180°C 20 minutes per ½kg (1lb)
and 20 minutes over
Potatoes with meat 160-180°C According to size
Potatoes without meat 180-190°C According to size
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments
may be required to allow for personal requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.
ROASTING CHART
