Tricity Bendix TB 116 FF Product guide

A/T/13-2. (00.)1286792
FRIDGE FREEZER
OPERATING & INSTALLATION
INSTRUCTIONS
TB 090 FF / TB 116 FF

2
This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you use this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.
The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information

3
IMPOR
IMPORT TANT S ANT SAFET AFETY INS Y INSTR TRUCTIONS UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under
no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can
leak at low temperatures. Do not store any
containers with flammable materials, such as spray
cans, fire extinguisher refill cartridges etc. in the
appliance.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the
freezer compartment.
Ice lollies can cause 'frost/freezer burns' if
consumed straight from the freezer.
Do not remove items from the freezer
compartment if your hands are damp/wet, as
this could cause skin abrasions or frost/freezer
burns.
Bottles and cans must not be placed in the
freezer compartment they can burst when the
contents freeze.
Manufacturers' recommended storage times
should be adhered to. Refer to relevant
instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
This product should be serviced by an
authorised engineer and only genuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Service Force Centre.
At the end of the Appliance Life
When disposing of your appliance use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
The Appliance and the Environment
This appliance does not contain gasses which
could damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.

4
CONTENT
CONTENTS S
Instructions for the User
Important Safety Instructions 3
General information 5
Description of the appliance, main parts 5
Using the Appliance 6
Before Use 6
To Start the Appliance 6
Temperature Control 6
Low Ambient Temperature Switch 7
The Refrigerator 7
Storage Shelves 7
Storage Times 7
The Freezer 8
Freezing Fresh Food 8
Frozen Food Storage 8
Thawing 9
To Make Ice Cubes 9
Hints and Tips 9
Normal Operating Sounds 9
Food Storage 9
Energy Saving Advice 9
In the Event of a Power Failure 10
Maintenance and Cleaning 10
Internal Cleaning 10
External Cleaning 10
When the Appliance is not in Use 10
Defrosting 10
Refrigerator 10
Freezer 11
To Change the Light Bulb 11
Something not Working 12
Service and Spare Parts 12
Customer Care Department 12

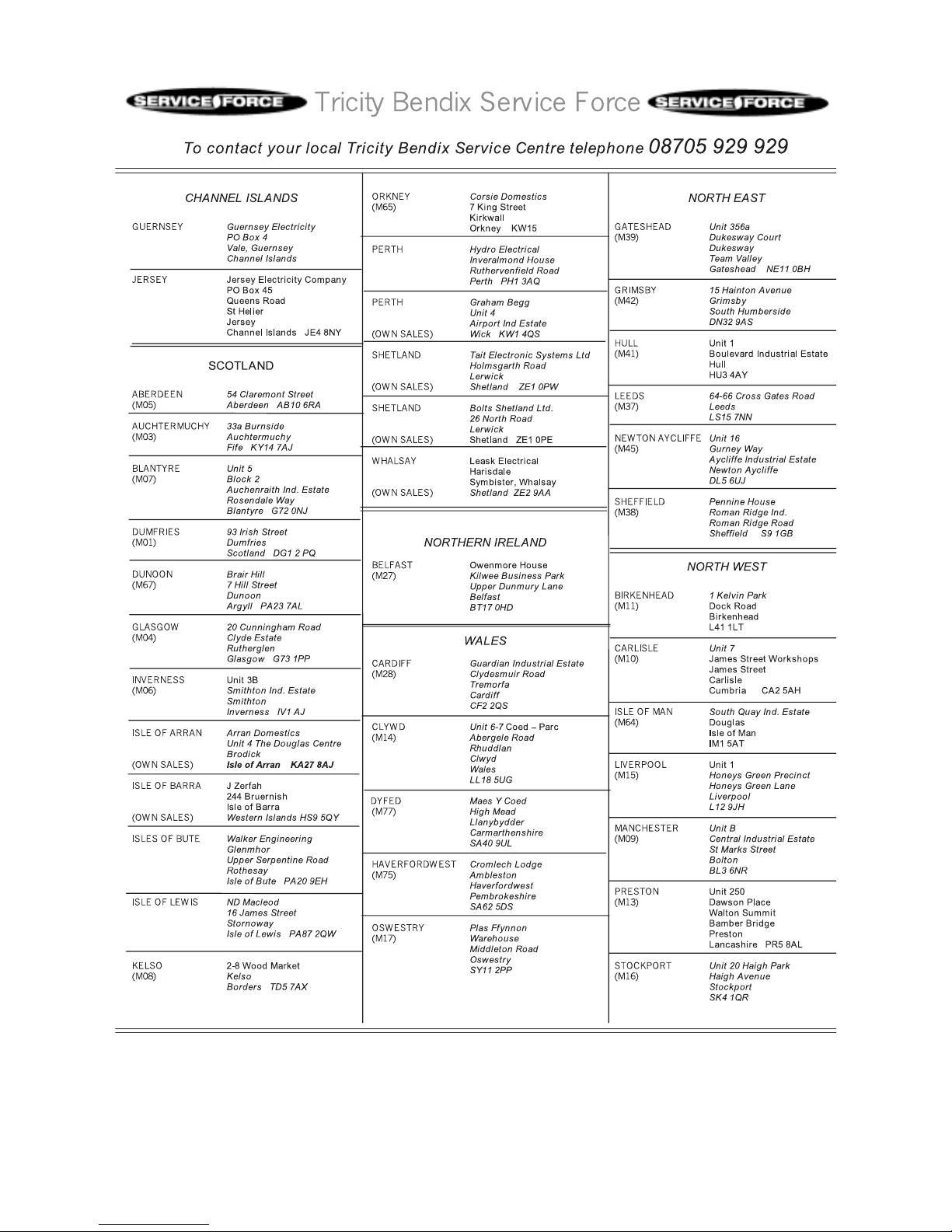

Service Force 13
Guarantee Conditions 15
Instructions for the Installer
Technical data 16
Installing the Appliance 16
Transportation, unpacking 16
Cleaning 16
Location 16
Leveling the Appliance 17
Ventillation requirements 17
Door Reversal 18
Electrical Connections 19
Storage Chart 20

5
INS
INSTR TRUCTIONS F UCTIONS FOR THE USER OR THE USER
General information
This appliance is designed for the storage of
refrigerated and frozen food in a domestic
environment.
To ensure correct operation, the appliance should
be located where the ambient temperature is
between 16-32 °C.
A - Refrigerator
B - Freezer
1. Control Panel
2. Thermostat Control/Light
3. Wire shelves
4. Defrost water drain
5. Glass shelf
6. Salad drawers
7. Rating Plate
8. Freezing compartment
9. Frozen food storage compartments
10. Defrost water outlet
11. Bottom Plinth
12. Adjustable feet
13. Dairy compartment
14. Egg tray
15. Door shelf
16. Door gasket
17. Bottle shelf
18. Ice tray
19. Condenser
20. Defrost water outlet tube
21. Spacer
22. Evaporator tray
23. Compressor
24. Rollers

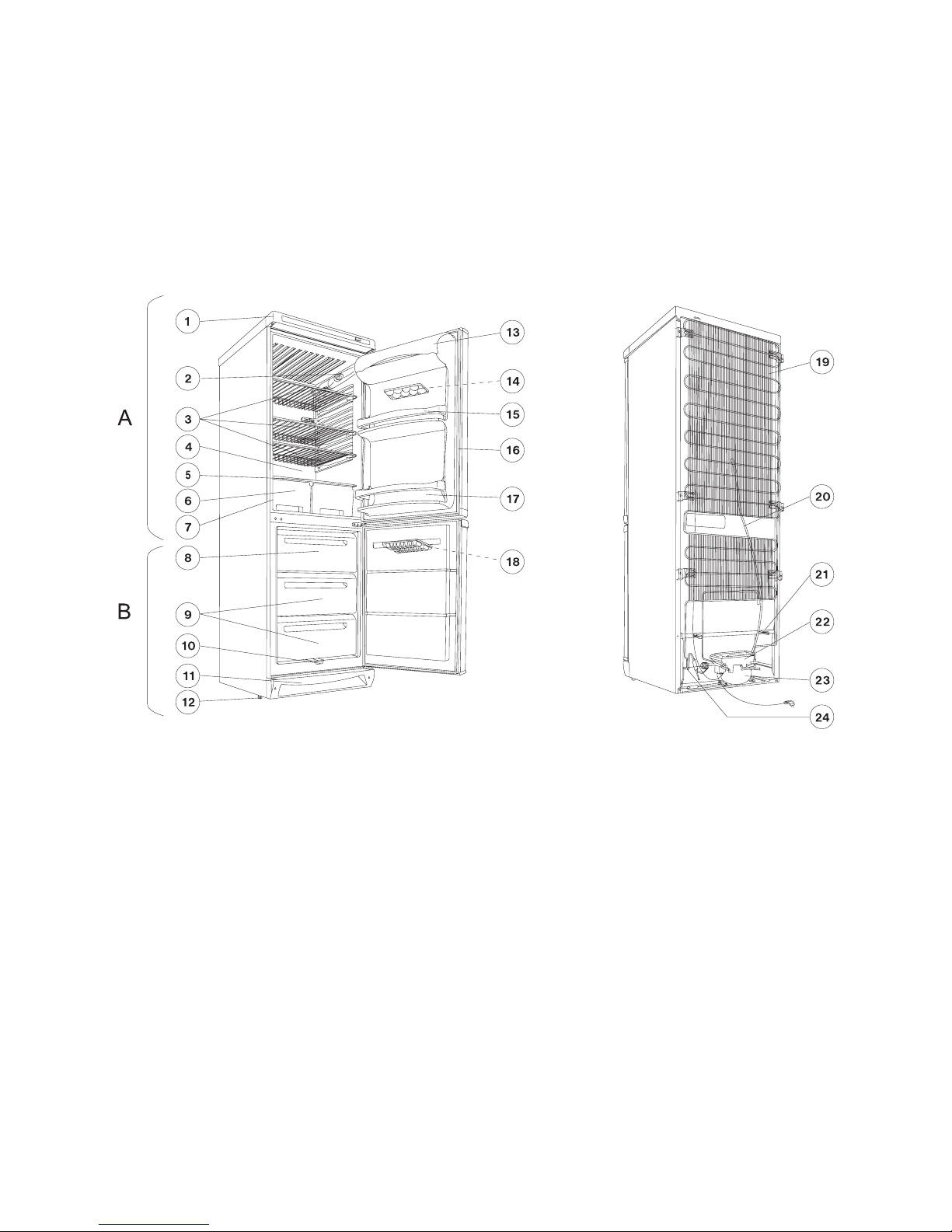

Description of the appliance, main parts
The illustration shows the model TB 116 FF

6
Using the Appliance
This appliance is designed for domestic use
only, specifically for the storage of edible
foodstuffs.
The appliance is designed to operate in ambient
temperatures (surrounding air temperature) between
16 °C and 32 °C.
If these temperatures are exceeded i.e. colder or
warmer, the appliance will not operate correctly.
Should the ambient temperatures be exceeded for
long periods, the temperature in the freezer section
will rise above -18 °C and food spoilage may occur.
Before Use
Remove all packaging and securing tapes. Wash
inside the appliance with lukewarm water and
bicarbonate of soda (5 ml to 0,5 litre of water). Do not
use soap or detergent as the smell may linger. Dry
thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FFTo Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the mains
supply.
3. Turn the thermostat control to the required setting.
A setting of 3 - 4 is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for
the correct temperature to be reached before
placing food inside.
Temperature Control
The thermostat control situated in the control panel
regulates the temperature both within the fridge and
freezer compartments. The thermostat control is
marked from 1-5, the higher the number, the colder
the setting.
Position 0 - Off
Position 1 - Cold
Position 5 - Coldest
The temperature will be affected by:
Ambient temperature
How often the door is opened
How much food is stored
Position of the appliance

7
In determining the correct temperature control setting,
all these factors have to be considered and some
experimentation may be necessary.
Do not allow children to tamper with the
controls or play with the product.
Low Ambient Temperature Switch
The low ambient temperature switch, situated on the
right hand side of the panel at the top of the appliance,
should be switched on when the room temperature
falls below 16 °C.
When the room temperature rises above 16 °C switch
off, by releasing the switch. No damage can be
caused by leaving the switch in this position for a
period of time.
The Refrigerator
Below is the recommended storage positions for
various food types:
1. Ready-cooked foods, fresh meat, cold cuts.
2. Milk, dairy products.
3. Fruits, vegetables, salads.
4. Cheese, butter.
5. Eggs.
6. Yoghurt, sour cream.
7. Small bottles, drinks.
8. Large bottles, drinks.
Storage Shelves
The shelves in the refrigerator compartment are
adjustable to allow for the storage of large items.
To re-arrange the shelves, open the door to 90°.
Storage Times
The storage charts at the end of the instruction book
give information on storage times in the freezer and
refrigerator compartments. The storage times quoted
are intended as a guide only.
Do not cover the shelves with paper or trays etc. as
this will affect the air circulation within the
refrigerator compartment.
Do not put hot foods in the refrigerator, allow hot
foods to reach room temperature naturally before
placing in the refrigerator.
Cover foods, or place in closed dishes before
placing them in the refrigerator, this prevents any
transference of food smells.

8
The Freezer
When freezing fresh food always place the food in the
freezing compartment which is the top drawer in the
freezer section.
1. Turn the thermostat control to 5 (max).
2. Place the food to be frozen in the top drawer.
3. After 24 hours reset the thermostat control to its
normal setting and place the frozen food into the
storage compartments.
Frozen Food Storage
When first starting the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least 2 hours before storing
frozen food.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the door frequently or leave it open
longer than is necessary.
Important
Do not put carbonated liquids in the freezer.
Ice lollies, if consumed immediately after removal
from the freezer can cause a low temperature skin
burn.
In the event of a power cut the food in the freezer
will not be affected if the power cut is short and the
freezer is full. Do not open the door. Should the
food begin to thaw it must be consumed quickly
and must not be re-frozen. (See Hints and Tips)
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
Thawing
Deep frozen or frozen food, prior to being used,
can be thawed in the fridge or at room temperature,
depending on the time available. Small food items
may even be cooked from frozen, in this case
cooking will take longer.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible, or thrown away. Alternatively, if the food is
uncooked and has not been completely defrosted
it can be cooked and then refrozen.
Defrosted cooked food must never be
refrozen.
FFTo Make Ice Cubes
1. Fill the ice cube tray ¾full with cold water, place
in the freezing compartment and leave to freeze.
2. To remove the cubes twist the tray or hold it
under running water for a few seconds.
Never try to free an ice tray that is frozen to
the freezer compartment by using pointed
or sharp edged objects.

9
Hints & T
Hints & Tips ips
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils or
tubing.
When the compressor is on, the refrigerant is being
pumped round and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor and you will
hear a faint 'click' when the thermostat cuts in and
out.
Food Storage
To obtain the best performance from your freezer:
Do not store warm food or evaporating liquid.
Avoid buying frozen food if you cannot store it
straight away. The use of an insulated container is
advisable. When you arrive home, place the frozen
food in the freezer immediately.
Do not push food together too much, try to allow air
to circulate around each item.
Do not store food uncovered.
Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food
is consumed at its best.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
Wrap the food in polythene or aluminium freezing
bags or foil so that they adhere to the food and
provide an airtight seal.
Packaging which is swollen or has traces of
refrozen water droplets on the pack could indicate
that the product has not been kept at a suitable
temperature and that it may have lost its original
quality. Partially thawed food must not be refrozen,
it must be consumed within 24 hours. Never
exceed the storage times indicated by the
manufacturer.
Energy Saving Advice
Do not install the appliance close to sources of
heat, such as a boiler or radiator.
Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
appliance are not obstructed.
Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
Food which is to be frozen (when cool) should
be placed in the fridge before being transferred
to the freezer.
Try to avoid keeping the door open for long
periods or opening the door too frequently as
warm air will enter the cabinet and cause the
compressor to switch on unnecessarily often.
Ensure there are no obstructions preventing the
door from closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of
frozen foods, keep the door closed. If the
temperature within your freezer should rise, do not
refreeze the food without checking its condition.
The following guidelines should assist you:
Ice Cream: Once thawed should be discarded.
Fruits & Vegetables: If soft should be cooked and
used up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up
quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces of Meat: Can be refrozen providing
there are still ice crystals remaining within them.
Small Joints: Should be cooked and can then be
refrozen as cooked dishes.
Chicken: Should also be cooked and refrozen as a
fresh dish.

10
Maint
Maintenance and Cleaning enance and Cleaning
Before any maintenance or cleaning is
carried out you must DISCONNECT the
appliance from the electricity supply.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong odour.
External Cleaning
Wash the outer cabinet with warm soapy water.
Once or twice a year dust the condenser (black grille)
and the compressor at the back of the appliance with
a brush or vacuum cleaner, as an accumulation of dust
will affect the performance of the appliance and cause
excessive electricity consumption.
When the Appliance is not in Use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door open to
prevent unpleasant smells.
Defrosting
Refrigerator
The refrigerator defrosts every time the compressor
stops. The water is discharged, via the pipe, into a tray
located at the back of the appliance above the
compressor, where it evaporates.
Important
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the centre
of the V shaped drip collector at the back of the
refrigerator compartment, behind the salad drawers.
Use the defrost cleaner provided which you will find
already inserted into the discharge hole.
Remember to wash to defrost cleaner in hot soapy water
at regular intervals. Dry thoroughly before replacing.

11
Freezer
The freezer compartment will become progressively
covered with frost. This should be removed with the
special plastic scraper provided, whenever the
thickness of the frost reaches 1
/
4.
During this operation it is not necessary to switch of
the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried out
and it is advisable to perform this operation when the
appliance is empty.
For complete defrosting (once or twice a year)
proceed as follows:
1 Turn the thermostat dial to the "OFF" position (O) or
disconnect the appliance from the mains.
2 Remove any food from inside the freezer and
fridge; wrap it in several sheets of newspaper and
store in a cool, dry place.
3 When defrosting is complete, dry the interior
thorough.
4 Reconnect the appliance to the mains or reset the
thermostat to 5 (coldest) and leave to run for at
least four hours.
5 Replace the previously removed food.
6 Return the thermostat to the normal position.
Important
A temperature rise of the frozen food packs during
defrosting may shorten their safe storage life.
Never use sharp metal tools to scrape off frost from
the evaporator as this could damage the appliance
beyond repair.
FFTo Change the Light Bulb
1. Disconnect the appliance from the electrical
supply or turn the thermostat to '0'.
2. Take the lamp cover off in the direction of the arrow
and change the bulb. (Type of bulb: 230 V, 15 W,
E 14 thread)
3. Replace the lamp cover and fixing screw.
Spare bulbs are available from your local Tricity Bendix
Service Force Centre.

12
If after the above checks your appliance still does not
operate correctly, contact your local Tricity Bendix
Service Force Centre.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
Ser
Service and Spar vice and Spare P e Par arts ts
In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your
local Tricity Bendix Service Force Centre by telephoning:
0870 5 929929
Your call be routed the Service Force Centre covering your post code area.
Cus
Cust tomer Car omer Care Depar e Department tment
For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix
products, you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] calls to this number may be recorded for training purposes.
Some
Something N thing No ot W t Wor orking king
If the appliance is not working correctly, please carry out the following checks before contacting your local
Tricity Bendix Service Force Centre.
Problem
No power to the appliance
The temperature in the
appliance is too high
The compressor runs
continuously
The temperature in the
appliance is too low
Excessive frost and ice has
built up
The appliance is noisy.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control is set at 0.
The appliance is located in an unsuitable
position.
The thermostat control is set too low.
The thermostat is set at the wrong temperature.
The door is open.
Large quantities of food have been placed in the
cabinet.
The door has been opened too frequently.
The air ventilation is obstructed.
The thermostat control is set too cold.
The door has been left open.
Something is obstructing the door.
The door gasket is dirty.
The appliance is not level.
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the thermostat setting.
Check the ambient temperature is within the
appliances operating limits of 16 °C to 32 °C.
Check that the thermostat control knob is turned to
the correct setting relative to ambient conditions.
Adjust the thermostat control knob.
Close the door.
Check that the air ventilation is not obstructed.
Set the thermostat control knob to a warmer
position.
Check the door has not been left open.
Check nothing is preventing the door from closing.
Check the door gasket is intact and clean.
Check if the appliance stands stable on the floor.

13

14

15
We Tricity Bendix undertake that if within 12 months of
the date of the purchase this Tricity Bendix appliance
or any part thereof is proved to be defective by reason
only of faulty workmanship or materials, the company
will, at our option repair or replace the same FREE OF
CHARGE for labour, materials or carriage on condition
that:
The appliance has been correctly installed and
used only on the electrical supply stated on the
rating plate.
The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer's instructions.
The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Tricity Bendix Service Force
Centre.
Any appliance or defective part replaced shall
become the Company's property.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
Damage or calls resulting from transportation,
improper use or neglect, the replacemet of any light
bulbs or removable parts of glass or plastic.
Costs incurred for calls to put right an appliance
improperly installed or calls to appliances outside
the United Kingdom.
Appliances found to be in use within a commercial
environment, plus those which are the subject of
rental agreements.
Products of Tricity Bendix manufacture which
are not marked by Tricity Bendix.
The guarantee is in addition to your statutory and
legal rights.
TRICITY BENDIX EUROPEAN GUARANTEE
If you should move to another country within
Europe then your guarantee moves with you to your
new home subject to the following qualifications:
The guarantee starts from the date you first
purchased your product.
The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
This guarantee relates to you and cannot be
transferred to another user.
Your new home is within the European
Community (EC) or European Free Trade Area.
The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, list below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your
move and able to look after you and your
appliances.
France Senlis [phone]
Germany Nurenberg [phone]
Italy Pordenone [phone]
Sweden Stockholm [phone]
UK Slough [phone]
Guar
Guarant antee Conditions ee Conditions

16
Ins
Instr tructions f uctions for the Ins or the Inst taller aller
Technical data
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)
(kWh/year)
Energy class, according to EU standards
Freezing capacity (kg/24h)
Rising time (h)
Rated power (W)
Weight (kg)
Number of compressors
TB 116 FF
Freezer: 105
Refrigerator: 195
Freezer: 80
Refrigerator: 192
600
1790
600
1,42
518
C
18
18
150
65
1
TB 090 FF
Freezer: 65
Refrigerator: 195
Freezer: 51
Refrigerator: 192
600
1580
600
1,20
438
C
12
17
130
58
1
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the
refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml
to 0.5 litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well
ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or
other sources of heat
only be installed at a location where the ambient
temperature corresponds to the climate
classification, for which the appliance is
designed.
The climate classification can be found on the
rating plate.
The following table shows which ambient
temperature is correct for each climate
classification:
Climate Classification Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C

17
Levelling the Appliance
When placing the appliance ensure that it stands level.
This can be achieved by adjusting either or both of the
feet (1) at the front of the appliance. If required the
washers (2), that are accessories of the feet, can be
removed.
Do not stand the appliance next to a source of heat a
radiator or cooker.
Ventilation Requirements
The appliance must have adequate ventilation to
ensure correct operation.
Diagram shows the ventilation requirements when
installed:
AUnder a cupboard.
BWhen freestanding

18
Door Reversal
The diagram shows the model TB 116 FF.
1. Disconnect the appliance from the electricity
supply.
2. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packaging.
3. Prize out the two white screw covers from the
ventilation grille at the bottom of the appliance.
4. Remove the two securing screws and remove the
grille.
5. Unscrew the bottom hinge.
6. Remove the door by releasing it from the middle
hinge.
7. Unscrew the middle hinge.
8. Slide out the fridge door from the pin, unscrew the
pin and then screw it into the hinge blade provided
on the opposite side.
9. Refit the fridge door on the opposite side and
replace the middle hinge to the left hand side.
10.Replace the door and bottom hinge on the
opposite side.
11. Remove the plug from the ventilation grille in the
direction of the arrow (1) and insert it on the
opposite side (2).
12. Refit the ventilation grille. Secure with the two
screws and push in the screw covers.
13. Return the appliance to its upright position.
Important
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that case,
wait for the natural fitting of the gasket or accelerate
this process by heating the part involved with a normal
hairdryer on a low setting.

19
Electrical Connection
Electrical Connection
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance
rating plate.
The appliance is supplied with a 13 amp plug fitted. In
the event of having to change the fuse in the plug
supplied, a 13 amp ASTA approved (BS 1362) fuse
must be used. Should the plug need to be replaced
for any reason. The wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter E or
by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the
terminal N or coloured black.
The wire coloured brown must be connected to the
terminal marked L or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.

Printed by Xerox Hungary Ltd.
© Electrolux Household Appliances Limited 2000
S
St tor orage time char age time chart t
Time and method of storage of fresh foods in the refrigerator
Foods Storage time in days Method of packaging
1234567
Raw meat XXx x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat Xdish covered
Cooked minced meat XXx x dish covered
Cold cuts XXx x cling film, cellophane, grease-
proof paper
Fresh fish Xx x cling film, airtight
Cooked fish XXx x dish covered
Tinned fish, open Xx x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXXx x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXXx x x dish covered
Butter unopened XXXXXXXoriginal packaging
Butter opened XXxxxxxoriginal packaging
Milk XXXx x original packaging
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXXx x x cling film
Egg XXXXXXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXXx x x cling film
Mushroom XXx x x cling film
Carrot XXXXXXXcling film
Tomato XXXXXXXcling film
Cabbage XXXXXx x cling film
Fruits (Strawberry,
raspberry, etc.) XXXx x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
Notation:
Xrecommended storage time
x maximum recommended storage time
