Trident TVGA 9000I User manual

TVGA 90001
GRAPHICS ADAPTER
User’s Manual

HARDWARE

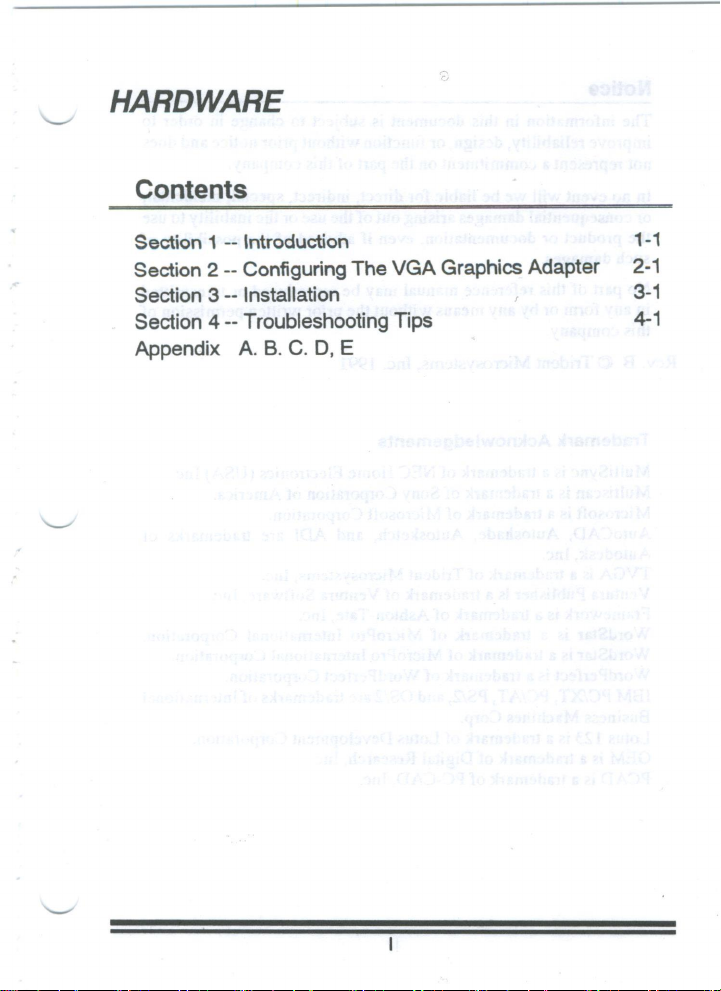

Contents
Section 1—— introduction
Section 2-- ConfiguringThe VGA Graphics Adapter
Section 3 -- Installation
Section 4-- Troubleshooting Tips
Appendix A. B. C. D, E
1—1
2-1
3-1
4-1

Notice
The information in this document is subject to change in order to
improve reliability, design, or function withoutpriornotice and does
not represent acommitment on the part of this company.
In no event will we be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or the inability to use
the product or documentation, even if advised of the possibility of
such damages.
No part of this reference manual may be reproduced or transmitted
in any form or by any means withoutthe prior written permission of
this company.
Rev. B ©Trident Microsystems,Inc. 1991
Trademark Acknowledgements
MultiSync is atrademark of NEC Home Electronics (USA) Inc.
Multiscan is atrademark of Sony Corporation of America.
Microsoft is atrademark of Microsoft Corporation.
AutoCAD, Autoshade, Autosketch, and ADI are trademarks of
Autodesk, Inc.
TVGAis atrademark of Trident Microsystems, Inc.
Ventura Publisher is atrademark of Ventura Software, Inc.
Framework is atrademark of Ashton-Tate, Inc.
WordStar is atrademark of MicroPro International Corporation.
WordStar is atrademark of MicroPro International Corporation.
WordPerfect is atrademark of WordPerfect Corporation.
IBM PC/XT, PC/AT, PS/Z, and 05/2 are trademarks ofInternational
Business Machines Corp.
Lotus 123 is atrademark of Lotus Development Corporation.
GEM is atrademark of Digital Research, Inc.
PCAD is atrademark of PC-CAD, Inc.

Limited Warranty
Our company warrants this product against defects in materials and
workmanship for aperiod of one (1) year from the date of purchase.
During the warranty period, productdetermined by us to be defective
in form or function will be repaired or at our option, replaced at no
charge. This warranty does notapply ifthe product has been damaged
by accident, abuse, misuse, or as a result of service or modification
other than by us.
This warranty is in lieu of any other warranty expressed or implied.
In no event shall we be held liable for incidental or consequential
damages, such as lost revenue or lost business opportunities arising
from the purchase of this product

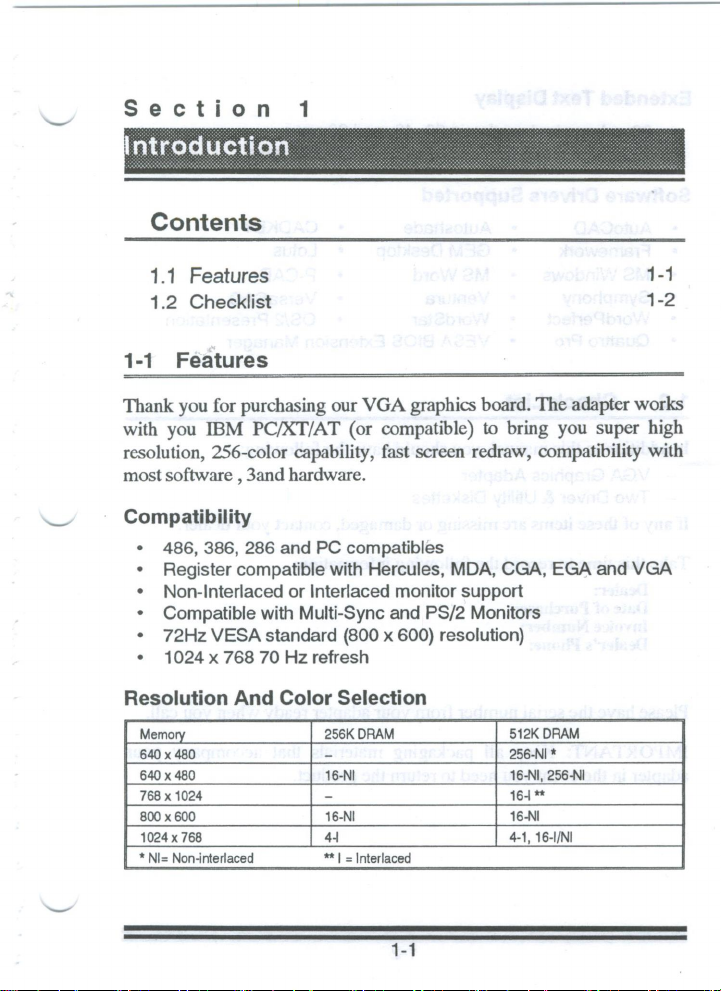

Section 1
Introduction
Contents
1.1 Features 1-1
1.2 Checklist 1-2
1-1 Features
Thank you for purchasing our VGA graphics board. The adapter works
with you IBM PC/XT/AT (or compatible) to bring you super high
resolution, 256-color capability, fast screen redraw, compatibility with
most software ,3and hardware.
Compatibility
486, 386, 286 and PC compatibles
Register compatible with Hercules, MDA, CGA, EGA and VGA
Non-Interlaced or Interlaced monitor support
Compatible with Multi-Sync and PS/2 Monitors
'72Hz VESA standard (800 x600) resolution)
-1024 x768 70 Hz refresh
Resolution And Color Selection
Memory 256KDRAM 512K DRAM
640 x480 -256-NI ‘
640 x480 16-Nl 16-Nl. 256-Nl
768 x1024 —164 *'
800 x600 16-Nl 16-Nl
1024 x768 44 4-1, 16-l/Nl
‘N|= Noninterlaced “l=Interlaced
1-1

Extended Text Display
-80-column text modes in 30, 43, and 60 rows
'132-column text modes in 25. 30, 43 and 60 rows
Software Drivers Supported
-AutoCAD -Autoshade -CADKEY
.Framework .GEM Desktop -Lotus
-MS Windows ~MS Word -P-CAD
0Symphony 'Ventura -VersaCAD
-WordPerfect ~WordStar -OS/2 Presentation
°Quattro Pro -VESA BIOS Extension Manager
1-2 Check List
In addition to this manual, you should have the following:
—VGA Graphics Adapter
—Two Driver &Utility Diskettes
If any of these items are missing or damaged, contact your dealer.
Take this time to record the followinginformation:
Dealer:
Date of Purchase:
Invoice Number:
Dealer’s Phone:
Please have the serial number from your adapter ready when you call.
IMPORTANT: Keep all packaging materials that accompany your
adapter in the event you need to return the product.

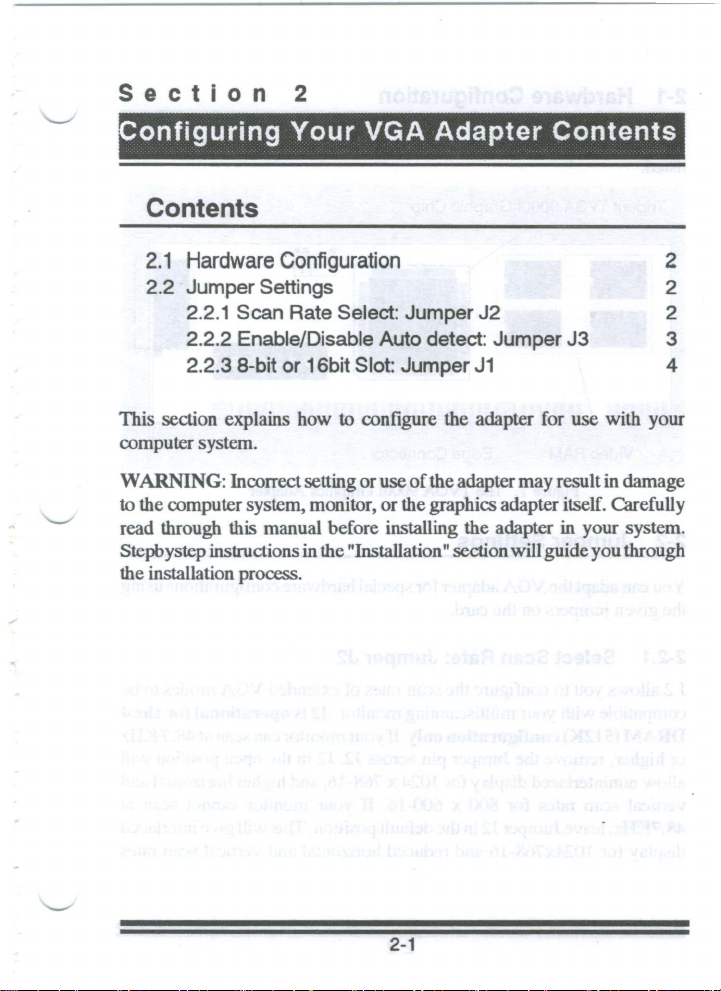

Section2
-onfiguring Your VGA Adapter Contents
Contents
2.1 Hardware Configuration
2.2 Jumper Settings
2.2.1 Scan Rate Select: Jumper J2
2.2.2 Enable/Disable Auto detect: Jumper J3
2.2.3 8-bit or 16bit Slot Jumper J1
#QNMN
This section explains how to configure the adapter for use with your
computer system.
WARNING: Incorrectsetting or use of the adapter may result in damage
to the computer system, monitor, or the graphics adapter itself. Carefully
read through this manual before installing the adapter in your system.
Stepbystepinstructionsin the "Installation" sectionwill guide you through
the installationprocess.
2-1

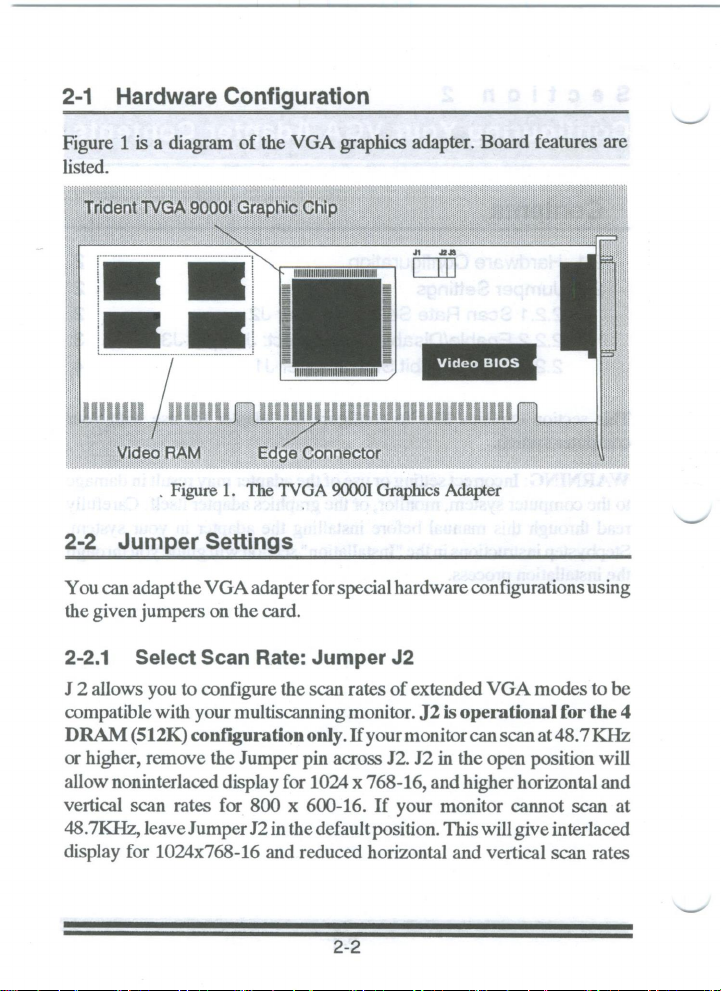

2-1 Hardware Configuration
Figure 1is adiagram of the VGA graphics adapter. Board features are
listed.
Video BIOS
.Figure 1. The TVGA 90001 Graphics Adapter
2-2 Jumper Settings
You can adaptthe VGA adapterfor specialhardware configurationsusing
the given jumpers on the card.
2-2.1 Select Scan Rate: Jumper J2
J2allows you to configure the scan rates of extended VGA modes to be
compatiblewith your multiscanningmonitor. J2 is operationalfor the 4
DRAM (512K)configurationonly. Ifyour monitorcan scan at 48.7KHz
or higher, remove the Jumper pin across J2. 12 in the open position will
allow noninterlaceddisplay for 1024 x768-16, and higher horizontal and
vertical scan rates for 800 x600-16. If your monitor cannot scan at
48.7KHz,leaveJumper J2 in the defaultposition.This will give interlaced
display for 10Mx768-16 and reduced horizontal and vertical scan rates
2-2

Vfor the 800 x600-16 color. Reference Table 2 (page 3-4) and Table 5
(AppendixA-4) for more detail on scan rates. Figure 2illustratesthe two
settings for Jumper J2.
Figure 2. 12 Settings for Selecting Scan Rate
J2:High Scan Rate J2: Default Scan Rate
[Pins 1and 2open) (Pins 1and 2connected)
NOTE: Be sure to check your multiscanmng monitor’s specifications
beforeselectingthe scan rate. Selectingascanrate higherthan the monitor
can handle may damage the monitor.
IMPORTANT: 60Hz and 70Hz refresh rates are available for 1024 x
768, 16 colors, noninterlaced.The defaultvalue is 60Hz.To achieve70Hz
refresh rate (requiresmonitorwith ascan rate of 56.4 Khz or higher), use
the TVGACRTC program located on driver/utility diskette#1.
2-2.2 Enable/DisableAutodetect: J3
J3allows you to enable/disable the BIOS Autodetect feature. The
Autodetectfeaturecontrolsthe BIOS interface(8 or 16bit). When enabled
(default) the BIOS will sense whether the VGA Adapter is in an 8bit or
16bit slot, and will configure the BIOS interface accordingly. When
disabled,the board will boot up in its default 8bit BIOS interfacesetting.
2-3

NOTE: If you have problems booting your system, set Jumper J3 to
disable autodetect.or place the and in an 8-bit slot.
Figure3. J3 Setting toEnable/Disable Autodetect
J31Enable Autodetect J3:Disable Autodeted
(Pins 1and 2open) (Pine 1and 2connected)
2-2.3 8-bit or 16-Blt Slot: Jumper J1
Jumper J1is used to configure the VGA adapter for an Shitor 16bit slot.
Figure 4illustratesthe two settings for Jumper J1.
Figure 4. J1 Settings for 8-bit Slot or 16-bit Slot
J1 :8—bit Slot J1 :16-bit Slot (Deiault)
(all pins connected) (all pins open)
2-4

Se c tio n 3
Vnstaliation Contents
Contents
3.1 Installation Procedures
3.2 Connecting the Monitor
3.2.1 Monitor Support for Enhanced VGA Modes
3.3 Advanced Topics
0300004
The installation procedure for your VGA graphics adapter will vary
slightly dependingon thetype ofsystem you have (i.e. an IBM PC/XT/AT
or compatible). Just follow the general installation instructions in this
section, and look for any special steps you will need to take for your
particular system. If you have an olderrnodel PC, XT, or compatible,
please read Appendix Bbefore you install your graphics adapter.
3-1 Installation Procedures
To install the adapter into your system, follow these steps:
1. Turn OFFall powerto your system, including any peripherals(printer,
external drives, modem, etc.).
2. Unfasten thecover mountingscrews on your system. For older IBM PCs,
there are two cover mounting screws. However, the newer IBM XTs and
compatibles use four screws, and newer ATs use five mounting screws. All
cover mounting screws are located on the back of the computer.
3. Remove the system cover. After all cover mounting screws are ofi,
carefully slide the system unit cover forward. When the cover will not go
any further, tilt it up and lift it away.
3-1

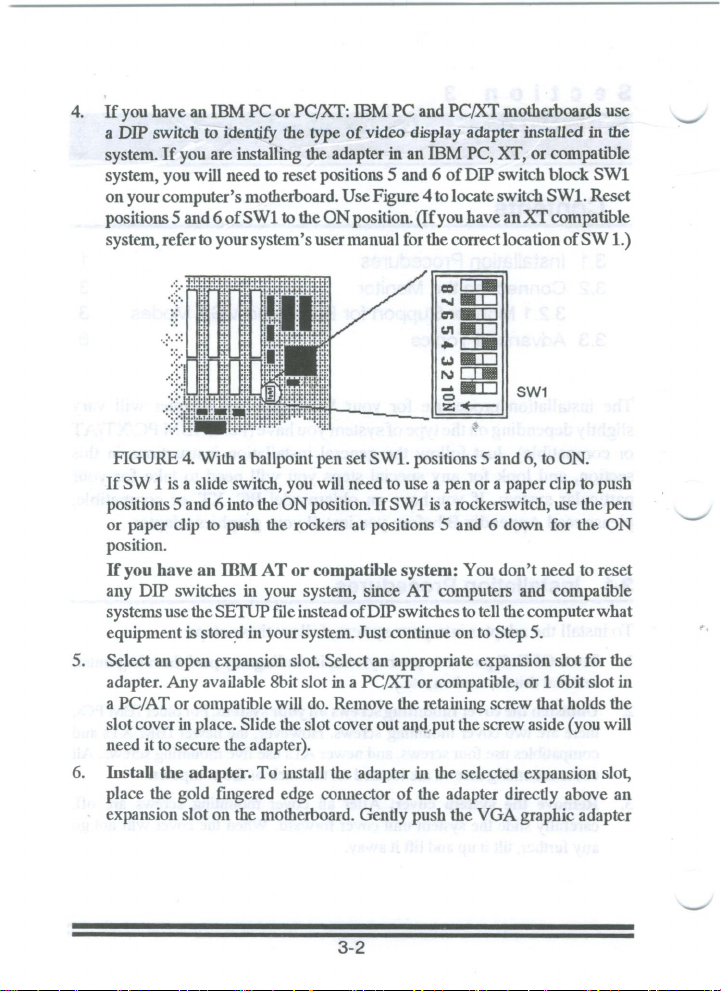

If you have an IBM PC or PC/XT: IBM PC and PC/XT motherboards use
aDIP switch to identify the type of video display adapter installed in the
system. If you are installing the adapter in an IBM PC, XT, or compatible
system, you will need to reset positions 5and 6ofDIP switch block SW1
on your computer’smotherboard.Use Figure 4to locate switch SW1. Reset
positions5and 6 ofSW1 to the ON position.(Ifyou have an XT compatible
system, refer to your system’suser manual for the correctlactation ofSW 1.)
SW1
FIGURE 4. With aballpoint pen set SW1. positions5and 6, to ON.
If SW 1is aslide switch, you will need to use apen or apaper clip to push
positions5and 6into the ON position.If SW1 is arockerswitch,use the pen
or paper clip to push the rockers at positions 5and 6 dOWn for the ON
position.
If you have an IBM AT or compatible system: You don’t need to reset
any DIP switches in your system, since AT computers and compatible
systemsuse the SETUP file insteadofDIP switchesto tell the computerwhat
equipment is stored in your system. Just continue on to Step 5.
Select an open expansion slot. Select an appropriate expansion slot for the
adapter. Any available 8bit slot in aPC/XT or compatible, or 16bit slot in
aPC/AT or compatible will do. Remove the retaining screw that holds the
slot cover in place. Slide the slot cover out andputthe screw aside (you will
need it to secure the adapter).
Install the adapter. To install the adapter in the selected expansion slot,
place the gold fingered edge connector of the adapter directly above an
expansion slot on the motherboard. Gently push the VGA graphic adapter
3-2

7. Attach the adapter. Use the screw you removed from the expansion slot in
Step 5to secure the adapter in place.
8. Replace the computer’s cover. Securethe coverwith the mounting screws
you removed in Step 2.
You have now completed the installation of your new graphics adapter
on your system. Before you use the system, however, please refer to
Section 3.2, Connectingthe Monitor.
3-2 Connecting the Monitor
The adapter offers a15 pin analog connector. When you connect your
monitor to the adapter, be sure you have the right cable and cable
connector.Fixedfrequencyanalogmonitorscome equippedwith a15 pin
connector. Variable frequency analog or analog/digital monitors will
require a9to 15 pin cable connector.
Warning: Connectingor disconnectingyour monitorwhile your system
and monitor are powered on may cause damage to your VGA adapter.
3-2.1 Monitor Support for Enhanced VGA Modes
Your monitormust be capable of displayingthe mode you choose. Table
2lists all availableVGA display modesfortheadapter,themonitorswhich
Support them, plus other informationthat may be useful.
Note that the color palette, i.e., the total number of possible colors to
choose from, is 262,144 in all modes except for monochrome modes
where the color palette is 2——black and the monitor phosphor color. For
example, in mode 5E ~800x600256colors), the total colors available for
display on the monitor at one time is 256 different colors from apalette
of 262,144.
3-3

TABLE 2. Display Modes
Mode Type Alpha Resolution] Midfisyruerier cm
(hex) Format Format Colors 3514‘ fixed ‘sum Size
Freq.
0,1 text 40x25 320x200-16 Yes Yes Yes 88000 axe
25,3 text 80x25 s40x2w15 Yes Yes Yes Baooo 8x3
0.1' text 40x25 azoxaso-1s Yes Yes Yes 53000 8x14
2'.1' text 80x25 swxams Yes Yes Yes 88000 8x14
o‘.1‘ text 40x25 360x4oo-16 Yes Yes Yes Baooo 9x16
2‘.a‘ text 80x25 720x4oo-1s Yes Yes Yes 88000 9x16
4,5 graphaes 40x25 320x2004 Yes Yes Yes Baooo 8x8
6graphies 80x25 640X200-2 Yes Yes Yes 88000 8x8
7' text 80x25 720x350m Yes Yes Yes aaooo 9x14
7‘ text 80x25 720x400-mono Yes Yes Yes Bsooo 9x16
Dgrephies 40x25 320mm Yes Yes Yes A0000 axe
Egraphics 80x25 640x200-16 Yes Yes Yes Aoooo 8x8
Fgraphics 80x25 640x350~mono Yes Yes Yes A0000 8x14
10 graphic; 80x25 640x350-16 Yes Yes Yes A0000 8x14
11 grephies 80x30 640x480~2 Yes Yes Yes A0000 8x16
12 grephies 80x30 640x480-16 Yes Yes Yes A0000 8x18
13 graphics 40x25 azoxzooese Yes Yes Yes A0000 8x8
50 graphics 80x30 640x480-16 Yes Yes Yes 88000 8x16
51 graphies 80x43 640x473-16 Yes Yes Yes 88000 8x11
52 graphic: 80x60 640x480-16 Yes Yes Yes 88000 8x8
53 graphii: 1321(25 1056x350-16 Yes Yes Yes 88000 8x14
54 graphics 132x30 1056x480-16 Yes Yes Yes 88000 8x16
55 grephirs 132x43 1056x473-16 Yes Yes Yes 88000 8x11
56 graph'es 132x60 1056x480-16 Yes Yes Yes 88000 3x8
57 graphim 132x25 1188x350~16 Yes No Yes 88000 9x14
58 graphics 1:421:30 1188x480-16 Yes No Yes 88000 9x16
59 graphiss 132x43 1‘88x473-16 Yes No Yes 88000 9x11
5A graphics 132x60 1188x480-16 Yes No Yes 88000 9x8
53 graphics 100x75 swxeoo-w Yes No Yes Aoooo 8x9
58 graphirs 100x75 800x600-18 No No Yes’ A0000 8x8
5c” graphics 80x25 swxwoess Yes Yes Yes A0000 8x16
50'" graphics 80x25 saoxaaoese Yes Yes Yes A0000 8x16
55“" greph‘rss 100x75 awxsoo-asa No No Yes’ A0000 8x8
54"" grephiss 128x48 1024x768-16 Yes No Yes Aoooo 8x16
5F°-'° graphies 128x48 1m4x768~16 No No Yes5 A0000 8x16
60' graphics 128x48 1024x7684 Yes No Yes A0000 8x16
61”“ grapHcs 96x64 768x1024-16 No No No A0000 8x16
3-4

Table Notes:
8.
9.
8514 is an IBM PS/Z monitor.
Multisync monitors support both Analog and TH. operations e.g. NBC
Mullisync 3D).
EGAtextmodeswith 8x14 and 9x14 charactersizes and 3501mmvertical
resolution.
VGA text modeswith 9 x16 character size and 400 lines vertical resolution.
Check to see if your multisync monitor supports the interlaced or non-
interlawd versions of the mode (monitor must support horizontal scan rate
of 48.7 KHz or 56.4 KHz for noninterlaoed display) .
Aportrait monitor is required to run this mom: (eg. Magits-1 SFP).
Not every multisync monitor works (e.g. NE 3D does not support low
frequency).
Interlaced mode (Jumper J2 connected).
Noninterlaoedmode (Jumper J2not connected).
10. Supported by 4 DRAM configuration only.
Note:You may need to adjust your multifrequency monitor to display
these modes properly. Use the horizontal and vertical size and position
controls on your monitor to displaywithout distortion.
3-5

3-3 Advanced Topics
This section coversinformationintendedfor users familiarwith assembly
language programming.The VGA standard supports a variety of video
modes which are accessible through a video BIOS wall from assembly
language or other higherlevelprogramminglanguages.
When you start up in DOS the screen display defaultsto the standard 80
columntext or alphanumericmode. This is mode 34 on acolor system or
mode74 on amonochromeVGA system(seefootnotereferencesin Table
Notes section above).
3-6

Sectio n 4
roubleshooting Tips Contents
Contents
4.1 Hardware Troubleshooting
4.2 Commonly Asked Questions
4.2.1 Monitors
4.2.2 Systems
4.2.3 Software Applications
4.3 If you Need Technical Assistance
#QQNN—e
4-1 Hardware Troubleshooting
The followingare some recommended steps to take if the VGA Graphics
Adapter will not boot or operate properly in your system:
1. Check to see if the card is fimrly seated in its bus expansion. sure it is not
making contact with any other cards in the system.
2. Be sure your monitor is properly connected to the card. Be sure your
monitor’s pin definitions match those of your IMPACT card.
3. Be sure your system’s power supply is operating properly (i.e. fan operates,
system power light comes on).
4. If you are using an IBM PC/XT or compatible, be sure switches 5and 6 of
Switch Block SW 1on your motherboard are set to ON.
5. If you are using an IBM PC/XT or compatible, check to see your system
BIOS is dated October 27, 1982or later. System BIOS Versions prior to this
date will not support the adapter card.
4-1

ConfigurationRequirementsforEMS Cards.LAN Cards,and SCSI,
ESDE. or RLL Controllers
No special hardware configuration is required for EMS Cards. LAN
Cards, and SCSI, ESDI, or RLL Controllers. The BIOS automatically
detects memory conflicts between the VGA card and other system
peripheralsand boots the VGA card accordingly.In the unlikelyevent the
BIOS auto configurationscheme does not work, configure Jumper J1for
an 8—bit interfaceand then place the card in an 8-bit slot .
4-2 Commonly Asked Questions
4-2.1 Monitors
Q.
A.
Why does the display shift or change sizes when Iswitch modes?
Some monitors lack autosizing features or just do not synchronize
properly to the video board output. In some cases. horizontal and
vertical display adjustmentsmay be necessary.
What kind of monitor do I need to display 800x600 or 1024x768
resolution?
To display 800x600 resolutionat 56Hz refresh, your monitor must
be capable of a352th horizontal scan rate (e.g., NEC 2A, 3D).
At 72Hz refresh, your monitor must be capable of a418.0le scan
rate (e.g., Sony HG 1304, NEC 4D, 5D, Seiko 1450.)
To display 1024 x768 interlaced,your monitor must be capable of
a35. 5horizontalscan rate )e.g., NEC 3D, Seiko 1430 or 1440). To
display 1024 x768 noninterlaced (60Hz), your monitor must be
capable of a48.7KHz scan rate (e.g., Sony HG 1304, NEC 4D, 5D,
Seiko 1450). For 70Hz noninterlaceddisplay,your monitor must be
capable of a56.4 KHz scan rate (e.g. NEC 5D, Mitsubishi 6915).
4-2
