IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and serial number written on the serial number
plate.
TECHNICAL DESCRIPTION
INTENDED USE
The FD15 is an air mover device which, using a fan, creates a ow of air heated by an electric resistance inside it, and is capable of drying
oors, carpets, etc. The device should only be used for this purpose.
This device is designed and intended for the drying of surfaces, in a commercial, public and industrial environments, in veried safety
conditions and by a qualied operator.
The appliance is only suitable for use in indoor - or at least covered - areas. The device should not be used in the rain or under water jets.
IT IS FORBIDDEN to use the appliance for picking up dangerous dusts or inammable liquids in places with an explosive atmosphere. In
addition, it is not suitable as a means of transport for objects.
PURPOSE AND CONTENT OF THE MANUAL
TARGET GROUP
STORING THE USE AND MAINTENANCE MANUAL
ON DELIVERY OF THE APPLIANCE
INTRODUCTORY COMMENT
The aim of this manual is to provide customers with all the information needed to use the appliance in the safest, most appropriate and most
autonomous way. It includes information concerning technical aspects, safety, operation, appliance downtime, maintenance, spare parts and
scrapping. Operators and qualied technicians must read the instructions in this manual carefully before carrying out any operation on the
appliance. If in doubt about the correct interpretation of instructions, contact your nearest Customer Service Centre to obtain the necessary
clarications.
This manual is aimed at operators and qualied technicians responsible for appliance maintenance. Operators must not perform operations
that should be carried out by qualied technicians. Hillyard cannot be held liable for damages resulting from failure to comply with this
prohibition.
The Use and Maintenance Manual must be stored in its special pouch close to the appliance, protected from liquids and anything else that
could compromise its legibility.
When the machine is delivered to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping
documents has been received, in addition to verifying that the equipment has not been damaged during transportation. If this is the case, the
carrier must ascertain the extent of the damage at once, informing our customer service o󰀩ce. It is only by prompt action of this type that the
missing material can be obtained, and compensation for damage successfully claimed.
Any type of equipment can only work properly and e󰀨ectively if used correctly and kept in full working order by performing the maintenance
operations described in the attached documentation. You should therefore read this instruction manual carefully, consulting it again if issues
arise while using the machine. If necessary, remember that our assistance service (organised in collaboration with our dealers) is always
available for advice or direct intervention.
SYMBOLS USED IN THE MANUAL

ENGLISH
6
SAFETY
SERIAL NUMBER PLATE
Operator cooperation is paramount for accident prevention. No accident prevention programme can be e󰀨ective without the full co-operation
of the operator who is directly responsible for machine operation. The majority of occupational accidents that happen both in the workplace or
whilst moving are caused by failure to respect the most basic safety rules. An attentive, careful operator is most e󰀨ective guarantee against
accidents and is fundamental in order to implement any prevention programme.
The serial number plate is located on the rear part of the device,
indicating its general characteristics (in particular, the serial number).
The serial number is a very important piece of information and should
always be provided together with any request for assistance or when
purchasing spare parts.

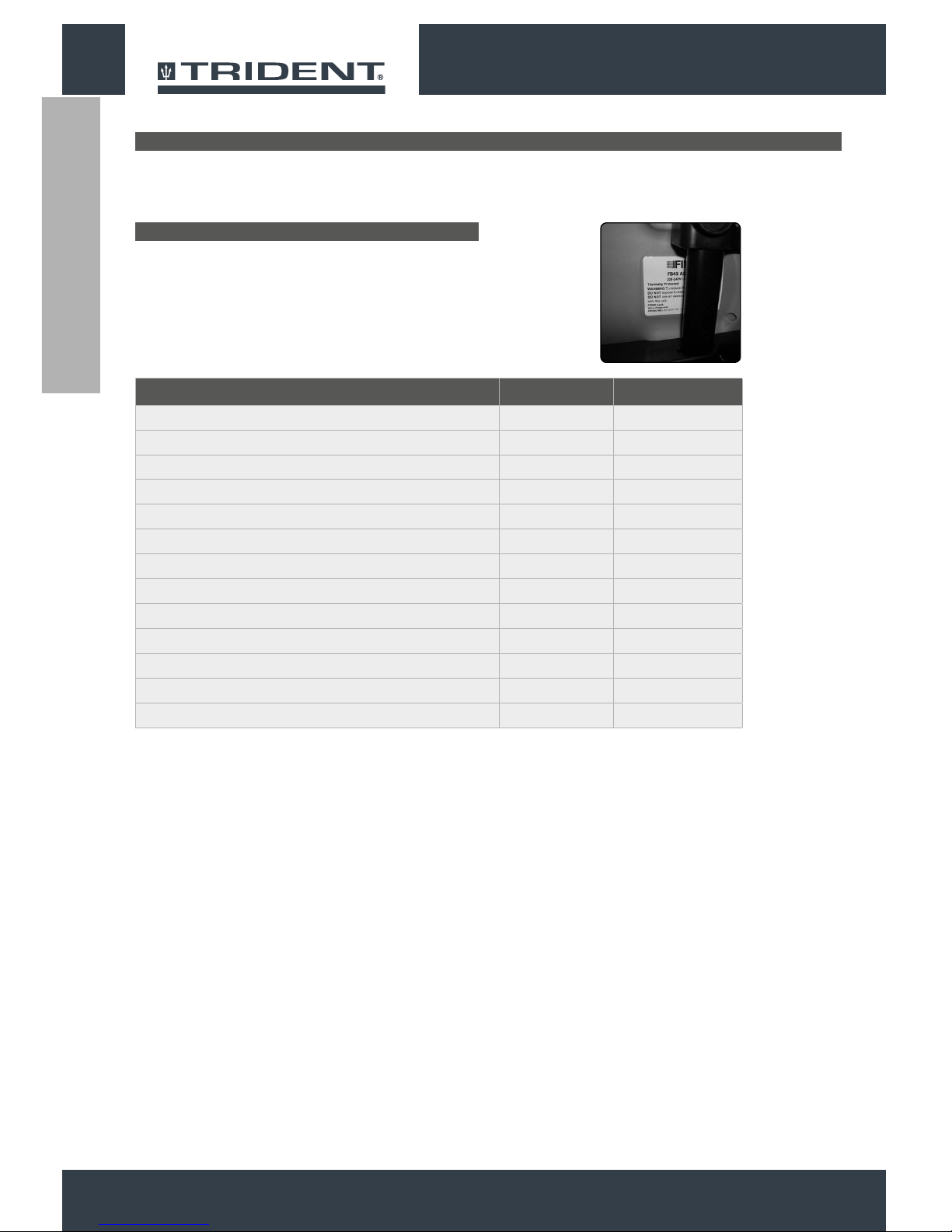

TECHNICAL DATA U/M FD15
Power supply voltage V 115
Frequency Hz 60
Rated power W 440
Air ow rate (max) ft3/h 91,81
Head Pa 600
Fan type Radial
Fan speed No. 3
Absorbtion W 370 - 390 - 440
Air outlet dimensions in 4,72 x 16,53
Air ow blowing
Power supply cable ft 32,81
Dimensions (length x width x height) in 15,94 x 16,93 x 16,53
Weight lb 22

ENGLISH
7
The regulations below must be carefully followed in order to avoid
harm to the operator and damage to the appliance.
WARNING:
• Carefully read the warnings contained in this booklet and
take care of it for further consultations.
• Since the packaging elements (plastic bags, staples, etc.) are
a source of danger they should not be left within the reach of
children, disabled persons, etc.
• This appliance should only be used for the purpose for which it
was constructed, namely: drying of inert, non-ammable and non-
explosive surfaces. Any other use is considered incorrect and
hence dangerous.
• When the appliance is operating do not bring it close to delicate
organs like ears, mouth, eyes, etc.
• This appliance should not be used by people (including
children) with physical, sensory or mental disabilities, or by
people with little experience or know-how, unless they have
been controlled and instructed in the use of the appliance
by people responsible for their safety. Children must be
supervised to ensure they do not play with the appliance.
• Carefully read the labels on the appliance. Do not cover them
for any reason and replace them immediately if they become
damaged.
• The appliance must be only used by authorised, trained personnel.
• The appliance is not suitable for use on rough or uneven oors.
Do not use the appliance on slopes.
• It is necessary to make sure that the power supply cable do not
su󰀨er any damage caused by the vehicle wheels when moving,
by crushing, tearing or the like. Protect the cable from heat, oil and
sharp edges. Regularly check the power cable for any damage
such as the formation of cracks, or ageing. If you notice any
damage, the cable must be replaced before using the machine.
• In the event of danger, immediately remove the plug from the
mains socket.
• For maintenance work, switch o󰀨 the appliance using the main
switch and remove the power cable plug from the main switch.
GENERAL SAFETY REGULATIONS

ENGLISH
8
• When using the appliance, pay attention to other people and
especially to children.
• When the appliance is not being used, it should not be left connected
to the mains power supply. Before doing any maintenance work
on the appliance pull out the plug from the mains. Do not immerse
the appliance in water, do not use solvents.
• The manufacturer cannot be held liable for any damage to persons,
animal or objects deriving from improper and unreasonable use,
and in any event not complying with the instructions mentioned
above.
• For scrapping, follow the regulations in force in the country.
• Do not use the appliance with the power cable twisted around the
handle.
• The device must be powered by an isolation transformer or by
a di󰀨erential switch with a maximum di󰀨erential current not
exceeding 30mA..
• Before connecting the appliance to the electricity socket, make
sure the electrical information on the plate corresponds to that of
the mains supply.
• The appliance must only be powered with a voltage equal to that
shown on the serial number plate.
• To avoid electric shock, do not use the appliance in standing water.
Never plug or unplug the unit with wet hands or while standing in
water.
• Do not move or carry the machine while it is running.
• Use only with GFCI protected receptacles. Please contact a
qualied electrician for verication and / or installation of a GFCI
receptacle if necessary.
• Do not operate any unit with a damaged cord or plug. Discard fan
or return to an authorized service facility for examination and/or
repair.
• It’s automatically operated device. To reduce the risk of injury,
disconnect from power supply before servicing.
WARNING:
• The appliance must not be used or kept outdoors, in damp
conditions or directly exposed to rain.

ENGLISH
9
• The storage temperature must be between -13°F and +131°F.
• Conditions of use: room temperature between 32°F and 104°F,
with relative humidity between 30% and 95%.
• The power supply cable outlet must have an earth connection in
compliance with the regulatory standards.
• The appliance does not cause harmful vibrations.
• Never use the appliance in environments with gas, liquids or
explosive or inammable powders, nor non-diluted acids and
solvents! These include gasoline, paint thinners and fuel oil (which,
when mixed with the vacuum air, can form explosive vapours or
mixtures), and also non-diluted acids and solvents, acetones,
aluminium and magnesium powders. These substances may also
corrode the materials used to construct the appliance.
• If the appliance is used in dangerous areas (for example, gas
stations), the relative safety standards should be observed. The
appliance must never be used in environments with a potentially
explosive atmosphere.
• Do not place any liquid containers on the appliance.
• In the event of a re, use a powder extinguisher. Do not use water.
• If the appliance does not work properly, check this is not caused
by failure to carry out routine maintenance. Otherwise, ask for
intervention of the authorised technical assistance centre.
• If you need to replace any components, request the ORIGINAL
spare parts from an Authorised dealer and/or Retailer.
• Restore all electrical connections after any maintenance
interventions.
• Before using the appliance, check that all the hatches and covers
are positioned as shown in this Use and Maintenance Manual. Do
not remove the guards that can only be removed with the aid of
tools, except for maintenance work (see the relevant paragraphs).
• Do not wash the appliance with direct water jets or with pressurised
water, nor with corrosive substances.
• Have the appliance checked by an authorised technical assistance
centre every year.
• When disposing of the appliance, comply with currently e󰀨ective
laws and regulations.
• When, after years of valuable work, your appliance needs to be

ENGLISH
10
nally decommissioned, dispose of the materials contained within
it appropriately, bearing in mind that the appliance is made of fully
recyclable materials.
• WARNING: To Reduce This Risk Of Fire Or Electric Shock,Do Not
Use Unit With Any Solid-State Speed Control Device.
• Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from tra󰀩c area and where it will
not be tripped over.

ENGLISH
11
PREPARATION OF THE APPLIANCE
The appliance is delivered in specic packaging. These packaging elements (plastic bags, clips, etc.) are potential
sources of danger are potential sources of danger and must be kept out of the reach of children, incompetent
persons, etc. The overall weight of the appliance plus its packaging is 12 kg.
The dimensions of the package are as follows:
A : 18,31in
B: 17,72in
C : 17,12in
HANDLING THE PACKED APPLIANCE
The procedure for removing the device from its packaging is the
following:
1. Open the outer box.
2. Remove the cardboard retainer.
3. Take the appliance out of the box.
4. Take the appliance out of the protective bag.
HOW TO UNPACK THE APPLIANCE
ATTENTION: it is recommended that all the packaging
components be kept for any future transportation of the
appliance.
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
ATTENTION: Since the packaging elements (plastic bags,
staples, etc.) are a source of danger they should not be left within
the reach of children, disabled persons, etc.
The procedure for the safe handling of the device is the following:
1. Take all necessary steps to ensure that the device is in a safe
condition (read the section “MACHINE SAFETY”).
2. Insert the appliance into the protective bag, taking care not to
damage either during this operation.
3. Insert the appliance into the carton, taking care not to damage
either during this operation.
Remember to place the lower cardboard retainer at the bottom
of the box.
HOW TO TRANSPORT THE APPLIANCE
4. Insert the upper cardboard retainer.
5. Close the carton.
ATTENTION: When transporting the appliance on vehicles,
secure it according to the directives in force so that it cannot
slide or tip over.
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
The control panel components are identied as follows:
1. Lifting handle.
2. Housing for winding the power cable.
3. Shut-down timer knob.
4. Three-speed main switch knob.
5. Retainer blade knob.
6. Retainer blade.
7. Air outlet nozzle.
COMPONENT POSITIONING
8. Air inlet nozzle.
9. Trolley handle button.
10. Trolley handle.
11. Transport wheels.
12. Support lever.
13. Power cable.
14. Power cable fastener.
1
9
3
10
4
12
5
5
6
6
28
7
11
1
5
2
6
3
7
4

ENGLISH
12
The stages for making the appliance safe, thereby making it possible
to carry out operations safely, are as follows:
1. Check that the main switch (1) is in the “OFF” position, otherwise
turn it anticlockwise as far as it will go.
2. Check that the plug (2) on the power cable (3) has been taken
out of the socket (4) of the mains supply, and if not, disconnect it.
APPLIANCE SAFETY
3. Wind the power cable under the appliance’s lifting handle and
secure it with the clip (5).
ATTENTION: Users are advised to always wear protective
gloves, to avoid the risk of serious injury to hands.
ATTENTION: To prevent damaging the power cable,
disconnect the plug from the mains socket by directly pulling
the plug and not the cable.
PREPARING TO WORK
Before beginning to work, it is necessary to:
1. Before using, the appliance must be in order and safe to use with
the work equipment, especially the power cable. If everything is
not in order, the appliance must not be used.
2. Make sure that there is no dirt in the air inlet nozzles (1) (Fig.1).
3. Make sure that there is no dirt in the air outlet nozzles (2) (Fig.2).
4. Make sure the power supply cable is not damaged.
WORK
To start working, proceed as follows:
1. Make all the checks listed in “PREPARING TO WORK”.
2. Place the appliance in the position most agreeable to the type of
work to be carried out.
Fig.1 horizontal position, the air outlet nozzle is perpendicular to the
oor.
Fig.2 tilted position, the air outlet nozzle is inclined upward in relation
to the oor, using lever (1) as a support base
Fig.3 vertical position, the air outlet nozzle is parallel to the oor.
3. Insert the plug (2) of the power supply cable (3) in the mains
socket (4) (Fig.1).
4. Turn on the appliance by pressing the main switch (5) (Fig.5).
The appliance has three operating speeds; to select one of these
speeds turn the switch (5) clockwise (Fig.6).
1
OFF
4 5
2
3
123
12
12
5
ON
4
2
1
35
23
1
1

ENGLISH
13

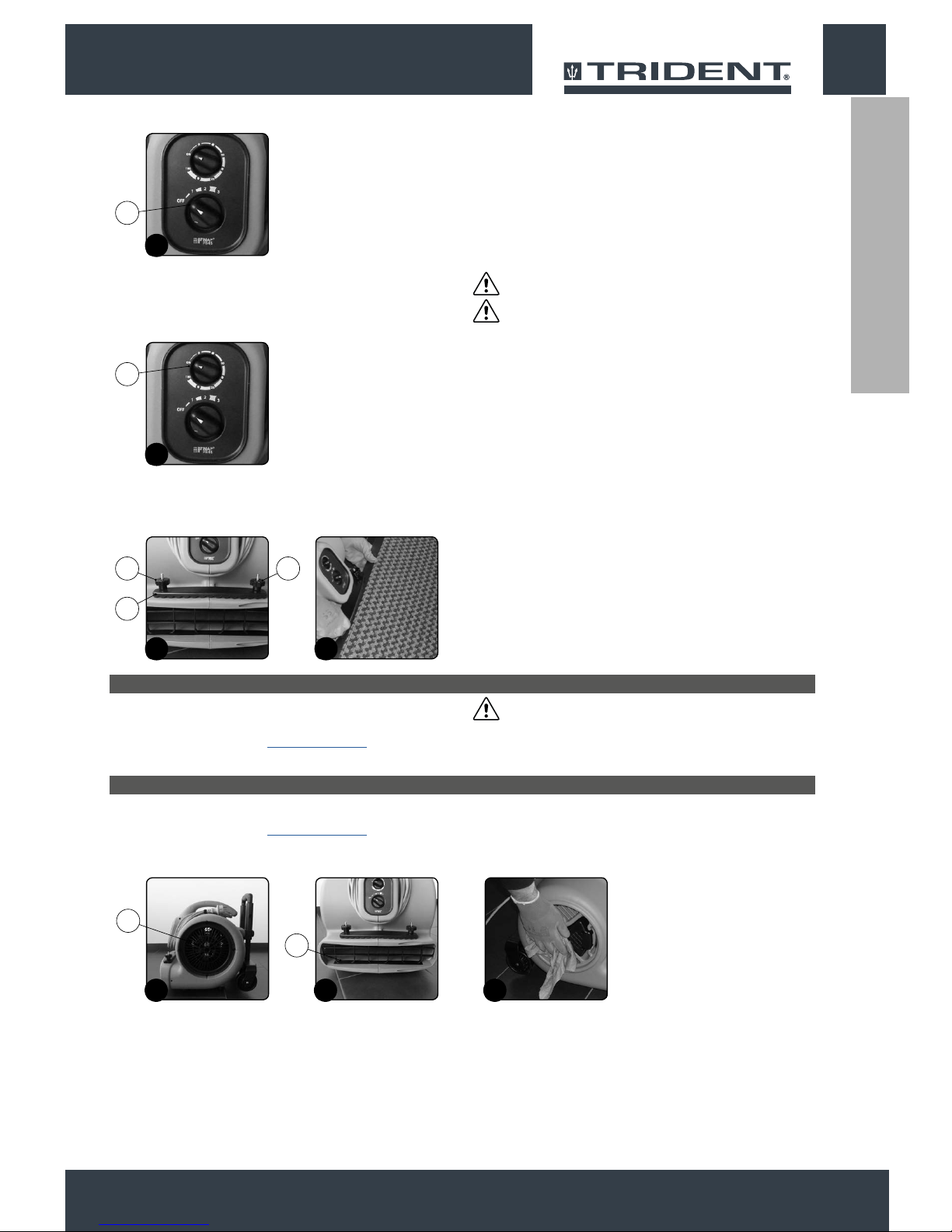

The appliance is equipped with an operating timer; to select the
operating time, simply turn the knob (6) clockwise (Fig.7). As soon
as the knob is released on the chosen time, the operating timer will
start, and will stop when it arrives to position “0”.
If the air has to be blown under a carpet, proceed as follows:
1. Turn the knobs (7) anti-clockwise (Fig.8).
2. Insert the carpet beneath the blade (8) (Fig.9).
ATTENTION: By positioning the knob to ON, the timing
function is not in operation.
ATTENTION: It can be set from a minimum of 30 minutes up
to a maximum of 180 minutes.
3. Fasten the carpet to the appliance by turning the knobs (7)
clockwise.
AT THE END OF THE WORK
MAINTENANCE
At the end of the work, and before carrying out any type of
maintenance, perform the following operations:
1. Take all necessary steps to ensure that the device is in a safe
condition (read the section “MACHINE SAFETY”).
2. Take the appliance to the designated storage area.
At the end of the work proceed as follows:
1. Take all necessary steps to ensure that the device is in a safe
condition (read the section “MACHINE SAFETY”).
2. Take the device to the dedicated maintenance area.
3. With the aid of a vacuum cleaner, remove impurities present in
ATTENTION: Park the appliance in an enclosed place, on a
at surface; near the appliance there must be no objects that
could either damage it, or be damaged through contact with it.
the air inlet nozzles (1) (Fig.1).
4. With the aid of a vacuum cleaner, remove impurities present in
the air inlet nozzles (2) (Fig.2).
5. With the aid of a damp cloth, clean the outside surfaces of the
appliance (Fig.3).
5
6
7 7
8
6
7
8 9
1
2
123

ENGLISH
14
To dispose of the appliance, take it to a demolition centre or an authorised collection centre.
Before scrapping the machine, it is necessary to remove and separate out the following materials, then send them
to the appropriate collection centres in accordance with the environmental hygiene regulations currently in force:
• Felt
• Electric and electronic parts*
• Plastic parts
• Metallic parts
(*) In particular, contact your local distributor when scrapping electric and electronic parts.
DISPOSAL
Manufacturer:
FIMAP S.p.A.
Via Invalidi del Lavoro, n°1
c.a.p. 37059 - S. Maria di Zevio (VR) - Verona - Italia
Tel. [phone] - Fax. [phone]
E-mail: map@map.com
Web: www.map.com
Agent:
Hillyard, Inc.
302 North 4th Street - P.O. Box 909 - St. Joseph, Missouri
64501 USA
Phone: [phone] - Fax: [phone]
Web: www.hillyard.com
TROUBLESHOOTING
This chapter lists the most common problems linked with the use of the appliance. If you are unable to resolve the problems with the
information given here, please contact your nearest assistance centre.
PROBLEM POSSIBLE CAUSE SOLUTION
The appliance doesn't work
The power cable is not connected to the
mains socket.
Connect the plug of the power cable to the
mains socket.
The main switch is in the “OFF” position. Turn the main switch clockwise and select
one of the three operating speeds.
The fan is blocked. Remove the obstruction blocking the
rotation of the fan.
The air inlet or outlet nozzle is blocked. Remove the obstruction blocking the
nozzle.
The appliance vibrates. Residues on the fan. Remove the residues on the fan.

15
REMARQUES

HILLYARD INDUSTRIES - PO Box 909 - St.Joseph, Missouri 64502-0909 U.S.A. - Telephone: [phone] - www.hillyard.com
