Trident NS13 User manual

Sweeping machine
Use and Maintenance manual
Original istruction - DOC. 10074794- Ver. AA - 10-2017

3
SYMBOLS USED IN THE MANUAL .................................................................................... 4
SYMBOLS USED ON THE MACHINE AND BATTERY CHARGER .................................... 4
PURPOSE AND CONTENT OF THE MANUAL................................................................... 5
STORING THE USE AND MAINTENANCE MANUAL......................................................... 5
ON DELIVERY OF THE APPLIANCE .................................................................................. 5
INTRODUCTORY COMMENT ............................................................................................. 5
TECHNICAL DESCRIPTION................................................................................................ 5
INTENDED USE................................................................................................................... 5
SAFETY................................................................................................................................ 5
SERIAL NUMBER PLATE .................................................................................................... 5
SPARE PARTS..................................................................................................................... 6
TECHNICAL DATA ............................................................................................................... 6
GENERAL SAFETY REGULATIONS ................................................................................... 7
HANDLING THE PACKED APPLIANCE .............................................................................11
HOW TO UNPACK THE APPLIANCE.................................................................................11
HOW TO TRANSPORT THE APPLIANCE .........................................................................11
BATTERY TYPE ..................................................................................................................11
BATTERY MAINTENANCE AND DISPOSAL......................................................................11
RECHARGING THE BATTERY.......................................................................................... 12
PREPARING TO WORK..................................................................................................... 13
WORK ................................................................................................................................ 13
AT THE END OF THE WORK ............................................................................................ 13
MAINTENANCE ................................................................................................................. 14
DISPOSAL.......................................................................................................................... 14
TROUBLESHOOTING ....................................................................................................... 15
EC DECLARATION OF CONFORMITY ............................................................................. 15
CONTENTS

4
Protective gloves symbol:
Always wear protective gloves, to avoid the risk of serious injury to your hands.
Warning symbol:
Carefully read the sections marked with this symbol and observe the indications, for the safety of the operator and the
appliance.
Covered place symbol:
the operations preceded by this symbol must always be carried out in a dry, covered area.
“OPEN” symbol:
used on the rear of the appliance, to indicate the position of the debris hopper uncoupling button.
“Power” symbol:
used in the battery charger base, to indicate the green LED. This LED shows when the electric circuit is operating.
“Charging” symbol:
used in the battery charger base, to indicate the red LED. This LED shows when the battery is recharging.
Open book symbol with an “i”:
Indicates the need to consult the instruction manual.
Main switch symbol:
located on the central rear part of the appliance, to indicate the main switch.
Recycling symbol:
carefully read the sections marked with this symbol for recycling the appliance.
Tool symbol:
indicates the need to use tools not included in the supply.
Lifting point symbol:
located on the front and rear of the appliance, to indicate the lifting points.
Explosion risk symbol:
indicates that the battery may explode in certain conditions, if not handled in accordance with the directives indicated in
the manufacturer's manual.
SYMBOLS USED IN THE MANUAL
SYMBOLS USED ON THE MACHINE AND BATTERY CHARGER
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modications at any time
to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements.
The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
The company reserves the right to make any technical and/or supply modications. The images are shown as a reference only, and
are not binding as to the actual design and/or equipment.
Open book symbol:
Tells the operator to read the manual before using the appliance.
Battery symbol:
used on the left side of the appliance, to indicate the position of the battery.
Disposal symbol:
carefully read the sections marked with this symbol for disposing of the appliance.

5
PURPOSE AND CONTENT OF THE MANUAL
STORING THE USE AND MAINTENANCE MANUAL
ON DELIVERY OF THE APPLIANCE
INTRODUCTORY COMMENT
TECHNICAL DESCRIPTION
INTENDED USE
SAFETY
SERIAL NUMBER PLATE
The aim of this manual is to provide customers with all the information
needed to use the appliance in the safest, most appropriate and
most autonomous way. It includes information concerning technical
aspects, safety, operation, appliance downtime, maintenance, spare
parts and scrapping. Operators and qualied technicians must read
The Use and Maintenance Manual must be stored in its special
pouch close to the appliance, protected from liquids and anything
When the machine is delivered to the customer, an immediate
check must be performed to ensure all the material mentioned in
the shipping documents has been received, in addition to verifying
that the equipment has not been damaged during transportation. If
Any type of equipment can only work properly and e󰀨ectively if used
correctly and kept in full working order by performing the maintenance
operations described in the attached documentation. You should
therefore read this instruction manual carefully, consulting it again
if issues arise while using the machine. If necessary, remember that
NS13 is an electric battery-powered brush designed for cleaning dry
surfaces in both outdoor and indoor environments. The appliance
has: a central brush for collecting the dirt, two side brushes for
This electric brush was designed and built to be used by a qualied
operator to clean smooth, compact ooring in the commercial,
residential and industrial sectors, in proven safety conditions.
The appliance is only suitable for use in indoor - or at least covered
- areas. The appliance is not suitable for use in the rain, or under
jets of water.
Operator cooperation is paramount for accident prevention. No
accident prevention programme can be e󰀨ective without the full
co-operation of the operator who is directly responsible for machine
operation. The majority of occupational accidents that happen both
in the workplace or whilst moving are caused by failure to respect

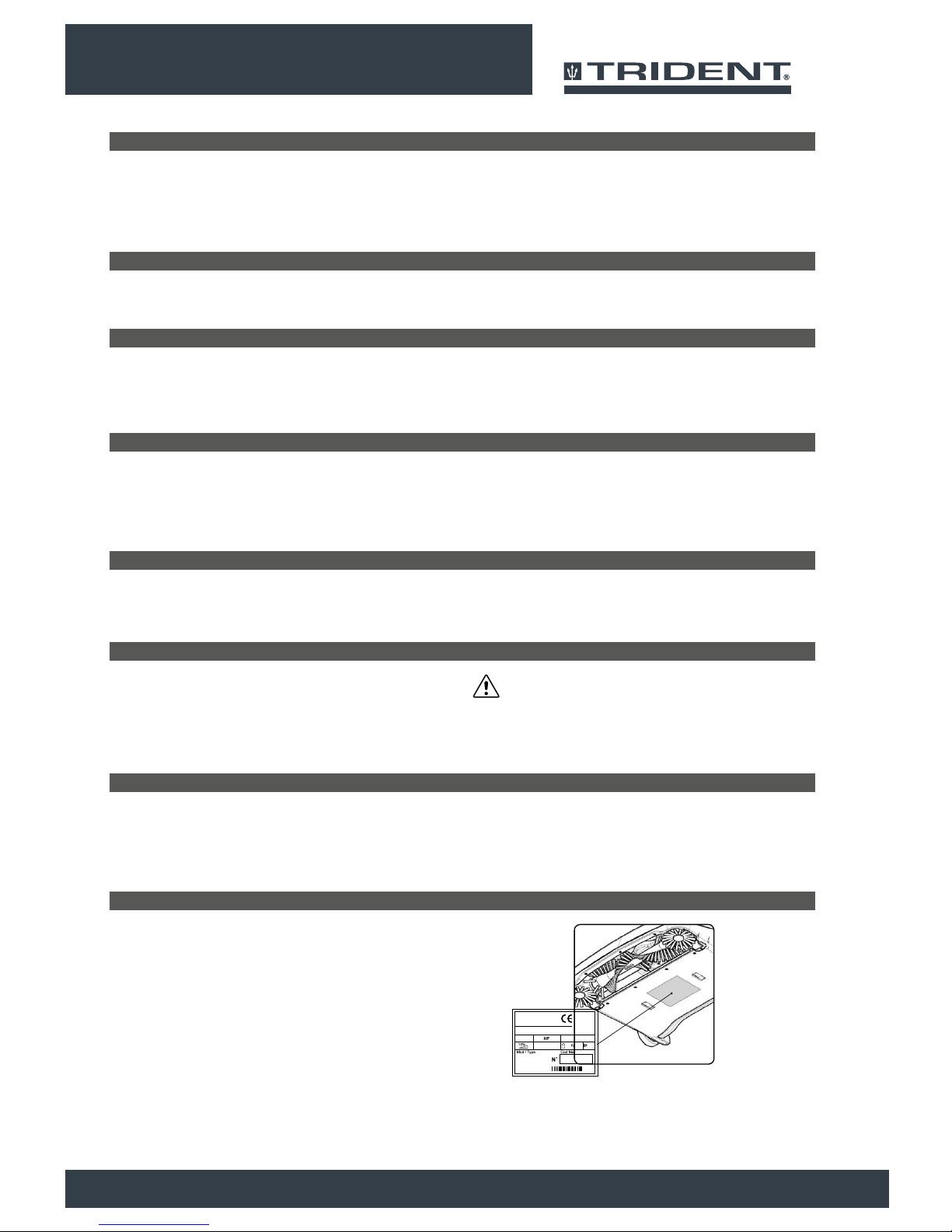

The serial number plate is located on the lower part of the appliance,
indicating its general characteristics (in particular, the serial number).
The serial number is a very important piece of information and should
always be provided together with any request for assistance or when
purchasing spare parts.
the instructions in this manual carefully before carrying out any
operation on the appliance. If in doubt about the correct interpretation
of instructions, contact your nearest Customer Service Centre to
obtain the necessary clarications.
else that could compromise its legibility.
this is the case, the carrier must ascertain the extent of the damage
at once, informing our customer service o󰀩ce. It is only by prompt
action of this type that the missing material can be obtained, and
compensation for damage successfully claimed.
our assistance service (organised in collaboration with our dealers)
is always available for advice or direct intervention.
cleaning in corners, and a debris hopper for holding the dirt. Do not
use the appliance for purposes other than the one indicated above.
WARNING: it is forbidden to use the appliance for picking up
dangerous dusts or inammable liquids in places with an
explosive atmosphere.
the most basic safety rules. An attentive, careful operator is most
e󰀨ective guarantee against accidents and is fundamental in order to
implement any prevention programme.

6
SPARE PARTS
TECHNICAL DATA U/M NS13
Working width in 14,75
Working capacity, up to yr2/h 1770
Central brush (number / diameter) N.bre /Øin 1 / 2,75
Side brush (number / diameter) N.bre /Øin 2 / 2,8
Central brush rpm rpm 2115
Side brush rpm rpm 940
Brush motor V/W 10.8 / 70
Total power W 70
Maximum gradient % 2
Debris hopper volume gal 0,53
Appliance length in 12,2
Appliance height in 5,4
Height of the fully extended handlebar (idle position) in 43,3
Appliance width in 14,5
Rated battery voltage V 10.8
Battery autonomy min 45
Battery weight lb 0,4
Unladen appliance weight lb 5,3
Appliance weight in running order lb 6,2
POS. CODE QTY DESCRIPTION
1 224069 1 Command handle
2 224072 1 Dummy battery
3 224071 1 Debris hopper
4 224073 1 Power supply battery
5 224074 1 Battery charger base
6 224464 1 Brushes
23
1
4
5
6
6

7
The regulations below must be carefully followed in order to avoid
harm to the operator and damage to the appliance.
CAUTION:
• Carefully read the warnings contained in this booklet and take
care of it for further consultations.
• Since the packaging elements (plastic bags, staples, etc.) are
a source of danger they should not be left within the reach of
children, disabled persons, etc.
• This appliance should only be used for the purpose for which
it was constructed, namely: cleaning inert surfaces and
collecting non-ammable and non-explosive solid substances.
Any other use is considered incorrect and hence dangerous.
• When the appliance is operating do not bring it close to
delicate organs like ears, mouth, eyes, etc.
• The appliance can be used by children over 8 years of age
and by people with limited physical,sensorial or mental, or by
people who have no experience or the required knowledge,
as long as they are supervised or after they have been given
instruction regarding using the appliance safely and they
understand the dangers involved in using it.
• Children should not play with the appliance.
• Children should not clean or carry out maintenance operations
without the supervision of an adult.
• Carefully read the labels on the appliance. Do not cover them
for any reason and replace them immediately if they become
damaged.
• The appliance must be only used by authorised, trained
personnel.
• Do not use the appliance on surfaces with an inclination
greater than the one shown on the serial number plate. The
appliance is not suitable for cleaning rough or uneven oors.
GENERAL SAFETY REGULATIONS

8
Do not use the appliance on slopes.
• Make sure the power cable of the battery charger base is not
damaged in any way (crushed, torn, etc.). Protect the cable from
heat, oil and sharp edges. Regularly check the power cable for
any damage such as the formation of cracks, or ageing. If you
notice any damage, the cable must be replaced before using
the machine (contact a specialised technician immediately).
• Do not cut o󰀨 the plug on the battery charger base with the
intention of replacing it with another plug as this may cause a
dangerous situation.
• In the event of danger, immediately remove the battery from
the appliance.
• Before carrying out maintenance work, switch o󰀨 the appliance
using the main switch and remove the supply battery from its
housing.
• When using the appliance, pay attention to other people and
especially to children.
• Only use the accessories supplied with the appliance or
those specied in the instruction manual, the use of other
accessories can compromise the safety of the appliance.
• When the appliance is not being used, the battery should not
be left connected to the appliance.
• Do not immerse the appliance in water. Do not use solvents or
other derivatives to clean it.
• The manufacturer cannot be held liable for any damage
to persons, animal or objects deriving from improper and
unreasonable use, and in any event not complying with the
instructions mentioned above.
• For scrapping, follow the regulations in force in the country.
• Before connecting the battery charger base to the socket,
make sure the electrical information on the plate corresponds
to that of the mains supply. The battery charger base must
only be powered with a voltage equal to that shown on the
serial number plate.

9
WARNING:
• The appliance must not be used or kept outdoors, in damp
conditions or directly exposed to rain.
• The appliance must be stored in an enclosed area with a
temperature between -13°F and 131°F.
• Conditions of use: room temperature between 32°F and
104°F, with relative humidity between 30 and 95%.
• The socket for the battery power cable must have an earth
connection in compliance with the regulatory standards.
• The appliance does not cause harmful vibrations.
• Never pick up gases, explosive/inammable liquids or powders,
nor acids and solvents! These include gasoline, paint thinners
and fuel oil (which, when mixed with the vacuum air, can form
explosive vapours or mixtures), and also non-diluted acids
and solvents, acetones, aluminium and magnesium powders.
These substances may also corrode the materials used to
construct the appliance.
• If the appliance is to be used in dangerous areas (for example,
gas stations), ensure that all relevant safety regulations are
observed. The appliance must never be used in environments
with a potentially explosive atmosphere.
• Do not place any liquid containers on the appliance.
• In the event of a re, use a powder extinguisher. Do not use
water.
• Adapt the speed to the adhesion conditions.
• Avoid working with the brushes when the machine is standing
still, so as not to damage the oor.
• Do not knock against shelving or sca󰀨olding, where there
is a danger of falling objects. The operator must always be
equipped with the appropriate safety devices (gloves, shoes,
helmet, goggles, etc.).
• If the appliance does not work properly, check this is not caused
by failure to carry out routine maintenance. Otherwise, ask for

10
intervention of the authorised technical assistance centre.
• If you need to replace any components, request the ORIGINAL
spare parts from an Authorised dealer and/or Retailer.
• Restore all electrical connections after any maintenance
interventions.
• Have the appliance checked by an authorised technical
assistance centre every year.
• When disposing of consumable materials, observe the laws
and regulations in force. When, after years of valuable work,
your appliance needs to be nally decommissioned, dispose
of the materials contained within it appropriately, bearing in
mind that the appliance is made of fully recyclable materials.
