Triplett ADL20 User manual

User Manual
ADL20
DC Current Datalogger (4 to 20mA)
1.Product overview
①USB connection plug
②Key
③Case buckle
④Protective cap
⑤Red and green LED control light
8
7
6
5
4
1
2
3

⑥LCD
⑦Measuring wire set screw
⑧Measuring wire ports

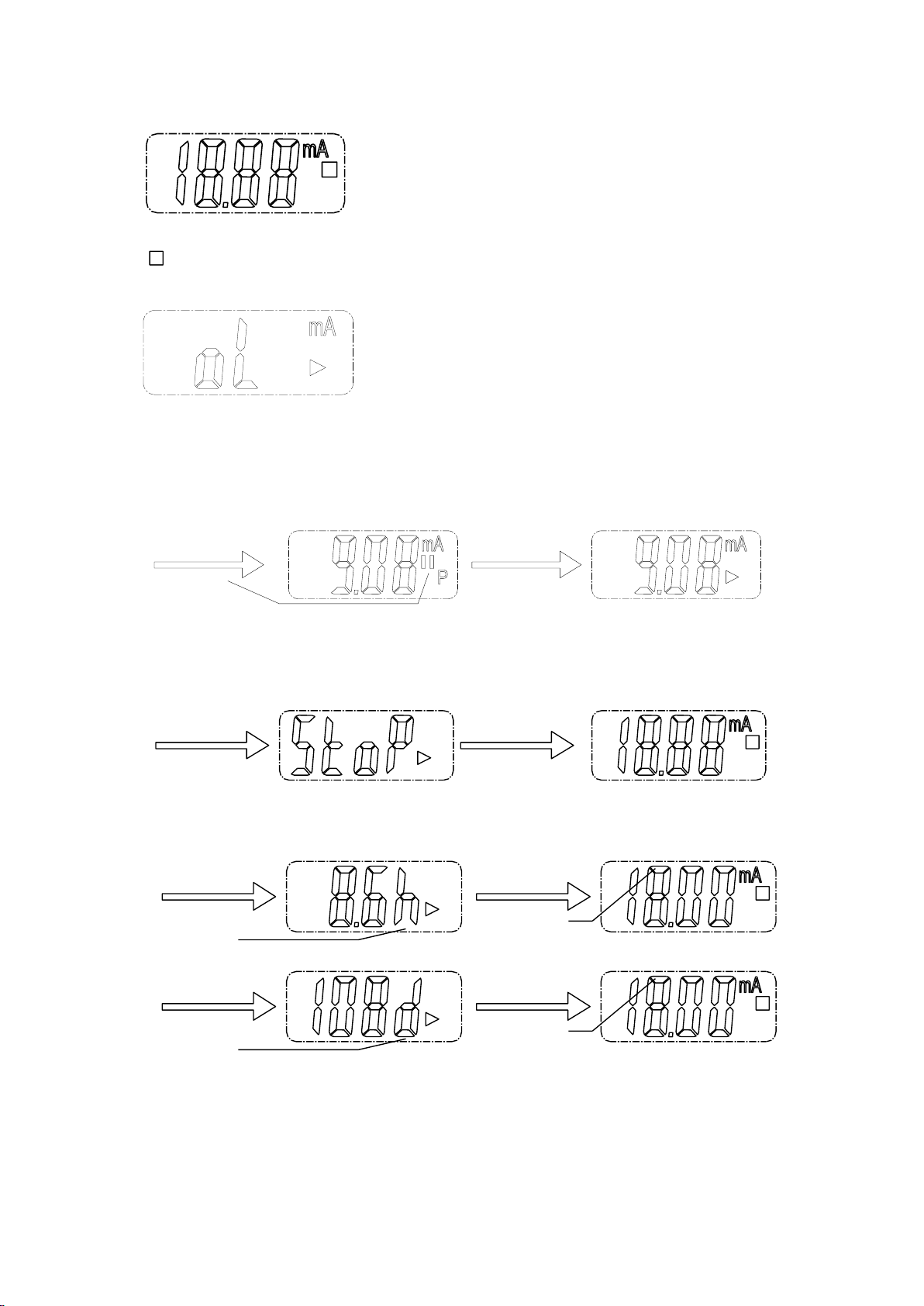

2.LCD indicators
The current state of the recording is indicated by the following symbols:
123
mA is current unit
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Waiting to press the button to start
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Recording started
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Recording stopped
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
This indicated that the device is configured, and recording is not started. It will disappear as
soon as the logger is recording data.
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Low power indicator
State 1:
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
The logger is in the “Manual (Start upon key press)”mode, but the start key has not been
pressed yet.
State 3：
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
The logger is recording.
State 4:

114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Recording is stopped.
OL sign:
Measurement error or measured values beyond the range.
2.Start Recording
This page is available if the logger is in “Start at key press”mode.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
3.Stop Recording
Select this function to stop recording if the logger is programmed for manual stop. Press and hold
the button for three seconds to terminate recording.
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
4.Remaining Recording Time
Shows the remaining time until end of recording.
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
5.Firmware upgrade

114
78
Short press key,
until display "up"
Short press key,
until display "up" Long press key
Long press key
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
Firmware upgrade:
connect to PC, copy the
firmware file to the logger
disk, waitting 2 minutes.
After Setting
"Start upon
keypress"mode
Waiting start
Long Press key
Short press key
Show remining record
time,108 days.
Long Press key
Short press key,
until display "STOP"
Long Press key
Short press key,
until display "STOP"
After 108 days
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,8.6 hours.
After 8.6 hours
Stop recording
Short press key
Show remining record
time,108 days.
After 108 days
Stop recording
Then insert the device into the PC USB port. The device will appear as a Mass Storage Device in
PC with no content. Drag and drop the firmware to the folder. The device will disappear in the OS.
DO NOT unplug the device from PC. After upgrade completed, Device will automatically appear
as a Mass Storage Device again. The firmware version is indicated in the left bottom corner of the
".pdf" test report generated.
6.Generating a PDF-File
As soon as the logger is connected to a USB-slot, a PDF file with all recorded data in chart and an
overview of alarms is generated automatically. The red led indicator lights up during PDF
generation.
Depending on the number of stored measurements, generating the PDF-file might take up to
60 seconds.
As soon as the logger is reprogrammed, the PDF file on the logger will be deleted.
7.LED Status Guide
LED Indication
Action
Cycle green single flash
-Logging
Cycle red single flash
-Logging, low alarm or high alarm.
-Manual mode waiting start
-Memory full
-Stop upon stop time
-Stop upon key
Green double flash one time
-Setup successful
-check upgrade file successful
8.Specification
DC Current DataLogger
Range
20.00mA（DC Current DataLogger）
Resolution
0.01
Accuracy
0.5%reading+3
Logging rate
1second—24h
Display refresh rate
2seconds (after the key operation, within 5minutes).
Default 30 seconds.

Memory
31320
Operating Environment
0 to 50 ℃(32 to 104 ℉)
<80%RH
Storage Environment
-10 to 60 ℃(14 to 140℉)
<70%RH
Battery type
LS14250
*Accuracy: test at 23±5℃.
Sample Rate
Record Time
Sample Rate
Record Time
1second
8.7hour
20second
7.2day
2second
17.4hour
30second
10.8day
3second
26.1hour
1minutes
21.7day
4second
34.8hour
5minutes
108.7day
5second
43.5hour
15minutes
326.2day
10second
87.0hour
30minutes
652.5day
9.Replace Battery
Battery Type: 3.6V 14250 lithium battery
123
Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett
warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and
material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our products
which have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors
so as, in our sole judgment, to injure their stability or reliability, or which have been subject to misuse, abuse,
misapplication, negligence, accident or which have had the serial numbers altered, defaced, or removed. Accessories,
including batteries are not covered by this warranty.
Copyright ©2023 Triplett
www.triplett.com
