Triton AS2000XT User manual

2180404R - Oct 2017
Installation and
operating
instructions
AS2000XT
thermostatic
power shower
The showerhead and hose supplied with this product are a safety
critical part of your shower. Failure to use genuine Triton parts
may cause injury and invalidate your guarantee.

Aquasensation AS2000XT
CONTENTS Page
Plumbing and electrical notes......................................................... 1
Introduction ................................................................................... 2
Safety warnings .............................................................................. 2
Main components .......................................................................... 3
Specifications.................................................................................. 3
Site requirements - water............................................................. 4 − 5
General installation notes ............................................................... 5
Siting of the shower ....................................................................... 6
Removing the cover........................................................................ 7
Plumbing connections ................................................................. 7 − 9
Fitting the shower to the wall........................................................ 10
Electrical connections .................................................................... 11
Commissioning.......................................................................... 12 − 13
Temperature control spindle setting .............................................. 14
Operating the shower.................................................................... 15
Adjusting the maximum temperature stop .................................... 16
Cleaning the filters ........................................................................ 17
Spare parts .................................................................................... 18
Fault finding .............................................................................. 19 − 20
Water/Cable entry points diagram .................................... 21
Guarantee, service policy, etc. ..................................................rear cover
To check the product suitability for commercial and multiple installations, please contact Triton’s
specication advisory service before installation. Please see back of book for contact information.
E mail: [email protected]
WARNING
This appliance can be used by children aged from 3years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervisi
on
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children may not play with the
appliance. Cleaning and user maintenance shall not be made by
children.
Installers please note these InstructIons are to be left wIth the user

Aquasensation AS2000XT
1
1 PLUMBING NOTES
1.1 All installations must comply with Water
Regulations or Water Bylaws.
1.2 Supply pipes must be flushed to clear
debris before connecting the shower unit.
1.3 DO NOT connect the shower unit to
the mains cold water supply as it would
damage the unit and also, the installation
would be in breach of Water Regulations.
1.4 DO NOT use excessive force when making
connections to the flexible hose or
showerhead – finger tight is sufficient.
1.5 ALL plumbing connections are to be
completed and water supplies turned on
BEFORE switching on the electricity supply.
The shower must not be operated dry
without water.
1.6 DO NOT solder pipes or fittings within
300 mm of the shower appliance, as heat
transfer can damage components.
1.7 When installed, the top of the shower unit
must be at least 75 mm lower than the
base of the cold water storage cistern to
prevent the pump being run dry without
water.
1.8 A dedicated cold water supply must be
taken directly from the cold water cistern
to the shower. This draw-off must be on
the opposite side of the cistern to the float
operated valve to reduce the risk of air
entering the unit.
1.9 The action of the pump is to increase the
flow rate. If the supply pipework cannot
handle the resulting flow rate then:
1.9.1 The anticipated flow rate may not
be achieved.
1.9.2 Air may be drawn into the hot
supply from the vent pipe causing
spluttering and temperature fluctuations at
the showerhead.
1.10 Fullway isolating valves MUST be fitted
on the hot and cold water supplies to
the shower as an independent means
of isolating the water supplies should
maintenance or servicing be necessary. DO
NOT use stop taps or ball-o-fix type valves
which restrict flow.
2 ELECTRICAL NOTES
2.1 The installation must comply with BS 7671
‘Requirements for electrical installations’
(IEE wiring regulations). Make sure the
incoming hot and cold water supplies to
the shower are adequately earth bonded.
2.2 DO NOT turn on the electrical supply
until the plumbing connections have been
completed. Only then can the electricity be
switched on in order to power the solenoid
to turn water on to the shower when
commissioning. The shower must not be
operated dry without water.
2.3 The mains supply must be 230/240V, at
50Hz, connected to the unit via a double
pole switched 3 Amp fused connection
unit (not supplied) with a minimum 3 mm
contact separation gap in each pole.
2.4 In accordance with ‘The Plugs and Sockets
etc. (Safety) Regulations 1994’, this unit
is intended to be permanently connected
to the fixed electrical wiring of the mains
system.
2.5 Fuses do not give personal protection
against electric shock.
2.6 A 30mA residual current device (RCD)
MUST be installed. This may be part of the
consumer unit or a separate unit.

Aquasensation AS2000XT
2
INTRODUCTION
This book contains all the necessary fitting and
operating instructions for your Triton Power
Shower. Please read them carefully.
The shower installation must be carried out by
suitably competent person and in sequence of
this instruction book.
Care taken during the installation will ensure a
long and trouble free life from your shower
IMPORTANT: All plumbing connections must
be completed BEFORE making the electrical
connections.
Please read through the whole of this book
before beginning your installation.
IMPORTANT: The fittings on the pipe inlet
elbows are of the push-in type. The pipework
must be cut with a pipe cutter and all burrs
and rough edges removed from the end
of the tube. The fittings can be used with
copper and plastic pipe.
Where chrome plated pipe is used, remove
the first 25 mm of plating.
Note: The pump inside this product is rated
15 minutes on / 45 minutes off duty cycle.
SAFETY WARNINGS
a. DO NOT insert fingers into the push-in inlet
fittings. Doing so could cause injury.
b. Under no circumstances must this product
be connected to mains cold or hot water
supplies. Failure to comply will invalidate
the guarantee.
c. The shower MUST NOT be used if
suspected of being frozen.
d. The outlet of this appliance MUST NOT be
connected to any form of tap or fitting not
recommended by the manufacturer.
e. The showerhead cartridge MUST be cleaned
regularly to remove scale and debris.
f. This appliance MUST be earthed.
g. Switch off immediately at the isolating
switch if water ceases to flow during use.
h. DO NOT operate the shower outside the
guidelines laid out in ‘site requirements’.
i. DO NOT operate the shower if the
showerhead or spray hose becomes
damaged.
j. DO NOT restrict flow out of the shower by
placing the showerhead in direct contact
with your body.
Replacement parts can be ordered from Triton
Customer Service. See ‘spare parts’ for details and part
numbers.
A 30mA residual current device (RCD) MUST
be installed in all UK 230V electric and
pumped shower circuits. This may be part of
the consumer unit or a separate unit.

Aquasensation AS2000XT
3
Hot water temperature
Maximum temperature 65°C.
BS 6700 recommends that the temperature of
stored water should never exceed 65°C. A stored
water temperature of 60°C is considered sufficient
to meet all normal requirements and will
minimise the effects of scale in hard water areas.
Temperature control
To obtain the maximum performance, this unit
should be installed, operated and maintained
as instructed in this book. The full performance
specification as below for the unit is achieved
with a blend set between 35°C – 40°C and
supplies of 15°C cold and 65°C hot with
nominally equal pressures.
1. The blended water temperature is maintained
within 2°C with a 10°C change in the hot
and cold water supply.
2. The sensor effects a shut down to seepage in
about 2 seconds if the cold supply fails.
3. Shut down to seepage is achieved even if
the hot supply is only 12°C above the blend
temperature.
4. The blended water temperature is maintained
within 1°C when the pressure between inlet
and outlet is halved (defined as a pressure
loss ratio of 2:1) on either the hot or cold
side.
Maximum static inlet pressures
100 Kpa (1 bar) or 10m (supplies must be
gravity fed at nominally equal pressures).
Minimum static inlet pressure
0.75 Kpa (0.0075 bar) or 75mm (required to
prime the integral centrifugal pump).
Maximum supply head 10m.
SPECIFICATIONS

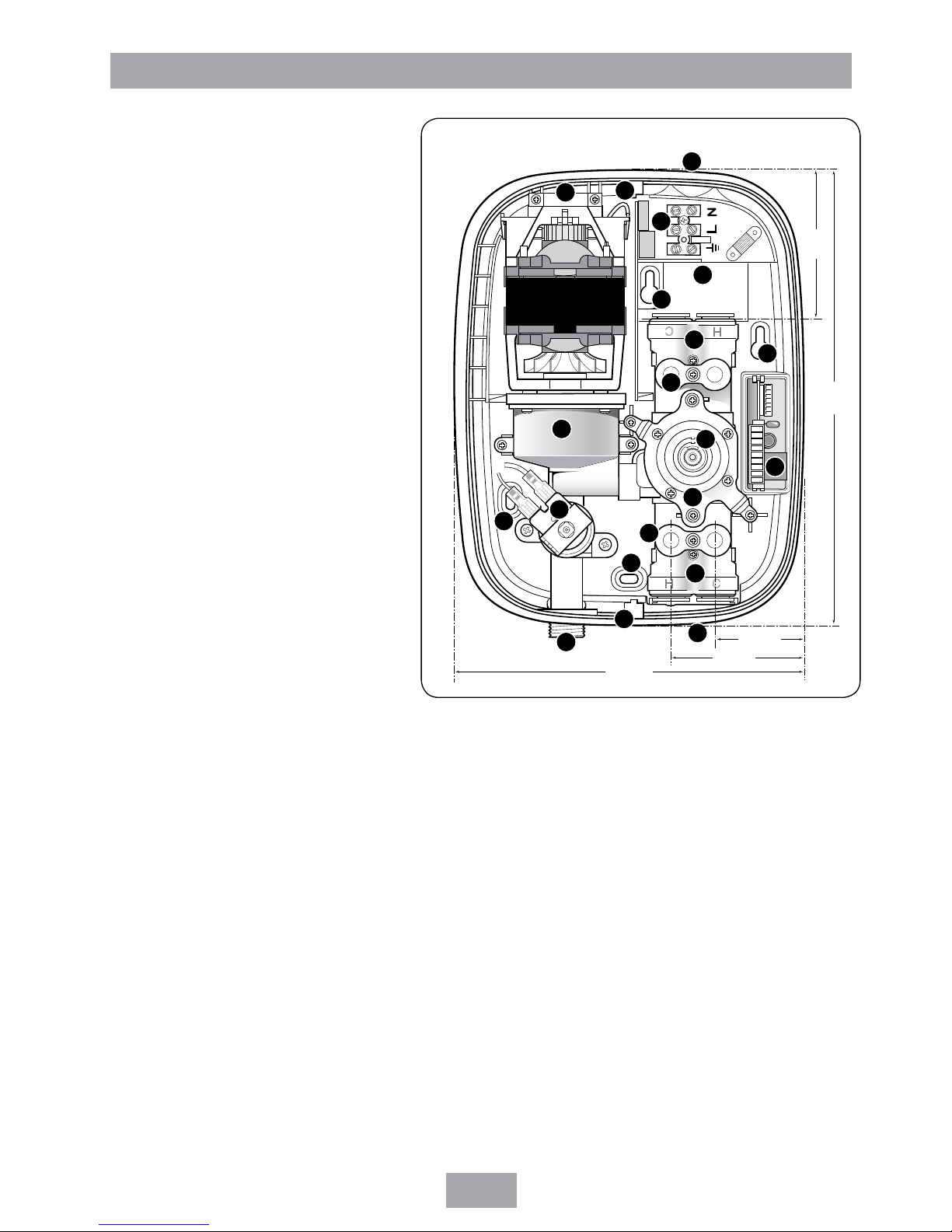

MAIN COMPONENTS
1. Top pipe entry and cable entry
2. Terminal block
3. Cover screw fixing
4. Motor retaining bracket
5. Rear pipe entry and cable entry
6. Wall fixing holes
7. Pipe inlet elbow – top
(contains single check valves)
8. Filter cover – top
9. Pump
10. PCB housing
11. Setting adaptor
12. Temperature control valve
13. Solenoid
14. Filter cover - bottom
15. Pipe inlet elbow – bottom
(contains single check valves)
16. Outlet
17. Bottom pipe entry
1
2
3
5
6
6
6
6
7
8
9
3
3
10
11
12
13
15
16
17
14
4
56 mm
268
mm
86
mm
82 mm
206 mm
Fig.1

Aquasensation AS2000XT
4

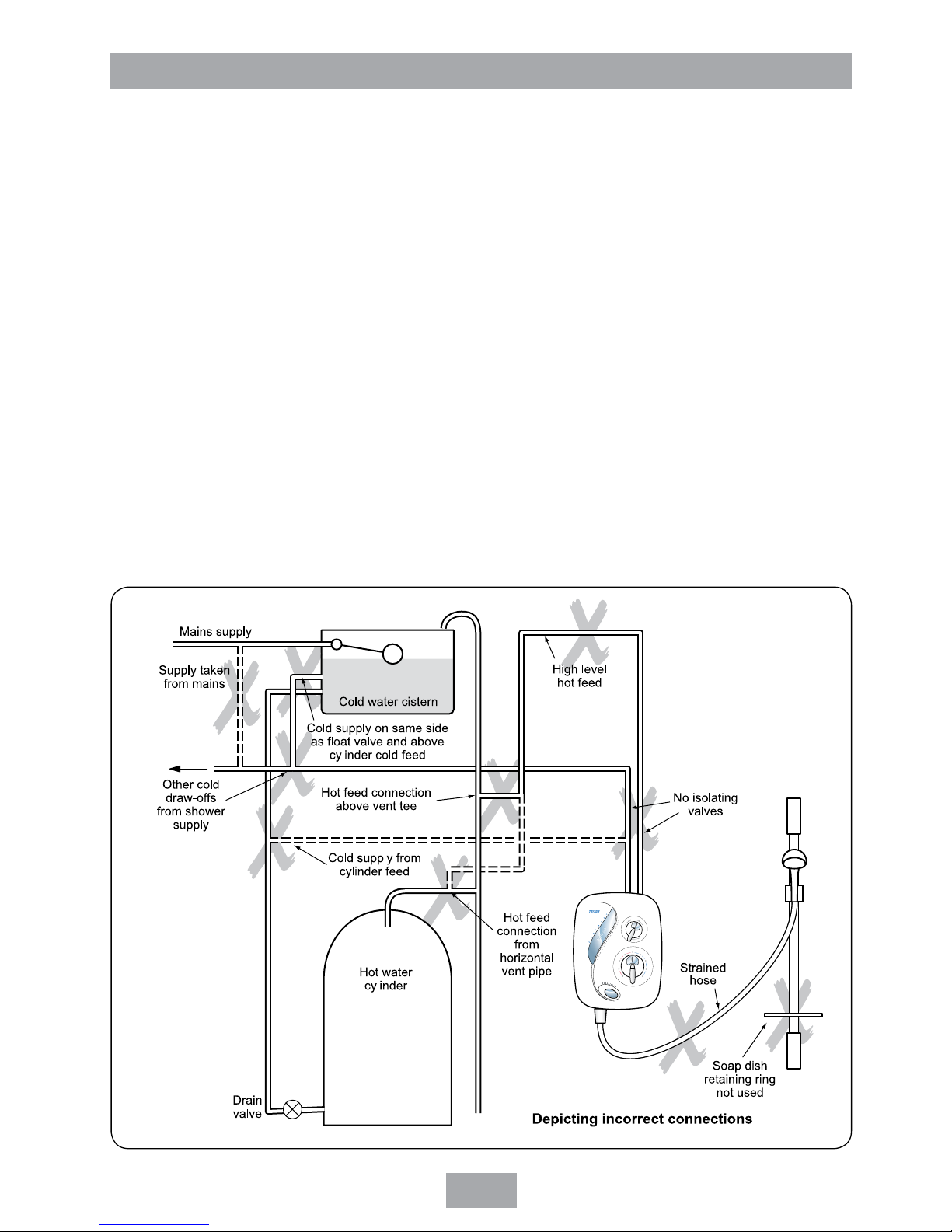

Fig.3 illustrates all the incorrect connections that
must be avoided.
All pipework to the shower unit must be routed
where it remains below the level of water in
the cistern. In the case of horizontal sections
of pipework in lofts, it may be necessary to
fit automatic air vents at high points on the
supplies to remove the possibility of air locks.
For the operation of the shower only, it is
recommended that the cold water storage
cistern is capable of holding at least 114 litres
(25 gallons). Where other hot and cold outlets
are likely to be in use simultaneously, the storage
capacity should be increased to 228 litres (50
gallons) in accordance with BS 6700.
Do ensure compliance with the Water
Regulations/Bylaws.
DO NOT connect to a combination cylinder
unless there is a guaranteed 114 litre cold supply
to the cylinder as the shower can deliver up to
14 litres per minute. It is advisable to check that
Mains supply
Isolating
valve Cold water cistern
Vent pipe tee
Isolating
valve Hot supply
Hot water
cylinder
Drain
valve
Other hot water
draw-offs
Alternative
connection
Shower unit
Ring main
25mm min
Isolating spur
(3A fused)
outside bathroom
Dedicated cold supply
10m
max
75mm
min
Isolating
valves
SITE REQUIREMENTS
Water
The installation must be in accordance with
Water Regulations/Bylaws and BS 6700.
For correct operation of this shower unit, both
hot and cold water supplies to the appliance
must be gravity fed, at nominally equal
pressures, from a cold water storage cistern and
a hot water storage cylinder.
The water circuit should be installed so that the
flow is not significantly affected by other taps
and appliances being operated elsewhere on the
premises.
Fig.2 shows a recommended installation where
the hot water supply for the shower is made
via a tee connection on the underside of the
horizontal section of pipework from the cylinder.
Alternatively, the connection can be taken from
the hot supply pipe to other outlets as long as it
is the first draw-off below the ventilation pipe tee.
Fig.2 (Diagrammatic view – not to scale)

Aquasensation AS2000XT
5
the infill rate from the float operated valve meets
the output requirements..
It is recommended that there is a minimum
of approximately 114 litres (25 gallons) of hot
water storage per appliance.
The shower MUST NOT be connected to the
mains cold water supply.
DO NOT use jointing compounds.
GENERAL INSTALLATION NOTES
1. DO NOT take risks with plumbing or
electrical equipment.
2. DO NOT install this unit in a position where
it could become frozen.
3. Isolate electrical and water supplies BEFORE
proceeding with installation work.
4. Shower control MUST be fed from a cold
water storage cistern and hot water cylinder
that provides nominally equal pressures.
Fig.3 (Diagrammatic view
not to scale)
5. The unit must be mounted onto the finished
wall surface (on top of tiles).
DO NOT tile up to the unit after fixing to
the wall.
6. If installing with rear inlet supplies, it is
recommended the supply pipework is sealed
to the wall so as to prevent water from
leaking back into the wall.
7. In solid wall installations, the supply
pipework should be housed within
ducting in order to allow some free lateral
movement when making connections and
to ensure compliance with requirements of
accessibility of pipes and pipe fittings.
Fig.4 shows a schematic wiring diagram of the
unit.

Aquasensation AS2000XT
6
Shower can
be mounted
either side of
the riser rail
Spill-over
level
Ceiling
Use soap dish
retaining ring
Height of
sprayhead
and shower
to suit user’s
requirement
Shower unit
must not be
within an area
1 metre
from base
Space for cover
screw access
Fig.5
SITING OF THE SHOWER
IMPORTANT: If fitting to a tiled wall, always
mount the unit on the surface of the tiles.
NEVER tile up to the unit.
Refer to fig.5 for correct siting of the shower.
Position the unit vertically where it will NOT
be in direct contact with water from the
showerhead.
Note: Allow sufficient room between the ceiling
and the shower unit to access the top cover
screw.
Position the shower and showerhead on the wall
so that all controls can be comfortably reached
when using the shower.
The showerhead and riser rail can be positioned
either side of the shower unit.
Note: Water Regulations require the showerhead
be ‘constrained by a fixed or sliding attachment
so that it can only discharge water at a point
not less than 25mm above the spill-over level
of the relevant bath, shower tray or other fixed
appliance’. The use of the supplied soap dish will
in most cases meet this requirement, but if the
showerhead can be placed within a bath, basin
or shower tray, then a device must be fitted to
prevent back-flow.
L E N
Potentiometer
Switch
Solenoid
Motor
Capacitor 2
RFI suppression coil
Capacitor 1
PCB
Thermal
fuse
AS2000T/AS2000 schematic wiring schematic
Fig.4 (schematic view )
WARNING!
The shower must not be positioned
where it will be subject to freezing
conditions.

Aquasensation AS2000XT
7
Fig.6
REMOVING THE COVER
To remove the cover, first pull off the cover trim
from the temperature control (fig.6) and undo
the retaining screw. Pull off the temperature
control.
This will reveal the maximum temperature stop
(fig.7). This should be left in position.
Note: If adjustment of the maximum
temperature stop is required, refer to section
’Adjusting the maximum temperature stop’.
Remove the two cover fixing screws – top and
bottom (fig.8).
Carefully lift the cover away from the backplate.
Lay aside the cover and screws until the unit is
fully installed.
Note: When removing the cover for future
maintenance purposes, be aware of the lead
connected to the PCB unit. Carefully pull off the
lead from the PCB.
DO NOT let the cover dangle by the lead.
PLUMBING CONNECTIONS
Plumbing to be carried out before wiring
Note: The outlet of the shower must not be
connected to anything other than the hose and
showerhead supplied.
DO NOT use jointing compounds on any pipe
fittings for the installation.
When connecting pipework avoid using tight
90° elbows. Swept or formed bends will give
optimum performance.
Isolate the mains water supply to the cold water
cistern. Drain the hot and cold pipes by opening
all taps.
The hot water supply can be taken from the hot
supply pipe from the cylinder. Make sure that it
is the first draw-off below the ventilation pipe
tee in order to minimise the effects of water
draw-off elsewhere in the house (see fig.2).
Note: There must not be any other draw-offs
between the take-off point and the shower.
A dedicated cold water supply must be taken
directly from the cold water cistern to the
shower. This draw-off must be positioned 25mm
below the cold feed connection to the hot water
Maximum
temperature
stop
Fig.7
Fig.8

Aquasensation AS2000XT
8
cylinder on the opposite side of the cistern
to the float operated valve (see fig.2). This
minimises air ingress into the pipework.
Plumbing options other than those outlined
in these fitting instructions could impair the
performance. For example, if hot and cold
connections are made after draw-off points
to other outlets, (eg. washing machine, taps,
etc.) it could result in unstable flows and
temperatures should other appliances operate at
the same time.
Run the hot and cold pipework to the shower
position, making sure that the pipework does
not rise above the level of water in the cold
cistern at any point to avoid air locks. Under
normal site conditions 15mm pipework will be
adequate.
Decide the position of the shower. Cut the
pipework to the dimensions relevant to the
chosen direction of water entry into the shower.
IMPORTANT: For rear entry only, the supplied
elbows must be used. For ease of installation,
the backplate area adjacent to the top pipe
inlet must be cut out, including the top left
wall fixing hole.
When fitting the elbows to incoming pipework,
ensure the elbow collets are fully engaged with
the pipe.
Dimensions are shown in fig.9 and fig.10.

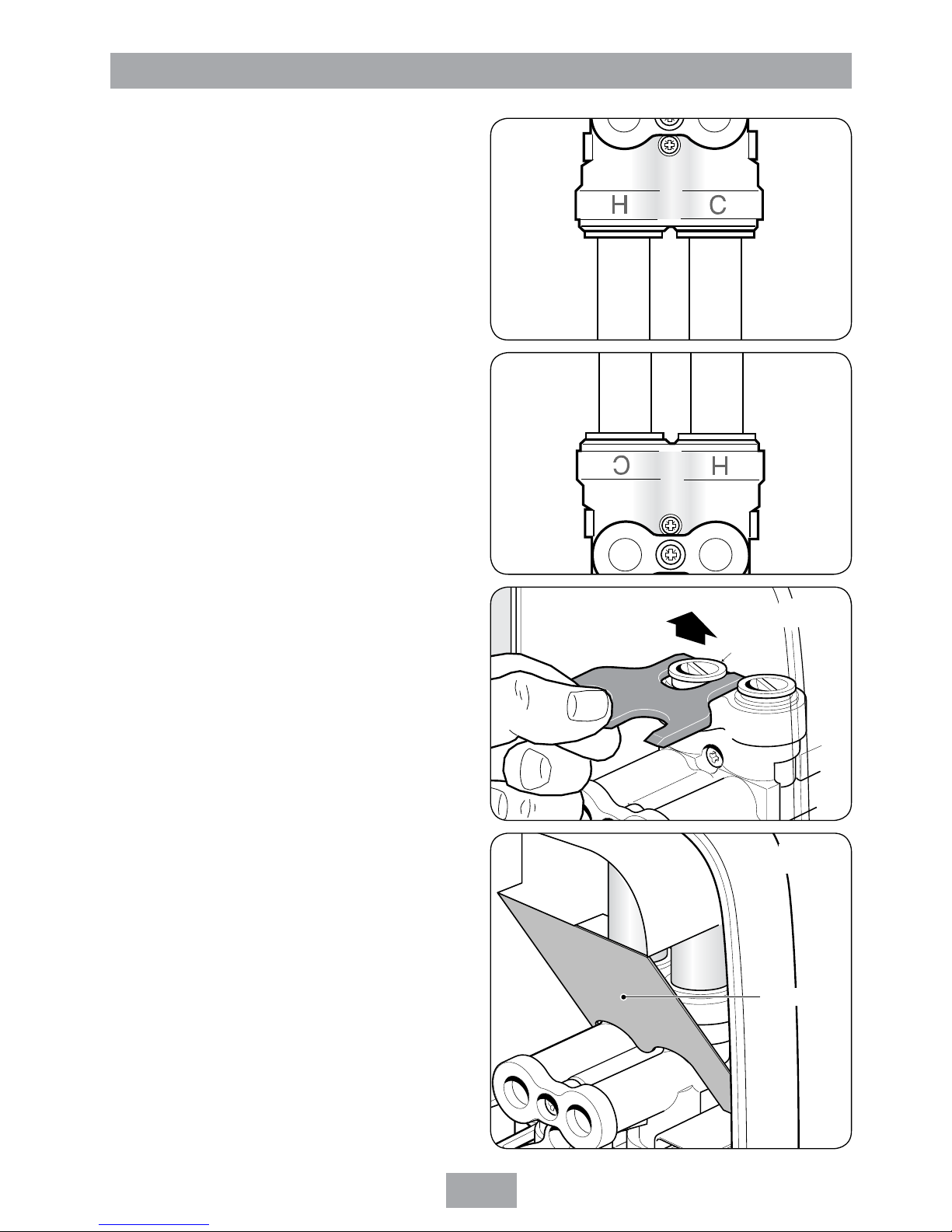

Note: The pipe inlets are marked for hot and
cold connections – left-hand side for hot inlet on
bottom entry (fig.11), but right-hand side for
hot inlet on top or rear entry (fig.12).
IMPORTANT: The fittings on the inlet elbows
are the push-in type. The pipework must be
cut with a pipe cutter and all burrs and rough
edges removed from the end of the tube. The
fittings can be used with copper and plastic
pipe.
If using chrome plated copper pipe, remove
the first 25mm of plating completely from the
connecting surfaces. If not completely removed
then the collet will not grip the pipe and
under pressure the pipe may be forced out.
Note: Pipework must be clipped or fixed to the
wall so that it cannot be moved or removed
without the aid of a tool.
Fig.9
Top
19 mm
26 mm
Cold Hot
Area of
backplate
to remove
Wall
5 mm
Pipe protruding
from wall
19 mm
34 mm
26 mm
Rear edge
of
backplate
Hot Cold
Wall
Rear
23.5 mm
Bottom
Fig.10

Aquasensation AS2000XT
9
Note: The pipe inlets contain filters. These
should be periodically removed and cleaned
in order to maintain the performance of the
shower. See section ‘cleaning’ on how to access
the filters.
IMPORTANT: The inlets contain check valves,
so before completing the connection of the
water supplies to the shower flush out the
pipework to remove all swarf and system
debris that may cause damage to internal
parts. This can be achieved by connecting
a hose to the pipework and turning on the
water supplies long enough to clear the
debris to waste.
IMPORTANT: Two factory fitted blanking
plugs are fitted to the top pipe inlets. These
should be left in position if bottom pipe entry
is required.
For top or rear pipe entry, the two plugs
MUST be removed and refitted into the
bottom pipe inlets. Failure to fit the
blanking plugs will result in the unit working
erratically.
Insert the pipe removal tool supplied between
the flange of the plug and the grey collet and
lever the plug outward (fig.13). Whilst holding
back on the collet, pull out each plug by hand.
When refitting the plugs in the bottom pipe
inlets, make sure they are pushed fully home.
Note: The unit is supplied with a splash guard
(fig.14) to prevent water ingress when top
entry pipework is used. If fitting top entry
pipework, make sure the splash guard is
correctly fitted (fig.14) before replacing the
cover.
Bottom
(rising)
supply
Top
(falling)
or rear
supply
Hot
side
Hot
side
Bottom
(rising)
supply
Top
(falling)
or rear
supply
Hot
side
Hot
side
Fig.11
Fig.12
Blanking
plug
Fig.13
Splash guard
Fig.14

Aquasensation AS2000XT
10
FITTING THE SHOWER TO THE WALL
IMPORTANT: Before fitting the shower,
make sure the pipework is flushed out to
remove all debris, flux, etc.
For top pipe entry or top cable entry, remove
the relevant cut-outs by either breaking out or
by using a knife or junior hacksaw (fig.15).
If top entry for both pipe and cable is required,
then additionally remove the shaded area
(fig.15) by using a knife or junior hacksaw.
For bottom pipe entry, remove the cut-out and
break off the two circular parts (fig.16). Replace
the cut-out.
For rear pipe entry only, the supplied elbows
must be used with the necessary portion of
backplate cut away as shown in fig.9.
It will be necessary if rear cable entry is required,
for conduit or other routing of the electrical
cable to be completed before fixing the shower
to the wall.
Offer the backplate unit up to the completed
pipework and manoeuvre so that the end of the
pipes enter fully into the inlet fittings.
Mark positions for wall fixing holes using
backplate as template (fig.17). Note that four
fixing holes are provided but using only two
should be adequate for most site conditions.
Using the pipe removal tool supplied, push back
and hold the collets from the pipework (fig.18)
to disengage the pipework from the inlet elbows.
Remove unit from the wall.
Drill and plug the wall.
(An appropriate drill bit should be used. If the
wall is brick, plasterboard or a soft building block,
appropriate wall plugs and screws should be fitted).
Note: If fitting rising supplies to the unit, ensure
debris does not enter the pipes when drilling the
wall.
Offer the backplate unit up to the completed
pipework and manoeuvre so that the end of the
pipes enter fully into the inlet fittings.
Check the backplate is square and the fixing
holes are aligned, then secure to the wall
(fig.17).
Remove shaded area
Cut out
for cable
3
Fig.15
Fig.16
Fig.17

Aquasensation AS2000XT
11
ELECTRICAL CONNECTIONS
The supply cable must conform to relevant
tables in current IEE regulations. In most cases
1 mm² twin and earth will be adequate.
The electrical rating of the shower is on the
rating label within the unit.
SWITCH OFF THE ELECTRICITY SUPPLY AT
THE MAINS.
Cable entry points are shown in fig.1. Conduit
entry can only be from the rear.
Route the cable into the shower, taking care to
avoid the area of the wall fixings and connect to

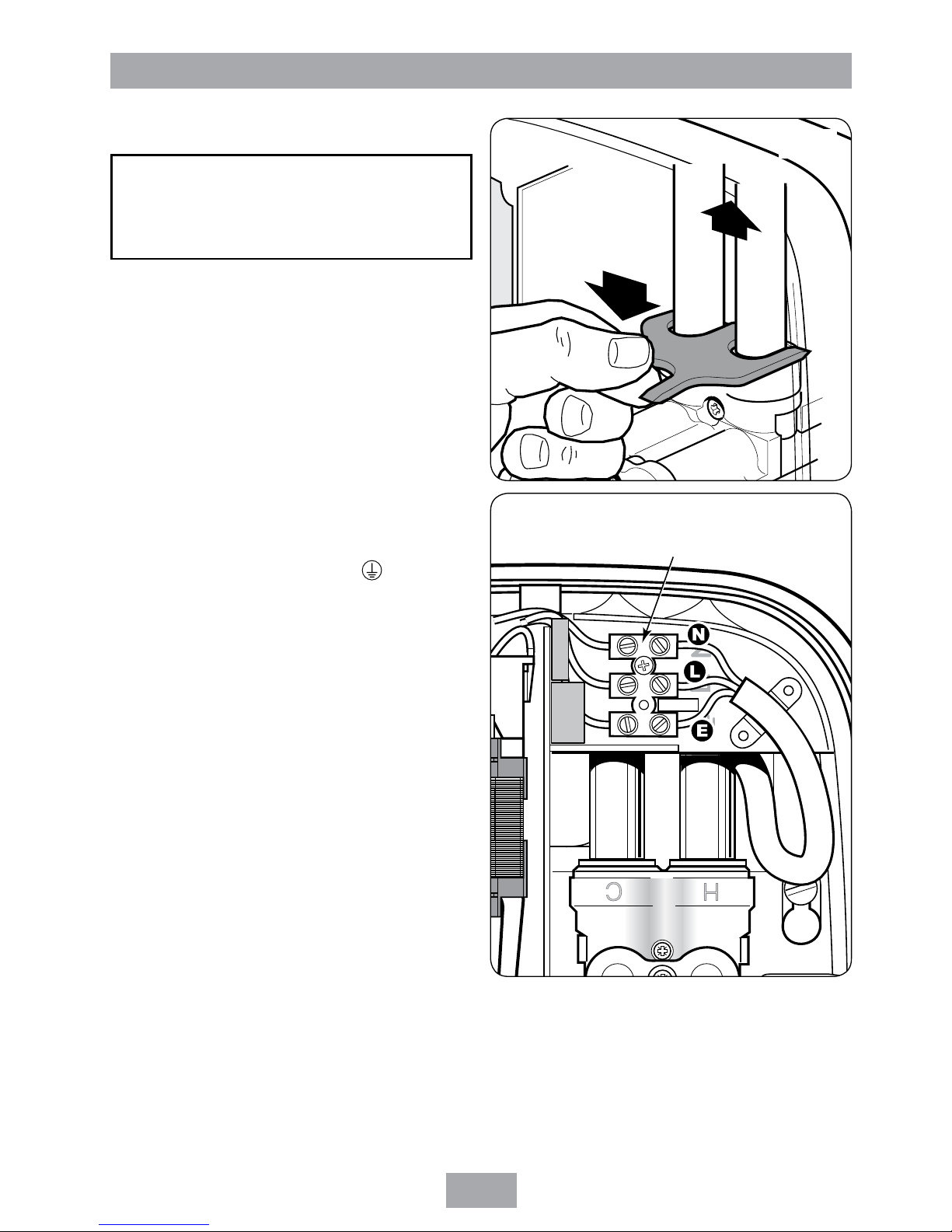

the terminal block (fig.19) as follows:
Earth cable to terminal marked E
Neutral cable to terminal marked N
Live cable to terminal marked L
IMPORTANT: Fully tighten the terminal block
screws and check that no cable insulation is
trapped under the screws.
Note: The supply cable earth conductor must
be sleeved.
The earth continuity conductor of the electrical
installation must be effectively connected
electrically to all exposed metal parts of other
appliances and services in the room in which the
shower is to be installed, to conform to current
IEE regulations.
Note: Fuses do not ensure user protection
against electric shock. In the interest of electrical
safety, all mains electric and pumped showers
should be fitted with a 30mA residual current
device (RCD). This may be part of the consumer
unit or a separate unit.
DO NOT switch on the electricity supply until
the water has been turned on to the unit and
connections have been tested for leaks.
IMPORTANT: The cover may be left off
initially only for commissioning.
Fig.18
Terminal block
Fig.19
WARNING!
This unit must be earthed. Isolate the
supply before starting.

Aquasensation AS2000XT
12
COMMISSIONING
The first operation of the shower is intended to
flush out any remaining system debris and to
ensure water is purged through the unit. This
operation must be carried out with the flexible
hose screwed to the shower outlet but without
the showerhead attached.
Make sure the outlet of the flexible hose is
directed to waste.
Make sure the isolating valves controlling the
water supply to the unit are fully open.
Note: There is no need to fit the cover at
this stage but be aware of live parts when the
electricity is switched on temporarily.

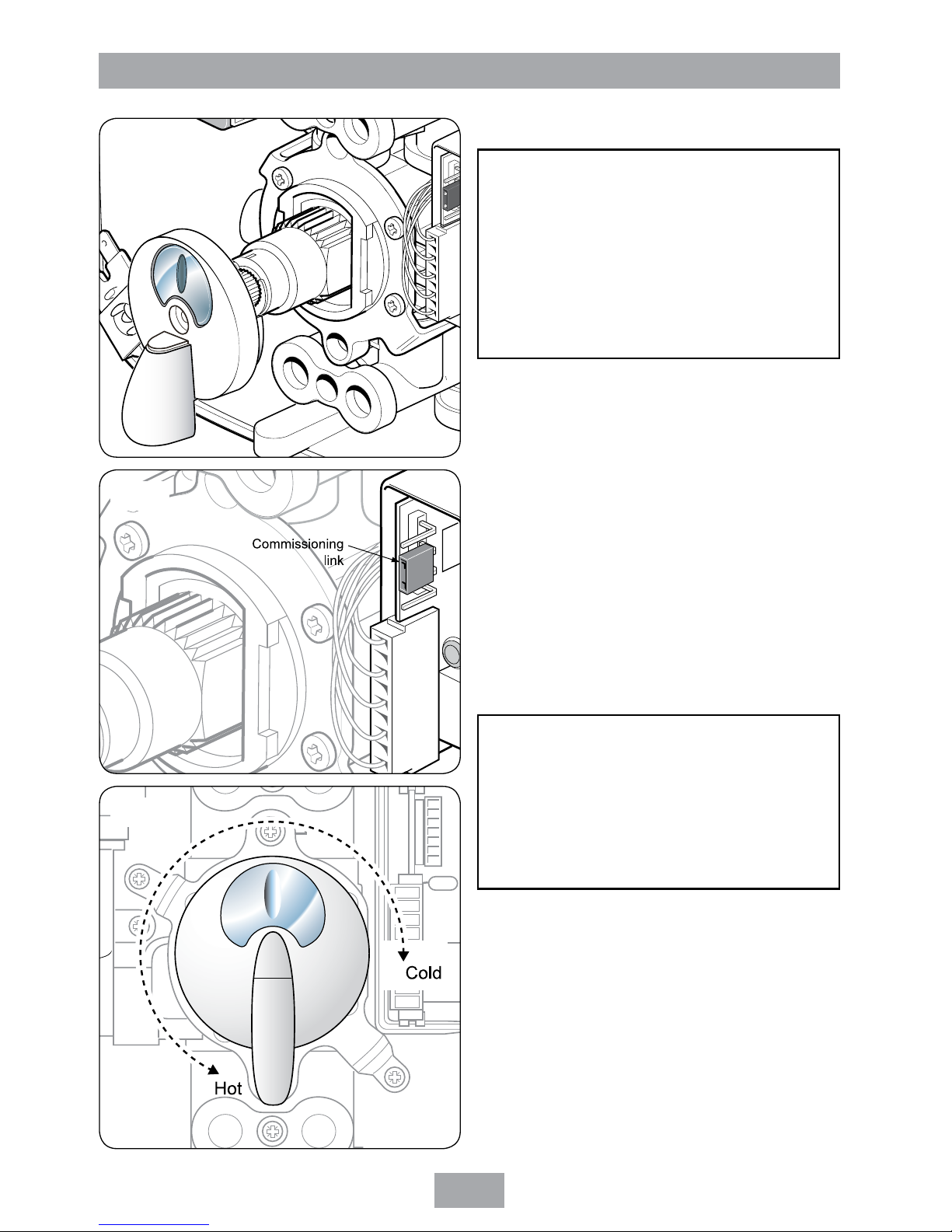

Fit the temperature control onto the spindle
(fig.20).
On the PCB, position the commissioning link on
the middle two pins (fig.21).
Switch on electric supply at isolating switch.
Water will begin to flow under gravity pressure.
In order to dispel air and to prime both supplies
to the shower unit, turn the temperature control
several times within its rotational limits. ONCE
RESISTANCE IS FELT, DO NOT FORCE THE
CONTROL FURTHER.
Note: The temperature control rotates less than
one complete turn (fig.22) – from 3 o’clock
Fig.20
Fig.21
Fig.22
WARNING!
Before normal operation of the
shower, it is essential that the
commissioning and setup procedure
are correctly completed. Failure to do
so could cause the pump to run dry
without water and invalidate your
guarantee.
WARNING!
Be aware of live parts in the unit
when the electricity is switched on.
DO NOT tamper with any parts and
DO NOT deviate from the following
instructions.

Aquasensation AS2000XT
13
(cold) anti-clockwise to 6 o’clock position (hot)
and vice versa. DO NOT force it beyond these
limits.
To stop the water flow, switch off the electricity
supply at the isolating switch.
Check for leaks in the pipework and remedy
if necessary. If rear entry has been used then
seal around pipes with mastic to prevent the
possibility of water entering the wall cavity. DO
NOT use plaster as this could cause difficulties if
maintenance is required at a later date.
Setup procedure
MAKE SURE THE ELECTRICITY TO THE UNIT IS
SWITCHED OFF.
Pull off the temperature control.
Remove the commissioning link from the PCB
(fig.23) and store safely for future use.

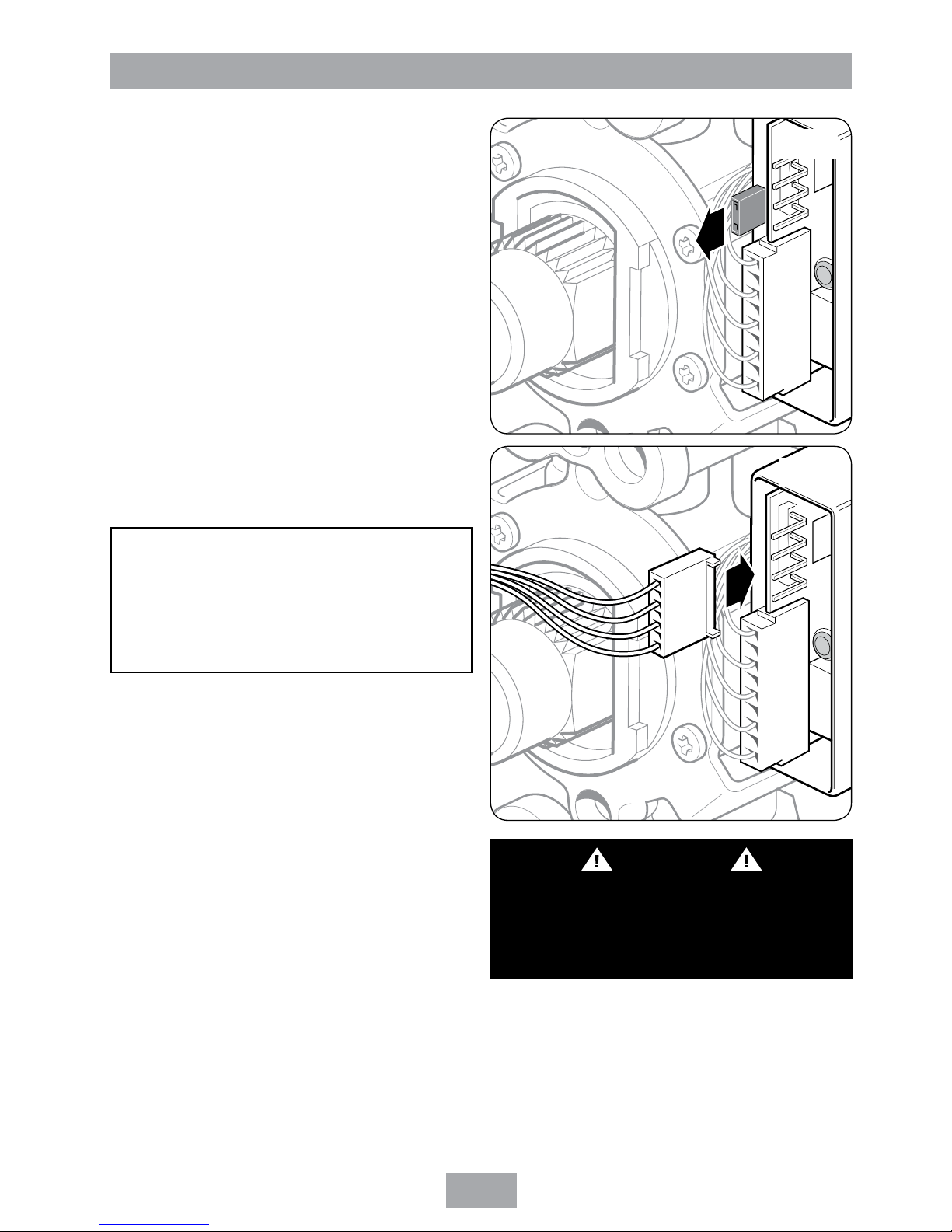

Offer the cover to the unit. Make sure the
Start/Stop button is in the ‘off’ position - flush
with the cover. Attached to the flow control
potentiometer inside the cover is a 4-wire
lead. Fit the connector on the end of this lead
to the 4 pins on the PCB (fig.24) – it can fit
either way.
Replacing the cover
Check the valve spindle is correctly positioned
before refitting the cover. See the section
‘Temperature control spindle setting’ for further
details.
Fit the cover, ensuring the connector is fitted
to the PCB and the wires are clear of the cover.
Secure with the top and bottom fixing screws
(fig.8).
Check the maximum temperature stop is still
in position. If not, refer to section ’Adjusting the
maximum temperature stop’.
Fig.23
Fig.24
WARNING!
Once the unit has been commissioned,
turn off the electricity supply at
the mains before removing the
commissioning link.
WARNING
COVER RETAINING SCREWS
ONLY the SUPPLIED SCREWS should be
used. The use of none supplied screws WILL
invalidate product specications & warranty.

Aquasensation AS2000XT
14
Replace the temperature control by push fitting
onto the splined spindle. When fitting the
temperature control, the pointer must relate to
the ‘5’ on the temperature scale when the cover
is fitted (fig.25). Refit the retaining screw and
push fit the cover trim back into place.
Switch the electricity supply back on at the
mains. Make sure both water supplies are still
turned on.
Once the installation of the riser rail is complete,
the shower is ready for normal operation.
TEMPERATURE CONTROL SPINDLE
SETTING
Occasionally the spindle may need adjusting
when the temperature control and cover are
removed from the unit. To reset the spindle
to its correct alignment, please refer to the
following:

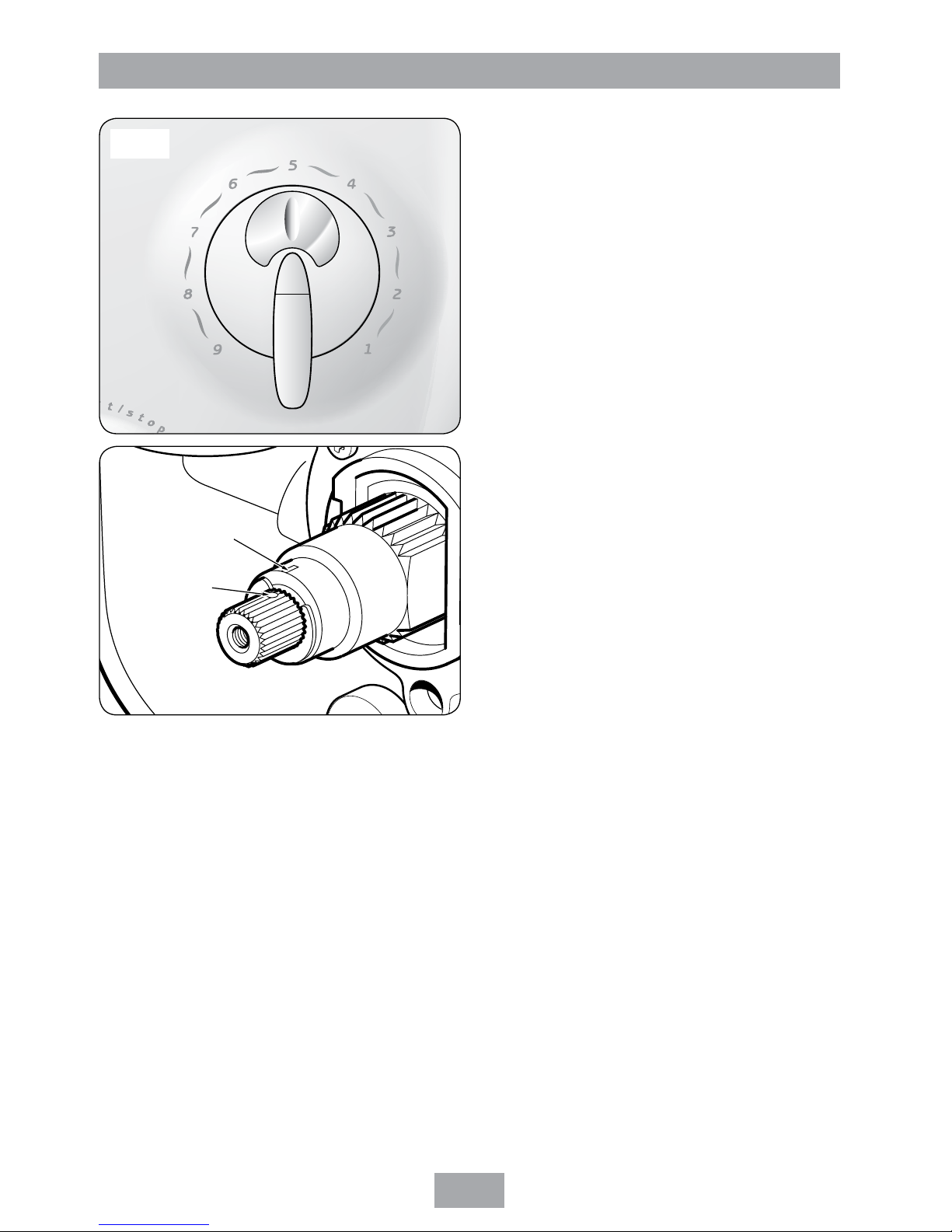

With the cover and control knob removed, use
your fingers to adjust the splined spindle until
the small alignment hole drilled into the spindle
lines up with the groove in the top of the valve
spindle housing (fig.26).
Refit the cover. When fitting the temperature
control, the pointer must relate to the ‘5’ on
the temperature scale when the cover is fitted
(fig.25).
Note: Incorrect positioning will result in
excessive cold bleed.
Groove
Drilled hole
Fig.26
Fig.25

Aquasensation AS2000XT
15
OPERATING THE SHOWER
Make sure all plumbing and electrical supplies
are connected and switched on.
To start the shower, press the Start/Stop button
(fig.27).
Adjust the flow control (fig.28) until the flow
rate is satisfactory.
For maximum flow, turn the flow control fully
clockwise. For minimum flow, rotate the flow
control fully anti-clockwise.
To adjust the water temperature, rotate the
temperature control (fig.29). The temperature
is numbered for ease of use, ranging from ‘1’ –
fully cold to ‘9’ – fully hot.
Once the preferred temperature is reached, no
further adjustment is required, providing the hot
and cold water supplies remain constant.
To stop the shower, press the Start/Stop button
once more. This stops the pump and water flow.
Unless the shower is to be used again
immediately, the shower should also be switched
off at the electricity isolating switch.
As a safety feature, the temperature control
has a built-in stop to prevent you accidentally
exceeding your highest desired temperature. If
adjustment is required see section ‘Adjusting the
maximum temperature stop’.
To override this stop, press the button (fig.30)
while the control is up against the stop and turn
the control anti-clockwise to the higher settings
(pressing the button before the stop will not
operate the override mechanism even if the
control is turned with the button depressed).
To return to the normal temperature range just
turn the temperature control clockwise until it is
past the maximum temperature stop. Make sure
that the temperature control is in the normal
temperature range when the shower is switched
off. The stop comes in a factory set position
based on 65°C stored hot water temperature.
Note: As the flow control is adjusted it is quite
normal for the sound of the pump to alter in
pitch.
Temperature
override
button
Fig.27
Fig.29
Fig.28
Maximum
temperature
override
button
Fig.30

Aquasensation AS2000XT
16
Fig.31
Maximum
temperature
stop
Increase stop position
Decrease stop position
Fig.32
ADJUSTING THE MAXIMUM
TEMPERATURE STOP
As a safety feature the shower has a built-in
maximum temperature stop to prevent you
accidentally exceeding your highest desired
temperature. This is set in the factory to provide
a maximum temperature based on the hot
and cold water supplies being 65°C and 15°C
respectively.
Procedure:
Rotate the temperature control to setting ’5’ on
the temperature scale.
Remove the cover trim to gain access to the
retaining screw. Unscrew the retaining screw and
pull off the temperature control (fig.31).
Carefully pull off the maximum temperature
stop mechanism.
To increase the temperature stop setting,
reposition the mechanism anti-clockwise within
the arc of the grooves (fig.32).
To decrease the temperature stop setting,
reposition the mechanism clockwise within the
arc of the grooves (fig.32).
Replace the temperature control by push fitting
onto the spindle, making sure the pointer relates
to the ‘5’ on the temperature scale.
Refit the retaining screw and push the cover trim
into place.
IMPORTANT: Only adjust the maximum
temperature stop when the hot water is at its
usual storage temperature.

Aquasensation AS2000XT
17
Fig.33 Upper filter shown
CLEANING THE FILTERS
To remove the unit cover first pull off the cover
trim from the temperature control and then
remove the retaining screw.
Pull off the temperature control.
Remove the two cover fixing screws – top and
bottom – and carefully lift the cover away from
the backplate.
Note: Be aware of the lead connected to the
PCB unit. Carefully pull off the lead from the
PCB. DO NOT let the cover dangle by the lead.
Remove the single retaining screw from either
the upper or lower filter cover (fig.33),
depending upon whether top/rear entry or
bottom entry is used.
Pull off the filter cover.
Carefully hook out the filters together with ‘O’
rings. Thoroughly clean the filters and replace,
ensuring the ‘O’ rings are in position.
Refit the filter cover and secure with the screw.
Make sure the valve spindle is correctly aligned.
See section ‘Temperature control spindle setting’.
Offer the cover to the unit and replace the four
wire lead to the PCB. Secure the cover with the
top and bottom fixing screws.
Refit the temperature control. The pointer on
the temperature control should relate to setting
’5’ on the temperature scale.
Secure in place with the retaining screw and
push fit the cover trim into place.
WARNING!
Switch off the electricity supply and
turn off both hot and cold water
supplies to the unit before proceeding
further.
INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY

Aquasensation AS2000XT
18
Ref. Description Part No.
1Terminal block.......................22001320
2Plastic inlet elbow plug x1 ....7052140
3Pump & motor assembly.......84000130
4Link pin.................................22009060
5PCB unit................................7073738
6Temperature valve.................83305270
7Solenoid assembly.................22012190
8Filter (pair) ............................83305330
9Cover c/w selector knob........P09430600
& potentiometer
- Pipe inlet elbow ....................83305320
c/w filters & check valves
- Maximum tem stop ..............7052186
- Pipe removing tool................7052144
- Pipe trim ...............................7052146
- Wire kit .................................83311410
- Rear entry elbow ...................22012890
- Temperature knob ass ...........P09431000
c/w/override
- Temperature control..............7053288
cover trim

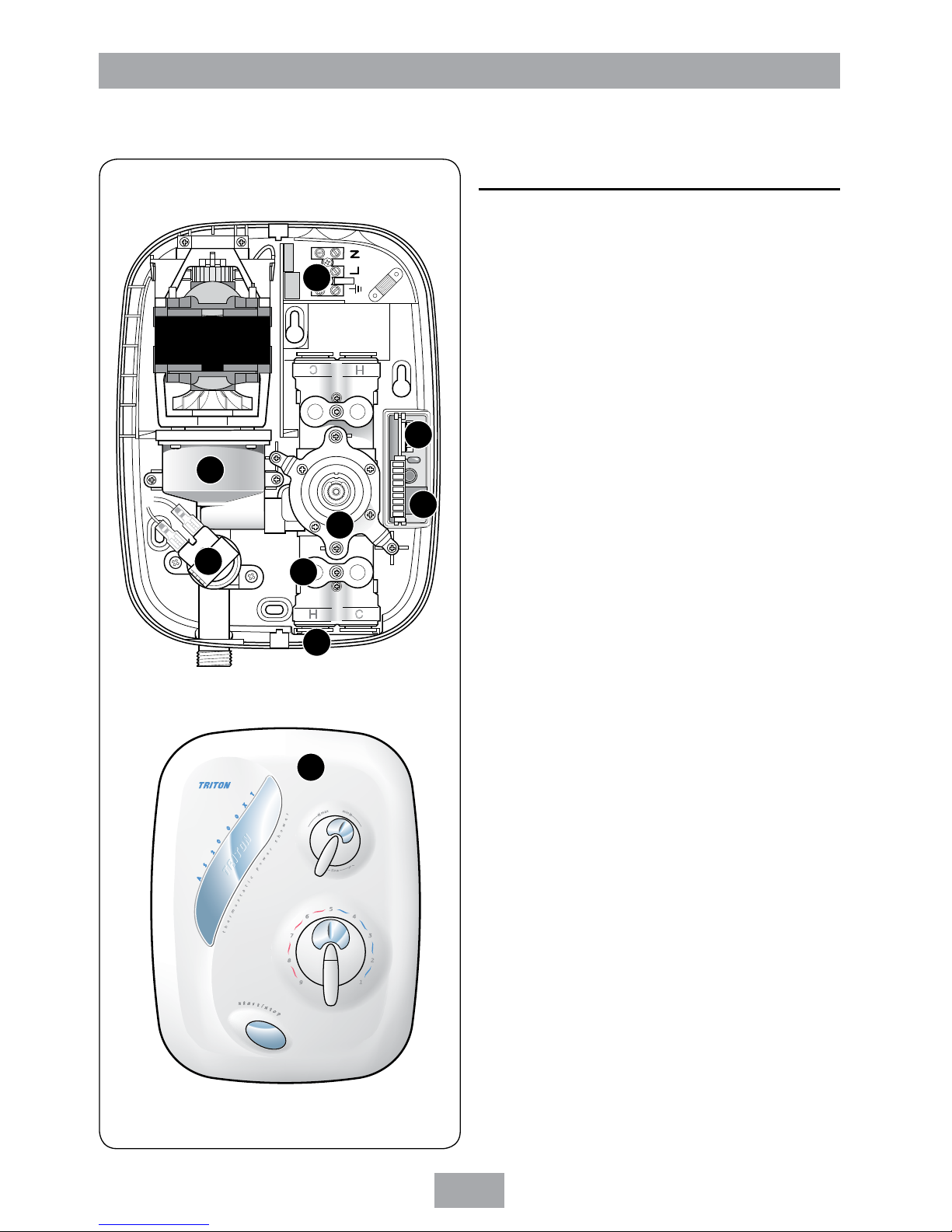

SPARE PARTS
9
3
1
3
2
6
4
5
78
