Triton T70gsi Plus User manual

1
Installation and
operating
instructions
Installers please note these InstructIons
are to be left wIth the user
T70gsi+
electric shower
2181362C - June 2016
The showerhead and hose supplied with this product are a safety
critical part of your shower. Failure to use genuine Triton parts
may cause injury and invalidate your guarantee.

2
Check that the water supply will satisfy requirements (page 2 & 6).......................... 1
Check that water & cable entry points of the unit meet requirements (page 3) ....... 2
Check that the electric supply will satisfy requirements (page 4 - 5)......................... 3
Siting of the shower (page 6 - 7).............................................................................. 4
Plumbing installation (page 8) ................................................................................. 5
Electrical installation (page 9) .................................................................................. 6
Fit to the wall & connect the shower supplies (page 9 - 13)..................................... 7
Fitting the cover (page 13 - 14) ............................................................................... 8
ONLY Commission the shower in the way described (page 15)........................... 9
Familiarise yourself with the user operating instructions (page 16 - 18).................... 10
1
2
3
4
5
6
7
8
9
10
Products manufactured by Triton are safe and without risk provided they are installed, used and
maintained in good working order in accordance with our instructions and recommendations.
WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out
before using.
DO NOT operate the unit if the showerhead or spray hose becomes damaged.
DO NOT restrict flow out of shower by placing showerhead in direct contact with your body.
DO NOT operate the shower if water ceases to flow during use or if water has entered inside
the unit because of an incorrectly fitted cover.
WARNING: If restarting the shower immediately after stopping, be aware that a slug of
hot water will be expelled for the first few seconds.
PLEASE READ THIS IMPORTANT SAFETY INFORMATION
1 GENERAL
1.1 Isolate the electrical and water supplies before
removing the cover.
1.2 Read all of these instructions and retain them
for later use.
1.3 DO NOT take risks with plumbing or electrical
equipment.
1.4 Isolate electrical and water supplies before
proceeding with the installation.
1.5 The unit must be mounted onto the finished
wall surface (on top of the tiles). DO NOT tile
up to or seal around ANY PART of the unit
using silicone sealer after fixing to the wall.
Special care must be taken NOT TO BLOCK
OR SEAL ANY PRD VENTS ON THE UNIT.
1.6 Contact Customer Service (see back page), if
any of the following occur:
a) If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated.
b) If the unit shows a distinct change in performance.
c) If the shower is frozen.
1.7 If it is intended to operate the shower in areas
of hard water (above 200 ppm temporary
hardness), a scale inhibitor may have to be
fitted. For advice on the Scale Inhibitor,
contact Customer Service.
1.8 The showerhead must be cleaned regularly
with descalent to remove scale and debris,
otherwise restrictions to the flow on the outlet
of the unit will result in higher temperatures
and could also cause the (PRD) Pressure Relief
Device in the unit to operate.
1.9 This product is not suitable for mounting into
steam rooms or steam cubicles.
2 PLUMBING
2.1 The plumbing installation must comply with
Water Regulations, Building Regulations or any
particular regulations as specified by Local
Water Company or Water Undertakers and
should be in accordance with BS EN 806.
2.2 The supply pipe must be flushed to clear debris
before connecting to the shower unit.
2.3 DO NOT solder pipes or fittings within 300mm
of the shower unit, as heat can transfer along
the pipework and damage components.
2.4 DO NOT fit any form of outlet flow control as
the outlet acts as a vent for the heater can.
2.5 DO NOT use excessive force when making
connections to the flexible hose or
showerhead, finger tight is sufficient.
2.6 All plumbing connections must be completed
before making the electrical connections.
2.7 This appliance MUST not be connected to the
inlet supply by a hose-set.
3 ELECTRICAL
3.1 The installation must comply with BS 7671
‘Requirements for electrical installations’ (IEE
wiring regulations), building regulations or any
particular regulations as specified by the local
Electrical Supply Company.
3.2 This appliance MUST be earthed.
3.3 In accordance with ‘The Plugs and Sockets etc.
(Safety) Regulations 1994’, this appliance is
intended to be permanently connected to the
fixed wiring of the electrical mains system.
3.4 Make sure all electrical connections are tight to
prevent overheating.
3.5 A 30mA residual current device (RCD) MUST
be installed in all UK electric and pumped
shower circuits. This may be part of the
consumer unit or a separate unit.
3.6 Switch off immediately at isolating switch if
water ceases to flow during use.
3.7 Other electrical equipment i.e. extractor fans,
pumps must not be connected to the circuits
within the unit.
3.8 Switch off at isolating switch when not in use.
This is a safety procedure recommended with
all electrical appliances.
3.9 As with all electrical appliances it is
recommended to have the shower and
installation checked at least every two years by
a competent electrician to ensure there is no
deterioration due to age and usage.
INTRODUCTION - PLEASE READ
This book contains all the necessary fitting and operating instructions for your electric shower.
Care taken during the installation will provide a long, trouble-free life from your shower.
PLEASE READ THE GENERAL GUIDANCE NOTES BEFORE PROCEEDING.
Tick off as
you complete
PLEASE USE THE FOLLOWING CHECK LIST TO AID YOUR INSTALLATION
Triton recommend watching the short online *videos that cover electric shower basics before your
installation - *(videos may not show the exact model purchased).
• What is an electric shower?
• Electrical requirements for electric showers
• Plumbing requirements for electric showers
• Kilowatt ratings explained
To view these videos visit: www.tritonshowers.co.uk/triton-products/product-videos.aspx
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION
SECTION

3
Products manufactured by Triton are safe and without risk provided they are installed, used and
maintained in good working order in accordance with our instructions and recommendations.
WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out
before using.
DO NOT operate the unit if the showerhead or spray hose becomes damaged.
DO NOT restrict flow out of shower by placing showerhead in direct contact with your body.
DO NOT operate the shower if water ceases to flow during use or if water has entered inside
the unit because of an incorrectly fitted cover.
WARNING: If restarting the shower immediately after stopping, be aware that a slug of
hot water will be expelled for the first few seconds.
PLEASE READ THIS IMPORTANT SAFETY INFORMATION
1 GENERAL
1.1 Isolate the electrical and water supplies before
removing the cover.
1.2 Read all of these instructions and retain them
for later use.
1.3 DO NOT take risks with plumbing or electrical
equipment.
1.4 Isolate electrical and water supplies before
proceeding with the installation.
1.5 The unit must be mounted onto the finished
wall surface (on top of the tiles). DO NOT tile
up to or seal around ANY PART of the unit
using silicone sealer after fixing to the wall.
Special care must be taken NOT TO BLOCK
OR SEAL ANY PRD VENTS ON THE UNIT.
1.6 Contact Customer Service (see back page), if
any of the following occur:
a) If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated.
b) If the unit shows a distinct change in performance.
c) If the shower is frozen.
1.7 If it is intended to operate the shower in areas
of hard water (above 200 ppm temporary
hardness), a scale inhibitor may have to be
fitted. For advice on the Scale Inhibitor,
contact Customer Service.
1.8 The showerhead must be cleaned regularly
with descalent to remove scale and debris,
otherwise restrictions to the flow on the outlet
of the unit will result in higher temperatures
and could also cause the (PRD) Pressure Relief
Device in the unit to operate.
1.9 This product is not suitable for mounting into
steam rooms or steam cubicles.
2 PLUMBING
2.1 The plumbing installation must comply with
Water Regulations, Building Regulations or any
particular regulations as specified by Local
Water Company or Water Undertakers and
should be in accordance with BS EN 806.
2.2 The supply pipe must be flushed to clear debris
before connecting to the shower unit.
2.3 DO NOT solder pipes or fittings within 300mm
of the shower unit, as heat can transfer along
the pipework and damage components.
2.4 DO NOT fit any form of outlet flow control as
the outlet acts as a vent for the heater can.
2.5 DO NOT use excessive force when making
connections to the flexible hose or
showerhead, finger tight is sufficient.
2.6 All plumbing connections must be completed
before making the electrical connections.
2.7 This appliance MUST not be connected to the
inlet supply by a hose-set.
3 ELECTRICAL
3.1 The installation must comply with BS 7671
‘Requirements for electrical installations’ (IEE
wiring regulations), building regulations or any
particular regulations as specified by the local
Electrical Supply Company.
3.2 This appliance MUST be earthed.
3.3 In accordance with ‘The Plugs and Sockets etc.
(Safety) Regulations 1994’, this appliance is
intended to be permanently connected to the
fixed wiring of the electrical mains system.
3.4 Make sure all electrical connections are tight to
prevent overheating.
3.5 A 30mA residual current device (RCD) MUST
be installed in all UK electric and pumped
shower circuits. This may be part of the
consumer unit or a separate unit.
3.6 Switch off immediately at isolating switch if
water ceases to flow during use.
3.7 Other electrical equipment i.e. extractor fans,
pumps must not be connected to the circuits
within the unit.
3.8 Switch off at isolating switch when not in use.
This is a safety procedure recommended with
all electrical appliances.
3.9 As with all electrical appliances it is
recommended to have the shower and
installation checked at least every two years by
a competent electrician to ensure there is no
deterioration due to age and usage.
IMPORTANT - GENERAL GUIDANCE NOTES
WARNING
.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience or knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children may
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.

4
GENERAL ADVICE TO USERS
The following points will help you understand
how the shower operates:
a. The electric heating elements operate at a
constant rate at your chosen power setting.
It is the rate of the water passing through
the heater can which determines the water
temperature. (The slower the flow, the hotter
the water becomes; the faster the flow, the
cooler the water).
b. During winter, the mains water supply will be
cooler than in the summer. The flow rate will
vary between seasons at any one temperature
setting. At different times of the year you
may have to adjust the position of the
temperature control to maintain your desired
temperature setting.
c. The stabiliser valve minimises variations in
shower temperature during mains water
pressure changes. If changes in shower
temperature are experienced during normal
use, it will most likely be caused by the
water pressure falling near to or below the
minimum level. The drop in pressure may
be due to water being drawn off at other
points in the house whilst the shower is in
use. If pressure drops appreciably below
the minimum, the heating elements will
automatically cut out.
NOTE: If ever the water becomes too hot and
you cannot obtain cooler water, first check
that the sprayplate in the showerhead has not
become blocked.
DO NOT place items such as soap or shampoo
bottles on top of the unit. Liquid could seep
through the joint between the cover and backplate.
ADVISORY - CLEANING
It is recommended that all products
are cleaned using warm, soapy water.
DO NOT use abrasive or aggressive
chemical cleaning products as this may
affect the product surface nish and
invalidate your guarantee.
IMPORTANT ADVICE TO USERS
COMMISSIONING ADVICE
When first installed the unit will be empty.
It is essential the unit should contain water
before the elements are switched on. It is
vital that the commissioning procedure
is followed. Failure to carry out this
operation will result in damage to the unit
and will invalidate the guarantee.

1
To check the product suitability for commercial and multiple installations, please contact Triton’s
specication advisory service before installation. Please see back of book for contact information.
E mail: [email protected]
CONTENTS Page
INTRODUCTION
IMPORTANT SAFETY INFORMATION (please read)
Installation check list (please follow & complete)
GENERAL GUIDANCE NOTES
GENERAL ADVICE TO USERS - CLEANING ADVICE
SPECIFICATIONS............................................................................. 2
DIMENSIONS & CABLE/WATER ENTRY POINTS .............................. 3
ELECTRICAL REQUIREMENTS ....................................................... 4 - 5
INSTALLING THE SHOWER................................................. 6 - 14
Siting of the shower ................................................................ 6 - 7
Plumbing installation.................................................................. 8
Electrical installation ................................................................... 9
Fit to the wall & connect shower supplies.............................. 9 - 13
Fitting the cover.................................................................... 13 - 14
COMMISSIONING PROCEDURE .........................................15
USER OPERATING INSTRUCTIONS..................................... 16 - 18
Operating functions....................................................................... 18
Cleaning the filter - installers & service engineers only ................... 19
Fault finding/Troubleshooting.................................................... 20 - 21
Spare parts .................................................................................... 22
SHOWER CONTROLS - QUICK USER GUIDE ............... Inside rear cover
UK Service Policy/UK Guarantee .............................................. Rear cover
Please read this book thoroughly and familiarise yourself with all
instructions before commencing installation and keep it for future reference.
The shower installation MUST be carried out by a suitably qualified person, in the
sequence of this instruction book.

2
SPECIFICATIONS
check list
1
SECTION
ELECTRICAL
Nominal power - rating at 240V Nominal power - rating at 230V
8.5kW – (40A MCB rating) 7.8kW – (40A MCB rating)
9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating)
10.5kW – (45A MCB rating) 9.6kW - (45A MCB rating)
PLUMBING (see page 6 & 7 for water regulations)
Supply Source Mains pressure cold water only
Minimum running pressure and flow to the inlet
of the shower for full performance
100kPa (1.0 bar) at 8 litres per minute for
8.5kW , 9.5kW.
150kPa (1.5bar) and 11 litres per minute for
10.5kW.
Maximum static pressure 1000 kPa (10 bar)
Maximum inlet temperature 28°C
Minimum inlet temperature 2°C
Inlet connection 15mm diameter
Outlet connection ½” BSP male thread
MATERIALS
ABS Backplate, cover, controls, showerhead
Minerally insulated corrosion resistant metal
sheathing
Elements
STANDARDS and APPROVALS
Splashproof rating IPX4
Safety Complies with the requirements of current
British and European safety standards for
household and similar electrical appliances
BEAB Complies with requirements of the British
Electrotechnical Approvals Board (BEAB)
CE Meets with Compliance with European
Community Directives (CE)

3
DIMENSIONS & ENTRY POINTS 2
check list
SECTION
Fig.2
Fig.1
ENTRY POINTS
DIMENSIONS
WATER
Left: Bottom, Back, Top & Side.
Right: Bottom, Back & Side.
CABLE
Left: Bottom, Back, Top & Side.
Right: Bottom, Back & Side.
= Back
= Back
= Others
= Others
PLEASE NOTE: Deviation from the
approved entry points will invalidate
product specifications and warranty.
211 112
325
211 112
325

4
ELECTRICAL REQUIREMENTS
3check list
SECTION
W-006-A
WARNING!
THIS APPLIANCEMUST BE EARTHED
Meter Incoming
supply
fuse
Meter
tails
Consumer
unit
Pull cord
isolating switch
Shower
unit
Fuse or
MCB
RCD
(can be part of
consumer unit)
80A or 100A
main switch
Table A
MCB
30/32A
32A
40A
40A
40A
40/45A
45A
cartridge
fuse
30A
35A
35A
45A
45A
45A
45A
unit
rating
7.0kW
7.5kW
8.0kW
8.5kW
9.0kW
9.5kW
10.5kW
CIRCUIT PROTECTION
Fig.4Schematic of installation circuit
ELECTRICAL REQUIREMENTS
The installation, supply cable and circuit
protection must conform with BS 7671 (IEE
wiring regulations) and be sufcient for the
amperage required.
The following notes are for guidance only:
1The shower must only be connected to a
230-240V ac supply. If you are installing a
shower with a kilowatt rating above 9kW, it
is advisable to contact the local electricity
supply company.
1.1 The electrical rating of the shower is shown
on the rating label (Fig.3) within the unit.
2Before making any sort of electrical
connection within the installation make
sure that no terminal is live. If in any doubt,
switch off the whole installation at the mains
supply and remove the correct fuse.
3The shower must be connected to its own
independent electrical circuit. IT MUST NOT
be connected toaring main, spur, socket
outlet, lighting circuit or cooker circuit.
3.1 The electrical supply must be adequate for
the loading of the unit and existing circuits.
4Check your consumer unit (main fuse box)
has a main switch rating of 80A or above
and that it has a spare fuse way which will
take the fuse or Miniature Circuit Breaker
(MCB) necessary for the shower (Fig.4).
4.1 If your consumer unit has a rating below
80A or if there is no spare fuse way, then the
installation will not be straightforward and
may require a new consumer unit serving
the house or just the shower.
4.2 You will need to contact the local electricity
company. They will check the supply and
carry out what is necessary.
5 For close circuit protection DO NOT use a
rewireable fuse. Instead use a suitably rated
Miniature Circuit Breaker (MCB) or cartridge
fuse (see Table A).
5.1 A 30mA residual current device (RCD)
MUST be installed in all UK electric and
pumped shower circuits. This may be part of
the consumer unit or a separate unit.
Triton Showers,
Triton Road, Nuneaton,
Warwickshire, CV11 4NR
xxxx
Fig.3

5
3
Continued
SECTION
Table B
Note: Cable selection is dependent on
deratin
g
factors
Twin and earth PVC insulated cable
Current carrying capacity
In conduit
trunking
6mm²
38A
10mm²
52A
16mm²
69A
Installed in an
insulated wall
6mm²
32A
10mm²
43A
16mm²
57A
Clipped direct
or buried in a
non-insulated
wall
6mm²
46A
10mm²
63A
16mm²
85A

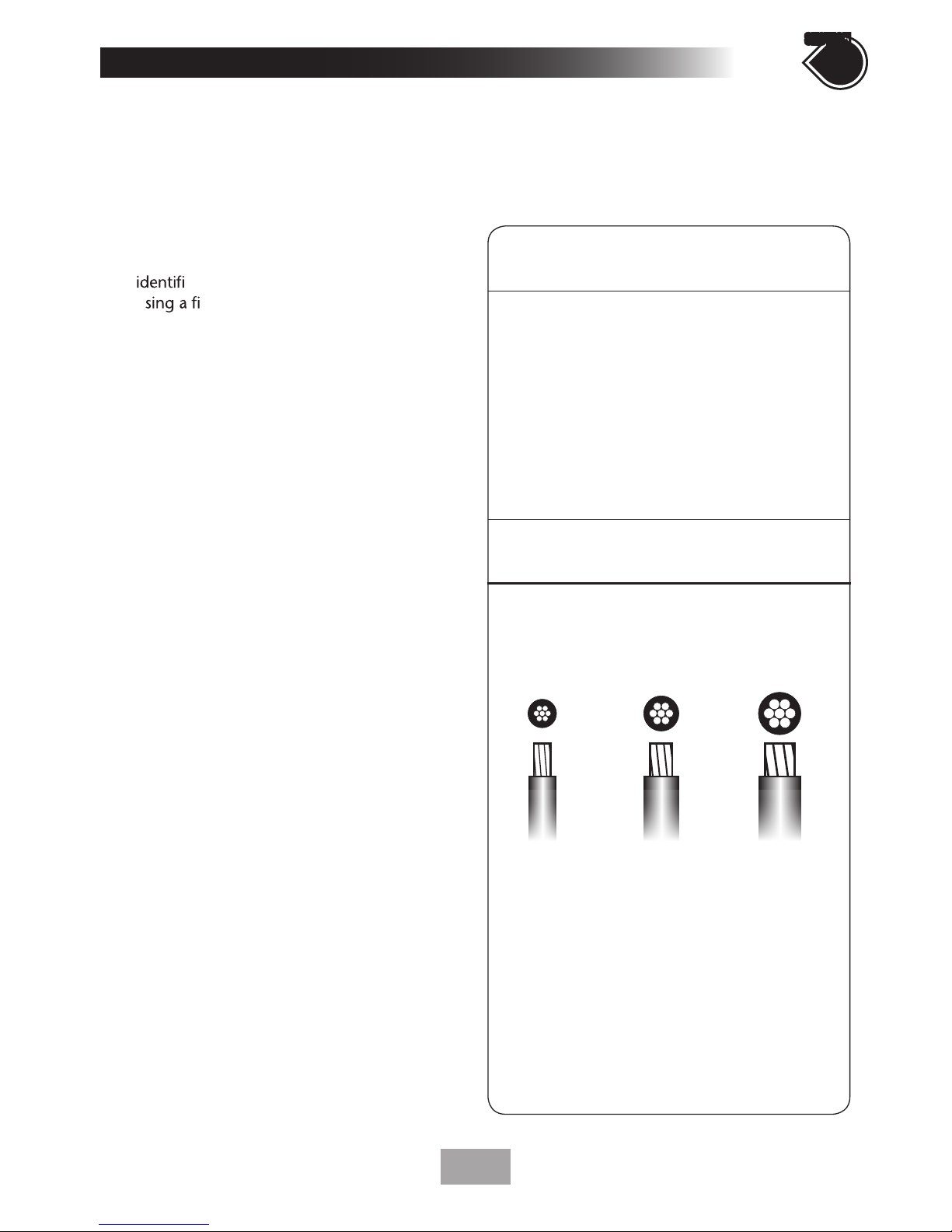

6mm210mm216mm2
*The method below may be used by
installers to determine the approximate
size of the incoming cable.
1. Measure the width of an individual strand,
and half that measurment to find (r),
e.g: 1.34mm ÷ 2 = (r) 0.67mm
2. Multiply (r) x (r) x 3.14,
e.g: (r) 0.67 x (r) 0.67 x 3.14 = 1.41mm2
3. Multiply this by the number of wire strands
(usually 7), e.g: 1.41mm2x 7 = 9.87mm2.
4. The number obtained would suggest
10mm2wiring.
*PLEASE NOTE: If unsure, consult a qualified Electrician.
6A 45 amp double pole isolating switch with
a minimum contact gap of 3 mm in both
poles must be incorporated in the circuit.
6.1 It must have a mechanical indicator showing
when the switch is in the OFF position, and
the wiring must be connected to the switch
without the use of a plug or socket outlet.
6.2 The switch must be accessible and clearly
able, but out of reach of a person
uxed bath or shower, except for the
cord of a cord operated switch, and should
be placed so that it is not possible to touch
the switch body while standing in a bath or
shower cubicle. It should be readily accessible
to switch off after using the shower.
7Where shower cubicles are located in any
rooms other than bathrooms, all socket
outlets in those rooms must be protected by
a 30mA RCD.
8The current carrying capacity of the cable
must be at least that of the shower circuit
protection (see Table B).
8.1 To obtain full advantage of the power
provided by the shower, use the shortest
cable route possible from the consumer unit
to the shower.
8.2 It is also necessary to satisfy the disconnection
time and thermal constraints which means
that for any given combination of current
demand, voltage drop and cable size, there is
a maximum permissible circuit length.
9The shower circuit should be separated from
other circuits by at least twice the diameter
of the cable or conduit.
9.1 The current rating will be reduced if the
cabling is bunched with others, surrounded
by thermal loft or wall insulation or placed
in areas where the ambient temperature
is above 30°C. Under these conditions,
derating factors apply and it is necessary to
select a larger cable size.
9.2 In the majority of installations (see
Table B), the cable will unavoidably be
placed in one or more of the above
conditions. This being so, it is strongly
recommended to use a minimum of 10mm
cabling throughout the shower installation.
9.3 In any event, it is essential that individual
site conditions are assessed by a competent
electrician in order to determine the correct
cable size and permissible circuit length.

6
Installation - SITING OF THE SHOWER
SITING OF THE SHOWER
The installation must be in accordance with
Water Regulations/Bylaws - see page 2 for
water specifications
• If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated, contact Customer Service
for advice.
• If the stated flow rates are not available,
it may not be possible to achieve optimum
performance from the unit throughout
the year. The shower will continue to
operate on a reduced heat setting if the
running pressure falls to 0.7 bar (1.2 bar
for 10.5kW) there will be a noticeable
reduction in flow and temperature from the
showerhead.
• During periods of high ambient temperatures
it may be necessary to select the economy
power setting to achieve your preferred
shower temperature.
Fig.5 shows a typical system layout.
NOTE: The control knobs are an integral part of
the cover. Do not attempt to remove them.
• Lift the cover from the backplate and remove
the trimplate.
• Refer to (fig.6) for the correct siting of
the shower. Position the unit where it will
NOT be in direct contact with water from
the showerhead. Position the shower unit
vertically.
• Allow enough room between the ceiling and
the shower to access the cover top screws.
• Mark out entry points and routing of the
water and electric supplies into the shower.
4check list
SECTION
Isolating
stopvalve
Mains
water
supply
Shower
unit Switch may
be wall
mounted
in accordance
with IEE regs.
Mains electric supply
(via double pole switch)
Double
pole
isolating
switch
Separate permanently
connected supply
from consumer unit
Fig.5 (diagrammatic view – not to scale)

7
WARNING
The shower MUST NOT be
positioned where it will be
subjected to freezing conditions.
IMPORTANT: Water regulations (fig.6)
• It is required that the showerhead be
‘constrained by a fixed or sliding attachment
so that it can only discharge water at a point
not less than 25mm above the spill-over level
of the relevant bath, shower tray or other
fixed appliance’.
• If the riser kit is supplied with a ‘soapdish
hose retainer’ or bespoke ‘hose retainer’, it
will in most cases meet this requirement. If
the showerhead can still be placed within a
bath, basin or shower tray within the 25mm
limit, then a double check valve, or similar,
MUST be fitted in the supply pipework
to prevent back-flow.
Pressure relief safety device
• A pressure relief device (PRD) is designed
into the shower unit which complies with
European standards. The PRD provides a level
of appliance protection should an excessive
build up of pressure occur within the shower.
DO NOT operate the shower with a damaged or
kinked shower hose, or a blocked showerhead.
This may cause the PRD to operate.
• When commissioning, the showerhead
must be removed from the flexible hose.
Failure to follow this procedure may cause
the PRD to operate.
• Make sure the shower is positioned over a
bath or shower tray. If the PRD operates,
then water will eject from the bottom of
the unit. Should this happen, turn off the
electricity and water supplies to the shower
at the isolating switch and stopvalve.
Contact Customer Service for advice on
replacing the PRD.
4
Continued
SECTION
IMPORTANT: The unit must be mounted on
a flat surface which covers the full width and
length of the backplate. It is important that
the wall surface is flat otherwise difficulty
may be encountered when fitting the cover
and subsequent operation of the unit may
be impaired.
IMPORTANT: If installing onto a tiled wall,
ALWAYS mount the unit on the surface of
the tiles. NEVER tile up to the unit.
Shower unit
must not
be within
an area
1 metre
from base
Height of
showerhead
and shower
to suit user's
requirement
Spillover
level
25 mm minimum
Shower unit can
be mounted either
side of riser rail
Outline of bath
or shower tray
Fig.6 *(diagrammatic view – not to scale)

8
Installation - PLUMBING INSTALLATION
PLUMBING INSTALLATION
Plumbing to be carried out before wiring
• DO NOT use jointing compounds on any
pipe fittings for the installation.
• DO NOT solder fittings near the shower unit
as heat can transfer along the pipework and
damage components.
• Compression fittings MUST be used to
connect to the inlet of the shower (fig.7).
(Push-on fittings must NOT be used as full
engagement cannot be guaranteed).
• If installing a feed pipe from the back or
bottom, the centre of the inlet valve to the
wall surface is 21mm (fig.7).
NOTE: If entry is from the back, the nut of the
compression fitting will be partially behind the
surface of the wall. This area MUST be left clear
when plastering and tiling around the pipework
in order to make the nut accessible for future
adjustments.
NOTE: An additional stopvalve (complying with
Water Regulations) must be fitted in the mains
water supply to the shower as an independent
means of isolating the water supply should
maintenance or servicing be necessary.
IMPORTANT: Before completing the connection
of the water supply to the inlet of the shower, flush
out the pipework to remove all swarf and system
debris. This can be achieved by connecting a hose
to the pipework and turning on the mains water
supply long enough to clear the debris to waste.
IMPORTANT INFORMATION
The outlet of the shower acts as a vent
and must not be connected to anything
other than the hose and showerhead
supplied.
5check list
SECTION
Fig.7
21mm

9
Installation - FIT TO THE WALL & CONNECT THE SHOWER SUPPLIES
ELECTRICAL INSTALLATION
IMPORTANT: Switch off the electricity supply at
the mains before proceeding.
• The supply cable MUST be secured either by
routing through conduit, in trunking, or by
embedding in the wall, in accordance with
IEE regulations.
NOTE: Conduit entry can only be from rear.
Installation - ELECTRICAL INSTALLATION
NOTE: Deviations from the designated entry
points will invalidate product approvals. The
cable entry points are listed on page 3.
• Seal around rear entry cable to prevent water
ingress into the wall.
FIT TO THE WALL & CONNECT THE
SHOWER SUPPLIES
• The water inlet has been designed to
allow left or right fitting - (fig.8) decide
the inlet direction and then turn the inlet
either left or right and secure using the
retaining screw (contained in the pack).
6
check list
7
check list
SECTION
SECTION
Fig.8 Decide on Left or Right entry
Turn the inlet to the appropriate side
Insert the retaining screw
IMPORTANT!
The water inlet MUST ONLY be used in
the ‘Left’ or ‘Right’ entry position.

10
The shower cover has been designed with four
“cut out” bottom pipe access points and one
“cut out” top rear - (fig.9) shows the top cut
out position and the bottom “cut out” positions.
• Decide if top or bottom pipe entry is
required.
• Once chosen, carefully remove the
appropriate “cut out” using a junior
hacksaw and file.
Fitting Procedure
7Continued
SECTION
PLEASE NOTE: NONE of the 'cut outs'
are designed to 'snap out'. ONLY a junior
hacksaw, file or suitable knife should be
used. Damage to the backplate or cover may
invalidate product specifications
and warranty.
Fig.9 Left hand side
top rear of the
backplate
"Cut out" bottom cover
pipe access points
"Cut out" top cover pipe
access point

11
• Turn off water supply either at the mains
stopvalve or the isolating stopvalve.
• Temporarily connect the mains water supply
to the inlet of the shower using a 15mm x
15mm compression fitting.
• Use the backplate as a template making sure
it is level and mark the fixing holes (fig.10).
The top and one of the bottom two fixing
holes should be sufficient to hold the shower.
• Remove the unit from the wall. Drill and
plug the wall.
(An appropriate drill bit should be used. If the
wall is plasterboard or a soft building block,
appropriate wall plugs should be fitted).
• Screw the top fixing screw into position
leaving the base of the screw head protruding
around 6mm out from the wall. Hook the
backplate over the top screw and fit the
bottom fixing screw/s into position.
• Connect the mains water supply to the inlet
DO NOT use excessive force when making
the connection.
• Make sure the backplate is square on the
wall and tighten the retaining screws which
hold it to the wall.
• Turn on the mains water supply and check
for leaks in the pipework connection to the
shower.
NOTE: At this stage no water can flow through
the unit.
IMPORTANT: A suitable sealant should always
be used to seal around the incoming pipework to
prevent water entering the wall.
7
Continued
SECTION
WARNING
Check there are no hidden cables or
pipes before drilling holes for wall plugs.
Use great care when using power tools near
water. The use of a residual current device
(RCD) is recommended when
using power tools.
Fig.10
Fixing hole
Fixing holes

12
• Route the cable into the shower unit for
connection to the terminal block (fig.11)
as follows:
Earth cable to terminal marked
Neutral cable to terminal marked N
Live cable to terminal marked L
7Continued
SECTION
Terminal
block
Fig.11

13
NOTE: The elements on UK models are to
240V specification and will give a lower kW
rating if the voltage supply is below 240V.
7
Continued
SECTION
• (fig.12) shows a schematic wiring diagram.
IMPORTANT: When connecting the cable fully
tighten the terminal block screws and make sure
that no cable insulation is trapped under the
screws. Loose connections can result in cable
overheating.
NOTE: The supply cable earth conductor must
be sleeved. The outer sheath of the supply cable
must be stripped back to the minimum.
• The use of connections within the unit or
other points in the shower circuit to supply
power to other equipment i.e. extractor fans,
pumps etc. will invalidate the guarantee.
• DO NOT switch on the electricity supply
until the shower cover has been fitted.
FITTING THE COVER
Figures 13, 14, 15 and 16 (on page 14) show
the correct control knob position when replacing
the cover.
• Check to ensure that the wiring is not
trapped and replace the cover squarely to
the backplate and guide into position so that
the knobs locate correctly into the splined
spindles.
• Should any difficulty arise, recheck the
points above.
• While applying slight pressure to the cover,
secure in position with the retaining screws.
• Fit the Riser Rail and Kit (see kit
instructions).
Installation - FITTING THE COVER 8
check list
SECTION
2
3
4
5
6
L
N
E
inlet
outlet
1
3
6
Fig.12
1. 3 way terminal block
2. Start/Stop Microswitch
3. Power selector Microswitch
4. Solenoid valve
5. Thermal cut-out (main)
6. Element
WARNING
COVER RETAINING SCREWS
ONLY the SUPPLIED SCREWS should be
used. The use of none supplied screws WILL
invalidate product specications & warranty.

14
8Continued
SECTION

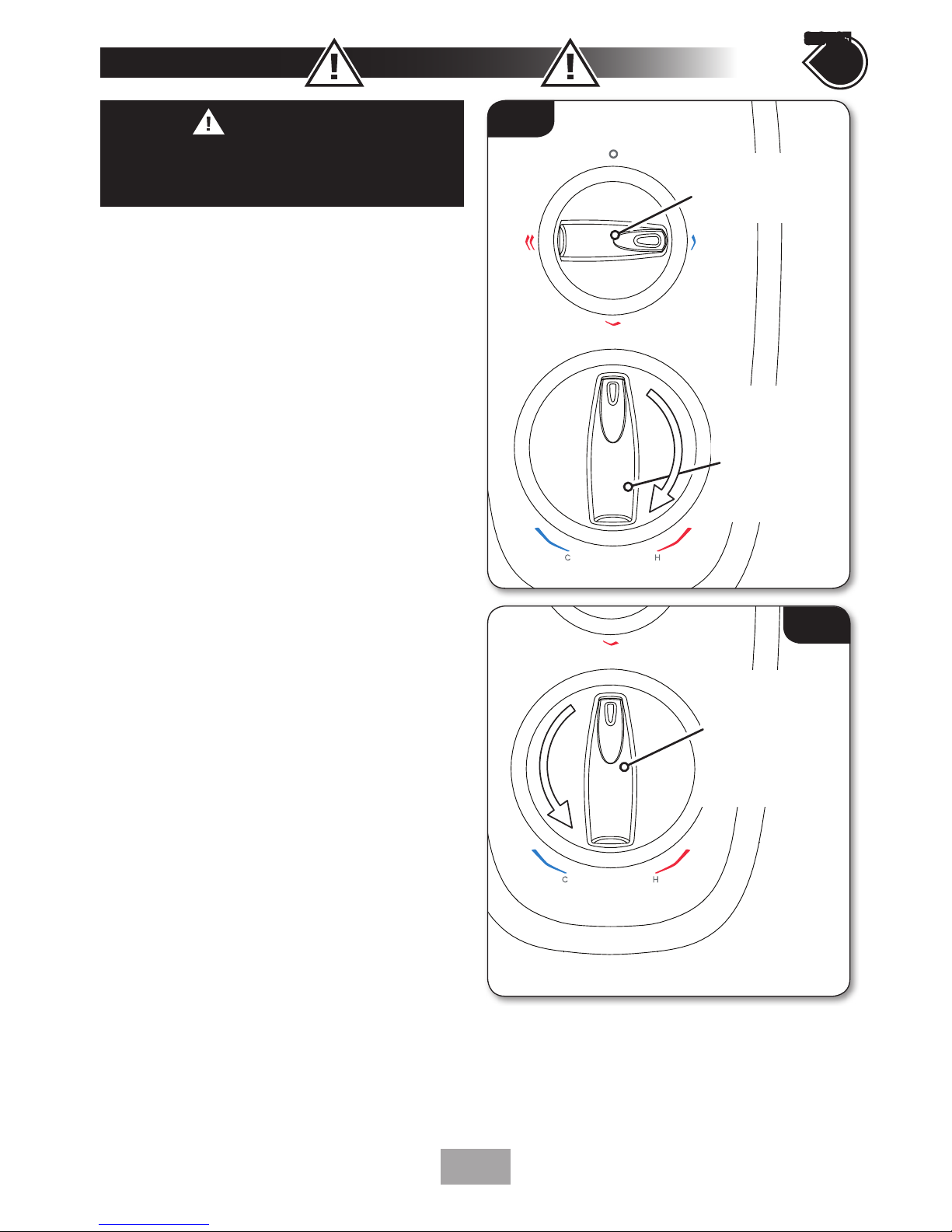

3. With the cover off the
shower - turn the power
selector to the OFF
position (fig.15).
1.With the cover off the
shower - turn the POWER
selector spindle clockwise
until the flat section is on
the bottom (fig.13). 2. With the cover off the
shower - turn the stabiliser
valve spindle fully clockwise
until resistance is felt
(fig.14).
4. With the cover off
the shower - turn the
temperature control to
the ‘5 o-clock’ position as
shown in (fig.16).
Fig.13
Fig.14
Fig.15
Fig.16
Flat section
to the bottom
Stabiliser
valve

15
COMMISSIONING
COMMISSIONING PROCEDURE
The first operation of the shower is intended
to flush out any remaining unit debris, and
to make sure the heater unit contains water
before the elements are switched on.
This operation MUST be carried out WITH
the flexible hose screwed to the outlet but
WITHOUT THE SHOWERHEAD ATTACHED.
Make sure the outlet of the flexible hose is
directed to waste.
IMPORTANT: Failure to turn the control to
the minimum flow position MAY cause the
PRD to operate.
1. Before turning on the electric and mains
water supplies to the shower, make sure that
the power selector is at the ‘OFF‘ position
and the temperature control is turned to fully
clockwise to ‘MINIMUM’ flow (fig.17).
2. Turn on the mains water supply to the shower
at the isolating stopvalve and then turn on the
electric supply to the shower at the isolating
switch.
3. Turn the power selector to ‘COLD’ (fig.17)
and wait until water starts to flow from the
flexible hose.
4. Slowly rotate the temperature control fully
anti-clockwise to the maximum flow
position (fig.18). It will take about thirty
seconds for a smooth flow of water to be
obtained while air and any debris is flushed
from the shower.
• When a smooth flow of water is obtained,
rotate the temperature control from
minimum to maximum several times to
release any trapped air within the unit.
•Once flushing out has been completed turn
the power selector to ‘OFF’.
• Fit the showerhead to the flexible hose and
place in the showerhead holder.
The shower is now ready for normal operation.
WARNING
Before normal operation of the shower, it
is essential the following commissioning
procedure is completed correctly.
9
check list
!! IMPORTANT !!
SECTION
Power selector
to COLD
Temperature
control fully
clockwise
(MINIMUM
ow on COLD
setting)
Temperature
control fully
anti-clockwise
(MAXIMUM
ow on COLD
setting)
Fig.18
Fig.17
OFF
COLD

16
USER OPERATING INSTRUCTIONS
WARNING
If restarting immediately after stopping,
be aware that a slug of hot water will be
expelled for the first few seconds.
10 check list
SECTION
OPERATING THE SHOWER - (fig.19)
Make sure the commissioning procedure
has been carried out.
To start the shower
• Turn the power selector to either Cold,
Economy or High and the water will flow.
To stop the shower
• Turn the power selector to the ‘OFF’ position.
• After stopping the unit MUST be isolated via
the 45amp-isolating switch.
To use the power selector
The power selector has three positions - COLD,
ECONOMY and HIGH.
Cold setting - single blue line.
• Cold: the cold setting does not provide any
heat from the heater can to the incoming
water.
Economy setting - single red line.
• Economy: uses only one of the elements
within the heater can.
NOTE: If the stated flow rate required for the unit
cannot be met due to low water pressure, it will
be necessary to operate the unit on this setting
during the warmer months because of flow rate
limitations entering the unit.
High Setting - double red lines.
• High: uses both of the elements within the
heater can.
IMPORTANT: it will take a few seconds for the
temperature to stabilise once changes have been
made.
Power selector
Cold
Economy
High
Temperature
control
COLDER
Fig.19
OFF
HOTTER
