Triumph Sprint ST ABS User manual

1
Foreword
FOREWORD
This handbook contains information on the Triumph Sprint ST and Sprint ST ABS motorcycles.
Always store this owner's handbook with the motorcycle and refer to it for information
whenever necessary.
Warnings, Cautions and
Notes
Throughout this owner's handbook
particularly important information is
presented in the following form:
Note:
• This note symbol indicates points
of particular interest for more
efficient and convenient operation.
ccpx
Warning
This warning symbol identifies special
instructions or procedures, which, if not
correctly followed, could result in personal
injury, or loss of life.
Caution
This caution symbol identifies special
instructions or procedures, which, if not
strictly observed, could result in damage to,
or destruction of, equipment.

2
Foreword

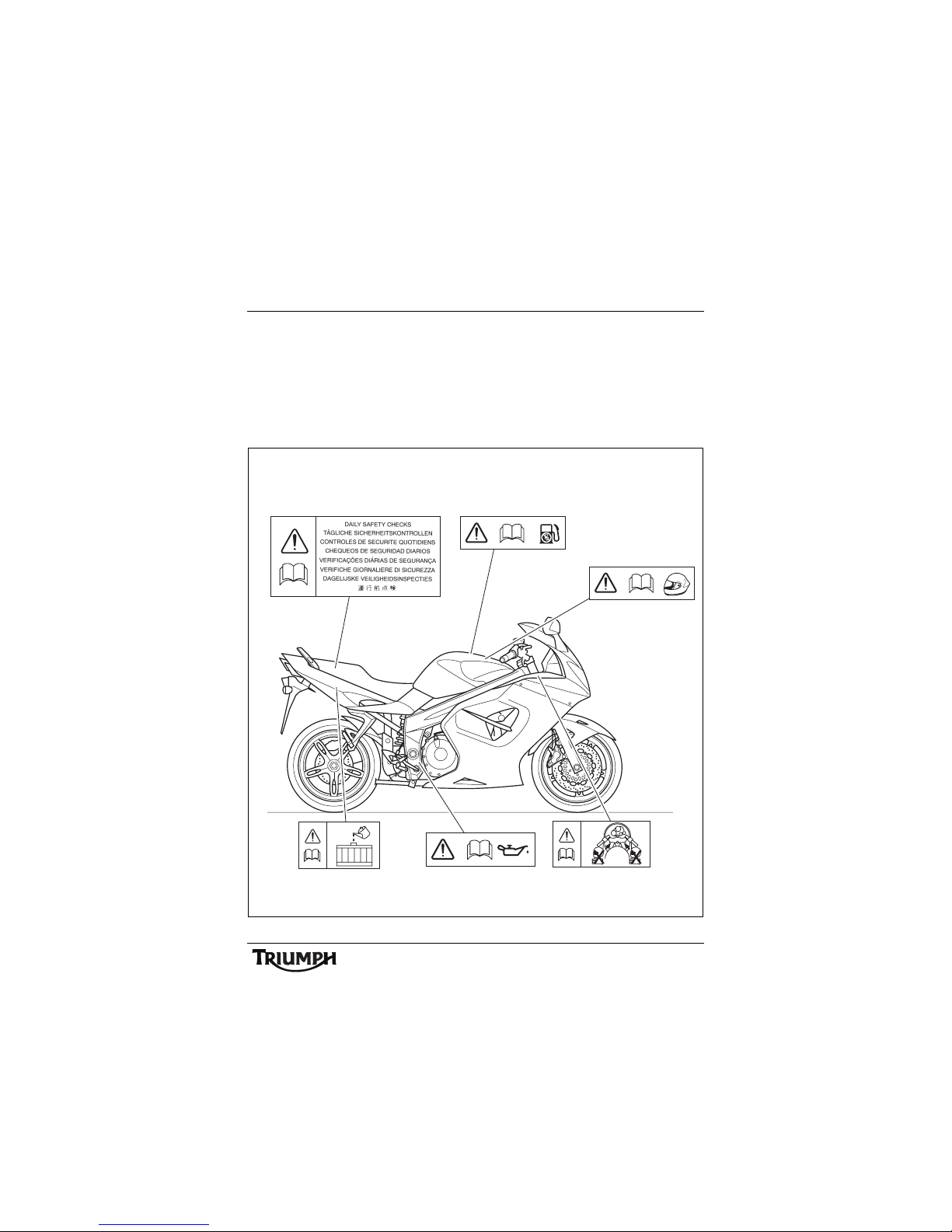

Warning Labels
At certain areas of the
motorcycle, the symbol (left)
can be seen. The symbol
means 'CAUTION: REFER TO
THE HANDBOOK' and will
be followed by a pictorial
representation of the subject
concerned.
Never attempt to ride the motorcycle or
make any adjustments without reference to
the relevant instructions contained in this
handbook.
See pages 10 and 11 for the location of all
labels bearing this symbol. Where necessary,
this symbol will also appear on the pages
containing the relevant information.
Maintenance
To ensure a long, safe and trouble free life for
your motorcycle, maintenance should only be
carried out by an authorised Triumph dealer.
Only an authorised Triumph dealer will have
the necessary knowledge, equipment and
skills to maintain your Triumph motorcycle
correctly.
To locate your nearest Triumph dealer, visit
the Triumph web site at www.triumph.co.uk
or telephone the authorised distributor in
your country. Their address is given in the
service record book that accompanies this
handbook.
Noise Control System
Tampering with the Noise Control System is
Prohibited.
Owners are warned that the law may
prohibit:
a) The removal or rendering
inoperative by any person other than
for purposes of maintenance, repair
or replacement, of any device or
element of design incorporated into
any new vehicle for the purpose of
noise control prior to its sale or
delivery to the ultimate purchaser or
while it is in use and,
b) the use of the vehicle after such
device or element of design has
been removed or rendered
inoperative by any person.

3
Foreword
Owner's Handbook
Thank you for choosing a Triumph
motorcycle. This motorcycle is the product of
Triumph's use of proven engineering,
exhaustive testing, and continuous striving for
superior reliability, safety and performance.
Please read this owner's handbook before
riding in order to become thoroughly familiar
with the correct operation of your
motorcycle's controls, its features, capabilities
and limitations.
This handbook includes safe riding tips, but
does not contain all the techniques and skills
necessary to ride a motorcycle safely.
Triumph strongly recommends that all riders
undertake the necessary training to ensure
safe operation of this motorcycle.
Information
The information contained in this publication
is based on the latest information available at
the time of printing. Triumph reserves the
right to make changes at any time without
prior notice, or obligation.
Not to be reproduced wholly or in part
without the written permission of
Triumph Motorcycles Limited.
© Copyright 04.2008 Triumph Motorcycles
Limited, Hinckley, Leicestershire, England.
Publication part number 3851501 issue 5.
Warning
This owner's handbook, and all other
instructions that are supplied with your
motorcycle, should be considered a
permanent part of your motorcycle and
should remain with it even if your
motorcycle is subsequently sold.
All riders must read this owner's handbook
and all other instructions which are
supplied with your motorcycle, before
riding, in order to become thoroughly
familiar with the correct operation of your
motorcycle's controls, its features,
capabilities and limitations. Do not lend
your motorcycle to others as riding when
not familiar with your motorcycle's
controls, features, capabilities and
limitations can lead to an accident.

Foreword
4
Table of Contents
This handbook contains a number of different sections. The table of contents below will help
you find the beginning of each section where, in the case of the major sections, a further table
of contents will help you find the specific subject required.
Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warning Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Serial Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
How to Ride the Motorcycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Accessories, Loading and Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Maintenance and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 7
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 9

5
Foreword - Safety First
FOREWORD - SAFETY FIRST
The Motorcycle Fuel and Exhaust Fumes
Warning
This motorcycle is designed for on-road
use only. It is not suitable for off-road use.
Off-road operation could lead to loss of
control of the motorcycle resulting in an
accident causing injury or loss of life.
Warning
This motorcycle is not designed to tow a
trailer or be fitted with a sidecar. Fitting a
sidecar and/or a trailer may result in loss of
control and an accident.
Warning
This motorcycle is designed for use as a
two-wheeled vehicle capable of carrying a
rider on his/her own, or a rider and one
passenger (subject to a passenger seat
being fitted).
The total weight of the rider, and any
passenger, accessories and luggage must
not exceed the maximum load limit of
215 k g .
Warning
PETROL IS HIGHLY FLAMMABLE:
Always turn off the engine when refuelling.
Do not refuel or open the fuel filler cap
while smoking or in the vicinity of any
open (naked) flame.
Take care not to spill any petrol on the
engine, exhaust pipes or silencers when
refuelling.
If petrol is swallowed, inhaled or allowed to
get into the eyes, seek immediate medical
attention.
Spillage on the skin should be immediately
washed off with soap and water and
clothing contaminated with petrol should
immediately be removed.
Burns and other serious skin conditions
may result from contact with petrol.
Warning
Never start your engine or let it run for any
length of time in a closed area. The
exhaust fumes are poisonous and may
cause loss of consciousness and death
within a short time. Always operate your
motorcycle in the open-air or in an area
with adequate ventilation.

6
Foreword - Safety First
Riding
Warning
Never ride the motorcycle when fatigued
or under the influence of alcohol or other
drugs.
Riding when under the influence of alcohol
or other drugs is illegal.
Riding when fatigued or under the
influence of alcohol or other drugs reduces
the rider's ability to maintain control of the
motorcycle and may lead to loss of control
and an accident.
Warning
All riders must be licenced to operate the
motorcycle. Operation of the motorcycle
without a licence is illegal and could lead to
prosecution.
Operation of the motorcycle without
formal training in the correct riding
techniques that are necessary to become
licenced is dangerous and may lead to loss
of motorcycle control and an accident.
Warning
Always ride defensively and wear the
protective equipment mentioned
elsewhere in this foreword. Remember, in
an accident, a motorcycle does not give the
same impact protection as a car.
Warning
This Triumph motorcycle should be
operated within the legal speed limits for
the particular road travelled. Operating a
motorcycle at high speeds can be
potentially dangerous since the time
available to react to given traffic situations
is greatly reduced as road speed increases.
Always reduce speed in potentially
hazardous driving conditions such as bad
weather or heavy traffic.
Warning
Continually observe and react to changes
in road surface, traffic and wind conditions.
All two-wheeled vehicles are subject to
external forces which may cause an
accident. These forces include but are not
limited to:
• Wind draft from passing vehicles;
• Potholes, uneven or damaged
road surfaces;
• Bad weather;
• Rider error.
Always operate the motorcycle at
moderate speed and away from heavy
traffic until you have become thoroughly
familiar with its handling and operating
characteristics. Never exceed the legal
speed limit.

7
Foreword - Safety First
Helmet and Clothing Handlebars and Footrests
Warning
When riding the motorcycle, both rider
and passenger must always wear a
motorcycle helmet, eye protection, gloves,
trousers (close fitting around the knee and
ankle) and a brightly coloured jacket.
Brightly coloured clothing will considerably
increase a rider's (or passenger's) visibility
to other operators of road vehicles.
Although full protection is not possible,
wearing correct protective clothing can
reduce the risk of injury when riding.
Warning
A helmet is one of the most important
pieces of riding gear as it offers protection
against head injuries. You and your
passenger's helmet should be carefully
chosen and should fit you or your
passenger's head comfortably and
securely. A brightly coloured helmet will
increase a rider's (or passenger's) visibility
to other operators of road vehicles.
An open face helmet offers some
protection in an accident though a full face
helmet will offer more.
Always wear a visor or approved goggles
to help vision and to protect your eyes.
Warning
The rider must maintain control of the
vehicle by keeping hands on the
handlebars at all times.
The handling and stability of a motorcycle
will be adversely affected if the rider
removes his hands from the handlebars,
resulting in loss of motorcycle control and
an accident.
Warning
The rider and passenger must always use
the footrests provided, during operation of
the vehicle.
By using the footrests, both rider and
passenger will reduce the risk of
inadvertent contact with any motorcycle
components and will also reduce the risk of
injury from entrapment of clothing.

8
Foreword - Safety First
Parking Parts and Accessories
Triumph does not accept any liability
whatsoever for defects caused by the fitting
of non-approved parts, accessories or
conversions or the fitting of any approved
parts, accessories or conversions by
non-approved personnel.
Warning
Always turn off the engine and remove the
ignition key before leaving the motorcycle
unattended. By removing the key, the risk
of use of the motorcycle by unauthorised
or untrained persons is reduced.
When parking the motorcycle, always
remember the following:
Engage first gear to help prevent the
motorcycle from rolling off the stand.
The engine and exhaust system will be hot
after riding. DO NOT park where
pedestrians, animals and/or children are
likely to touch the motorcycle.
Do not park on soft ground or on a steeply
inclined surface. Parking under these
conditions may cause the motorcycle to fall
over.
For further details, please refer to the 'How
to Ride the Motorcycle' section of this
owner's handbook.
Warning
Owners should be aware that the only
approved parts, accessories and
conversions for any Triumph motorcycle
are those which carry official Triumph
approval and are fitted to the motorcycle
by an authorised dealer.
In particular, it is extremely hazardous to fit
or replace parts or accessories whose fitting
requires the dismantling of, or addition to,
either the electrical or fuel systems and any
such modification could cause a safety
hazard.
The fitting of any non-approved parts,
accessories or conversions may adversely
affect the handling, stability or other aspect
of the motorcycle operation that may result
in an accident causing injury or death.

9
Foreword - Safety First
Maintenance/Equipment
Warning
Consult your authorised Triumph dealer
whenever there is doubt as to the correct
or safe operation of this Triumph
motorcycle.
Remember that continued operation of an
incorrectly performing motorcycle may
aggravate a fault and may also
compromise safety.
Warning
Use of a motorcycle with bank angle
indicators worn beyond the maximum
limit (when 5 mm of the bank indicator
remains) will allow the motorcycle to be
banked to an unsafe angle.
Banking to an unsafe angle may cause
instability, loss of motorcycle control and
an accident.
1. Bank angle indicator
ccsm
1
Warning
Ensure all equipment that is required by
law is installed and functioning correctly.
The removal or alteration of the
motorcycle's lights, silencers, emission or
noise control systems can violate the law.
Incorrect or improper modification may
adversely affect the handling, stability or
other aspect of the motorcycle operation,
which may result in an accident causing
injury or death.
Warning
If the motorcycle is involved in an accident,
collision or fall, it must be taken to an
authorised Triumph dealer for inspection
and repair. Any accident can cause
damage to the motorcycle that, if not
correctly repaired, may cause a second
accident that may result in injury or death.

Warning Labels
10
WARNING LABELS
The labels detailed on this and the following pages draw your attention to important safety
information in this handbook. Before riding, ensure that all riders have understood and
complied with all the information to which these labels relate.
Warning Label Locations
6
5
4
3
2
N
1
R.P.M.
ccot
Running-In
(page 42)
Windscreen
(page 84)
Gear
Position
(page 48)Chain
(page 76)
Tyres
(page 89)

Warning Labels
11
WARNING LABELS
Warning Label Locations (continued)
ccou
Daily Safety Checks
(page 43)
Unleaded Fuel
(page 32)
Helmet
(page 7)
Coolant
(page 70)
Engine Oil
(page 67)
Fairing Stowage
(page 59)

12
Parts Identification
PARTS IDENTIFICATION
1. Front indicator
2. Headlight
3. Position lamp
4. Rear light
5. Radiator/Coolant pressure cap
6. Oil cooler
7. Drive chain
8. Side stand
9. Rear indicator
10.Gear-change pedal
11. Front brake disc
12.Front brake caliper
13 . F u e l t a n k
14.Fuel filler cap
15.Coolant expansion tank
16 . S i l e n c e r
ccmq
52 14
16
1 13
15 4
7108 911 12 6
3

13
Parts Identification
PARTS IDENTIFICATION
17. Battery
18.Tool kit
19.Rear brake disc
20.Rear brake caliper
21. Rear brake fluid reservoir
22.Rear brake pedal
23.Oil filler cap/Dipstick
24.Clutch cable
25.Front fork
26.Rear suspension unit
18
22
19
26 25
2423
20
21
ccmp
17

14
Parts Identification
Parts Identification (continued)
1. C l u t c h l e v e r
2. Passing button
3. Headlight dip switch
4. Horn button
5. Direction indicator switch
6. Ignition switch
7. Front brake fluid reservoir
8. Front brake lever
9. Engine stop switch
10.Starter button
11. Tachometer
12.Speedometer
13.Warning lights
14.Trip computer
15.Clutch lever adjuster
16.Brake lever adjuster
1215 32 11 13 14 7 9 816
6 104 5
1

15
Serial Numbers
SERIAL NUMBERS
Vehicle Identification
Number (VIN)
The vehicle identification number is stamped
into the steering head area of the frame. It is
also displayed on a plate, riveted to the
frame, immediately behind the steering head.
Record the vehicle identification number in
the space below.
Engine Serial Number
The engine serial number is stamped on the
engine crankcase, immediately above the
clutch cover.
Record the engine serial number in the space
provided below.
ccmy
1

16
Serial Numbers
This page intentionally left blank

General Information
17
GENERAL INFORMATION
Table of Contents
Instrument Panel Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Odometer/Trip Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Clock/Trip Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Instantaneous Fuel Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Average Fuel Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Journey Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Journey Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Average Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maximum Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Trip Computer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Trip Computer Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Direction Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
High Beam. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Low Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Neutral . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Low Oil Pressure Warning Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
High Coolant Temperature Warning Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Engine Management System Malfunction Indicator Light . . . . . . . . . . . . . . . . . . . . . . . . 26
ABS (Anti-Lock Brake System) Indicator Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarm Indicator Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Ignition Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ignition Switch/Steering Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Ignition Switch Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

General Information
18
Brake and Clutch Lever Adjusters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Right Handlebar Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Engine Stop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Starter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Left Handlebar Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Headlight Dip Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Direction Indicator Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Horn Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Pass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fuel Requirement/Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fuel Grade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fuel Tank Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Filling the Fuel Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Side Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Centre Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lifting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tool Kit and Handbook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Seat Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Seat Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Pannier System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Pannier Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Electrical Accessory Socket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Running-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Daily Safety Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

19
General Information
Instrument Panel Layout
1. Tachometer
2. Tachometer 'red zone'
3. Speedometer
4. Odometer/Trip meters
5. Clock/Trip computer display
6. Scroll/Set/Trip buttons
7. Coolant temperature display
8. Fuel gauge
9. Low oil pressure warning light
10.High coolant temperature warning
light
11. Engine management malfunction
indicator light
12.ABS warning light (ABS models only)
13.Low fuel level indicator light
14.Neutral indicator light
15.High beam indicator light
16.Right turn indicator light
17. Left turn indicator light
18.Alarm status indicator light (alarm is
an accessory fit)
ccmk
km/h
17 15 1613 14 8 75
10 12 18111 2 46 9
3

20
General Information
Speedometer
The speedometer indicates the road speed of
the motorcycle.
Tachometer
The tachometer shows the engine speed in
revolutions per minute - rpm (r/min). On the
right side of the tachometer face is the
'red zone'. Engine rpm (r/min) in the red
zone is above maximum recommended
engine speed and is also above the range for
best performance.
Odometer/Trip Meter
1. Odometer/Trip meter display
2. Set button
3. Trip button
The odometer shows the total distance that
the motorcycle has travelled.
The odometer and two trip meters are
located in the same LCD display as the clock
and trip computer. Either trip meter shows
the distance that the motorcycle has travelled
since the meter on display was last reset to
zero.
Use the 'trip' button to switch between the
odometer and trip meter display modes.
Press the 'trip' button repeatedly until the
desired display is visible. The display will scroll
through in the order:
•Odometer
• Trip Meter 1
• Trip Meter 2
To reset either of the trip meters, select and
display the trip meter to be zeroed then press
the 'trip' button for 2 seconds. After
2 seconds, the trip meter on display will reset
to zero.
Warning
Never allow engine rpm to enter the
'red zone' as severe engine damage may
result.
km/h
12 3
ccqu
Warning
Do not attempt to switch between
odometer and trip meter display modes or
reset the trip meter with the motorcycle in
motion as this may lead to loss of
motorcycle control and an accident.
