Trotec PCSS 15-20V User manual

TRT-BA-PCSS10-20V-TC2017-55-006-EN
PCSS 10-20V
EN
ORIGINAL INSTRUCTIONS
CORDLESS PORTABLE CIRCULAR
SAW

2 EN
cordless portable circular saw PCSS 10-20V
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................3
Information about the device................................................8
Transport and storage.........................................................11
Start-up................................................................................12
Operation .............................................................................18
Available accessories..........................................................21
Errors and faults..................................................................21
Maintenance ........................................................................22
Disposal ...............................................................................23
Declaration of conformity ...................................................23
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning of laser radiation
This symbol indicates dangers to the health of persons
due to laser radiation.
Warning of sharp object
This symbol indicates dangers to the life and health of
persons due to pointed objects.
Warning of hand injuries
This symbol indicates dangers to the health of persons
due to hand injuries.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective clothing
Information marked with this symbol indicates that you
should wear protective clothing.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
PCSS 10-20V
https://hub.trotec.com/?id=41422

EN 3
cordless portable circular saw PCSS 10-20V
Safety
General Power Tool Safety Warnings
Warning
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term power tool in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
General Power Tool Safety Warnings– Work area
safety
•Keep work area clean and well lit. Clutter or dark areas
invite accidents.
•Do not operate power tools in explosive atmosphere,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings– Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply.
Use of an RCD reduces the risk of electric shock.
General Power Tool Safety Warnings– Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication.
A moment of inattention while operating power tools may
result in serious personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on.
A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situation.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.
General Power Tool Safety Warnings– Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.

4 EN
cordless portable circular saw PCSS 10-20V
•Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
General Power Tool Safety Warnings– Battery tool
use and care
•Recharge only with charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
•Use power tools only with specifically designed battery
packs. Use of any other battery packs may create a risk of
injury and fire.
•When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
•Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk
of injury.
•Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
•Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outsides the specified range may damage
the battery and increase the risk of fire.
General Power Tool Safety Warnings– Charger use
and care
•This charger can be used by children aged
from8years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
•Never insert non-rechargeable batteries into the
charger. A charger that is suitable for one type of battery
pack may create a risk of fire and explosion, when used
with another battery pack or non-rechargeable batteries.
• Only charge the Li-Ion battery "Multiflex20–
2.0DC" (capacity of 2.0 Ah= 5 battery cells) with the
charger "Multiflex 20– 2.0 AC". The battery voltage must
match the battery charging voltage of the charger.
General Power Tool Safety Warnings– Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
•Never service damaged battery pack. Service of battery
packs should only be performed by the manufacturer or
authorized service providers.
Device-specific safety warnings for portable
circular saws

EN 5
cordless portable circular saw PCSS 10-20V
Safety warnings for all saws
Sawing methods
•DANGER: Keep hands away from cutting area and the
blade. Keep your second hand on auxiliary handle, or
motor housing. If both hands are holding the saw, they
cannot be cut by the blade.
•Do not reach underneath the workpiece. The guard
cannot protect you from the blade below the workpiece.
•Adjust the cutting depth to the thickness of the
workpiece. Less than a full tooth of the blade teeth should
be visible below the workpiece.
•Never hold piece being cut in your hands or across
your leg. Secure the workpiece to a stable platform.
It is important to support the work properly to minimise
body exposure, blade binding, or loss of control.
•Hold the power tool by its insulated gripping surfaces
when performing an operation where the cutting
accessory may contact hidden wiring or its own cord.
Contact with a "live" wire will also make exposed metal
parts of the power tool "live" and could give the operator
an electric shock.
•When ripping, always use a rip fence or straight edge
guide. This improves the accuracy of cut and reduces the
chance of blade binding.
•Always use saw blades with correct size and shape
(diamond versus round) of arbour holes.
Blades that do not match the mounting hardware of the
saw will run eccentrically, causing loss of control.
•Never use damaged or incorrect blade washers or
bolts. The blade washers and bolt were specially designed
for your saw, for optimum performance and safety of
operation.
Further safety warnings for all saws
Kickback causes and related warnings
A kickback is a sudden reaction to a pinched, bound or
misaligned saw blade, causing an uncontrolled saw to lift up
and out of the workpiece toward the operator.
When the blade is pinched or bound tightly by the kerf closing
down, the blade stalls and the motor reaction drives the unit
rapidly back toward the operator.
If the blade becomes twisted or misaligned in the cut, the teeth
at the back edge of the blade can dig into the top surface of the
workpiece causing the blade to climb out of the kerf and jump
back toward the operator.
Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below.
•Maintain a firm grip with both hands on the saw and
position your arms to resist kickback forces. Position
your body to either side of the blade, but not in line
with the blade. Kickback could cause the saw to jump
backwards, but kickback forces can be controlled by the
operator, if proper precautions are taken.
•When blade is binding, or when interrupting a cut for
any reason, release the trigger and hold the saw
motionless in the material until the blade comes to a
complete stop. Never attempt to remove the saw from
the work or pull the saw backwards while the blade is
in motion or kickback may occur. Investigate and take
corrective actions to eliminate the cause of blade binding.
•When restarting a saw in the workpiece, centre the
saw blade in the kerf and check that saw teeth are not
engaged into the material.
If saw blade is binding, it may walk up or kickback from
the workpiece as the saw is restarted.
•Support large panels to minimise the risk of blade
pinching and kickback.
Large panels tend to sag under their own weight. Supports
must be placed under the panel on both sides, near the
line of cut and near the edge of the panel.
•Do not use dull or damaged blades. Unsharpened or
improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
•Blade depth and bevel adjusting locking levers must
be tight and secure before making cut.
If blade adjustment shifts while cutting, it may cause
binding and kickback.
•Use extra caution when sawing into existing walls or
other blind areas. The protruding blade may cut objects
that can cause kickback.
Safety warnings for circular saws with pendulum guard
and circular saws with tow guard – Lower guard function
•Check the lower guard for proper closure before each
use. Do not operate the saw if the lower guard does
not move freely and close immediately. Never clamp or
tie the lower guard in the open position.
The lower guard may be bent if the saw accidentally falls
to the floor. Use the retracting lever to raise the guard and
make sure that it moves freely and does not touch the
blade or any other part of the saw at all cutting angles and
depths of cut.
•Check that the lower guard spring operates correctly.
If the guard and spring do not operate correctly, have
the saw serviced before use.
Lower guard may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of debris.

6 EN
cordless portable circular saw PCSS 10-20V
•Lower guard may be retracted manually only for
special cuts such as "plunge cuts" and "compound
cuts". Raise lower guard by retracting lever and as
soon as blade enters the material, the lower guard
must be released. For all other sawing, the lower guard
should operate automatically.
•Always observe that the lower guard is covering the
blade before placing saw down on bench or floor.
An unprotected, coasting blade will cause the saw to walk
backwards, cutting whatever is in its path. Be aware of the
time it takes for the blade to stop after switch is released.
Additional safety warnings for portable circular saws
Warning of laser radiation
Laser class2, Pmax.: <1mW, λ: 400-700nm,
EN60825-1:2014
Do not look directly into the laser beam or the opening
from which it emerges.
Never point the laser beam at people, animals or
reflective surfaces. Even brief eye contact can lead to
eye damage.
Examining the laser output aperture by use of optical
instruments (e.g. magnifying glass, magnifiers and the
like) entails the risk of eye damage.
When working with a laser of class2, observe the
national regulations on wearing eye protection.
•Do not reach into the chip ejector with your hands.
They could be injured by rotating parts.
•Do not work overhead with the saw. In this manner you
do not have sufficient control over the power tool.
•Do not use abrasive wheels.
•Only use saw blades of a diameter specified in the
technical data Using a blade of the wrong size may leave
the blade without proper protection or affect the
functioning of the guard.
•Use suitable detectors to determine if utility lines are
hidden in the work area or call the local utility
company for assistance. Contact with electrical lines
may result in fire and electric shock. Damaging a gas line
may lead to an explosion. Penetrating a water line causes
property damage and may cause an electric shock.
•Do not operate the power tool stationary.
It is not designed for operation with a saw table.
•Do not use high speed steel (HSS) saw blades.
Such saw blades can easily break.
•Do not saw ferrous metals.
Red hot chips can ignite the dust extraction.
•If the supply cord is damaged, it must be replaced with
a special connection line that can be obtained from the
manufacturer or his customer service.
•Ensure a steady forward motion of the tool.
An insufficient forward motion may result in the
overheating of the saw teeth or the melting of the
workpiece to be processed.
Intended use
Only use the device PCSS 10-20V for producing longitudinal,
cross and mitre cuts in wood, chipboards, plastic and
lightweight construction materials while using a suitable saw
blade, keeping base plate contact and adhering to the technical
data.
We recommend using the power tool with original Trotec
accessories.
Foreseeable misuse
• The device is not intended for processing damp wood.
• The device is not intended for processing glass or stone.
• The device is not intended for processing ferrous metals.
• The device is not intended for plunge-cutting.
Any other use than the one described in the chapter "Intended
use" is regarded as reasonably foreseeable misuse.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Safety signs and labels on the battery and the charger
Note
Do not remove any safety signs, stickers or labels from
the device. Keep all safety signs, stickers and labels in
legible condition.
The following safety signs and labels are attached to the
battery:
Warning of explosion risk!
These symbols indicate the following:
Do not expose the battery pack or tool to fire or
excessive temperature! Do not let the battery come into
contact with water or fire! Avoid direct sunlight and
moisture. There is a risk of explosion!
Never charge the battery at ambient temperatures
below10°C or above40°C. Charging improperly or at
temperatures outsides the specified range may damage
the battery and increase the risk of fire.

EN 7
cordless portable circular saw PCSS 10-20V
Observe the correct disposal of the battery!
This symbol indicates the following:
Ensure that the battery is disposed of correctly and
never dispose of it in waste water or public waters.
The battery contains irritating, caustic and toxic
substances that pose significant risks to people and the
environment.
The following safety signs and labels are attached to the
charger:
This symbol indicates the following:
Read the instructions or operating manual before
charging the battery.
This symbol indicates the following:
Only use the charger for charging the battery in dry
interior spaces. Do not charge the device outdoors.
Personal protective equipment
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear protective gloves.
They protect your hands from burns, crushing injuries
and skin abrasions.
Wear tight-fitting protective clothing.
This protects you from the draw-in and entanglement
hazard posed by rotating parts.
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of explosive substances
Do not expose the battery to temperatures above
45°C! Do not let the battery come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning of explosive substances
Fine dust and chips produced during sawing are highly
flammable. Risk of fire and explosion!
Use a dust or chip bag or a dust extraction system for
collecting the dust and chips produced.
Warning of laser radiation
Laser class2, Pmax.: <1mW, λ: 400-700nm,
EN60825-1:2014
Do not look directly into the laser beam or the opening
from which it emerges.
Never point the laser beam at people, animals or
reflective surfaces. Even brief eye contact can lead to
eye damage.
Examining the laser output aperture by use of optical
instruments (e.g. magnifying glass, magnifiers and the
like) entails the risk of eye damage.
When working with a laser of class2, observe the
national regulations on wearing eye protection.
Warning of hot surface
The insertion tool might still be hot after the
application. Burn hazard when touching the insertion
tool.
Do not touch the insertion tool bare-handed!
Wear protective gloves!
Warning of hand injuries
Crushing hazard near saw blade and base plate
if handled without due care.
Wear protective gloves!
Warning of sharp object
Parts of the saw blade are sharp. Risk of injuries
if handled without due care.
Wear protective gloves!

8 EN
cordless portable circular saw PCSS 10-20V
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Make sure not to hit power, gas or water lines when
working with a power tool.
If necessary, use a pipe detector to check the wall you
want to drill in or slit open.
Warning
Risk of injuries caused by flying parts or bursting tool
heads.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Behaviour in the event of an emergency/ emergency
stop function
Emergency stop:
Removing the battery results in the function of the device
stopping immediately. Leave the battery out in order to secure
the device against accidental switch-on.
Behaviour in the event of an emergency:
1. Switch the device off.
2. In the event of an emergency, remove the battery from the
device: Hold the release button of the battery and pull the
battery off the device as described in chapter "Removing
the battery".
3. Do not insert the battery if the device is defective.
Information about the device
Device description
The battery-powered device PCSS 10-20V is suited for
producing longitudinal, cross and mitre cuts in wood,
chipboards, plastic and lightweight construction materials while
using a suitable saw blade and keeping base plate contact.
The cutting depth can be steplessly adjusted from 0mm to
48mm.

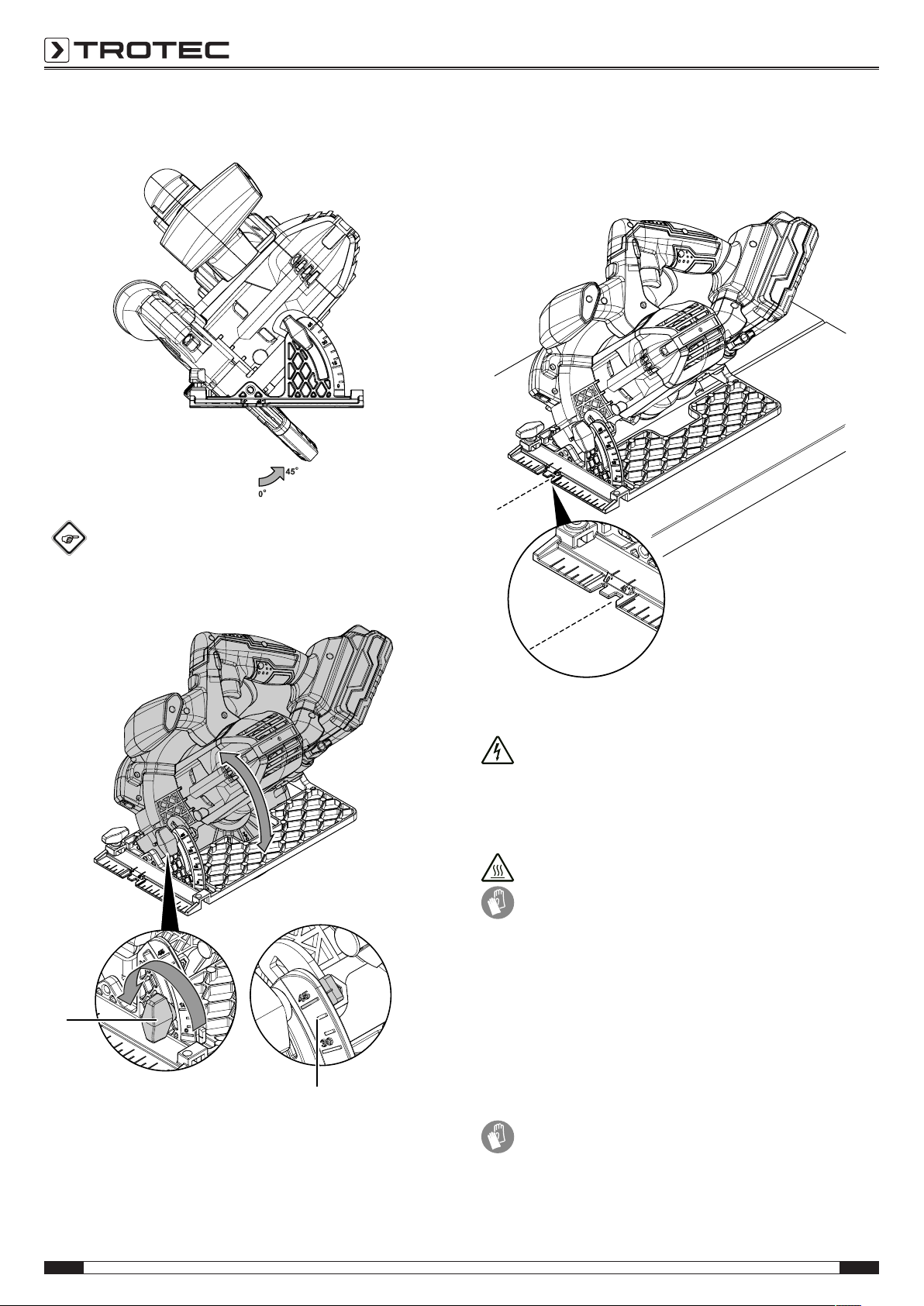

The cutting angle can be steplessly adjusted from 0°to 45°.
The device operates at an idle speed of 3,800rpm.
The spindle lock allows for a simple exchange of the saw blade.
The device is equipped with a start lock preventing unintentional
switch-on of the device.

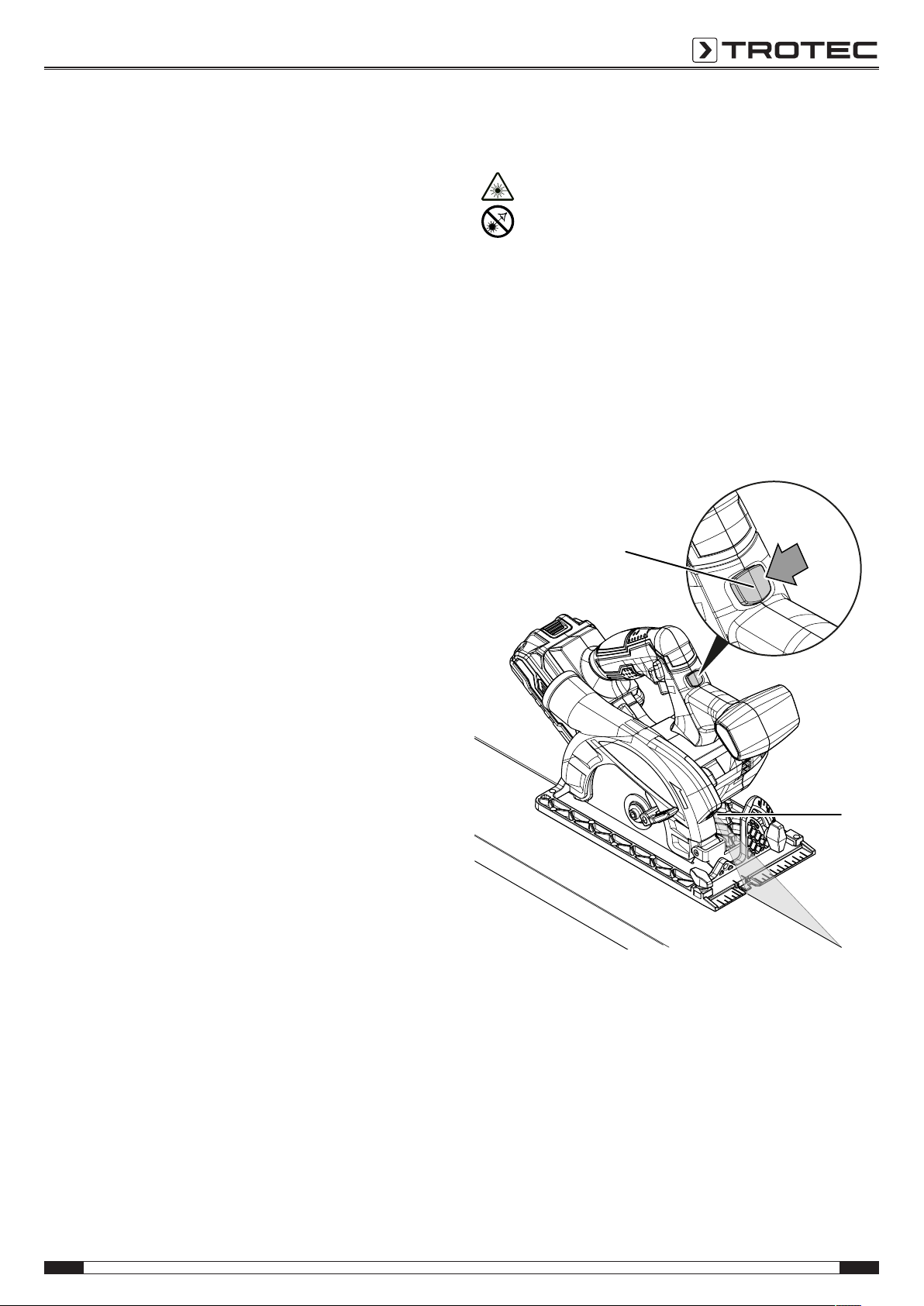

For an improved guidance, a laser can be switched on in
addition, which indicates the current cutting path.
The battery comes with its own battery level indication. As a
result you can check the current charging status without having
to connect it to the device.

EN 9
cordless portable circular saw PCSS 10-20V
Device depiction
5
4
3
2
1
17
18
19
20
21
22
23
24
25
9
6
16
9
8
7
10
11
15
12
14
13
28
29 26
27
No. Designation
1Spindle lock
2Laser button
3Additional handle
4Laser aperture
5Wing screw for cutting angle
6Rip fence holder
7Chip ejector
8Handle
9Battery holder
10 Quick charger
11 Red battery LED (battery charging)
12 Battery
13 3-stage battery level indication
14 Release button
15 Green battery LED (quick charger ready for operation)
16 Locking screw for the cutting depth
17 Wing screw for rip fence
18 Pendulum guard
19 Clamping flange
20 Clamping screw
21 Base plate
22 Retracting lever for guard
23 Upper guard
24 On/off switch
25 Start lock
26 Rip fence
27 Saw blade
28 Allen wrench
29 Adapter for dust extraction

10 EN
cordless portable circular saw PCSS 10-20V
Scope of delivery
• 1 x Cordless portable circular saw PCSS 10-20V
• 1x Rechargeable battery
• 1x Quick charger
• 1 x Carbide saw blade 18 teeth (for wood and plastic)
• 1 x Rip fence
• 1 x Adapter for dust extraction
• 1 x SW5 Allen wrench
• 1 x Transport case
• 1x Manual
Technical data
Parameter Value
Model PCSS 10-20V
Nominal voltage 20V
Idle speed 3,800 min-1
Max. saw blade diameter 150mm
Laser class2
Cutting depth max. 48 mm at 0°
max. 36 mm at 45°
Cutting angle 0° to 45°
Base plate dimensions 135 x 245mm
Weight 2.6 kg
Saw blades (included in the scope of delivery)
Carbide saw blade for wood and
plastic
18 teeth
Idle speed saw blade 9,000 min-1
Bore diameter 16 mm
Blade thickness 0.9 mm
Teeth thickness 1.6 mm
Battery Multiflex20 – 2.0 DC
Type Li-ion
Nominal voltage 20V
Capacity 2.0Ah
Quick charger Multiflex20 – 2.0 AC
Input
Nominal voltage 220 – 240 V/ 50 Hz
Power consumption 65 W
Output
Nominal voltage 21.5 V
Charging current 2.4 A
Fusing 3.15A (slow-blowing)
Charging time 1 h
Cable length 1.5 m
Protection class II /
Parameter Value
Vibration information according to EN62841
Total vibration emission value (for sawing wood):
Vibration emission value
Main handle ah
Vibration emission value
Additinal handle ah
Total vibration value
Uncertainty K
1.879 m/s²
2.213 m/s²
2.2 m/s²
1.5 m/s²
Sound values according to EN62841
Sound pressure level LpA 89 dB(A)
Sound power level LWA 100dB(A)
Uncertainty K 3 dB(A)
Wear hearing protection.
Excessive noise can lead to hearing loss.
Information on noise and vibration:
• The specified total vibration and noise emission values
were measured by means of a test procedure standardized
in EN62841 and can be consulted for the comparison of
one power tool with another.
• The specified total vibration and noise emission values
can also be used for preliminary load assessment.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
• The actual vibration and noise emission may differ from
the stated values during operation of the power tool. This
depends on how the power tool is used and especially on
the type of workpiece being processed. Try to keep the
vibration load to a minimum. Exemplary measures for
reducing the vibration load include wearing gloves during
operation of the tool and the limitation of working hours.
All parts of an operating cycle must be considered for this
(e.g. times at which the power tool is switched off and
times when it is switched on but runs without load).

EN 11
cordless portable circular saw PCSS 10-20V
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• If attached, disconnect the dust extraction system from the
device.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
Before storing the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• If attached, disconnect the dust extraction system from the
device.
• Clean the device as described in the Maintenance chapter.
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
• Do not store Li-ion batteries which are completely
discharged. Storing discharged batteries can lead to a
deep discharge and thus damage the battery.
When the device is not being used, observe the following
storage conditions:
• Dry and protected from frost and heat
• Ambient temperature below 45°C
• Protected from dust and direct sunlight inside the transport
case

12 EN
cordless portable circular saw PCSS 10-20V
Start-up
Unpacking the device
• Take the transport case out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the contents of the transport case for completeness
and look for damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.
Charging the battery
Note
The battery can be damaged in case of improper
charging.
Remove the charger's mains plug before inserting or
removing the battery.
Never charge the battery at ambient temperatures
below 10°C or above 40°C.
The battery is partially charged upon delivery to avoid damage
to the battery caused by a deep discharge.
Prior to initial start-up and when the battery is low (only the red
LED in the battery level indication(13) is illuminated), the
battery should be charged. To do so, please proceed as follows:
1. Slide the battery(12) onto the quick charger(10) as
depicted until the battery locks in place.
1 h
12
10
15
11
13
2. Insert the mains plug of the quick charger(10) into a
properly fused mains socket.
ðThe red battery LED(11) lights up.
ðCharging requires approx. one hour.
3. Wait until the red battery LED(11) goes off and the green
battery LED(15) lights up.
ðThe battery(12) is fully charged.
4. Hold onto the mains plug while pulling the power cable of
the quick charger(10) out of the mains socket.
ðThe battery(12) and the quick charger(10) may have
become warm during charging.
Allow the battery(12) to cool down to room
temperature.
5. Take the battery(12) out of the quick charger(10) by
pressing and holding the release button(14) and pulling
the battery(12) off the quick charger(10).
Inserting the battery
1. Slide the battery(12) onto the device until it locks in place.
14
12

EN 13
cordless portable circular saw PCSS 10-20V
Removing the battery
1. Detach the battery(12) from the device by pressing and
holding the unlocking button(14, I.) and pulling the battery
off the device(II.).
I.
II.
2. If required, charge the battery(12) as described in the
section Charging the battery.
Checking the battery charging status
The battery comes with an integrated battery level indication.
The battery status is displayed as follows by the three LEDs of
the battery level indication(13):
LED colour Meaning
Green – Orange – Red maximum charge/ power
Orange – Red medium charge/ power
Red weak charge – Recharge the
battery.
1. Press on the battery icon(30) on the battery(12).
ðYou can read the battery status from the battery level
indication(13).
30
13
Adjusting the cutting depth
In the 0° position, the cutting depth can be set in the range from
0mm to 48mm.
Info
The cutting depth should exceed the material thickness
by approx.3mm so that a little less than the total tooth
height is visible below the workpiece.
1. Unscrew the locking screw(16).
2. Set the desired cutting depth on the cutting depth
scale(31).
16
31
3. Retighten the locking screw(16).

14 EN
cordless portable circular saw PCSS 10-20V
Adjusting the cutting angle
You can adjust the cutting angle in the range from 0° to 45°.
Info
For mitre cuts, the cutting depth is smaller than the
value shown on the cutting depth scale.
1. Loosen the wing screw for the cutting angle(5).
5
32
2. Set the desired cutting angle on the cutting angle
scale(32).
3. Retighten the wing screw(5).
4. Note that the cutting line runs along between the notches
on the base plate marked 0 and 45, depending on the
cutting angle setting. In the example below, the cutting
angle is set to 45°:
Changing the saw blade
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of hot surface
The insertion tool might still be hot after the
application. Burn hazard when touching the insertion
tool.
Do not touch the insertion tool bare-handed!
Wear protective gloves!
Note
Only use saw blades complying with EN847-1.
Note
Do not use flanges or flange nuts whose bore hole is
larger or smaller than that of the saw blade.
Wear protective gloves
Wear appropriate protective gloves when inserting or
exchanging tools.

EN 15
cordless portable circular saw PCSS 10-20V
As standard, the device is supplied with a saw blade with
18teeth (suited for wood and plastic). The saw blade is
preassembled.
Please proceed as follows to remove or insert a saw blade:
1. Remove the battery from the device.
2. Set the cutting depth to 0mm.
3. Set the cutting angle to 0°.
4. Place the device on the front side of the motor housing.
5. Press and hold the spindle lock(1).
128
6. Loosen the clamping screw(20) by means of the Allen
wrench(28).
33
19
20
7. Let go of the spindle lock(1).
8. Remove the clamping screw(20) as well as the clamping
flange(19).
9. Remove any material residues from the device, in
particular from the lower guard.
10. Swing the lower guard(18) back using the retracting
lever(22) and hold the retracting lever in this position.
11. Remove the saw blade(27).
22
27
12. Check whether the saw blade clamp(33) is attached to the
device. If it has fallen out accidentally, reattach it.
13. Please note that the lower guard(18) must be swung back
using the retracting lever(22) in order to insert the saw
blade.

16 EN
cordless portable circular saw PCSS 10-20V
14. Insert the new saw blade(27). When doing so, make sure
that the direction of the arrow on the saw blade
corresponds to that of the arrow on the device.
33
22
27
15. Carefully swing the lower guard(18) back into its initial
position with the retracting lever(22).
16. Refit the clamping flange(19) on the saw blade clamp(33).
In doing so, make sure to insert the clamping flange as
shown below (convex side to the outside).
19
17. Fit the clamping screw(20) onto the clamping flange(19).

EN 17
cordless portable circular saw PCSS 10-20V
18. Press and hold the spindle lock(1).
28
1
19. Tighten the clamping screw(20) by means of the Allen
wrench(28).
20. Let go of the spindle lock(1).
21. Check whether the saw blade is properly locked in place.
22. Put the battery(12) back in.
Mounting and adjusting the rip fence
1. Loosen the wing screw(17) and insert the rip fence(26)
into the rip fence holder(6).
17
26 6
2. Set the desired distance from the cutting line to the edge
of the workpiece (cutting width) using the scale on the rip
fence(26) and the mark(34) on the base plate.
The figure below shows a 4cm setting by way of example:
4 cm
26
34
3. Retighten the wing screw(17).

18 EN
cordless portable circular saw PCSS 10-20V
Checking the pendulum guard
The pendulum guard is an important safety device of the power
tool. It must function properly; otherwise the device must not be
used.
Observe the following information:
Safety warnings for circular saws with pendulum guard
and circular saws with tow guard – Lower guard function
•Check the lower guard for proper closure before each
use. Do not operate the saw if the lower guard does
not move freely and close immediately. Never clamp or
tie the lower guard in the open position.
The lower guard may be bent if the saw accidentally falls
to the floor. Use the retracting lever to raise the guard and
make sure that it moves freely and does not touch the
blade or any other part of the saw at all cutting angles and
depths of cut.
•Check that the lower guard spring operates correctly.
If the guard and spring do not operate correctly, have
the saw serviced before use.
Lower guard may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of debris.
•Lower guard may be retracted manually only for
special cuts such as "plunge cuts" and "compound
cuts". Raise lower guard by retracting lever and as
soon as blade enters the material, the lower guard
must be released. For all other sawing, the lower guard
should operate automatically.
•Always observe that the lower guard is covering the
blade before placing saw down on bench or floor.
An unprotected, coasting blade will cause the saw to walk
backwards, cutting whatever is in its path. Be aware of the
time it takes for the blade to stop after switch is released.
Operation
Tips and notes on handling the circular saw
General information:
• Keep the venting slots clear to prevent the motor from
overheating.
• Only use intact, flawless saw blades. Saw blades can be
damaged by shocks or impacts. Bent, blunt or otherwise
damaged saw blades could break. The sawing
performance and cutting quality essentially depend on the
saw blade's condition and the shape of the teeth.
• Check the saw blade for correct fit before every
application.
• Before every application, make sure that you have selected
the correct saw blade for the intended use.
• Before every application, check whether you need a dust
bag or dust extraction system.
– Harmful dusts are produced when processing wood,
particularly beech and oak. Beech and oak dust is
considered carcinogenic, especially in combination with
certain wood treatment additives such as chromate or
wood preservatives. Wear a protective mask.
– Dusts from materials containing leaded paint or
minerals can be harmful to health. Wear a protective
mask.
– Long, spiral chips are produced when processing
spruce.
• The falling part of the workpiece should be located on the
right-hand side of the power tool so that the larger part of
the workpiece remains in full contact with the supporting
table or similar.
• Guide the power tool by pushing slightly and evenly in the
cutting direction. Pushing too hard reduces the blade life
and can damage the power tool.
• If you are sawing along a drawn line, guide the power tool
along the respective notch.
• Tear-out of the edges cut into sensitive surfaces
(e.g. plasterboard or coated chipboard) can be prevented
by covering the cutting edges with masking tape. In this
case, the cutting line can also be drawn on the masking
tape to protect the workpiece surface.
• Non-coated saw blades can be protected against corrosion
by applying a thin layer of acid-free oil. Remove any oil
before starting to saw to prevent oil residues from reaching
the wood.
• When sawing lightweight construction materials, observe
the legal regulations and recommendations of the material
manufacturers.

EN 19
cordless portable circular saw PCSS 10-20V
Sawing wood:
• Before sawing wood, chipboards, building materials etc.,
check the above for foreign objects, e.g. nails, screws or
similar. If required, remove the foreign objects or use a
suitable, sharp saw blade.
• The choice of the saw blade depends on the type of
application (longitudinal or cross cuts) as well as the type
and quality of wood.
• If the saw blade gets jammed in the workpiece, switch off
the power tool immediately. The sawing gap should be
slightly widened with a suitable tool so that you can pull
out the power tool.
• Switch on the power tool and guide it towards the
workpiece to be processed. Place the guide shoe on the
surface of the workpiece. Process the workpiece with an
even forward motion and contact pressure. After
completing the sawing operation, switch off the power
tool.
Sawing non-ferrous metals:
• Metal dusts can be harmful to health. Wear a protective
mask.
• Only use a sharp saw blade suitable for non-ferrous
metals. This guarantees a clean cut and prevents the saw
blade from getting jammed.
• Only hold the power tool against the workpiece when the
tool is switched on and running. Start sawing carefully and
with little forward motion. Continue sawing with little
forward motion and without interrupting.
• When sawing narrow profiles, you should start on the
narrow side. When sawing U-profiles, you should start on
the open side. Long profiles should be supported to
prevent the saw blade from getting jammed and thus to
avoid the risk of a kickback.
Switching the laser on and off
If required, you can switch on the laser to mark the cutting line.
Warning of laser radiation
Laser class2, Pmax.: <1mW, λ: 400-700nm,
EN60825-1:2014
Do not look directly into the laser beam or the opening
from which it emerges.
Never point the laser beam at people, animals or
reflective surfaces. Even brief eye contact can lead to
eye damage.
Examining the laser output aperture by use of optical
instruments (e.g. magnifying glass, magnifiers and the
like) entails the risk of eye damage.
When working with a laser of class2, observe the
national regulations on wearing eye protection.
1. Press the Laser button(2) to switch the laser on or off.
2
4

20 EN
cordless portable circular saw PCSS 10-20V
Switching the device on and off
Wear your personal protective equipment when working with
the device.
1. Check whether the fixed saw blade is suitable for the
intended application.
2. Check whether the workpiece is secured and the worktop
prepared correspondingly.
3. Hold onto the power tool with both hands.
4. Position the device by first placing the front edge of the
base plate on the workpiece.
5. Align the device with the rip fence or the cutting line.
6. Press the start lock(25) to be able to actuate the on/off
switch(24).
I. II.
25 24
7. Press the on/off switch(24) and hold it during operation.
8. Wait a moment until the motor has reached full speed.
9. Move the device closer to the workpiece.
10. Move the device along the cutting line with a slight forward
motion.
ðThe lower guard opens automatically when the device is
pushed forward. Do not open the lower guard manually.
Risk of injury!
11. After completing the sawing operation, let go of the on/off
switch(24) to stop the device.
24
