Trotec TTK 125 S User manual

TRT-BA-TTK125S-TC2018-54-004-EN
TTK 125 S
EN
ORIGINAL INSTRUCTIONS
DEHUMIDIFIER

2 EN
dehumidifier TTK 125 S
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................4
Assembly and installation.....................................................5
Operation ...............................................................................7
Available accessories............................................................9
Errors and faults....................................................................9
Maintenance ........................................................................11
Technical annex...................................................................14
Disposal ...............................................................................19
Declaration of conformity ...................................................19
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
TTK 125 S
https://hub.trotec.com/?id=39716
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.

EN 3
dehumidifier TTK 125 S
• Insert the mains plug into a properly secured mains
socket.
• Observe the device's power input, cable length and
intended use when selecting extensions to the power
cable. Completely unroll extension cables. Avoid electrical
overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• When positioning the device, observe the minimum
distances from walls and other objects as well as the
storage and operating conditions specified in the Technical
data chapter.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Only transport the device in an upright position with an
emptied condensation tank or drain hose.
• Discharge the collected condensate before transport and
storage. Do not drink it. Health hazard!
Intended use
Only use the device for drying and dehumidifying room air, while
adhering to and following the technical data.
Intended use comprises:
• dehumidifying and drying:
– living rooms, bedrooms, bathrooms and basements
– laundries, holiday homes, camper vans, boats
• maintaining the dryness of:
– storage spaces, archives, laboratories, garages
– bathrooms, wash rooms, changing rooms etc.
Improper use
• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use the device outdoors.
• Any unauthorised modifications, alterations or structural
changes to the device are forbidden.
• Any operation other than as described in this manual is
prohibited. Non-observance renders all claims for liability
and guarantee null and void.
Personnel qualifications
People who use this device must:
• be aware of the dangers that occur when working with
electric devices in damp areas.
• have read and understood the instructions, especially the
Safety chapter.
Maintenance tasks which require the housing to be opened
must only be carried out by specialist companies for cooling and
air-conditioning or by Trotec.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Note
Do not operate the device without an inserted air filter!
Without the air filter, the inside of the device will be
heavily contaminated. This could reduce the
performance and result in damage to the device.
Behaviour in the event of an emergency
1. Switch off the device.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.

4 EN
dehumidifier TTK 125 S
Information about the device
Description of the device
The device uses the principle of condensation to automatically
dehumidify rooms.
The fan sucks damp room air through the air inlet, the air filter,
the evaporator and to the condenser located behind it. The air is
cooled at the cold evaporator until it is below the dew point.
Water vapour contained in the room air precipitates on the
evaporator fins as condensation or rime. The dehumidified,
cooled air is slightly warmed at the condenser and blown out
again. The drier air thus conditioned mixes with the air in the
room. The humidity in the room where the device is positioned
is reduced as air constantly circulates through the device.
Depending on the air temperature and the relative humidity, the
condensed water either drops continuously or only during the
defrost phase through the integrated drain nozzle into the
condensation tank below. It is fitted with a float to measure the
filling level.
Optionally, the condensed water can be drained by attaching a
hose at the condensation connection.
Device depiction
1
2
3
4
9
8
7
6
5
No. Designation
1 Air inlet
2 Connection for optional condensate pump
3 Hose connector for condensation drain hose
4 Condensation tank
5 Wheels
6 Control panel
7 Air outlet
8 Carrying handle
9 Air filter
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
To make the device easier to transport, it is fitted with wheels.
Before transporting the device, observe the following:
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
• Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
• Only wheel the device on a level and smooth surface.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
• After having transported the device in horizontal position,
leave the device to rest for 12to24hours, so the
refrigerant can accumulate within the compressor. Wait
12to24hours before switching the device back on! Acting
contrary might lead to compressor damage and a
malfunctioning device. Any warranty claims will be voided
in this case.
Storage
Before storing the device, proceed as follows:
• Drain the remaining condensate from the device and the
condensation drain hose (see chapter Maintenance).
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Drain any possibly remaining condensate.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.

EN 5
dehumidifier TTK 125 S
Assembly and installation
Scope of delivery
• 1x Device
• 1x Air filter
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.

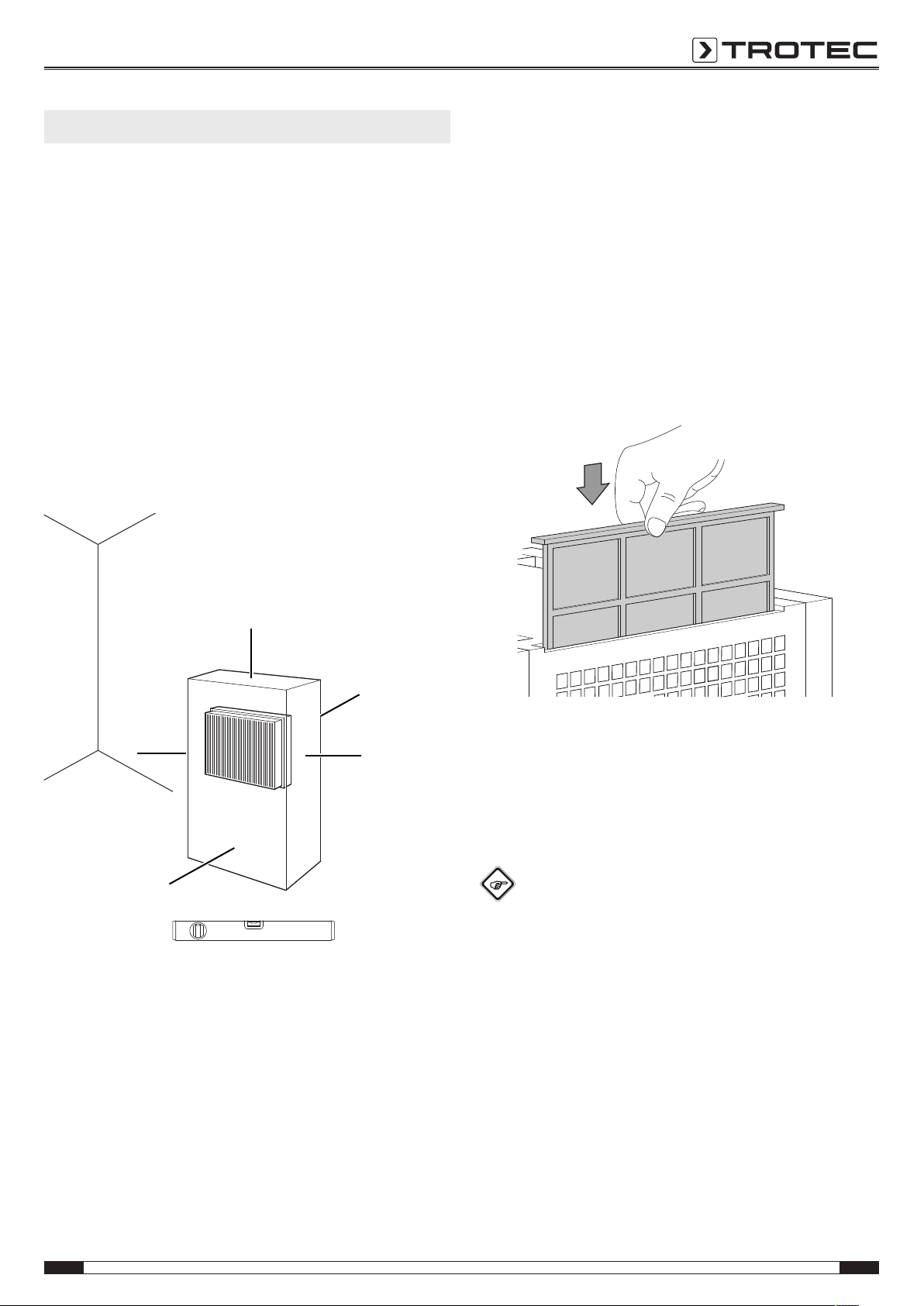

Start-up
When positioning the device, observe the minimum distance
from walls or other objects as described in the Technical data
chapter.
A
B
C
C
D
• Before restarting the device, check the condition of the
power cable. If there are doubts as to the sound condition,
contact the customer service.
• Set the device up in an upright and stable position.
• Do not create tripping hazards when laying the power
cable or other electric cables, especially when positioning
the device in the middle of the room. Use cable bridges.
• Make sure that extension cables are completely unrolled.
• When positioning the device, keep a sufficient distance to
heat sources.
• Make sure that no curtains or other objects interfere with
the air flow.
• When positioning the device, particularly in wet areas,
secure it locally with an RCD (residual current device)
which complies with the respective regulations.
Inserting the air filter
Note
Do not operate the device without an inserted air filter!
Without the air filter, the inside of the device will be
heavily contaminated. This could reduce the
performance and result in damage to the device.
• Make sure that the air filter is installed before switching
the device on.
Inserting the condensation tank
• Ensure that the float inside the condensation tank is
inserted correctly.
• Ensure that the condensation tank is empty and inserted
correctly.
Installing the condensate pump (optional)
Info
If you use the device in combination with the
condensate pump via the TTKwic port and with the
Qube, the Qube should be switched on and ready for
use at all times to ensure the continuous operation of
the pump.
If the Qube's internal pump does not deliver, the
collected condensate in the Qube can flow back from
the container through the suction hoses.

6 EN
dehumidifier TTK 125 S
1.
2.
3.
4.
5.

EN 7
dehumidifier TTK 125 S
6.
7.
Connecting the power cable
• Insert the mains plug into a properly secured mains
socket.
Operation
Control panel
OFF
X
SSTTAATTUUSS TANK
FULL
OFF
X
SSTTAATTUUSS TANK
FULL
11
12
13
14
10
15
No. Designation Meaning
10 Operating hours
counter
Indication of operating hours
11 Kilowatt hours
counter, MID-
certified (optional)
Indication of energy consumption
12 Rotary switch Selection of relative room humidity
13 Mains switch Switching the device on and off;
Is illuminated when the device is
switched on
14 Condensation tank
LED
Is displayed when the condensation
tank is full or not installed correctly
15 Status LED Indicates the operating status and
error messages
The device is optionally available with an operating element with
dual counter (see the image at the top right). The dual counter
registers both the operating hours and the energy consumption
and is certified according to the MID (Measuring Instruments
Directive 2004/22/EC). The kWh display is factory-calibrated
and may be used for accounting purposes. Contact your Trotec
customer service.
The Status LED(15) flashes once a second during normal
operation. If it flashes more frequently, lights up permanently or
does not light up at all, there might be a fault, see chapter
Errors and faults.

8 EN
dehumidifier TTK 125 S
Condensate pump (optional)
16
No. Designation Meaning
16 Condensate pump
button
Switching the condensate pump on
and off for draining residual water
The device can optionally be operated with a condensate pump
(see chapter Installing the condensate pump (optional)). Contact
your Trotec customer service.
Switching the device on
1. Ensure that the condensation tank is empty and inserted
correctly. Otherwise, the device will not operate!
2. Insert the mains plug into a properly secured mains
socket.
3. Switch on the device at the mains switch (13).
4. Ensure that the mains switch (13) is lit.
5. Check whether the Condensation tank LED(14) is out.
Otherwise, empty the condensation tank.
6. Adjust the room humidity level with the rotary switch (12).
Continuous operation mode
In continuous operation mode, the device dehumidifies the air
constantly, regardless of the humidity. To start continuous
operation mode, set the rotary switch(12) to Max.
Automatic defrost
If the room temperature is below 11 °C, the evaporator will
freeze during dehumidification. The device will then carry out an
automatic defrost. The duration of the defrost can vary.
• Do not switch the device off during automatic defrost. Do
not remove the mains plug from the mains socket.
Temperature limitation (overheating protection)
The device comes with a temperature limitation. It serves to
protect e.g. the compressor from overheating.
• Upper temperature limit: +35°C +/- 2°C
• Lower temperature limit: -3°C +/- 2°C
If the ambient temperature exceeds or falls below these limits,
the device automatically switches off the compressor; only the
fan will keep running. This feature protects the device from
overloading since high temperatures and high humidity levels
expose the device to extreme stresses. Moreover, drying is no
longer economical at such high temperatures and also poses
dangers for the inventory of the room to be dried. Please note
that the switch-off function works with a switch-on hysteresis of
-2°C.
Info
The compressor always starts with a delay. This
protects the compressor and thus increases its
lifetime. If you remove the condensation tank from the
device and reinsert it after emptying, the compressor
will switch back on with a delay of approx.3min. This
delay is also enabled in optional hygrostat operation. If
the room humidity exceeds the setting of the selection
switch, the compressor will only switch back on after a
delay.
The fan keeps running independently of the
compressor. The fan only switches off if the
condensation tank is removed.
Operation with hose attached to the condensation
connection
1.
2.

EN 9
dehumidifier TTK 125 S
3.
1/2''
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Empty the condensation tank, if need be.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Available accessories
Warning
Only use accessories and additional equipment
specified in the instructions.
Using insertion tools or accessories other than those
specified in the instructions may cause a risk of injury.
Designation Article number
Air filter TTK 125 S (filter fleece) 7.160.000.006
External condensate pump 6.100.003.030
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
• Check the filling level of the condensation tank and empty
it if necessary. The Condensation tank LED(14) must not
light up.
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data.
The device is running, but there is no formation of
condensate:
• Check the float in the condensation tank for dirt. If
necessary, clean the condensation tank. The float must be
able to move freely.
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data.
• Ensure that the relative room humidity complies with the
technical data.
• Check the air filter for dirt. If necessary, clean or replace
the air filter.
• From the outside, check the condenser for dirt (see
chapter Maintenance). If the condenser is dirty, have it
cleaned by a specialist company or by Trotec.
• The device might carry out an automatic defrost. During
automatic defrost, the device does not dehumidify.
The device is loud or vibrates:
• Check whether the device is set up in a stable and upright
position.
Condensate is leaking:
• Check the device for leaks.

10 EN
dehumidifier TTK 125 S
The compressor does not start:
• Check the room temperature. Observe the device's
permissible operating range according to the technical
data.
• Check whether the overheating protection of the
compressor has tripped. Disconnect the device from the
mains and let it cool down for approx. 10minutes before
reconnecting it.
• The device might carry out an automatic defrost. During
automatic defrost, the device does not dehumidify.
The device gets very warm, is loud or loses power:
• Check the air inlets and air filters for dirt. Remove external
dirt.
• From the outside, check the device for dirt (see chapter
Maintenance). If the inside of the device is dirty, have it
cleaned by a specialist company for cooling and air-
conditioning or by Trotec.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to a specialist company for cooling and air-conditioning
or to Trotec for repair.
Error codes
The Status LED(15) can indicate the following statuses during
operation:
Error message Meaning Remedy
Flashing once per
second
Normal operation No remedy required
Flashing five times
per second
The temperature is
above or below the
limit.
The temperature
should be within the
operating
temperature range
specified in the
Technical data.
The humidity level
has reached the
switching point.
The device will
switch back on once
the humidity level
set is exceeded.
Permanently
illuminated
There is a general
problem.
Please contact the
customer service.
Not illuminated

EN 11
dehumidifier TTK 125 S
Maintenance Maintenance intervals
Maintenance and care interval before every
start-up
as needed at least every
2weeks
at least every
4weeks
at least every
6months
at least
annually
Check air inlets and outlets for dirt
and foreign objects and clean if
necessary
X X
Clean the exterior X X
Visually check the inside of the
device for dirt
X X
Check the air filter for dirt and
foreign objects and clean or
replace if necessary
X X
Replace the air filter X
Check for damage X
Check the attachment screws X X
Test run X
Empty the condensation tank and
drain hose
X
Maintenance and care log
Device type: ............................................. Device number: ....................................
Maintenance and care interval 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Check air inlets and outlets for dirt and
foreign objects and clean if necessary
Clean the exterior
Visually check the inside of the device
for dirt
Check the air filter for dirt and foreign
objects and clean or replace if
necessary
Replace the air filter
Check for damage
Check the attachment screws
Test run
Empty the condensation tank and
drain hose
Comments
1. Date: ...................................
Signature: ................................
2. Date: ....................................
Signature: .................................
3. Date: ....................................
Signature: .................................
4. Date: ....................................
Signature: .................................
5. Date: ...................................
Signature: ................................
6. Date: ....................................
Signature: .................................
7. Date: ....................................
Signature: .................................
8. Date: ....................................
Signature: .................................
9. Date: ...................................
Signature: ................................
10. Date: ..................................
Signature: .................................
11. Date: ..................................
Signature: .................................
12. Date: ..................................
Signature: .................................
13. Date: .................................
Signature: ................................
14. Date: ..................................
Signature: .................................
15. Date: ..................................
Signature: .................................
16. Date: ..................................
Signature: .................................

12 EN
dehumidifier TTK 125 S

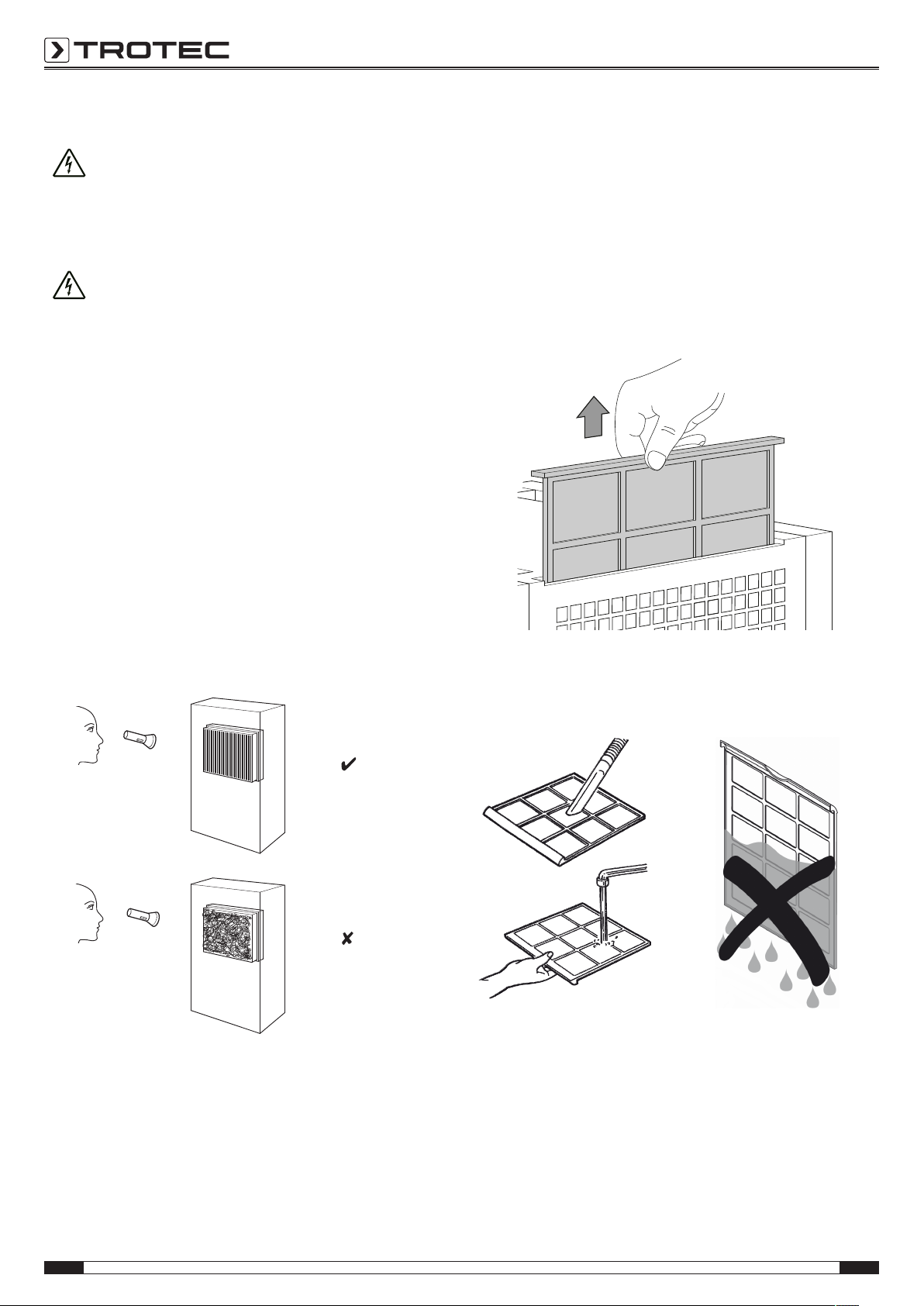

Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorised specialist
companies or by Trotec.
Cleaning the housing
Clean the housing with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Visual inspection of the inside of the device for dirt
1. Remove the air filter.
2. Use a torch to illuminate the openings of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, have the inside of the
device cleaned by a specialist company for cooling and air-
conditioning or by Trotec.
5. Put the air filter back in.
Refrigerant circuit
• The entire refrigerant circuit is a maintenance-free,
hermetically sealed system and may only be maintained or
repaired by specialist companies for cooling and air-
conditioning or by Trotec.
Cleaning the air filter
Note
Ensure that the air filter is not worn or damaged. The
corners and edges of the air filter must not be
deformed or rounded. Before reinserting the air filter,
make sure that it is undamaged and dry!
The air filter has to be cleaned as soon as it is dirty. This is
brought to light e.g. by a reduced capacity (see chapter Errors
and faults).
1. Remove the air filter from the device.
2. Clean the filter using a slightly damp, soft, lint-free cloth. If
the filter is heavily contaminated, clean it with warm water
mixed with a neutral cleaning agent.
3. Allow the filter to dry completely. Do not insert a wet filter
into the device!
4. Reinsert the air filter into the device.

EN 13
dehumidifier TTK 125 S
Emptying the condensation tank
Info
The compressor always starts with a delay. This
protects the compressor and thus increases its
lifetime. If you remove the condensation tank from the
device and reinsert it after emptying, the compressor
will switch back on with a delay of approx.3min. This
delay is also enabled in optional hygrostat operation. If
the room humidity exceeds the setting of the selection
switch, the compressor will only switch back on after a
delay.
The fan keeps running independently of the
compressor. The fan only switches off if the
condensation tank is removed.
1.
OFF
X
SSTTAATTUUSS TANK
FULL
2.
3.
4.
If the condensation tank is full or not installed correctly, the
Condensation tank LED(14) will be illuminated. The compressor
and fan will switch off.
Activities required after maintenance
If you want to continue using the device:
• Reconnect the device to the mains.
If you do not intend to use the device for a considerable time:
• Store the device according to the Storage chapter.

14 EN
dehumidifier TTK 125 S
Technical annex
Technical data
Parameter Value
Model TTK 125 S
Dehumidification
performance, max.
32 l / 24 h
Operating range
(temperature)
5–32°C
Operating range for relative
humidity
32–100%RH
Pressure suction side 1.2MPa
Pressure outlet side 4.2MPa
Air volume flow 300 m³/h
Mains connection 1/N/PE ~230V/ 50Hz
Power consumption, max. 0.6 kW
Nominal current 2.6 A
Water tank capacity 6 l
Refrigerant R-407C
Amount of refrigerant 530 g
GWP factor 1,774
CO2 equivalent 0.94 t
Sound pressure level LpA (1
m; complies with
DIN45635-01-KL3)
52 dB(A)
Dimensions (length x width x
height)
445x 500x 880 mm
Minimum distance to walls
and other objects
A: top:
B: rear:
C: side:
D: front:
50 cm
50 cm
50 cm
50 cm
Weight 26 kg

EN 15
dehumidifier TTK 125 S
Wiring diagram
With hours counter
E
L
- Earthing/Erdung
- Common Line/Gemeinsame
-
-
-
- Line/Außenleiter
On-OffSwitch / Geräteschalter 0/1
- Micro switch / Mikroschalter
lhctiwSorciM-
- Humidistat/Hygrostat
- Red lamp / Signalleuchte“rot “
- Compressor / Kompressor
Fan motor/Lüermotor
Two Way Valve / Abtau-Magnetvenl
- Running Capacitor/Motorbetriebskondensator
- Time Counter /
- Water Pump Socket/Wasserpumpe Stockdose
)()ecneserPknaT(
(Tank Full) / Mikroschalter Wippe Vo lstand (Behälter voll)
)llovretläheB()llufknaT(
(Standard) (Standard
Tank Präsenz
)
Zeit Zähler
E
N
S1
S2
S3
S4
L
M1
M2
Y
RC
L
H
P
N
230V/
50Hz
Shucko Plug
Schukostecker
Time Counter
(Standard)
M2M1
PCB
(XGNF06)
E
S2
2
1
4
S4
Y
S1
0/1
LRCH
42
31
HIGH LEVEL
FLOAT SWITCH
LOW LEVEL
FLOAT SWITCH
PURGE
SWITCH
Black
Black
Blue
Brown
Green/Yellow
PLUG
Brown
Red
Black
Motor
Water Pump (Oponal)
P
S3
2
1
4
Bucket
Empty
Bucket
Full
Bucket
F C NA CC NF N
N
J9JP1
J5
J7
Alarm
3°C > < 32°C
< 2°C
NTC 10kÙ
NTC 10kÙ
NC contact
NO contact

16 EN
dehumidifier TTK 125 S
With hours counter and optional consumption counter
Time+Energy
Counter
HE
I = 5A
avg NLoutLin
E
L
- Earthing / Erdung
- Common Line / Gemeinsame
-
-
-
- Line/Außenleiter
On-OffSwitch/Geräteschalter 0/1
- Micro switch / Mikroschalter
lhctiwSorciM-
- Humidistat/Hygrostat
- Red lamp / Signalleuchte “ rot “
- Compressor / Kompressor
Fan motor / Lüermotor
Two Way Valve/Abtau-Magnetvenl
- Running Capacitor / Motorbetriebskondensator
- Time+Energy Counter /
- Water Pump Socket / Wasserpumpe Stockdose
)()ecneserPknaT(
(Tank Full) / Mikroschalter Wippe Vo lstand (Behälter voll)
(Tank Presence)
Z()lanoitpO(
Tank Präsenz
(Tank Präsenz)
usätzliche)
Zeit+Energie Zähler
E
N
S1
S2
S3
S4
L
M1
M2
Y
RC
L
HE
P
N
230V/
50Hz
Shucko Plug
Schukostecker
M2
M1
PCB
(XGNF06)
E
Y
RC
42
31
HIGH LEVEL
FLOAT SWITCH
LOW LEVEL
FLOAT SWITCH
PURGE
SWITCH
Black
Black
Blue
Brown
Green/Yellow
PLUG
Brown
Red
Black
Motor
Water Pump (Oponal)
P
FCNA CC NF N
J9JP1
J5
J7
Alarm
3°C > < 32°C
< 2°C
NTC 10kÙ
NTC 10k Ù
NC contact
L
NO contact
S2
2
1
4
S1
0/1
S3
2
1
4
Bucket
Empty
Bucket
Full
Bucket
S4

EN 17
dehumidifier TTK 125 S
Exploded assembly drawing Info
The position numbers of the spare parts differ from
those describing the positions of other parts mentioned
in this operating manual.

18 EN
dehumidifier TTK 125 S
Spare parts list TTK 125 S
A1 Baseplate B1 PS Condensates' Water Pan C8 Hour Counter (Standard)
A2 Structural Element B2 5l 1/4 PP Water Tank C9 Hour + Power Counter (Optional)
A3 Ø 230 Fan Panel B3 Reinforced PP Air Filter C10 Power Switch + Transparent Silicon
Cover
A4 Controls' Side Panel B4 ABS Trotec Grip C11 Tank Full Warning Lamp +
Transparent Silicon Cover
A5 Left Side Panel B5 ABS Humidistat Adjusting Knob C12 Temperature Probe
A6 Air Outlet Ventilation Grid B6 Cable Gland PA107 C13 Pump Socket
A7 Air Inlet Ventilation Grid B7 ABS Full Tank Microswitch
Protection Case
D1 R407c Rotary Compressor
A8 Top Hood B8 Spinning Castor with Brake D2 Finned Pack Condensing Coil
A9 Water Tank Base Plate B9 Loose Spinning Castor D3 Aluminium Evaporating Coil +
Capillary Tube + Filter Drier
A10 Protection Box - PCB Support B10 EPS Top Plate D4 R407c Solenoid Valve
A11 Protection Box - Left Support B11 ABS Piece for Spring Pressure
(Bucket Simulator)
n/a Housing - M4 x 10 Screws; Black
Passivated; ISO 7380
A12 Protection Box - Cover C1 5W Output Electrical Motor Fan n/a Housing - PA M4 Washers
A13 Controls' Protection Bars C2 1.60 m H05VVF3G0.75 Supply Cable n/a Handle - M4 x 16; Black Passivated;
DIN 7500
A14 Motor Fan Brackets C3 35 μF Starting Capacitor n/a Castors - M6 Hexagonal Head
Screws; Zinc Plated; DIN 6921
A15 Full Tank Hellical Springs C4 Tank Present Microswitch n/a Castors - M6 Washers; Zinc Plated;
DIN 125A
A16 Tank Base Plate Shaft C5 Full Tank Microswitch n/a Castors - M6 Safety Nuts; Zinc
Plated; DIN 982
A17 Tank Detection Spring C6 Mechanical Humidistat n/a General - M4 x 6 Aluminium Blind
Rivet
A18 Ø 230 Aluminium Sucking Fan Blade C7 Printed Circuit Board

EN 19
dehumidifier TTK 125 S
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
The device is operated with fluorinated greenhouse gas which
can be dangerous for the environment and contribute to global
warming when emitted to the atmosphere.
Further information is provided on the nameplate.
Dispose of the refrigerant appropriately and according to the
national regulations.
Declaration of conformity
The text below sets out the contents of the declaration of
conformity. The signed declaration of conformity can be found
at https://hub.trotec.com/?id=39716.
Declaration of conformity
In accordance with the ECMachinery Directive 2006/42/EC, AnnexII, part1,
SectionA
Herewith, we– Trotec GmbH&Co.KG– declare that the
machinery designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: TTK 125 S
Product type: dehumidifier
Year of manufacture as of: 2018
Relevant EU directives:
• 2011/65/EU: 1July 2011
• 2014/30/EU: 29March 2014
Applied harmonised standards:
• EN 55014-2:2015
• EN 55014-1:2017
• EN 60335-1:2012/A11:2014
• EN60335-2-40:2003
• EN 60335-2-40:2003/A1:2006
• EN 60335-2-40:2003/A11:2004
• EN 60335-2-40:2003/A12:2005
• EN 60335-2-40:2003/A2:2009
• EN 60335-2-40:2003/A13:2012
• EN61000-3-2:2014
• EN 61000-3-3:2013
Applied national standards and technical specifications:
• None
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH & Co. KG
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 20.06.2018
Detlef von der Lieck, Managing Director

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
