True residential Tr-30 User manual

TEC_TM_009 REV. F 07/06/2022 TR-30/36 INSTALL MANUAL

TRUE RESIDENTIAL®

TR-30 / TR-36

INSTALL GUIDE AND USER'S MANUAL

"C" REVISION

PRESERVE THE MOMENT®

TEC_TM_009 REV. F07/06/2022TRUE RESIDENTIAL®

INSTALLATION CHECKLIST

To ensure no part of the installation process has been overlooked, complete the checklist below.

☐Have all packaging materials been removed?

☐Are the anti-tip brackets securely installed and properly engaging the unit?

☐Has the unit been properly leveled? Do all leveling legs touch the floor?

☐Is the kickplate installed?

☐Is the doorstop being installed (if needed)?

☐Does the customer understand the unit’s operation?

☐Has the customer been given the key and literature package?

☐Have all stainless steel surfaces been inspected for imperfections?*

☐Is the unit operating correctly? If not, is the unit plugged in? Is the control turned on?

*To be completed by either an installer with the customer or an authorized True dealer upon

completion of installation. Stainless steel doors, handles, and shelves are covered by a

limited 30-day warranty for cosmetic defects.

THANK YOU

FOR YOUR PURCHASE

TEC_TM_009 REV. F 07/06/2022 Page 3 of 71TR-30/36 INSTALL MANUAL

CONTENTS

SAFETY INFORMATION & OWNERSHIP

REFRIGERANT SAFETY & WARNING INFORMATION 7

BASIC SAFETY & WARNING PRECAUTIONS 7

CABINET DISPOSAL WARNING 8

OWNERSHIP 8

NOTICE TO CUSTOMER 8

SERIAL LABEL LOCATION 8

CONTACT INFORMATION 8

PRIOR TO INSTALLATION

ROUGH OPENINGS & PLAN VIEWS 11

ANTI-SWEAT FOAM END PANELS 13

ELECTRICAL SAFETY 14

OPTIONAL ICEMAKER REQUIREMENTS

(TR-30FRZ/36FRZ-IM-C) 16

WINE RACK HANDLE FINISH APPLICATION

(TR-30DZW) 19

SIDE-BY-SIDE INSTALLATION PLAN VIEWS

TR-30 / TR-42 22

TR-30 /TR-48 23

TR-30 / TR-30 24

TR-30 / TR-30 / TR-30 25

TR-36REF / TR-36REF 26

TR-36REF / TR-30REF 27

INSTALLATION

UNCRATING 30

ANTI-TIP BRACKET INSTALLATION 33

LEVELING 34

KICKPLATE INSTALLATION 35

JOINING KIT INSTALLATION 36

CABINET SETUP

SHELVING, BINS, DRAWERS 41

REFRIGERATOR STORAGE 41

FREEZER STORAGE 44

OPTIONAL ICEMAKER 45

REFRIGERATOR/FREEZER ELECTRONIC

CONTROL OPERATION

TURN ON/OFF 47

TEMPERATURE ADJUSTMENT 48

MODE NAVIGATION 49

SHOWROOM MODE 50

ACCENT LIGHTING SYSTEM 51

ALARM NAVIGATION 52

NOTIFICATION ALERTS 53

ICE MENU NAVIGATION 54

TEC_TM_009 REV. F07/06/2022Page 4 of 56 TRUE RESIDENTIAL®

PAGE TITLE

NOTE: AS WE STRIVE FOR CONTINUOUS IMPROVEMENTS, FEATURES AND SPECIFICATIONS

ARE SUBJECT TO CHANGE WITHOUT NOTICE.

CONTENTS

DUAL ZONE OPERATION

TURN ON/OFF 56

TEMPERATURE ADJUSTMENT 57

MODE NAVIGATION 58

SHOWROOM MODE 59

ACCENT LIGHTING SYSTEM 60

CHANGE TRULUMINA®LIGHT COLOR 60

ALARM NAVIGATION 61

NOTIFICATION ALERTS 62

MAINTENANCE, CARE & CLEANING

DOOR REMOVAL 64

CONDENSER COIL CLEANING 65

CONDENSATION 65

WATER FILTER REPLACEMENT (OPTIONAL

ICEMAKER ONLY) 66

STAINLESS STEEL EQUIPMENT CARE

& CLEANING 67

SERIAL LABEL LOCATION 69

WARRANTY

WARRANTY 70

TEC_TM_009 REV. F 07/06/2022 Page 5 of 71TR-30/36 INSTALL MANUAL

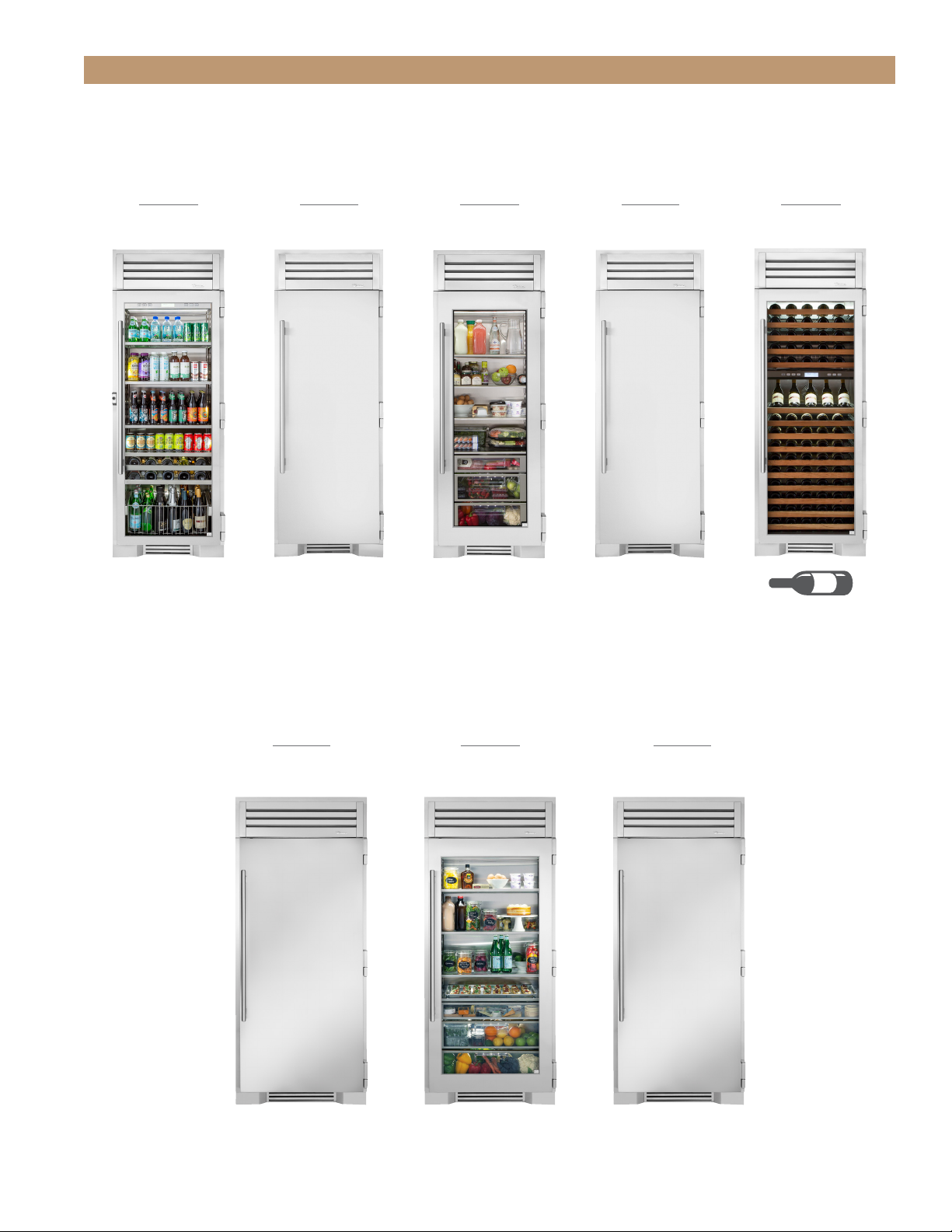

PAGE TITLE30 & 36 INCH REFRIGERATOR, FREEZER & DUAL ZONE COLUMN

30" FREEZER

COLUMN

STAINLESS SOLID DOOR

36" FREEZER

COLUMN

STAINLESS SOLID DOOR

30" REFRIGERATOR

COLUMN

STAINLESS GLASS DOOR

36" REFRIGERATOR

COLUMN

STAINLESS GLASS DOOR

30" REFRIGERATOR

COLUMN

STAINLESS SOLID DOOR

36" REFRIGERATOR

COLUMN

STAINLESS SOLID DOOR

30" REFRIGERATOR

BEVERAGE COLUMN

STAINLESS GLASS DOOR

30" DUAL ZONE

WINE COLUMN

STAINLESS GLASS DOOR

x150

LUXURY REFRIGERATION WITH COMMERCIAL DNA.

PRESERVE THE MOMENT®

TEC_TM_009 REV. F 07/06/2022 Page 6 of 56TR-30/36 INSTALL MANUAL

SAFETY INFORMATION & OWNERSHIP

REFRIGERANT SAFETY & WARNING INFORMATION

BASIC SAFETY & WARNING PRECAUTIONS

CABINET DISPOSAL WARNING

PROPER DISPOSAL OF THE CABINET

OWNERSHIP

NOTICE TO CUSTOMER

SERIAL LABEL LOCATION

CONTACT INFORMATION

TEC_TM_009 REV. F 07/06/2022 Page 7 of 71TR-30/36 INSTALL MANUAL

PAGE TITLE

BASIC SAFETY & WARNING

PRECAUTIONS

• Take care during operation, maintenance or repairs

to avoid cuts or pinching from any part/component

of the cabinet.

• Units may pose a tipping hazard while uncrating,

during installation, or when moving the unit.

• Ensure the unit is properly installed and located in

accordance with the Installation Instructions before

use.

• This appliance is not to be used, cleaned or

maintained by persons (including children) with

reduced physical, sensory or mental capabilities or

lack of experience and knowledge, unless they have

been given supervision or instruction.

• DO NOT allow children to play with the appliance

or climb, stand, or hang on the unit’s shelves to

prevent damage to the refrigerator and personal

injury.

• DO NOT touch the cold surfaces in the freezer

compartment when hands are damp or wet. Skin

may stick to these extremely cold surfaces.

• Unplug the refrigerator before cleaning and making

repairs.

• Setting temperature controls to the 0 position or

powering off an electronic control may not remove

power from all components (e.g., light circuits,

perimeter heaters, and evaporator fans).

• DO NOT store or use gasoline, or other flammable

vapors and liquids, in the vicinity of this or any

other appliance.

SAFETY INFORMATION & OWNERSHIP

WARNING! Use this appliance for its

intended purpose as described in this

Installation Manual.

REFRIGERANT SAFETY & WARNING

INFORMATION

See the serial label inside the cabinet for the units

refrigeration type. For Hydrocarbon Refrigeration

(R290 only), see below:

DANGER! Risk of fire or explosion.

Flammable refrigerant used. DO NOT

use mechanical devices to defrost

refrigerator. DO NOT puncture refrigerant

tubing; follow handling instructions

carefully. To be repaired only by trained

service personnel.

DANGER! Risk of fire or explosion

(flammable refrigerant used), consult

repair manual/owner’s guide before

attempting to service this product. All

safety precautions must be followed.

Dispose of properly in accordance with

local and federal regulations. Follow all

safety precautions.

CAUTION! Keep all ventilation openings

clear of obstruction in the appliance

enclosure or in the structure housing the

appliance.

TEC_TM_009 REV. F07/06/2022Page 8 of 56 TRUE RESIDENTIAL®

PAGE TITLE

CABINET DISPOSAL WARNING

DANGER! RISK OF CHILD

ENTRAPMENT

PROPER DISPOSAL OF THE CABINET

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous, even if they will sit for "just a few days." If

you are getting rid of your old refrigerator, please follow

the instructions below to help prevent accidents.

Before throwing away your old refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so that children may not

easily climb inside.

DANGER! Risk of fire or explosion.

Flammable insulation and/or refrigerant

used. Dispose of all in accordance with

local and federal regulations. Follow all

safety precautions.

SAFETY INFORMATION & OWNERSHIP

• DO NOT store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

• Keep fingers out of the "pinch point" areas;

clearances between the doors and cabinet are

necessarily small; be careful closing doors when

children are in the area.

• DO NOT use electrical appliances inside the food

storage compartments of the units unless the

appliances are of the type recommended by the

manufacturer.

NOTE: ALL SERVICING MUST BE PERFORMED BY A

QUALIFIED TECHNICIAN.

TEC_TM_009 REV. F 07/06/2022 Page 9 of 71TR-30/36 INSTALL MANUAL

PAGE TITLE

OWNERSHIP

To ensure that your unit works properly from the

first day, it must be installed properly. We highly

recommend a trained refrigeration mechanic and

electrician install your True equipment. The cost of a

professional installation is money well spent.

This appliance is intended to be used in household

and similar applications such as:

• Staff kitchen areas in shops, offices and other

working environments;

• Bed and breakfast type environments;

• Catering and similar non-retail applications.

Before you start to install your TRUE unit, carefully

inspect it for freight damage. If damage is

discovered, immediately file a claim with the delivery

freight carrier.

TRUE is not responsible for damage incurred during

shipment.

For any questions about installation, please contact

your True dealer or True Residential Technical

Service at 844-746-9423 or TrueResidentialService@

TrueMfg.com. Please have your model and serial

number available.

NOTICE TO CUSTOMER

Loss or spoilage of products in your refrigerator/

freezer is not covered by warranty. In addition to

following recommended

installation procedures, run

the refrigerator/freezer for

24 hours prior to usage to

verify its proper operation.

To qualify for TRUE’s extended

7–12 year parts only sealed system

warranty, you must register your

product* within 12 months of the

unit’s installation date. To register

your unit, complete and submit the

form at https://www.true-residential.

com/product-registration. For warranty details, please

see page 53.

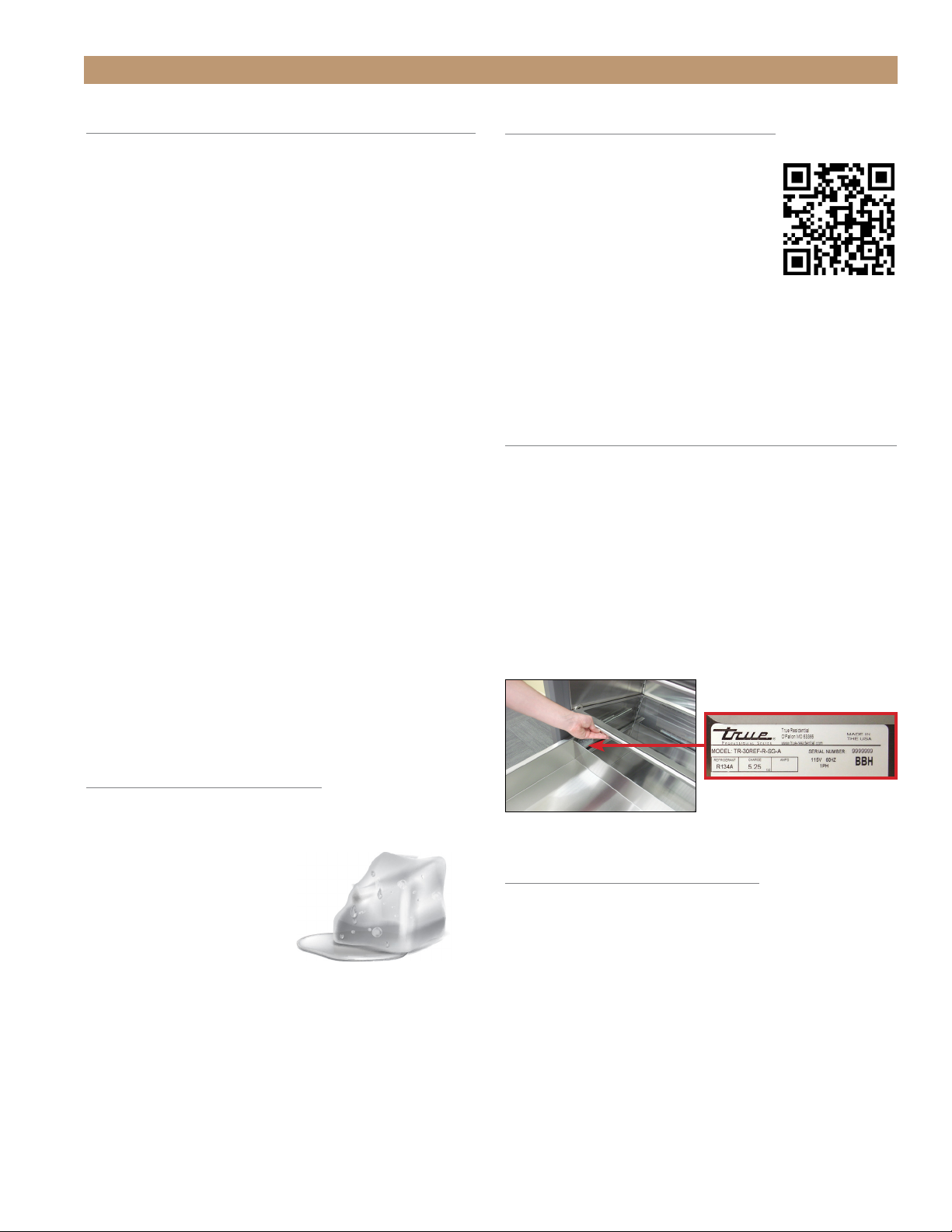

SERIAL LABEL LOCATION

The serial label is located on the left wall near the

freezer wire basket or the refrigerator upper drawer.

See fig. 1.

This label contains important information such as

your model name and serial number. Please have this

information on hand when contacting True so we can

better assist you with your service- or parts-related

inquiries.

SAFETY INFORMATION & OWNERSHIP

FIG. 1.

Serial label location.

CONTACT INFORMATION

WARRANTY DEPARTMENT

Phone: 844-849-6179

TrueResidentialWarranty@truemfg.com

CUSTOMER SERVICE

Phone: 888-616-8783

info@true-residential.com

SERVICE DEPARTMENT

Phone: 844-746-9423

TrueResidentialService@truemfg.com

* Please note that ice machines do not qualify for this extended

warranty.

PRESERVE THE MOMENT®

TEC_TM_009 REV. F 07/06/2022 Page 10 of 56TR-30/36 INSTALL MANUAL

ROUGH OPENINGS & PLAN VIEWS

ANTI-SWEAT FOAM END PANELS

ELECTRICAL SAFETY

POWER CORD

OPTIONAL ICEMAKER REQUIREMENTS (TR-30FRZ/36FRZ-IM-C)

WIRE RACK HANDLE FINISH APPLICATION (TR-30DZW)

PRIOR TO INSTALLATION

TEC_TM_009 REV. F 07/06/2022 Page 11 of 71TR-30/36 INSTALL MANUAL

PAGE TITLEPRIOR TO INSTALLATION

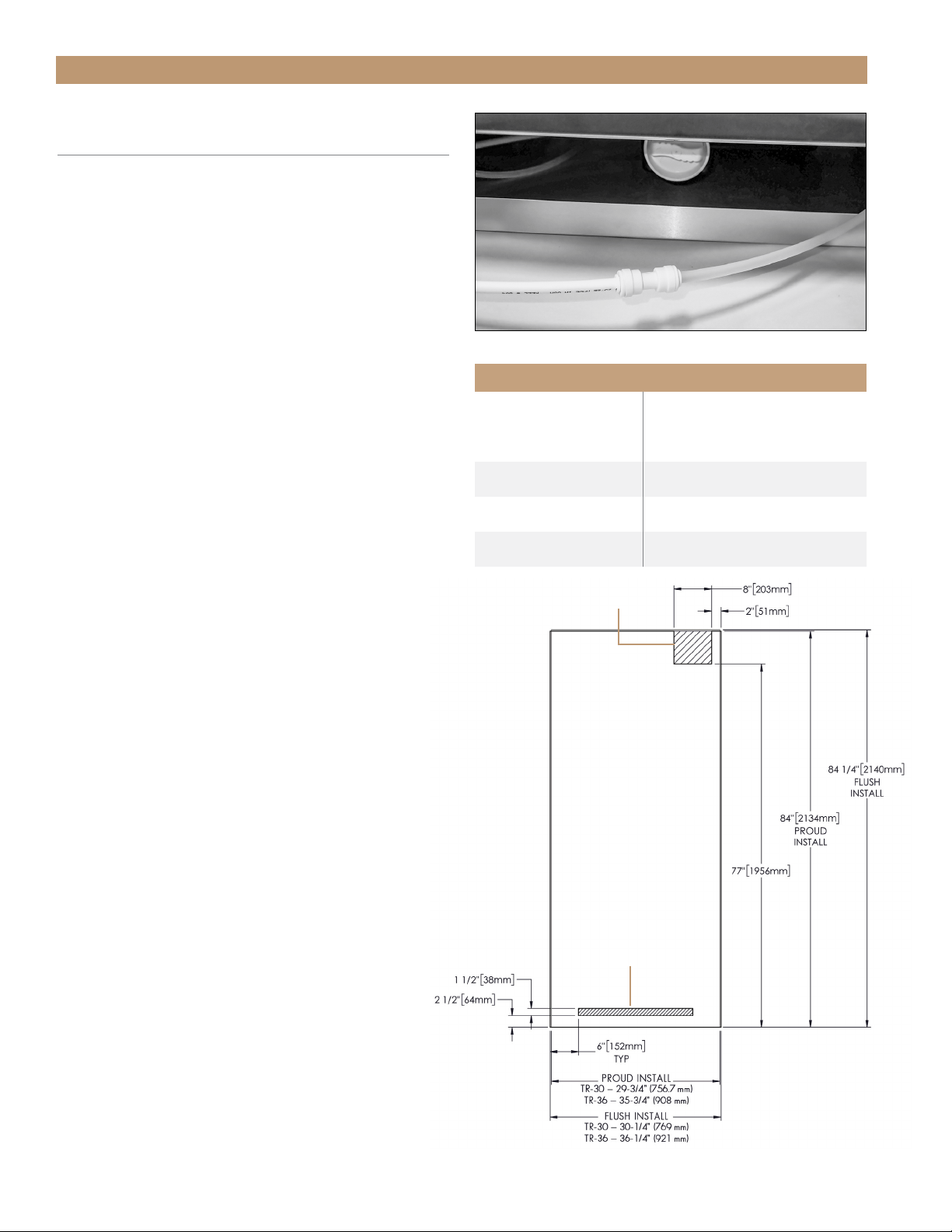

TR-30/36 – FRONT VIEW

ROUGH OPENING & ELECTRIC AREA

Dimensions may vary by ± 1/8" (3.2 mm)

ROUGH OPENINGS & PLAN VIEWS

NOTE: DUE TO THE WEIGHT OF THIS UNIT,

TRUE RECOMMENDS CONSULTING A FLOORING

EXPERT PRIOR TO INSTALLATION. THE

FLOORING BENEATH THE UNIT SHOULD BE

RATED TO SUPPORT ≥150 LBS/FT2 (732.36

KG/M2)

NOTE: IT IS NOT RECOMMENDED TO INSTALL

UNITS SIDE BY SIDE WITH HINGES TOUCHING

EACH OTHER. IF YOU PLAN TO INSTALL

UNITS HINGE TO HINGE, CALL TECH SUPPORT

AT 844-746-9423 FOR INSTALLATION

INSTRUCTIONS.

Flush installation: The front face of the unit is flush

with the surrounding cabinets

Proud (standard) Installation: The front face of the

unit extends beyond the surrounding cabinets

TR-30 Rough Opening Dimensions

Flush Install Proud Install

Width 30-1/4"

(768.35 mm)

29-3/4"

(755.65 mm)

Depth 25-25/32"

(654.84 mm)

23-25/32"

(604.04 mm)

Height 8 4-1/4"

(2,139.95 mm)

84"

(2,133.6 mm)

TR-36 Rough Opening Dimensions

Flush Install Proud Install

Width 36-1/4"

(920.75 mm)

35-3/4"

(908.05 mm)

Depth 25-25/32"

(654.84 mm)

23-25/32"

(604.04 mm)

Height 8 4-1/4"

(2,139.95 mm)

84"

(2,133.6 mm)

TR-30/36 – TOP VIEW PROUD INSTALL

23 25/32"

604mm

PROUD INSTALL

25 25/32"

655mm

FLUSH INSTALL

TR-30REF-R-SG-A

TR-30/36 – TOP VIEW FLUSH INSTALL

23 25/32"

604mm

PROUD INSTALL

25 25/32"

655mm

FLUSH INSTALL

TR-30REF-R-SG-A

ELECTRICAL AREA

TEC_TM_009 REV. F07/06/2022Page 12 of 56 TRUE RESIDENTIAL®

PAGE TITLEPRIOR TO INSTALLATION

TR-30 – TOP VIEW TR-30 – FRONT VIEW

TR-36 – TOP VIEW TR-36 – FRONT VIEW

83 15/16"

2132mm

30"

762mm

67 29/32"

1725mm

DOOR

HEIGHT

72 5/8"

1845mm

25 25/32"

655mm

27 29/32"

709mm

30 15/32"

774mm

2 9/16"

65mm

3 15/16"

100mm

90°

55 1/4"

1403mm

23 25/32"

604mm

29 15/32"

748mm

31 15/32"

799mm

29 9/16"

751mm

135°

20 11/16"

525mm

TR-30DZW-R-SG-A

83 15/16"

2132mm

30"

762mm

67 29/32"

1725mm

DOOR

HEIGHT

72 5/8"

1845mm

25 25/32"

655mm

27 29/32"

709mm

30 15/32"

774mm

2 9/16"

65mm

3 15/16"

100mm

90°

55 1/4"

1403mm

23 25/32"

604mm

29 15/32"

748mm

31 15/32"

799mm

29 9/16"

751mm

135°

20 11/16"

525mm

TR-30DZW-R-SG-A

30"

762mm

67 29/32"

1725mm

DOOR

HEIGHT

72 5/8"

1845mm

83 15/16"

2132mm

25 25/32"

655mm

27 29/32"

709mm

30 15/32"

774mm

2 9/16"

65mm

3 15/16"

100mm

135°

20 19/32"

523mm

23 25/32"

604mm

55 1/4"

1403mm

29 15/32"

748mm

31 15/32"

799mm

90°

29 9/16"

751mm

TR-30REF-R-SS-A

36"

915mm

83 15/16"

2132mm

72 5/8"

1845mm

67 29/32"

1725mm

DOOR

HEIGHT

3 15/16"

100mm

27 29/32"

709mm

25 25/32"

655mm

30 15/32"

774mm

2 9/16"

65mm

90°

23 25/32"

604mm

35 9/16"

903mm

61 1/4"

1556mm

37 15/32"

952mm

35 15/32"

901mm

135°

24 13/16"

631mm

TR-36REF-R-SS-A

36"

915mm

83 15/16"

2132mm

72 5/8"

1845mm

67 29/32"

1725mm

DOOR

HEIGHT

3 15/16"

100mm

27 29/32"

709mm

25 25/32"

655mm

30 15/32"

774mm

2 9/16"

65mm

90°

23 25/32"

604mm

35 9/16"

903mm

61 1/4"

1556mm

37 15/32"

952mm

35 15/32"

901mm

135°

24 13/16"

631mm

TR-36REF-R-SS-A

36"

915mm

83 15/16"

2132mm

72 5/8"

1845mm

67 29/32"

1725mm

DOOR

HEIGHT

3 15/16"

100mm

27 29/32"

709mm

25 25/32"

655mm

30 15/32"

774mm

2 9/16"

65mm

90°

23 25/32"

604mm

35 9/16"

903mm

61 1/4"

1556mm

37 15/32"

952mm

35 15/32"

901mm

135°

24 13/16"

631mm

TR-36REF-R-SS-A

36"

915mm

83 15/16"

2132mm

72 5/8"

1845mm

67 29/32"

1725mm

DOOR

HEIGHT

3 15/16"

100mm

27 29/32"

709mm

25 25/32"

655mm

30 15/32"

774mm

2 9/16"

65mm

90°

23 25/32"

604mm

35 9/16"

903mm

61 1/4"

1556mm

37 15/32"

952mm

35 15/32"

901mm

135°

24 13/16"

631mm

TR-36REF-R-SS-A

TR-30 – SIDE VIEW

30"

762mm

67 29/32"

1725mm

DOOR

HEIGHT

72 5/8"

1845mm

83 15/16"

2132mm

25 25/32"

655mm

27 29/32"

709mm

30 15/32"

774mm

2 9/16"

65mm

3 15/16"

100mm

135°

20 19/32"

523mm

23 25/32"

604mm

55 1/4"

1403mm

29 15/32"

748mm

31 15/32"

799mm

90°

29 9/16"

751mm

TR-30REF-R-SS-A

TR-36 – SIDE VIEW

Dimensions may vary by ± 1/8" (3.2 mm)

TEC_TM_009 REV. F 07/06/2022 Page 13 of 71TR-30/36 INSTALL MANUAL

PAGE TITLEPRIOR TO INSTALLATION

ANTI-SWEAT FOAM END PANELS

When installing two or more True units side-by-side, be

sure to leave at least a 5/8” (15.88 mm) gap between

the cabinets, or install foam pads between the

cabinets and on any side without this gap, to prevent

moisture from developing on applications.

If installing anti-sweat foam end panels, True

recommends applying a panel to each of the

units being joined together. To order foam pads,

contact our parts department at 844-849-6226 or

TrueResidentialParts@TrueMfg.com.

TEC_TM_009 REV. F07/06/2022Page 14 of 56 TRUE RESIDENTIAL®

PAGE TITLE

• NEVER USE AN ADAPTER PLUG! An adapter

plug alters the original equipment manufacturer

(OEM) plug configuration when connecting it

to a power source. True will not

warranty any refrigerator/freezer

that has been connected to an

adapter plug.

• NEVER USE AN EXTENSION CORD! An extension

cord is any component that adds length to

the OEM power cord when connecting it to

a power source. True will not warranty any

refrigerator/freezer that has been connected to

an extension cord.

• Before your new unit is connected to a power

supply, check the incoming voltage. If the

recorded voltage is less than the rated voltage

for operation (+/-5%) and amp rating, correct

immediately. Refer to the serial label for this

voltage requirement.

• NEVER unplug your refrigerator/freezer by pulling

on the power cord. Always grip the plug firmly

and pull straight from the outlet.

• When moving the refrigerator/freezer for any

reason, take care to no roll over or damage the

power cord.

• Immediately repair or replace all power cords

that have become frayed or otherwise damaged.

DO NOT use a power cord that shows cracks or

abrasion damage along its length or at either

end.

• If the supply power cord is damaged, replace it

with OEM components. To avoid hazard, this

should be done by a licensed service provider

or similarly qualified person.

SITE PREPARATION

ELECTRICAL SAFETY

Power Supply: 115VAC, 60hz

Circuit Breaker: 15 Amp

Receptacle: 3-Prong Grounding-Type

• For all built-in models, the electrical supply

should be located within the indicated shaded

area shown in the figure below.

• Be sure to follow the National Electrical Code,

as well as local codes and ordinances, when

installing the receptacle.

• A ground fault circuit interrupter (GFCI) is not

recommended and may cause interruption of

operation.

• The power cord from this appliance is equipped

with a grounding plug which minimizes the

possibility of electric shock hazard.

• The wall outlet and circuit should be checked

by a licensed electrician to be sure the outlet

is wired with the correct polarity and properly

grounded.

• If the outlet is a standard 2-prong outlet, it is

your personal responsibility and obligation to

have it replaced with a properly grounded wall

outlet.

• DO NOT, under any circumstances, cut or remove

the ground prong from the power cord. For

personal safety, this appliance must be properly

grounded.

• The refrigerator/freezer should always be

plugged into a dedicated

electrical circuit. This provides the

best performance and prevents

building wiring circuits from

overloaded, which could cause a fire hazard

from overheated wires.

TEC_TM_009 REV. F 07/06/2022 Page 15 of 71TR-30/36 INSTALL MANUAL

PAGE TITLESITE PREPARATION

POWER CORD

INSTALLATION

Fully seat the power cord into the cabinet receptacle

until it locks in position. See fig. 1.

REMOVAL

Depress the red button. See fig. 2.

FIG. 1.

Fully insert the power

cord into the receptacle.

FIG. 2.

Push the red button to

remove the plug.

TR-30/36

FRONT VIEW ROUGH OPENING & ELECTRICAL AREA

ELECTRICAL AREA

NOTE: DIMENSIONS MAY VARY BY ± 1/8” (3.175 mm)

TEC_TM_009 REV. F07/06/2022Page 16 of 56 TRUE RESIDENTIAL®

PAGE TITLE

ELECTRICAL AREA

WATER AREA

SITE PREPARATION

FIG. 1.

Water line connection. Fitting included, PEX not included

Plumbing Requirements

Water Supply

1/4" PEX tubing (1/4" O.D. lines

and fittings not included

NOTE: Copper line is not

recommended

Flow Rate 0.5 gpm / 1.89 lpm

Operating Pressure 30-100 psi (207-689 kPa)

Incoming Water Temperature 33-10 0°F (0.6-38°C)

NOTE: DIMENSIONS MAY VARY BY ± 1/8” (3.175 mm)

OPTIONAL ICEMAKER REQUIREMENTS

(TR-30FRZ/36FRZ-IM-C)

WATER SUPPLY REQUIREMENTS

Units with optional ice makers come with 20” (508

mm) of polyethylene tubing with a 1/4” O.D. push

connector for customer attachment.

Before installing your unit, prepare the water supply

line. Please see plumbing requirements in the

plumbing requirements table.

• Purge the water line prior to final connection to the

unit. This removes any debris present in the line.

• Only connect to a potable water supply!

• Do not connect to a hot water supply!

• Install the water filter before turning on the

water supply to the icemaker. See “Water Filter

Installation” (page 17).

• A copper line is not recommended for this

application.

• Check all water line fittings for leaks.

• Tape the supply line to the floor before moving the

unit into its final installation location.

• In the water connection area (see the rough opening

illustration), tape the water line to the floor.

TEC_TM_009 REV. F 07/06/2022 Page 17 of 71TR-30/36 INSTALL MANUAL

PAGE TITLEINSTALLATION

WATER FILTER INSTALLATION &

PERFORMANCE DATA

The water filter filters sediment and removes

unpleasant taste and odor. Install the provided water

filter before using the icemaker. The unit will not make

ice until the water filter is installed.

PROCEDURE

1. Remove the kickplate. See fig. 1.

2. Insert the provided water filter (see fig. 2) and

rotate the filter clockwise. (See figs. 3 and 4).

3. Reinstall the kickplate.

WATER FILTER PERFORMANCE DATA

• This system has been tested according to NSF/ANSI

Standard 42, 53, 372, 401, P473 and CSA B483.1

for reduction of the substances listed below. The

concentration of the indicated substances in water

entering the system was reduced to a concentration

less than or equal to the permissible limit for

water leaving the system, as specified in NSF/

ANSI Standards 42, 53, 372, 401, P473 and CSA

B483.1.

• Systems certified for cyst reduction may be used

on disinfected waters that may contain filterable

cysts. The system conforms to NSF/ANSI 42, 53,

372, 401,P473 and CSA B483.1 for the specific

performance claims as verified and substantiated

by test data. Conforms to NSF/ANSI 53 for VOC

reduction. See below for individual contaminants

and reduction performance.

NOTE: TESTING WAS PERFORMED UNDER

STANDARD LABORATORY CONDITIONS,

ACTUAL PERFORMANCE MAY VARY.

FIG. 4.

Installed water filter.

FIG. 3.

Insert the water filter and rotate it clockwise.

FIG. 2.

Locate the provided water filter shipped in the ice bucket.

FIG. 1.

Pull the kickplate from the cabinet.

TEC_TM_009 REV. F07/06/2022Page 18 of 56 TRUE RESIDENTIAL®

PAGE TITLEINSTALLATION

A-1, G-1, G-2, G-3, G-4, L-1, L-2, L-3, L-4, L-5,

M-1, M-2, S-1, S-2, S-4, W-2, W-3, W-4

Performance Data Sheet

Aquamor • 42188 Rio Nedo • Temecula, California 92590 • www.aquamorusa.com • 866-218-8473

Flow Rate: 0.5 gpm / 1.89 lpm

Operating Temperature: 33 - 100°F (0.6°C - 38°C)

Operating Pressure: 30 psi (207 kPa) - 100 psi (689 kPa)

Capacity: 300 gallons (1,136 L) or six months

Filter Specifications

This system has been tested according to NSF/ANSI Standard 42, 53, 372, 401, P473 and CSA B483.1 for reduction of the substances listed

below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as speciﬁed in NSF/ANSI Standards 42, 53, 372, 401, P473 and CSA B483.1.

Systems certiﬁed for cyst reduction may be used on disinfected waters that may contain ﬁlterable cysts. The system conforms to NSF/ANSI 42, 53, 372, 401,

P473 and CSA B483.1 for the speciﬁc performance claims as veriﬁed and substantiated by test data. Conforms to NSF/ANSI 53 for VOC reduction. See above

for individual contaminants and reduction performance. Note: Testing was performed under standard laboratory conditions, actual performance may vary.

System to be used with municipal or well water sources treated and tested on regular basis to ensure bacteriological safe quality. Do not use with water that

is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

It is essential that the manufacturer’s recommended installation, maintenance and ﬁlter replacement requirements be carried out for the product to perform

as advertised. Manufactured by Aquamor, LLC, Temecula, CA.

CHLORINE >97% 2.0 mg/L 1.0 mg/L

ALACHLOR* >98% 0.050 0.001

Asbestos 99.98% 189 MFL 99%

ATRAZINE* >97% 0.100 0.003

BENZENE* >99% 0.081 0.001

BISPHENOL 99.1% 2.058 mg/L <0.300ng/L

BROMODICHLOROMETHANE (TTHM)* >99.8% 0.300 0.015

BROMOFORM (TTHM)* >99.8% 0.300 0.015

CARBOFURAN (Furadan)* >99% 0.19 0.001

Carbon Tetrachloride >95% 0.014 0.005

CHLORDANE >99.5% 0.04 +/-10% 0.002

CHLOROBENZENE (Monochlorobenzene)* >99% 0.077 0.001

CHLOROPICRIN* 99% 0.015 0.0002

CHLOROFORM (TTHM)* (surrogate chemical) >99.8% 0.300 0.015

2, 4-D* 98% 0.110 0.0017

CYST

(Giardi; Cryptosporidium; Entamoeba; Toxoplasma)

>99.95%

MINIMUM 50,000/L

Cryptosporidium (see CYST)

>99.95% MINIMUM 50,000/L

DBCP (see Dibromochloropropane)* >99% 0.052 0.00002

1,2-DCA (see 1,2-DICHLOROETHANE)* 95% 0.088 0.0048

1,1-DCE (see 1,1-DICHLOROETHYLENE)* >99% 0.083 0.001

DIBROMOCHLOROMETHANE

(TTHM; Chlorodibromomethane)*

>99.8% 0.300 0.015

DIBROMOCHLOROPROPANE (DBCP)* >99% 0.052 0.00002

o-DICHLOROBENZENE (1,2 Dichlorobenzene)* >99% 0.080 0.001

p-DICHLOROBENZENE (para-Dichlorobenzene) >98% 0.040 0.001

1,2-DICHLOROETHANE (1,2-DCA)* 95% 0.088 0.0048

1,1-DICHLOROETHYLENE (1,1-DCE)* >99% 0.083 0.001

CIS-1,2-DICHLOROETHYLENE* >99% 0.170 0.0005

TRANS-1,2- DICHLOROETHYLENE* >99% 0.086 0.001

1,2-DICHLOROPROPANE (Propylene Dichloride)* >99% 0.080 0.001

CIS-1,3- DICHLOROPROPYLENE* >99% 0.079 0.001

DINOSEB* 99% 0.170 0.0002

EDB (see ETHYLENE DIBROMIDE)* >99% 0.044 0.00002

ENDRIN 99% 0.053 0.00059

Entamoeba (see CYSTS) 99.95%

MINIMUM 50,000/L

ESTRONE 96.9% 0.1388 mg/L <0.020 mg/L

ETHYLBENZENE* >99% 0.088 0.001

ETHYLENE DIBROMIDE (EDB)* >99% 0.044 0.00002

Furadan (see CARBOFURAN)* >99% 0.19 0.001

Giardia Lamblia (see CYST) >99.95%

MINIMUM 50,000/L

HALOACETONITRILES (HAN)*

BROMOCHLOROACETONITRILE 98% 0.022 0.0005

DIBROMOACETONITRILE 98% 0.024 0.0006

HALOACETONITRILES (HAN)*

DICHLOROACETONITRILE 98% 0.0096 0.0002

TRICHLOROACETONITRILE 98% 0.015 0.0003

% of Inﬂuent Max

Contaminant reduction Concentration Allowable

99.95% REDUCTION

REQUIREMENT

99.95% REDUCTION

REQUIREMENT

99.95% REDUCTION

REQUIREMENT

99.95% REDUCTION

REQUIREMENT

HALOKETONES (HK):*

1,1-DICHLORO-2-PROPANONE 99% 0.0072 0.0001

1,1,1-TRICHLORO-2-PROPANONE 96% 0.0082 0.0003

HEPTACHLOR* >99% 0.25 0.00001

HEPTACHLOR EPOXIDE* 98% 0.0107 0.0002

HEXACHLOROBUTADIENE (Perchlorobutadiene)* >98% 0.044 0.001

HEXACHLOROCYCLOPENTADIENE* >99% 0.060 0.000002

IBUPROFEN 96.7% 0.432 mg/L <0.060 mg/L

LEAD (pH 6.5) >99.3% 0.15 +/- 10% 0.010

LEAD (pH 8.5) >99.3% 0.15 +/- 10% 0.010

LINDANE* >99% 0.055 0.00001

METHOXYCHLOR* >99% 0.050 0.0001

Methylbenzene (see TOLUENE)* >99% 0.078 0.001

Mercury (pH 6.5) 74.9% 0.0059 0.002

Mercury (pH 8.5) 97.8% 0.0061 0.002

Monochlorobenzene (see CHLOROBENZENE)* >99% 0.077 0.001

NAPROXEN 95.3% 0.130 mg/L <0.020 mg/L

NONYLPHENOL 97.1% 2.058 mg/L <0.200 mg/L

POLYCHLORINATED BIPHENYLS

(PCBs, Aroclor 1260)

>99.9% 0.01 +/- 10% 0.0005

PCE (see Tetrachloroethylene) >96% 0.014 0.005

PENTACHLOROPHENOL* >99% 0.096 0.001

Perchlorobutadiene

(see HEXACHLOROBUTADIENE)*

>98% 0.044 0.001

PFOA 98.0% 0.0005 mg/L <0.00007 mg/L

PFOS 98.0% 0.001 mg/L <0.00007 mg/L

Phenytoin 94.7% 0.2173 mg/L <.030 mg/L

Propylene Dichloride

(see 1,2 -DICHLOROPROPANE)*

>99% 0.080 0.001

SIMAZINE* >97% 0.120 0.004

STYRENE (Vinylbenzene)* >99% 0.150 0.0005

1,1,1-TCA (see 1,1,1 - TRICHLOROETHANE)* 95% 0.084 0.0046

1,2,4-Trichlorobenze >99% 0.215 0.07

TCE (see TRICHLOROETHYLENE)* >99% 0.180 0.0010

1,1,2,2- TETRACHLOROETHANE* >99% 0.081 0.001

TETRACHLOROETHYLENE* >99% 0.081 0.001

TOLUENE (Methylbenzene)* >99% 0.078 0.001

TOXAPHENE >92.9% 0.015 +/- 10% 0.003

2,4,5-TP (Silvex)* 99% 0.270 0.0016

Toxoplasma (see CYST) >99.95%

MINIMUM 50,000/L

TRIBROMOACETIC ACID* 0.042 0.001

1,1,1-TRICHLOROETHANE (1,1,1-TCA)* 95% 0.084 0.0046

1,1,2-TRICHLOROETHANE* >99% 0.150 0.0005

TRICHLOROETHYLENE (TCE)* >99% 0.180 0.0010

TRIHALOMETHANES (TTHM)

(Chloroform; Bromoform;

Bromodichloromethane; Dibromochloromethane)

>99.8% 0.300 0.015

Unsym-Trichlorobenzene

(see 1,2,4-TRICHLOROBENZENE)

* >99% 0.160 0.0005

Vinylbenzene (see STYRENE)* >99% 0.150 0.0005

XYLENES (TOTAL)* >99% 0.070 0.001
