True TCGD-50 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TCGD-50
TCGD-50
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH
Voltage Amps
Crated
Weight
(lbs.)
(kg)
TCGD-50 2 23.8
674
350
7/8
1293
351/2
902
477/8
1217
115/60/1 6.0 445
202
1/06
True’s non-refrigerated “dry”
bakery case combines efficient,
high volume merchandising
with an elegant curved
glass front for sophisticated
presentation of breads, desserts
and pastries.
Cabinet is NSF-7 certified to
hold open food product.
Single pane curved glass front
and side panels provide extra
large viewing area to maximize
bakery product presentation.
Front glass tilts forward for easy
cleaning.
Three (3) adjustable PVC coated
shelves.
Special “brown bulb” lighting
provides balanced color
spectrum that enhances the
appearance of bakery products.
Front and sides standard
with white laminated panels,
five additional color options
available at no charge.
Stainless steel top.
White aluminum interior sides
and top. High impact plastic
floor with coved corners.
Display Case:
Curved Glass, Non-Refrigerated, “Dry” Bakery Case
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor.
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

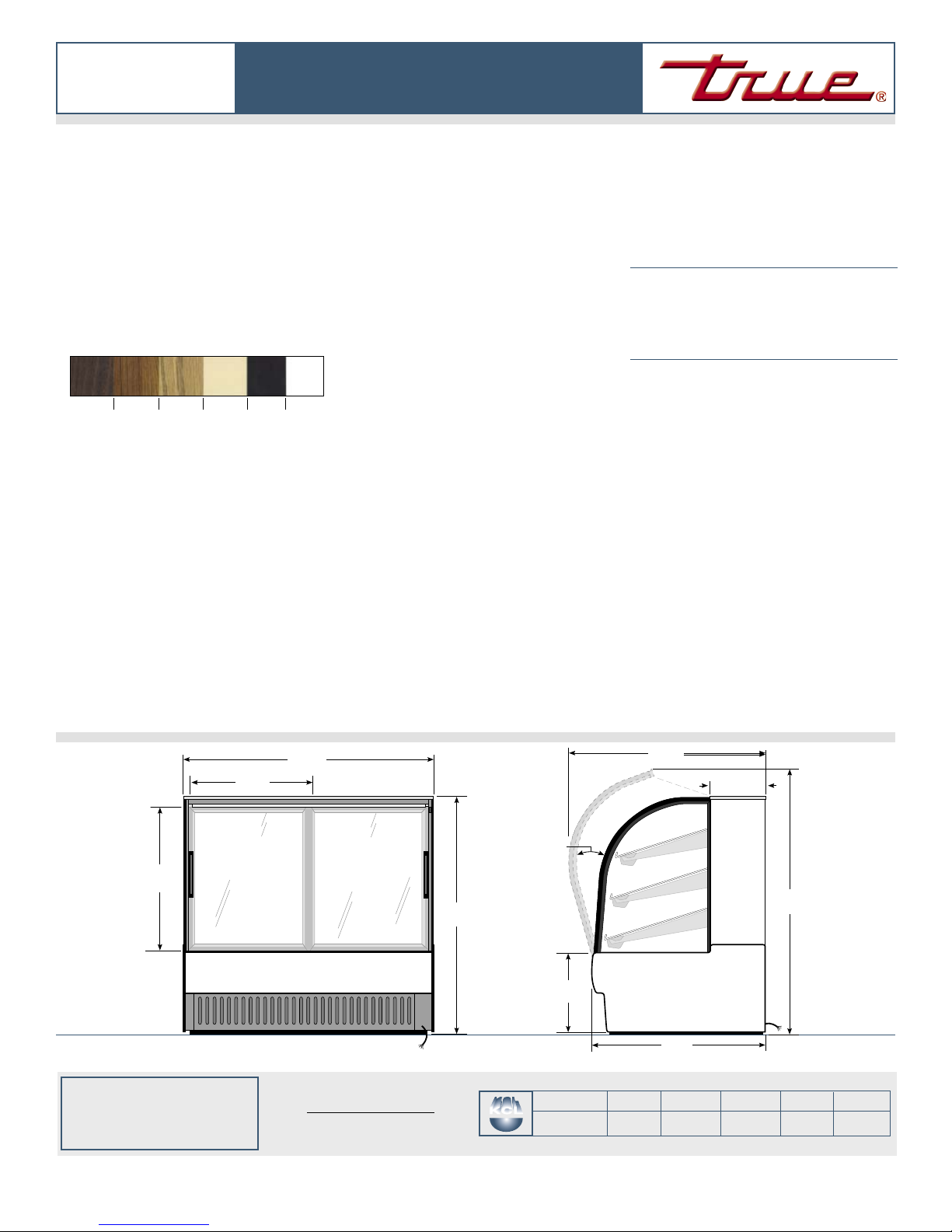

Model Elevation Right Plan 3D Back
PLAN VIEW
KCL
TCGD-50
DESIGN
• True’s “dry” display case combines
efficient, high volume merchandising
with an elegant curved glass front for
sophisticated presentation of breads,
desserts and pastries.
• Designed to provide an attractive
companion to our forced-air
refrigerated display case.
CABINET CONSTRUCTION
• Exterior - white laminate front and side
panels. Color options available
at no charge:
All laminate ships separately from
unit and is field installed. Stainless steel
top. Black front and rear grills and trim.
• Interior - NSF approved white aluminum
sides and top; high impact plastic floor
with coved corners.
• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• Frame rail fitted with leg levelers.
CURVED FRONT DISPLAY GLASS
• Single pane curved glass front and side
panels provide extra large viewing
area to maximize bakery product
presentation. Glass is tempered for
safety.
• Front glass tilts forward for easy
cleaning.
REAR DOORS
• “Low-E”, double pane thermal glass
rear door inserts with mitered plastic
channel frame.
• Each door fitted with 12" (305 mm)
long molded plastic handle.
• Self-closing doors, efficient counter
balanced weight system for smooth,
even, positive closure. Sliding doors
ride on stainless steel V-Channel with
stainless steel bearings. Doors fit within
plastic channel frame.
SHELVING
• Three (3) adjustable, heavy duty PVC
coated wire shelves 44
3
/ 8 "L x 22
5
/ 32 "D
(1128 mm x 563 mm). Shelving system is
cantilevered and angle can be adjusted
to maximize presentation.
• Each shelf supports a maximum weight
of 150 lbs. (69 kg).
PAN CAPACITY
• Cabinet holds eight (8) 18"L x 26"D
(458 mm x 661 mm) display pans (2 per
level) and four (4) 9"L x 26"D (229 mm x
661 mm) display pans (1 per level). Pans
supplied by others.
LIGHTING
• Case is equipped with four (4) light
sources for maximum product display;
three (3) shelf mounted and one (1)
cabinet mounted. Special “brown
bulb” lighting provides balanced color
spectrum that enhances the appearance
of bakery products.
• Safety shielded lighting tube assure
longer, brighter, shadow-free product
illumination.
MODEL FEATURES
• 5 Amp exterior scale receptacle.
• Recessed exterior light switch.
• NSF-2 compliant for open food product.
ELECTRICAL
• Unit comes with 4 feed wires (including
ground) to be hardwired at installation
site to a 115/60/1 phase-15 amp
dedicated outlet.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒2
1
/ 2 "(64 mm) diameter castors (only
available when cord set is ordered).
❒6"(153 mm) standard legs.
❒6"(153 mm) seismic/flanged legs.
❒12" (305 mm) cord set (factory
installed). Exterior scale receptacle will
not be included with this option.
❒Custom exterior laminates, contact
factory for details. See our website:
www.truemfg.com for the latest color
offerings.
❒Additional shelves (non-lighted).
Display Case:
Curved Glass, Non-Refrigerated, “Dry” Bakery Case
TCGD-50 TFD055E TFD056S TFD056P TFD0563 TFD056B
351/2 "
(902 mm)
401/2"
(1029 mm)
BACK VIEW RIGHT VIEW
533/16 "
(1351 mm)
4713/16"
(1215 mm)
233/8"
(594 mm)
161/4 "
(413 mm)
Walnut Teak Oak Beige Black White
507/8"
(1293 mm)
281/4"
(718 mm)
15-20°
11"
(280 mm)
