Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TR2R-4HS
TR2R-4HS
*Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, ▲Plug type varies by country.
and 1" (26 mm) for system mechanical components.
5/07
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility costs
and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C) for the
best in food preservation.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with one (1) interior
kit option per full section,
factory installed. Four (4)
different interior kits available.
Positive seal self-closing doors
with 120º stay open feature.
Lifetime guaranteed door
hinges.
Lifetime guaranteed recessed
door handles.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
TR Series:
Reach-In Solid Half Door Refrigerator
R
®
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
LDH
*
TR2R-4HS 4 56
1586
513/8
1305
345/8
880
781/4
1988
1/2
1/2
115/60/1
230-240/50/1
10.0
5.5
5-15P
▲
9
2.74
650
295

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TR2R-4HS TFQX59E TFQX59S TFQY54P TFQX593
TR2R-4HS
DESIGN
• True’s solid door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with
colder product temperatures, lower utility costs
and exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C) for the best in food
preservation.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize capacity.
• Hot gas condensate for energy efficiency.
• Glass condensate pan to prevent electrolysis.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
sides, back and bottom.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and liners.
Doors open within cabinet dimensions.
• Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 120º stay
open feature. Lifetime guaranteed door
hinges.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• One (1) factory installed interior kit option
per full section. Four (4) different interior kits
available (see Kit Options). Pilasters and tray
slides are factory installed at no charge.
LIGHTING
• Incandescent interior lighting - light activated
by rocker switch mounted above top doors,
safety shielded.
MODEL FEATURES
• Exterior mounted digital temperature display,
available with either °F or °C display.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 6" (153 mm) stainless steel legs.
❒ Stainless steel rail skirt for use with legs
(field installed).
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory
installed).
❒ Curb mountable units.
❒ Remote cabinets (condensing units supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.
❒Kit #3: Six (6) sets of universal type tray slides
and pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans
or two (2) 12"L x 20"D (305 mm x 508 mm)
pans.
❒Kit #4: Three (3) chrome shelves 23
1
/ 2 "L x
27
3
/ 4 "D
(597 mm x 705 mm). Four (4) shelf supports
included per shelf (factory installed). Shelves
adjustable on 6" (153 mm) increments.
Optional wall mounted shelf support pilasters
(factory installed) with four (4) shelf clips per
shelf available; adjustable on
1
/ 2 " (13 mm)
increments.
❒Additional kit option components available
individually.
115/60/1
NEMA-5-15R
TR Series:
Reach-In Solid Half Door Refrigerator

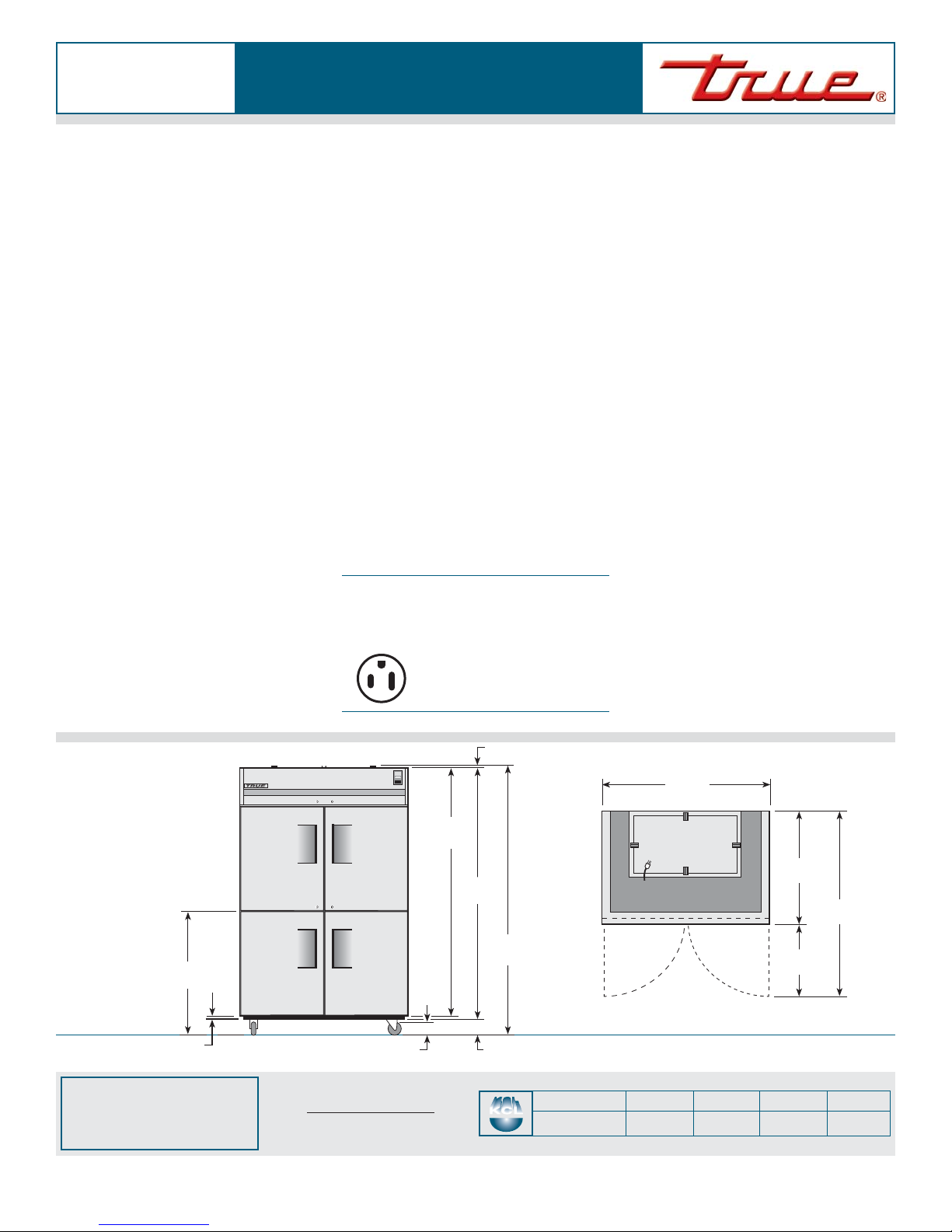

ELEVATION
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1"
(26 mm)
PLAN VIEW
77"
(1956 mm)
13/16"
(31 mm)
385/8"
(982 mm)
345/8"
(880 mm)
2317/32"
(598 mm)
585/32"
(1478 mm)
513/8"
(1305 mm)
4"
(102 mm)
