True TUC-48 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TUC-48
TUC-48
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-48 2 12.0
340
448
3/8
1229
301/8
766
293/4
756
1/5
1/3
115/60/1
230-240/50/1
5.0
4.2
5-15P
▲
7
2.13
270
123
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
6/07
R
True’s undercounter units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.
Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Front breathing.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Undercounter:
Solid Door Refrigerator
®

STANDARD FEATURES
Model:
PLAN VIEW
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
KCL
125/8"
(321 mm) 195/8"
(499 mm)
TUC-48 TFQY02E TFQY02S TFQY02P TFQY023
TUC-48
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airflow to provide uniform product
temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C) for the best in food
preservation.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units
a more efficient low velocity, high
volume airflow design. This unique
design ensures faster temperature
recovery and shorter run times in the
busiest of food service environments.
• Condensing unit access in back
of cabinet, slides out for easy
maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure
and solid doors are foamed-in-
place using high density, CFC free,
polyurethane insulation.
• 5" (127 mm) diameter stem castors -
locks provided on front set. 36"
(915 mm) work surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Each door fitted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock to
ensure permanent attachment.
• Positive seal self-closing doors with 90°
stay open feature. Doors swing within
cabinet dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC
coated wire shelves 219/16"L x 16"D
(548 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on 1/2" (13 mm)
increments.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• NSF-7 compliant for open food
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase, 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Barrel locks (factory installed).
Requires one per door.
❒ Basic overshelf.
❒ Sandwich/salad service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
Requires “L” brackets.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Heavy duty, 16 gauge tops.
❒ Exterior rectangular digital
thermometer (factory installed).
❒ ADA compliant models with 34"
(864 mm) work surface height.
❒ Low profile models with recessed
castors. 311/2" (810 mm) work surface
height.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

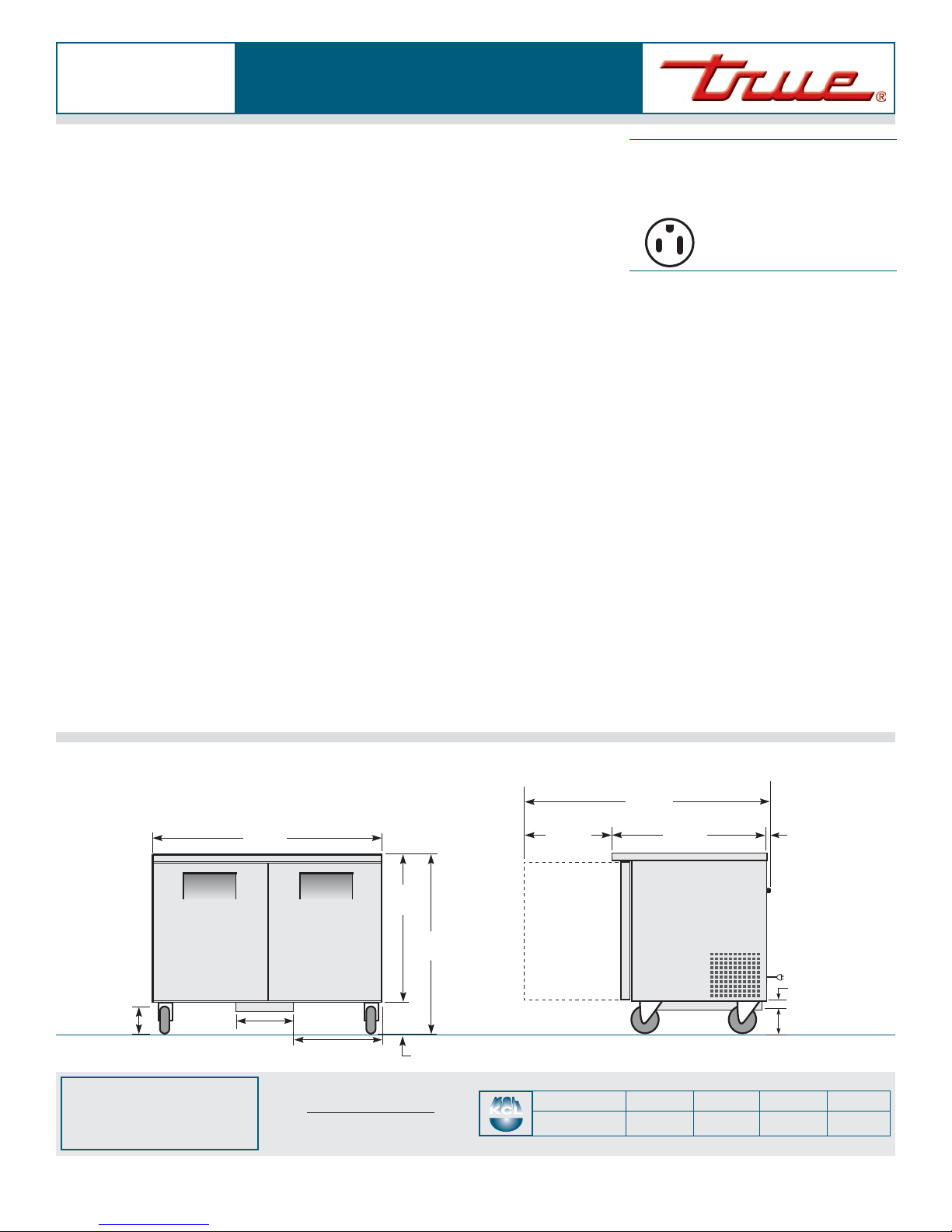

ELEVATION RIGHT VIEW
485/16 "
(1228 mm)
293/4"
(756 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
2115/32"
(546 mm)
5217/32"
(1335 mm)
301/16"
(764 mm)
Undercounter:
Solid Door Refrigerator
1"
(26 mm)
25/16"
(59 mm)
37/8"
(99 mm)
5"
(127 mm)
