24 Series Installation Guide
Thank you for purchasing your new True Professional Series unit. For over
65 years, True® has been a leader in commercial refrigeration. No other
refrigeration company has the reputation for being the industry’s best when
it comes to superior quality and service. And while our reputation for quality
reaches across the globe, all of our products are proudly made in the USA.
Respected by the culinary world,True’s unmatched performance is proven
—our products are carried in some of the most prestigious restaurants and
hotels around the world.
And now, we are pleased to bring this performance to you —crafting products
for your home of the same quality that the world’s best chefs demand in their
kitchens.
This guide will answer most of your questions about the installation of yourTrue
Professional unit. If you have questions that are not answered here, contact
True customer service at 800-325-6152 or info@true-residential.com. Or you
may also visit our website at true-residential.com.
Thank You
For
Your Purchase
INDEX
24 Series Installation Guide
Wine Shelving Adjustment 45
General Maintenance, Replacement Parts, Installation Checklist, FAQs and
Warranty 47
Installation Specifications 8-12
Installation Specifications for 24 Series Solid Panel Ready (OP)
and Glass Framed Panel Ready (OG) 13-23
Installation Specifications for Beer Dispenser Units 24-31
Ownership 1
Safety Precautions 1
Disposal of Old Refrigerator 1
CFC Disposal 1
Uncrating 2
Electrical Specifications 3
Leveling Refrigerator 4
Installing Anti-Tip Brackets 5
Installing the Door Stop 6
24 Series Cabinet Components and
True Precision Control Operation 33-42
Home Alarm System - (Dual Zone Wine Cabinet only) 43
TM
www.true-residential.com
24 Series
Stainless Solid
Door/Drawers (SS) Stainless Glass Door
(SG)
ALL REFRIGERATOR
TUR-24-R/L-SS-A
TUR-24-R/L-SG-A
ALL REFRIGERATOR
DRAWERS
TUR-24-D-SS-A
BEVERAGE CENTER
TBC-24-R/L-SG-A
WINE CABINET
TWC-24-R/L-SG-A
DUAL ZONE WINE
CABINET
TWC-24DZ-R/L-SG-A

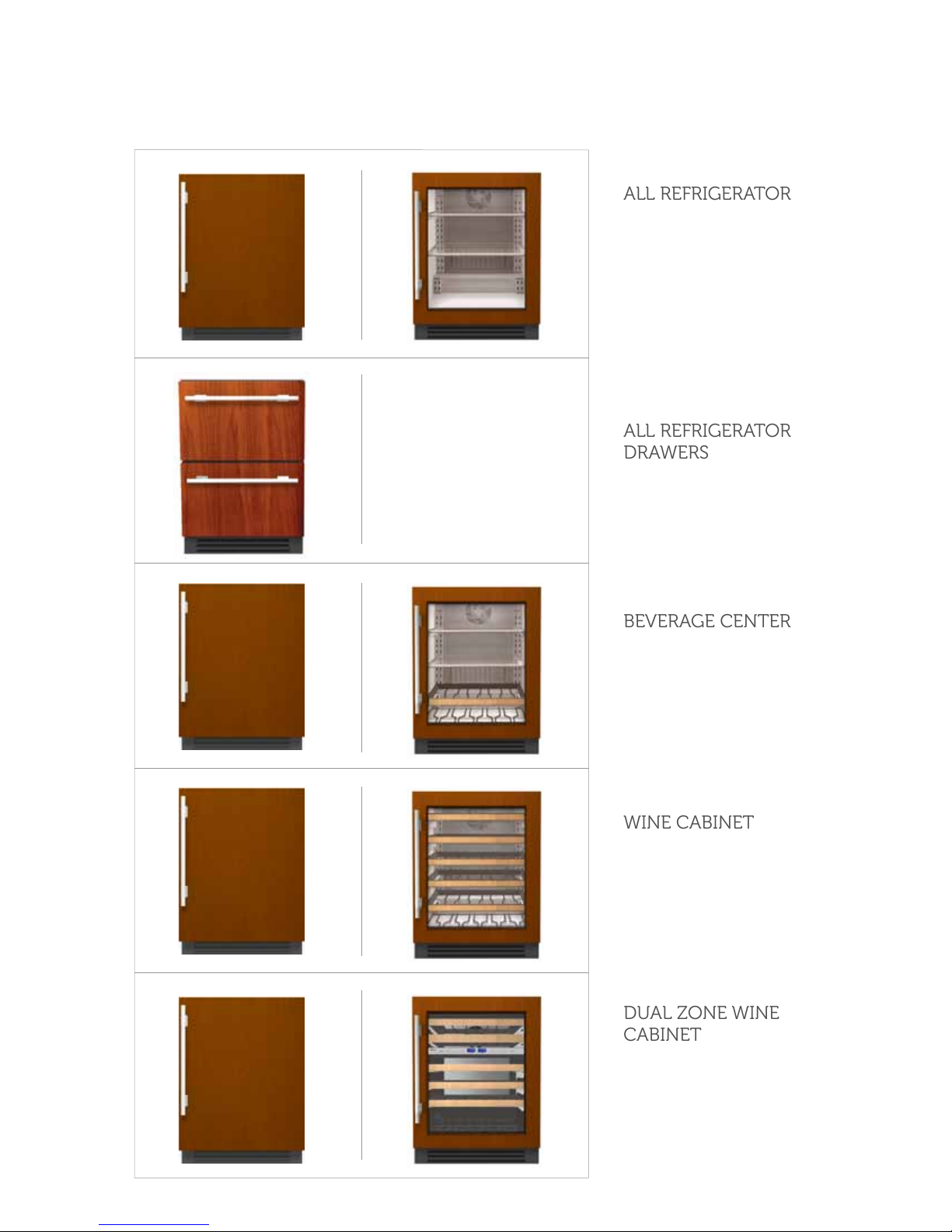

ALL REFRIGERATOR
TUR-24-R/L-OP-A
TUR-24-R/L-OG-A
ALL REFRIGERATOR
DRAWERS
TUR-24-D-OP-A
BEVERAGE CENTER
TBC-24-R/L-OP-A
TBC-24-R/L-OG-A
WINE CABINET
TWC-24-R/L-OP-A
TWC-24-R/L-OG-A
DUAL ZONE WINE
CABINET
TWC-24DZ-R/L-OP-A
TWC-24DZ-R/L-OG-A
Solid Panel Ready
(Door/Drawers) (OP)
Glass Framed Panel Ready
(OG)
BEER DISPENSER
BEER DISPENSER DOUBLE DRAFT
TUR-24BD-R/L-SS-A
TUR-24DD-R/L-SS-A
Stainless Solid
Door (SS)
True Professional 24 Series Installation Guide 1
OWNERSHIP
SAFETY PRECAUTIONS
DANGER!
RISK OF CHILDREN
ENTRAPMENT
To insure that your unit works properly from the
first day, it must be installed properly. (We highly
recommend a trained refrigeration mechanic and
electrician install your True Professional Cabinet.) The
cost of a professional installation is money well spent.
Before you start to install yourTrue Professional
Cabinet, carefully inspect it for freight damage. If
damage is discovered, immediately file a claim with
the delivery freight carrier. True is not responsible for
damage incurred during shipment.
Any questions about the installation please contact
yourTrue dealer or True Technical Service Department
at 1-800-325-6152 (Please have your model and
serial numbers available when you call our Service
Department).
and located in accordance with the installation
instructions before it is used.
the shelves in the refrigerator. They could damage
the refrigerator and seriously injure themselves.
vapors and liquids in the vicinity of this or any
other appliance.
(gaps between the doors and between the doors
and cabinet) small areas are not necessarily safe.
making repairs.
NOTE: We strongly recommend that any
servicing be performed by a qualified individual.
power from the refrigeration system, it does not
remove power from other circuits. For example,
temperature control and lights.
NOTE: WE STRONGLY RECOMMEND THAT ANY
SERVICING BE PERFORMED BY A QUALIFIED
INDIVIDUAL
PROPER DISPOSAL OF THE OLD
REFRIGERATOR
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
please follow the instructions below to help prevent
accidents.
BeforeYou Throw AwayYour Old Refrigerator or
Freezer:
easily climb inside.
CFC DISPOSAL
Your old refrigerator may have a cooling system that
to harm stratospheric ozone. If you are throwing away
your old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified service. If
you intentionally release this CFC refrigerant you can
be subject to fines and imprisonment under provisions
of the environment legislation.
True Professional 24 Series Installation Guide
2
A
C
D
Tools Required:
The following procedure is recommended for
uncrating the unit:
MOVE YOUR UNIT AS CLOSE TO THE FINAL
LOCATION AS POSSIBLE BEFORE REMOVING
A. Remove nails securing cardboard box to the
wooden skid.Then discard any outer packaging
(cardboard, clear plastic).
Inspect for concealed damage. Again, immediately file
a claim with the freight carrier if there is damage.
B. IMPORTANT: Remove wooden block with Phillips
head screw driver before removing refrigerator
from pallet.
C. Remove skid by carefully lifting the refrigerator off
and place skid aside. Remove clear plastic
coating from cabinet.
D. Open the unit and remove any packing material.
Styrofoam, tape, and any other material used
for shipping purposes.
UNCRATING
B
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord. For personal
safety, this appliance must be properly grounded.

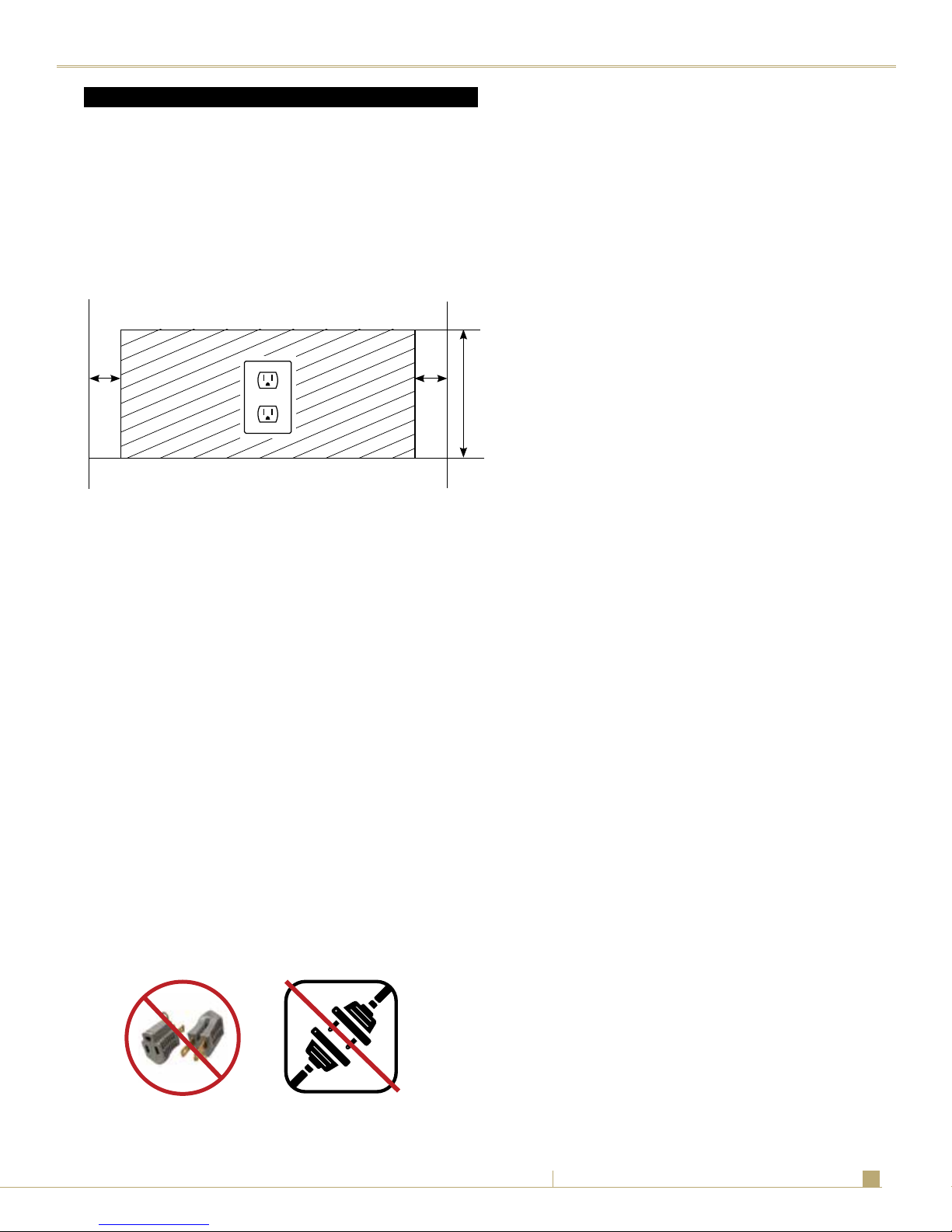

To minimize the depth of the cutout opening, the
electrical outlet must be positioned as shown below.
Before your new unit is connected to a power supply,
check the incoming voltage with a volt meter. If anything
less than 100% of the rated voltage for operation is
noted, correct immediately.
The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appliance.
A 115V AC, 60 Hz, 15 amp circuit breaker and electrical
supply are required.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
If the outlet is a standard 2-prong outlet, it is your
personal responsibility and obligation to have it replaced
with the properly grounded 3 prong wall outlet.
Do not use an extension cord or two prong adaptor.
Electrical ground is required on this appliance.
2” 2” 8”
Rear wall of cut out
ELECTRICAL SPECIFICATIONS
The unit should always be plugged into its own
individual electrical outlet, which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house
wiring circuits which could cause a fire hazard from
overheated wires. Never unplug your refrigerator by
pulling on the power cord. Always grip plug firmly
and pull straight out from the outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. When moving the
refrigerator away from the wall, be careful not to roll
over or damage the power cord.
True Professional 24 Series Installation Guide 3
True Professional 24 Series Installation Guide
4
1. Set unit in its final location. Be sure there is adequate ventilation in
your room.
2. Proper leveling of your True unit is critical to operating success
(for non-mobile models). Effective condensate removal and door
operation will be effected by leveling. Adjust leg levelers on the front
and back of the cabinet if it needs to be lowered or raised.
3. The unit should be leveled from the interior of the unit front to back
and side to side with a level. If the refrigerator is not level adjust the
stainless steel leg levelers. The leg levelers can be adjusted by turning
to reach the desired leveling height as shown in the illustration below.
4. Free plug and cord from back of cooler (do not plug in).
5. The unit should be placed close enough to the electrical supply so
that extension cords are never used.
6. Once installed in final location, insert toe kick by clipping in place.
WARNING: COMPRESSOR WARRANTIES ARE VOID IF
THE UNIT IS MORE THAN 7 FT. (2.1M) FROM PLUG-IN
CONNECTION OR IF AN EXTENSION CORD IS USED.
LEVELING REFRIGERATOR
BC
To prevent this the anti-tip brackets need to be installed.
Reconnect the anti-tip bracket if the product is moved.
Failure to follow these instructions can result in property
or bodily harm.
Read all installation instructions first. Install the anti-tip
brackets to hold both rear legs of the unit. Follow these
the unit into final operating position.
procedure of drilling mounting holes through your type
PROTECT THE FLOOR COVERING.
AANTI-TIP BRACKET LOCATOR - TOP VIEW
INSTALLING ANTI-TIP BRACKETS
TIP OVER HAZARD: A CHILD OR ADULT CAN TIP THE REFRIGERATOR
AND MAY CAUSE PROPERTY OR BODILY HARM.
A. Determine the location of the unit. From the front
of the determined location of the lower louver grill
measure back 201/2
and outer side of the bracket should sit. Using the
bracket as a template mark the holes for drilling.
pilot holes for each of the bracket holes. To mount
use a masonry bit to drill pilot holes. Align anti-tip
tip bracket with screws provided using the brass
colored screw for wood, or blue colored masonry
screw for concrete.
C. Move unit into final position making sure rear leveling
legs slide into the anti-tip brackets.
Back of the unit
Cabinet Front
223/16
2225/32201/2
Overlay Panel
221/32
True Professional 24 Series Installation Guide 5
True Professional 24 Series Installation Guide
6
INSTALLING THE DOOR STOP
All units are provided with an optional door stop. When installed, the door stop will restrict the door from
opening past approximately 120º to prevent damage to surrounding cabinets.To install the door stop, use the
2 screws provided and secure the bracket to the bottom of the door on the same side as the hinge.
Cabinet door
Hinge
Door stop
Door stop
installed
Cabinet grill
NOTES
True Professional 24 Series Installation Guide
8
True Professional 24 Series
Installation Specifications
INSTALLATION SPECIFICATIONS-STAINLESS SOLID & GLASS DOOR
Dimensions may vary by ± 1/8”
23
7/8"
29
3/4"
4
1/8"
FRONT
VIEW 46
7/8"
25
1/4"
1
7/8"
TOP
VIEW
SIDE
VIEW
23
7/8"
34
1/4"
3
3/4"
ALL REFRIGERATOR
TUR-24R/L-SG-A TUR-24-D-SS-ATUR-24R/L-SS-A
BEVERAGE CENTER
TBC-24-R/L-SG-A
WINE CABINET
TWC-24-R/L-SG-A
DUAL ZONE WINE CABINET
TWC-24DZ-R/L-SG-A
True Professional 24 Series Installation Guide 9
True Professional 24 Series Installation Guide
10

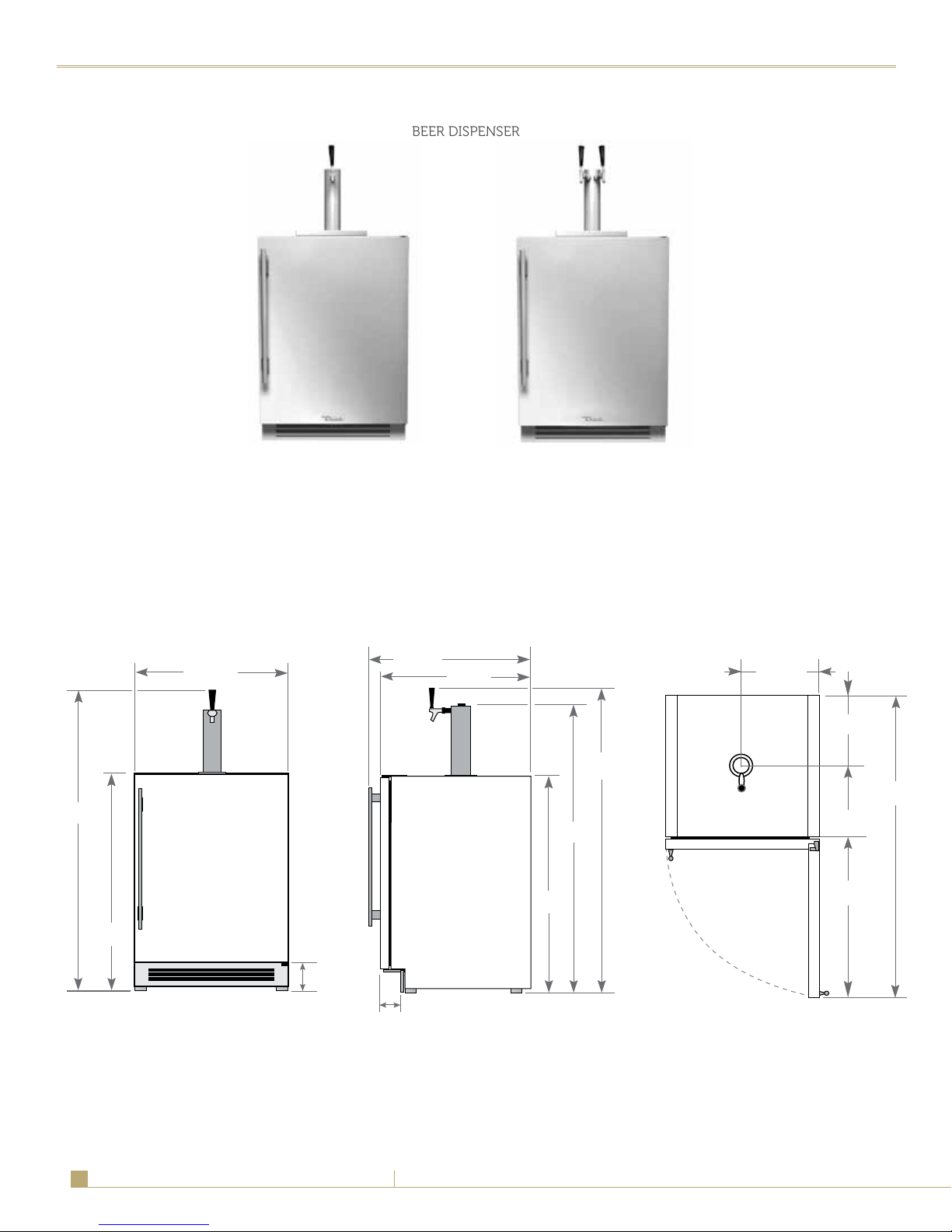

TUR-24BD-R/L-SS-A TUR-24DD-R/L-SS-A
BEER DISPENSER
23 7/8"
34 1/4"4 1/8"
49 7/8"
34 1/4"
46 3/8"
49 7/8"
23 7/8"
25 3/4"
3 3/4"
46 7/8"
11 7/8"
10 1/4"
25 1/4"
23
7/8"
29
3/4"
4
1/8"
True’s Stainless Solid and Glass Door units are designed to be inserted into a cabinet
opening or free standing. Below are recommended dimensions for rough opening.
ROUGH
OPENING
HEIGHT
341/2
Front view
of unit
between
cabinets
ROUGH
OPENING
DEPTH
ROUGH
OPENING
WIDTH
INSTALLATION SPECIFICATIONS-STAINLESS SOLID & GLASS DOOR
True Professional 24 Series Installation Guide 11
True Professional 24 Series Installation Guide
12
True’s stainless steel cabinets are UL rated for use in outdoor settings.
In outdoor locations where the ambient temperature regularly exceeds 95˚F, it is recommended
to vent the rear of the cut out opening in the area shown below for optimum performance. The
8”
8”
ROUGH
OPENING
HEIGHT
341/2
ROUGH
OPENING
DEPTH
241/4
ROUGH
OPENING
WIDTH
INSTALLATION SPECIFICATIONS - OUTDOOR
True Professional 24 Series Installation Guide 13
True Professional 24 Series
Installation Specifications for
Solid Panel Ready (OP)
Glass Framed Panel Ready (OG)
True Professional 24 Series Installation Guide
14
INSTALLATION SPECIFICATIONS-SOLID & GLASS FRAMED PANEL READY
NOTE:These units are shown with optional panel/handle provided by others
ALL REFRIGERATOR
TUR-24-R/L-OG-A TUR-24-D-OP-ATUR-24-R/L-OP-A
BEVERAGE CENTER
TBC-24-R/L-OG-ATBC-24-R/L-OP-A
WINE CABINET
TWC-24-R/L-OP-A TWC-24-R/L-OG-A
DUAL ZONE WINE CABINET
TWC-24DZ-R/L-OG-ATWC-24DZ-R/L-OP-A
This manual suits for next models
16
Table of contents
Other True Refrigerator manuals
