TrueLife NannyCam R360 User manual

NannyCam R360

Instructions for Use

2 3

PACKAGE CONTENTS

− Parent unit with display + AC adapter

− Baby unit (camera) + AC adapter

−Instructions for use

−Wall mounting accessories

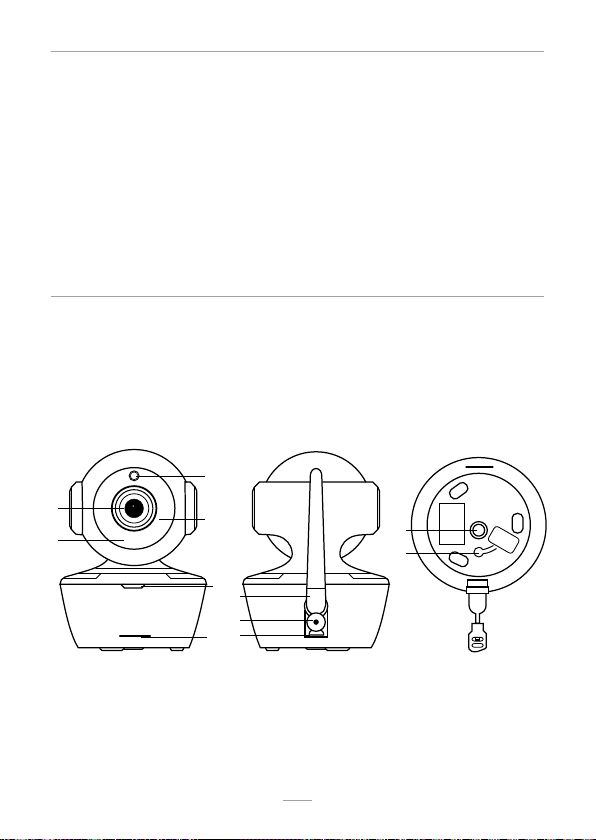

BABY UNIT LAYOUT

1. Camera lens

2. Microphone

3. Infrared sensor

4. Infrared LED for night vision

5. Blue LED indicator

6. Speaker

7. Antenna

8. Temperature sensor

9. AC adapter input

10. Wall mount hole

11. Pairing button

CONTENTS

Package contents................................................................................................................................................................2

Baby unit layout...................................................................................................................................................................2

Parent unit layout................................................................................................................................................................3

Getting started.....................................................................................................................................................................4

Use and functions ...............................................................................................................................................................5

Menu........................................................................................................................................................................................6

Camera – pairing .................................................................................................................................................................6

Alerts .......................................................................................................................................................................................7

Other parent unit settings ...............................................................................................................................................7

VOX – VOX mode settings................................................................................................................................................7

Specications........................................................................................................................................................................8

Safety when operating the device................................................................................................................................8

2 3

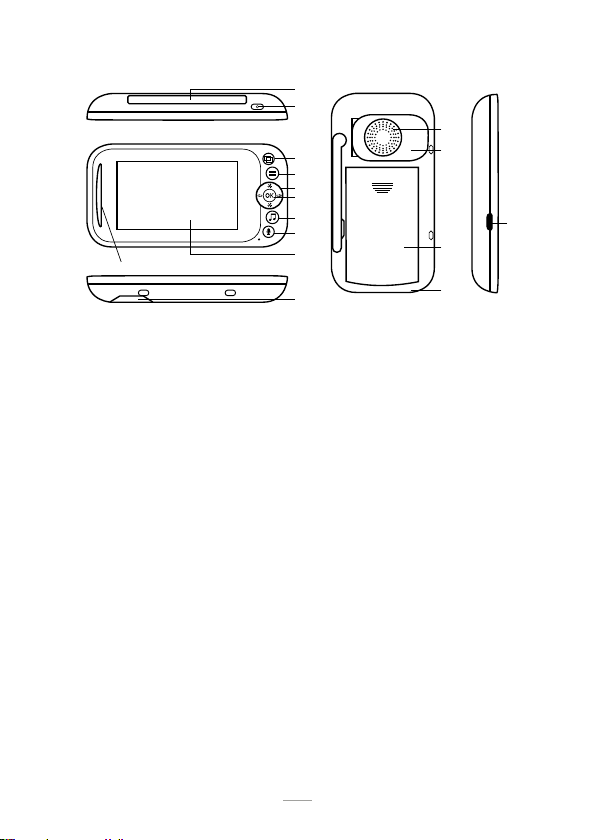

PARENT UNIT LAYOUT

1. Tiltable antenna

2. ON / OFF button

Long press – Turn the device on/o

Short press – Turn the screen on/o

3. Switch camera button (works when multiple

cameras connected)

4. Menu/Back button

5. Camera rotation controls – direction arrows“up”,

“down”, “right”and “left”

6. OK conrmation button

7. Lullaby – (On/Change/O)

8. Speak button (must be held down whilst talking)

9. LCD display

10. Microphone

11. LED strip – camera sound indicator +

charging indicator

12. Speaker

13. Tilt stand

14. Input for powering/charging the parent

unit.

15. Battery cover

16. Reset button

4 5

GETTING STARTED

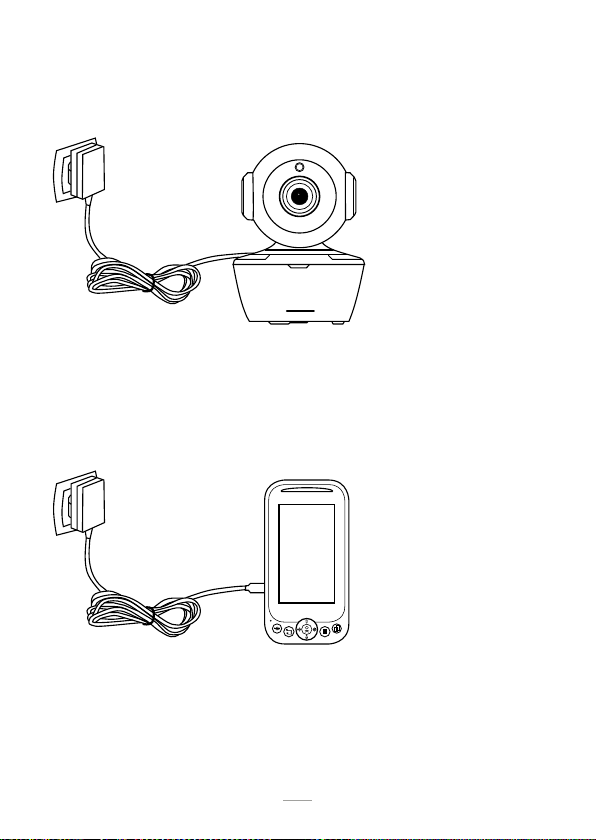

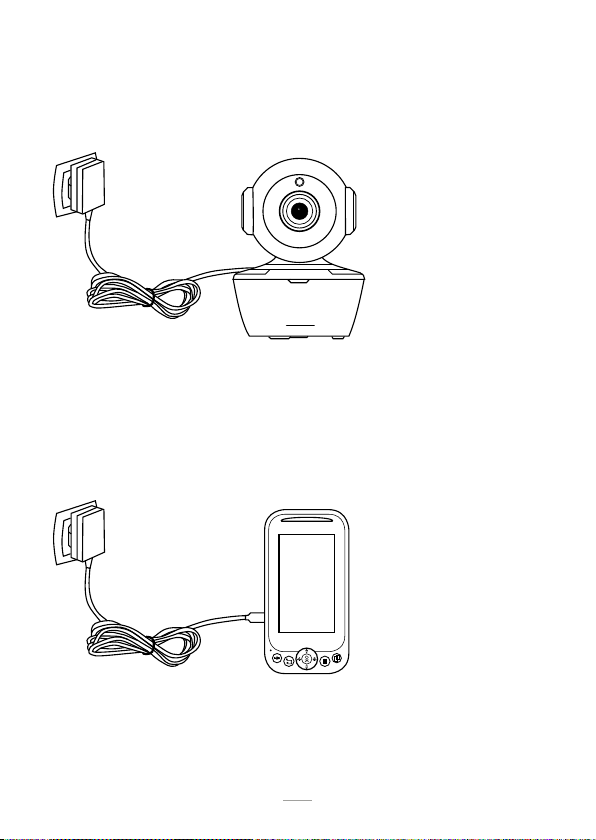

A) Baby unit (camera)

1. Plug one end of the AC adapter into the input of the camera and the other into the mains

socket.

2. When the camera is functioning properly, the blue LED will be lit.

Note: The baby unit requires a permanent mains connection.

B) Parent unit (display)

1. Plug one end of the AC adapter into the input of the parent unit and the other into the mains

socket.

2. The parent unit will start charging and the blue LED will be lit.

3. Press the„ON / OFF“ button to turn on the device.

Note: To achieve optimal capacity and battery life, it is essential to fully charge the unit before

using it unplugged.

4 5

USE AND FUNCTIONS

−If both the parent unit and the baby unit are switched on and within range of each other,

the live image from the camera will appear on the display within a few seconds.

−Place the camera in a suitable place and point the lens so that you are satised with the

preview.

−The heads of automatically rotating cameras should never be rotated manually! Any

warranty becomes invalid if mechanical damage has been caused by physical rotation.

Note: Do not place the camera within reach of a child. If the image transmission is poor or

intermittent, try relocating the camera or making sure that there are no other electrical

devices nearby that could interfere with the transmission.

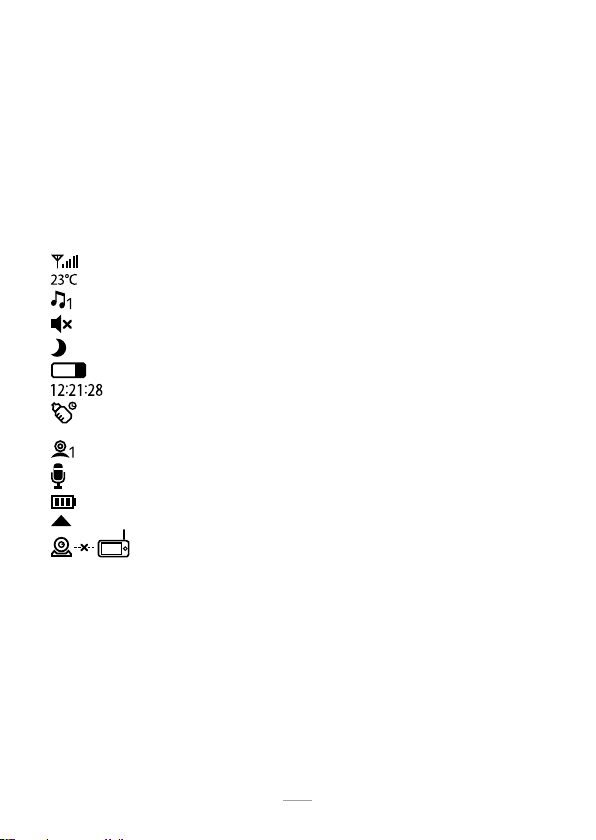

Display icons

Signal strength

Temperature at the camera location

Lullaby has been triggered – the number indicates the current melody (1–4)

Parent unit audio

Night mode on

VOX

VOX mode – labels (LO, MI, HI) indicate the set VOX sensitivity level

Current time

Timed alert

Displayed camera – number indicates current camera (1 or 2)

Microphone in use

Battery status

Arrows indicating direction of camera rotation

Camera disconnected

Range

As the distance between the baby unit and the parent unit increases, the signal may suer

interruptions, and the picture and sound may freeze. If the connection is lost due to the distance

being too great, the screen will turn black and the„Camera disconnected” icon will appear. The

parent unit will repeatedly try to connect to the camera.

Note: If the units do not reconnect even after reducing the distance between them, try pairing

the two units up close again, see the following chapter„Menu – pairing“.

6 7

To access the Menu, press the Menu button on the parent unit and then use the„right“ and„left“

arrows to navigate between the menus and then the„up“ and„down“ arrows to navigate in each

of the menus.

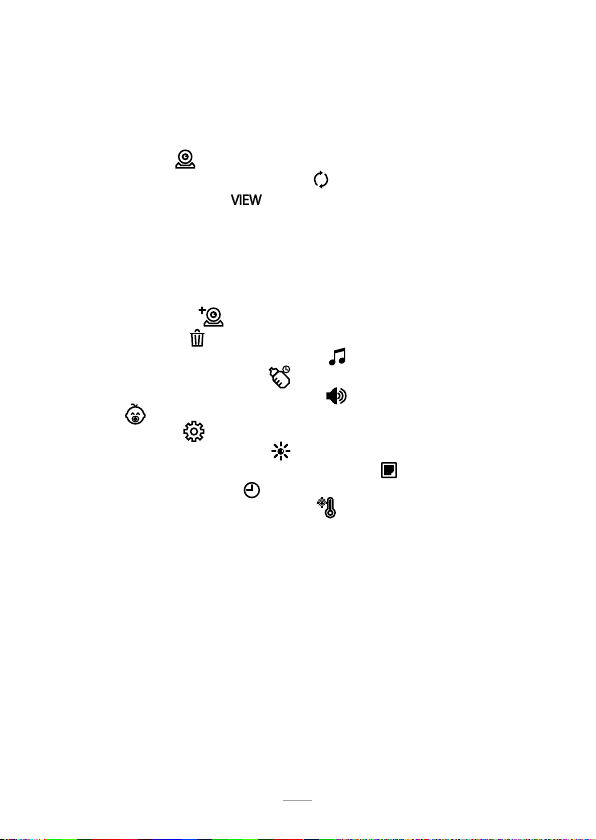

Menu icons

1. Camera settings

a. Cyclic camera switching

b. Selecting the camera display

i. Split screen (rst and second camera displayed)

In this mode, you can switch between the individual cameras using the„OK“ button. The

selected camera is displayed in red.

ii. First camera only

iii. Second camera only

Note: You can also use this function directly using the „Switch camera”button.

c. Pair camera

d. Remove camera

2. Set the lullaby for the current camera

3. Alert interval

4. Set the volume of the parent unit

5. VOX Mode

6. Other settings

a. Set the brightness of the display

b. Set the time interval for switching o the display

c. Set the current time

d. Set the temperature unit (°C or °F)

CAMERA – PAIRING

Pairing other cameras

1. Open the menu, navigate to the item„Camera settings“ and use the up arrow to move to the

„Camera pairing“ icon, press the„OK“ button.

a. Then select the icon (number 1 or 2) to which you want to assign the camera and conrm

this with the OK button.

2. At this point, press and hold the„encryption button“ on the bottom of the paired camera until

the camera image appears on the display of the parent unit.

Re-pairing the camera

1. First remove the camera in the parent unit by navigating to the „Camera settings“ icon in the

menu, then to the„Remove camera“ icon and then conrm with the OK button.

a. Next, you need to select the camera you want to pair (the paired camera will contain the

character * next to the icon) and conrm with the OK button.

6 7

2. Once the camera is removed, navigate to the„Camera pairing“ icon and conrm with the OK

button.

a. Then select the icon (number 1 or 2) to which you want to assign the camera and conrm

with the OK button.

3. At this point, press and hold the„encryption button“ on the bottom of the paired camera until

the camera image appears on the display of the parent unit.

Note: The parent and baby unit are already paired out of the box, so there is no need to do this

again. Select this menu if you want to re-pair units, e.g. if the signal has been lost for a

long period of time.

ALERTS

Here you can set alerts, for example, for feeding, medication or other activities.

Open the menu, navigate to „Alert interval“ and use the „up“ and „down“ arrows to select the

desired time interval and conrm with OK.

OTHER PARENT UNIT SETTINGS

Here you can set the brightness of the display, the time interval of the display on/o, the time and

the temperature units (°C or °F).

VOX – VOX MODE SETTINGS

In this setting you can activate/deactivate VOX mode and set its sensitivity using the „up“ and

„down“ arrows. This setting is ideal for babysitting at night. The camera is activated as soon as it

picks ups crying or any other sound and the parent unit display will light up. Immediately you will

be alerted to the situation and be able to see what is happening. Thanks to the VOX sensitivity

settings, you can prevent it from being activated under normal conditions, giving you peace of

mind.

Sensitivity level

LO – lowest sensitivity (signicant noise required to activate)

MI – medium sensitivity

HI – highest sensitivity (low noise required to activate)

Note: After manually turning o the display, the VOX function will not activate until 15 seconds

after the display goes o.

8 8

SPECIFICATIONS

− Frequency: 2.4 GHz

− Operating temperature: -10 ~ 50 ° C

−Operating humidity: <80%

− Range: up to 200–300 metres (outdoors)

Parent unit (display):

− LCD size: 5” TFT LCD

− LCD resolution: 480×272@15FPS

− Battery: Li-Polymer 1500 mAh (up to 5 hours / up to 8 hours in VOX mode)

− Dimensions (W × H × D): 162 × 83 × 20 mm

Baby unit (camera):

−Sensor: 0.3 MP CMOS

− Night vision range: 5 metres

−Light and temperature sensor

− Dimensions (W × H × D): 80 × 109 × 95 mm

SAFETY WHEN OPERATING THE DEVICE

1. Carefully read the enclosed safety instructions.

2. For proper handling of the product, read the latest version of the manual, which can be down-

loaded at: www.truelife.eu.

3. Printing errors reserved.
