TRUGLO TG7630G User manual

This product is not a toy. Read all warnings and instructions prior to
use. Property damage, serious injury or death may result from
improper use. Keep out of the reach of children.
Laser light is extremely bright and can potentially cause permanent
eye damage or interfere with critical operations if improperly used.
WARNING
WARNING
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
Green Laser:
POWER OUTPUT<5mw
WAVELENGTH 500-540nm
Red Laser:
POWER OUTPUT<5mw
WAVELENGTH 630-670nm
TRUGLO, Inc.
525 International Parkway
Richardson, Texas 75081
Ph: 972-774-0300
Fx: 972-774-0323
E-mail: [email protected]
TRUGLO, Inc.
525 International Parkway
RICHARDSON, TEXAS 75081
MADE IN CHINA
TG7630G / TG7630R

NEVER look into or stare at the laser beam or its reflection.
NEVER point the laser beam at a person or animal.
NEVER shine the laser at reflective surfaces.
NEVER point the laser beam at any type of moving vehicle, including aircraft.
Such actions are unlawful and extremely dangerous.
NEVER point the laser beam at a person using binoculars or other magnifying
instruments, such as rifle scopes, cameras or telescopes.
NEVER remove any safety label from the laser.
NEVER attempt to disassemble, repair or modify the laser. Such actions could lead to
hazardous exposure.

Before you begin, always make sure the weapon is un-loaded and
safe to handle.
Always practice safe handling techniques with any weapon.
Once mounted, the weapon will be pointed in the direction of
anything illuminated by the laser.
Never point the laser at a target you do not intend to shoot.
Never engage the trigger until you are ready to fire. The laser can be
activated without placing your finger insider the trigger guard.
WARNING
WARNING
WARNING
WARNING
WARNING

On / Off
• Press either of the ambidextrous buttons
to turn the laser on/off.
• The unit will automatically turn off after
approximately 5 minutes of use to conserve
battery power.
Pulse Mode
To activate the laser “pulse” mode, depress
either on/off button for approximately 3 seconds.
This process can be repeated to turn off the
“pulse” mode.
On / Off
On / Off

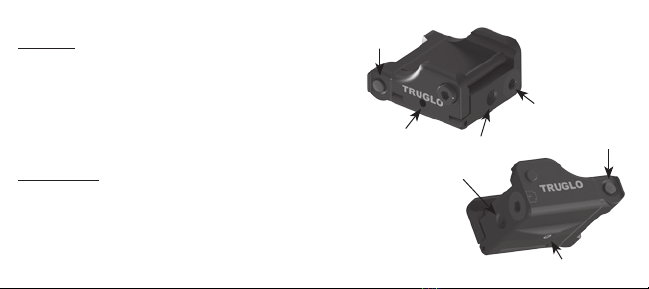

Windage
Adjustment
Elevation Adjustment
Laser Aperture
Laser
Battery Compartment

Mounting
CAUTION: CHECK TO MAKE SURE YOUR WEAPON IS UNLOADED.
• Your laser sight has integrated mounting rails that attach to a standard Weaver-style
base or Picatinny rail.
• Loosen the mounting screw with the included 2.5mm allen wrench. Set the laser sight
onto the mounting base of the weapon.
• The mounting screw should fit into one of the grooves in the top of the mounting base.
Be sure the laser sight is fully seated on the mounting base before tightening the
mounting screw. (PLEASE DO NOT OVER-TIGHTEN – Max Torque 4.4 Inch lbs.)
• For additional security, a drop of thread-locker can be added to the mounting screw.

Battery
• Your laser sight includes LR626 1.5V Button Cell batteries (green laser requires
6 batteries; red laser requires 4 batteries).
CAUTION: CHECK TO MAKE SURE YOUR WEAPON IS UNLOADED.
• To replace the batteries, unscrew the battery cover counter-clockwise with the included
2.5mm allen wrench. Remove and replace the batteries with “+” side facing out.
Reinstall battery cover. (PLEASE DO NOT OVER-TIGHTEN).
• Performance of your laser is optimal when operating temperatures are not extreme
(cold or hot). Decreased performance at extreme temperatures is not a defect with the
laser sight.

ZEROING (windage and elevation adjustments)
Please note that the laser has been pre-set at the factory to be aligned with the mounting
base of the laser sight. Only minor windage and elevation adjustments should be required.
If significant adjustments are necessary, please make sure the laser sight is properly
mounted or adjust the mounting base. The maximum adjustment is approximately ±2
degrees, which is approximately 12.5 inches in all directions at 30 feet. Insufficient
adjustment is not a defect with the laser sight.
CAUTION: ALWAYS USE EYE AND EAR PROTECTION. SHOOT ONLY AT AN APPROVED
SHOOTING RANGE OR A SUITABLE SAFE AREA.

• After carefully firing at the target, CHECK TO MAKE SURE YOUR
WEAPON IS UNLOADED.
• Make any necessary adjustments to the W/E adjustment screws using the included
1.25mm allen wrench.
• Turning the windage screw clockwise moves the POI to the right.
• Turning the elevation screw clockwise moves the POI down.
• Do not over-adjust the W/E adjustment screws. Stop turning if you feel any resistance.
• To reset the W/E settings, remove both adjustment screws. After approximately 10-20
minutes the laser should point high and to the left of target. Reinstall W/E screws and
repeat zeroing process.
