trutankless TR36 Operating instructions

INSTALLATION AND OPERATION GUIDE
Hot water. Perfected.
RESIDENTIAL MODEL SERIES
TR36 | TR29 | TR24 | TR20 | TR15
TR COMMERCIAL MODEL SERIES
TC33 | TC25 | TC21 | TC17 | TC13
TC
trutankless® All-Electric Water Heater

TABLE OF CONTENTS
INTRODUCTION
REGISTERING YOUR UNIT
CONNECTING TO THE INTERNET
PROGRAMMING YOUR TRUTANKLESS® UNIT
SETTING/ADJUSTING THE OPERATING TEMPERATURE
SETTINGS SCREEN
PEAK/OFF-PEAK SCREEN
AWAY SCREEN
DATA SCREEN
ALERT CONDITIONS
POTENTIAL SENSOR FAILURES
OTHER ALERTS
FREEZE GUARD PROTECTION
LEAK SENSOR
HOME.TRUTANKLESS.COM USER GUIDE
LOGGING INTO YOUR ACCOUNT
REPORTS
TECHNICAL DATA
TROUBLESHOOTING
INSTALLATION AND MAINTENANCE
INTRODUCTION
UNIQUE FEATURES
BEFORE YOU BEGIN
INSTALLATION
PRECAUTIONS FOR SELECTING A LOCATION & INSTALLATION
MOUNTING THE UNIT
CONNECTING THE WATER SUPPLY
ELECTRICAL CONNECTIONS
PRODUCT MODEL SETTINGS
COMPLETING THE INSTALLATION
MAINTENANCE
SYSTEM CHECKUP
WARRANTY AND LEGAL
MANUFACTURERS LIMITED WARRANTY
PRIVACY POLICY
TERMS OF SERVICE
END USER LICENSE AGREEMENT
FCC STATEMENT
NOTES
1
1
2
4
5
6
7
8
9
10
10
10
11
11
11
11
12
13
14
15
15
15
15
16
16
19
21
22
23
24
25
25
26
26
28
30
35
38
39

INTRODUCTION
Welcome to the world of endless hot water! Your trutankless device
is truly a marvel of modern design and engineering and is now
ready to supply you with unlimited hot water on demand.
INSTALLATION AND OPERATION GUIDE
1
1 2

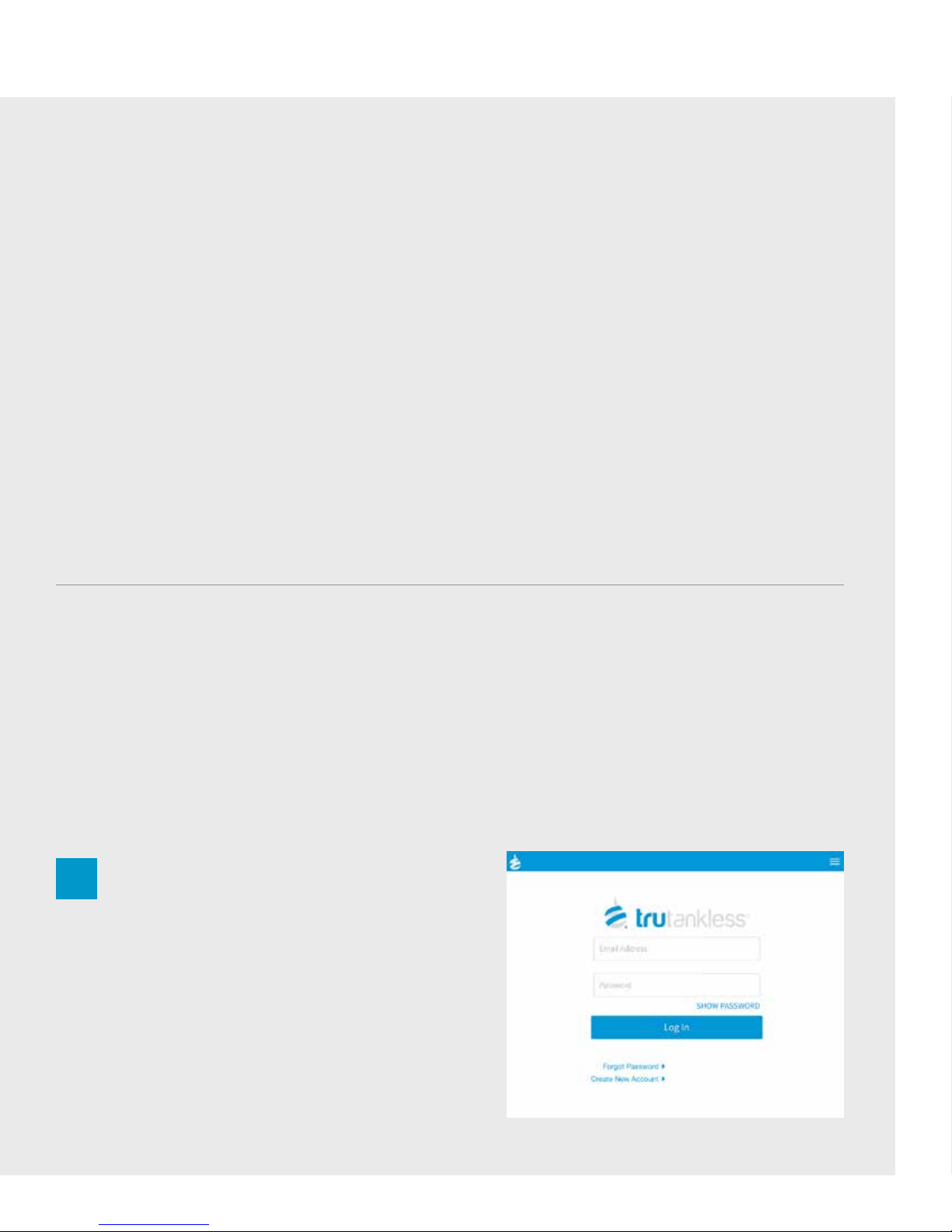

Go to https://home.trutankless.com/login.
At the login screen, beside the phrase “Don’t
have an account?” click on the “Create New
Account” link to access the Registration page.
REGISTERING YOUR UNIT
Your unit must be registered, registration verified, and connected to the Bollente Monitoring service in order for you to
gain remote access via https://home.trutankless.com/login.
Your plumber may have already registered the device upon purchase and/or installation. If that is the case, you will likely
have already received an email from trutankless containing your user ID and temporary password that you will need to
verify your registration and create your account at home.trutankless.com.
If your device is not already registered, then you may register it yourself, now.
Enter your contact information (your email
and phone number are required so that we
can notify you of any pertinent information –
don’t worry, we will only contact you with your
permission or if there is a problem, and we do
not share your information with anyone.)

2
1
2
From the Home screen, tap the Gear icon at the top of
the Right Navigation Bar to bring up the Settings screen.
Tap Wi-Fi from the Le Navigation Menu to open
the Wi-Fi control panel.
CONNECTING TO THE INTERNET
In order to maximize its potential, it is highly recommended that you connect your device to the Internet and complete
your registration at the time of installation or as soon as wireless Internet capability is available.
By connecting your device to your home or oice Wi-Fi network you gain the advantages of all the available automated
features, including 24/7 remote temperature settings and monitoring through https://home.trutankless.com/login via
your desktop and mobile devices. You also get the peace of mind of knowing that, if the unit ever detects an anomaly of
any kind (for example, your teenager is taking another epically long shower) your trutankless unit will notify you and, in
the case of a problem, has the ability to contact your plumber as well.
If Wi-Fi service is not yet available at your location, you may skip this section for now and move on to “PROGRAMING YOUR
trutankless WATER HEATER” on page 7.
The LCD control screen uses a touch-screen interface like that of smart phone or tablet devices.
3In a short while you will receive an email with a
link to accept the Terms of Service and confirm
your registration. Follow the instructions in the
the registration confirmation email you received
when connecting your trutankless to the internet.
When your unit is actively connected to the
Bollente Monitoring Service, the Cloud status
icon on the le side of the Home
screen will glow blue.

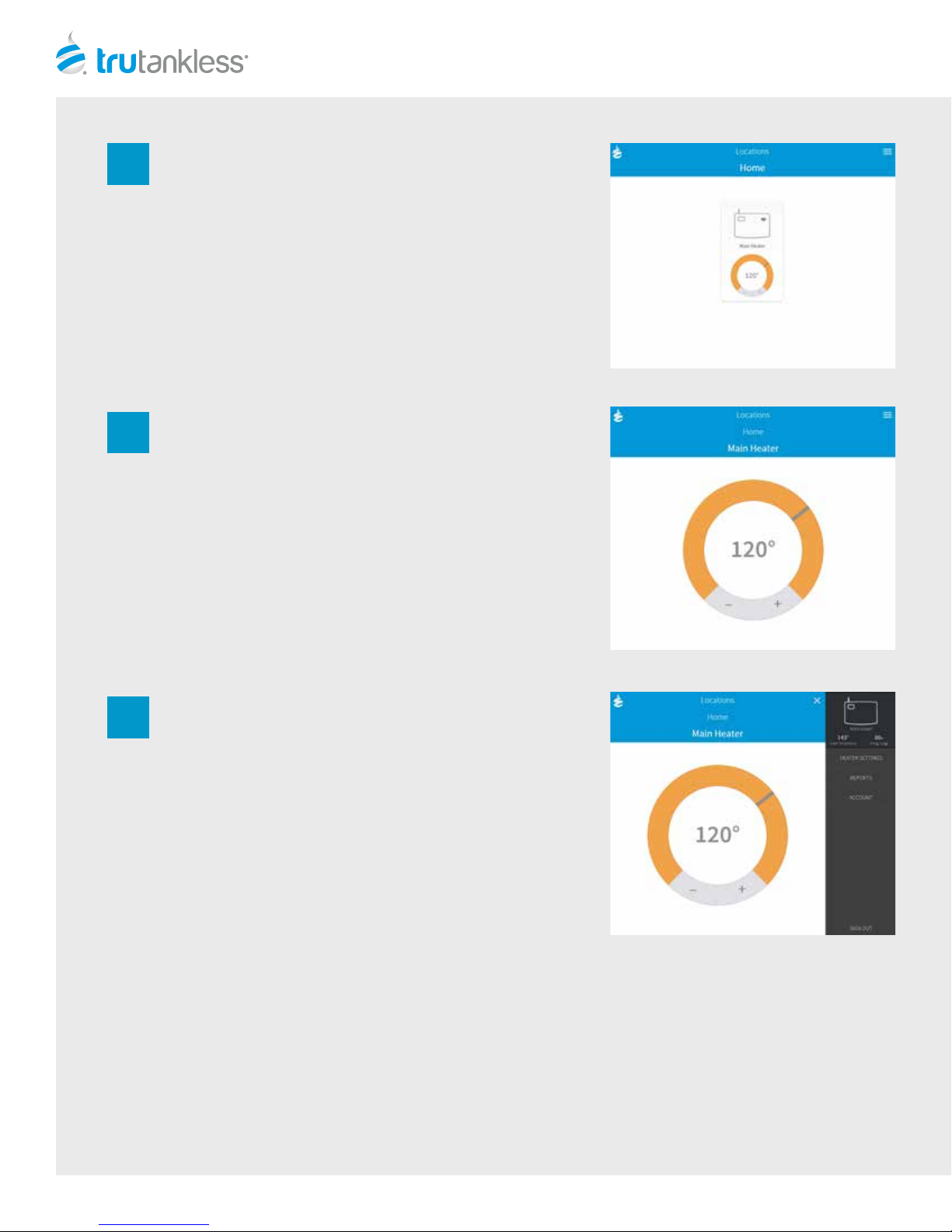

For more information on using your
home.trutankless.com account, refer to the
home.trutankless.com User Guide on page 11.

INSTALLATION AND OPERATION GUIDE
3
5
4
Tap the Wi-Fi switch to toggle it to “On”.
To confirm that the Wi-Fi connection has been
made, tap “About” from the Le Navigation
Menu. Your connection status to a Wi-Fi Network
will be displayed at the bottom.
Tap Wi-Fi from the Le Navigation Menu to open
the Wi-Fi control panel.
Tap the “Wi-Fi Network” field to bring up the
keyboard and enter the name of your wireless
network.
Tap the “Security Key”field to bring up
the keyboard and enter your Wi-Fi network
password.
Tap the “E-Mail”field to bring up
the keyboard and enter the E-Mail you wish to
register.
Tap “Done” when complete.
NOTE: The trutankless interface does not automatically oer a pre-populated menu of Wi-Fi networks from which to choose from.
You must key in your Wi-Fi network name precisely as it is designated. Any mistakes or omissions in the entry of the network name,
including upper/lower case, special characters, and so forth, for which fails to match the exact network name will prevent the unit from
recognizing your Wi-Fi network and the connection will not be made.
3

AA
BB
I
I
J
J
H
H
G
G
F
F
E
E
D
D
CC
PROGRAMMING YOUR
TRUTANKLESS® WATER HEATER
Your licensed contractor may have already set some basic system parameters, like date, time, and display units, at the
time of installation. You can verify these settings to ensure the best performance from your trutankless water heater.
The LCD screen is the interface for all your programming needs. The default screen is the Home screen, from where all the
programming features can be accessed.
Temperature Controller
Power Indicator
Water Flow Indicator
Wi-Fi Connection Indicator
Monitoring Service Indicator
Alert Indicator
Settings Screen
Peak/O-Peak Screen
Away Screen
Data Screen
4
6Your unit is online. You can return to the Home
Screen by tapping “Done” button in the lower
right corner of the screen.
NOTE: You can also verify your connection to
your Wi-Fi network at a glance by viewing the
Status icons on the le of the Home Screen. If the
connection is valid, the Wi-Fi icon will glow blue.
If the unit has failed to connect, the icon will be
dimmed. If necessary, repeat the Wi-Fi setup
steps.

INSTALLATION AND OPERATION GUIDE
As you set the temperature, the
outer ring lights up turning the dial.
As the water heats up, the color
fills in the white lines based on the
power percentage.
Once trutankless reaches the set
point, the center lights up.
SETTING/ADJUSTING THE OPERATING TEMPERATURE
The trutankless unit comes preprogrammed for an initial temperature setting of 120°F (49°C). This set point can be
changed via the Temperature Controller on the Home screen from 90°F to 140°F (32°C to 60°C), in single digit increments.
Properly used, the trutankless Water Heater will deliver the desired temperature, even when the water flow varies, or
when more than one hot water tap is open.
In multiple unit configurations, each controller can be individually programmed, but the heater can only deliver one water
temperature at a time. Should the demand for hot water (flow) exceed the unit’s capability, there will be a corresponding
decrease in the temperature of the water delivered.
The Controller utilizes a touchscreen rotary adjustment.
Touch the indicator arrow and drag clockwise (right) to INCREASE the temperature;
drag counterclockwise (le) to DECREASE the temperature.
122° 122°122°
122° 122°122°
122° 122°122°
*These temperatures are only suggestions. You may use higher or lower temperatures to suit
your needs. Remember that maintaining lower hot water temperatures will save additional
energy. The eiciency of the heater is not aected by mixing in cold water at the point of use
because the trutankless will simply detect a lower flow through the heater and adjust the
power accordingly. Most users find a happy medium by setting their unit at 120°F.
*Suggested Temperature Settings:
Kitchen: 110°- 130°F (43°- 54°C)
Shower: 98°- 114°F (36°- 45°C)
Bath: 102°- 110°F (39°- 43°C)
0˚- 110˚F 110˚- 130˚F > 130˚F
The color of the dial is coded to change to visually indicate the temperature of the water.
5

SETTINGS SCREEN
From the Home screen, you may access the Settings screen by tapping the Gear icon
at the top of the Right Navigation Bar.
When you enter the Settings window, by default the Display window is visible at the top level.
DISPLAY
Tap the “Temperature as” switch to toggle between
Fahrenheit and Celsius as they will be displayed on the
Home screen.
Touch the “Display Brightness” field to bring up the
percentage menu and scroll to the desired backlight
percentage for the LCD screen.
The characters will become highlighted and larger when
they are selected.
DATE/TIME
From the Settings screen, tap “Date/Time” in the le
navigation menu to bring up the Date/Time window.
Tap the “Time Display” switch to toggle between AM/PM
or 24-Hour time display options.
Touch and drag in the Year, Month and Day fields to
scroll to go through the figures and set the desired date.
The characters will become highlighted and larger when
they are selected.
Touch and drag the Hour and Minute fields to scroll
through the figures and set the desired time. The
characters will become highlighted and larger when they
are selected.
NOTE: The AM/PM field is dynamic and will only be
present when AM/PM is the selected Time Display.
Touch the “Time Zone” field to reveal a drop down menu
of time zones and drag to scroll through the menu to the
desired zone. The characters will become highlighted
and larger when they are selected.
NOTE: Setting the correct Date/Time and Time Zone
iscritical to utilizing the Peak/O-Peak Energy Saving
features, and for proper reporting when connected to
the Bollente Monitoring Service.
6

INSTALLATION AND OPERATION GUIDE

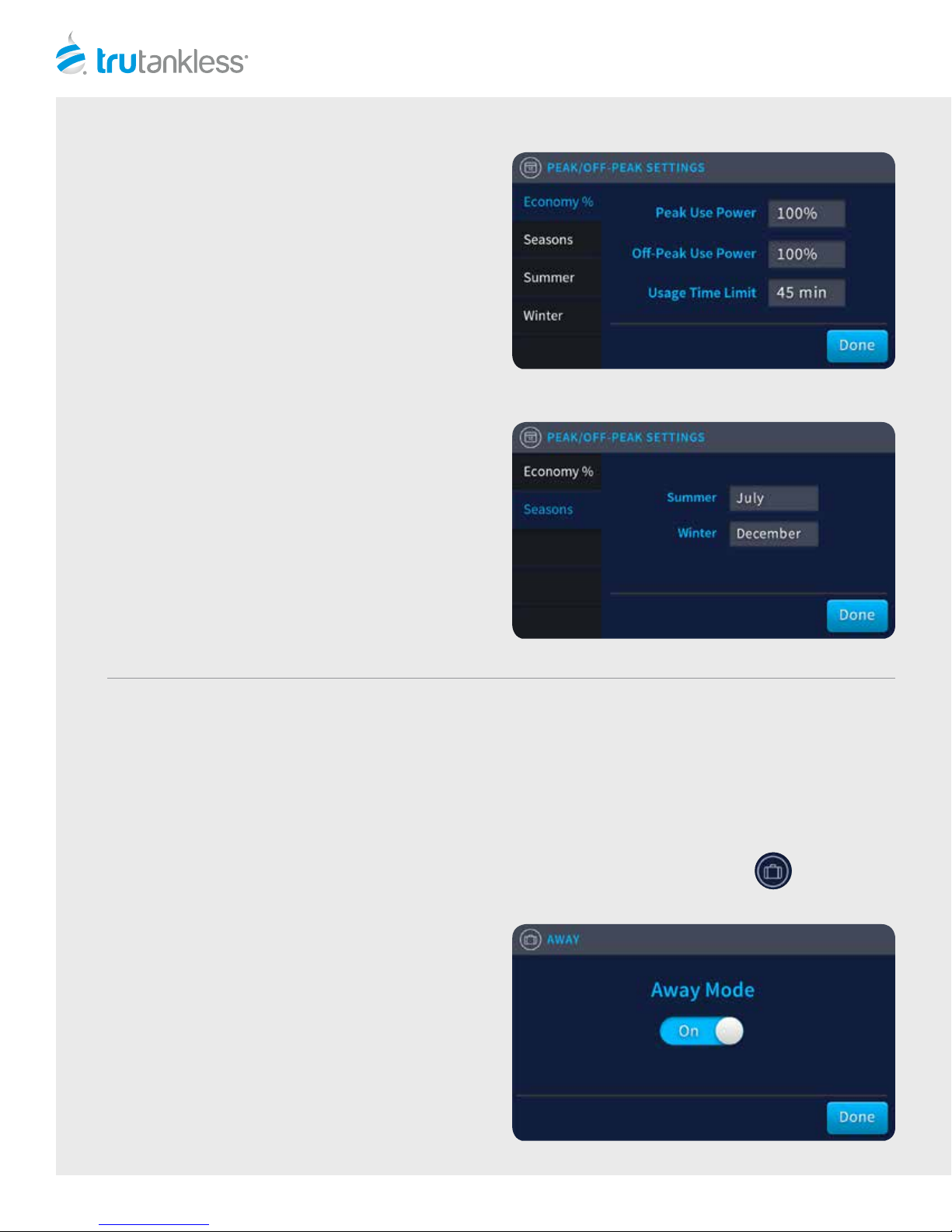

PEAK/OFF-PEAK SCREEN
One of the most valuable features of the trutankless Water Heater is its Energy Saving Programming functionality. The
unit has the ability to control the amount of energy used to heat the water flowing through the unit. The owner can
control the amount of power utilized during “Peak” and “O-Peak” hours as set by the local utility company.
From the Home screen, tap the Calendar icon in the Right Navigation Bar to access the Peak/O Peak Setting screen.
By default, the Economy window is visible at the top level.
If COMFORT mode is desired, both the Peak and O-peak Use Power settings should be set at 100%. If a more energy
eicient mode is desired, simply change the Use Power percentages down to a maximum desired level for Peak and O-
Peak times. By programming these modes based on weekday and weekend schedules, you can take advantage of the
discount hours the utility companies oer. Use the following options to enable Energy Savings Programming.
Wi-Fi
From the Settings screen, tap “Wi-Fi” in the le
Navigation menu to bring up the Wi-Fi window.
Tap the ‘Wi-Fi button’ to toggle between on and o to
enable/disable Wi-Fi connection.
Tap the ‘Wi-Fi Network’ field to bring up a keyboard to
key in the name of a wireless network. Tap the Done key
when finished.
Tap the “Security Key” field to bring up a keyboard to key
in the password of the designated wireless network.
Tap the “Done” key when finished.
NOTE: For more information about making a
Wi-Fi connection, see “CONNECTING THE UNIT
TO THE INTERNET” section on page 2.
ABOUT
From the Settings screen, tap “About” in the le
Navigation menu.
The About window has no interactive controls but
contains pertinent information specifically to that
trutankless unit and how that unit is configured.
This information may be important when
communicating with a service professional.
Tap “Done” to return to the Home screen.
7

ECONOMY %
To set the power percentage that will be allowed during
peak and o-peak times, touch the “Peak Use Power”
and/or “O-Peak Use Power” fields to bring up a drop
down menu and scroll to the desired percentage. The
characters will become highlighted and larger when they
are selected.
To define the times of day that Peak Use Power setting
will be in eect, tap “Peak Times” in the Le Navigation
bar to bring up the Peak Times window.
PEAK TIMES
The Peak times window allows you to set up to two (2)
peak use times daily. To set the start and stop times,
touch the “Begin” and “O” screens to bring up drop
down menus and scroll to the desired times. The
characters will become highlighted and larger when they
are selected.
Tap “Done” to return to the Home screen.
AWAY
Tap the “Away Mode” switch to toggle between
On and O.
Tap “Done” to return to the Home screen.
AWAY SCREEN
Putting your trutankless unit in Away Mode tells the unit that it should not expect water to flow through it while the
mode is ON. The unit will send alerts to the Bollente Monitoring Service if it detects a flow of water, an indication that
there might be some unusual or inappropriate activity (such as, a pipe has burst or someone le a hot water tap on.)
The homeowner can make appropriate decisions if this alert is sent to them.
From the Home screen, tap the Suitcase icon in the Right Navigation Bar to access the Away screen.
8

INSTALLATION AND OPERATION GUIDE
USAGE
The Usage window broadcasts the Trend Graph, which
displays useful history of water flow (GPM) and kilowatt
hours (kWh) over the previous 24 hours.
Complete reporting of history can be obtained via the
Bollente Monitoring Service.
DIAGNOTICS
The Diagnostics Screen report real time data to the
homeowner or service professional. The following
conditions are normally displayed:
Intemp:
Outtemp:
Setpoint:
Flow:
Heatpercent:
Powerlimit:
Acrmsvoltage:
iL1 — iL4:
wattseconds:
gallons:
errnum:
errstr:
Incoming Water Temperature
Outgoing Water Temperature
Desired Temperature Set point (as
defined by the Temperature Controller on
the Home Screen)
Water Flow (GPM)
Amount of available power being applied
to the heating elements
Power is limited to this percentage
at this time
Incoming AC Voltage to the unit
Sensed current (AMPS) on each
of the elements
Totalizer of the number of watts used per
second since installation
Totalizer of the number of gallons
used since installation
Error code
Highest priority alert with reference to
error code (if any exist)
DATA SCREEN
The Data screen provides the trutankless unit owner with a variety of valuable information regarding the performance of
the unit. It displays trend graphs and real-time values for easy monitoring and diagnosis of the unit’s operating condition,
as well as water use statistics.
From the Home screen, tap the Graph icon in the Right Navigation Bar to access the Data screen.
By default, the Usage window is visible at the top level.
NOTE: Real-time information is updated every 60 seconds.
9

ADVANCED
To set the power percentage that will be allowed during
The Advanced Screen provides service professionals
with test and factory reset capability.
The following conditions are normally displayed:
DEMO MODE
Demo mode is a feature that is only used by service
professionals to test functions of the screen. When
Demo Mode is ON, the unit will not heat water.
The end user should not active this mode. Leave
the toggle switch set to OFF.
FACTORY RESET
Factory reset will return the unit to its factory setting.
ALERT CONDITIONS
The Model TR/TC will alert the homeowner if it senses a fault condition both audibly and visually. In addition to these
“local” alerts, the Bollente Monitoring Service can sense them. In the case of the latter, options exist that allow the
homeowner to receive alert message via their cell phone or email.
POTENTIAL SENSOR
FAILURES
The following sensors are monitored
for proper operation:
• Incoming water temperature sensor
• Outgoing water temperature sensor
• Temperature of the Printed Circuit Board (PCB)
• Voltage Level over 250VAC
• Heating Elements 1 through 4
• Leak Sensor
OTHER ALERTS
In addition to the sensors monitored, alerts will be flagged
for the following items:
• Continuous flow over the specified
allowable time
• Continuous heat over the specified
allowable time
• No temperature rise detected
• Elements 1 through 4 operating properly
• Startup Lockout
• Disabled
• Anti-freeze
• Overtemp sensor or watchdog Alert
10

Once you enter your email address and temporary
password, you will be prompted to change your
password
and also prompted to accept the terms of service.
Read through the terms of service, click accept,
then press SUBMIT.
INSTALLATION AND OPERATION GUIDE
FREEZE GUARD PROTECTION MODE
The MODEL TR/TC trutankless Residential Water Heater is designed such that, should the water temperature at either the
inlet or outlet cool to 41°F (5°C), the heater automatically warms the water to approximately 45°F (7°C). This cycle will
continue for as long as the unit experiences temperatures near the freezing point.
If the main power to the heater is o, the freeze guard protection feature will not operate. The freeze protection circuit
protects the heater only and is not suicient protection for water connections to and from the heater, including the Flow
Sensor and other optional devices. Any damage to the heater caused by freezing is not covered by warranty as it is the
responsibility of the user to ensure the heater is installed in an environment protected from freezing.
LEAK SENSOR
A leak sensor is built into the controller circuitry on the interconnect module and activates if it senses moisture. When
this happens, the controller starts an audible alarm, displays an on-screen message, sends an alert, if desired, and
disconnects the power within the MODEL TR/TC unit. When power is disconnected within the heater it will not heat water.
This option is particularly useful in condominium or high-rise applications where damage from flooding
can be significant.
HOME.TRUTANKLESS.COM USER GUIDE
LOGGING IN TO YOUR ACCOUNT
Aer you register your unit, your temporary password will be sent to the email address you have on file. To login to your
account, go to home.trutankless.com.
1
11

The system will then automatically take you to the
Dashboard. The Dashboard is your account home page.
From the Dashboard you can see the status of your unit,
adjust the temperature set point on your unit, and see real
time and historical usage data.
By pressing the System Status icon, you will be able to
adjust the temperature in real time for your system.
To adjust the set point for your system, simply press “+” or
“-”to set the desired temperature.
By pressing the top right menu, you will be able to access
the “HEATER SETTINGS”, “REPORTS”, and“ACCOUNT”
2
3
4
REPORTS
With every minute that passes, your system calculates the gallons used and reports it on the Gallons per Minute report. To
see historical usage data on your system, scroll down to the bottom of the page and and click the Next button to access
the Usage Report under that report feed.
The Usage Report shows the history of your unit and the number of gallons used each day. This report allows you to select
time periods to compare to your current usage and lets you see trends in your water usage patterns for your location.
12

INSTALLATION AND OPERATION GUIDE
13
ELECTRICAL DATA INLET WATER DATA
MECHANICAL DATA
SPECIFICATIONS
TECHNICAL DATA
Voltage
Phase
Wattage
Max. Amp, Load
Min. Circuit Breaker Size
Required Wire Size
208 - 240 VAC
Single, 50/60 Hz
12.5 - 36.0 kW
40A x 4=160A
(See Table)
(See Table)
Max. Inlet Temperature °F (°C)
Water Flow to Activate Unit = GPM (=LPM)
Max. GPM = GPM (= LPM)
Max. Working Pressure PSI (bar)
Tested to Pressure PSI (bar)
131 (55)
0.2 (.76)
7.5 (28)
80 (5.5)
150 (10.34)
Residential Weight lbs. (kg)
Commercial Weight lbs. (kg)
Dimensions HxWxD inches (cm)
35.3 (16)
35.9 (16.3)
17.3 x 23.74 x 5.5 (44.1 x 60.3 x 14)
Model Height Width Depth Weight Amperage Voltage
Range kW Range Main Panel
Size
Breakers
(two pole)
Copper Wire
[optional]
Plumbing
Fittings
TR36 17.3" 23.74" 5.5" 35.3 lbs 160 220 - 240 31.8 - 36.0 > 200 A (2) 80A (4) #4 AWG Threaded
3/4" NPT
TR29 17.3” 23.74" 5.5" 35.3 lbs 120 220 - 240 26.4 - 28.8 200A (1) 125A
[(2) 60A]
(2) #2 AWG
[(4) #6 AWG)]
Threaded
3/4" NPT
TR24 17.3" 23.74" 5.5" 35.3 lbs 100 220 - 240 22.0 - 24.0 200A (1) 100A
[(2) 50A]
(2) #2 AWG
[(4) #6 AWG]
Threaded
3/4" NPT
TR20 17.3" 23.74" 5.5" 35.3 lbs 80 220 - 240 17.6 - 19.2 150A (1) 80A
[(2) 40A]
(2) #4 AWG
[(4) #8 AWG]
Threaded
3/4" NPT
TR15 17.3" 23.74" 5.5" 35.3 lbs 60 220 - 240 13.2 - 14.4 125A (1) 60A
[(2) 30A]
(2) #6 AWG
[(4) #8 AWG]
Threaded
3/4" NPT
Model Height Width Depth Weight Amperage Voltage
Range kW Range Main Panel
Size
Breakers
(two pole)
Copper Wire
[optional]
Plumbing
Fittings
TC33 17.3" 23.74" 5.5" 35.9 lbs 160 208 33.3 > 200A (2) 80A (4) #4 AWG Threaded
3/4" NPT
TC25 17.3" 23.74" 5.5" 35.9 lbs 120 208 25.0 200A (1) 125A
[(2) 60A]
(2) #2 AWG
[(4) #6 AWG)]
Threaded
3/4" NPT
TC21 17.3" 23.74" 5.5" 35.9 lbs 100 208 20.8 200A (1) 100 A
[(2) 50A]
(2) #2 AWG
[(4) #6 AWG]
Threaded
3/4" NPT
TC17 17.3" 23.74" 5.5" 35.9 lbs 80 208 16.6 150A (1) 80A
[(2) 40A]
(2) #4 AWG
[(4) #8 AWG]
Threaded
3/4" NPT
TC13 17.3" 23.74" 5.5" 35.9 lbs 60 208 12.5 125A (1) 60A
[(2) 30A]
(2) #6 AWG
[(4) #8 AWG]
Threaded
3/4" NPT
NOTE: Tankless water heaters are considered a non-continuous load
NOTE: Conductors should be sized to maintain a voltage drop of less than 3% under load
NOTE: American Wire Gauge (AWG) Tables are available at http://en.wikipedia.org/wiki/American_wire_gauge#Tables_of_AWG_wire_sizes

TROUBLESHOOTING
The following is a list of the most frequent fault conditions and the possible corrective action. If you are not able to
resolve a problem please contact us toll free at 855-TO-BUY-TRU (855-862-8987) before removing the unit from the wall.
14
PROBLEM CAUSE SOLUTION
No hot water Circuit breakers o
Startup Lockout mode
Not enough flow rate to
activate unit
Water supply is turned o
• Turn circuit breaker on
• Needs two (2) minutes of flow aer being powered up
• Increase flow over .02GPM
• Turn water on
• Verify by visual indication at Flow Sensor
Water is not hot
— No alarms
Flow Meter
not turning
Power is o
Settings have been adjusted
Element Fault
Too high of flow rate
Flow Meter clogged
Inlet screen clogged
• Verify that the main breaker and MODEL TR/TC circuit breakers are on.
ON is red, OFF is green.
• Adjust Temp setting. Optimal temp setting is 115º - 120º F (46.1º - 48.8º C)
• Adjust Use Limits – Time and Flow
• If condition persists, notify your licensed contractor or
authorized service technician.
• Replace element
• Decrease flow rate at point of use
• Disconnect the power and water to the unit.
• Remove the cover of the unit by loosening the four screws
(two at top and two at bottom)
• Remove the flow meter face-plate (Allen wrench required).
• Remove the O-ring. Remove the white flywheel.
• Clean the flow meter parts and internal housing. Reinstall; make sure the associated
O-ring is properly seated. A thin coat of lubricant will help to seat the seal. DO NOT
overtighten Allen screws when reassembling.
• If condition persists, notify your licensed contractor or authorized service technician.
• Clean inlet screen at unit
Alarms/Alerts Thermal Cut Out Failed
Temperature Sensor Failed
Unit Leaking
• Thermal Cut Out Switch will reset automatically once out temp decreases.
• Reduce Temperature Setpoint
• Inspect “FAIL”ed sensor for connectivity (requires removing the cover)
• If condition persists, notify your licensed contractor or authorized service technician.
• Turn o unit at main breaker and notify your licensed contractor or authorized service
technician.

INSTALLATION AND OPERATION GUIDE
15
INSTALLATION & MAINTENANCE
INTRODUCTION
Thank you for purchasing the trutankless Model TR/TC Water Heater. The Model TR/TC is a sophisticated, yet easy to
operate, water heating system that will provide years of trouble-free service.
The Model TR/TC water heater will reduce overall energy usage right out of the box by eliminating the standy-by loss that
is common to tank heaters, and it delivers even more energy savings with peak and o peak programming that can take
advantage of usage savings plans oered by many power companies. This unit, when installed and maintained properly,
will provide years of use and eicient hot water generation in an eco-friendly manner. It is extremely important to follow
the installation and maintenance section carefully.
THE MODEL TR/TC HAS MANY UNIQUE FEATURES:
• Compact wall-mounted installation (No venting required)
• Digital dial control setting of water temperature
• Supplies continuous hot water at a constant temperature
• Monitor performance settings for power used by your heater
• Startup lockout delay timer
• English-language screen display; simple messages
• US or Metric units display
• Drip sensor alert for leak detection
• High quality, energy eicient appliance
• Quiet operation
• Notifications and alerts
• Dashboard monitoring
BEFORE YOU BEGIN
THIS MANUAL MUST BE READ CAREFULLY AND BEFORE ATTEMPTING TO INSTALL THE WATER HEATER. IF YOU DO NOT
FOLLOW THE SAFETY RULES OR THE INSTRUCTIONS OUTLINED IN THIS MANUAL, THE UNIT MAY NOT OPERATE PROPERLY
AND IT COULD CAUSE PROPERTY DAMAGE, SERIOUS BODILY INJURY AND/OR DEATH!
BOLLENTE, INC. WILL NOT BE LIABLE FOR ANY DAMAGES BECAUSE OF FAILURE TO COMPLY WITH THE INSTALLATION AND
OPERATING INSTRUCTIONS OUTLINED IN THIS MANUAL OR BECAUSE OF IMPROPER USE. IMPROPER USE INCLUDES THE
USE OF THIS APPLIANCE TO HEAT ANY LIQUID OTHER THAN WATER. FAILURE TO COMPLY WITH THE INSTALLATION AND
OPERATING INSTRUCTIONS OR IMPROPER USE VOIDS THE WARRANTY.
IF YOU HAVE ANY QUESTIONS REGARDING THE INSTALLATION OR OPERATION OF THIS
WATER HEATER, OR IF YOU NEED ANY ADDITIONAL INSTALLATION MANUALS, PLEASE
CALL OUR TECHNICAL SERVICE LINE ON 855-TO-BUY-TRU (855-862-8987).
NOTE: The sections Installation and Maintenance in this manual are intended for contractors, plumbers and electricians
only. All other sections are intended for homeowners, contractors, plumbers and electricians.

16
INSTALLATION
Before removing the old tank water heater and undertaking installation, unbox the unit. Remove all parts from the box
and ensure all parts are included.
CAUTION: It is required that a licensed plumber and electrician install the unit and that all pertinent regional building
codes be followed. Please read each of the following notices and caution messages below before continuing with the
installation of this unit as they pertain to safety considerations.
PRECAUTIONS FOR SELECTING A LOCATION
& INSTALLATION
In general, the trutankless unit can be installed in the same location where the old tank water heater was located.
However, to ensure safe, trouble-free performance and keep the warranty in eect, the following precautions
must be observed:
1
2
The trutankless unit must be installed where minimum clearances can be met and indoors or under cover where
it is protected from the elements and extreme weather. Do not install the unit where it will be exposed to direct
sunlight, rain, snow, hail, salt spray, blowing sand, etc.
The unit MUST be installed in an upright orientation with the water fittings positioned below and pointing
downward.
INCORRECT INCORRECTCORRECT
WARNING: Do not install the unit where it would routinely be splashed with water. Avoid the potential for exposure of the
unit to dripping water or collection of condensation. ELECTRIC SHOCK MAY RESULT.

INSTALLATION AND OPERATION GUIDE
17
3
4
5
6
Hot water outlet pipes leaving unit can be hot to the touch. Insulation must be used for hot water pipes located
36˝ (92 cm) or less from ground level due to burn risk to children.
SAFETY NOTE: Commercial units (TC Series) are designed forcommercial settings only, and can be set as high
as 180°F (82° C) for industrial processes including sterilization of equipment andutensils. EXTREME CAREshould
be taken when setting temperatures higher than140°F ( 60°C), such temperatures should not be directly used in
the shower or intended for contact with skin, there is risk of injury.
Bollente strongly suggests installing an appropriate Temperature, Pressure and Relief (TP&R) safety valve per
local code. Consult your plumber or professional service provider.
This unit should not be installed in a location where it may be exposed to freezing temperatures
(less than 32°F (0°C).)
CAUTION: This unit comes equipped with freeze protection. However, in the event that electrical power is lost
or is disconnected from the unit, there is NO freeze protection. FREEZE PROTECTION OF THE WATER HEATER
IS ONLY POSSIBLE WHEN ELECTRICITY AND NORMAL WATER HEATER FUNCTIONS ARE ENABLED. If you expect
freezing conditions while electrical supply is interrupted, WATER MUST BE COMPLETELY DRAINED FROM
WATER HEATER.
The installation of auto drain down solenoid valves is optional. However, Bollente strongly recommends that
these valves be installed so that water may be drained from the unit to prevent damage from freezing in case the
normal freeze protection should become disabled. If the valves are not installed, then any product damage due
to freezing will not be covered by the warranty.
FAILURE TO COMPLY WITH THIS INSTRUCTION VOIDS ALL WARRANTIES.
The unit should be located in an area where water leakage from the unit or connections will not result in
damage to the area adjacent to the unit. If such a location cannot be avoided it is recommended that a drain
pan be installed under the unit.

18
10
9
8
7
11
12
Electrical service to the model BR/BC trutankless water heater must be in accordance with all applicable
national electric safety codes, state/provincial and local electric and building codes.
NOTE: Bollente recommends you place the unit near the electrical service panel. A licensed contractor can help
you choose the unit location and which chassis electrical access point is best suited for your installation.
Place the unit where it will not be struck by objects and away from other sources of heat.
Install the unit where it can be mounted at eye level to allow easy access to the touch screen display for reading
and programming controls.
The unit must be mounted to wall studs or other structural member, or with wall anchors appropriate for the
type of wall surface and suicient to securely hold forty pounds if there is no convenient structural member
available.
WARNING: Failure to comply with this requirement may result in the unit falling from the wall, creating the
possiblity of personal injury or death.
trutankless electric water heaters are designed for a very long service life, but actual life expectancy will be
directly aected by water quality and use. If you do not already know the quality of your water, we advise
testing (your water department may be able to assist). Especially in areas where the water hardness exceeds
180 PPM or 10.5 grains/gallons, installing a non-salt based soener or polyphosphate in-line filter may
prolong the life of your unit.
The commercial version of the water heater is generally used in hotel, swimming pool and other places of large;
The commercial version of the water heater for shower use, set the temperature too high, there is a risk of burns;
