TSI Incorporated aerotrak 9306-V2 User manual

Handheld Particle Counters
AEROTRAK™Handheld
Airborne Particle Counter
Model 9306
Operation Manual
P/N 6004215, Revision B
September 2010
netzerotools.com
netzerotools.com
TSI 9306-V2 AeroTrak Handheld Airborne Particle Counter
TSI 9306-04 AeroTrak Handheld Airborne Particle Counter

ii
netzerotools.com
netzerotools.com

Handheld Particle Counters
AEROTRAK™Handheld
Airborne Particle Counter
Model 9306
Operation Manual
P/N 6004215, Revision B
September 2010
netzerotools.com
netzerotools.com

ii
Manual History
The following is a manual history of the AEROTRAK™Handheld
Airborne Particle Counter, Model 9306 Operation Manual
(P/N 6004215).
Revision Date
A July 2010
B September 2010
netzerotools.com
netzerotools.com

iii
Warranty
Part Number
6004215 /Revision A / September 2010
Copyright
©TSI Incorporated / 2010 / All rights reserved.
Limitation of Warranty
and Liability
(effective July 2000)
Seller warrants the goods sold hereunder, under normal use and service as
described in the operator's manual, shall be free from defects in workmanship and
material for (24) months, or the length of time specified in the operator's manual,
from the date of shipment to the customer. This warranty period is inclusive of any
statutory warranty. This limited warranty is subject to the following exclusions:
a. Hot-wire or hot-film sensors used with research anemometers, and certain other
components when indicated in specifications, are warranted for 90 days from
the date of shipment.
b. Parts repaired or replaced as a result of repair services are warranted to be free
from defects in workmanship and material, under normal use, for 90 days from
the date of shipment.
c. Seller does not provide any warranty on finished goods manufactured by others
or on any fuses, batteries or other consumable materials. Only the original
manufacturer's warranty applies.
d. Unless specifically authorized in a separate writing by Seller, Seller makes no
warranty with respect to, and shall have no liability in connection with, goods
which are incorporated into other products or equipment, or which are modified
by any person other than Seller.
The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS
stated herein. NO OTHER EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR
PARTICULAR PURPOSE OR MERCHANTABILITY IS MADE.
TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER
OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES,
INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED
ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR OTHERWISE) SHALL
BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE PURCHASE
PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE
GOODS. IN NO EVENT SHALL SELLER BE LIABLE FOR ANY SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE
RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION COSTS
OR CHARGES. No Action, regardless of form, may be brought against Seller more
than 12 months after a cause of action has accrued. The goods returned under
warranty to Seller's factory shall be at Buyer's risk of loss, and will be returned, if at
all, at Seller's risk of loss.
Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY
AND LIABILITY, which contains the complete and exclusive limited warranty of
Seller. This LIMITATION OF WARRANTY AND LIABILITY may not be amended,
modified or its terms waived, except by writing signed by an Officer of Seller.
Service Policy Knowing that inoperative or defective instruments are as detrimental toTSI as they
are to our customers, our service policy is designed togive prompt attention toany
problems. If any malfunction isdiscovered, please contact your nearest sales office
or representative, orcallTSI.
Trademarks AEROTRAK and TRAKPRO are trademarks of TSI Incorporated.
TSI and the TSI logo are
registered trademarks of TSI Incorporated. Microsoft and Excel are registered
trademarks of Microsoft Corporation. OpenOffice is a trademark of Sun
Microsystems. Modbus® is a registered trademark of Modicon, Inc.
netzerotools.com
netzerotools.com

netzerotools.com
netzerotools.com

v

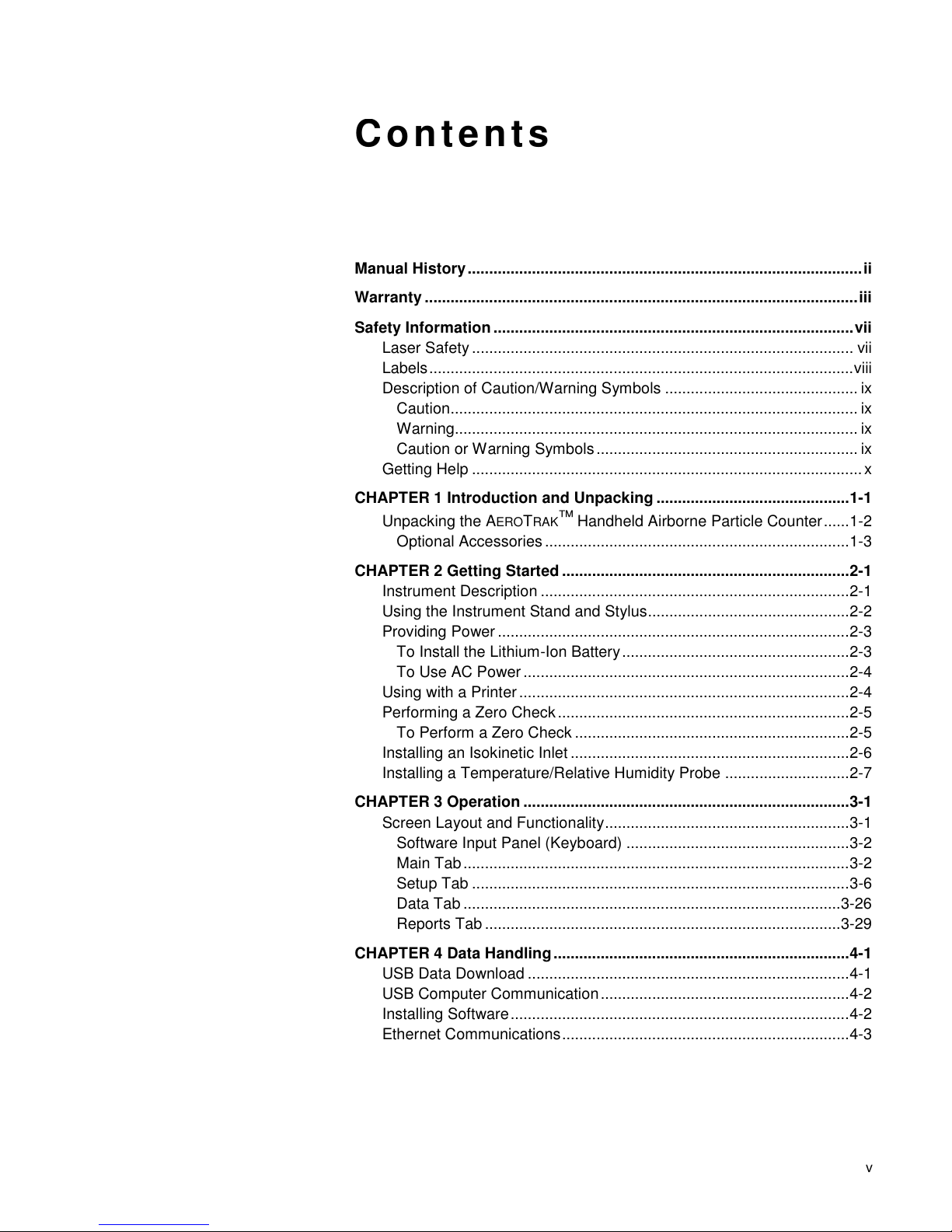

Contents
Manual History............................................................................................ii
Warranty .....................................................................................................iii
Safety Information ....................................................................................vii
Laser Safety ......................................................................................... vii
Labels...................................................................................................viii
Description of Caution/Warning Symbols ............................................. ix
Caution............................................................................................... ix
Warning.............................................................................................. ix
Caution or Warning Symbols............................................................. ix
Getting Help ........................................................................................... x
CHAPTER 1 Introduction and Unpacking .............................................1-1
Unpacking the AEROTRAK™Handheld Airborne Particle Counter......1-2
Optional Accessories .......................................................................1-3
CHAPTER 2 Getting Started ...................................................................2-1
Instrument Description ........................................................................2-1

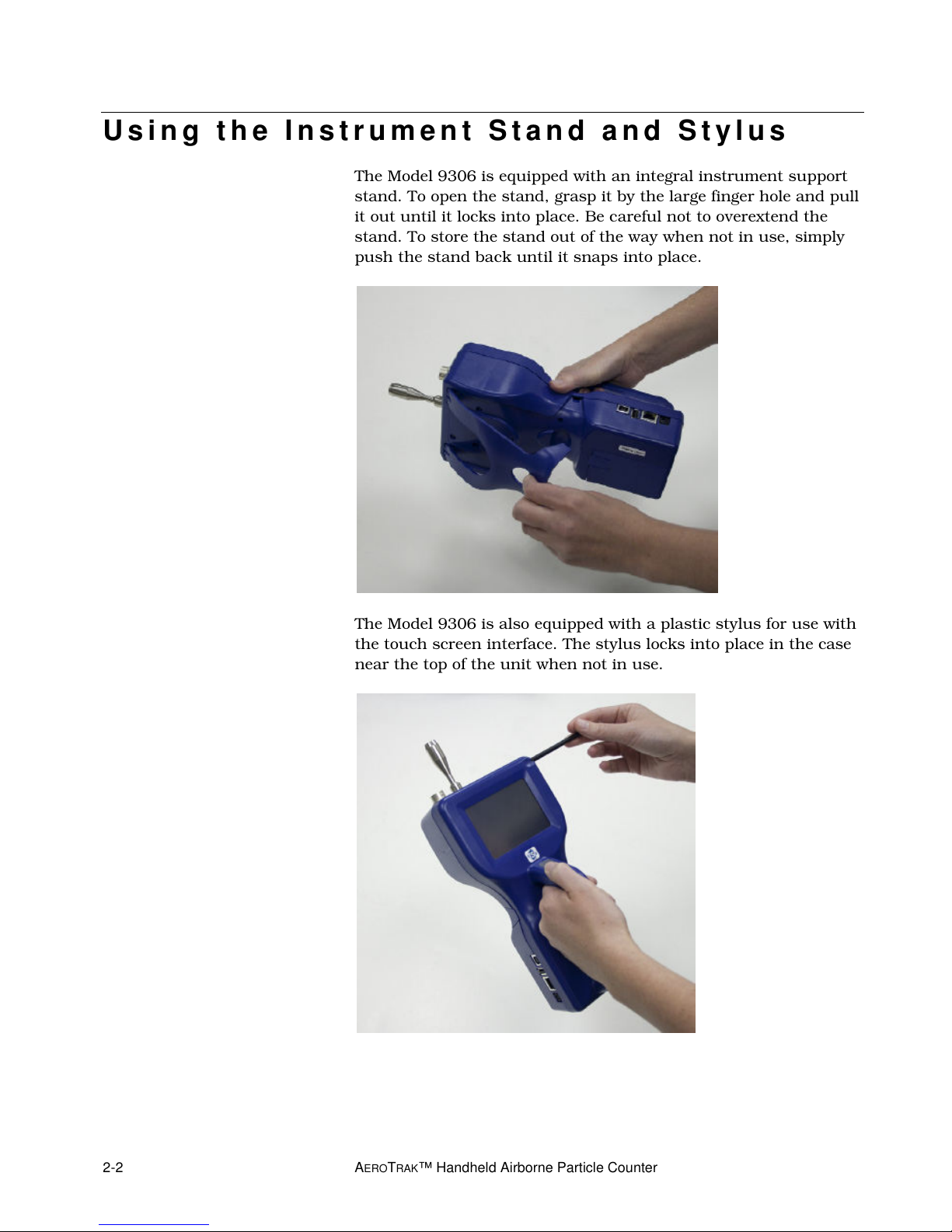

Using the Instrument Stand and Stylus...............................................2-2

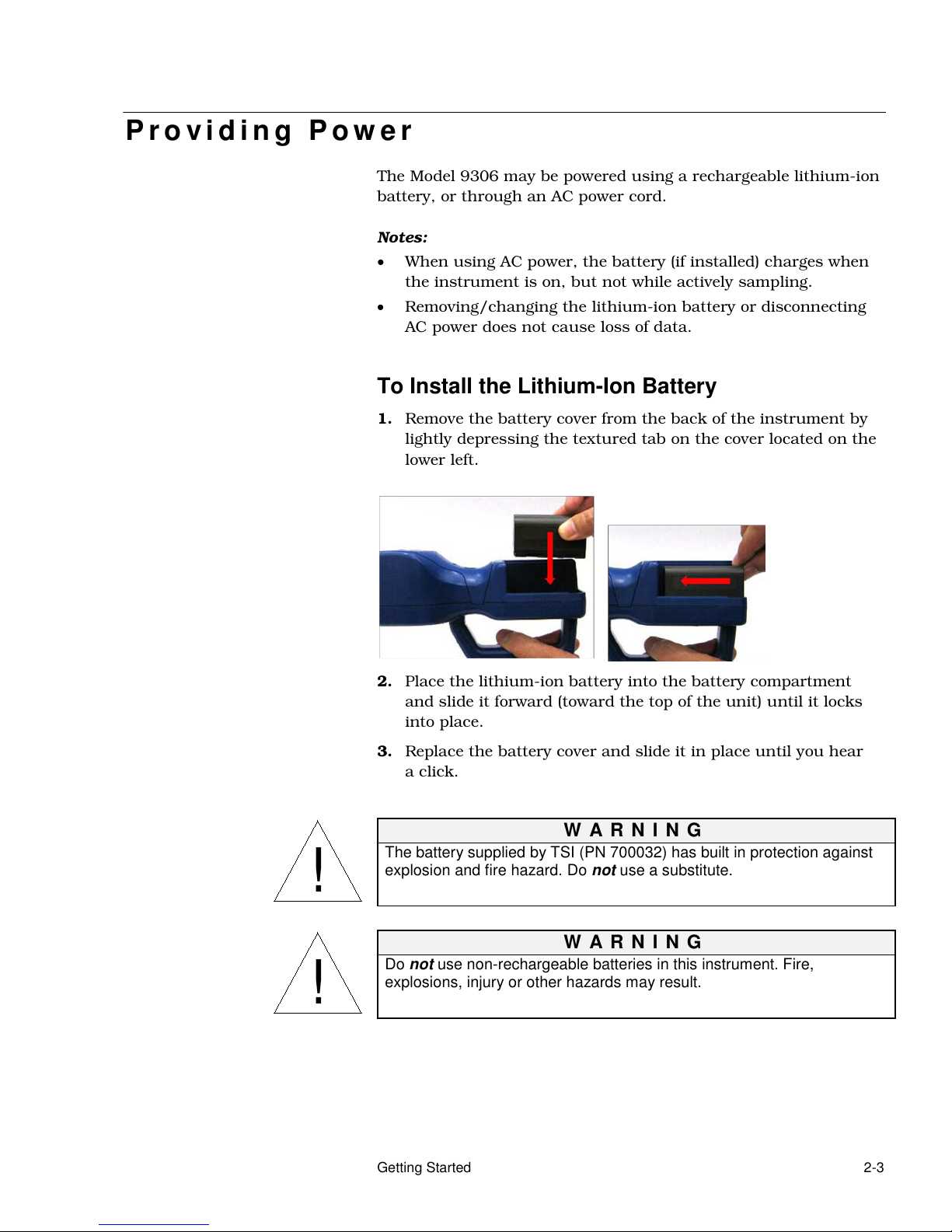

Providing Power ..................................................................................2-3
To Install the Lithium-Ion Battery.....................................................2-3

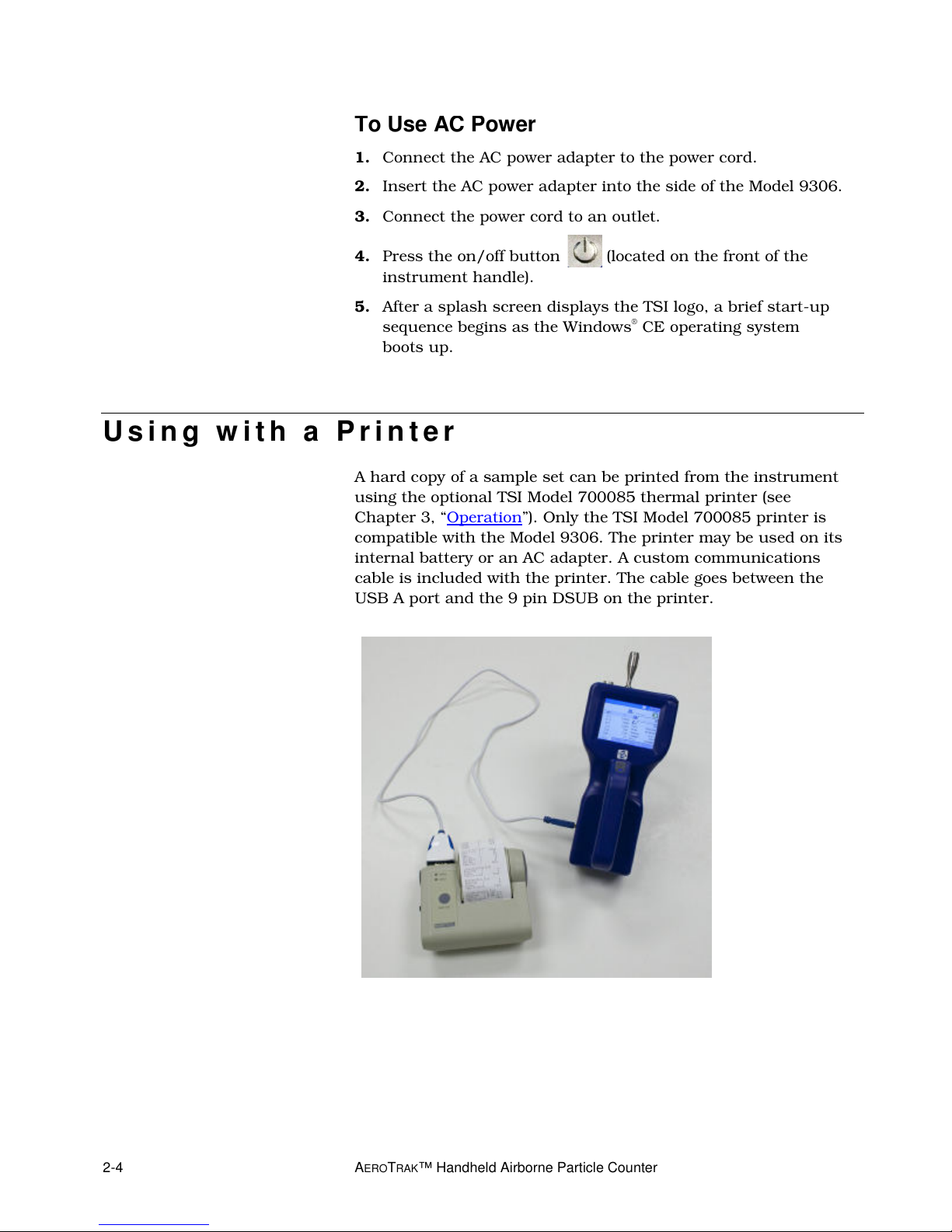

To Use AC Power ............................................................................2-4
Using with a Printer .............................................................................2-4
Performing a Zero Check ....................................................................2-5
To Perform a Zero Check ................................................................2-5
Installing an Isokinetic Inlet .................................................................2-6
Installing a Temperature/Relative Humidity Probe .............................2-7
CHAPTER 3 Operation ............................................................................3-1
Screen Layout and Functionality.........................................................3-1
Software Input Panel (Keyboard) ....................................................3-2
Main Tab ..........................................................................................3-2
Setup Tab ........................................................................................3-6
Data Tab ........................................................................................3-26
Reports Tab ...................................................................................3-29
CHAPTER 4 Data Handling .....................................................................4-1
USB Data Download ...........................................................................4-1
USB Computer Communication ..........................................................4-2
Installing Software...............................................................................4-2
Ethernet Communications...................................................................4-3
netzerotools.com
netzerotools.com

vi AEROTRAK™ Handheld Airborne Particle Counter
CHAPTER 5 Maintenance .......................................................................5-1
Maintenance Schedule........................................................................5-1
Zero Check..........................................................................................5-1
Cleaning the Instrument Enclosure .....................................................5-1
CHAPTER 6 Troubleshooting.................................................................6-1
CHAPTER 7 Contacting Customer Service...........................................7-1
Technical Contacts..............................................................................7-1
International Contacts......................................................................7-1
Returning the AEROTRAK™ Handheld Airborne Particle Counter
for Service........................................................................................7-3
APPENDIX A Specifications .................................................................. A-1
Temperature/RH Probe (700084) Specifications
(optional accessory)........................................................................ A-2
Compliance ........................................................................................ A-3
Dimensional Diagram......................................................................... A-3
Index
netzerotools.com
netzerotools.com

vii
Safety Information
This section gives instructions to promote safe and proper
handling of the AEROTRAK™Handheld Airborne Particle Counters.
IMPORTANT
There are no user-serviceable parts inside the instrument. Refer all repair
and maintenance to a qualified factory-authorized technician. All
maintenance and repair information in this manual is included for use by
a qualified factory-authorized technician.
Laser Safety
•The Model 9306 Handheld Airborne Particle Counter is a
Class I laser-based instrument.
•During normal operation, you will not be exposed to laser
radiation.
•Precaution should be taken to avoid exposure to hazardous
radiation in the form of intense, focused, visible light.
•Exposure to this light may cause blindness.
Take these precautions:
•DO NOT remove any parts from the particle counter unless
you are specifically told to do so in this manual.
•DO NOT remove the housing or covers. There are no user-
serviceable components inside the housing.
WARNING
The use of controls, adjustments, or procedures other than those
specified in this manual may result in exposure to hazardous optical
radiation.
netzerotools.com
netzerotools.com

viii AEROTRAK™ Handheld Airborne Particle Counter

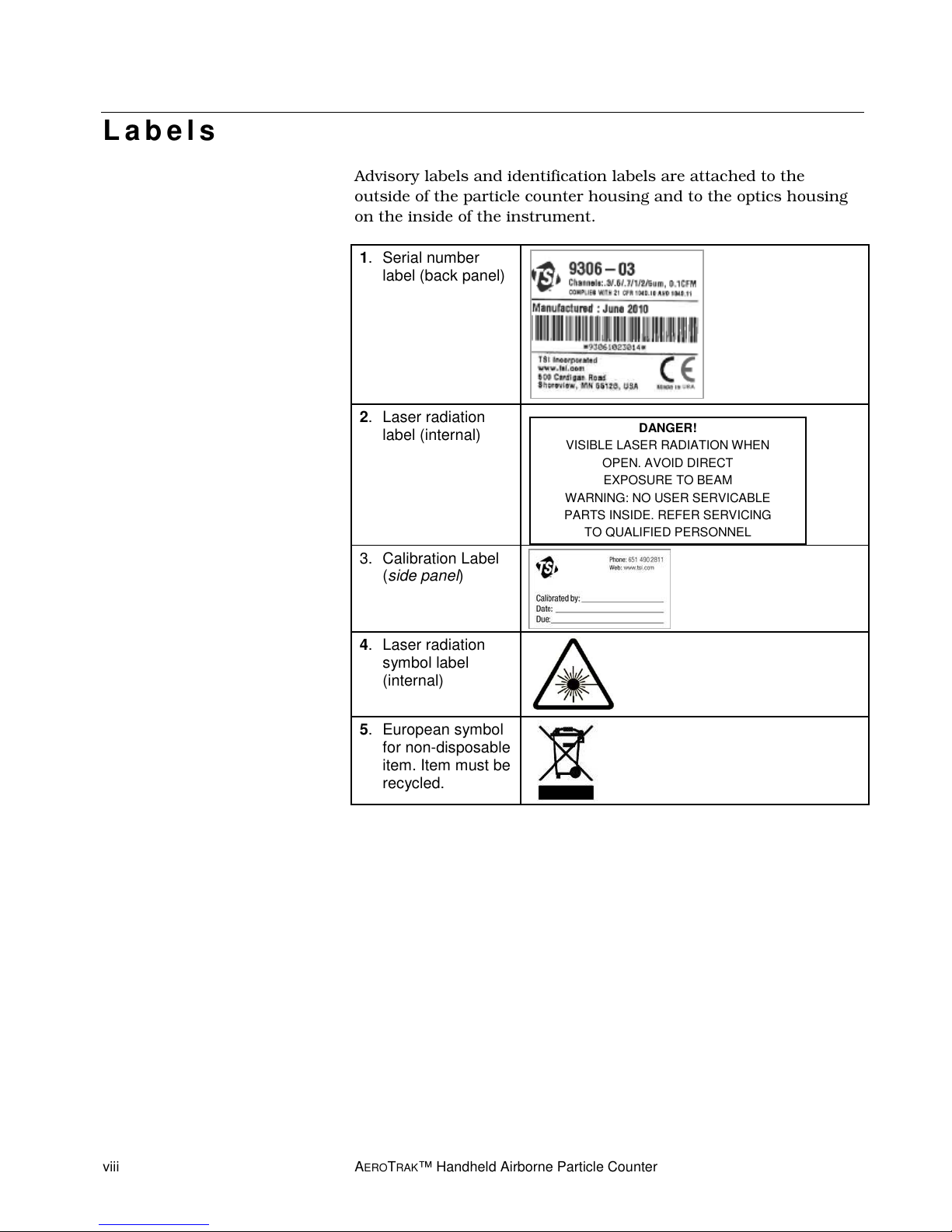

Labels
Advisory labels and identification labels are attached to the
outside of the particle counter housing and to the optics housing
on the inside of the instrument.
1.Serial number
label (back panel)
2.Laser radiation
label (internal) DANGER!
VISIBLE LASER RADIATION WHEN
OPEN. AVOID DIRECT
EXPOSURE TO BEAM
WARNING: NO USER SERVICABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL
3. Calibration Label
(side panel)
4.Laser radiation
symbol label
(internal)
5.European symbol
for non-disposable
item. Item must be
recycled.
netzerotools.com
netzerotools.com

Safety Information ix

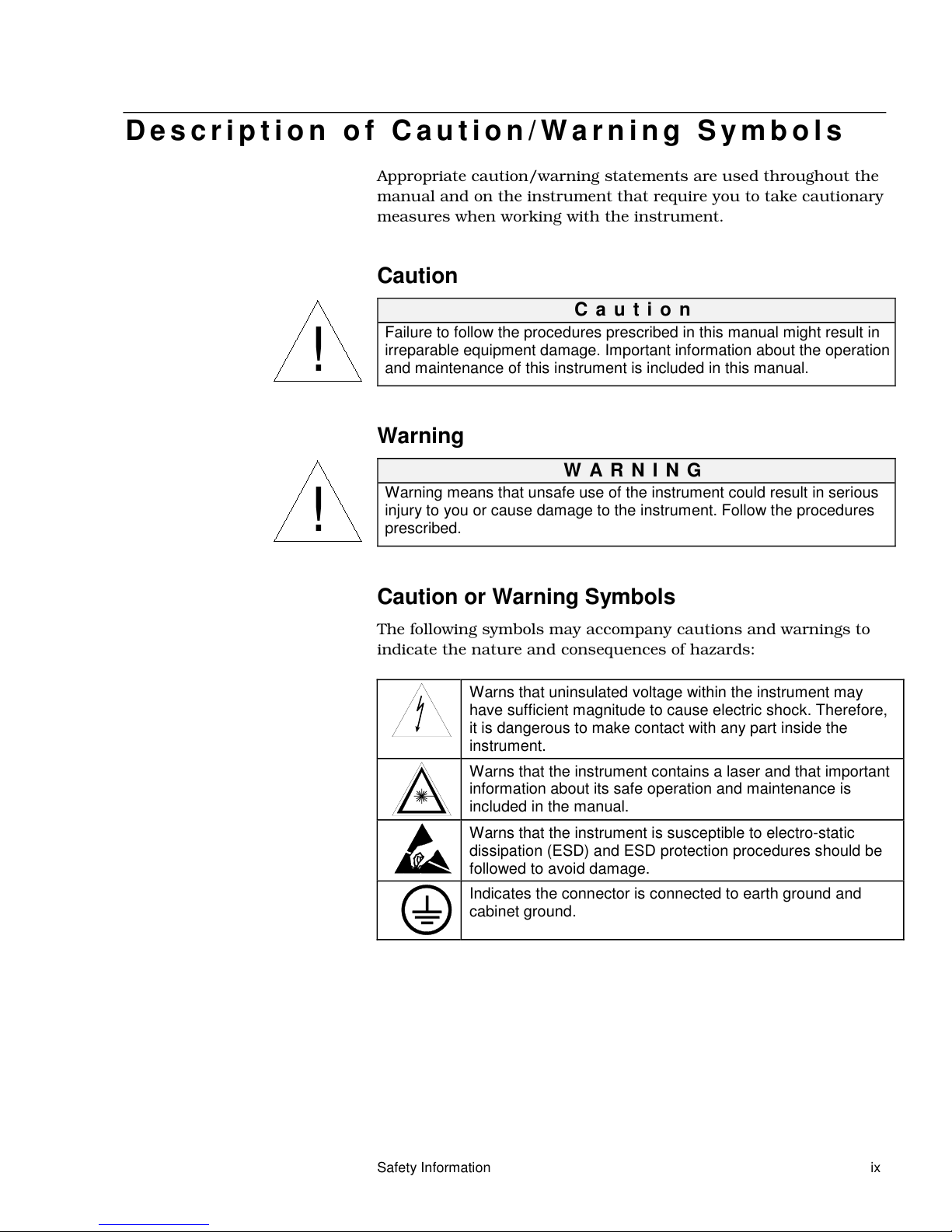

Description of Caution/Warning Symbols
Appropriate caution/warning statements are used throughout the
manual and on the instrument that require you to take cautionary
measures when working with the instrument.
Caution
!
Caution
Failure to follow the procedures prescribed in this manual might result in
irreparable equipment damage. Important information about the operation
and maintenance of this instrument is included in this manual.
Warning
!
WARNING
Warning means that unsafe use of the instrument could result in serious
injury to you or cause damage to the instrument. Follow the procedures
prescribed.
Caution or Warning Symbols
The following symbols may accompany cautions and warnings to
indicate the nature and consequences of hazards:
Warns that uninsulated voltage within the instrument may
have sufficient magnitude to cause electric shock. Therefore,
it is dangerous to make contact with any part inside the
instrument.
Warns that the instrument contains a laser and that important
information about its safe operation and maintenance is
included in the manual.
Warns that the instrument is susceptible to electro-static
dissipation (ESD) and ESD protection procedures should be
followed to avoid damage.
Indicates the connector is connected to earth ground and
cabinet ground.
netzerotools.com
netzerotools.com

x AEROTRAK™ Handheld Airborne Particle Counter

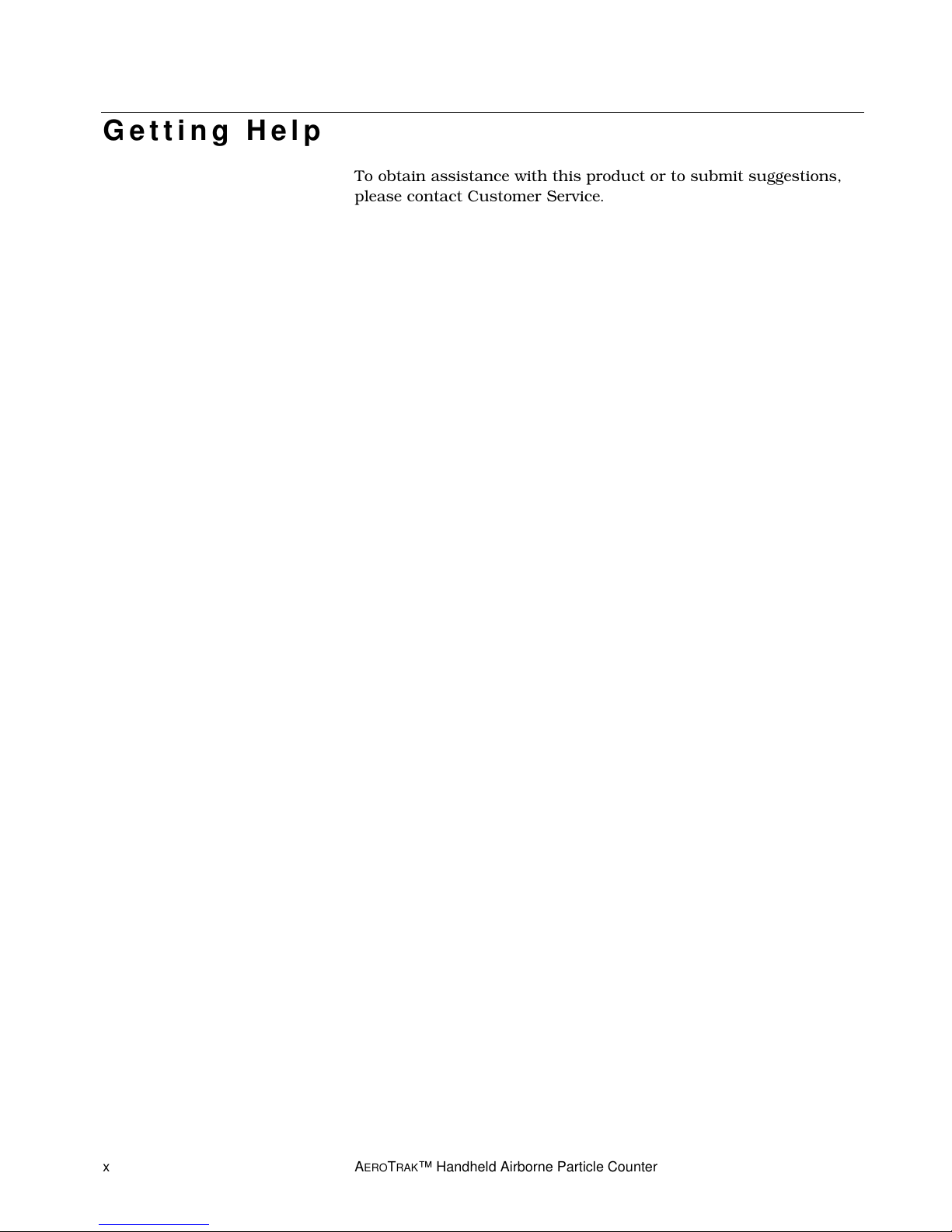

Getting Help
To obtain assistance with this product ortosubmit suggestions,
please contact Customer Service.
netzerotools.com
netzerotools.com

1-1
CHAPTER 1
Introduction and
Unpacking
The AEROTRAK™Model 9306 Airborne Particle Counter (particle
counter) is a lightweight, handheld particle counter with a touch-
screen interface. It operates on the included lithium-ion battery or
AC power.
This device has a 0.1 CFM (2.83 L/min) flow rate and counts bin
sizes from 0.3 to 25 µm that depend on the model ordered (see
table below). Up to 10,000 data sets can be downloaded for
analysis and reporting using the TRAKPRO™ Lite Data Download
Software included with the device.
Model Size Range
9306-03 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 µm
9306-04 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
9306-V2 0.3 to 10 µm, user-selectable; factory-calibrated at 0.3, 0.5,
1.0, 3.0, 5.0, 10.0 µm
Typical applications for this particle counter include clean room
monitoring, research, exposure assessment, indoor air quality,
filter testing, clearance testing, quality assurance, and
contaminant migration studies. All AEROTRAK™particle counters
meet JIS standards.
netzerotools.com
netzerotools.com

1-2 AEROTRAK™ Handheld Airborne Particle Counter
Unpacking the AEROTRAK™Handheld
Airborne Particle Counter
Carefully unpack the AEROTRAK™Airborne Particle Counter from
the shipping container and verify that all the items shown in the
photos below and listed in the following tables are present.
Contact TSI immediately if items are missing or broken.
Model 9306 AEROTRAK™Airborne Particle Counter Parts List
Qty. Item Description Part/Model Reference Picture
1 AEROTRAK™
Airborne Particle
Counter
9306-03
9306-04
9306-V2
1 Power Supply with
universal plugs
801694
1 Isokinetic inlet 700003 AL
1 Battery pack 700032
1 Computer cable
(2 m), USB A to B
700033
1 Stylus N/A
1 HEPA zero filter
assembly
700005
netzerotools.com
netzerotools.com

Introduction and Unpacking 1-3

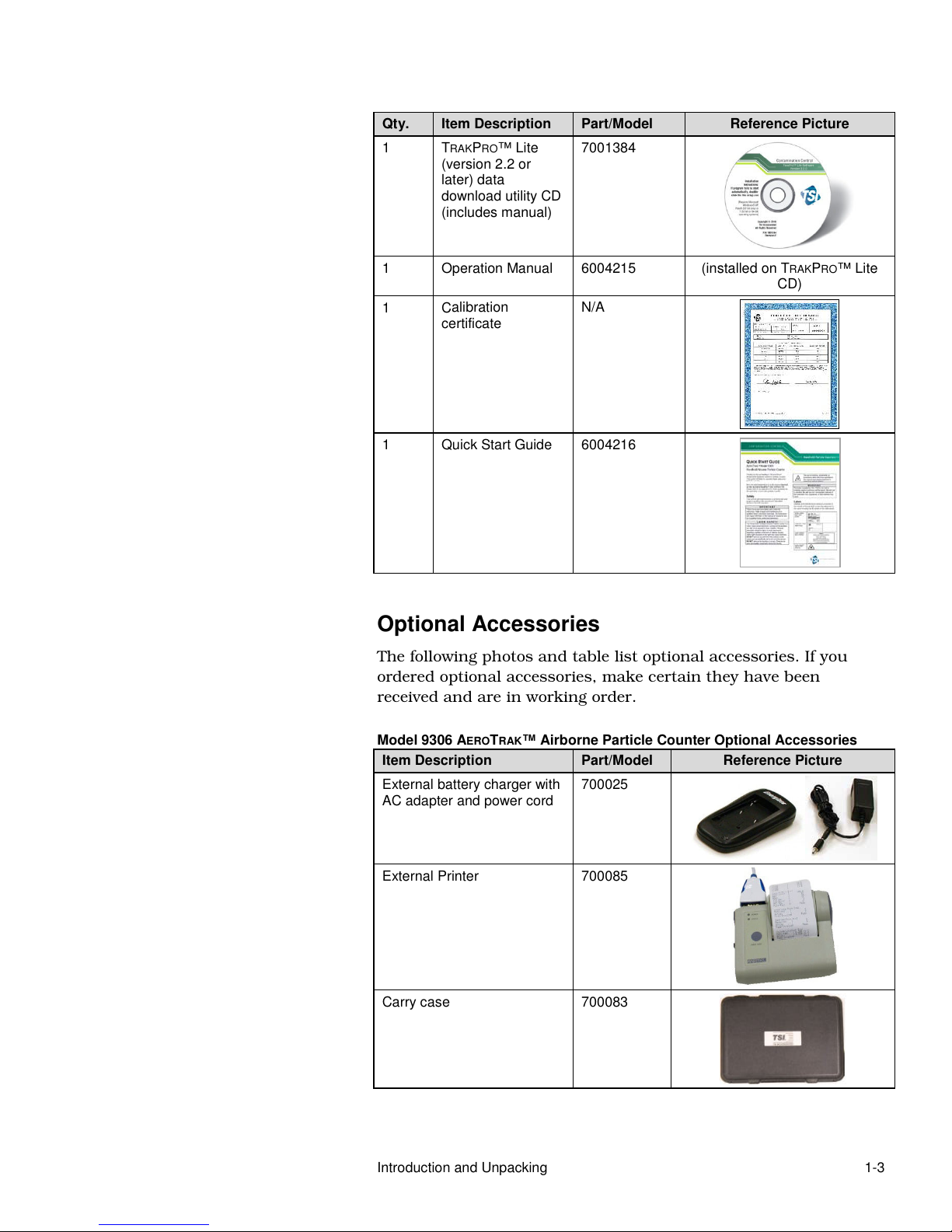

Qty. Item Description Part/Model Reference Picture
1 TRAKPRO™ Lite
(version 2.2 or
later) data
download utility CD
(includes manual)
7001384
1 Operation Manual 6004215 (installed on TRAKPRO™ Lite
CD)
1 Calibration
certificate
N/A
1 Quick Start Guide 6004216
Optional Accessories
The following photos and table list optional accessories. If you
ordered optional accessories, make certain they have been
received and are in working order.
Model 9306 AEROTRAK™ Airborne Particle Counter Optional Accessories
Item Description Part/Model Reference Picture
External battery charger with
AC adapter and power cord
700025
External Printer 700085
Carry case 700083
netzerotools.com
netzerotools.com

1-4 AEROTRAK™ Handheld Airborne Particle Counter
Item Description Part/Model Reference Picture
Temperature/humidity probe 700084
Stainless Steel Isokinetic
inlet
700004
Isokinetic probe (used with
tubing)
700001 AL
700002 SS
0.1 cfm Barb Inlet Fitting 700020
Tubing, Superthane 1/8-inch
ID x ¼-inch OD, Clear 100 ft
700009
TRAKPRO™ Lite Secure CD
for 21 CFR Part 11 compliant
data downloading
7001888
(optional
accessory)
netzerotools.com
netzerotools.com

2-1
CHAPTER 2
Getting Started
This chapter provides information to help you use the Model 9306
AEROTRAK™Handheld Airborne Particle Counter including:
•Instrument Description
•Using the Instrument Stand and Stylus
•Providing Power
•Performing a Zero Check
•Installing an Isokinetic Inlet
•Installing a Temperature/Relative Humidity Probe
Instrument Description
The Model 9306 has many features to make measurements
convenient. They are described in detail below.
Isokinetic
Inlet
Touch-Screen
USB Host
and Device
Stand
Power Button
Start Sample
Stylus
Power Entry
Ethernet Port
netzerotools.com
netzerotools.com

2-2 AEROTRAK™ Handheld Airborne Particle Counter
Using the Instrument Stand and Stylus
The Model 9306 is equipped with an integral instrument support
stand. To open the stand, grasp it by the large finger hole and pull
it out until it locks into place. Be careful not to overextend the
stand. To store the stand out of the way when not in use, simply
push the stand back until it snaps into place.
The Model 9306 is also equipped with a plastic stylus for use with
the touch screen interface. The stylus locks into place in the case
near the top of the unit when not in use.
netzerotools.com
netzerotools.com

Getting Started 2-3
Providing Power
The Model 9306 may be powered using a rechargeable lithium-ion
battery, or through an AC power cord.
Notes:
•When using AC power, the battery (if installed) charges when
the instrument is on, but not while actively sampling.
•Removing/changing the lithium-ion battery or disconnecting
AC power does not cause loss of data.
To Install the Lithium-Ion Battery
1. Remove the battery cover from the back of the instrument by
lightly depressing the textured tab on the cover located on the
lower left.
2. Place the lithium-ion battery into the battery compartment
and slide it forward (toward the top of the unit) until it locks
into place.
3. Replace the battery cover and slide it in place until you hear
a click.
!
WARNING
The battery supplied by TSI (PN 700032) has built in protection against
explosion and fire hazard. Do not use a substitute.
!
WARNING
Do not use non-rechargeable batteries in this instrument. Fire,
explosions, injury or other hazards may result.
netzerotools.com
netzerotools.com

2-4 AEROTRAK™ Handheld Airborne Particle Counter
To Use AC Power
1. Connect the AC power adapter to the power cord.
2. Insert the AC power adapter into the side of the Model 9306.
3. Connect the power cord to an outlet.
4. Press the on/off button (located on the front of the
instrument handle).
5. After a splash screen displays the TSI logo, a brief start-up
sequence begins as the Windows®CE operating system
boots up.
Using with a Printer
A hard copy of a sample set can be printed from the instrument
using the optional TSI Model 700085 thermal printer (see
Chapter 3, “Operation”). Only the TSI Model 700085 printer is
compatible with the Model 9306. The printer may be used on its
internal battery or an AC adapter. A custom communications
cable is included with the printer. The cable goes between the
USB A port and the 9 pin DSUB on the printer.
