TURBHOGAR - MANUAL OF ASSEMBLY AND USE
The TURBHOGAR fireplace is a model of open fireplace that is designed
to provide the maximum amount of calorific energy while achieving the
most economical performance and providing the greatest degree of safety.
The heat given off directly by radiation is added to by that obtained from
the efficient system of hot air heating, driven by its two turbines. This
enables us to heat up more quickly the space in which the TURBHOGAR
fireplace is installed, by means of its front air outlets. Moreover, and thanks
to its two upper outlets, the hot air can be conveyed to other rooms in the
house.
With the TURBHOGAR fireplace the fuel will be exploited to good effect as
it is fitted with a device for regulating the draught by means of an upper
switch, and one for controlling the influx of combustion air, through an
adjustable lower grate. In this way the consumption of fuel can be
optimised according to the room temperature requirements at any given
time.
Finally, it is important to point out that the TURBHOGAR, as compared
with traditional open fireplaces, provides greater safety as it comes with a
vitro-ceramic glass door, an anti-opening system and an electrical circuit
controlled by thermostat
The proper functioning of the TURBHOGAR Fireplace will depend on
its correct installation and use. To ensure this read this manual carefu-
lly and follow the general instructions and those pertaining to each
model in the respective technical data section.
•
•
•
•
n
e

Whilst the brickwork is being done the front section of the
TURBHOGAR fireplace should be protected against plaster remains or
water falling onto the device as this could damage the paintwork or cause
rusting.
Do not rest the brickwork, decorative fittings or wood directly on
the TURBHOGAR fireplace. A channel of at least 4mm should be left
between the decorative fittings and the front section of the device. This is
to allow for any expansion of the device and avoids cracks appearing in the
decorative fittings.
An interior air chamber of at least 5cm should be left between the
lateral decorative fittings, the back wall and the main body of the
fireplace. Under no circumstances should the TURBHOGAR be coated with
fibre glass sheets or other types of insulating material.
To convey hot air to other rooms, the TURBHOGAR fireplace is fitted with
two upper outlets. The connection is made with a flexible aluminium pipe
by first removing the cover and then inserting an adjustable grille in the
outlet. The connections should be fastened with metal clamps.
The fireplace hood should be made ideally from bulkhead set in plaster. A
grille can be fitted in this hood to enable ventilation of the air chamber and
avoid cracks occurring.
Smoke ducts
Heat ducts
ROFER
16

Outlet of hot air
on same floor
Flexible aluminium pipe
for heating
TURBHOGAR
fireplace (section)
Smoke outlet in stainless
or vitrified steel
Hot air outlet
(optional in upper floor)
Hood ventilation grille (optional)
Front hot air outlets
Cold air inlets
Turbines
TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Assembly
The TURBOHOGAR fireplace, ducts and hood should not be
installed next to coatings, wood parquet or other potentially
inflammable elements. Nor is the installation authorised in houses
with wooden frames, beams or roof, or asphalt roofing felt…
No installation in the house should be passed through the interior of
the chimney duct or hood. A safety distance of 0.5m should be
maintained where the installation passes near electrical conduits or
other installations.
The site of the fireplace installation should have sufficient ventilation
to provide a draught and allow for air recycling. In the event of it
being insufficient , an exterior air inlet grille can be fitted as close as
possible to the fireplace.
n
e
17

TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Smoke ducts
WRONG
WRONG RIGHT
> 50 cm > 8 m
> 4 m > 2 m
RIGHT
UPWARDS
< 45º
90º
•
•
A metallic pipe of a specified diameter must be used for the
evacuation of smoke through the draught. In accordance with
current regulations, we recommend the use of a stainless or vitrified steel
pipe with a bracket joint. In the event of an exterior assembly, this should
be of a modular double panel type.
Avoid reducing the diameter of the pipe, the use of elbow bends
of more than 45º and the connection of various devices to the
same duct, as this could cause the back-puffing of smoke.
In the event of requiring insulation in a section of the chimney draught, we
recommend the use of ceramic heat resistant panels.
The chimney draught should have a minimum height of 4m, and rise to at
least 50cm above the highest section of the roof. It should be placed at a
distance of over 8m from any adjacent building. For the top of the
chimney it is advisable to use standardised prefabricated or
metallic hoods.
When joining together the pipes the nozzle end should be pointing
upwards. To ensure a faultless sealing in the section that passes through
the hood, between the TURBHOGAR fireplace and the wrought ironwork,
heat resistant putty may be used.
•
•
•
n
e
18

TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Lighting and Control
•
•
•
•
Before lighting the TURBHOGAR fireplace, ensure that the
draught is open (horizontal handle). Whilst the device is functioning
at least one of the hot air outlet grilles must remain open.
You are advised to use dry firewood, with low resin content (for example
olive or evergreen oak). Wafer board or wood with paint or varnish remains
should not be used. Under no circumstances should liquid fuel or
coal briquettes be used to light the fire.
To help in the lighting of the fire a mixture of fine and bulky firewood can
be used. Once it is functioning, when opening the door to refuel, do so
slowly to avoid the back-puffing of smoke. Observe the maximum load
indicated.
During the first lighting some smoke may appear as a result of the drying
of the protective coat of heat-resistant paint in the TURBHOGAR
fireplace. For this reason we recommend that you ventilate the area until
this smoke disappears.
•
•
•
To improve the performance of the TURBHOGAR fireplace there is
an adjustable draught operated by a handle located on the upper
section:
To open the draught: turn to horizontal position
To close the draught: turn to vertical position, which
prevents the door from opening.
The lighting of the fire is helped by opening the adjustable grille on the
ashes box and opening the draught. When the fire has taken well, the grille
can be closed and adjust the draught in order to reduce fuel consumption.
The draught must never be closed when the door is open.
In order to control the flow of hot air, the TURBHOGAR fireplace
is fitted with a three-position switch:
Position 0: Automatic mode – minimum speed
Position I: Manual Mode – minimum speed
Position II: Manual Mode – maximum speed
n
e
19

TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Lighting and Control
Maintenance
•
•
At position 0, due to the action of the thermostat, the turbines start func-
tioning automatically once a specified temperature has been reached
(normally 20-30 minutes after the lighting); in the same way, the turbines
switch off when the temperature of the TURBHOGAR fireplace drops.
To get full benefit from the heating power of the TURBHOGAR fireplace
we recommend using Position II, as its greater air flow is specially desig-
ned for the conveying of air to other rooms or for heating up an area more
quickly.
Once the desired room temperature has been reached Position I can be
used. If you want the turbines to switch off automatically after the
fire has been put out, switch to Position 0.
•
•
•
•
For the cleaning of the exterior a dry cloth should be used, and
should not be moistened or used with any abrasive product that
may damage the paintwork.
The glass should be cleaned when cold, using a product specially designed
for fireplaces, or any brand of oven cleaner. In the event of persistent
stains, a glass scraper can be used.
The cleaning out of the ashes is done by removing the interior fireplace
grille and collecting up the ashes in the box, making sure beforehand that
the live embers are fully extinguished.
For the periodic removal of soot
from your chimney we recommend
that you seek professional advice.
The draught shutter blade of the
TURBHOGAR fireplace is detach-
able to allow for this operation.
Safety Handle
for the opening of the door and the control of the draught
•
12
Removable
corsaire plate
TURBHOGAR SECTION
n
e
20

TURBHOGAR · MANUAL OF ASSEMBLY AND USE

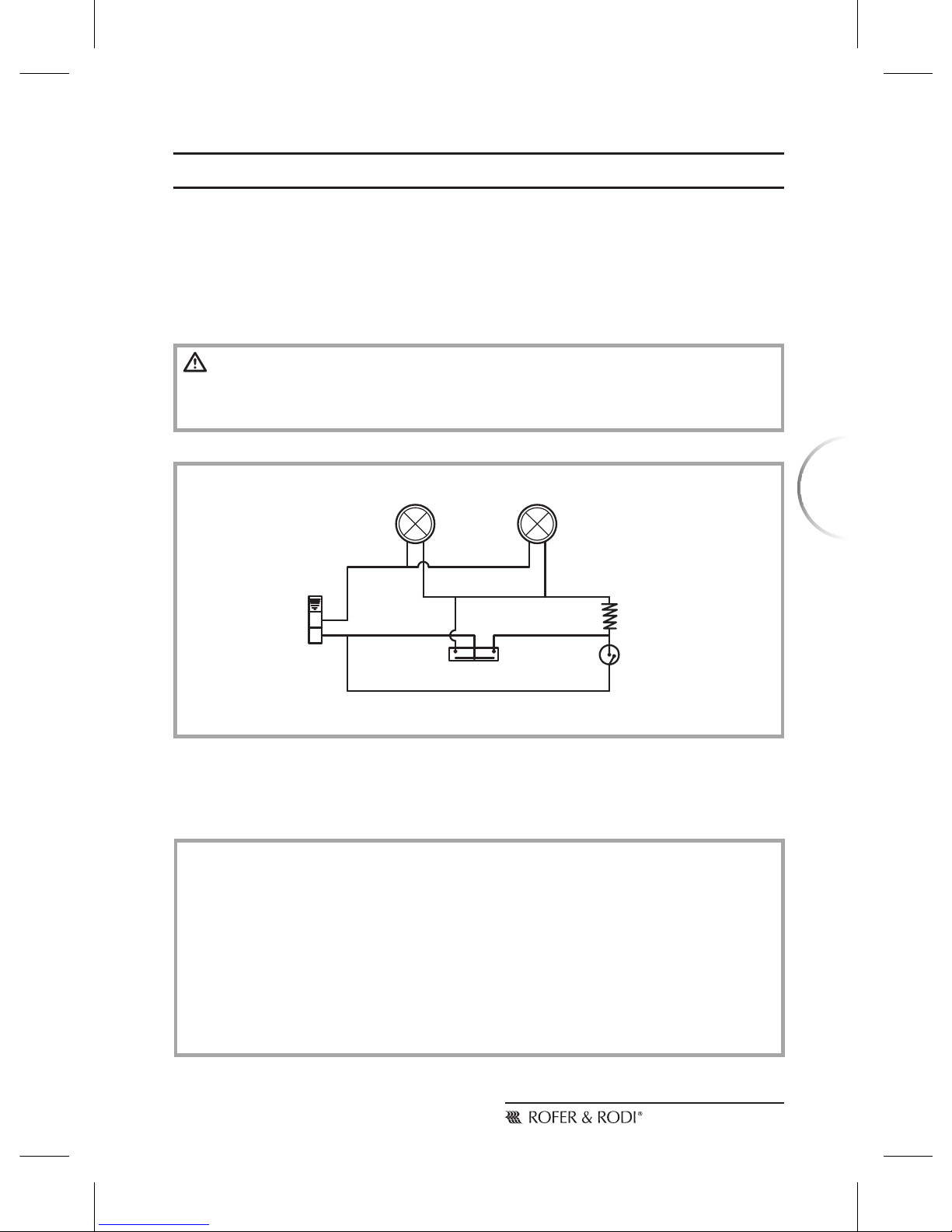

Diagram and Connection to the electricity mains
Remember that your fireplace is connected to the electrical mains. It
must not be extinguished with water as, in addition to causing a
safety hazard, it could damage the device and its electrical components.
During the normal use of the device and whilst it is lit, you are advised
not to disconnect it from the electrical mains. However, a permanent
connection must not be made in the fuse box but preferably by means of
an approved plug with an earth wire which, when required, allows the
user to disconnect it.
Any repair work to or handling of the Turbhogar model particular the
electrical system must be carried out by authorised technical staff.
For any information related to the assembly, use or maintenance of
your fireplace, which is not contained in this manual, please do not
hesitate to contact the nearest Rofer & Rodi Fireplace Dealer.
•
N
R21
0
Turbines
Resistance
Thermostat
Earth wire
220 V - 36 W Switch
Diagram of the
electrical connection
•
•
•
n
e
21

TURBHOGAR · MANUAL OF ASSEMBLY AND USE

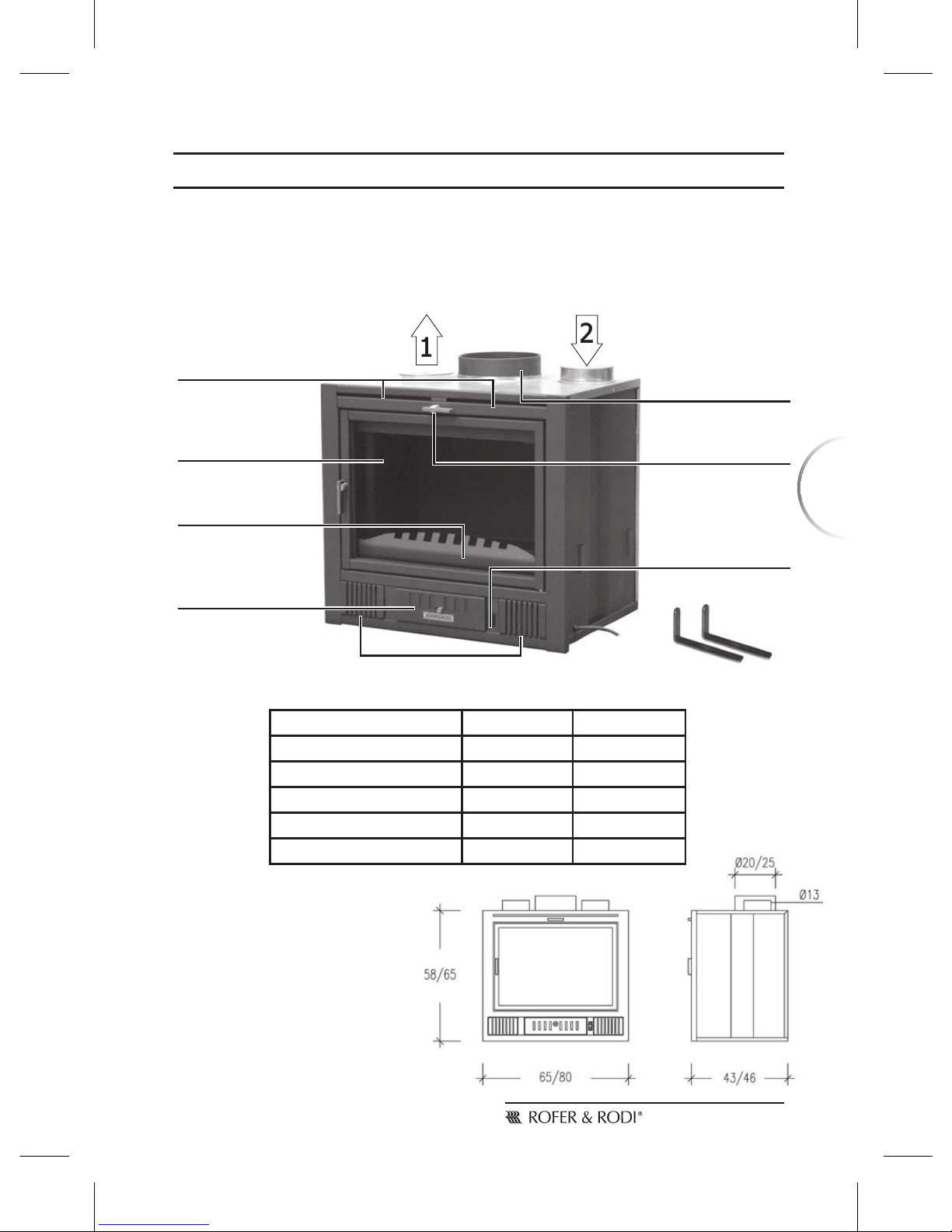

Technical data – ALFA Model
• Fireplace made of electro-
soldered steel plate 5mm
• Door with vitro-ceramic
glass guaranteed to resist
up to 750º C
• Draught adjustable by
means of external handle
• Bronze handles and knobs
• Removable ashes box with
air inlet control
• Heat chamber with turbines
and thermostat
Door with
vitro-ceramic glass
Hot air outlets
with adjustable grilles
Ashes box with
adjustable grille
Smoke outlet
Draught
control handle
Turbine switch key
Anchors
for transportation
Turbines and thermostat
Upper hot air outlets
Reference 65-T 80-T
Diameter of Smoke Ducts 17,5 cm 20 cm
Flexible hot air pipe 13 cm 13 cm
Heating capacity 12.000 kcal/h 16.000 kcal/h
Weight 85 kg 116 kg
Maximum firewood load 9-12 kg 12-15 kg
Handles for transportation
n
e
22

TURBHOGAR · MANUAL OF ASSEMBLY AND USE

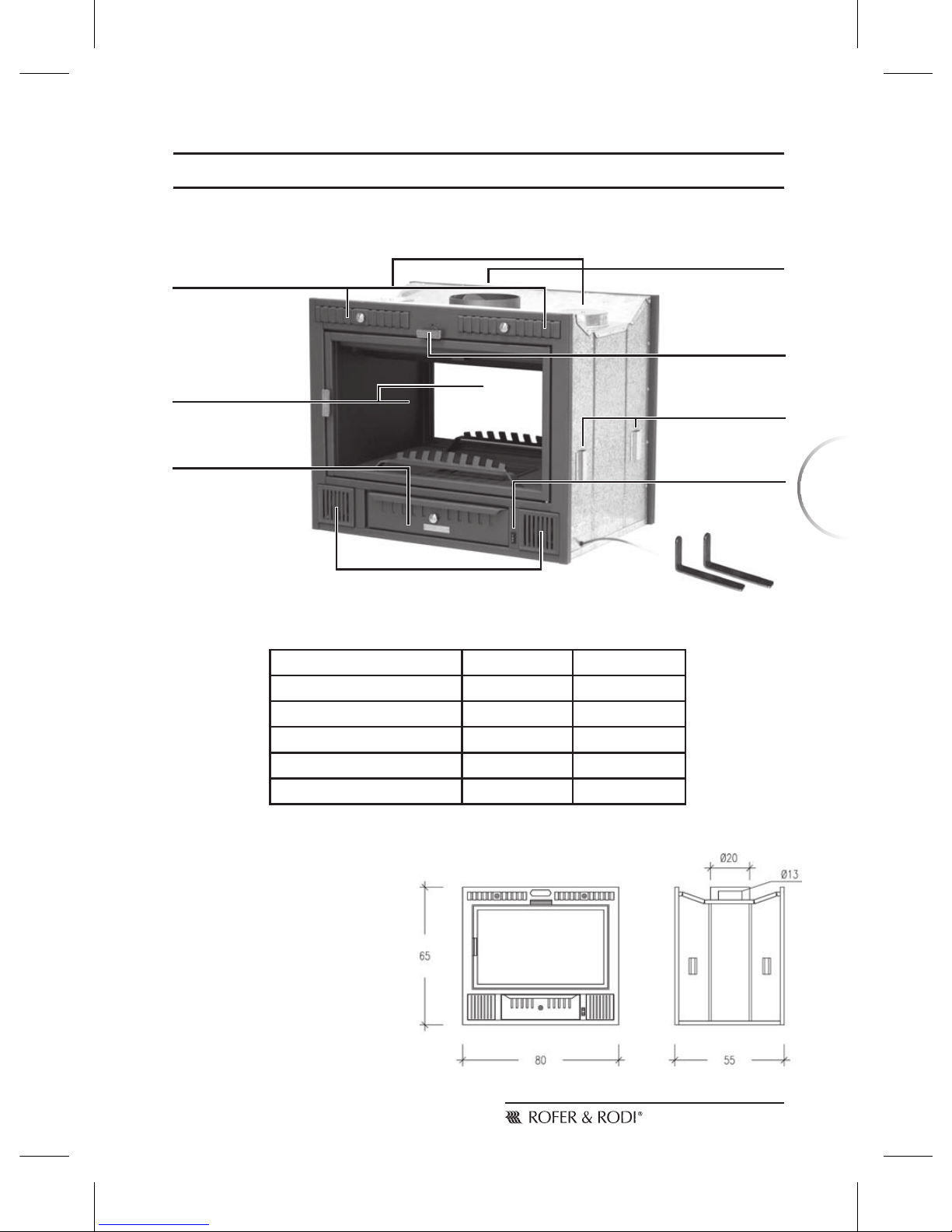

Technical data – BETA Model
• Fireplace made of electro-
soldered steel plate 5mm
• Double door with vitro-ceramic
glass guaranteed to resist up
to 750º C
• Draught adjustable by means
of external handle
• Bronze handles and knobs
• Removable ashes box with air
inlet control
• Heat chamber with turbines
and thermostat
Reference 80-B
Diameter of Smoke Ducts 20 cm
Flexible hot air pipe 13 cm
Heating capacity 16.000 kcal/h
Weight 128 kg
Maximum firewood load 12-15 kg
Double door with
vitro-ceramic glass
Hot air outlets
with adjustable grilles
Ashes box with
adjustable grille
Smoke outlet
Draught
control handle
Anchor for
transportation
Turbine switch key
Turbines and thermostat
Upper hot air outlets
Handles for transportation
n
e
23

TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Technical data – DELTA 2 – DELTA 3 Model
• Fireplace made of electro-soldered
steel plate 5mm
• Door with vitro-ceramic glass
guaranteed to resist up to 750º C
• Stainless steel handles and knobs
• Draught adjustable by means of
external handle
• Removable ashes box with air inlet
control
• Heat chamber with turbines and
thermostat
Reference 65-I 65-D 65-C 80-I 80-D 80-C
Diameter of Smoke Ducts 20 cm 25 cm
Flexible hot air pipe 13 cm 13 cm
Heating capacity 10.000 kcal/h 14.000 kcal/h
Weight 91 kg 91 kg 87 kg 120 kg 120 kg 115 kg
Maximum firewood load 8-10 kg 11-13 kg
1.- Remove the upper cover of the Turbhogar
fireplace using a screwdriver to lever the edge
of the lid.
Hot air outlets
with adjustable grilles
Door with
vitro-ceramic glass
Grille with air
inlet control
Removable
ashes box
Smoke outlet
Draught
control handle
Turbine switch key
Turbines and thermostat
After transporting the fireplace remove the auxiliary handles and install the lateral grille
pressing on the corners. Do not use a hammer as the blows may cause deterioration to
the paintwork.
Handle for
transportation
2.- Insert the metallic connector supplied,
which will serve as a joint for the flexible heat
pipe.
Connection of the heat ducts
n
e
24

25
TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Technical data – NEO Model
Reference 65-N 80-N
Diameter of Smoke Ducts 20 cm 25 cm
Flexible pipe for hot air 13 cm 13 cm
Heating capacity 10.000 kcal/h 14.000 kcal/h
Weight 96 kg 126 kg
Maximum firewood load 8-10 kg 11-13 kg
Handles for transportation
• Fireplace made of electro-soldered
steel plate 5mm
• Door with vitro-ceramic glass
guaranteed to resist up to 750º C
• Stainless steel handles and knobs
• Draught adjustable by means of
external handle
• Removable ashes box with air inlet
control
• Heat chamber with turbines and
thermostat
1.- Remove the upper cover of the Turbhogar
fireplace using a screwdriver to lever the edge
of the cover.
Front hot air outlets
Door with
vitro-ceramic glass
Grille with air
inlet control
Removable
ashes box
Smoke outlet
Draught
control handle
Turbine switch key
Turbines and thermostat
2.- Insert the metallic connector supplied,
which will serve as a joint for the flexible heat
pipe.
Connection of the heat ducts
n
e

TURBHOGAR · MANUAL OF ASSEMBLY AND USE
Technical data – SIGMA Model
• Fireplace made of
electro-soldered steel
plate 5mm
• Door with vitro-ceramic
glass guaranteed to resist
up to 750º C
• Draught adjustable by
means of external handle
• Removable ashes box with
air inlet control
• Heat chamber with
turbines and thermostat
• Stainless steel door,
handles and knobs
Front hot air outlets
Folding cover
This model has an air inlet control grille, turbines and a
switch key behind the folding cover.
Door with
vitro-ceramic glass
Removable
ashes box
Smoke outlet
Draught
control handle
Anchors
for transportation
Upper hot air outlets
Reference 65-S 80-S
Diameter of Smoke Ducts 17,5 cm 20 cm
Flexible pipe for hot air 13 cm 13 cm
Heating capacity 12.000 kcal/h 16.000 kcal/h
Weight 86 kg 117 kg
Maximum firewood load 9-12 kg 12-15 kg
Handles for transportation
n
e
26

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES 9
Complementary sheet to the
Manual of Installation and Use
Review 281108
TURBHOGAR Models Alfa, Beta, Delta,
Epsilon, Lambda, Neo, Sigma
UNE-EN 13229
08
Manufacturer:
ROFER AXARQUÍA S.L.
Family / Models
TURBHOGAR
Models Alfa, Beta, Delta, Epsilon,
Lambda, Neo, Sigma
Heating power 12 kW
Energetic Performance 70%
Minimum distance to adjacent fuel
materials
1.2 m
Carbon Monoxide emission at 13%
of Oxygen
0.8%
Temperature of smoke emissions 430° C
Insertable fireplace that uses natural firewood as fuel, for
intermittent use and which functions with the door closed.
Read and follow the instructions for installation and use.
Use only the recommended fuels.

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES
10
Warning for installer and user (Add to the beginning of page 3)
• The installation of the fireplace and of the smoke duct should be carried out in
observance of all the local regulations, including those referring to national and
European norms.
• An incorrectly installed fireplace or one with a defective chimney installation could
cause damage to the apparatus and set on fire the soot accumulated in the
chimney draught causing a risk of fire, back-puffing smoke, etc...
• The manufacturer refuses any responsibility for damage or deterioration caused
by the use of fuels not recommended or by unauthorised alterations made to the
device or the installation. The installation and repair of the device as well as the
periodic maintenance of the chimney draught must be carried out by qualified
professionals.
• Failure to observe the instructions for installation and use will result in the
invalidation of the manufacturer’s warranty.
Assembly (Add to the end of page 5)
• To guarantee the correct insulation of the fireplace and chimney, fire bricks,
ceramic and steel plates etc. can be used. The safety distance for adjacent
combustible materials must be observed.
• The floor surface on which the chimney is placed should be able to support the
load or total weight of the fireplace, decorative fittings and hood. In the event of this
condition not be observed, the forging work can be reinforced by means of a metal
structure or the load can be distributed by the laying of a reinforced concrete slab.
Consult a qualified technician before carrying out any of these measures.
• If the dwelling is fitted with mechanical air conditioning units or extractors, when
these begin to function the air intake for the chimney draught is likely to be
insufficient and it will be necessary to install an exterior air inlet grille which must
not be sealable, as close as possible to the fireplace, with a minimum section size
of 100 cm2. As a general rule, we recommend the installation of this type of grille as
it guarantees an adequate combustion and chimney draught.

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES 11
Smoke ducts (Add to the end of page 6)
• The smoke duct and the hood of each device should be individual. Do not connect
2 or more heating devices to the same smoke duct.
• Where necessary, fit dampers to ensure that the installation of the smoke ducts
and the chimney coping hood do not obstruct the mechanical removal of soot from
the chimney draught.
Lighting and Adjustment (Add to the beginning of page 7)
•Contact with the lighted stove or with the vitro ceramic glass can cause
burns. For this reason, in order to adjust the draught and open the door you should
use the handle supplied with the device.
•For safety reasons, do not allow children to go near the lighted fireplace, moreover
once extinguished take the necessary precautionary measures as the device will
remain hot for a certain period of time afterwards.
•A safety distance of 1.2 m around the device should be observed inside
which no potentially inflammable materials should be placed. Take into account that
even though there may be no direct contact, there may exist a risk of damage and
even fire due to the heat radiation. For this reason do not place inside the indicated
area wood or plastic furnishings, wallpaper, fitted carpeting, carpet rugs, curtains,
etc...
•Once the fireplace is functioning, the door must be kept closed, except when
opening to refuel.
•This device is not an incinerator. Do not use it to burn domestic waste,
cardboard, magazines, etc...

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES
12
Maintenance (Add to the end of page 8)
•In order to prevent the soot accumulated in the chimney draught catching fire, we
recommend a periodic check and cleaning of the draught installation using
mechanical means carried out by qualified technical staff at least once a year.
• In the event of this soot catching fire close the chimney draught and call the fire
service immediately.
Spare Parts
• To order spare parts indicate the serial number and year of manufacture figuring
on the plate attached to the device or on the warranty card. Only original spare
parts must be used.
Parts replaceable only by qualified professional staff:
Electrical cables, Turbines, Thermostat, Switch.
Parts replaceable by the user:
Draught break plate. Firedog, Ashes grate, Ashes box, Grille knobs
Vitro ceramic glass: bear in mind that although resistant to temperature it is
fragile and any impact to it or to the fireplace may cause it to break. In
order to replace it the use of specialised tools may be required and
adequate protection measures need to be taken to avoid suffering cuts
during the handling of broken glass.

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES 13
Technical data (Add to the beginning of page 10)
• The TURBHOGAR fireplace is an insertable device, which conforms with the
obligatory UNE EN-13229 regulations:
Normal heat output:
12 KW
Performance:
70%
CO concentration at 13% oxygen
0.8%
Smoke flow
10 g/s
Optimum draught suction:
12 Pa
Average smoke temperature:
430°C
Combustion chamber:
Closed
Type of combustion:
Intermittent
Fuel:
Dry firewood from natural
wood
Maximum size of firewood:
Length 35 cm
Diameter 18 cm
Recommended type of firewood:
Beech, oak, Chestnut, elm,
olive, holm-oak etc...
The size, weight and other characteristics of each model are set out in the
relevant technical catalogue.

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES
14
Probable causes of failure or irregular functioning
• The device you have purchased is a high performance fireplace of
guaranteed quality. Nevertheless, certain extreme climate conditions such as
strong winds, hail storms or risks of freezing temperatures, may cause the chimney
draught to be inadequate. In view of the potential risk of back-puffing smoke we
advise you not to use the fireplace under such conditions as this will not be
considered as a defect or malfunction of the device.
• Owing to the high heating power of the fireplace, we do not recommend its
installation in small rooms as the resulting increase in temperature could cause a
heat shock hazardous to persons’ health. For this reason the device should not be
used during hot days or periods.
• Below is a detailed list of instructions on how to correct and avoid an irregular
functioning of the device and some example cases of failure with indications on how
to repair the problem.
IMPORTANT NOTE: the repair work or procedures indicated with an asterisk
(*) must be carried out by qualified professional staff.
table 1
Description of failure Probable cause Procedure
Switch is in position I / II
(manual connection)
Turn the switch to position 0. This will
automatically disconnect the turbines
(after a time).
The turbines continue to function
after the device has been turned off.
Failure of thermostat (*)
Disconnect the device from the electricity
mains and do not use again until the
device has been repaired.
The switch is in position
0 (automatic
connection)
As the temperature is falling
disconnection is automatically activated.
Press position I / II if you wish to continue
heating the room.
No electrical supply
Check that the plug is correctly inserted in
the socket.
The turbines stop while the device is
in operation.
Turbine failure (*)
Disconnect the device from the electricity
mains and do not use again until the
device has been repaired.
The protection circuit differential of
the dwelling is activated when the
turbines start functioning.
Failure in the electrical
installation of the
dwelling or in the device
(*)
Disconnect the device from the electricity
mains and do not use again until the
device has been repaired.
The turbines function in automatic
mode but not in manual mode.
Malfunction of the
turbine switch (*)
Disconnect the device from the electricity
mains and do not use again until the
device has been repaired.

TURBHOGAR – Complementary sheet to the Manual of Installation and Use
ROFER & RODI FIREPLACES 15
table 2
Irregular function Probable cause Course of action
Reduction in the hot air
flow. Excess of hot air outlets
Close the hot air outlets in the rooms that
are not being used. You have probably
installed more outlets than the
recommended number for your fireplace.
The wood is of a poor
quality
Use only the types and sizes of firewood
recommended in the user’s manual.
There is an insufficient
amount of firewood
Load the device with the quantities
recommended in the user’s manual.
The device does not
generate sufficient heat.
The premises are poorly
insulated
The premises may be too large for the
type of fireplace installed or they are
poorly insulated.
The firewood is damp Use dry not damp or green firewood
The firewood pieces are
too large
To ensure the firewood sets alight it is
advisable to use small branches or twigs
that burn well. Use split firewood to stoke
up the hearth once lit.
The chimney draught is
closed
Open the draught regulator and once the
firewood has caught fire sufficiently close
the draught again.
The fire does not light
sufficiently or goes out.
The air inlet is closed Open the lower air inlet and keep it open
for as long as is necessary.
The chimney draught is
open
Adjust the draught control and close
completely if necessary.
The air inlet is open. Close the lower air inlet.
The fire is too high
The firewood is of a poor
quality.
Avoid using certain types of wood that
cause rapid burning such as chipboard,
ply wood, carpentry shop wood shavings
and sawdust, pine wood, etc.
The smoke outlet duct is
cold
The fire needs to be high as soon as it is
lit in order to heat up the duct. To achieve
this use fuel briquettes for barbeques and
fireplaces.
The chimney draught is
blocked
Check that there is no blockage in the
duct, particularly at hood level. Where
necessary clean out the soot
mechanically.
The draught is insufficient
Check that the exterior air inlets are not
blocked. It may be necessary to lengthen
the smoke ducts in order to obtain the
optimal chimney draught suction.
Use of ventilators or
mechanical extractors
In specific cases it may cause a suction
that prevents the device from functioning
correctly. In such event it will be
necessary to install an external air inlet
next to the fireplace.
Smoke emanates during
the lighting process or
when the device is
functioning.
A defective installation of
the fireplace or use of
inadequate material
A check on the ducts a hood should be
carried out by qualified professional staff.
