ACKNOWLEDGMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benefits it
provides. Before using this product please study this entire Instruction Manual carefully. Keep this
manual in a safe place for future reference. Ensure that other people using the product are familiar
with these instructions as well.
WARNING
When the oven is first switched on, it may give off
an unpleasant smell. This is due to the bonding
agent used for the insulating panels within the
oven. This is completely normal, if it does occur,
you merely have wait for the smell to clear before
putting food into the oven.
The appliance and its accessible parts become
hot during use.
Care should be taken to avoid touching heating
elements.
Children shall be kept away unless continuously
supervised.
Children shall not play with the appliance. Cleaning
and user maintenance shall
not be made by
children without supervision.
z
z
z
z
z
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the glass of the oven.
This can scratch the surface and may result in
permanent damage to the glass.
z
z

2
Children should be supervised to ensure that they
do not play with the appliance.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by person responsible for
their safety.
During use, the appliance becomes very hot.
Care should be taken to avoid touching heating
elements inside the oven.
Do not allow children to go near the oven when it
is operating, especially when the grill is on.
Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of
electric shock.
The means for disconnection must be
incorporated in the fixed wiring in accordance with
the wiring specifications.
z
z
z
z
z
z
z

FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an
upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame.
To locate the fixing holes,open the oven door and look inside.To allow adequate ventilation, the
measurements and distances adhered to when fixing the oven.
IMPORTANT
are next to the oven must be made of a heat resistant material. Ensure that the glues of
units that are made of veneered wood can with stand temperatures of at least 120
ºC . Plastics or glues
that cannot withstand such temperatures will melt and deform the unit,once the oven has been lodged
inside the units, electrical parts must be completely insulated.This is a legal safety requirement.All
guards must be firmly fixed into place so that it is impossibl to remove them without using special tools.
Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven.
The hob must have a rear gap of at least 45 mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged
in any way. If you have any doubts at all, do not use it: contact a professionally
qualified person. Keep packing materials such as plastic bags, polystyrene,
or nails out of the reach of children because these are dangerous to children.
3
SAFETY HINTS
Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or
damp hands or feet.
For oven: Oven door should not be opened often during the cooking period.
The appliance must be installed by an authorized technician and put into use. The producer is not
responsible for any damage that might be caused by defective placement, and installation by
unauthorized personnel.
When the door or drawer of oven is open do not leave anything on it, it may cause unbalanc your
appliance or break the door.
Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before
touching onto the points that are exposed to the heat directly.
If you will not use the appliance for a long time, it is advised to plug it off.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Excess spillage must be removed before cleaning and shall specify which utensils can be left in the oven
during cleaning.
Only use the temperature probe recommended for this oven.
A steam cleaner is not to be used.
For the oven is to work properly, the kitchen housing must be appropriate. The panels of the kitchen
unit that
to

PRODUCT DESCRIPTION

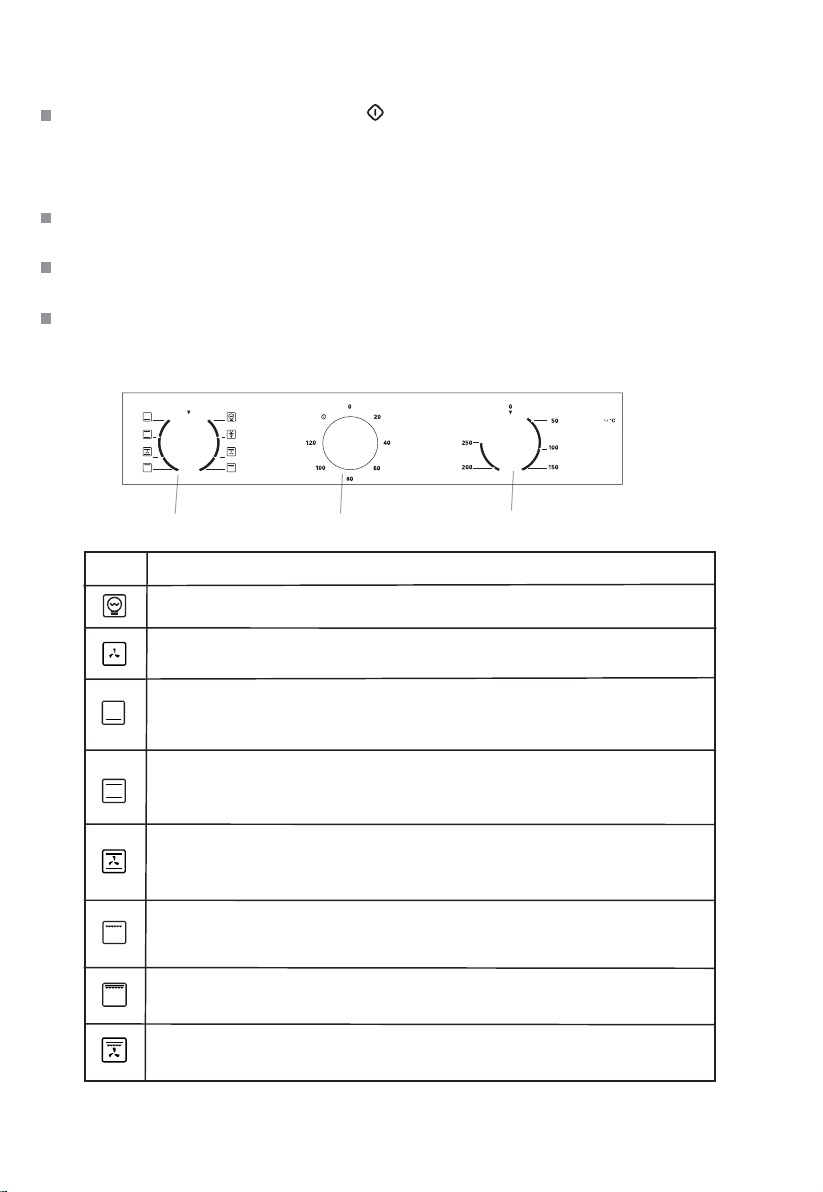

Function Knob Timer knob Temperature Knob
4
HOW TO USE
Stay on: For the oven to be used in the " ". the food may catch fire if the cooking time is set
too long. Close supervision is necessary during toasting and the time should not be set too long.
NOTE: For cooking times which are under sixty minutes, first set to a longer time and then turn
the switch back to the time you require.
To set functions by turning the function knob to desired level.
The oven will automatically start cooking after function, time and temperature are set.
To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
After the cooking time is up, the unit will " Dong" to stop.
To set the temperature by turning the temperature knob.
If the unit is not in use, always set the knobs to "0".
Convention with fan: Combination of the fan and both heating element provides more even
heat penetration,saving up to30-40% of energy. Dishes are lightly browned on the outside
and still moist on the inside. Note:This function is suitable for grilling or roasting big pieces
of meat at a higher temperature. The temperature can be set within the range of 50-250OC.
The default temperature is 220OC.
Symbol Function description
Oven Lamp: which enables the user to observe the progress of cooking without opening
the door.
Radiant grilling: The inner grill element switches on and off to maintain temperature.
The temperature can be set within the range of 180-240OC.The default temperature is 210OC.
This is optional function that can be work with rotisserie motor.
Conventional cooking: The top and bottom work together to provide convectional cooking.
The temperature can be set within the range of 50-250OC. The default temperature is 220OC.
This is optional function that can be work with rotisserie motor.
Bottom heat: A concealed element in the bottom of the oven provides a more
concentrative heat to the base of food without browing. This is ideal for slow cooking
dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired.
The temperature can be set within the range of 60-120OC. The default temperature is 60OC.
Deforst: The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It's a gentle but quick way to speed up the defrosting time
and thawing of ready-made dishes and cream filled produce etc.
Double grill: The radiant heating element and the top heating element are working.
The temperature can be set within the range of 180-240 .The default temperature is 210
Double grill with fan: The radiant heating element and top heating element are working with
fan. The temperature can be set within the range of 180-240 .The default temperature is
210 .
OC.
OC.
OC.
OC.

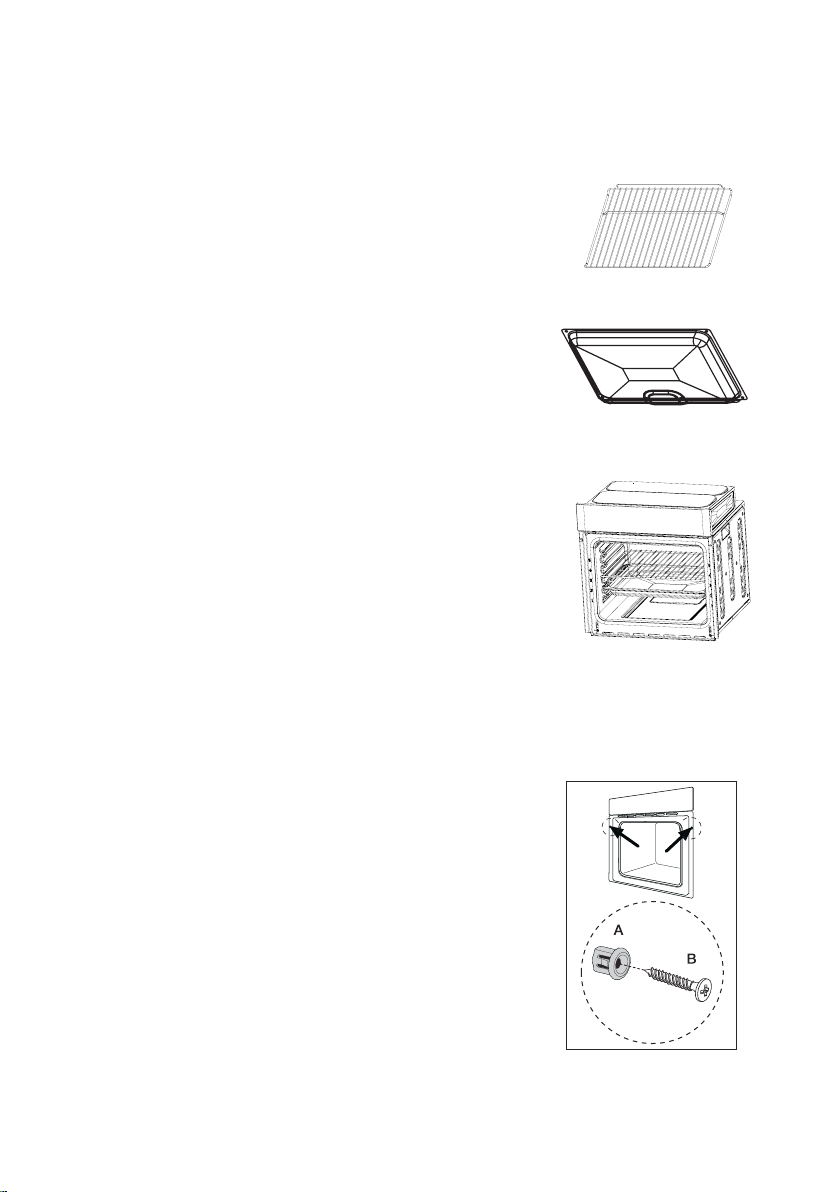

Wire shelves : For grill .dishes, cake pan with
items for roasting and grilling.
ACCESSORIES
Universal pan: For cooking large quantities of food such
as moist cakes, pastries, frozen food etc,or for collecting
fat/ spillage and meat juices.
SHELF PLACEMENT WARNING:
To ensure the oven shelves operate safely, correct placement
of the shelves between the side rails is imperative. This will
ensure that during careful removal of the shelf or tray, hot food
items should not slide out.
SECURING THE OVEN TO THE CABIET
1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabint with two distance
holders "A" which fit the holes in the oven frame and fit
the two wood screws "B".
5

BULB REPLACEMENT
The bulb in the light is a special bulb, and has high temperature resistance (240V~25W).
For replacement, proceed as follows:
1>.Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2>.Unscrew the covering glass and replace the bulb with a new one
of the same type.
3>.Screw the covering glass back in place.
VENTILATING OPENINGS
When cooking is finish, the cavity temperature is oven 70 degree. The ventilating opening will continue
working for 15 minutes after the oven stop cooking.
CONNECTION OF THE OVEN
Ventilating openings
NOTE: The number of accessories included depends on the particular appliance purchased.
6
INSTALLATION
575
595
595
560
600
850
50
80
250
100
570
600
560
L
N

For the sake of good appearance and reliability, keep the unit clean. The modern design of the unit
facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to
be cleaned regularly.
Before any maintenance and cleaning, disconnect the power.
Set all controls in the OFF position.
Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier when warm.
Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry.
In case of heavy soiling, use hot water with non- abrasive cleaning product.
For cleaning the glass of the oven door,do not use abrasive cleaners or sharp metal scrapers, these
can scratch the surface or damage the glass.
Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild
detergent.

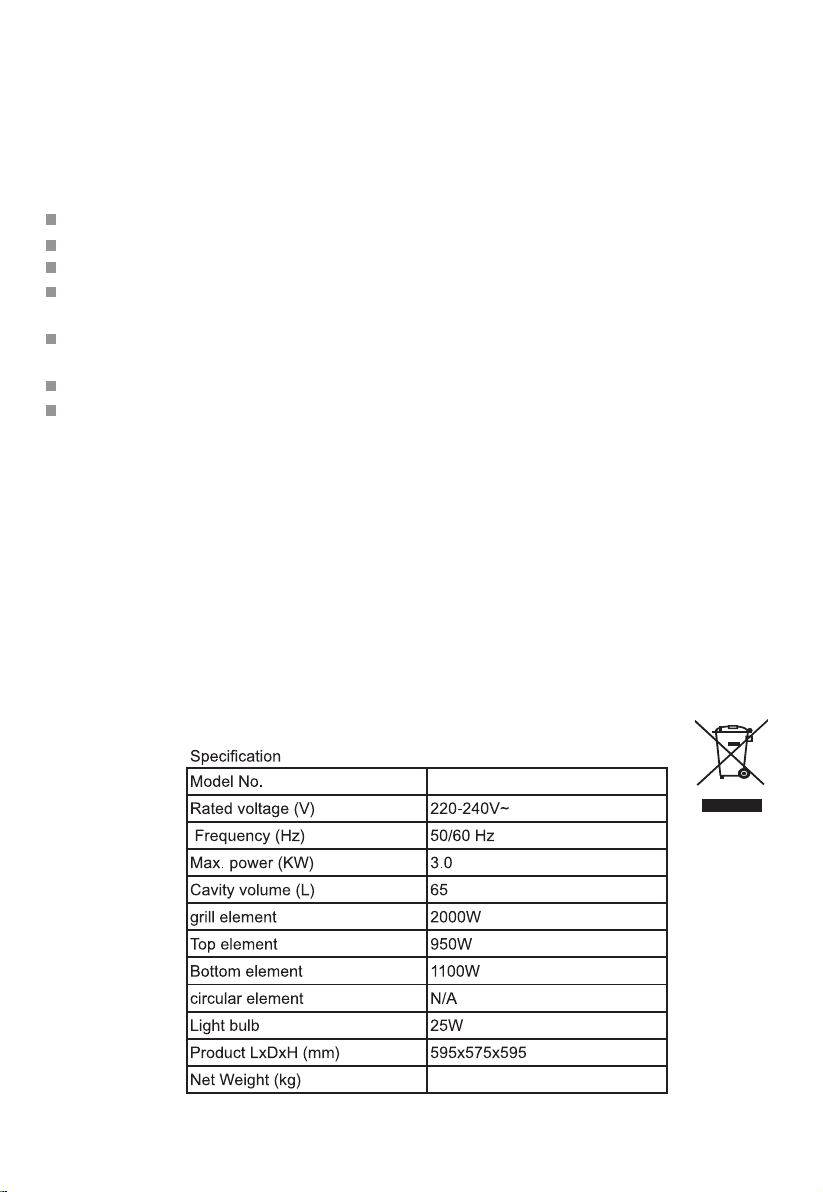

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment(WEEE).
By ensuring this product is disposed correctly, you will help prevent potential negative consequences for
the environment and human health,which could otherwise be caused by inappropriate waste handling
of this product. The symbol on the product indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical
and electronic equipment. Disposal must be carried out in accordance with local environmental
regulations for waste dispoasl.For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
CLEANING AND MAINTENANCE
7
34.5kg
TTFM8627
