Turboair JBT-36-N User manual

Turbo Air Speeds up the Pace of Innovation
J Series
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
BUFFET DISPLAY TABLES
JBT-36-N
JBT-48-N
JBT-60-N
JBT-72-N
SANDWICH/SALAD UNITS
JST-36-N
JST-48-N
JST-60-N
JST-72-N
UNDERCOUNTER REFRIGERATORS
JUR-36-N6 JUR-36S-N6 JUR-48-G-N
JUR-48-N6 JUR-48S-N6 JUR-60-G-N
JUR-60-N6 JUR-60S-N6 JUR-72-G-N
JUR-72-N6 JUR-72S-N6
UNDERCOUNTER FREEZERS
JUF-36-N JUF-36S-N
JUF-48-N JUF-48S-N
JUF-60-N JUF-60S-N
DUAL TEMP. UNDERCOUNTERS
JURF-48-N
JURF-60-N
JURF-72-N
www.turboairinc.com
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

2
SPECIFICATIONS
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.4
3.2
5.46
5.65
152 lbs.
179 lbs.
200 lbs.
234 lbs.
JBT-36-N
JBT-48-N
JBT-60-N
JBT-72-N
3/8
3/8
1/2
1/2
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
R-290
Buffet Display Tables
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.4
3.2
3.45
3.2
157 lbs.
191 lbs.
213 lbs.
254 lbs.
JST-36-N
JST-48-N
JST-60-N
JST-72-N
3/8
3/8
3/8+
3/8+
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
R-290
Sandwich / Salad Units
SPECIFICATIONS / SERIAL NUMBER
NOTICE
FOR HYDROCARBON REFRIGERATION UNITS
IMPORTANT SAFETY INFORMATION
NOTICE TO CUSTOMER
INSTALLATION

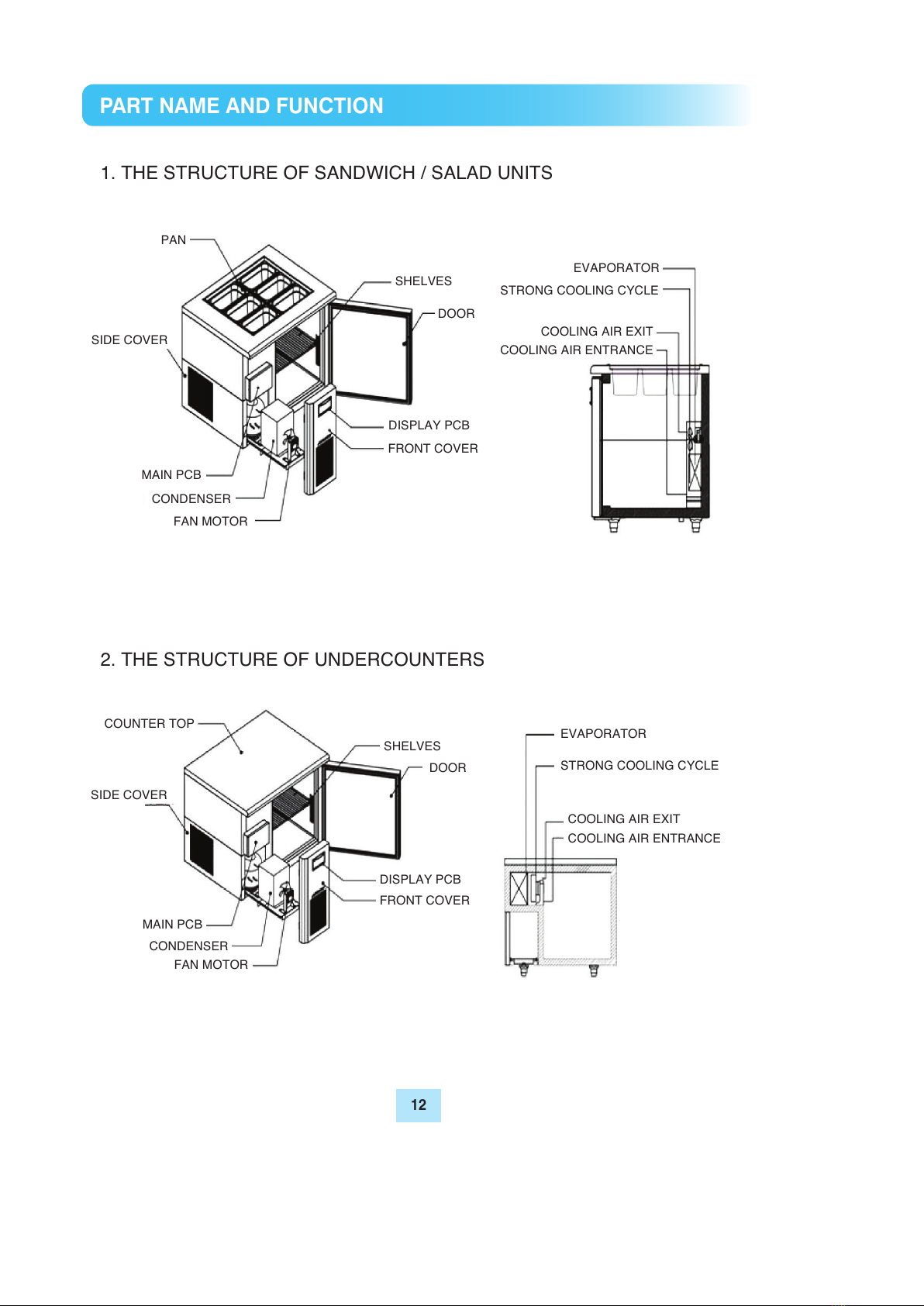

PART NAME AND FUNCTION
DISPLAY PANEL OF REFRIGERATOR/FREEZER

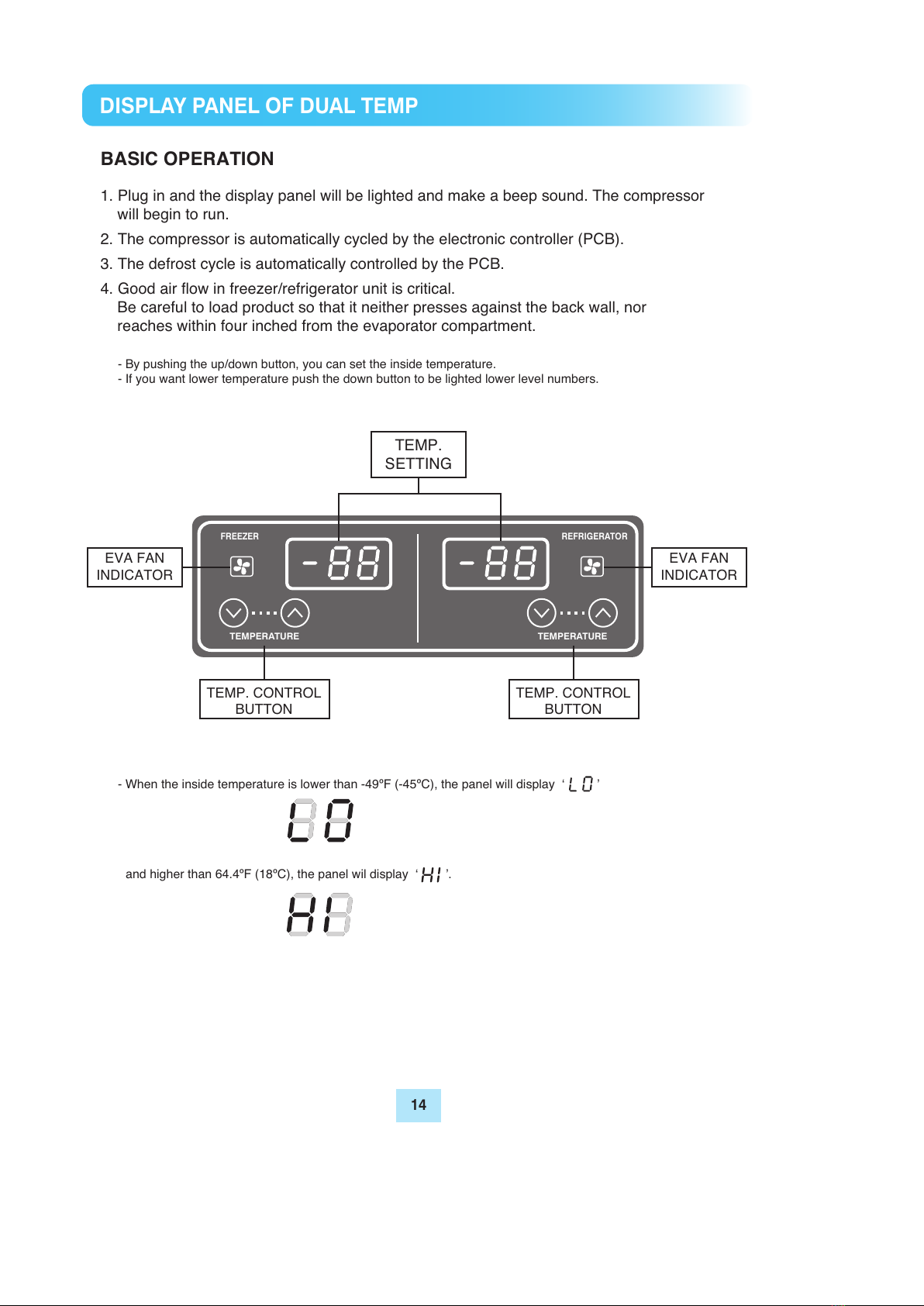

DISPLAY PANEL OF DUAL TEMP.
CAUTION
INSTALLATION & OPERATION
CLEANING & PRECAUTION
TROUBLESHOOTING
STAINLESS STEEL EQUIPMENT CARE & CLEANNING
WARRANTY INFORMATION
WARRANTY REGISTERATION CARD
2-3
4
5-6
7-10
11
11
12
13
14
15-18
19
20
21
22-23
24-25
27
TABLE OF CONTENTS
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.5
2.8
3.5
200 lbs.
220 lbs.
275 lbs.
JURF-48-N
JURF-60-N
JURF-72-N
1/3
3/8
3/8
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Dual Temp. Undercounters
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

3
SPECIFICATIONS
SERIAL NUMBER
MODELCOM H.P. V/Hz REFRIGERANT AMPS WEIGHT
1.7
1.7
2
2
145 lbs.
160 lbs.
180 lbs.
205 lbs.
JUR-36S-N6
JUR-48S-N6
JUR-60S-N6
JUR-72S-N6
1/6
1/6
1/5
1/5
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-600a
R-600a
R-600a
R-600a
Undercounter Refrigerators - Narrow
MODELCOM H.P. V/Hz REFRIGERANT AMPS WEIGHT
2.3
2.3
2.3
184 lbs.
205 lbs.
239 lbs.
JUR-48-G-N
JUR-60-G-N
JUR-72-G-N
1/4
1/4
1/4
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Refrigerators - Glass Door
MODELCOM H.P. V/Hz REFRIGERANT AMPS WEIGHT
3
3.1
4.4
157 lbs.
184 lbs.
205 lbs.
JUF-36-N
JUF-48-N
JUF-60-N
1/3
1/3
1/2
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Freezers
MODELCOM H.P. V/Hz REFRIGERANT AMPS WEIGHT
3.1
3.8
3.8
145 lbs.
160 lbs.
180 lbs.
JUF-36S-N
JUF-48S-N
JUF-60S-N
1/3
3/8+
3/8+
115V/60Hz
115V/60Hz
115V/60Hz
R-290
R-290
R-290
Undercounter Freezers - Narrow
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
1.7
2
2
2
157 lbs.
184 lbs.
205 lbs.
239 lbs.
JUR-36-N6
JUR-48-N6
JUR-60-N6
JUR-72-N6
1/6
1/5
1/5
1/5
115V/60Hz
115V/60Hz
115V/60Hz
115V/60Hz
R-600a
R-600a
R-600a
R-600a
Undercounter Refrigerators
The serial number is on the rating label located on the left interior wall.
Please retain the unit’s serial number for service purpose.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

4
NOTICE
• This equipment is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge
unless they have been given supervision or instructions concerning the use of this
equipment and the hazards involved by a person responsible for their safety.
• The special instructions for those persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge are not included
in this manual and are not required to be included.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
This manual uses the following safety symbols. These safety symbols with the
words of DANGER, WARNING or CAUTION alert users of the potential
hazards that could cause injury or even death.
DANGER
WARNING
CAUTION
Indicates hazards of death or serious injury,
if the instructions are not followed.
Indicates dangers of death or serious injury,
if the instructions are not followed.
Indicates risks of personal injury or material damage,
if the instructions are not followed.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

5
FOR HYDROCARBON REFRIGERATION UNITS
PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK
REFRIGERATION TYPE AND VOLUME.
WARNING
This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These
hydrocarbon refrigerants are highly environmentally compatible but also are
flammable and combustible. Please read this manual thoroughly before installing
and operating the unit. Please take cautious measures to avoid risk of fire or explosion.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
Do not use mechanical devices to defrost refrigerator. Do not
puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used.
To be repaired only by trained service personnel. Do not puncture
refrigerant tubing.
CAUTION - Risk of fire or explosion. Dispose of properly in
accordance with federal or local regulations. Flammable
refrigerant used.
CAUTION - Risk of fire or explosion. Flammable refrigerant
used. Consult repair manual/owner’s guide before attempting to
service this product. All safety precautions must be followed
CAUTION - Risk of fire or explosion due to puncture of refrigerant
tubing; follow handling instructions carefully. Flammable
refrigerant used.
WARNING
- Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage
compartments of the appliance unless they are of a type
recommended by the manufacturer.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

6

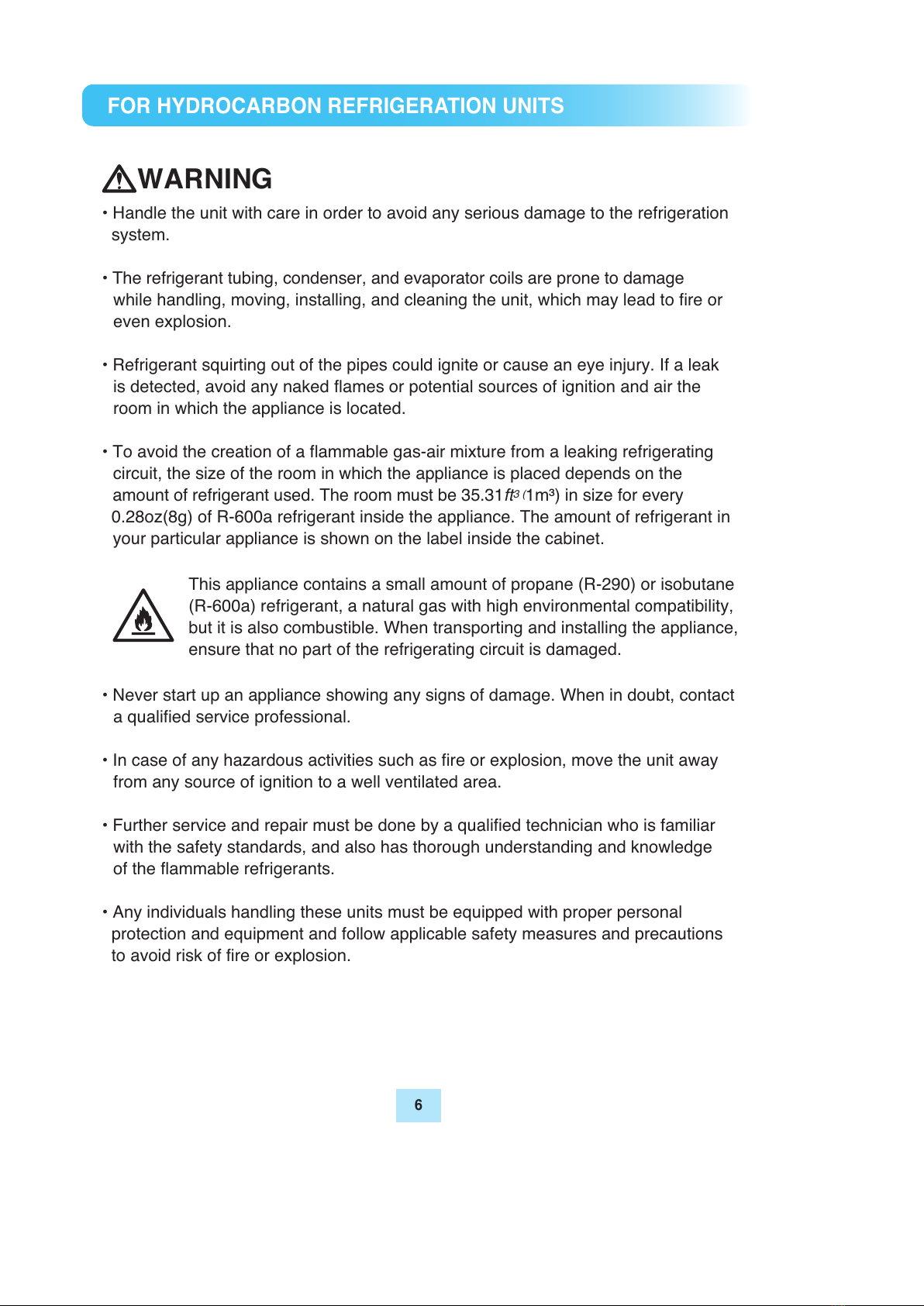

FOR HYDROCARBON REFRIGERATION UNITS
WARNING
• Handle the unit with care in order to avoid any serious damage to the refrigeration
system.
• The refrigerant tubing, condenser, and evaporator coils are prone to damage
while handling, moving, installing, and cleaning the unit, which may lead to fire or
even explosion.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak
is detected, avoid any naked flames or potential sources of ignition and air the
room in which the appliance is located.
• To avoid the creation of a flammable gas-air mixture from a leaking refrigerating
circuit, the size of the room in which the appliance is placed depends on the
amount of refrigerant used. The room must be 35.31ft3 (1m³) in size for every
0.28oz(8g) of R-600a refrigerant inside the appliance. The amount of refrigerant in
your particular appliance is shown on the label inside the cabinet.
• Never start up an appliance showing any signs of damage. When in doubt, contact
a qualified service professional.
• In case of any hazardous activities such as fire or explosion, move the unit away
from any source of ignition to a well ventilated area.
• Further service and repair must be done by a qualified technician who is familiar
with the safety standards, and also has thorough understanding and knowledge
of the flammable refrigerants.
• Any individuals handling these units must be equipped with proper personal
protection and equipment and follow applicable safety measures and precautions
to avoid risk of fire or explosion.
This appliance contains a small amount of propane (R-290) or isobutane
(R-600a) refrigerant, a natural gas with high environmental compatibility,
but it is also combustible. When transporting and installing the appliance,
ensure that no part of the refrigerating circuit is damaged.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

7

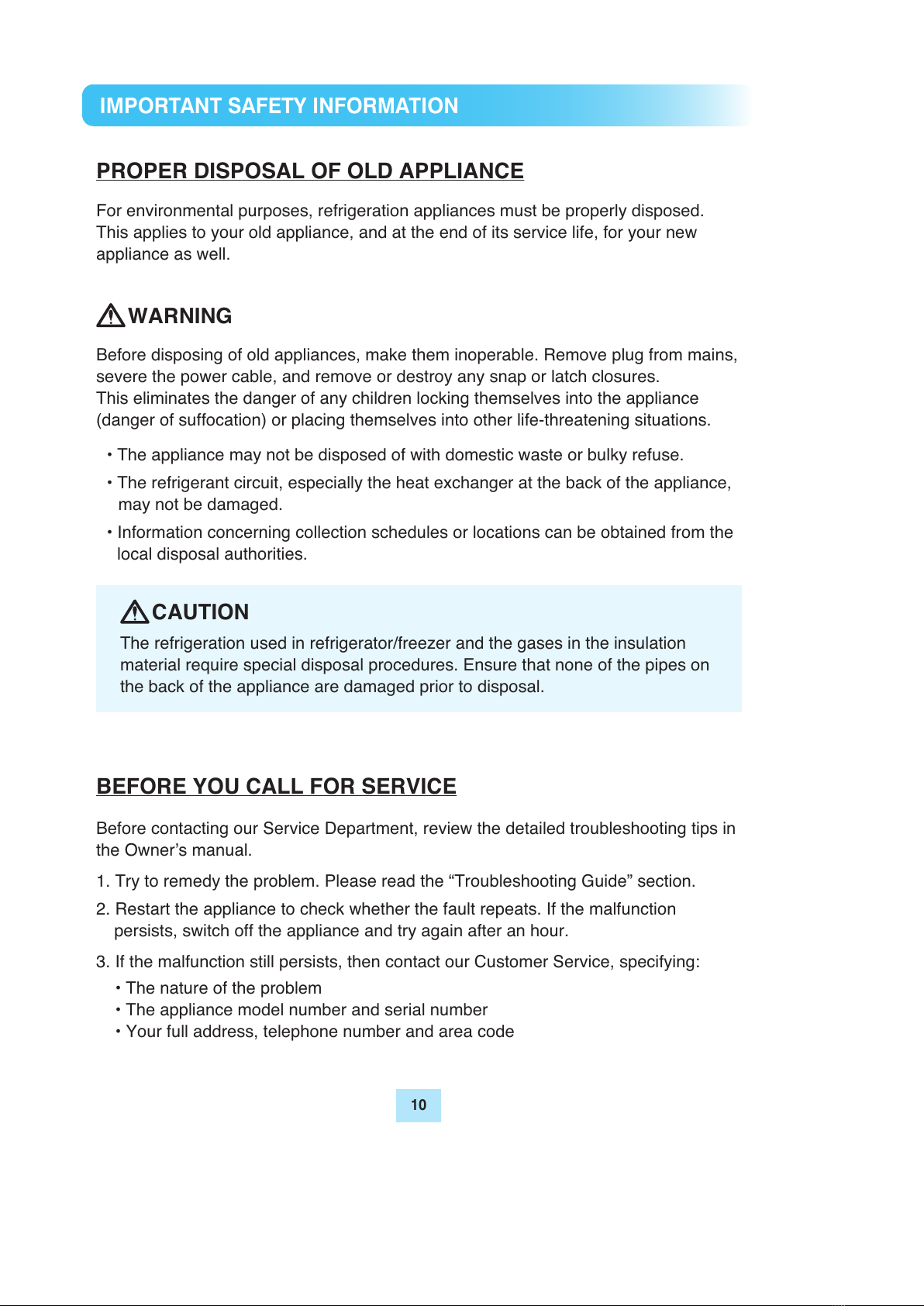

IMPORTANT SAFETY INFORMATION
WARNING
• The unit must be installed and located in accordance with the manufacturer’s
installation instructions.
• Installation work must be performed in accordance with the National Electric Code
by qualified and authorized personnel only.
• Repairs and replacement work must be performed by a qualified and authorized
service professional using only genuine replacement parts (Component parts
shall be replaced with like components).
• Do not use an extension cord or an adapter plug. Because of the potential safety
hazards under certain conditions, we strongly do not recommed any use of an
extension cord or an adapter plug.
• Do not, under any circumstance, cut or remove the ground prong from the power
cord. For personal safety, this appliance must be properly grounded.
• Do not store volatile and flammable substances in the refrigerator. The storage of
benzene, thinner, alcohol, ether, LP gas, or other explosive substances may cause
an explosion.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this appliance as well as any other appliances.
• The appliance is not intended for use by children without supervision.
• Do not allow children to climb, stand, or hang on the refrigerator doors or shelves
in the refrigerators. They could damage the refrigerator and seriously injure
themselves.
• To prevent suffocation and entrapment hazards to children, remove the doors and
seals from the refrigerator before disposing of it or discontinuing its use.
SAFETY PRECAUTIONS
To avoid any risk of fire, explosion, electric shock, personal injury, material damage or
incorrect use of the appliance, be sure to observe the following safety precautions
(After reading these owner’s manual instructions, please keep the manual booklet in
a safe place for reference. Remember to hand it over to any subsequent owners).
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

8
IMPORTANT SAFETY INFORMATION

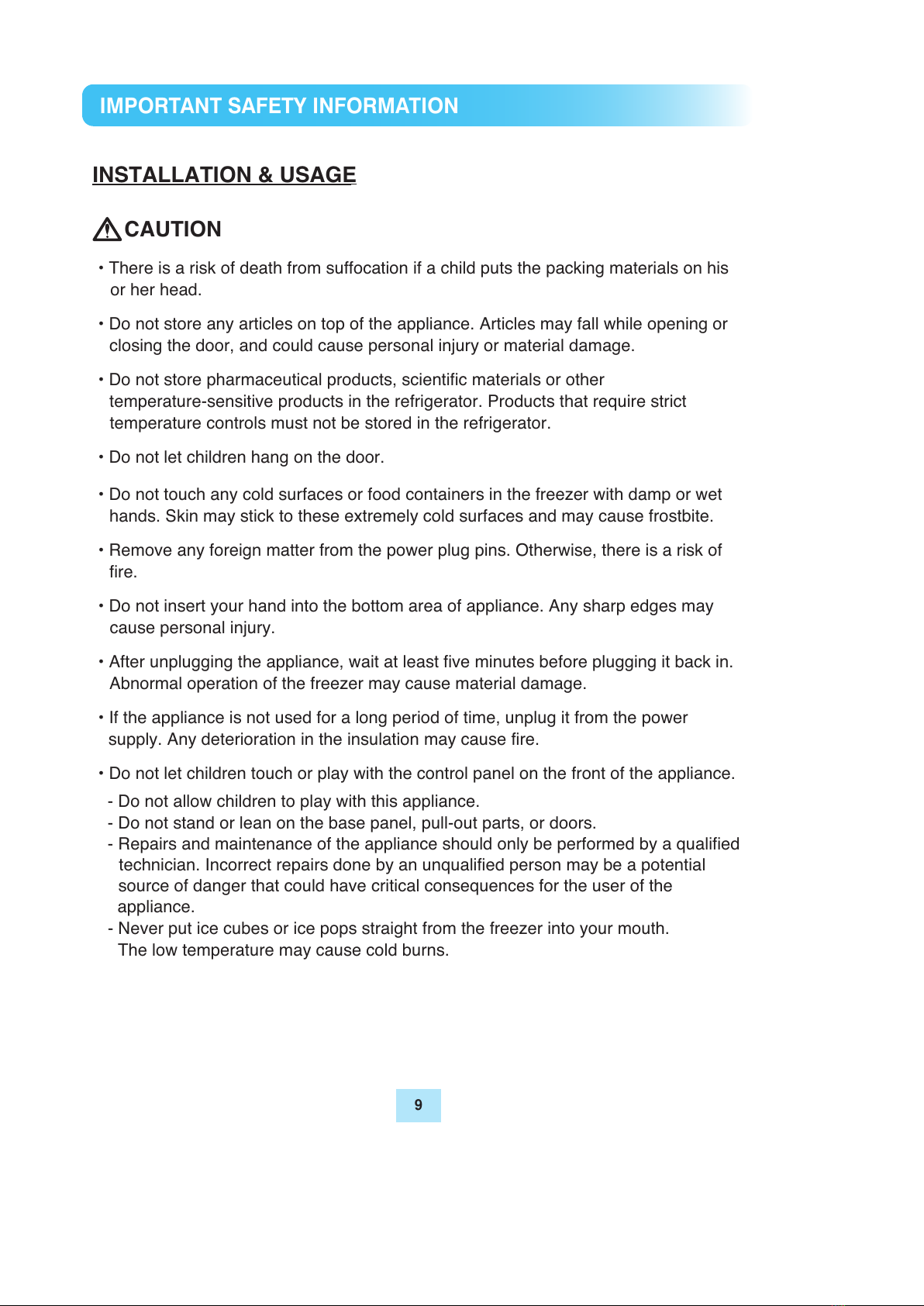

INSTALLATION & USAGE
WARNING
CAUTION
• Do not install the unit in a damp place where it could be splashed with water.
Incorrect insulation of the electrical parts may cause fire or electric shock.
• Do not plug several appliances into the same sockets. This could cause fire due to
overheating.
• Keep the power plug away from the rear of the cabinet. A damaged power plug may
cause fire due to overheating.
• Do not spray water directly to the interior or exterior of the appliance. There is a risk
of fire or electric shock.
• Do not place any containers filled with water on top of the appliance. If the water
spills onto any electrical parts, it may lead to fire or electric shock.
• Do not attempt to repair, disassemble or alter the appliance. It may cause fire or
abnormal operations which may lead to injury.
• Unplug the refrigerator before making repairs, replacing a light bulb, or cleaning.
• Plug into a grounded 3-prong outlet. Do not remove the ground prong.
• Do not store too much food in the appliance. When you open the door, an item may
fall out and cause personal injury or material damage.
• Do not put bottles or any kind of glass in the freezer. The container may break and
cause personal injury.
• Do not disconnect the power cord by pulling on it. This may disconnect a wire and
cause a short circuit.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

9
IMPORTANT SAFETY INFORMATION
INSTALLATION & USAGE
CAUTION
• There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• Do not store any articles on top of the appliance. Articles may fall while opening or
closing the door, and could cause personal injury or material damage.
• Do not store pharmaceutical products, scientific materials or other
temperature-sensitive products in the refrigerator. Products that require strict
temperature controls must not be stored in the refrigerator.
• Do not let children hang on the door.
• Do not touch any cold surfaces or food containers in the freezer with damp or wet
hands. Skin may stick to these extremely cold surfaces and may cause frostbite.
• Remove any foreign matter from the power plug pins. Otherwise, there is a risk of
fire.
• Do not insert your hand into the bottom area of appliance. Any sharp edges may
cause personal injury.
• After unplugging the appliance, wait at least five minutes before plugging it back in.
Abnormal operation of the freezer may cause material damage.
• If the appliance is not used for a long period of time, unplug it from the power
supply. Any deterioration in the insulation may cause fire.
• Do not let children touch or play with the control panel on the front of the appliance.
- Do not allow children to play with this appliance.
- Do not stand or lean on the base panel, pull-out parts, or doors.
- Repairs and maintenance of the appliance should only be performed by a qualified
technician. Incorrect repairs done by an unqualified person may be a potential
source of danger that could have critical consequences for the user of the
appliance.
- Never put ice cubes or ice pops straight from the freezer into your mouth.
The low temperature may cause cold burns.
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901

10
IMPORTANT SAFETY INFORMATION
The refrigeration used in refrigerator/freezer and the gases in the insulation
material require special disposal procedures. Ensure that none of the pipes on
the back of the appliance are damaged prior to disposal.
WARNING
CAUTION
Before disposing of old appliances, make them inoperable. Remove plug from mains,
severe the power cable, and remove or destroy any snap or latch closures.
This eliminates the danger of any children locking themselves into the appliance
(danger of suffocation) or placing themselves into other life-threatening situations.
• The appliance may not be disposed of with domestic waste or bulky refuse.
• The refrigerant circuit, especially the heat exchanger at the back of the appliance,
may not be damaged.
• Information concerning collection schedules or locations can be obtained from the
local disposal authorities.
PROPER DISPOSAL OF OLD APPLIANCE
BEFORE YOU CALL FOR SERVICE
For environmental purposes, refrigeration appliances must be properly disposed.
This applies to your old appliance, and at the end of its service life, for your new
appliance as well.
Before contacting our Service Department, review the detailed troubleshooting tips in
the Owner’s manual.
1. Try to remedy the problem. Please read the “Troubleshooting Guide” section.
2. Restart the appliance to check whether the fault repeats. If the malfunction
persists, switch off the appliance and try again after an hour.
3. If the malfunction still persists, then contact our Customer Service, specifying:
• The nature of the problem
• The appliance model number and serial number
• Your full address, telephone number and area code
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454
2940 Hwy 14 W, Rochester, MN 55901
