Turin ELITE E70-30 User manual

INSTALLATION GUIDE
ÉLITE (E70-30/36/42)
Please carefully read these instructions before you begin to install the product.
SKU: E70-30/36/42

2
Before You Start
INSTALLATION
Safety instructions are on pages 3 and 4, and installation instructions are on
pages 11 to 15.
Please complete these steps:
1. Read the safety instructions.
2. Read all instructions in the Installation section of this manual BEFORE installing the range hood.
3. Remove all packaging material
4. When finished, be sure to leave these instructions with the consumer.
5. Installation should only be performed by a qualified technician. However, the ultimate
responsibility for proper installation is that of the owner.
6. Product failure caused by improper installation is not covered by the warranty.
This is the security alert symbol. This symbol alerts you to potential hazards that can injure you and
others. All safety messages will follow the safety alert symbol and the word "WARNING".
The manufacturer and / or distributor / reseller declines all responsibility in the event of non-compliance with
the instructions given here for the installation, maintenance and appropriate use of the product. The
manufacturer and / or distributor / reseller further declines any responsibility for injuries due to negligence and
the unit warranty expires automatically due to improper maintenance. The manufacturer and / or the distributor
/ reseller will not be held responsible for damage to personal or real property or bodily injury caused directly or
indirectly by the hood range.

3
Important Information
Read All Safety Instructions
Please follow all instructions before using the product to prevent the risk of fire, electric shock, personal
injury or damage when using it or using devices in combination with the product. This guide does not
cover all possible conditions that may occur.
• To install this product, be sure to deal with
qualified installers, repair technicians, or similarly
qualified and trained persons
• Please wear protective gloves when removing
any parts for installation, cleaning or
maintenance.
• Make sure all connections are secure before
using the device to avoid causing damage or
electric shock.
To reduce the risk of fire, electric shock, or
personal injury:
• Designed for general residential ventilation use
only. DO NOT use the device to vent fumes or
explosive or dangerous products.
• WARNING: To reduce the risk of fire or electric
shock, do not use this product with a solid state
speed control device.
• Comply with safety standards and guidelines
from the heating equipment manufacturer, such
as those published by the National Fire
Protection Association (NFPA), and the
American Society of Heating, Refrigeration,
and Air Conditioning Engineers (ASHRAE) ), as
well as other local regulatory authorities.
• Before servicing or cleaning the device, turn off
the power at the main panel and lock the device
connection to prevent accidental power up.
•Clean properly according to the use of the
appliance. To optimize performance, be sure to
exhaust the air outside. DO NOT exhaust air in
closed spaces, including crawl spaces, ceilings,
attics or garages.
• This appliance requires grounding. It MUST be
used only with metal conduits.
• For better evacuation, it is important to have air
circulation in order to prevent a return of
emanation.
•All pre-installed ductwork must be checked,
cleaned or replaced, if necessary, to eliminate the
risk of fire.
• All joints must be properly protected with certified
metallic or aluminum tape.
• For best use, respect the manufacturer's
standards.
READ AND SAVE THESE
INSTRUCTIONS

4
Important Information
WARNING: TO REDUCE THE RISK OF
A COOKING OVEN GREASE FIRE:
• Clean the ventilation fans as much as possible.
Do not allow cooking residue to accumulate on
the fan or filter. Before servicing the device, be
sure to turn off the power source.
Your safety and the safety of others are
important. Always read and follow all safety
instructions. The safety instructions highlight
potential hazards that can reduce the risk of fire
and injury.
READ AND SAVE THESE
INSTRUCTIONS

5
Parts Included
Range Hood
2 Filters (28 po)
2 Filters (34 po)
Damper Flap
Note on hardware: For safety reasons, screws and fixings for fixtures are not included due to
variations in cabinet constructions and wall materials. Please consult your installation specialist
regarding the optimal type of mounting screws and wall fixings required depending on the
construction of your home.

6

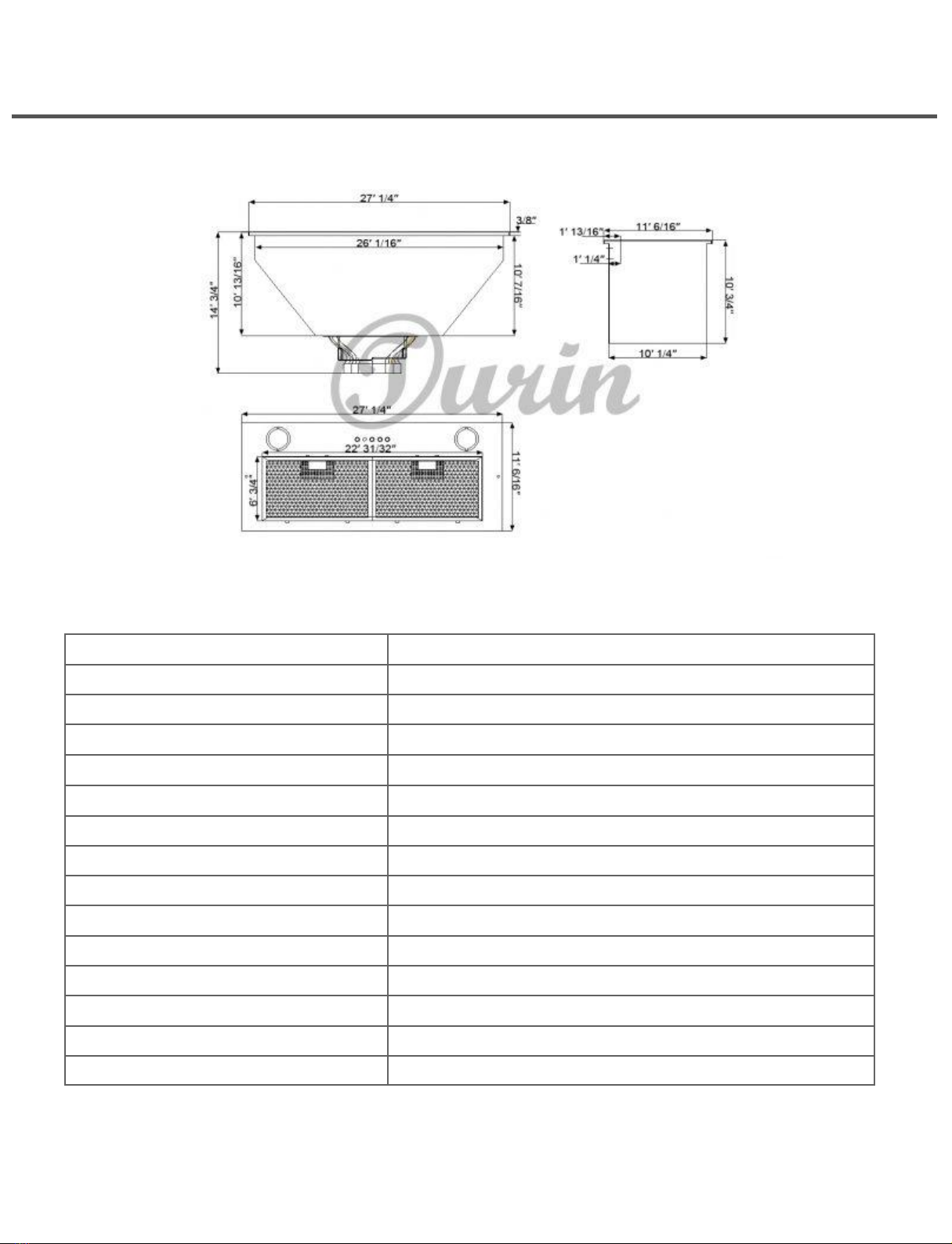

Hood Dimensions
Specifications
Body
Acier inoxydable
Power Rating
120V/60Hz or 220V/50Hz (USA / CAN standard)
General Input Power
220W (190W + 2 X 2,5W)
Motor Input Power
190W
Maximum Airflow
600 CFM
Motor Revolution
800 RPM (+/- 10 %) to 1600 RPM (+/- 10%)
Air Pressure
3,4 A
Levels Of Speed Control
3 Levels
Interference Protection
Radio Frequency Interference Protected
Motor Type
Single
Control Type
Push Button
Fan Type
Aluminum Filter
Illumination
2 DEL lights of 2,5 W
Venting Size
6 inch Round
Noise Level (dB / sone)
Approximately 23.5 / 0.4 to 60 / 7.0 (Lowest to highest Speed)

7
Control Panel
Turn On:
•Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the
desired level of power. Once button is pressed, the previous speed mode will cancel.
•Press the Light Switch to power on the lights.
Turn Off:
•Press the Power Switch to turn off the power.

8
Electrical Requirements
IMPORTANT: Observe all governing codes and ordinances.
(THIS HOOD REQUIRES 120V POWER TO OPERATE PROPERLY)
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code,
ANSI/ NFPA 70 —latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and
C22. 2 No. 0- M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician
determine that the ground path is adequate.
•A 120-volt, 60 Hz, AC-only.
•Do not ground to a gas pipe.
•Do not have a fuse in the neutral or ground circuit.
•RISK OF ELECTRICAL SHOCK. This range hood must be properly grounded. Check with a
qualified electrician if you are not sure whether the range hood is properly grounded.
•The range hood should be connected directly to the fused disconnect (or circuit breaker) box
through flexible armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain
relief must be provided at each end of the power supply cable. Do not use extension cord or
adapter plug with this appliance.
•The range hood must be connected with copper wire/plug only.
•Always use plug provided. If not possible, connect three wires according to its color (black to hot,
white to neutral, and green to ground) to house wires and cap with wire connectors.
Hood may have very shape edges. Please wear
protective gloves if it is necessary to remove any parts for installing, cleaning or
servicing
Hazard of electrical shock!
Electrical wiring must be done by qualified person
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as
specified on the model/serial rating label. Wire sizes must conform to the requirements of the National
Electrical Code ANSI/NFPA 70 —latest edition*, or CSA Standards C22. 1-94, Canadian Electrical
Code Part 1 and C22. 2 No. 0-M91 - latest edition** and all local codes and ordinances. A U.L. - or
C.S.A. - listed conduit connector must be provided at each end of the power supply cable (at the
range hood and at the junction box).

9

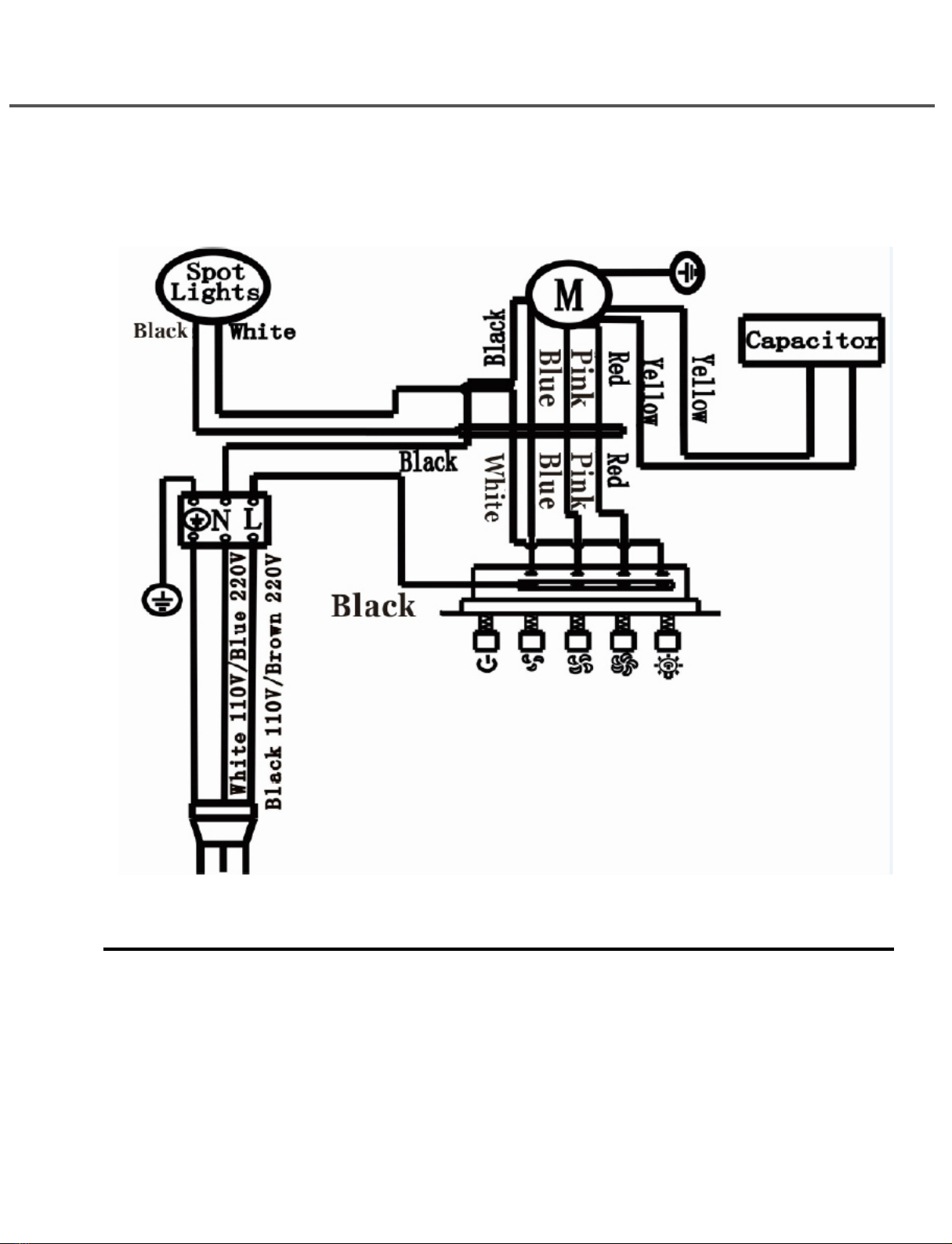

Wiring Diagram

10
Troubleshooting Guide
CAUTION: Touching the exposed electrical connectors or other electronic circuits inside
this hood when the power is on could result in death, serious injury, or property damage.
1. If the range hood does not operate after installation:
Check if the range hood has been plugged in, make sure that all power has been turned back
on and all electrical wiring are properly connected.
Swap out light assembly to working ones to deter- mine whether it is caused by defective
bulbs.
2. The range hood vibrates when the blower is on:
The range hood might not have been secured properly on to the ceiling.
3. The blowers seems weak:
Check that the duct sized used is at least 6”.
Range hood WILL NOT function efficientlywith insufficientduct size. For example: 7” duct
over 6” hole and loosely secured.
Check if duct is clogged or if damper unit is not opening properly. A tight mesh on a side
wall cap unit might also cause restriction to the air flow.
4. The lights work but the blower is not spinning at all, is stuck or is rattling:
The blower might be jammed or scraping the bot- tom due to shipping damage.
5. The hood is not venting out properly:
Make sure the distance between the cook top and the bottom of the hood is within 24” and
30” in range.
Reduce the number of elbows and length of duct work. Check if all joints are properly
connected, sealed, and taped.
Make sure the power is on high speed for heavy cooking.
NOTE: For all other inquiries, please contact us. Our contact information can be found on the back
cover page.

11
Installation
STEP 1
Read Safety Instructions
• Read the safety instructions on pages 4 and 5 before installing.
IMPORTANT: It is the responsibility of the installer to comply with the manufacturer's safety
and installation standards.
STEP
2
Unpack the Kitchen Hood and Prepare the Tools
• Carefully unpack the range hood and parts, to make sure all parts are included, as shown
on page 6.
• Before any installation, make sure that the product works properly and in good condition.
• Check with a qualified installer that all local regulations for air requirements are met.
STEP 3
Location Planning
• Choose a location that meets all of the Safety and Installation requirements in this manual.
Also plan the location of the conduits to be installed.
• A run of straight or short ducts allows the device to operate more efficiently. Long strokes of
ducts, elbows and transitions can reduce the performance of the device. Each elbow is the
equivalent of 1.5 to 3 m (5 to 10 ft) of straight travel through loss of performance.
• If the duct is already installed: make sure it is free of all debris.
STEP 4
Test Device Functions
• Connect the device and test all functions before installation.
• Place the range hood on a stable surface. Connect the range hood to a standard outlet (120-Volt,
60Hz) and turn on the range hood. Check the operation of the range hood by referring to the
Operation section of this manual.
• Check that the range hood turns on properly.
•Check all lights, as well as the operation of the fan.
Warning:
• Please be sure to read ALL of the safety instructions on pages 3 and 4.
• . Use two or more people to move and install the range hood.

12

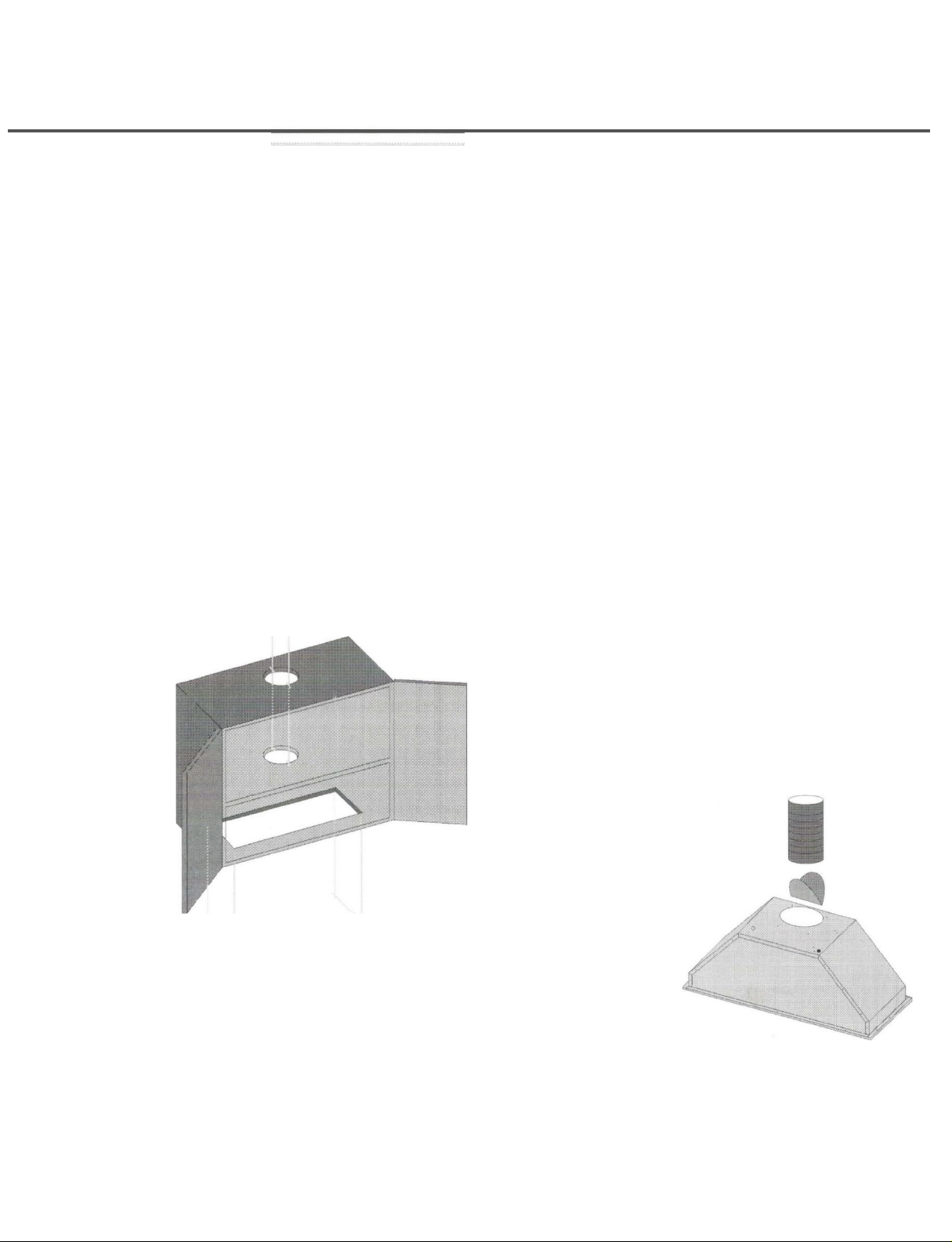

Installation
STEP 5
Ventilation Installation Guidelines
• The following steps are described for the installation of outdoor ventilation.

13
Duct Run Calculation
Recommended Maximum Run
6”(15,2 cm) or 3 1/4 x 10”
(25,4 x 8,3 cm) duct
50 ft
Vent Piece Deduction
Each 90° Elbow used
9ft (2,7 m)
Each 45° Elbow used
5ft (1,5 m)
Each 6” to
3-1/4 X 10” used
7ft (2,1m)
Example:
One roof cap, two 90º elbow, and one 45º elbow used:
9ft + 9ft + 9ft + 5ft = 32ft used.
Deduct 32ft from 50ft, 18ft maximum available for
straight duct run.
Installation
IMPORTANT:
• A minimum 6 '' (15.2 cm) circular or 3 1/4 x 10
'' (25.4 cm x 8.3 cm) rectangular duct
(purchased separately) should be used to
maintain normal circulation efficiency air.
• ALWAYS use rigid metal / aluminum sleeves
to maximize air circulation when connecting.
• Please use the Duct Run Calculation Table to
calculate the total sheath stroke available
using elbows, transitions and caps.
• ALWAYS reduce the number of transitions
and turns. If a long sleeve is required,
increase the size of the sleeve from 6 in. (15.2
cm) to 7 in. (17.7 cm) or 8 in. (20.3 cm). If a
reducer is used, install a round reducer
instead of a flat reducer. Reducing the size of
the duct will restrict air circulation. You will
need to reduce the size of the sheath as far
as possible from the opening.
•If turns or transitions are required, install them
as far away from the opening as possible and
as far apart from each other as possible.
• The minimum mounting height between the
top of the range and the bottom of the range
hood should be no less than 24 '' (61 cm) in
diameter and 30 '' (76.2 cm) for the top of the
gas range and no higher than 30 in. (76.2 cm)
for electric cooktops.
·•···
•
It is important to install the hood at the
correct mounting height. Hoods set too low
could cause heat damage and pose a fire
hazard; while hoods set too high will be
difficult to reach and will lose their
performance and efficiency.
• Also refer to the clearance requirements
above the manufacturer's range and the
mounting height of the hood above the
range.
• The ventilation duct can either terminate through the roof or the wall. To vent through a wall, a
90° elbow is required.

14
INSTALLATION
IMPORTANT:
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces,
ceiling, attics or garages. All exhaust must be ducted to the outside.
•Use metal/aluminum duct work only.
•Fasten all connections with sheet metal screws and tape all joints with certifiedSilver Tape or
Duct Tape.
•Use caulking to seal exterior wall or roof opening around the cap.
HORIZONTAL WALL VENTILATION
VERTICAL CEILING VENTILATION

15
Installation
STEP 6
Preparations
NOTE: To avoid damage to your hood, prevent debris from entering the ventilation opening.
•Determine and mark the center line on the ceilingand on the range hood before installation. Make
sure there is adequate clearance in the ceiling or wall for the ventilation duct.
• Please make sure that the support system and the structure used is stable and secure in the wall.
•Place a thick protective cover over the countertop, cooktop or stove to protect from damage.
Remove all dangerous objects from the installation area.
STEP
7
Cabinet preparation
• Measure and cut the opening at the bottom of the cabinet to fit the hood motor. (See Fig # 1)
• Measure and cut a hole in the top of the cabinet to fit the ventilation duct. (See Fig # 1)
• Note that the top hole may not be necessary depending on the installation method chosen. (See
Page 10)
Dimensions to be cut:
28’’ 26.0625 x 10.25 x 10.4375’’ (66.2 x 26.0 x 26.5 cm)
34’’ 32.0625 x 10.25 x 10.4375’’ (81.4 x 26.0 x 26.5 cm)
Fig# 1
STEP 8
Shutter Installation
• Attach the valve plug to the top of the fan. (See Fig # 2)
Fig# 2

16
Warranty Services
Please provide original dated proof of purchase (receipt / invoice) in order to obtain
warranty service.
One year parts warranty:
For one year from the date of original purchase, your local dealer will provide free replacement
parts or non-consumable components that are defective due to manufacturing defects. Subject to
the conditions and limitations set out below, your local dealer will, at its discretion, repair or replace
any part of its products that turns out to be defective due to improper manufacturing or materials.
Repaired parts or replacement products will be supplied by your local dealer on an exchange
basis, and will either be new or reconditioned to be functionally equivalent to new. The consumer
is responsible for all shipping costs. Consumable parts not covered by this warranty include, but
are not limited to: light bulbs, metal, aluminum and charcoal filters.
Who is covered:
This warranty is extended to the original purchaser for products purchased for ordinary household
use.
This warranty will be canceled when:
Product damaged by negligence, improper installation, accident, abuse, misuse, natural disaster,
insufficient or excessive power supply, abnormal mechanical or environmental conditions or any
disassembly, repair, modification or unauthorized disregard of installation instructions. When the
product is used for commercial purposes or other than its destination. Damaged due to poor
connection with equipment from other manufacturers. This limited warranty also does not apply to
any product on which the original identification information has been modified or deleted.
What is not covered:
Consumable parts such as light bulbs, metal and carbon filters. Natural wear of the finish and
wear due to poor maintenance, the use of cleaning agents, pads and corrosive and abrasive oven
cleaning products. Shards, bumps or cracks due to abuse, misuse, transportation damage or
improper installation. Damage to the product caused by accident, fire, flood or natural disaster.
The distributor is not responsible and does not cover under warranty any loss of property or any
cost associated with the removal, maintenance, installation or determination of the source of the
problems with this product.
This warranty is valid in the country of original retail purchase. It is not transferable and
applies only to the original purchaser and does not extend to the subsequent owners of
this product. All applicable implied warranties, including the merchantability warranty, are
limited in time to an express warranty period as provided herein from the date of original
retail purchase.
For warranty service, you can contact your local dealer from whom you purchased this
product. Please confirm the terms of your policies.
Please provided the name of the product, including model number and serial number with
a detailed description of the problem you are having. You must also include proof of the
original retail purchase date as proof that the product is within the applicable warranty
period.

17
If you need help or need additional product information, please visit our
website:
www.myturin.com

18
