TUYA S6 Series User manual

Please read this instruction carefuly before use and keep it well
S6 Series
Laser Navigation

Let’s start the ease live
Thanks for choosing our Robot Vacuum Cleaner!
Our robot vacuum cleaner is a smart & intelligent robotic cleaner, which combined path
planning, Vacuum+Sweep+MOP all-in-1, it has professional robotic AI chip & Simultaneous
Localization And Mapping technology, can biluld an accurate live map and offering precise
navigation for your house, the laser navigation & mapping technology, will offer you a
organized & high cleaning coverage rate, Hi-speed sense and high efficency working way to
you. It can also applied to different complex environment for different house, will auto
re-charge when the battery power lower than 20%, automatically at whole working period,
free you from the cleaning work!
Science and Technology changes our life, from now on, your family and you will free from
the boring floor cleaning work, have more time to enjoy your beautiful & ease life!
Enjoy it now!

CONTENTS
1. PRODUCTS COMPONENTS.............................................................................................................................................01-02
2.PACKING LIST........................................................................................................................................................................03-03
3.SAFETY INSTRUCTION.......................................................................................................................................................04-04
4.OPERATION............................................................................................................................................................................05-07
5.MAINTENANCE....................................................................................................................................................................08-10
6.TROUBLESHOOTING...........................................................................................................................................................11-13
7.TROUBLESHOOTING & WARRANTY.............................................................................................................................14-14
8.TOXIC OR HARMFUL SUBSTANCES..............................................................................................................................15-15

TOP-SIDE VIEW
Dust Bin
BOTTOM-SIDE VIEW
Standard air-presure water tank Electrical control water tank
01
Laser Scan module
(LDS)
Bumper
Lid
START/
PAUSE Recharge button
Charing contacts
Side brush (Left)
Battery
Driving wheel
(Left)
Driving Wheel
(right)
Universal
Wheel
Side brush
(Right)
Main brush
Base
Dust bin /
Water tank
Release button Release
button
Water inlet
Water inlet
Air inlet
sealing
plus
Release button
Electrical
contacts
COMPONENTS

Please use 2 pcs AAA batteries in the romote controller, and
trun the Power switch to the ON position.
1) Press “ ”button to active WiFi
2) Press“ ”button, robot go to charing dock to recharge
3) Press“ ” Start/Pause Button to start cleaning, press
again, robot will stopped (Pause )
4) Press“ “ go Forward, ” “ to Left, ” “ to Right,
robot will go to the setting direction.
6) Press ” “ button to adjust the suction power level
7) Press ” “ button to mini room mode, robot move
as ” “ shape.
8) Press ” “ button to adjust water flow level ( For
Electrical control water tank only)
9) Press ” “ button to wall follow mode, robot move
along a border ( e.g. wall, furniture edge...)
10) Press ” “ button to turn on / turn off audio notice,
and switch into different language (Optional)



Charing Dock
Remote
controller
Overall Height
95mm
02
Butting charing
Pole Piece
Power indicating light
COMPONENTS
Remote control operation

ROBOT CHARIGN DOCK USER GUIDE SIDE BRUSH
CLEANING TOOL DUST BIN &WATER TANK
Standard Water Tank or
Electrical Control WaterTank
(Optional)
ADAPTER REMOTE
CONTROLLER
03
Please read this instruction carefuly before use and keep it well
S6 Series
Laser Navigation
PACKING LIST

04

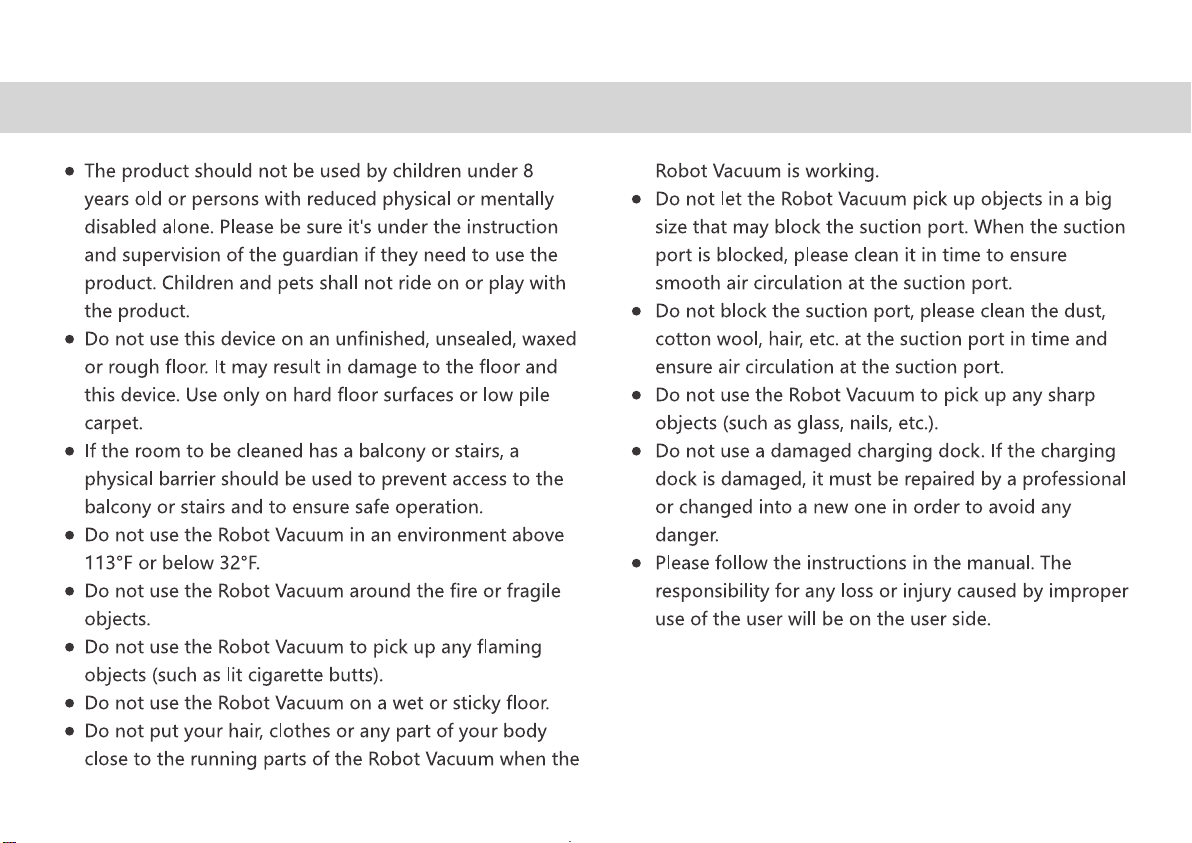

SAFETY INSTRUCTION

（Tips：It is normal that the Robot does not react when pressing
the power switch during charging. And robot will only react the
button during charging, other buttons will show up “Invalid
Button”notice. )
05
Remark：
1) Please make sure the charging dock well connected with the
power, and keep it on to avoid the robot unable to find the dock
2) Please let the robot start cleaning from the dock, to help the
robot memory the way back to the dock. (Otherwise, the robot
will costy more time to find the dock.)
3) In the first time use the robot, please use out the battery
power, and then full charge the battery over 5 hours to extend
the battery life.
4) Under MOP mode, robot will not active auto-recharge, can
not back to the dock automatic, and do not suggest to charge
on the dock to avoid short-cut, please do use adapter to charge
the robot directly.
5) Please do not insert anything between the dock and floor
6) Please use original adapter only.
Charing button status：
Charging Robot button status
Low battery/Back to the Dock Red light
Charging Breathing red light
Finished Charing Green light
OPERATING INSTRUCTION

06

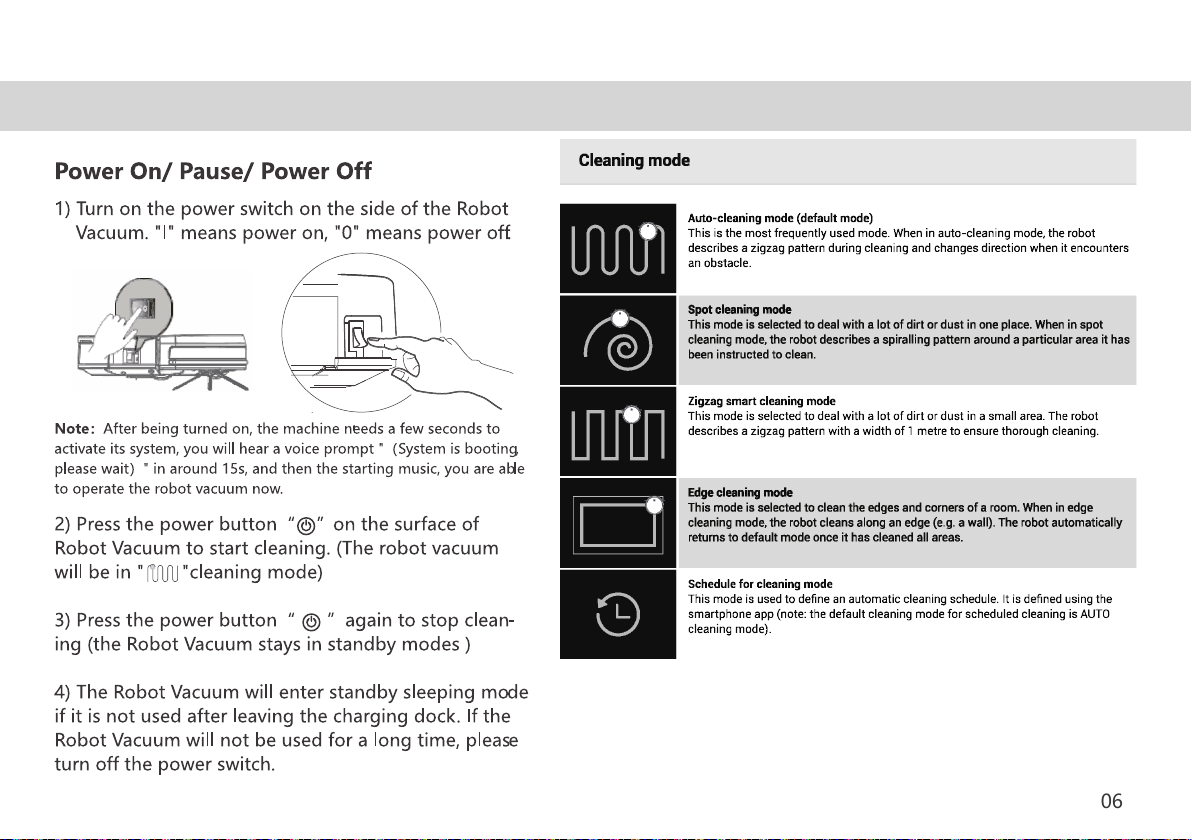

OPERATION INSTRUCTION
NOTE:
please shut off the power switch when robot will not in use for a long time, and charge
the battery at least one time a month to avoid battery run out of power and can not
use any more.

07
OPERATING INSTRUCTION
2) Register & Log
in the APP
Or Search “ Smart Life”
in Google play or Apple
store / APP store to
download the APP
Note: Please keep your
mobile phone connect
with Wi-Fi
1) Please scan the above
QR code to download
the APP
3) Click “ Add Device”
then select “ All Device”
at top-right side of the
APP window
4) Find “ Robot
Vacuum” in the list
and select it
5) Turn on your robot,
press the “Wi-Fi” button
on remote controller
about 5 seconds, until
beep sound show up
Note:
1) The APP only apply to the models with Wi-Fi function.
2) The APP only support on 2.4 GHz Wi-Fi network
6) The indicator light will
keep blinking when enter
Wi-Fi setting. Click“ Confirm
Indicator raidly blink”
7) Fill in your home Wi-Fi
name and password
(Make sure that is correct
Wi-Fi name and password)
8) Click “ Complete”
after robot is added
successfully
APP INSTRUCTION

08

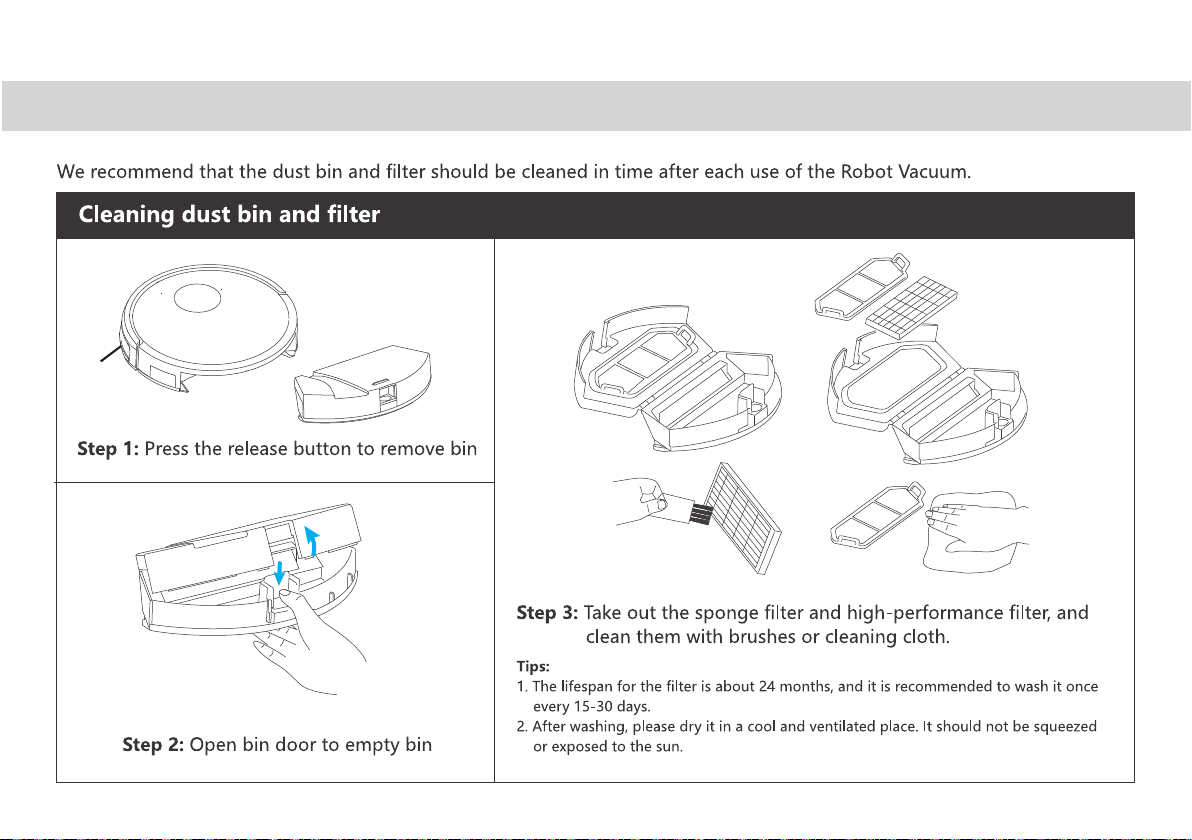

MAINTENANCE

09
MAINTENANCE

10
MAINTENANCE

11

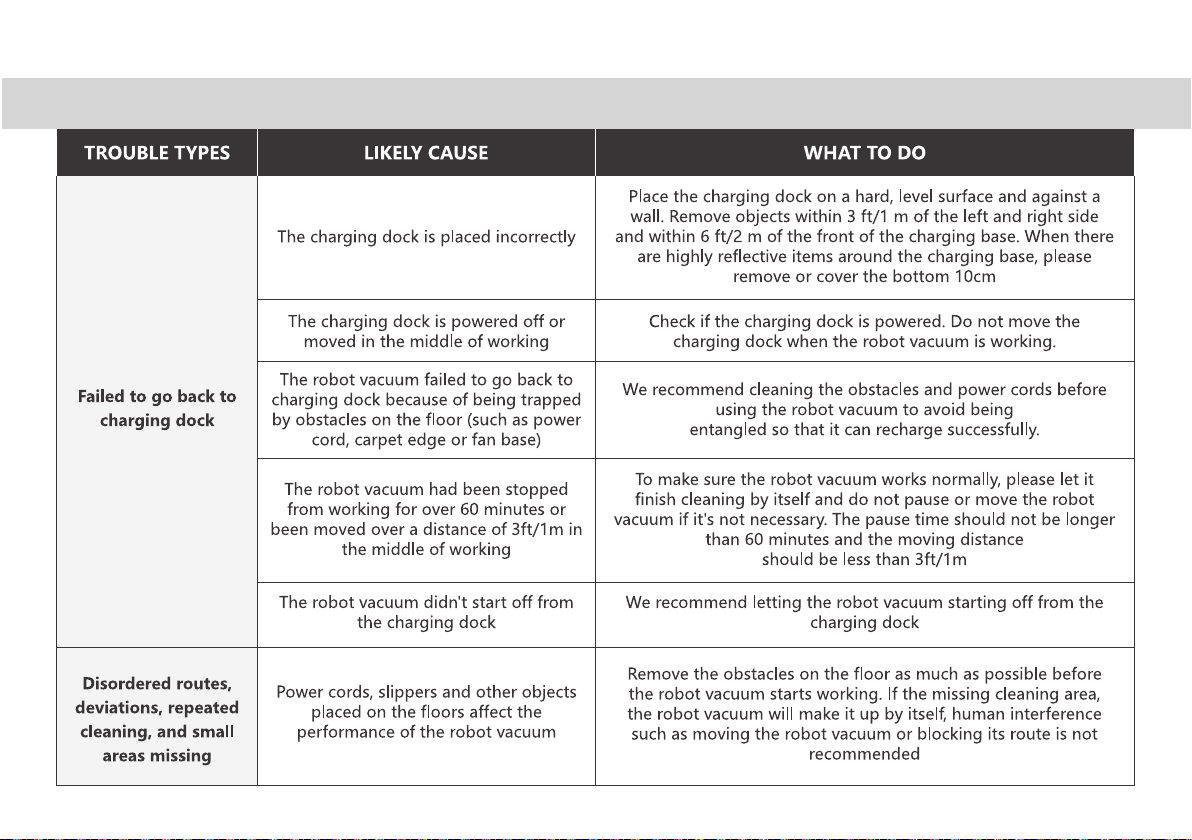

TROUBLESHOOTING

12
TROUBLESHOOTING

13
TROUBLESHOOTING

14

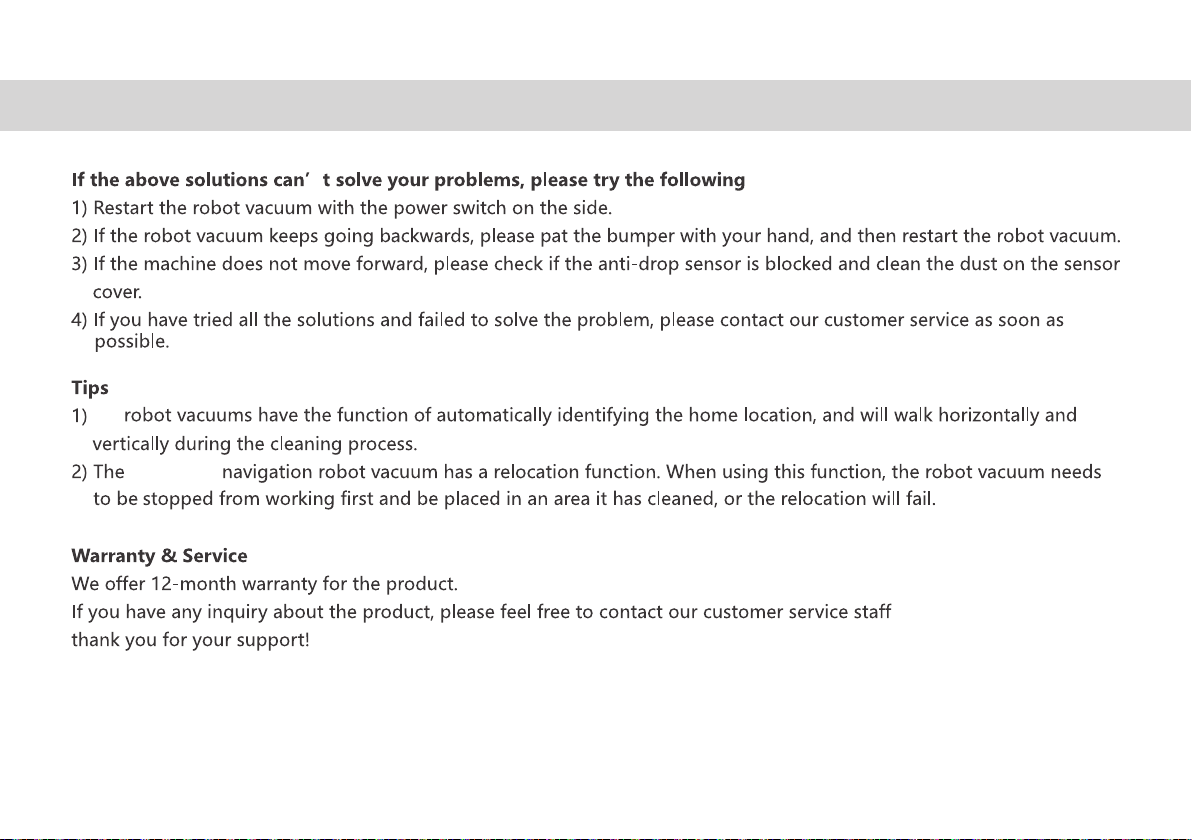

TROUBLESHOOTING & WARRANTY
LDS
LASER / LDS

15
SPECIFICATIONS
Model No. S6 series
Rating power 19V 1A
Charing time（h） 4-5H
Adapter power
input（V） 100-240~ 50/60Hz
Rating current（A） 1
Adapter power
output（V） 19
Rating Power（W） 30
TOXIC OR HARMFUL SUBSTANCES
