TV Logic TVK-4000SH User manual

4K Cross Converter

Contents
1. Getting Started
- Introduction
- LCD Layout
2. Operation Modes
3. Setting Up
4. Usage Example
5. Specification

4K Cross Converter User’s Manual
3
Product Overview
•12G SDI Input and Output
- Support HD, 3G Level A/B, 6G, 12G
•HDMI 2.0a Input and Output
- Support up to 3840x2160@60p
•Dual Scaler Included
- Support SDI and HDMI outputs with independent resolutions
- Convert resolutions and frame rates
•Cross Conversion
- SDI to HDMI, HDMI to SDI
•LCD Preview and Touch Control
- Monitor inputs and outputs
- Graphic User Interface and Touch Control
•Built-In Web Server
- Monitor and control Inputs and Outputs settings
- Firmware Update
Feature
Package
Adaptor & Power Code User’s Manual 4K Cross Converter

Getting Started

4K Cross Converter User’s Manual
5
Introduction
Rear
21 4 5 6
1DC Power IN Connect the supplied DC Adapter (+12V/3.5A)
2
Ethernet Connect Ethernet 10/100Mbps cable to the switching Hub/Router.
HDMI IN Connect HDMI 2.0 type A Cable to the HDMI Source (Video Player etc.)
4SDI IN Connect 12G SDI Cable to the SDI Source (SDI Camera etc.)
5SDI LOOP OUT Reclocked output of SDI IN signal to the SDI Rx (SDI Monitor etc.)
6SDI OUT2 Up / down scaled SDI Output signal
Connect 12G SDI Cable to SDI Rx Device
7 8
7SDI OUT1
8
Top
Front
SERVICE SDI IN
HDMI IN
REF IN
9
HDMI OUT Up/down scaled HDMI Output signal.
Connect HDMI Cable to HDMI Rx Device.
9
LCD
POWER
3
3REF IN
Menu Buttons

4K Cross Converter User’s Manual
6

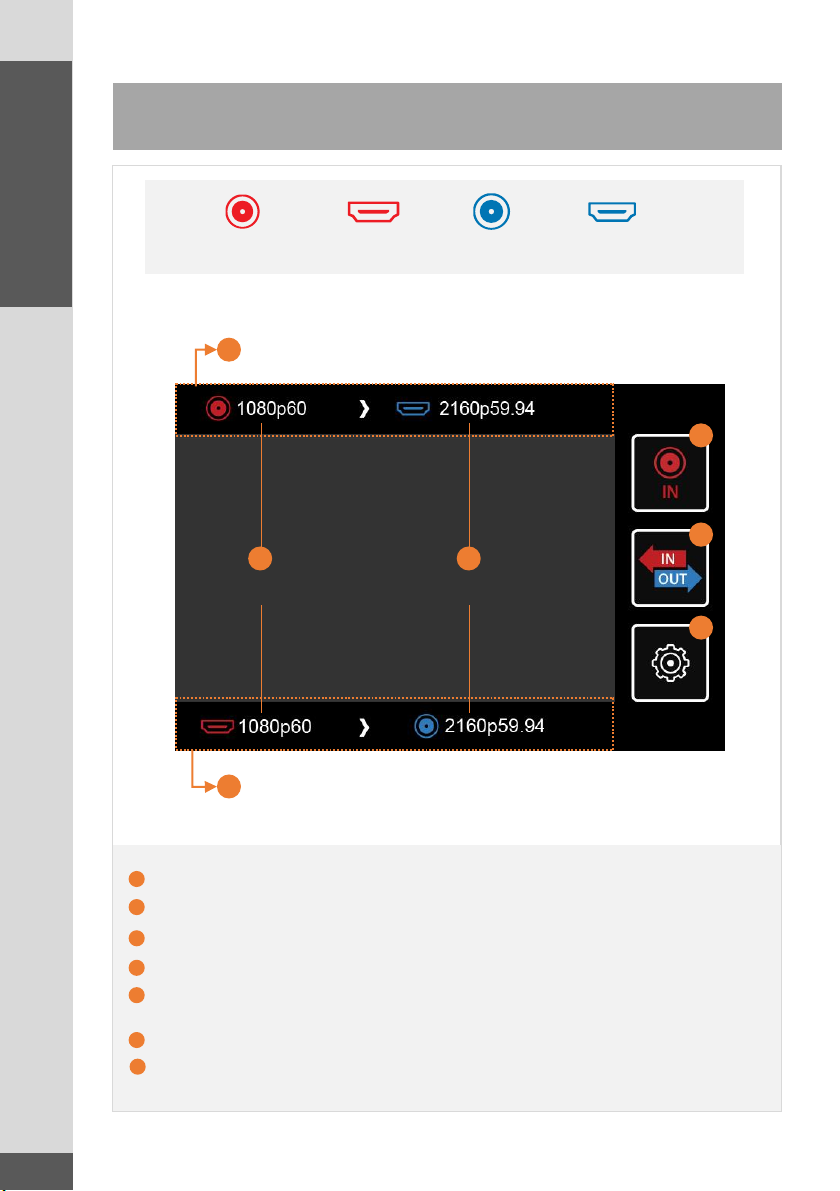

LCD Layout
1INPUT/OUTPUT Status Top GUI shows HDMI Output related settings.
2INPUT/OUTPUT Status Bottom GUI shows SDI Output related settings.
3Input Resolutions Show the resolutions of input signals
4Output Resolutions Show the resolutions of output signals
5IN/OUT Preview
Selection
Rotate source of preview video from
[SDI IN], [HDMI IN], [SDI OUT] and [HDMI OUT].
6IN/OUT Setup Show IN/OUT setup GUI.
7System Settings Show System-wide settings GUI.
1INPUT/OUTPUT Status
2INPUT/OUTPUT Status
SDI IN HDMI IN SDI OUT HDMI OUT
5
6
7
3 4
Input Resolutions Output Resolutions

4K Cross Converter User’s Manual
7
IN/OUT Setup
1SDI OUT Select to change SDI OUT settings
2HDMI OUT Select to change HDMI OUT settings
Output Selection
3Select one of 4 Input Sources, [SDI], [HDMI], [PATTERN] and [AUTO]
Input Selection
If you select [AUTO], available input source will be selected automatically.
Priority is SDI > HDMI > PATTERN. If there is no SDI input, then try HDMI
input.
If Both SDI and HDMI inputs are not available, PATTERN will be selected
automatically.
4Select one of resolutions by pressing [<] and [>] buttons.
Resolution Selection
5SET By pressing [Set] Button, Settings will be applied.
1 2
34
5

4K Cross Converter User’s Manual
8

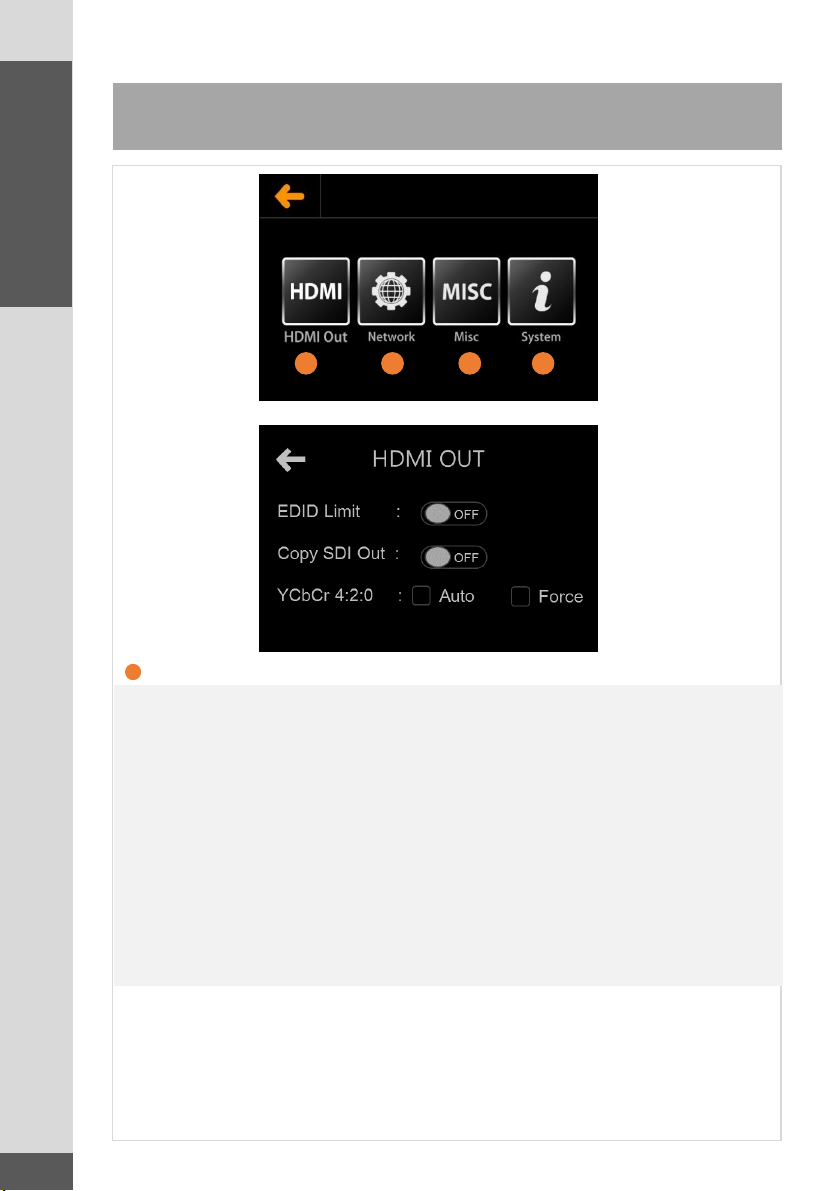

System Settings
EDID Limit : ON : Limit Resolutions according to capability of HDMI TV
connected
OFF : Enable all Resolutions up to 2160p60
Copy SDI Out : ON : Change resolutions on SDI and HDMI OUTs
simultaneously
OFF : Change resolutions on SDI and HDMI OUTs
independently
YCbCr 4:2:0 : Select YCbCr 4:2:0 or 4:2:2 mode when Outputting 4KP60
Auto : Depend on TV capability by reading EDID
Force : YCbCr 4:2:0 mode selected
HDMI Out
1 2 3 4
1


4K Cross Converter User’s Manual
9
System Settings
DHCP : Network assigns IP address automatically
Manual : User can assign IP address manually
Network
2
Auto Hide :
ON : Main Menu will disappear after show time
OFF : Main Menu will show and stay
Transparency :
Change transparency of GUI
MISC
3
Show Model Name, SW Version, FPGA Version and MAC address
System
4

Operation Modes

4K Cross Converter User’s Manual
11

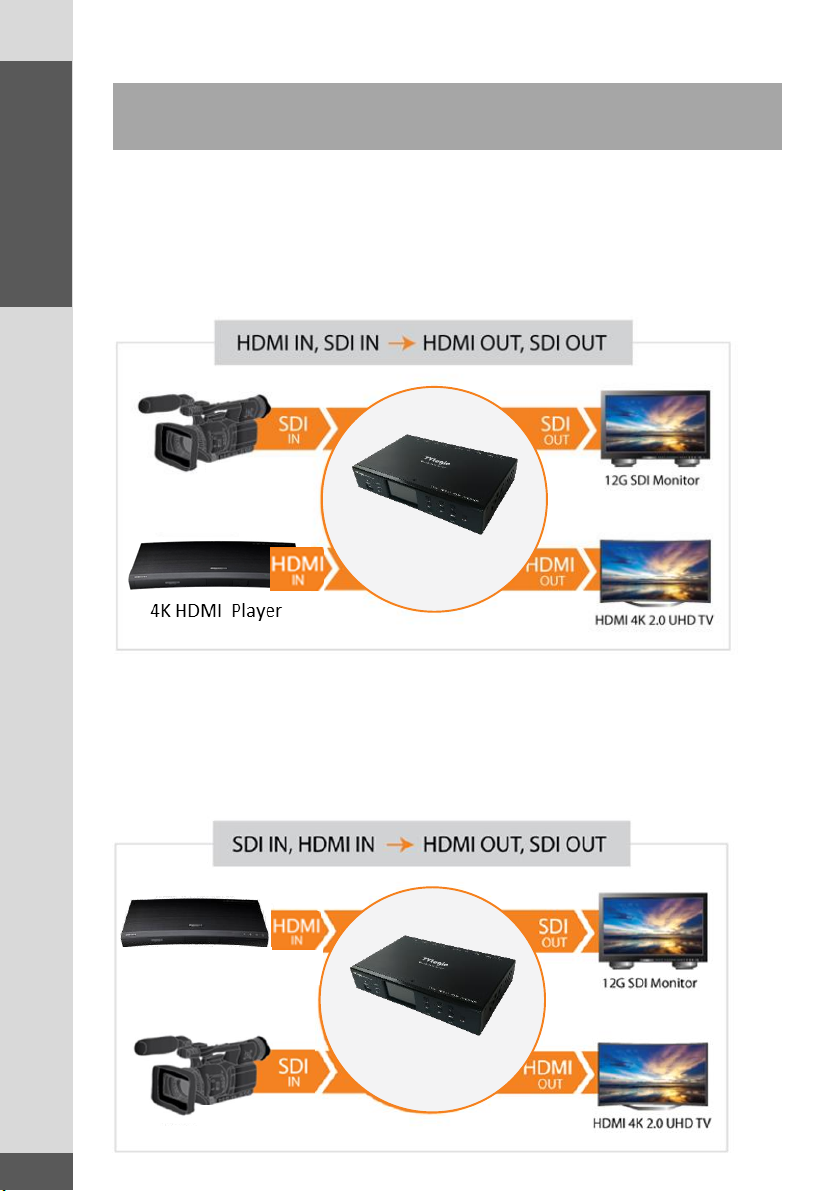

Operation Mode
SDI signal can be converted to HDMI and SDI signals.
Input SDI signals can be up or down scaled to outputs.
Output resolutions for HDMI and SDI can be set independently.
SDI IN -> HDMI OUT, SDI OUT
HDMI signal can be converted to HDMI and SDI signals.
Input HDMI signals can be up or down scaled to outputs.
Output resolutions for HDMI and SDI can be set independently.
HDMI IN -> HDMI OUT, SDI OUT
12G-SDI/HDMI2.0
Cross Converter
4K HDMI Player
12G-SDI/HDMI2.0
Cross Converter
Camera

4K Cross Converter User’s Manual
12
This mode works as a two separate scaler. Signal paths are crossed.
HDMI input signal can be up or down scaled to SDI output.
SDI input signal can be up or down scaled to HDMI output.
Two separate video paths are working independently.
SDI IN, HDMI IN -> HDMI OUT, SDI OUT
12G-SDI/HDMI2.0
Cross Converter
Camera
4K HDMI Player
Operation Mode
This mode works as a two separate scaler.
HDMI input signal can be up or down scaled to HDMI output.
SDI input signal can be up or down scaled to SDI output.
SDI and HDMI paths are working independently.
HDMI IN, SDI IN -> HDMI OUT, SDI OUT
12G-SDI/HDMI2.0
Cross Converter
Camera

Setting Up

4K Cross Converter User’s Manual
14

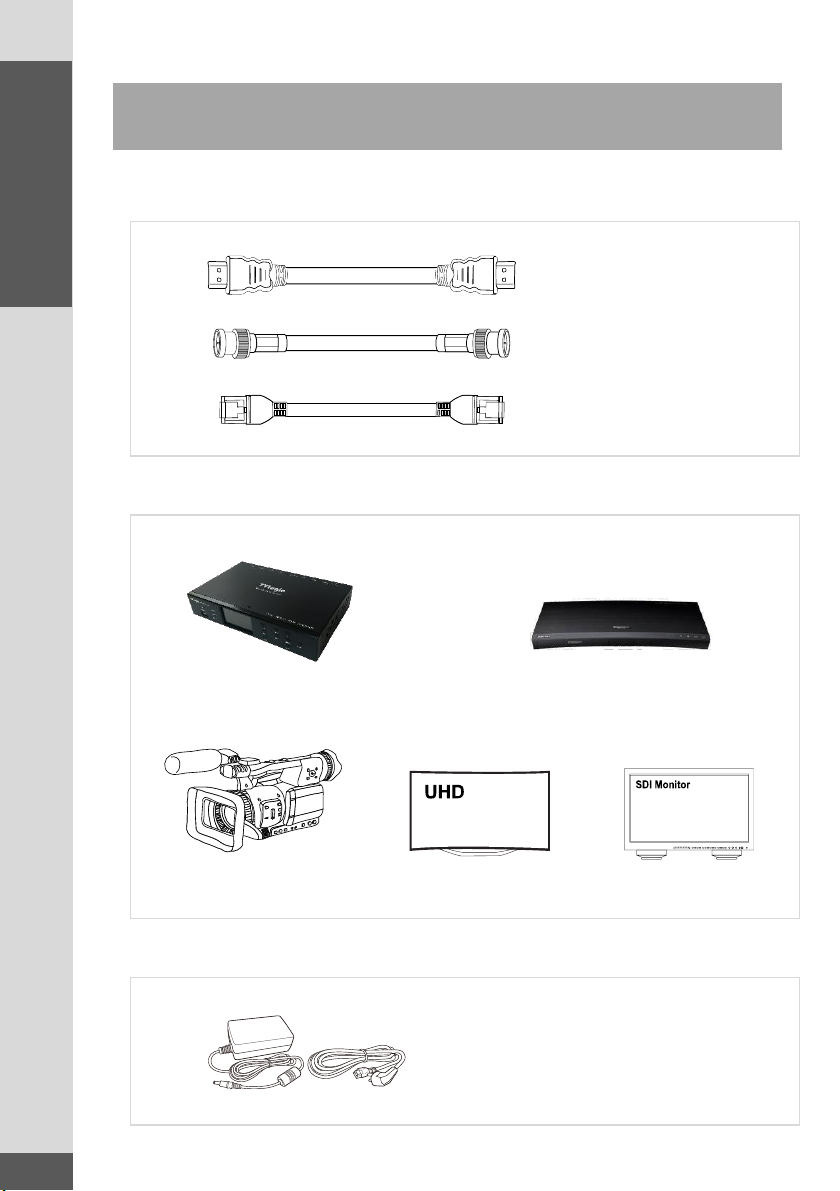

Preparations
Cable
Devices
4K Cross Converter HDMI Source
(PC, BDP, OTT etc)
SDI Source(SDI Camera etc) HDMI Sink (HDMI 4K TV etc) SDI Sink (SDI Monitor etc)
ETC
Adaptor & Power Code
High Speed HDMI Cable
SDI Cable
LAN Cable

4K Cross Converter User’s Manual
15
Connections
HDMI Player

Usage Example

4K Cross Converter User’s Manual
17

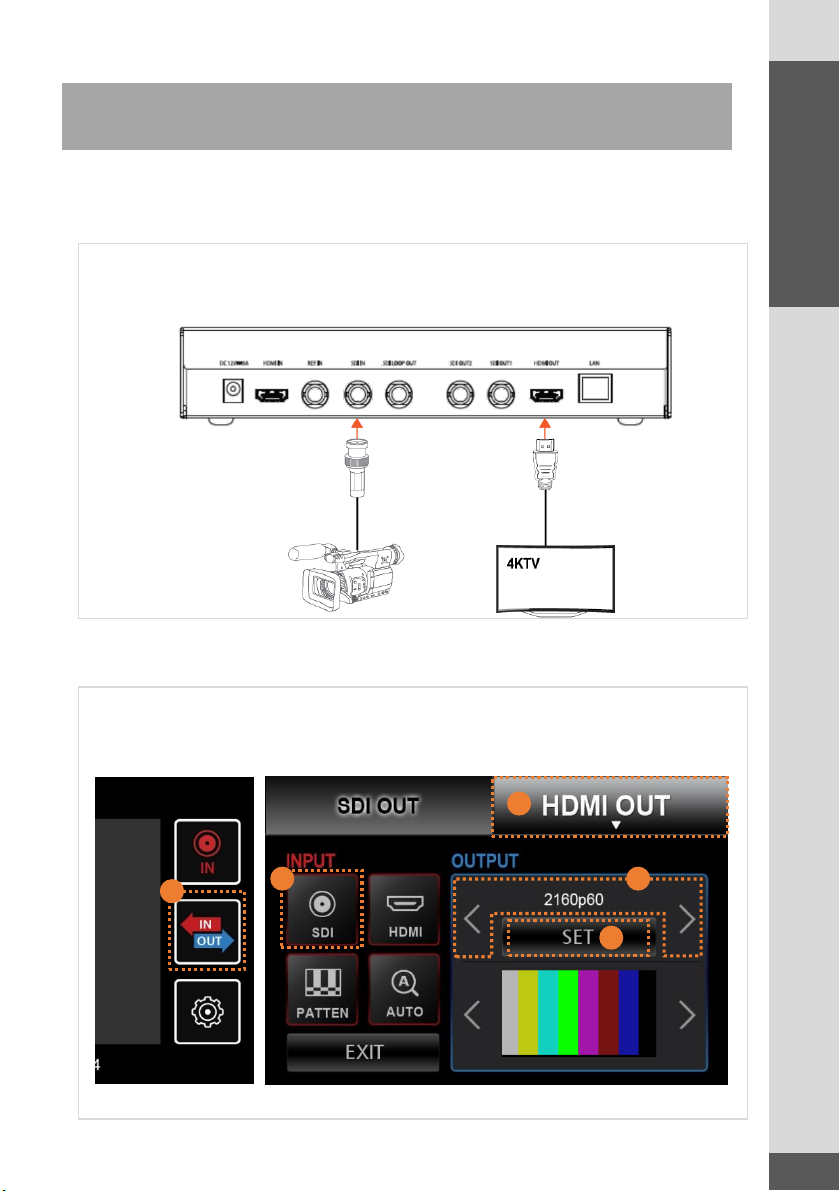

SDI to HDMI Conversions
Cable Connection
(1) Connect SDI Source and SDI Input of Converter
(2) Connect HDMI Out of Converter with HDMI TV
Software Setup
IN/OUT >> HDMI OUTPUT >> INPUT SDI Selection >> Resolution Selection >> Set
1
2
3
5
4

4K Cross Converter User’s Manual
18
HDMI to SDI Conversions
c
Cable Connection
(1) Connect HDMI Source and HDMI IN of Converter
(2) Connect SDI OUT of Converter and SDI Monitor
Software Setup
IN/OUT >> SDI OUTPUT >> INPUT HDMI Selection >> Resolution Selection >> Set
1
2
3
5
4

Specification

4K Cross Converter User’s Manual
20
Specification for S/W
Item Spec Notes
Resolutions 720p, 1080i, 1080p,2160p
Frame Rate 23.98, 24, 25, 29.97, 30,
50, 59.94, 60
Up/Down Scaling Any Resolution ->
Any Resolution
Frame Rate
Conversion Any Rate -> Any Rate
Firmware Upgrade Yes Built-in Web Server
using Ethernet
Preview Monitoring Yes Front 2.7” LCD
Status Monitoring Yes - Built-in Web Server
- Front LCD
Control Yes
- Built-in Web Server
- Front LCD GUI
- 9 x buttons
