1.0 INTRODUCTION
The 1T-TBC and 1T-TBC-GL Time Base Correctors are designed to correct the time base
errors present on a video signal of any of the widely used world television standard
signals.
Our professional video conversion products have been serving the industry for over
twenty years. tvONE offers a full line of high quality Seamless Switchers, Video Scalers,
Up/Down/Cross Converters, Analog-Digital Converters (SD/HD-SDI, HDMI, DVI), Format
Converters, Standards Converters, TBC/Frame Synchronizers, Matrix Routing Switchers,
Signal Distribution Amplifiers and Cat.5 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. tvONE cannot be
held liable for the use of this hardware or any direct or indirect consequential damages
arising from its use. It is the responsibility of the user of the hardware to check that it is
suitable for his/her requirements and that it is installed correctly. All rights reserved. No
parts of this manual may be reproduced or transmitted by any form or means electronic or
mechanical, including photocopying, recording or by any information storage or retrieval
system without the written consent of the publisher.
tvONE reserves the right to revise any of its hardware and software following its policy to
modify and/or improve its products where necessary or desirable. This statement does not
affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognised. The tvONE logo, Magenta logo,
CORIO word and the CORIO logo are registered trademarks of tvONE. All other
trademarks are the property of their respective holders.
1.2 Features
The 1T-TBC series of Multi-Standard Time Base Correctors have many features that enable
them to perform in a superior manner. Among these features you will find:
Time Base Corrects all Input Signals
Restores Distorted or Noisy Sync Signals
Genlocks to System Reference (1T-TBC-GL)
Digital Comb Filtering for Y/C signals
Built in AGC to Ensure 1 volt P/P outputs
Full Control of Picture Elements such as Brightness and Color level

3
2.0 SPECIFICATIONS:
Inputs/Outputs
Composite Video
YC (S-Video)
Genlock
Genlock Loop-thru
1x via BNC Connector
1x via 4-PIN Mini-DIN Connector
via BNC (1T-TBC-GL Only)
with 75Termination Switch
Video Specifications
Impedance
Television Standards
Signal Processing
Frequency Response
Chroma to Luma Delay
Differential Gain
Differential Phase
Signal to Noise Ratio
Video Level Adjustment
Filter Selection
75
NTSC, PAL-B, G, N, M, SECAM
8-bit
Flat to more than 20MHz
<=5nS
<=0.5 %
<=0.5 
Better than 60db
Luma, Chroma, Setup, Hue, Sharp
Adaptive Comb, Low Pass
Device Control
Display
Local Control
Front Panel LEDs
Up, Down, Reset, Select
Warranty
Limited Warranty
3 Years Parts and Labor
Mechanical
1T-TBC & 1T-TBC-GL (H-W-D)
1T-TBC & 1T-TBC-GL Weight
30 x 133 x 90mm (1.2" x 5.25" x 3.5")
310g (0.69 lbs.)
Environmental
Operating Temperature
Operating Humidity
0to +50C (+32to +122F)
10% to 90%, Non-condensing
Storage Temperature
Storage Humidity
-10to +60C (+14to +140F)
10% to 90%, Non-condensing
Power Requirement
External Power Supply
12[email protected], twist lock connector
Regulatory Approvals
TBC
FCC, CE, RoHS
Power Supply
UL, CUL, CE, PSE, GS, RoHS
Accessories Included
1x AC Power Adapter
US, UK and Euro
1x Instruction Manual

4
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
1x 1T-TBC or 1T-TBC-GL Time Base Corrector
1x 100-240VAC to 12VDC Power Adapter
1x Instruction Manual
NOTE: Please retain the original packing material should the need ever arise to return the unit. If you find any items are
missing, contact your reseller or tvONE immediately. Have the Model Number, Serial Number and Invoice available for
reference when you call.
4.0 CONNECTING THE HARDWARE
Please study the panel drawings below and become familiar with the signal input, outputs,
power requirements/inputs plus any controls present.
1T-TBC Multi-standard Time Base Corrector
1T-TBC-GL Multi-standard Time Base Corrector with Genlock
Connect the AC to +12 VDC adapter to an AC source and then to the DC power input
shown above.
NOTE: There is no power switch. The unit will begin to work as soon as you have the AC to +12 VDC adapter plugged in
and furnishing power.

5
Next connect an input cable and an output cable to either the Composite Video or
S-Video connectors. If the unit has power applied, it should begin to function as a Time
Base Corrector.
5.0 OPERATING THE UNIT
The 1T-TBC-GL and 1T-TBC Time Base Converters are identical with the exception of a
genlock provision in the 1T-TBC-GL version. (A discussion of the genlock capability is
contained in section 5.7 below).
The 1T-TBC-GL and 1T-TBC are operated via selection buttons referenced to indicator
LEDs.

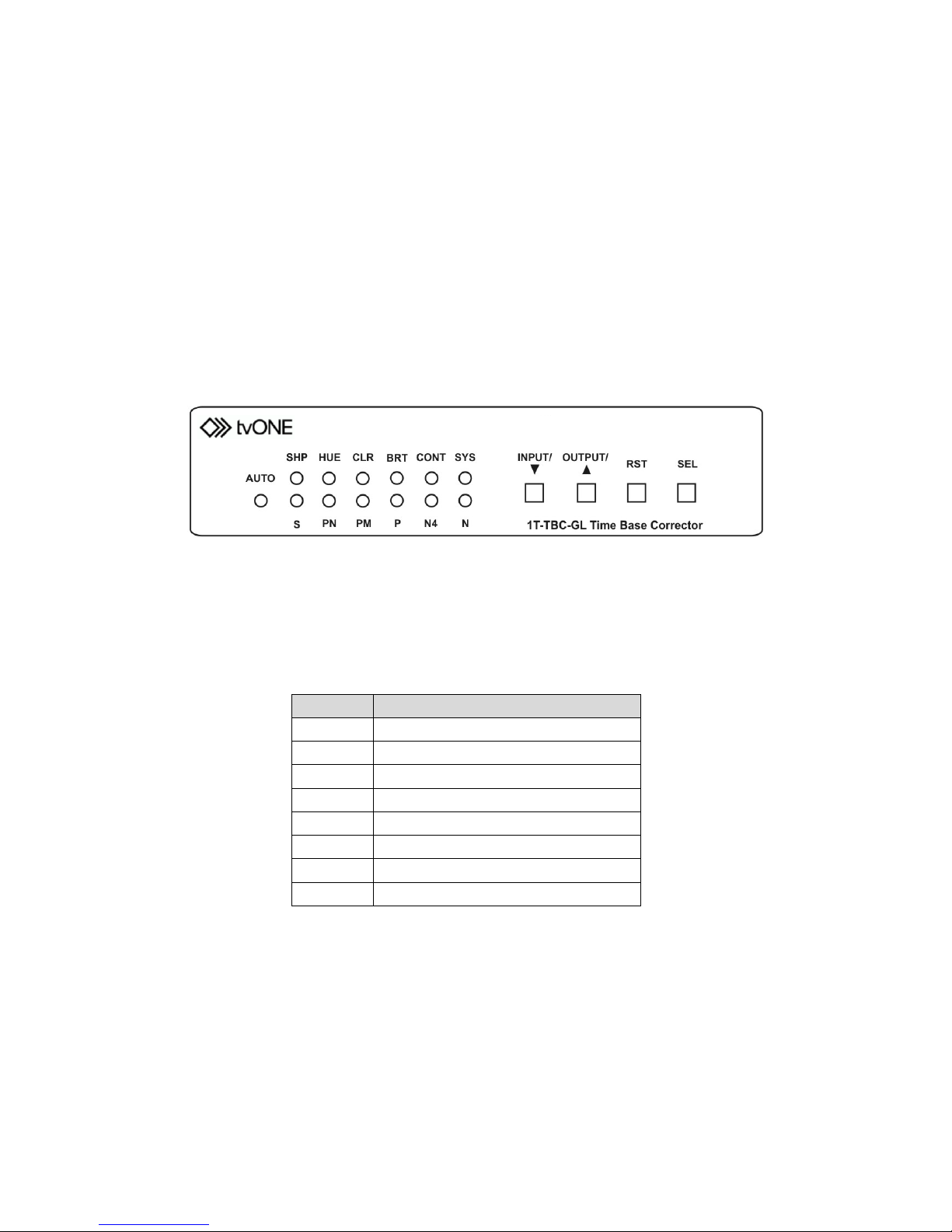

Please refer to the drawing below for the discussion that follows.
5.1 Initial Power Up
When power is applied to the unit, it will default to the auto detect mode and also select
the proper Television Standard. The letters on the panel above the bottom row of LEDS
will indicate the standard selected:
Setting
Description
A
Auto-Detect TV Standard
S
SECAM Standard
PN
PAL-N
PM
PAL-M
P
PAL
N4
NTSC 4.43 MHz
N
NTSC 3.58 MHz
S
Select System Mode
As an example of how the auto-detect works, if you live in the United States or Japan, the
standard will be the NTSC 3.58 and the unit will light the “A” LED plus the “N” LED. In the
United Kingdom, the standard will be PAL so the “A” LED will light as well as the “P” LED.
Finally, in France, the “A” and “S” (for SECAM) LEDs will light.

6
5.2 System Button Function
If you press the Select button until the System LED is illuminated on the top row, you can
gain access to the bottom row of functions. You can then either automatically or manually
select the input Television Standard you wish to use.
NOTE: Pressing the Reset button toggles between automatic and manual selection of the desired standard. Although
you can manually select the standard, it is generally best to allow the unit to make the standard selection.
To force a manual input selection of the desired standard, make certain the System LED is
lighted, and then press the Reset button, which places the input selection in the Manual
mode. Next, press the DOWN arrow button to step through the various standards.
Pressing the Reset button a second time reverts back to automatic selection of the
standard.
5.3 Adjustment of Signal Parameters
Another user operation is the selection of a particular picture parameter you wish to
change. For instance: If you wish to adjust the amount of color in the picture, press the
Select button until the LED below the abbreviation “CLR” is flashing. Next press the UP
and Down Arrow buttons to either increase or decrease the amount of color in the picture.
Use the same procedure for Sharpness, Tint, Brightness and Contrast: Press the Select
button until you have reached the picture variable you wish to change and then use the
arrow buttons to make the actual adjustment.
5.4 Additional Reset Button Functions
Pressing the Reset Button while you have one of the adjustment parameters selected will
cause the 1T-TBC-GL or 1T-TBC to revert to the default setting for that parameter. If you
press and hold the Reset button for more than 3 seconds, ALL adjustment parameters will
be reset to their default settings.
5.5 Using the Genlock Capability (1T-TBC-GL Only)
The 1T-TBC-GL model has the ability to lock its output to a reference signal. This allows the
unit’s output to be used in a studio environment as an input to a video switcher or special
effects device requiring a timed video input source.
Additionally, the genlock capability also includes a loop through function. This allows one
genlock signal to be cascaded from one 1T-TBC-GL to another thereby providing multiple
timed video sources if needed. If you only intend to use a single 1T-TBC-GL, set the switch
on the back on the unit marked TERM 75to the “On”position. This will ensure that the
impedance of the genlock source is properly terminated. Similarly, if you cascade several
1T-TBC-GL genlock inputs using the loop through capability, also make certain you switch
the termination of the last unit to “On”.

7
6.0 TROUBLESHOOTING
Most problems with the 1T-TBC-GL and 1T-TBC units are related to misuse of the buttons
and signal adjustment controls. If you find that the picture is not acceptable, place the unit
in the automatic detection mode and then press and hold the Reset button for 3 seconds
to restore factory defaults. This should clear the problem. Another problem revolves
around the cables. Inspect the cables for loose connectors or cable damage such as
crushed cables or cables with cuts or nicks. Replace any cable exhibiting these problems.
You also must use the highest quality cables if you want to achieve the best results. Poor
quality cables will cause poor quality signals.
Note: It is strongly recommended that you use premium cables in order to achieve
maximum distance cable runs and the best performance possible.
After trying the above suggestions should the problem still persist, contact your dealer for
additional suggestions before contacting tvONE. Should the dealer’s technical personnel
be unable to assist you, contact tvONE via our support website:
http://tvone.crmdesk.com. Create a technical support request on the site and our support
team will respond within a short period of time.

8
7.0 LIMITED WARRANTY
tvONE warrants the original purchaser that the equipment it manufactures or sells will be
free from defects in materials and workmanship for a fixed term from the date of purchase.
The warranty term for specific product lines is defined below.
1. tvONE branded products based on tvONE’s CORIO technology are warranted for a
period of five years from the date of purchase. This includes products with the model
number prefix of C2, 1T-C2, CX, A2 or S2.
2. tvONE products, other than those based on tvONE’s CORIO technology mentioned
above, are warranted for a period of three years from the date of purchase. This
includes products with the model number prefix of 1T, with the exception of 1T-C2.
3. LCD Monitors are warranted for a period of three years from the date of purchase, with
the exception of the LCD panels integrated into the monitors that are supplied by third
parties. LCD panels are limited to the term and conditions of the warranty offered by
the respective LCD panel manufacturer. Such specific LCD panel warranties are
available upon request to tvONE.
Should a product, in tvONE’s opinion, prove defective within this warranty period, tvONE,
at its option, will repair or replace this product without charge. Any defective parts
replaced become the property of tvONE. This warranty does not apply to those products
which have been damaged due to accident, unauthorized alterations, improper repair,
modifications, inadequate maintenance and care, or use in any manner for which the
product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must obtain a
Return Authorization Number from tvONE and return the product to a location designated
by tvONE, freight prepaid. After repairs are complete, the product will be returned, freight
prepaid.
LIMITATIONS - All products sold are “as is” and the above Limited Warranty is in lieu of all
other warranties for this product, expressed or implied, and is strictly limited to the stated
number of years from the date of purchase. tvONE assumes no liability to distributors,
resellers or end-users or any third parties for any loss of use, revenue or profit.
tvONE makes no other representation of warranty as to fitness for the purpose or
merchantability or otherwise in respect of any of the products sold. The liability of tvONE
with respect to any defective products will be limited to the repair or replacement of such
products. In no event shall tvONE be responsible or liable for any damage arising from the
use of such defective products whether such damages be direct, indirect, consequential
or otherwise, and whether such damages are incurred by the reseller, end-user or any
third party.

9
8.0 REGULATORY COMPLIANCE
The 1T-TBC-GL and 1T-TBC Multi-standard Time Base Corrector products have been
tested for compliance with appropriate FCC and CE rules and regulations. The power
adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS
Rules, regulations and/or guidelines. This product and power adapter is RoHS compliant.
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not covered by
this manual, please contact tvONE at the appropriate location shown below.
tvONE USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvone.com
tvONE Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
tvONE Latin America
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[email protected]
tvONE Mercosur
Av Diaz Velez 3965 PB
Capital Federal (1200)
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
tvONE Asia
16F-4, No.75, Sec. 1
Xintai 5th Rd, Xizhi Dist
New Taipei City 22101
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
tvONE China
Rm. 1007 Golden Peach Building
No.1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
[email protected]
End of Manual
