TW SOLAR TW MAP-144-H Series User manual

Photovoltaic Module Installation Manual for
TW solar energy Co., Ltd

TW solar energy Co., Ltd
PV Module Installation Manual
Monofacial Module：
Max. System Voltage: up to 1500VDC (Voc at STC)
With ½ cut of 182 mono c-Si cell:
TWxxxMAP-144-H (xxx=525-555, in steps of 5, 144 cells)
TWxxxMAP-144-H-S (xxx=525-555, in steps of 5, 144 cells)
TWxxxMAP-144-H-F (xxx=520-550, in steps of 5, 144 cells)
TWxxxMAP-120-H (xxx=440-460, in steps of 5, 120 cells)
TWxxxMAP-120-H-S (xxx=440-460, in steps of 5, 120 cells)
TWxxxMAP-120-H-F (xxx=435-455, in steps of 5, 120 cells)
TWxxxMAP-108-H (xxx=395-415, in steps of 5, 108 cells)
TWxxxMAP-108-H-S (xxx=395-415, in steps of 5, 108 cells)
TWxxxMAP-108-H-F (xxx=390-410, in steps of 5, 108 cells)
TWxxxMGP-156-H (xxx=570-600, in steps of 5, 156 cells)
TWxxxMGP-156-H-S (xxx=570-600, in steps of 5, 156 cells)
TWxxxMGP-156-H-F (xxx=560-595, in steps of 5, 156 cells)
TWxxxMGP-144-H (xxx=525-555, in steps of 5, 144 cells)
TWxxxMGP-144-H-S (xxx=525-555, in steps of 5, 144 cells)
TWxxxMGP-144-H-F (xxx=520-550, in steps of 5, 144 cells)
TWxxxMGP-120-H (xxx=440-460, in steps of 5, 120 cells)
TWxxxMGP-120-H-S (xxx=440-460, in steps of 5, 120 cells)
TWxxxMGP-120-H-F (xxx=435-455, in steps of 5, 120 cells)
TWxxxMGP-108-H (xxx=395-415, in steps of 5, 108 cells)
TWxxxMGP-108-H-S (xxx=395-415, in steps of 5, 108 cells)
TWxxxMGP-108-H-F (xxx=390-410, in steps of 5, 108 cells)
TWxxxMGT-156-H (xxx=600-625, in steps of 5, 156 cells)
TWxxxMGT-156-H-S (xxx=600-625, in steps of 5, 156 cells)
TWxxxMGT-156-H-F (xxx=590-620, in steps of 5, 156 cells)
TWxxxMGT-144-H (xxx=555-575, in steps of 5, 144 cells)
TWxxxMGT-144-H-S (xxx=555-575, in steps of 5, 144 cells)
TWxxxMGT-144-H-F (xxx=550-570, in steps of 5, 144 cells)
TWxxxMGT-120-H (xxx=455-475, in steps of 5, 120 cells)
TWxxxMGT-120-H-S (xxx=455-475, in steps of 5, 120 cells)

TW solar energy Co., Ltd
01
TWxxxMGT-120-H-F (xxx=450-470, in steps of 5, 120 cells)
TWxxxMGT-108-H (xxx=415-430, in steps of 5, 108 cells)
TWxxxMGT-108-H-S (xxx=415-430, in steps of 5, 108 cells)
TWxxxMGT-108-H-F (xxx=410-425, in steps of 5, 108 cells)
The modules mentioned in this installation manual are only allowed to be installed below 2000m
above sea level.
Meaning of crossed-out wheeled dustbin: Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities. Contact your local government for information
regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being. When replacing old
appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals
at least free of charge.

TW solar energy Co., Ltd
CONTENTS
Purpose of this Manual ...............................................................................................................4
Disclaimer ...................................................................................................................................4
Safety & Transport ..................................................................................................................... 5
Mechanical Installation .............................................................................................................. 7
Electrical Installation ................................................................................................................14
Grounding .................................................................................................................................16
Bypass Diodes and Block Diodes .............................................................................................17
Maintenance ............................................................................................................................. 18

TW solar energy Co., Ltd
02
PURPOSE OF THIS MANUAL
This manual applies exclusively to the solar photovoltaic module (here in after referred to
as Module) of TW solar energy Co., Ltd. (here in after referred to as TW). The contents
of this manual involve the installation methods, operation safety and maintenance
information of TW’s Modules.
Modules must be installed by professionals. Please read this manual carefully before
installation. The installers must follow all the rules in this manual strictly as well as local
requirements and regulations by law or authorized organizations.
Before installing, the installer must be familiar with their mechanical and electrical
requirements. Please keep this manual in a safe place for future reference (care and
maintenance) and in case of sale or disposal of the Modules.
DISCLAIMER
TW shall not be responsible for any loss arising from the installation, operation, use or
maintenance of the Modules which is not complying with the guidance of this manual,
including breakdown or damage of the Modules or any other expenses incurred.
Any customer shall not get any patent or authorization of the patent when using the
Modules, expressed or implied. Any infringement of patents or other rights of the third
party, which may result from the use of the Module, is not within the responsibility scope
of TW. The information in this manual is based on TW’s knowledge and experience and
is believed to be reliable, but such information including product specification (without
limitation) and relevant suggestions do not constitute a warranty, expressed or implied.
TW reserves the rights to change the manual, the Modules, the specifications or any other
information of the Modules without prior notice.

TW solar energy Co., Ltd
03
SAFETY & TRANSPORT
General Detailed Rules
Keep all the Modules and electrical connectors clean and dry before installation.
Use both hands to carry Modules. Do not overlap Modules.
Be cautious when carrying Modules. Slip-proof gloves are necessary.
Use supportive disassembling tools when unpacking.
The application level of TW module is Class A, which can be used in systems operating at greater
than 50 V DC or 240W, where general contact access is anticipated.
Do not stamp on Modules or put weight on Modules.
Do not disassemble or drop Modules. Do not remove any nameplate or component
of the module.
Do not use mirrors or magnifiers to concentrate sunlight onto Modules.
Do not lift the module by grasping the junction box or cable wire.
Do not use any sharp object with Modules.
Do not directly apply pressure on the glass surface or backsheet of Modules.
Do not touch the surface of the coated glass with bare hands.
Ensure all contacts and the operating environment are clean and dry.
Module Carry and Installation Instruction
Both hands when handling Modules
Ensure Modules are fixed properly
Do not use sharp objects with Modules
Do not pull the wiring cables or junction
box
Do not stamp on Modules
Do not touch Modules with bare or dirty
hands
Do not pile up Modules on uneven ground
Do not drop or throw Modules

TW solar energy Co., Ltd
04
SAFETY & TRANSPORT

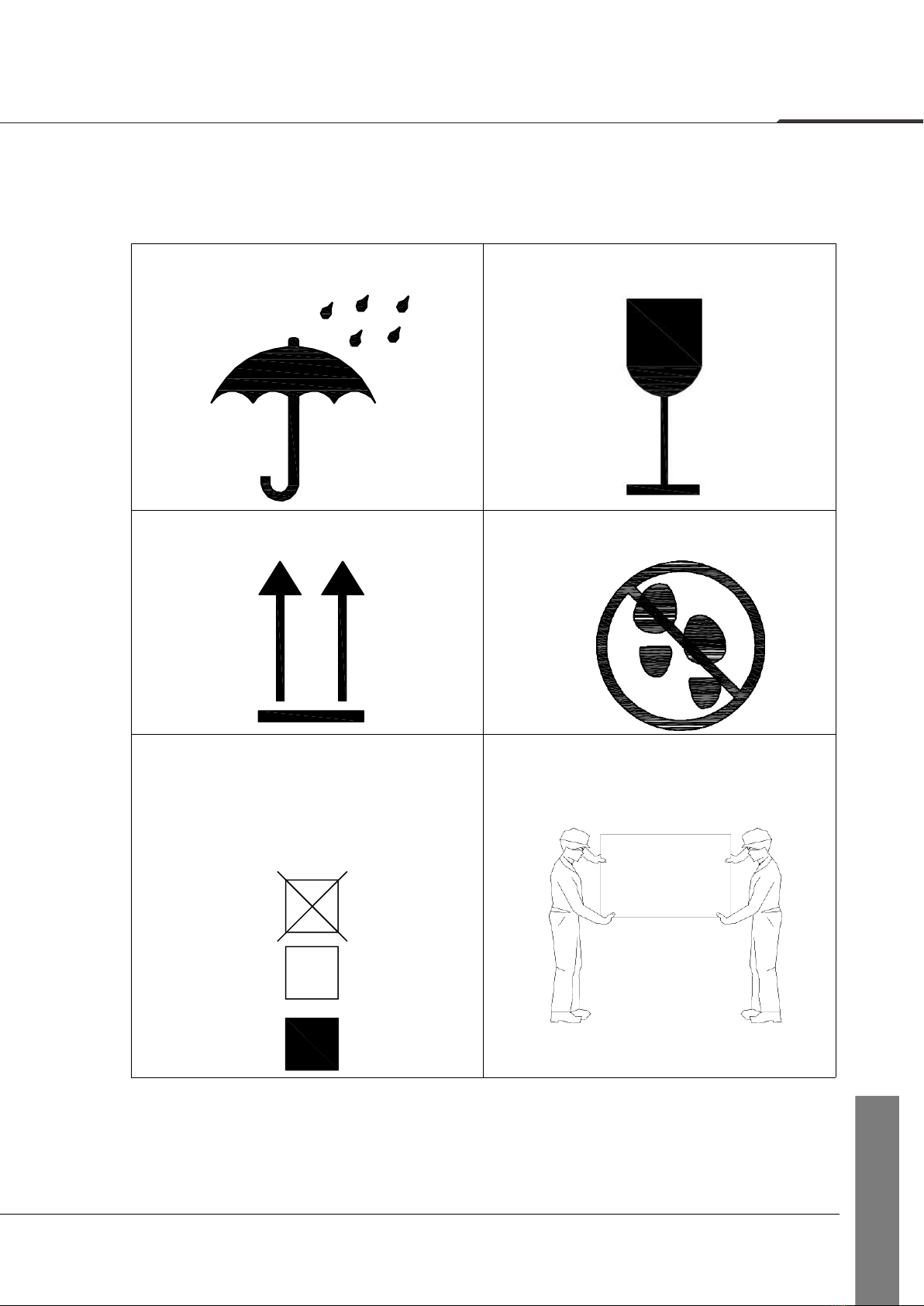

Description of Package Signs
Before the operation, it is necessary to read carefully the unpacking instruction and outer
packing box instruction, and carry out the operation as instructed.
1. DO NOT expose the module to rain or
moisture.
2. The Modules in the carton box are fragile.
Handle with care.
3. The package shall never be upside down
during the transportation.
4. It is prohibited to tramp on the packing
box and module.
5. During the stacking of the Modules, the
outer packing box can be stacked not
exceed the maximum layer allowed .(n=2
means it is allowed to stack for at most
two layers.)
6. One module shall be handled by two
people together.
n

TW solar energy Co., Ltd
05
SAFETY & TRANSPORT
Unloading, Transportation and Storage
When the Modules are delivered to the project site, the freight car shall be ready in the
flat, even and open area for parking and unloading.
Forklift unloading: Choose the appropriate carrying forklift according to the commodity
weight, unload the Modules from the freight car and place them on flat ground.
Unloading with a crane: Affix the lifting belt in the wood supporting frame buckle (Fig. 1,
2). It is allowed only to lift one pallet at a time. Before lifting, it is necessary to confirm
whether the pallet and paper box are damaged and ensure that the lifting rope is robust
and firm. When being lifted close to the ground, the paper box will be gently placed in a
relatively flat position on the project site by two people, one on each side.

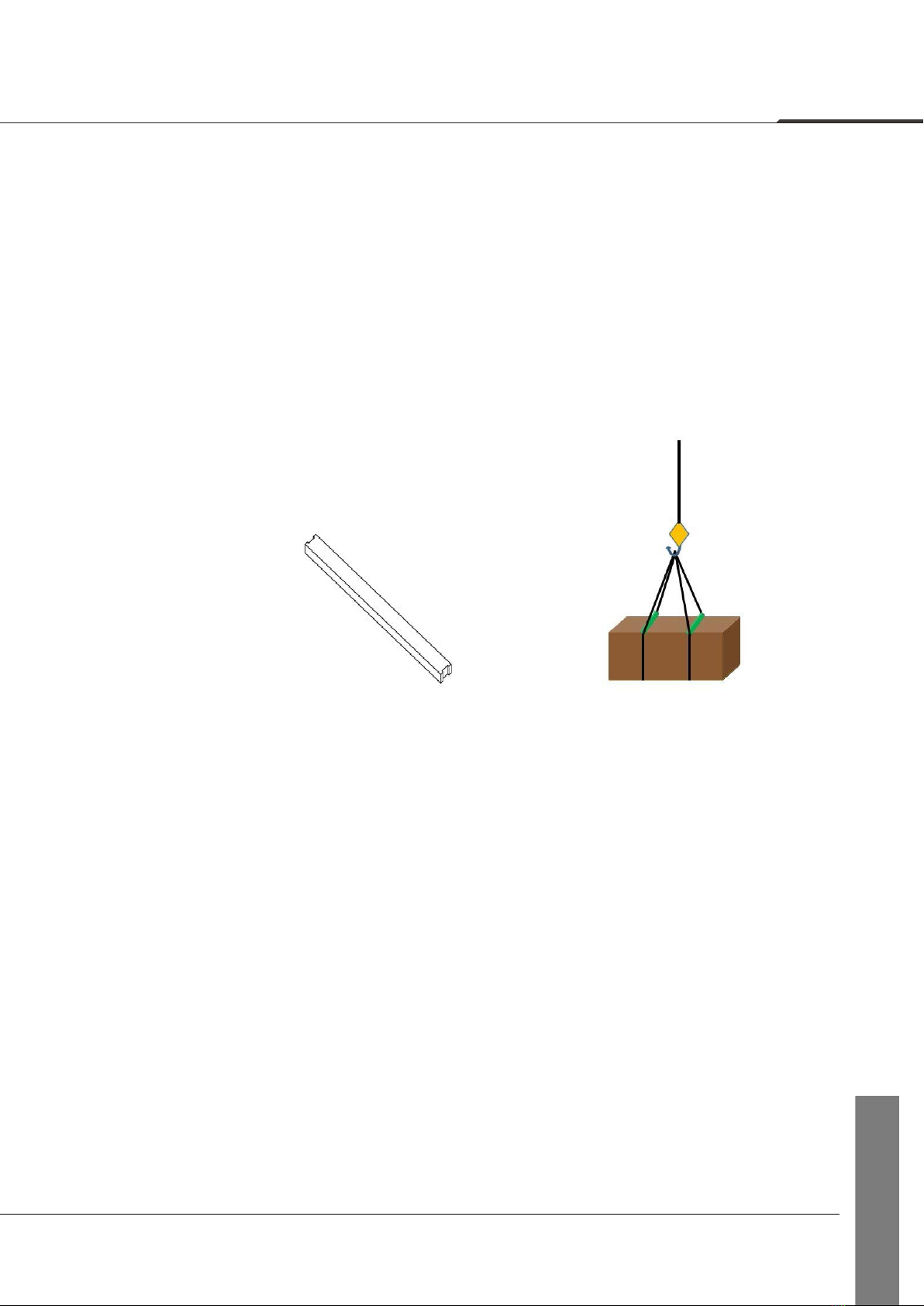

Figure 1 Wood Supporting Frame Figure 2 Lifting Schematics
It is prohibited to stack the Modules in the project site.
During the transportation at the project site, the Modules shall not be stacked, but only
allowing for one layer in transportation.

TW solar energy Co., Ltd
06
SAFETY & TRANSPORT
Storage in the project site warehouse:
Storage environment requirements: Humidity＜85%, temperature -20 ~+50℃; Modules
statically stacked for ≤2 layers.
Temporary storage at the project site: The Modules shall be stored in a dry,
well-ventilated place. They shall not be stacked but shall be covered with waterproof
cloth to prevent dampness in the Modules.
Unpacking description
1. In the outdoor unpacking process, it is prohibited to operate in rainy conditions;
2. If there is wind in the field, special attention shall be paid. Particularly in the event of
heavy wind, it is recommended not to handle the module, and it is necessary to properly
secure the unpacked Modules;
3. The working surface shall be such that the packing box can be placed in a stable, level
position, avoiding being overturned;
4. During the unpacking, it is necessary to wear protective gloves, and avoid scratching
the hands and leaving the fingerprints on the glass;
5. In the case of operation not according to the requirements or in the case of an
unskillful operation, it will result in the fall-off of the protective corner in small amounts,
which will be normal. The effect of the protective corner is to reduce damage due to external
force during transport, and the fall-off of the protective corner will not influence the reliability
of the Modules;
6. Before the unpacking, it is necessary to carefully check the product information on the
carton box, and carefully read the unpacking instruction;
7. Every module shall be carried by two people. When carrying the module by two
people, it is prohibited to pull the junction box.

TW solar energy Co., Ltd
07
MECHANICAL INSTALLATION
Location Selection
Select suitable places to install Modules. The module in the north latitude region shall
face south, and shall face north in the south latitude region.
Install Modules at the places with sufficient sunlight and without shade at any time. If a
module is shaded or even partially shaded, it will result in lower power output. A
permanent or regular shade will cause module damage, which will result in the invalidity
of product’s limited warranty.
Do not store, install or use Modules at the places where combustible gas is easily
generated or gathering.
The straight-line distance between the installation site and coastline shall not be shorter
than 1 km unless there is a writ ten approval from TW or an engagement specified in the
contract.
Location Selection
Modules in the same string should be installed at the same angle. Modules installed in
different angles will receive different irradiation, which will cause current different. As a
result, it will decrease the operation efficiency of the system.
Please refer to Table 1 for the recommended mounting tilt angles of the Modules.
Local latitude
Mounting Tilt Angles
0°-15°
15°
15°-25°
Local latitude
25°-30°
Local latitude + 5°
30°-35°
Local latitude + 10°
35°- 40°
Local latitude + 15°
＞40°
Local latitude + 20°
Table 1 Mounting Tilt Angle of Modules

TW solar energy Co., Ltd
08
MECHANICAL INSTALLATION
Installation requirements
Ensure the module installation method and support system sufficiently robust, so that
the Modules can undertake the preset loading conditions, the support installer or
supplier shall provide necessary guarantee and other related certifications. The
installation support system shall pass the inspection and test by the third-party test
institution with the static mechanic analysis capability, and use the local national or
international standards, such as DIN1055 or equivalent.
The support structure shall be made of the durable, corrosion resistant and ultraviolet
resistant materials.
The module shall be firmly mounted on the support.
Choose proper installation height of the photovoltaic support system, and ensure the
lowest part of the module is high enough, to avoid being shaded by plant or being
damaged by the flying sand. Or being covered by snow for a long time in winter.
When the module is installed on the roof or the building, it is necessary to ensure that
the roof structure is fixed firmly and will not be damaged by heavy wind or heavy
snow, and the back of the module shall be well-ventilated to facilitate the cooling of
the module (the minimum gap between the module and installation surface is 10cm).
Considering the influence of linear thermal expansion of the module frame, the
minimum distance between two Modules should not be less than 10mm.
Ensure that the module backside will not contact the support or architectural structure
even if there is the module surface is under the external pressure.
It is required to observe the instruction guide and safety rules attached on the support.
It is not allowed to drill the hole in the glass surface or frame of the module.
otherwise ,the guarantee will be invalidated
When to install the Modules on the roof, it is necessary to guarantee the roof
structure is suitable for the module installation. And the installed modules should not
be beyond the roof zone. Additionally, the roof area where it is penetrated by module
installation shall be properly sealed to prevent the roof from water leakage.
When the module is installed on the supporting column, it is necessary to ensure the
supporting column and module installation structure is capable of withstanding the
expected local wind.

TW solar energy Co., Ltd
10
09
MECHANICAL INSTALLATION
Framed Modules

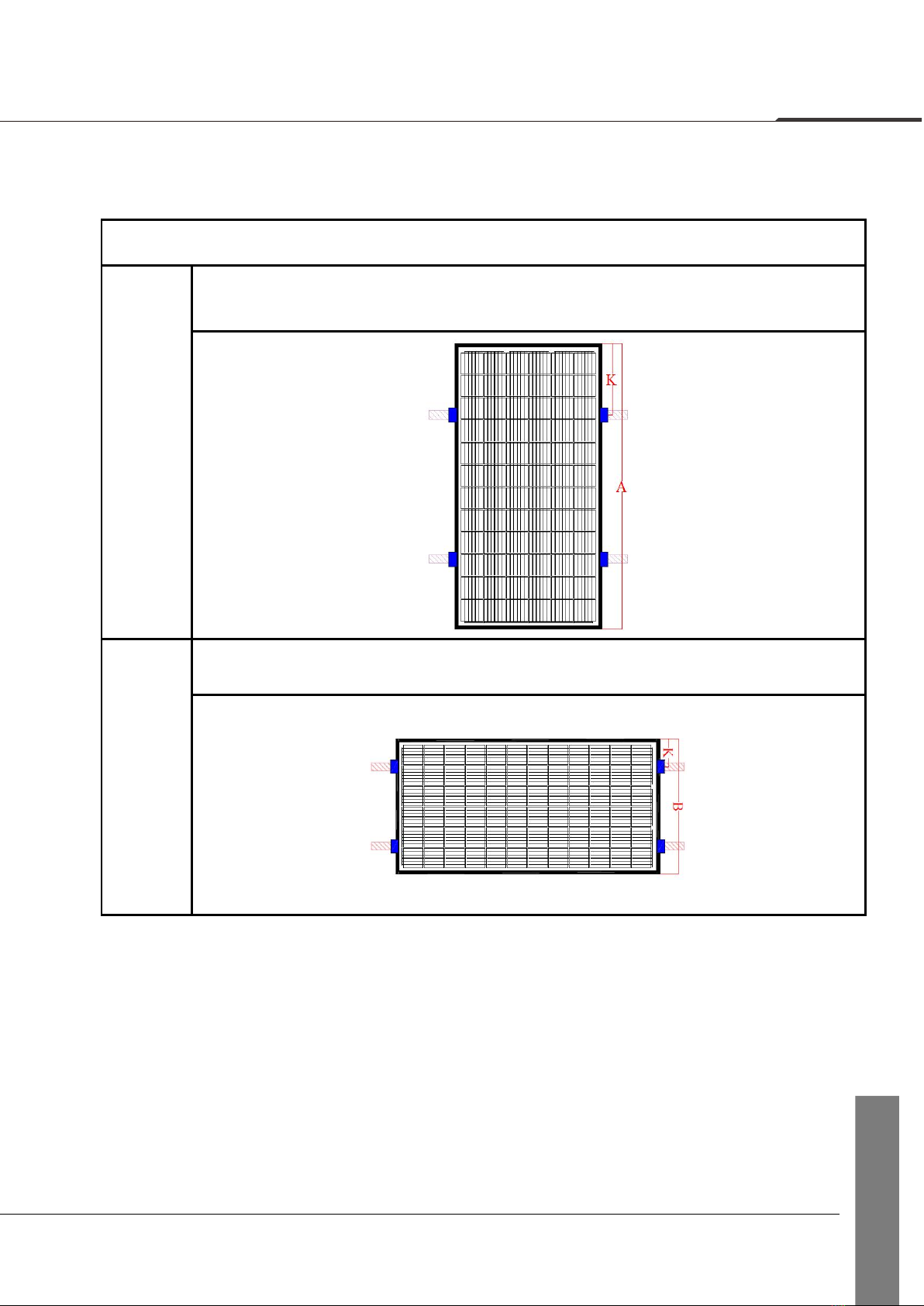

Installation with the mounting clamp
Table 4 Installation Method
Clamping
on the
long side
Installation Method A
Clamping
on the
short side
Installation Method B
Note: The length of the clamp≥50mm.

TW solar energy Co., Ltd
MECHANICAL INSTALLATION
Table 3 Installation method and load capacity
安装方式
安装方式 A
安装方式 B
组件型号
组件尺寸
(mm)
压块位置 K
(mm)
设计载荷 : 正面/背面,
γm=1.5
（Pa）
压块位置 K
(mm)
设计载荷 : 正面/背面,
γm=1.5
（Pa）
TW***MAP-108-H
TW***MAP-108-H-S
TW***MAP-108-H-F
TW***MGP-108-H
TW***MGP-108-H-S
TW***MGP-108-H-F
TW***MGT-108-H
TW***MGT-108-H-S
TW***MGT-108-H-F
1722*1134*35
1722*1134*30
380~480
3600/1600
——
——
TW***MAP-120-H
TW***MAP-120-H-S
TW***MAP-120-H-F
TW***MGP-120-H
TW***MGP-120-H-S
TW***MGP-120-H-F
TW***MGT-120-H
TW***MGT-120-H-S
TW***MGT-120-H-F
1903*1134*35
1903*1134*30
427~572
3600/1600
——
——
TW***MAP-144-H
TW***MAP-144-H-S
TW***MAP-144-H-F
TW***MGP-144-H
TW***MGP-144-H-S
TW***MGP-144-H-F
TW***MGT-144-H
TW***MGT-144-H-S
TW***MGT-144-H-F
2278*1134*35
520~620
3600/1600
——
——
TW***MGP-156-H
TW***MGP-156-H-S
TW***MGP-156-H-F
TW***MGT-156-H
TW***MGT-156-H-S
TW***MGT-156-H-F
2465*1134*35
520~620
3600/1600
——
——

TW solar energy Co., Ltd
11
Note: Test load = γm(safety factors) × design load
MECHANICAL INSTALLATION

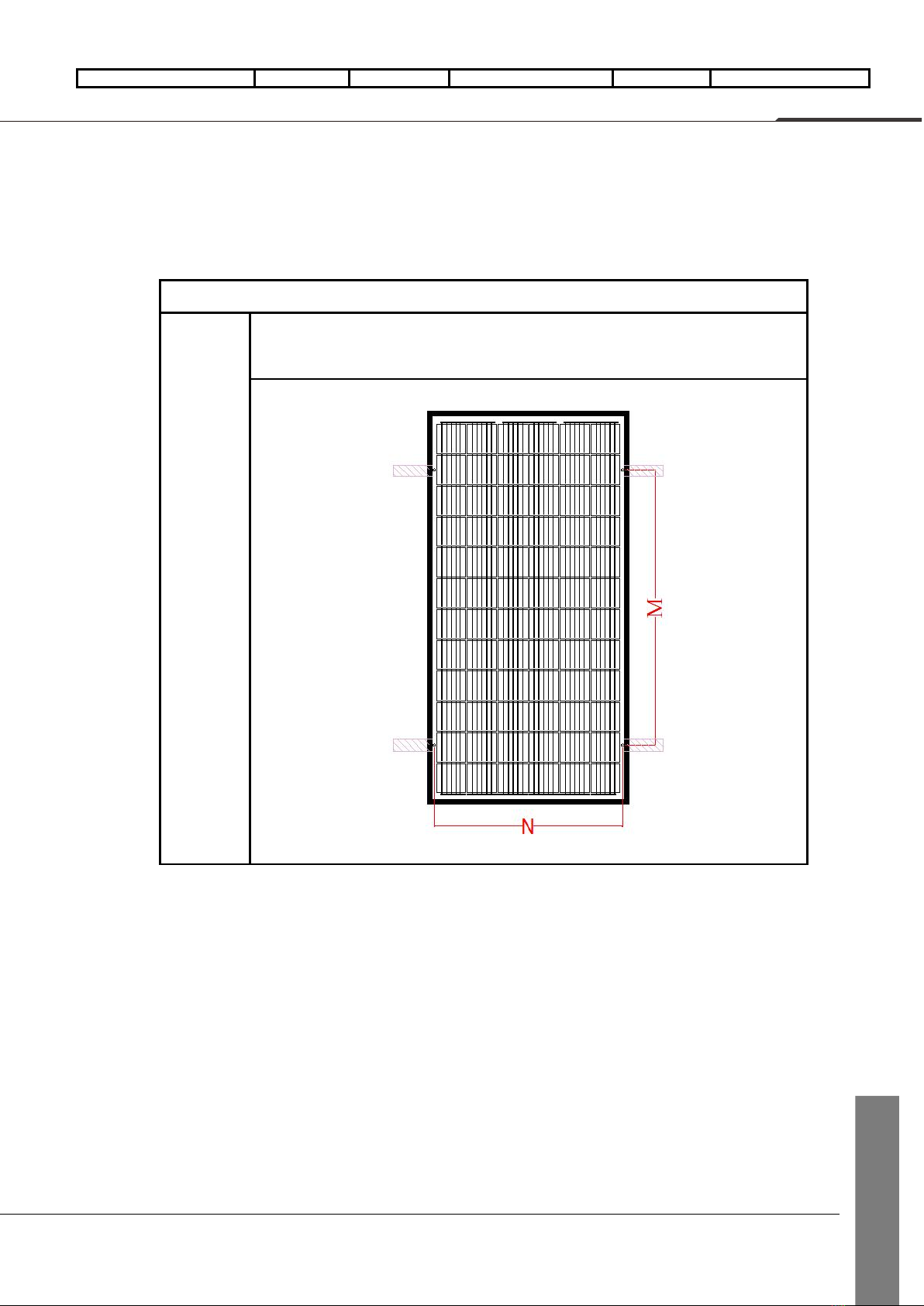

Installation with the mounting hole
Table 4 Installation Method
Mounting
on the
long side
Installation Method C

TW solar energy Co., Ltd
12
MECHANICAL INSTALLATION
Table 5 Mounting dimension and load capacity
组件型号
组件尺寸(mm)
安装孔间距
M(mm)
安装孔间距
N(mm)
安装方式 C
设计载荷 : 正面/背面，
γm=1.5（Pa）
TW***MAP-108-H
TW***MAP-108-H-S
TW***MAP-108-H-F
TW***MGP-108-H
TW***MGP-108-H-S
TW***MGP-108-H-F
TW***MGT-108-H
TW***MGT-108-H-S
TW***MGT-108-H-F
1722*1134*35/30
—
—
—
990
1085
3600/1600
1400
1085
3600/1600
TW***MAP-120-H
TW***MAP-120-H-S
TW***MAP-120-H-F
TW***MGP-120-H
TW***MGP-120-H-S
TW***MGP-120-H-F
TW***MGT-120-H
TW***MGT-120-H-S
TW***MGT-120-H-F
1903*1134*35
1903*1134*30
—
—
—
990
1085
3600/1600
1400
1085
3600/1600
TW***MAP-144-H
TW***MAP-144-H-S
TW***MAP-144-H-F
TW***MGP-144-H
TW***MGP-144-H-S
TW***MGP-144-H-F
TW***MGT-144-H
TW***MGT-144-H-S
TW***MGT-144-H-F
2278*1134*35
—
—
—
990
1085
3600/1600
1400
1085
3600/1600
TW***MGP-156-H
TW***MGP-156-H-S
TW***MGP-156-H-F
TW***MGT-156-H
TW***MGT-156-H-S
TW***MGT-156-H-F
2465*1134*35
—
—
—
1200
1085
3600/1600
1600
1085
3600/1600
Note: Test load = γm(safety factors) × design load

TW solar energy Co., Ltd
13
MECHANICAL INSTALLATION
The Modules may be installed and fixed with the following methods:
Mounting hole system: Use the corrosion-resistant M8 bolt, for fixing with the
installation support through the installation hole in the side frame of the module, as
shown in Fig. 3.
Clamping system: use proper clamp, and fix the module with the installation support, as
shown in Fig. 4.

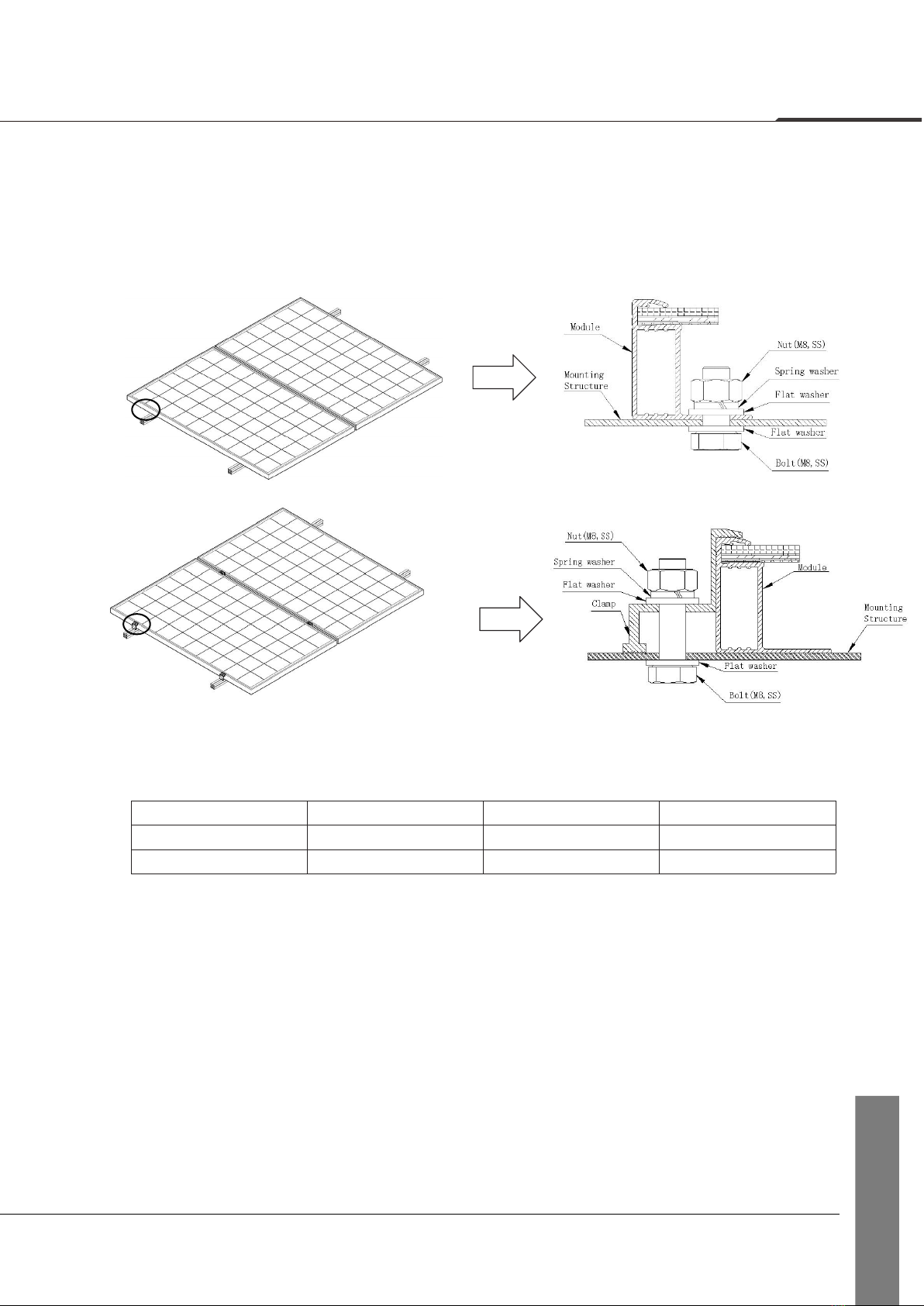

Figure 3 Mounting holes
Figure 4 Mounting clamps
The mounting accessories recommended are listed below:
Bolt
Flat washer
Spring washer
Nut
Material: stainless
Steel material: stainless steel
Material: stainless steel
Material: stainless steel
Size: M8
Size: M8
Size: M8
Size: M8
The range of torque for screw tightening is 14N.m to 20N.m.

TW solar energy Co., Ltd
14
ELECTRICAL INSTALLATION
DC power generated by the photovoltaic system can be converted into AC power and fed
into the grid. Policies on connecting renewable energy system to the grid vary from region to
region. Consult senior system designer before designing the system. Generally, the system
installation shall be formally approved by the local public sector.
General Installation
Installation structure should be compatible with module, in order to avoid galvanic
corrosion. Any defects caused by such corrosion will void the warranty.
The DC-side system potential of the photovoltaic array includes the practice of floating
ground, positive-pole grounding and negative-pole grounding according to the system
requirements; and different cell technologies have different adaptability. In a
power-station project, particularly the module of the crystalline silicon photovoltaic cells,
too large an absolute value of the negative to the ground might cause potential induced
degradation (PID). Consequently, it is appropriate to use the negative grounding system
so that the potential of the circuit is positive. Consult the inverter manufacturer for
details.
It is forbidden for non-professionals to open the lock nuts of the connector. Make sure
that the connectors are clean, dry and fully connected.
(A click sound should be heard when fully connected), otherwise it may lead to electric
arc sparks which will damage the connector or cause a fire.
Under normal conditions, a module is likely to experience conditions that produce more
current and/or voltage than reported at standard test conditions, Accordingly, the values
of ISC and VOC marked on the Module should be multiplied by a factor of 1.25 when to
determining component voltage ratings, current ratings, fuse sizes, and size of controls
connected to the PV output.
Completely cover the Modules with an opaque material to prevent electricity from being
generated during disassembling the conductors.
It is not allowed to use the Modules in different models in the same solar photovoltaic
system. When the Modules are connected in series, the voltage of every string shall not
be higher than the maximum voltage of the system (as shown in Figure 5). Reference
equation of the maximum number of the Modules in serial connection: maximum system
voltage of the module/ (1.25* open-circuit voltage).
When connected in parallel, the current output is equal to the sum of each string’s current
(as shown in Figure 6). Fuse is necessary for each module string. Take reference to the
local regulation. Recommended maximum parallel Modules configurations: Fuse rating/
(1.25* short-circuit current).

TW solar energy Co., Ltd
15
ELECTRICAL INSTALLATION
Figure 5 Connection in Series Figure 6 Connection in parallel
Refer to the local regulations to determine the system wire size, types and temperatures.
The cross section of the cables and the capacity of the connectors must be selected to suit
the maximum system short circuit current (The recommended section area for a single
piece of Module is 4 mm2, and the recommended rated current for the connector is greater
than 10A), otherwise the cables and connectors shall be overheated under large current.
Caution: The maximal temperature of the cable is 85 ℃while the upper limited
temperature of the connector is 105℃.
Make sure the electric components such as the connectors and inverters are off-state
during the installation. To reduce lightning damage, the loop area should be kept as small
as possible when laying cables. It is recommended to use fuses in each string.

TW solar energy Co., Ltd
16
GROUNDING
Grounding by cable
The grounding bolts must be made of stainless steel and be used in the specified
grounding holes. First, make the M3. 5 stainless steel bolt pass through the spring
washer, flat washer, cup washer (copper conductor with a diameter of 2.1 mm) and
star washer, and then insert through the grounding hole, flat washer and spring
washer on the frame. Finally, tighten with a M3.5 nut. Caution: The upper limited
temperature of the conductor is 85℃. As for the installation, refer to Figure 7.
Grounding by lugs
All the module frames and mounting structures shall be grounded according to
regional and national electricity regulations. Use recommended hardware to connect
grounding cables and fasten to the Module frames.
While using the metal structure, make sure the surface of the system have been
electroplated to keep a good conducting circuit.
Use suitable grounding conductors to connect the Module frame to the mounting
structure. This can achieve proper grounding effects.
The grounding conductor must be connected to ground via an appropriate grounding
electrode. It is recommended to use lugs to connect the grounding cables. I f it is
only mechanically connected to a grounded module without bolts and nuts, the
mounting system should be grounded as well.
First, peel the grounding cable to a proper length without damage to the metal core.
Then insert the peeled cable into the lug, tighten the screw. As shown in Figure 8,
connect the lug to the aluminum frame with stainless steel bolts and connection
components. The recommended tightening torque for M3 bolts is 2.3N•m.

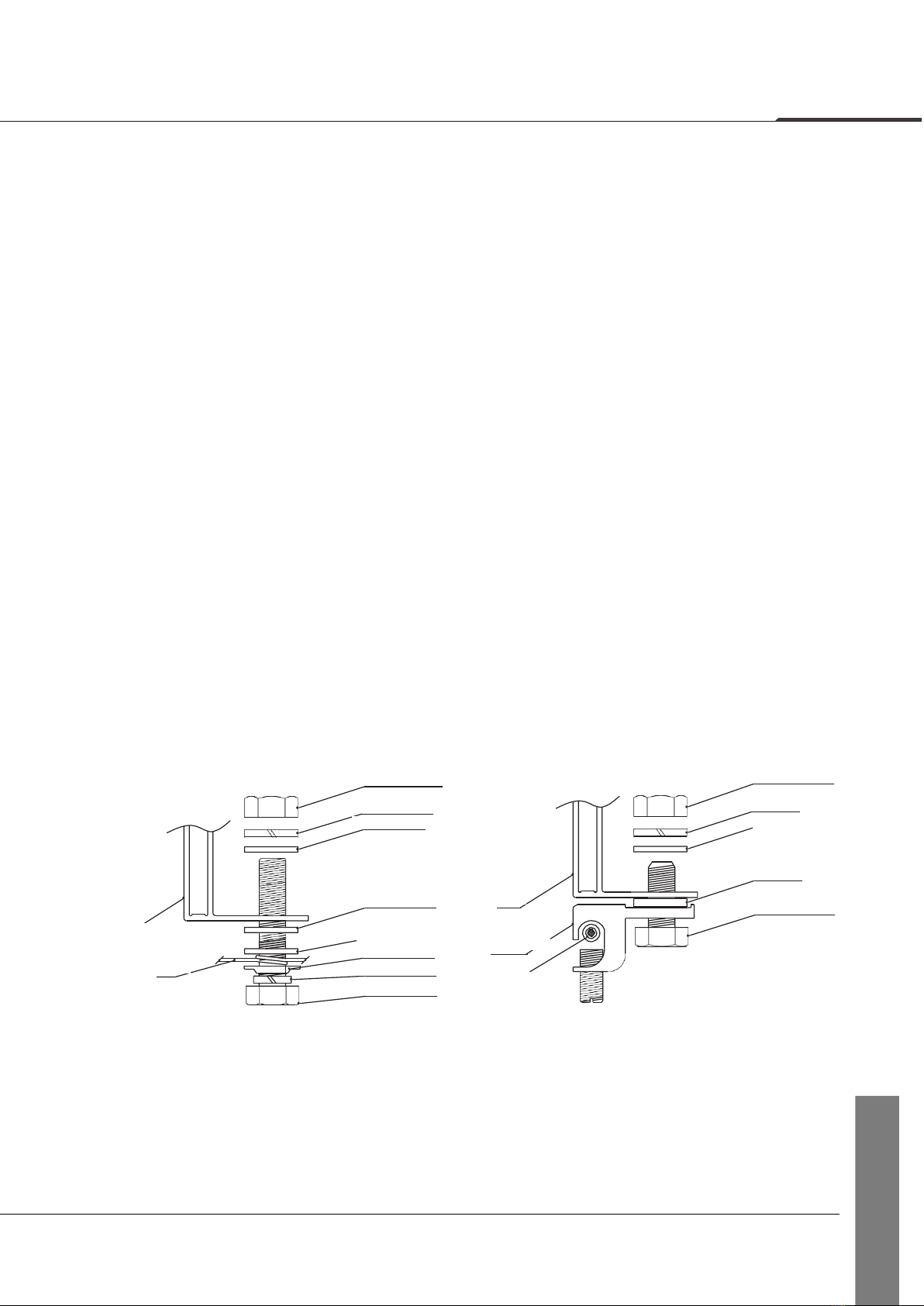

Figure 7 Figure 8
Nut(M3.5,SS)
Spring washer(SS)
Flat washer(SS)
Flat washer(SS)
Star washer(SS)
Cup washer(SS)
Spring washer(SS)
Bolt (M3.5, SS)
Copper wire
Nut(M3,SS)
Frame
Spring washer
Frame
Grounding Lug
Grounding
cable
Flat washer
Star washer
Bolt (M3, SS)

TW solar energy Co., Ltd
17
BYPASS DIODES AND BLOCK DIODES
In a system with two or more Modules connected in series, if part of a Module is shaded
while the other part is exposed to the sun, a very high reverse current will go through the cells
which have been partly or entirely covered and it will cause overheat on the cells, which may
damage the Module. Using bypass diodes can protect Modules from this kind of risk. There
are bypass diodes in junction boxes, which can reduce the effects of partial shadows. Do not
privately disassemble the junction box to replace the diodes, even when the diodes are broken.
This should be processed by the professionals.
In a system with batteries, if the controller doesn’t have the function of backswing
protection, block diodes installed between the battery and the Module can prevent the reverse
current from damaging the Module.
