Fullwat PDA1500-STATION Series User manual

pure sine wave
Power DC-AC Inverter
Multi-function INVERTER/CHARGER:
inverter + MPPT solar charger + battery charger
PDA1500-STATION / PDA3000-STATION series

- 3 - Note: PDA1500-STATION 24V - OPTIONAL
1. INTRODUCTION
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer
uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and
easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input
voltage based on different applications.
2. FEATURES
• Pure sine wave inverter.
• Configurable input voltage range for home appliances and personal computers via LCD setting Configurable
battery charging current based on applications via LCD setting.
• Configurable AC/Solar Charger priority via LCD setting.
• Compatible to mains voltage or generator power.
• Auto restart while AC is recovering.
• Overload/ Over temperature/ short circuit protection.
• Smart battery charger design for optimized battery performance.
• Cold start function.
• MPPT mode regulation charger.
3. BASIC SYSTEM ARCHITECTURE
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a
complete running system:
• Generator or Utility.
• PV modules (option).
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such
as tube light, fan, refrigerator and air conditioner.
TV
Solar power
(optional)
Generator
OR
Utility
Battery
External
battery packs
Fig. 1 - Hybrid power system

- 4 -
Note: PDA1500-STATION 24V - OPTIONAL
4. PRODUCT OVERVIEW
Indication
1
2
3
AC Input
AC Output
Circuit breaker
4
5
6
Safety (Earth) ground
Battery positive
Battery negative
7
8
9
PV Input
ON / OFF
RS232 communication
7
1
4 5 6
3
2

- 5 - Note: PDA1500-STATION 24V - OPTIONAL
5. INSTALLATION
5.1 Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
• The unit x 1
• User manual x 1
• Communication cable x 1
• Software CD x 1
5.2 Preparation
Before connecting alllwirings, please take off bottom
cover by removing two screws as shown below.
5.3 Mounting the unit
Consider the following points before selecting where to install:
• Do not mount the inverter on flammable construction materiaIs.
• Mount on a solid surface.
• Install this inverter at eye level in order to allow the LCD display
to be read at all times.
• For proper air circulation to dissipate heat, allow a clearance
of approx. 20 cm to the side and approx. 50 cm above and
below the unit.
• The ambient temperature should be between 0ºC and 55ºC to
ensure optimal operation.
• The recommended installation position is to be adhered to the
wall vertically.
• Be sure to keep other objects and surfaces as shown in the
diagram to guarantee sufficient heat dissipation and to have
enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER
NON-COMBUSTIBLE SURFACE ONLY.
Install the unit by screwing three screws.
It’s recommended to use M4 or M5.
5.4 Battery connection
Caution:
For safety operation and regulation compliance, it’s requested to install a
separate DC over-current protector or disconnect device between battery
and inverter. It may not be requested to have a disconnect device
in some applications, however, it’s still requested to have over-current
protection installed. Please refer to typical amperage in below table as
required fuse or breaker size.
WARNING! AII wiring must be performed by a qualified personnel.
WARNING! It’s very important for system safety and efficient operation
to use appropriate cable for battery connection. To reduce risk of injury,
please use the proper recommended cable and terminal size as below.
D
T
Ring terminal

- 6 -
Note: PDA1500-STATION 24V - OPTIONAL

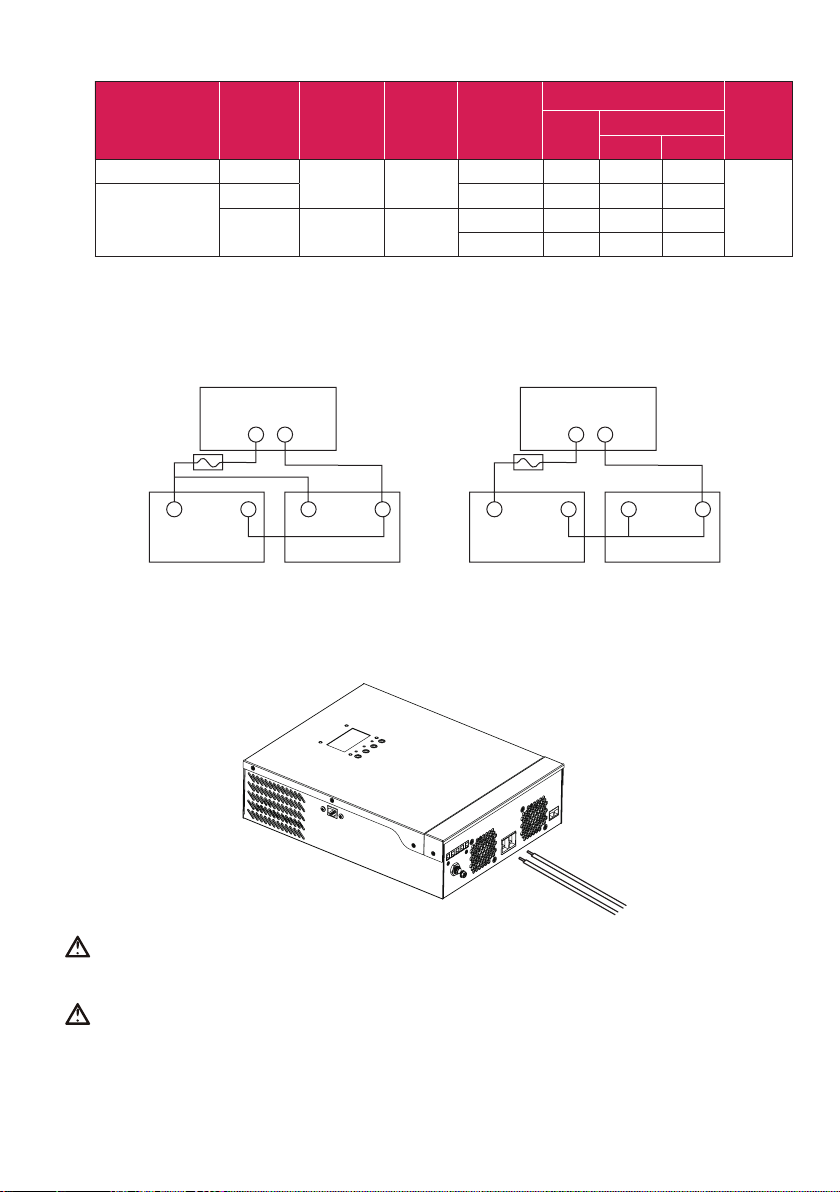

Recommended battery cable and terminal size:
Model Input
voltage
Typical
amperage
Battery
capacity Wire size
Ring terminal
Torque
value
Cable
mm2
Dimensions
D (mm) L (mm)
PDA3000-STATION 24V 100A 100AH
200AH
2*8AWG 14 6.4 29.2
2~3 Nm
PDA1500-STATION
12V 1*4AWG 22 6.4 33.2
24V 50A 100AH 1*6AWG 14 6.4 29.2
2*10AWG 8 6.4 23.8
Please follow below steps to implement battery connection:
1. Assemble battery ring terminal based on recommended battery cable and tenminal size.
2. PDA1500-STATION model supports 12VDC or 24VDC system. Connect all battery packs as below chart. It’s
suggested to connect at least 100Ah.
Note: Please only use sealed lead acid battery or sealed GEL/AGM lead-acid battery.
3. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are
tightened with torque of 2-3 Nm. Make sure polarity at both the battery and the inverter/charge is correctly
connected and ring terminals are tightly screwed to the battery terminals.
Warning: Shock Hazard
Installation must be performed with care due to high battery voltage in series.
Caution!! Do not place anything between the flat part of the inverter terminal and the ring tenminal. Otherwise,
overheating may occur.
Caution!! Do not apply anti-oxidant substance on the tenminals before terminals are connected tightly.
Caution!! Before making the final DC connection or closing DC breaker/disconnector, be sure positive (+) must
be connected to positive (+) and negative (-) must be connected to negative (-).
12V system
+ +
+ + + +
– –
– – – –
12V 12V12V 12V
24V system

- 7 - Note: PDA1500-STATION 24V - OPTIONAL
5.5 AC Input/Output connection
Caution!! Before connecting to AC input power source, please install a separate AC breaker between inverter
and AC input power source. This will ensure the inverter can be securely disconnected during maintenance and
fully protected from over current of AC input. The recommended spec of AC breaker is 10A for PDA1500-STATION,
32 A for PDA3000-STATION.
Caution!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input and
output connectors.
WARNING! AII wiring must be performed by a qualified personnel.
WARNING! It’s very important for system safety and efficient operation to use appropriate cable for AC input
connection. To reduce risk of injury, please use the proper recommended cable size as below.
Suggested cable requirement for AC wires.
Model Gauge Torque value
PDA1500-STATION 14AWG 0.5~0.6 Nm
PDA3000-STATION 12AWG 1.2~1.6Nm
Please follow below steps to implement AC input/output connection:
1. Before making AC input/output connection, be sure to open DC protector or disconnector first.
2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3mm.
3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws.
Be sure to connect PE protective conductor ( ) first.
Ground (yellow-green}
L LINE (brown or black}
N Neutral (blue}
Warning: Shock
Be sure that AC power source is disconnected before
attempting to hardwire it to the unit.
4. Then, insert AC output wires according to polarities indicated on
terminal block and tighten terminal screws.
Be sure to connect PE protective conductor ( ) first.
Ground (yellow-green}
L LINE (brown or black}
N Neutral (blue}
5. Make sure the wires are securely connected.
Caution: Important!!
Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility
short-circuited when these inverters are worked in parallel operation.
Caution:
Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required to have
enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a short
time, it will cause damage to your connected appliances. To prevent this kind of damage, please check
manufacturer of air conditioner if it’s equipped with time-delay function before installation. Otherwise, this
inverter/charger will trig overload fault and cut off output to protect your appliance but sometimes it still causes
internal damage to the air conditioner.

- 8 -
Note: PDA1500-STATION 24V - OPTIONAL
5.6.PV CONNECTION
PV Module selection for MPPT mode.
Inverter model PDA1500-STATION PDA3000-STATION
Rated out power 12V 24V 24V
Charging current (PWM) 40A max.
Max. PV Arrray open circuit voltage 102
MPPT operating voltage range 17-80V 30-80VDC
Take 300Wp PV module as an example. After considering above two parameters, the recommendesd module
configrurations are listed as below table.
Inverter model PDA1500-STATION PDA3000-STATION
Rated out power 300W 12V 24V 24V
Maximum power (Pmax) 32.75A
2 pieces
in serial
2 pices in serial
and
2 sets in parallel
Max. Power current Immp (A) 8.93A
Open circuit voltage Voc (V) 39.84A
Short circuit current Isc (A) 9.78A
Please follow below steps to implement PV module connection:
1. Remove insulation sleeve 10mm for positive and negative conductors.
2. Check correct polarity of connection cable from PV modules an PV
input connectors. Then, connect positive pole (+) of conncection
cable to positive pole (+) of PV input connector. Connect negative
pole (-) of connection cable to negative pole (-) of PV input
connector.
3. Make sure the wires are securely connected.
5.7.Final Assembly
After connecting all wirings, please put bottom cover back by
screwing two screws as shown below.
10
10
3
3mm max
+
–

- 9 - Note: PDA1500-STATION 24V - OPTIONAL
5.8.Communication connection
Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer
and follow on-screen instruction to install the monitoring software. For the detailed software operation, please
check user manual of software inside of CD.
5.9 Dry contact signal
There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to externa!
device when battery voltage reaches warning level.
Unit status Condition
Dry contact port:
NC C NO
NC & C NO & C
Power OFF Unit is off and no output is powered. Close Open
Power ON
Output is powered from Utility Close Open
Output is powered
from Battery or Solar
Program 01
set as Utility
Battery voltage < Low DC
warning voltage Open Close
Battery voltage > Setting
value in Program 13 or
battery charging reaches
floating stage
Close Open
Program 01
is set as SBU
or Solar first
Battery voltage < Setting
value in Program 12 Open Close
Battery voltage > Setting
value in Program 13 or
battery charging reaches
floating stage
Close Open

- 10 -
Note: PDA1500-STATION 24V - OPTIONAL
6. OPERATION

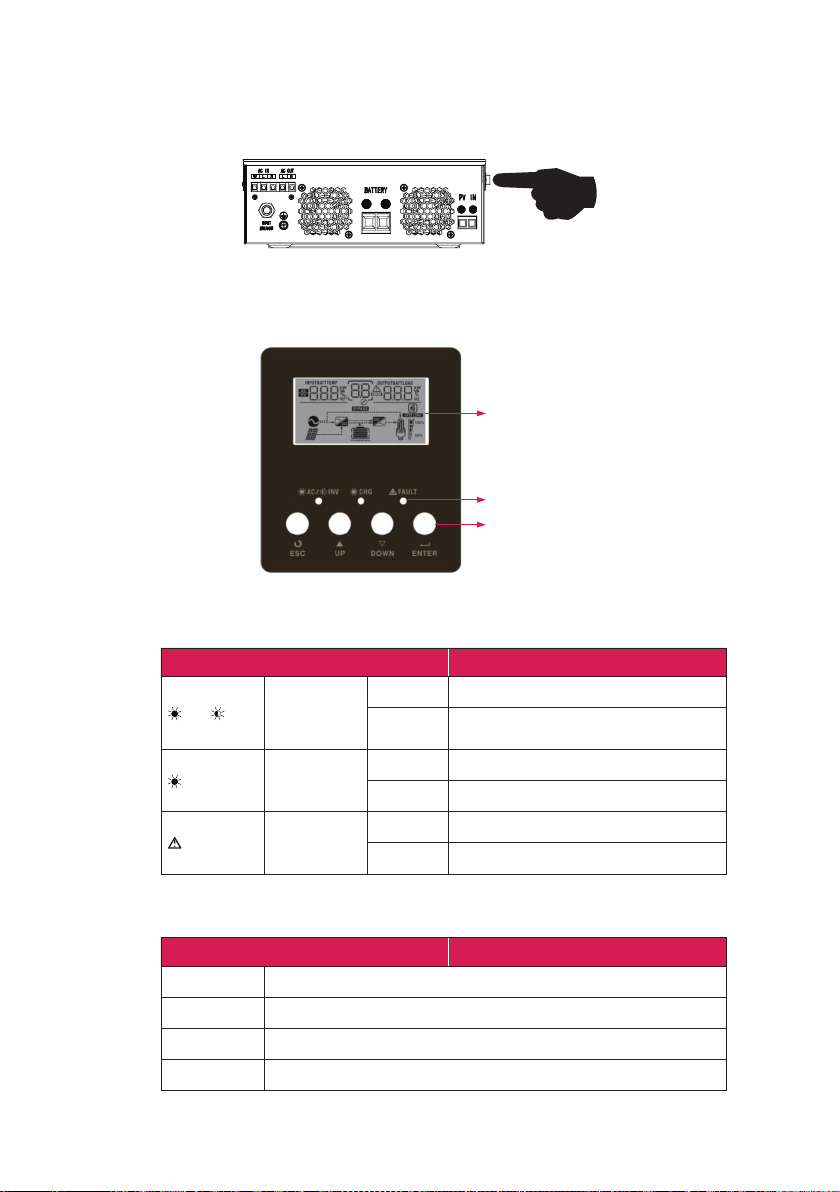

6.1 Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press ON/OFF switch
(located on the button of the case) to turn on the unit.
6.2 Operation and Display panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three
indicators, four function keys and a LCD display, indicating the operating status and input/output power
information.
LED Indicator
Led indicator Messages
AC / INV
Green
Solid ON Output is powered by utility in Line mode.
Flashing Output is powered by battery or PV in
battery mode.
CHG
Green
Solid ON Battery is fully charged.
Flashing Battery is charging.
FAULT
Red
Solid ON Fault occurs in the inverter.
Flashing Warning condition occurs in the inverter.
Function KEYs
Function Key Description
ESC
To exit setting mode.
UP
To go to previous selection.
DOWN
To go to next selection.
ENTER
To confirm the selection in setting mode or enter setting mode.
LCD display
LED indicators
Function keys

- 11 - Note: PDA1500-STATION 24V - OPTIONAL

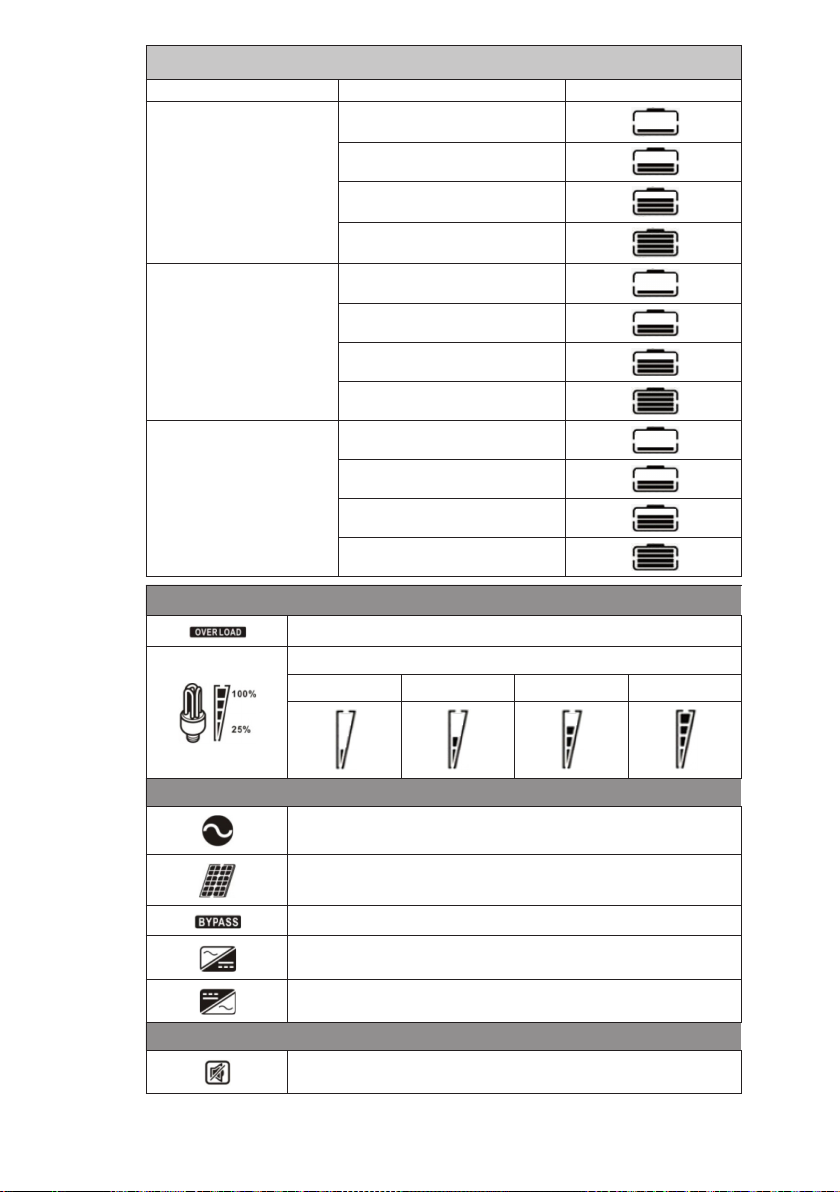

6.3 LCD Display Icons
Icon Function description
Input source information
Indicates the AC input.
Indicates the PV input.
Indicate input voltage, input frequency, PV voltage, battery voltage and
charger current.
Configuration program and fault information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: flashing with warning code.
Fault: lighting with fault code.
Output information
Indicate output voltage, output frequency, load percent, load in VA, load in
Watt and discharging current.
Battey information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
In AC mode, it will present battery charging status.
Status Battery voltage LCD Display
Constant current mode /
Constant voltage mode
<2V/cell 4 bars will flash in turns.
2 ~ 2.083V/cell Bottom bar will be on and the other three bars will
flash in turns.
2.083 ~ 2.167V/cell Bottom two bars will be on and the other two bars
will flash in turns.
2.167V/cell Bottom three bars will be on and the top bar will
flash.
Floating mode. Batteries are fully charged. 4 bars will be on.

- 12 -
Note: PDA1500-STATION 24V - OPTIONAL
In battery mode, it will present battery capacity.
Load percentage Battery voltage LCD Display
Load>50%
<1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V /cell
>1.883 V /cell
50%>Load >20%
<1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
>1.983
Load<20%
<1.867V /cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
>2.033
Load information
Indicates overload.
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.
0%~25% 25%~50% 50%~75% 75%~100%
Mode operation information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel.
Indicates load is supplied by utility power.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
Mute operation
Indicates unit alarm is disabled.

- 13 - Note: PDA1500-STATION 24V - OPTIONAL
6.4 LCD Settings
After pressing and holding ENTER button far 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN”
button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit.

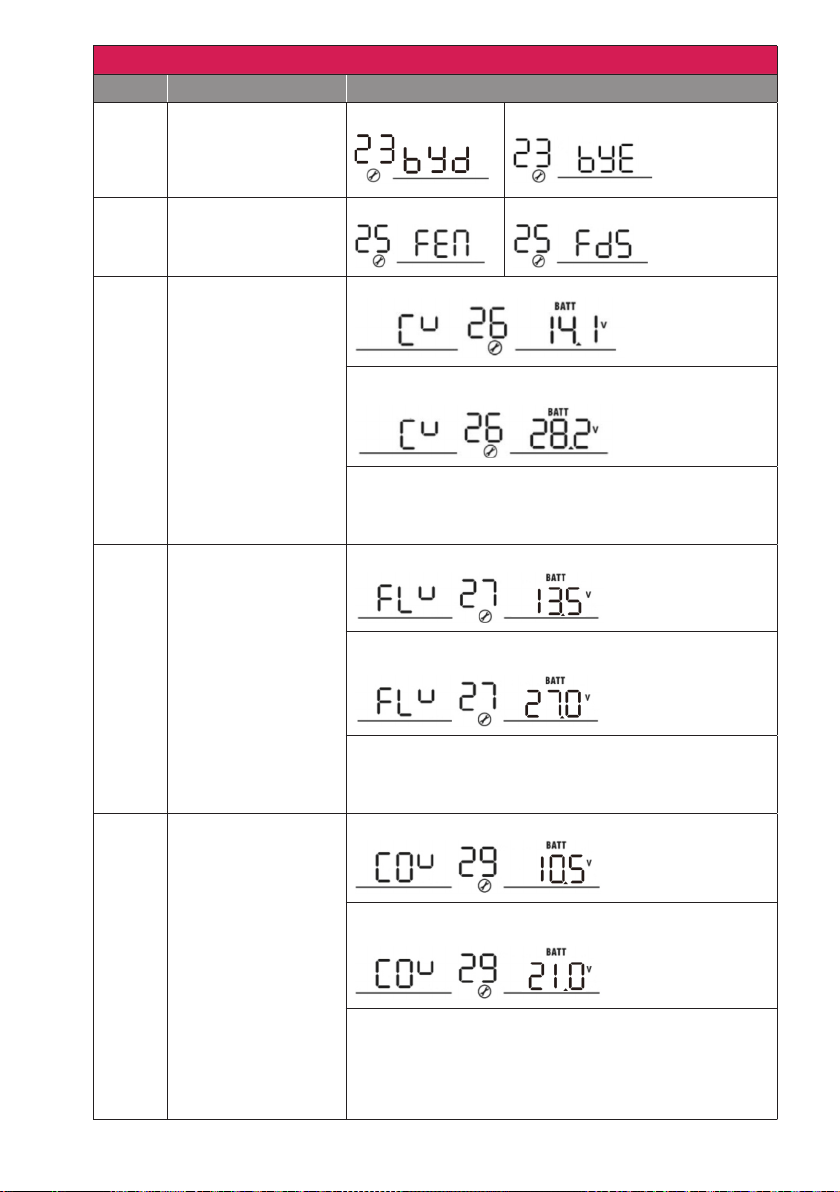

Setting Programs
Program Description Selectable option
00 Exit setting mode
Escape
01
Output source priority:
To configure load power
source priority
Solar first
Solar energy provides power to the loads
as first priority.
If solar energy is not sufficient to power
all connected loads, battery energy
will supply power the loads at the same
time.
Utility provides power to the loads only
when any one condition happens:
- Solar energy is not available
- Battery voltage drops to low-level
warning voltage or the setting point in
program 12.
Utility first (default) Utility will provide power to the loads as
first priority.
Solar and battery energy will provide
power to the loads only when utility
power is not available.
SBU priority
Solar energy provides power to the loads
as first priority.
If solar energy is not sufficient to power
all connected loads, battery energy will
supply power to the loads at the same
time.
Utility provides power to the loads only
when battery voltage drops to either
low-level warning voltage or the setting
point in program 12.
02
Maximum charging
current: To configure total
charging current far solar
and utility chargers.
(Max. charging current =
utility charging current +
solar charging current)
10A (Only available
far PDA1500-STATION
(12V) model) 20A
30A 40A
50A 60A
70A 80A (Only for PDA3000-STATION model)

- 14 -
Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
03 AC input voltage range
Appliances (default)
If selected, acceptable AC input
voltage range will be within 90-280VAC.
UPS
If selected, acceptable AC input
voltage range will be within 170-280VAC.
04 Power saving mode
enable/disable
Saving mode disable
(default) If disabled, no matter connected load
is low or high, the on/off status of inverter
output will not be effected.
Saving mode enable If enabled, the output of inverter will be
off when connected load is pretty low or
not detected.
05 Battery type
AGM (default) Flooded
User-Defined If “User-Defined” is selected, battery
charge voltage and low DC cut-off
voltage can be set up in program 26,
27 and 29.
06 Auto restart when
overload occurs
Restart disable
(default)
Restart enable
07 Auto restart when over
temperature occurs
Restart disable
(default)
Restart enable
09 Output frequency
50Hz (default) 60Hz
11
Maximum utility charging
current.
Note: If setting value in
program 02 is smaller
than that in program in
11, the inverter will apply
charging current from
program 02 for utility
charger.
Available options in PDA1500-STATION (12V) model:
10A 20A (default)
Available options in PDA1500-STATION (24V) / PDA3000-STATION
model:
20A 30A (default)

- 15 - Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
12
Setting voltage point
back to utility source
when selecting “SBU
priority” or “Solar first” in
program 01.
Available options in PDA1500-STATION (12V) model:
11.0V 11.3V
11.5V (default) 11.8V
12.0V 12.3V
12.5V 12.8V
Available options in PDA1500-STATION (24V) / PDA3000-STATION model:
22.0V 22.5V
23.0V (default) 23.5V
24.0V 24.5V
25.0V 25.5V
13
Setting voltage point
back to battery mode
when selecting “SBU
priority” or “Solar first” in
program 01.
Available options in PDA1500-STATION (12V) model:
Battery fully charged 12.0V
12.3V 12.5V
12.8V 13.0V

- 16 -
Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
13
Setting voltage point
back to battery mode
when selecting “SBU
priority” or “Solar first” in
program 01.
13.3V 13.5V (default)
13.8V 14.0V
14.3V 14.5V
Available options in PDA1500-STATION (24V) / PDA3000-STATION model:
Battery fully charged 24V
24.5V 25V
25.5V 25V
26.5V 27V (default)
27.5V 28V
28.5V 28V

- 17 - Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
16
Charger source priority:
To configure charger
source priority
lf this inverter/charger is working in Line, Standby or Fault mode,
charger source can be programmed as below:
Solar first Solar energy will charge battery as first
priority.
Utility will charge battery only when solar
energy is not available.
Utility first Utility will charge battery as first priority.
Solar energy will charge battery only
when utility power is not available.
Solar and Utility
Solar energy and utility will charge
battery at the same time.
Only Solar Solar energy will be the only charger
source no matter utility is available or
not.
lf this inverter/charger is working in Battery mode or Power saving
mode, only solar energy can charge battery. Solar energy will
charge battery if it’s available and sufficient.
18 Alarm control
Alarm on (default) Alarm off
19 Auto return to default
display screen
R eturn to default
display screen (default)
If selected, no matter how users switch
display screen, it will automatically
return to default display screen
(Input voltage / output voltage) after
no button is pressed for 1 minute.
Stay at latest screen
If selected, the display screen will stay at
latest screen user finally switches.
20 Backlight control
Backlight on (default) Backlight off
22 Beeps while primary
source is i nterrupted
Alarm on (default) Alarm off

- 18 -
Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
23
Overload bypass:
When enabled, the unit
will transfer to line mode
if overload occurs in
battery mode.
Bypass disable (default)
Bypass enable
25 Record fault code
Record enable Record disable (default)
26 Bulk charging voltage
(C.V voltage)
PDA1500-STATION (12V) model default setting: 14.1V
PDA1500-STATION (24V) / PDA3000-STATION model default setting:
28.2V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 12.0V to 14.6V for PDA1500-STATION (12V)
model, 24.0V to 29.2V for PDA3000-STATION model. Increment of
each click is 0.1V.
27 Floating charging voltage
PDA1500-STATION (12V) model default setting: 13.5V
PDA1500-STATION (24V) / PDA3000-STATION model default setting:
27.0V
If self-defined is selected in program 5, this program can be set
up. Setting range is from 12.0V to 14.6V for PDA1500-STATION (12V)
model: 24.0V to 29.2V for PDA1500-STATION (24V) / PDA3000-STATION
model Increment of each click is 0.1V.
29 Low DC cut-off voltage
PDA1500-STATION (12V) model default setting: 10.5V
PDA1500-STATION (24V) / PDA3000-STATION model default setting:
21.0V
If self-defined is selected in program 5, this program can be
set up. Setting range is from 10.0V to 12.0V for PDA1500-STATION
(12V) model, 20.0V to 24.0V for PDA1500-STATION (24V) /
PDA3000-STATION model. Increment of each click is 0.1V. Low
DC cut-off voltage will be fixed to setting value no matter what
percentage of load is connected.

- 19 - Note: PDA1500-STATION 24V - OPTIONAL
Setting Programs
Program Description Selectable option
33 Battery equalization
If “Flooded” or “User-Defined” is selected in program 05, this
program can be set up.
34 Battery equalization
voltage
PDA1500-STATION (12V) model default setting: 14.6V
Setting range is from 12.5V to 15V. Increment of each click is 0.1V.
PDA1500-STATION (24V) / PDA3000-STATION model default setting:
29.2V
Setting range is from 25.0V to 30V. Increment of each click is 0.1V.
35 Battery equalized time
60min (default) Setting range is from 5min to
900min. Increment of each
click is 5min.
36 Battery equalized timeout
120min (default) Setting range is from 5min to
900 min. Increment of each
click is 5 min.
37 Equalization interval
30 days (default) Setting range is from 0 to 90
days. Increment of each click
is 1 day
39 Equalization activated
immediately
Enable Disable (default)
If equalization function is enabled in program 30, this program
can be set up. If “Enable” is selected in this program, it’s to
actívate battery equalization immediately and LCD main page
will shows .If”Disable” is selected, it will cancel equalization
function until next activated equalization time arrives based on
program 35 setting. At this time, will not be shown in LCD main
page.

- 20 -
Note: PDA1500-STATION 24V - OPTIONAL
6.5 Display Settings
The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable information
is switched as below order: input voltage, input frequency, PV voltage, charging current, battery voltage, output
voltage, output frequency, load percentage, load in Watt, load in VA, load in Watt, DC discharging current,
main CPU Version and second CPU Version.
Selectable information LCD display
Input voltage/Output voltage
(Default Display Screen)
Input Voltage=230V, output voltage=230V
Input frequency
Input frequency=50Hz
PV voltage
PV voltage=60V
Charging current
Charging current=50A
Battery voltage/DC discharging current
Battery voltage=25.5V, discharging current=1A
Output frequency
Output frequency=50Hz
