Twister Trim Saver CS-12 User manual

Trim Saver
Assembly Instructions
CS-12 Manual
Version 2.3

TOOLS NEEDED DIMENSIONS
ELECTRICAL SPECIFICATION
TWISTER T4 LEAF TRIMMER VACUUM REMOVAL
1. Remove nuts and bolts from the underside of the vacuum and control box.
2. Remove vacuum and control box.
3. Place Twister T4 Leaf Trimmer on the Twister T4 Leaf Collector stand.
4. Connect the separator to the T4 with collector hose.
NOTE: Do not turn on the Separator without connecting to the T4.
T4
CS-12
Motor
Input Voltage
Amps (running)
Amps (startup)
Power Cord
Weight
1.5 HP
120V
15A
47A
AWG 12-3
155lbs/78kg
Airflow Capacity
Static Pressure
Impeller
Inlet
1190 CFM
6.45in of H20
10in / 25.4cm
5in / 12.7cm
Additional Requirements
Extension Cord 12-3 AWG (minimum AWG size)
15m / 50ft max Length
Connector (plug)
CS-12
NEMA 5-15P
CS-12
H
W L
Length
Width
Height
39in / 99cm
22in / 55.8cm
62in / 157.5cm
DESCRIPTION
A
REF
B
x2
x2
A
B
7/16 Inch Wrench
1/2 Inch Wrench
2
2

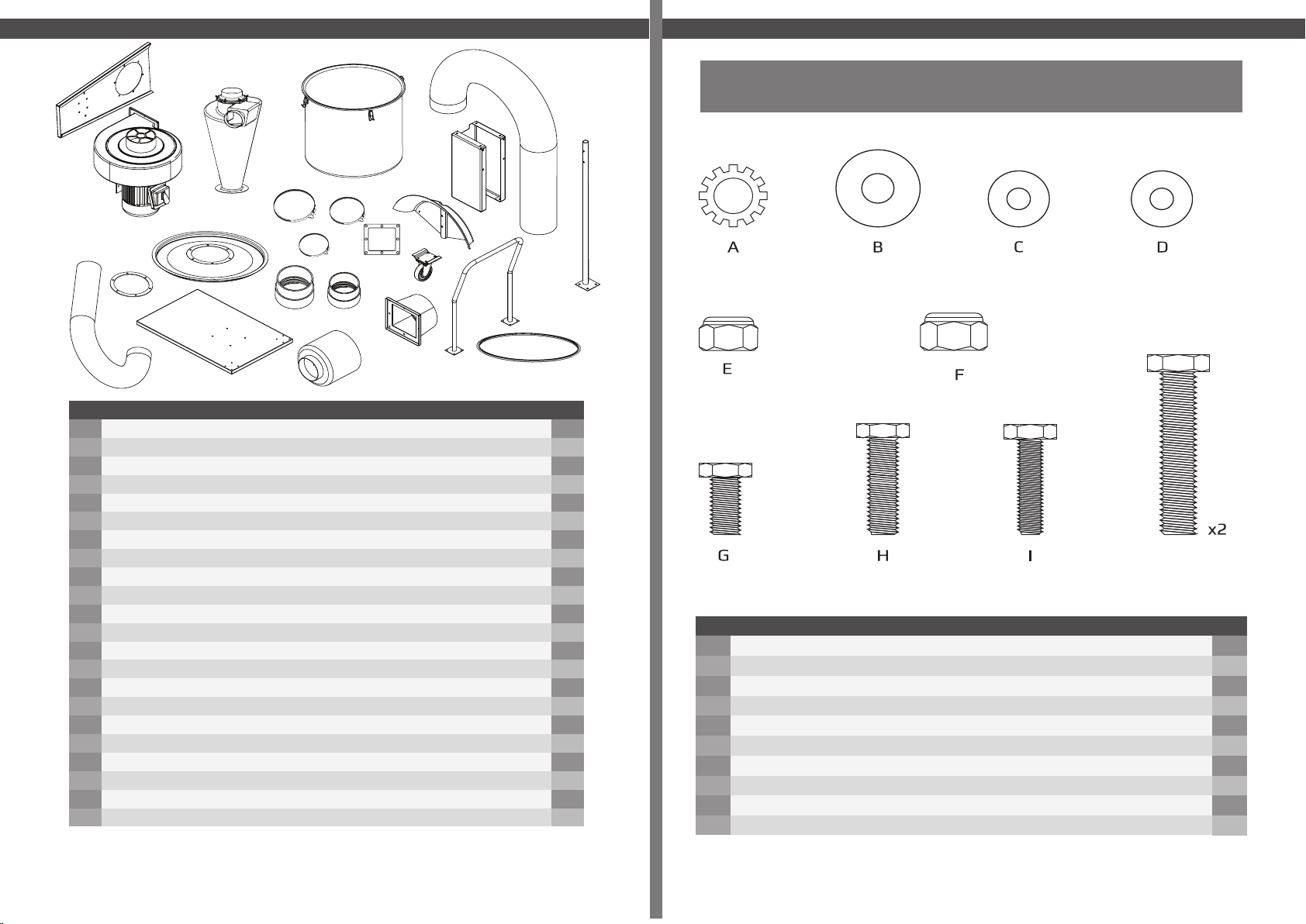

PART NO DESCRIPTION QTYREF
COMPONENT PARTS
A
B
D
E
F
I
H
C
N
M
Q
P
K
O
R
G
KEEP FASTENERS IN LABELLED BAGS, ASSEMBLY INSTRUCTIONS
DESCRIBE WHERE EACH PACKAGE IS USED.
FASTENERS
U
ST
U
23-0198-00 HOSE SADDLE
23-0199-00 6 INCH HOSE
23-0202-00 VACUUM SEPARATOR
23-0204-00 CART HANDLE
23-0205-00 SADDLE SUPPORT CS-12
23-0206-00 MOTOR SUPPORT
23-0241-00 SEPARATOR GASKET
23-0208-00 LID HOLDER
23-0209-00 FILTER ADAPTER
23-0242-00 STAINLESS BIN
23-0243-00 STAINLESS BIN LID
23-0244-00 STAINLESS BIN LID GASKET
23-0213-00 1.5HP VACUUM MOTOR
23-0215-00 BASE PLATE
23-0146-00 CASTER
23-0217-00 FILTER BAG
23-0218-00 FILTER CLAMP
23-01-127675 5 INCH HOSE
23-0132-00 HOSE CUFF, 6 INCH
23-01-002127 HOSE CUFF, 5 INCH
23-01-001152 HOSE CLAMP, 6 INCH
23-01-001127 HOSE CLAMP, 5 INCH
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
2
1
1
1
1
1
2
1
1
1
1
1
1
1
4
1
1
1
2
2
2
2
V
PART NO DESCRIPTION
QTY
REF
x6 x12
x52 x4 x6
13-02-000411 5/16 Lock Washer
13-0018-00 5/16 Flat Washer
13-02-000014 1/4 Flat Washer
23-0248-00 1/4 Silicone Washer
13-0062-00 1/4-20 Nut
13-0064-00 5/16-18 Nyloc Nut
13-08-516158 5/16-18 x 5/8" Hex Head Bolt
13-08-516110 5/16-18 x 1" Hex Head Bolt
13-08-142110 1/4-20 x1" Hex Head Bolt
13-08-516115 5/16-18 x 1.5" Hex Head Bolt
x6
x46 x4
x6
J
52
4
6
6
6
12
46
4
6
2
A
B
C
D
E
F
G
H
I
J
J
L

x8
5/16 Star Lock
Washer
FASTENER BAG “C”
FASTENER BAG “B”
Ensure holes are on this side
x4
x4
FASTENER BAG “A”
5/16 Star Lock
Washer
x16
FLIP 90°
FASTENER BAG “E”
FASTENER BAG “D”
x2
x4
Ensure post is oriented correctly

FASTENER BAG “F”
5/16 Star Lock
Washer
x8
x8
5/16 Star Lock
Washer
FASTENER BAG “G”
x8
x6
1/4-20 x 1”
x6
1/4 Flat Washer
x6
1/4-20 Nut
FASTENER BAG “H”
x6
Silicone Washer

Sliding hose cuffs over the vacuum
separator may be difficult.
Apply isopropyl alcohol or dish soap
to help slide the hose on.
ENSURE THE BIN LID GASKET IS PROPERLY SEATED ON THE LID, AND FLUSH
TO THE TOP OF THE BIN AFTER ALL LATCHES ARE ENGAGED.
REMOVE CLEANING FLANGE
TO CLEAN SEPARATOR

Cart Handle
Filter Bag
Filter Clamp
Filter Adapter
Vacuum Motor
Saddle Support
Impeller Housing
Hose Saddle
Lid Holder
Bin
Motor Support
Bin Lid
6” Hose
Caster
Vacuum Separator
Cleaning Flange
