TYAN S8032 User manual

http://www.tyan.com
1
S8032
Version 1.0a
Copyright
Copyright © 2020 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
AMD®is a trademark of AMD®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2
Contents
S8032............................................................................................................1
Before you begin…....................................................................................3
Chapter 1: Instruction ................................................................................4
1.1 Congratulations .................................................................................4
1.2 Hardware Specifications....................................................................4
1.3 Software Specifications.....................................................................7
Chapter 2: Board Installation.....................................................................8
2.1 Board Image......................................................................................9
2.2 Block Diagram.................................................................................10
2.3 Motherboard Mechanical Drawing...................................................11
2.4Board Parts, Jumpers and Connectors...........................................12
2.5 LED Definitions................................................................................26
2.6Installing the Processor and Heatsink.............................................27
2.7Thermal Interface Material ..............................................................32
2.8Tips on Installing Motherboard in Chassis......................................33
2.9Installing the Memory ......................................................................35
2.10 Attaching Drive Cables..................................................................38
2.11 Installing Add-In Cards..................................................................39
2.12 Connecting External Devices........................................................40
2.13 Installing the Power Supply...........................................................41
2.14 Finishing Up...................................................................................41
Chapter 3: BIOS Setup.............................................................................42
3.1 About the BIOS................................................................................42
3.2 Main Menu.......................................................................................44
3.3 Advanced Menu...............................................................................46
3.4 Chipset Menu ..................................................................................98
3.5AMD CBS Menu............................................................................101
3.6 Server Management......................................................................120
3.7Security..........................................................................................129
3.8Boot ...............................................................................................135
3.9Save & Exit....................................................................................139
Chapter 4: Diagnostics...........................................................................141
4.1 Flash Utility....................................................................................141
4.2 AMIBIOS Post Code (Aptio)..........................................................142
Appendix I: Fan and Temp Sensors .....................................................149
Glossary...................................................................................................154
Technical Support ..................................................................................160

http://www.tyan.com
3
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
S8032 Motherboard x 1
SATA Single Cable x 2
Rear IO shielding x 3
1 x S8032 Quick Installation Guide
M.2 Screw kit x2
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above items,
please contact your sales representative to help order accessories.

http://www.tyan.com
4
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S8032 motherboard, based on the
Aspeed®AST2500 chipset. The S8032 is designed to support AMD®EPYC™
7002/7003 series Processor, and Up to 1,024GB RDIMM/ 4,096GB LRDIMM 3DS
DDR43200 MHz memory. Leveraging advanced technology from AMD®, the
S8032 is capable of offering scalable 32 and 64-bit computing, high-bandwidth
memory design, and lightning-fast PCI-E bus implementation.
The S8032 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S8032 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN®products as well as all the supporting documentation,
FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
S8032GM2NE Specifications
Processor
Q'ty / Socket Type
(1) AMD Socket SP3
Supported CPU Series
(1) AMD EPYC™ 7002/7003
Series Processor
Configurable Thermal
Design Power (cTDP)
Wattage
Max up to 280W
Memory
Supported DIMM
Qty
(16) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/RDIMM
3DS/LRDIMM/LRDIMM 3DS 3200
Capacity
Up to 1,024GB RDIMM, 4,096GB
LRDIMM 3DS
Memory channel
8 Channels per CPU
Memory voltage
1.2V
Expansion Slots
PCIe
(2) PCIe Gen.3 x24 slots
Others
(1) PCIe Gen.3 x16 OCP v2.0
mezzanine slot

http://www.tyan.com
5
LAN
Q'ty / Port
(2) GbE ports + (1) GbE dedicated
for IPMI
Controller
Broadcom BCM5720
PHY
Realtek RTL8211E
Storage
SATA
Connector
(2) SFF-8654
connectors for up to
(16) SATA ports
Controller
Direct from AMD EPYC
CPU
Speed
6Gb/s
RAID
N/A
Additional
SATA
Connector
(2) SATA-DOM,
(2) SATA
Controller
Marvell 9235
Speed
6Gb/s
RAID
N/A
NVMe
Connector (M.2)
(2) 22110/2280 (by
PCIe Gen.3 & SATA
interface)
Connector (U.2)
(8) SFF-8654 for
(16) NVMe ports
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
Input /Output
USB
(2) USB3.1 Gen.1 ports (@ rear),
(1) USB3.0 Gen.1 port (Type-A),
(1) USB3.0 Gen.1 ports (via Cable)
COM
(1) DB-9 COM Connector (at rear,
COM1) + (1) Header (COM2)
VGA
(1) D-Sub 15-pin VGA port (@ rear)
RJ-45
(2) GbE ports, (1) GbE dedicated for
IPMI
Front Panel
(1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (2) SATA-
DOM connectors + (16) SATA ports
from (2) Slim SAS connectors
Power
SSI 24-pin + 8-pin + 8-pin power
connectors
TPM (Optional)
TPM Support
Please refer to our TPM supported
list.

http://www.tyan.com
6
System Monitoring
Chipset
Aspeed AST2500
Fan
Total (6) 4-pin headers
Temperature
Monitors temperature for CPU &
memory & system environment
Voltage
Monitors voltage for CPU, memory,
chipset & power supply
LED
Fan fail LED indicator, Over
temperature warning indicator, Fan
& PSU fail LED indicator
Others
Watchdog timer support
Server Management
AST2500 iKVM
Feature
24-bit high quality video
compression, Supports storage
over IP and remote platform-flash,
USB 2.0 virtual hub
AST2500 IPMI
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
10/100/1000 Mb/s MAC interface
BIOS
Brand / ROM size
AMI, 32MB
Feature
Hardware Monitor, SMBIOS
3.0/PnP/Wake on LAN, Boot from
USB device/PXE via LAN/Storage,
Console Redirection, ACPI 6.1,
ACPI sleeping states S0, S5, FAN
speed control automatic
Physical Dimension
Form Factor
EATX
Board Dimension
12" x 13" (305 x 330mm)
Regulation
FCC (SDoC)
Class A
CE (DoC)
Class A
Operating Environment
Operating Temp.
10°C ~ 35°C (50°F~ 95°F)
Non-operating Temp.
- 40°C ~ 70°C (-40°F ~ 158°F)
In/Non-operating
Humidity
90%, non-condensing at 35°C
RoHS
RoHS 6/6 Compliant
Yes
Operating System
OS supported list
Please refer to our AVL support
lists.
Package Contains
Motherboard
(1) S8032
Motherboard
Manual
(1) Quick Installation
Guide
I/O Shield
(1) I/O Shield

http://www.tyan.com
7
Cable
SATA
(2) SATA signal
cables
1.3 Software Specifications
For the latest AST2500 User’s Guide and OS (operation system) support, please
visit the Tyan’s Web site at http://www.tyan.com for the latest information

http://www.tyan.com
8
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
5~7kgf/cm (4.35~6.09 lb/in) on each mounting screw
for motherboard installation.
2. Do not apply power to the board if it has been
damaged.

http://www.tyan.com
9

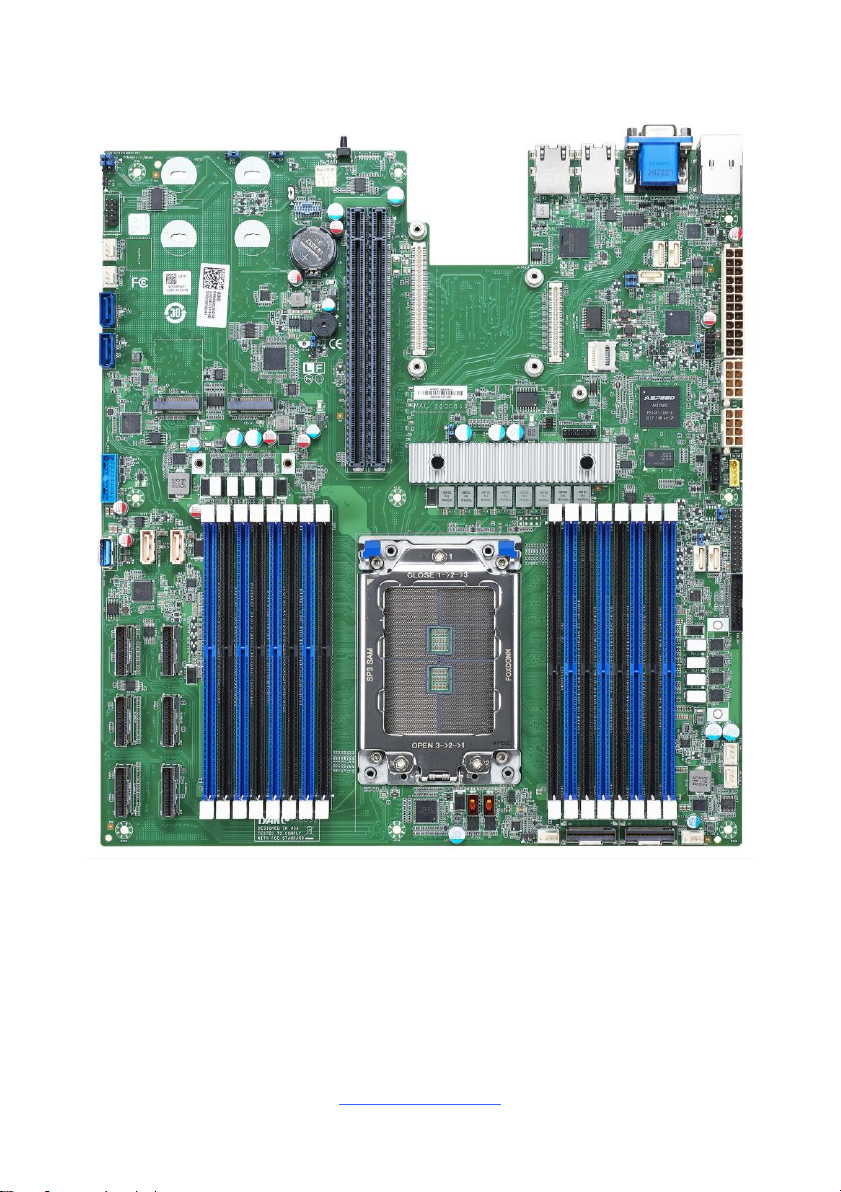

2.1 Board Image
S8032GM2NE-ML
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.

http://www.tyan.com
10
2.2 Block Diagram
S8032 Block Diagram

http://www.tyan.com
11
2.3 Motherboard Mechanical Drawing

http://www.tyan.com
12

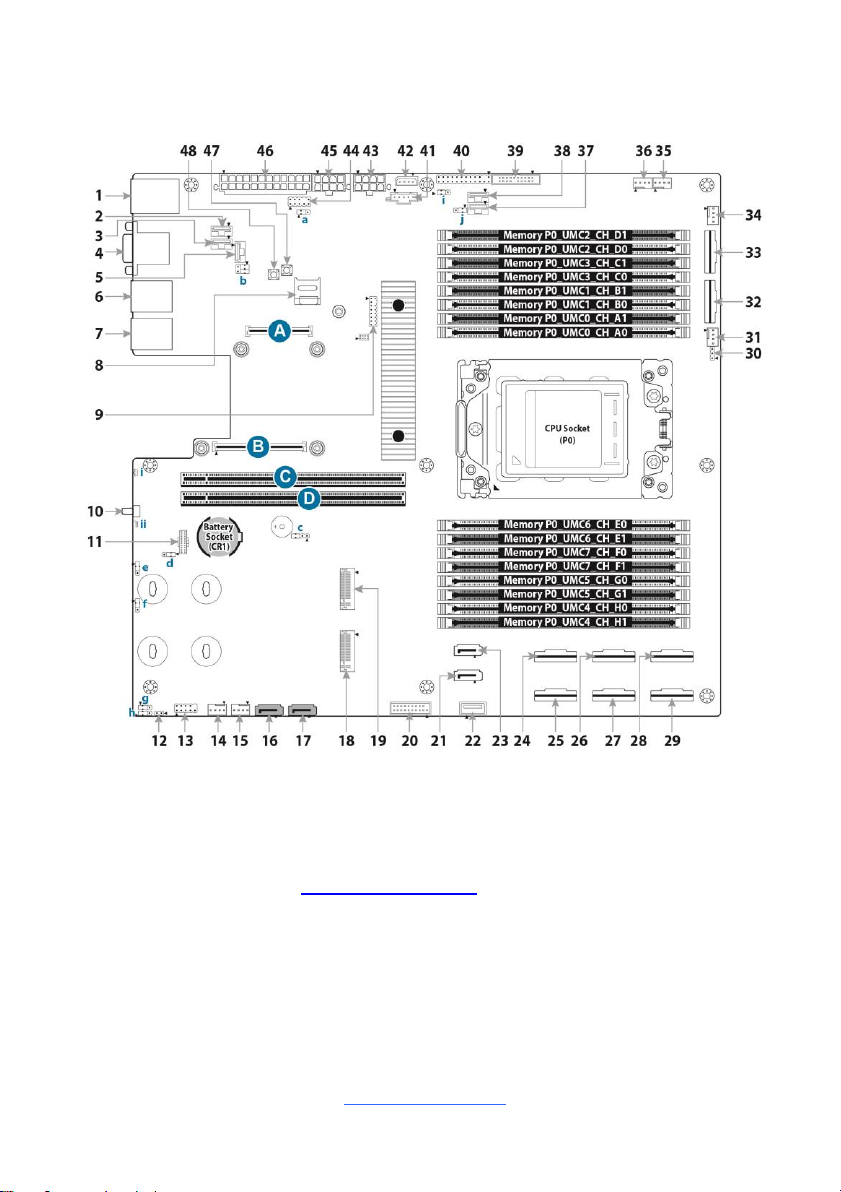

2.4Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board revision,
please visit our web site at http://www.tyan.com.

http://www.tyan.com
13
Motherboard Components
Connectors
1. Dedicated IPMI port+USB3.1 x 2(LAN1)
25. NVMe15,16 (SLIMSAS8)
2. NVMe Hot Plug (HDR_2)
26. NVMe 9,10 (SLIMSAS5)
3. NVMe Hot Plug (HDR_1)
27. NVMe 13,14 (SLIMSAS7)
4. VGA + COM Port (VGA_COM1)
28. NVMe 7,8 (SLIMSAS4)
5. NVMe Hot Plug (HDR_3)
29. NVMe 5,6 (SLIMSAS3)
6. RJ45 LAN Connector (LAN2)
30. Power FW SMBUS (PJ1)
7. RJ45 LAN Connector (LAN3)
31. 4-pin Fan Connector (CPU_FAN)
8. MICRO SD Connector (J56)
32. NVMe3,4/SATA8~15 (SLIMSAS2)
9. TYAN Module Header (DBG_HD1)
33. NVMe1,2/SATA0~7 (SLIMSAS1)
10. Rear ID LED Button (ID LED_BTN1)
34. 4-pin Fan Connector (SYS_FAN_3)
11. HDT Header (HDT1)
35. 4-pin Fan Connector (SYS_FAN_2)
12. Intruder Header (J22)
36. 4-pin Fan Connector (SYS_FAN_1)
13. COM2 Header (COM2)
37. NVME Hot Plug (HDR_5)
14. 4-pin Fan Connector (SYS_FAN_5)
38. NVME Hot Plug (HDR_4)
15. 4-pin Fan Connector (SYS_FAN_4)
39. FAN Header (FAN_HD1)
16. SATA Connector (SATA4)
40. Front Panel Header (FPIO_2)
17. SATA Connector (SATA3)
41. PSMI Header (PSMI_HD1)
18. M.2 (NGFF2)
42. IPMB Header (IPMB1)
19. M.2 (NGFF2)
43. ATX Power 4x2 Connector (PW3)
20. FPB USB2.0/USB3.0*2 Header (USB3_FPIO1)
44. FPGA JTAG (JTAG1)
21. SATADOM2(SATADOM2)
45. ATX Power 4x2 Connector (PW2)
22. Type A USB Connector from PCH USB3.0
(TYPEA_USB1)
46. ATX Power 12x2 Connector (PW1)
23. SATADOM1 (SATADOM1)
47. Power Button (PWR_BTN1)
24. NVMe11,12 (SLIMSAS6)
48. Reset Button (COLD_RST_BTN1)
Jumpers
a. FPGA_JTAG_SW (J198)
f. COM1_SEL2 (J197)
b. BYPASS SATA/NVMe(J9)
g. COM2_SEL2 (J191)
c. BUZZER_SEL (J120)
h. COM2_SEL1 (J190)
d. CMOS_CLR (J194)
i. System RESET (J192)
e. COM1_SEL1 (J193)
jFPIO_PW_SEL(33_DUAL/RUN) (J200)
PCIE Slots
A OCP B Slot (OCP1_B)
C. PCIE3.0 Slot x24 （PESLOT1）
B. OCP A Slot (OCP1_A)
D. PCIE3.0 Slot x24 （PESLOT2）
LEDs
i Rear ID LED (ID_LED2)
ii BMC Heartbeat LED (BMC_HBLED)

http://www.tyan.com
14
HDR_1/HDR_2/HDR_3/HDR_4/HDR_5: CPU SMBUS Header
1
Signal
Pin
Pin
Signal
VDD_33_DUAL
1
2
HP_SCK
HP_SDA
3
4
HP_ALERT
NA
5
6
NA
GND
7
DBG_HD1: TYAN Module Header
Signal
Pin
Pin
Signal
VDD_33_RUN
1
2
FRAME_N
LAD0
3
4
KEY
LAD1
5
6
RESET#
LAD2
7
8
GND
LAD3
9
10
CLK
DBG_SERIRQ
11
12
GND
DBG_PRES_N
13
14
3VSB
NA
15
16
TPM_PP_EN
COM2: Serial Port Header
Signal
Pin
Pin
Signal
DCD
1
2
DSR
SIN
3
4
RTS
SOUT
5
6
CTS
DTR
7
8
RI
GND
9
10
KEY
CPU FAN/ SYS FAN1~5: 4-pin CPU Fan Connector
Pin
1
2
3
4
Signal
GND
VCC12
Sensor
Control
Use this header to connect the cooling fan to your motherboard to
keep the system stable and reliable.
Note: A 4-pin fan is required for fan support 4pin Control

http://www.tyan.com
15
SATADOM1/SATADOM2: SATA Connector
Name
TYPE
1
GND
2
SATA TX DP
3
SATA TX DN
4
GND
5
SATA RX DN
6
SATA RX DP
7
GND
P1
VCC(P5V)
P2
GND
Connects to the Serial ATA ready drives via the Serial ATA cable.
SATA_3/SATA_4: 7-pin SATA 3.0 Connector
Name
TYPE
1
GND
2
SATA TX DP
3
SATA TX DN
4
GND
5
SATA RX DN
6
SATA RX DP
7
GND
TYPEA_USB1: Vertical (Type_A) USB3.0 Connector
Signal
Pin
Pin
Signal
+5V
1
2
USB2.0_DATA_N
USB2.0_DATA_P
3
4
GND
USB3.0_RX_N
5
6
USB3.0_RX_P
GND
7
8
USB3.0_TX_N
USB3.0_TX_P
9
USB3_FPIO1: Front USB3.1 Header
Signal
Pin
Pin
Signal
USB3_VCC_FPB
1
2
USB31_PCH_P4_RX_ESD_DN
USB31_PCH_P4_RX_ESD_DP
3
4
GND
USB31_PCH_P4_TX_ESD_DN
5
6
USB31_PCH_P4_TX_ESD_DP
GND
7
8
USB2_PCH_P9_ESD_DN
USB2_PCH_P9_ESD_DP
9
10
USB31_FPB_OC2_N_R
USB2_PCH_P6_ESD_DP
11
12
USB31_PCH_P3_TX_ESD_DN
GND
13
14
USB31_PCH_P3_TX_ESD_DP
USB31_PCH_P3_TX_ESD_DN
15
16
GND
USB31_PCH_P3_RX_ESD_DP
17
18
USB31_PCH_P3_RX_ESD_DN
USB3_VCC_FPB
19
20
Key

http://www.tyan.com
16
ID LED_BTN1: Rear IO IDLED Button
Signal
Pin
Pin
Signal
FP_IDLED_BTN_N
1
2
GND
IPMB_HD1: IPMB Connector
Signal
Pin
Pin
Signal
BMC_SMB_DATA
1
2
GND
BMC_SMB_CLK
3
4
NC
PSMI_HD1: PSMI Connector
Pin
1
2
3
4
5
Signal
SMB_CLK
SMB_DAT
SMB_ALERT#
GND
V3P3
HDT1: HDT Header
Signal
Pin
Pin
Signal
P1V8_AUX
1
2
TCK
GND
3
4
TMS
GND
5
6
TDI
GND
7
8
TDO
TRST_N
9
10
PEROK
NC
11
12
RESET_N
NC
13
14
NC
NC
15
16
DBREQ_N
GND
17
18
NC
P1V8_AUX
19
20
NC
FAN_HD1: System FAN Connector
Signal
Pin
Pin
Signal
TACH1
1
2
TACH6
TACH2
3
4
TACH7
TACH3
5
6
TACH8
TACH4
7
8
TACH9
TACH5
9
10
TACH10
GND
11
12
KEY
PWM2
13
14
PWM1
TACH11
15
16
SMB_DATA
TACH12
17
18
SMB_CLK
NC
19
20
PWM3

http://www.tyan.com
17
FPIO2: Front Panel Connector
Signal
Pin
Pin
Signal
PWRLED+
1
2
V3P3_AUX
KEY
3
4
IDLED+
PWRLED-
5
6
IDLED-
HDDLED+
7
8
SYS_FAULT1-
HDDLED-
9
10
SYS_FAULT2-
PWR_SW#
11
12
LAN1LED+
GND
13
14
LAN1LED-
FP_RST_BTN_JP_N
15
16
SMBDATA
GND
17
18
SMBCLK
FP_IDLED_BTN_N
19
20
INTRUSION#
SYS_Air_Inlet
21
22
LAN2LED+
FP_NMI_BTN_N
23
24
LAN2LED-
PWR_BTN1: POWER Button
Pin
1
2
3
4
Signal
GND
GND
PWR_BTN1
PWR_BTN1
RST_BTN1: COLD Reset Button
Pin
1
2
3
4
Signal
GND
GND
FP_RST_BTN_N
FP_RST_BTN_N
PJ1: Power FW SMBUS Connector
Signal
Pin
Pin
Signal
P0_SOC_PMSCL
1
2
P0_SOC_PMSDA
GND
3
J56: Micro SD Card Connector
Signal
Pin
Pin
Signal
DAT2
1
2
CD/DAT3
CMD
3
4
VCC
CLK
5
6
VSS
DAT0
7
8
DAT1
J22: Intruder Header
Signal
Pin
Pin
Signal
INTRUSION#
1
2
GND

http://www.tyan.com
18
J198: FPGA_JTAG_SW (FPGA JTAG SELECT) Jumper
Signal
Pin
Pin
Signal
FPGA_JTAG_SW_CONN
1
2
FPGA_JTAG_SW_SELECT
FPGA_JTAG_SW_CONN_L
3
1-2: SWITCH TO CONN
2-3: SWITCH TO BMC <DEFAULT>
J9: BYPASS SATA/NVMe Jumper
Signal
Pin
Pin
Signal
VDD_33_RUN
1
2
VDD_33_RUN
J1_SATA_NVME#
3
4
J2_SATA_NVME#
GND
5
6
GND
1-3,2-4 FOR NVME SKU
5-3,6-4 FOR SATA SKU
Note: If BIOS set SATA/NVME mode for SlimSAS 1/2 sideband signal,
must set the jumper to 1-3 and 2-4 pin close.
J190/J191: COM2_SEL1/ COM2_SEL2 Jumper
Signal
Pin
Pin
Signal
BMC_RXD2
BMC_TXD2
1
2
TXD_OUT/RXD_OUT
BMC_TXD5
BMC_RXD5
3
1-2 : BMC COM PORT2 (DEFAULT)
2-3 : BMC CONSOLE PORT5
J193/J197: COM1_SEL1/ COM1_SEL2 Jumper
Signal
Pin
Pin
Signal
BMC_RXD1
BMC_TXD1
1
2
TXD_OUT/RXD_OUT
P0_UART0_RX/
P0_UART0_TX
3
1-2 : BMC COM PORT1 (DEFAULT)
2-3 : CPU COM
JTAG1: FPGA JTAG Connector
Signal
Pin
Pin
Signal
FPGA_JTAG_CONN_TCK
1
2
GND
FPGA_JTAG_CONN_TDO
3
4
VDD_33_FPGA
FPGA_JTAG_CONN_TMS
5
6
GND
GND
7
8
STAD_SSTX-1
Key
9
10
GND

http://www.tyan.com
19
J120: BUZZER_SEL Jumper
Signal
Pin
Pin
Signal
VCC5_BZ
1
2
NG
BUZ_1
3
4
BUZ_2
3-4: NORMAL MODE (Default)
2-3: Disable PC BEEP
1-4: Use the External Speaker
J192: System Reset Jumper
Signal
Pin
Pin
Signal
COLD_RST_BTN_N
1
2
FP_RST_BTN_JP_N
BMC_EXTRST_BTN_L
3
1-2: SYSTEM RESET (Default)
2-3: BMC RESET
J200:FPIO_PW_SEL (33_DUAL/RUN)
Signal
Pin
Pin
Signal
FPIO_PW_LED_33_DUAL
1
2
FP_PW_LED_PW
FPIO_PW_LED_33_RUN
3
1-2 VDD_33_DUAL
2-3 VDD_33_RUN
J194: CMOS Clear Jumper
Normal
(Default)
Pin
1
2
3
Signal
Vbat
P0_Vddbt_Rtc_G
GND
1-2 Normal RTC Reset (DEFAULT)
2-3 Clear RTC Registers
You can reset the CMOS settings by using this jumper. This can be
useful if you have forgotten your system/setup password, or need to
clear the system BIOS setting.
1. Power off system and disconnect power connectors from the
motherboard.
2. Remove the jumper from Pin_1 and Pin_2 (Default setting).
3. Move the jumper cap to close Pin_2 and Pin_3 for several seconds
to Clear CMOS.
4. Put jumper cap back to Pin_1 and Pin_2 (Default setting).
5. Reconnect power connectors to the motherboard and power on
system.
Clear CMOS

http://www.tyan.com
20
PCIE 74P SlimSAS Connector (SLIMSAS 8/7/6/5/4/3/2/1)
pin
net
pin
net
A1
GND
B1
GND
A2
NVME0_RX_N0
B2
NVME0_TX_N0
A3
NVME0_RX_P0
B3
NVME0_TX_P0
A4
GND
B4
GND
A5
NVME0_RX_N1
B5
NVME0_TX_N1
A6
NVME0_RX_P1
B6
NVME0_TX_P1
A7
GND
B7
GND
A8
NVME0_BP_TYPE
B8
NVME0_SCK
A9
NVME0_WAKE_L
B9
NVME0_SDA
A10
GND
B10
GND
A11
NVME0_PEREFCLK_DP
B11
NVME0_PERST_L
A12
NVME0_PEREFCLK_DN
B12
NVME0_PRSNT_L
A13
GND
B13
GND
A14
NVME0_RX_N2
B14
NVME0_TX_P2
A15
NVME0_RX_P2
B15
NVME0_TX_N2
A16
GND
B16
GND
A17
NVME0_RX_N3
B17
NVME0_TX_P3
A18
NVME0_RX_P3
B18
NVME0_TX_N3
A19
GND
B19
GND
A20
NVME1_RX_N0
B20
NVME1_TX_P0
A21
NVME1_RX_P0
B21
NVME1_TX_N0
A22
GND
B22
GND
A23
NVME1_RX_N1
B23
NVME1_TX_P1
A24
NVME1_RX_P1
B24
NVME1_TX_N1
A25
GND
B25
GND
A26
NVME1_BP_TYPE
B26
NVME1_SCK
A27
NVME1_WAKE_L
B27
NVME1_SDA
A28
GND
B28
GND
A29
NVME1_PEREFCLK_DP
B29
NVME1_PERST_L
A30
NVME1_PEREFCLK_DN
B30
NVME1_PRSNT_L
A31
GND
B31
GND
A32
NVME1_RX_N2
B32
NVME1_TX_P2
A33
NVME1_RX_P2
B33
NVME1_TX_N2
A34
GND
B34
GND
A35
NVME1_RX_N3
B35
NVME1_TX_N3
A36
NVME1_RX_P3
B36
NVME1_TX_P3
A37
GND
B37
GND
