TYCROP ProPass 180 User manual

ProPass 180 Top Dresser
Operator’s Manual
P/N: 60041006R01

All information, illustrations, and specifications in
this manual are based on the latest information at
the time of publication. We reserve the right to
make changes at any time without notice.
TYCROP Manufacturing Ltd.
Rosedale, British Columbia, V0X 1X0, Canada
www.tycrop.com
Copyright © 2004 TYCROP Manufacturing Ltd.
All rights reserved
Manual Number: 60041006
Printed in Canada, January 4, 2006

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Table of Contents
Product Identification........................................................................................................1
Model Name and Serial Number ...............................................................................1
Purchase Date and Dealer Information.....................................................................1
Specifications ....................................................................................................................3
Introduction........................................................................................................................5
Using this Operator’s Manual ....................................................................................5
Message Boxes .........................................................................................................5

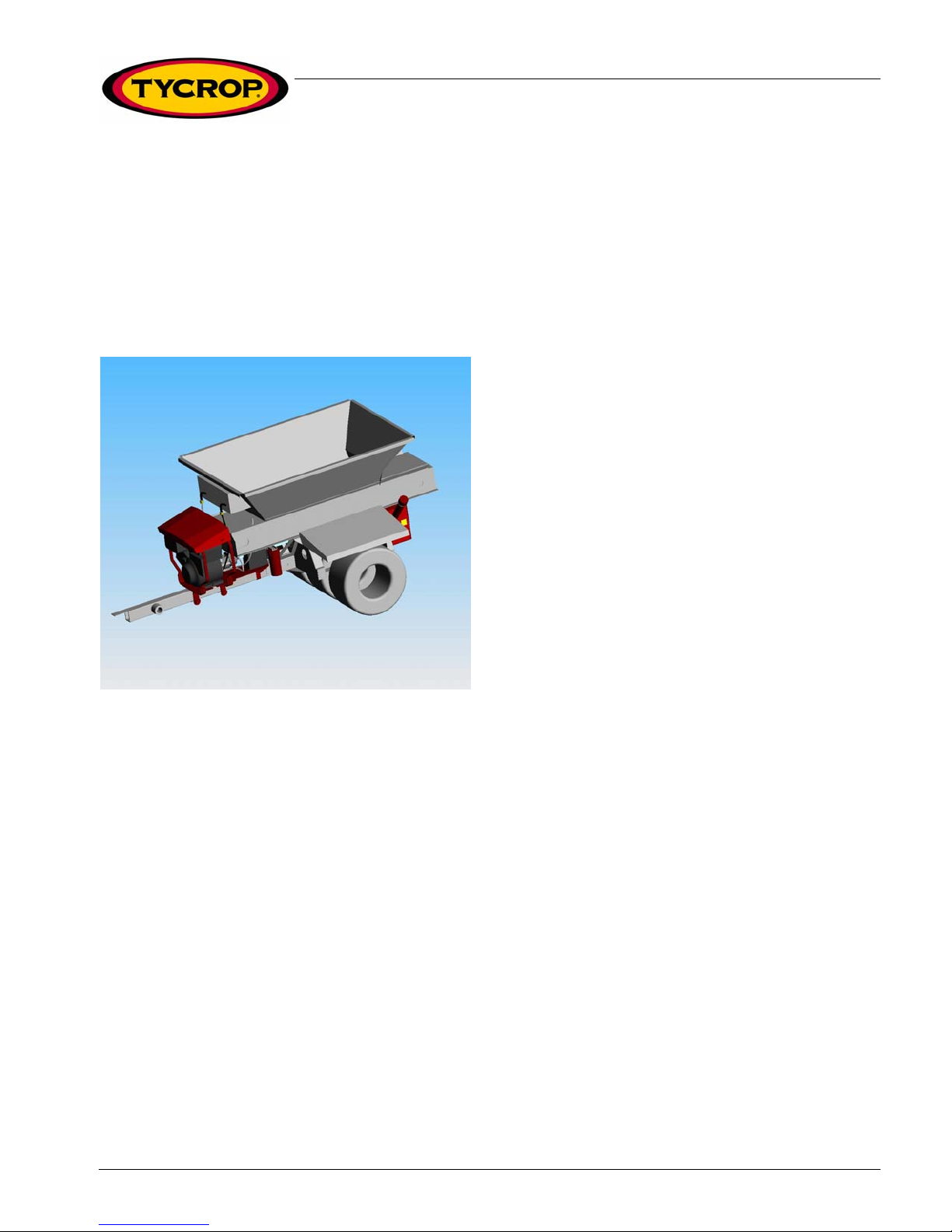

About the ProPass 180 Top Dresser...............................................................................7
Features and Benefits................................................................................................7

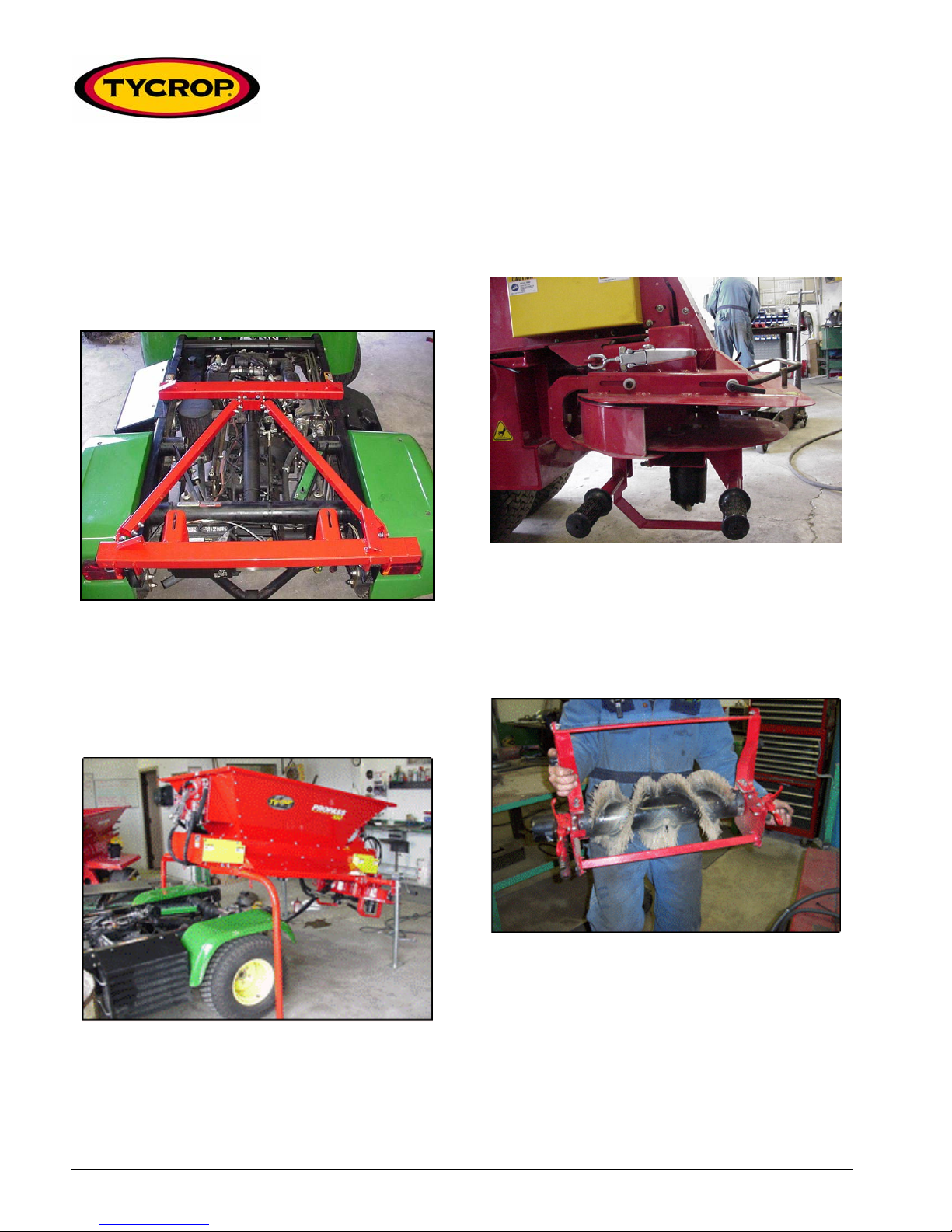

Components...............................................................................................................7
Base Model......................................................................................................7
Options and Attachments ..........................................................................................7
Tow-Behind Chassis........................................................................................7
Toro or John Deere Truck-mount Chassis.......................................................8
Truck-mount Storage Stand.............................................................................8
Twin Spinner Attachment.................................................................................8
Vortex Brush Attachment.................................................................................8
11HP – Hydraulic Power Pack.........................................................................9
Safety Instructions ..........................................................................................................11
Safe Operating Practices.........................................................................................11
Supervisor’s Responsibilities.........................................................................11
Do the Following ............................................................................................11
Never Do the Following..................................................................................11
Hydraulic Safety.......................................................................................................11
Tow Vehicle Requirements............................................................................11
Hoses and Lines............................................................................................12
Engine Safety...........................................................................................................12
Tow Vehicle Safety..................................................................................................12
Loading....................................................................................................................12
Unloading.................................................................................................................13
Traveling..................................................................................................................13
Hills ................................................................................................................13
Parking...........................................................................................................13
Safety Attire .............................................................................................................14
Safety Decals...........................................................................................................14
Setup Instructions...........................................................................................................19
Installing the Attachments........................................................................................19
Table of Contents Page iii

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Operating Instructions....................................................................................................21
Connecting the ProPass to the Tow Vehicle...........................................................21
Disconnecting the ProPass from the Tow Vehicle..................................................21
Installing the ProPass onto a Tow Vehicle from the Storage Stand.......................22
Removing the ProPass from a Tow Vehicle onto the Storage Stand.....................23
How to Load the ProPass........................................................................................24
How to Operate the Controls and Attachments ......................................................24
Flow Control Valve for Conveyor Belt ...........................................................24
Flow Control Valve for Attachment................................................................24
On/Off Pendant..............................................................................................24
How to Operate the ProPass...................................................................................24
How to Operate the ProPass with the 11HP Hydraulic Power Pack.......................25
ProPass Factory-Recommended Settings Guide...................................................26
ProPass Twin Spinner Suggested Spreading Application Guide............................26
Disk Settings..................................................................................................27
ProPass Twin Spinner Movement Handles.............................................................28
Maintenance Instructions...............................................................................................29
Warranty..................................................................................................................29
Safety Checks .........................................................................................................29
Tires and Wheels...........................................................................................29
Rear Gate......................................................................................................29
Hitch...............................................................................................................29
Hydraulic System...........................................................................................29
Conveyor Belt and Rollers.............................................................................29
Belt and Rear Gate Seals..............................................................................29
Attachments...................................................................................................29
Safety Decals.................................................................................................30
How to Maintain the Conveyor Belt System............................................................30
Conveyor Belt Tensioning Procedure............................................................30
Conveyor Belt Tracking Procedure ...............................................................30
How to Lubricate the ProPass.................................................................................30
Lubrication Schedule.....................................................................................30
Lubrication Procedure ...................................................................................31
How to Maintain the Hydraulic System ...................................................................32
Hydraulic Schematic................................................................................................33
Electrical Schematic................................................................................................35
How to Wash the ProPass......................................................................................36
Long-term Storage of the ProPass..........................................................................36
Maintenance Record Sheet.....................................................................................37
Troubleshooting..............................................................................................................39
ProPass Troubleshooting Guide.............................................................................39
............................................37Twin Spinner Spread Pattern Troubleshooting Guide
Page iv Table of Contents

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Product Identification
Model Name and Serial Number
The model number and serial number of each ProPass
product are located on an identification plate (Figure 1),
along with the date of manufacture and the product’s gross
weight. The identification plate is mounted near the front
of the conveyor belt on the ProPass body (Figure 2).When
you contact an authorized TYCROP dealer for service or
parts, the dealer will ask for the ProPass model name and
serial number.
ProPass 180 Base Model
ProPass Twin Spinner
ProPass Vortex Brush
ProPass PowerPack
Purchase Date and Dealer Information
Date of Purchase
Dealer Name
Dealer Phone
Figure 1: Identification plate
Figure 2: Identification plate on base model
Product Identification Page 1

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Specifications
IMPORTANT:These specifications are subject to
change without notice. They are provided for reference
purposes only. Contact an authorized TYCROP dealer
for up-to-date or additional information.
General Specifications
Hopper capacity 0.59 m3(21 ft3)
Tow-Behind Configuration
Length 3.4 m (134 in)
Width 1.7 m (65 in)
Height 1.4 m (56 in)
Ground clearance 30 cm (12 in)
GVWR 1405 kg (3,100 lb)
Payload 905 kg (2,000 lb)
Truck-Mount Configuration
Length 1.98 m (78 in)
Width 1.7 m (65 in)
Height 1.4 m (56 in)
Tare 289 kg (636 lb)
Payload Do not exceed vehicle
ratings
Weights
Base Model 248 kg (546 lb)
Tow-behind chassis 218 kg (480 lb)
Twin Spinner 68 kg (150 lb)
Vortex Brush 28 kg (60 lb)
ProGator truck-mount 41 kg (90 lb)
Workman truck-mount 41 kg (90 lb)
Weights
Truck-mount storage stand 30 kg (65 lb)
11 HP – HYDRAULIC
POWER PACK 100 kg (220 lb)
Tires
Size 24 x 13.00-12
Ply rating 4
Pressure 41–82 kPa (6–12 psi)
Electrical System
Voltage 12 V
Amperage draw 3.3 A
Fuse 15 A
Hydraulic System
Fluid type Petro-Canada Duratran or
equivalent
Fluid viscosity 60.09 cSt @ 40°C
Fluid capacity 2 L (0.53 gal)
Fluid capacity – 11HP
Hydraulic Power Pack 32.9L (8.7 US gal)
Maximum pressure input 190 bar (2,800 psi)
Minimum pressure input 138 bar (2,000 psi)
Maximum flow input 37.9 L/m (10 U.S. gal/m)
Minimum flow input 22.7 L/m (6 U.S. gal/m)
11HP – Hydraulic Power
Pack Engine Model Number Honda GX340KQAE6
11HP – Hydraulic Power
Pack Engine Owner’s
Manual Number
00X31-ZH9-6210
Specifications Page 3

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Noise
Under normal operating conditions, the ProPass has an
equivalent, continuous, ‘A’-weighted sound level, no
greater than 75 dB (decibels). When operated with the
11HP Hydraulic Power Pack the equivalent, continuous,
‘A’-weighted sound level is 85dB(A).
When operated by in conjunction with a tow vehicle, the
sound level may exceed 85 dB. Use approved hearing
protection.
Vibration
Under normal operating conditions, the ProPass does not
produce vibrations over 2.0 m/s2(6.6 ft/s2) to the
operator’s arms, or over 0.5 m/s2 (1.6 ft/s2) to the
operator’s body. (Note: values= weighted root mean
square acceleration.)
Page 4 Specifications

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Introduction
Read this Operator’s Manual carefully before operating the
ProPass. Keep it in an accessible location.
To get a replacement manual, contact an authorized
TYCROP dealer. This Operator’s Manual is also available
in other languages; contact your dealer to order one.
TYCROP Manufacturing Ltd. thanks you for choosing the
ProPass 180 Top Dresser for your facility.
Using this Operator’s Manual
Follow all safety precautions and operating
recommendations to ensure safe and trouble-free operation
of the ProPass 180 Top Dresser.
This Operator’s Manual will help you and others avoid
personal injury or damage to the machine. The information
will provide the operator with the safest and most effective
methods for operating the ProPass.
Throughout this Operator’s Manual, the terms “left” and
“right” are used. This means that when you stand behind
the ProPass facing the front of it, your left side
corresponds to the left side of the ProPass.
The ProPass shown in this Operator’s Manual may differ
slightly from your model. These differences are cosmetic
and will not affect operation.
Message Boxes
This Operator’s Manual contains message boxes that are
labeled Danger, Warning, Caution, and Important.
These message boxes indicate potential safety concerns or
equipment damage, and operating and servicing
information. Read these message boxes carefully to avoid
injury and equipment damage.
DANGER:Indicates an extreme hazard
that will cause serious injury or death if
you do not follow the recommended
precautions.
WARNING:Indicates a hazard that may
cause serious injury or death if you do not
follow the recommended precautions.
CAUTION:Indicates a hazard that may
cause minor or moderate injury if you do
not follow the recommended precautions.
IMPORTANT:Indicates special mechanical or servicing
information.
Introduction Page 5

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
About the ProPass 180 Top
Dresser
Features and Benefits
The ProPass 180 Top Dresser is a lightweight, multi-
purpose top dresser for the turf grass maintenance industry.
•It can spread various materials, including sand, top
dress mix, screened and composted material, lime, and
gypsum.
•It has the lightest footprint in the industry, resulting in
less turf damage and lower maintenance costs.
•The easy-to-attach Twin Spinner attachment (no tools
required) is ideally suited for light and frequent top
dresssing, with spread patterns up to 9.1 m (30 ft)
wide in one pass.
•The easy-to-attach Vortex Brush attachment can
spread a variety of materials in heavy applications
between 1.2 m (4 ft) and 2.1 m (7 ft) wide.
•It features a seamless belt for enhanced durability.
•It features an easy-to-adjust rear gate.
•Without attachments installed, it can be used as a
small capacity material mover.
•The tow-behind chassis features a four-wheel, walking
beam suspension, which helps the ProPass navigate
uneven terrain while maintaining a smooth ride, and
an even weight transfer to the ground.
•The modular design allows the ProPass to be easily
and inexpensively converted from a tow-behind
configuration to a truck-mount configuration, or vice
versa.
•The hand-held on/off pendant allows the ProPass and
its attachments to be activated from the driver’s
position.
Components
Base Model
Because the ProPass is a modular system, the ProPass
Base Model is built and sold separately from its
attachments and other optional components.
The Base Model consists of a material hopper, a conveyor
belt system, electro-hydraulic controls, a rear gate, and the
belt cleaning scraper (Figure 3).
The Base Model is mounted on a chassis. Three different
chassis types are available, depending on your operating
requirements:
•TYCROP tow-behind chassis
•Toro Workman truck-mount chassis
•John Deere ProGator truck-mount chassis
Options and Attachments
For more information on the following options and
attachments, contact an authorized TYCROP dealer.
Tow-Behind Chassis
TYCROP’s tow-behind chassis is equipped with a unique
four-wheel, walking beam suspension, which provides a
smooth and stable ride.
Figure 3: Base Model mounted on tow-behind chassis
About the ProPass 180 Top Dresser Page 7

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Toro or John Deere Truck-mount Chassis
The ProPass can also be mounted on John Deere ProGators
(Figure 4) or Toro Workman trucks.
When the ProPass is not in use, it can be easily removed
from its truck-mount to allow the truck to be used for other
purposes.
Figure 4: John Deere ProGator truck-mount chassis
Truck-mount Storage Stand
The truck-mount storage stand allows the truck-mounted
ProPass to be safely removed, stored, and re-installed
(Figure 5).
Figure 5: Truck-mount storage stand
Twin Spinner Attachment
The Twin Spinner attachment can handle a variety of
materials with spread widths of 4.6 m (15 ft) to 9.1 m
(30 ft) for ultra-light and frequent top dressing (Figure 6).
Figure 6: Twin Spinner
Vortex Brush Attachment
The Vortex Brush attachment can spread a variety of
materials in heavy applications between 1.2 m (4 ft) and
2.1 m (7 ft) wide (Figure 7).
Figure 7: Vortex Brush
Page 8 About the ProPass 180 Top Dresser

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
11HP – Hydraulic Power Pack
The 11HP Hydraulic Power Pack consists of an 11HP
gasoline engine driven, self contained, hydraulic power
system attached to the front hitch of the ProPass with a
remote hydraulic reservoir attached to the rear chassis
wall.
The power pack can be used when your tow vehicle has
insufficient hydraulic capacity to power the ProPass.
Figure 8: 11HP – Hydraulic Power Pack
About the ProPass 180 Top Dresser Page 9

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Safety Instructions
Read this Operator’s Manual carefully. Follow all safety
precautions and operating recommendations to ensure the
safe and trouble-free operation of the ProPass 180 Top
Dresser.
WARNING:The ProPass is equipped only
for off-road use. Do not use it on public
roads.
Safe Operating Practices
•The ProPass has different balance, weight, and
handling characteristics compared to some other types
of pulled equipment. Before using the ProPass, take
the time to become familiar with it.
•Observe all safety laws and regulations applicable to
your area.
•Replace any safety decal that becomes damaged or
illegible. The safety decals are listed in the Parts
Catalog; order them from an authorized TYCROP
dealer.
•Any modification to the ProPass that is not performed
by, or under the guidance of an authorized TYCROP
dealer could affect the safety, performance, or
durability of the ProPass. If problems result, this may
violate local regulations, or service may not be
covered under the warranty.
•To ensure safe and trouble-free operation, always
purchase genuine TYCROP replacement parts from an
authorized TYCROP dealer. Using replacement parts
from other sources may void your warranty.
Supervisor’s Responsibilities
•Ensure that all operators have read this Operator’s
Manual, and understand all the safety decals on the
ProPass.
•Prevent accidents by training operators to operate the
ProPass. Continuously supervise its operation.
Do the Following
•Read and understand this Operator’s Manual
completely before operating the ProPass.
•Walk around the ProPass and inspect it. Check all
decals, guards, shields, and other hardware. Also
check the jack stand, hitch clevis, and attachment
clamps.
•If any parts are broken or missing, repair or replace
them before operating the ProPass.
•Ensure that qualified personnel have made all
recommended maintenance and adjustments to the
ProPass before you operate it. Notify your supervisor
about any adjustments made to the ProPass.
•Wear approved hearing and eye protection when
operating the ProPass.
Never Do the Following
•Do not allow untrained people or persons under 16
years of age to operate the ProPass.
•Do not operate the ProPass if you have any doubts
about any aspect of its operation.
•Do not carry passengers on the ProPass.
•Do not operate the ProPass while under the influence
of drugs or alcohol.
•Do not leave the ProPass unattended while it is
running.
•Do not operate the ProPass when other people (or
animals) are in the work area.
Hydraulic Safety
Tow Vehicle Requirements
CAUTION:Do not operate the ProPass
above or below the required hydraulic
pressure. This can damage the ProPass, or
cause it to operate incorrectly.
The tow vehicle must meet the following hydraulic
pressure requirements.
Safety Instructions Page 11

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Hydraulic Pressure
Minimum 22.7 L/m (6 U.S. gal/m)
138 bar (2,000 psi)
Maximum 37.9 L/m (10 U.S. gal/m)
193 bar (2,800 psi)
Hoses and Lines
Hydraulic hoses and lines can fail because of physical
damage, kinks, age, and exposure. Check the hoses and
lines regularly and replace them if necessary.
Fluid connections can loosen because of physical damage
and vibration. Check and tighten the connections regularly.
Fluid that escapes under high pressure can cause serious
injury. Disconnect the hydraulic or other lines to relieve
the pressure. Tighten the connections before applying
pressure.
WARNING:Protect your hands and body
from high-pressure fluids. Search for
hydraulic leaks with a piece of cardboard.
If an accident occurs, see a doctor immediately. Any fluid
that penetrates the skin must be removed by a doctor
within a few hours.
Engine Safety
Gasoline is highly flammable—handle it carefully. Use an
approved non-metal, portable fuel container. Static
discharge may ignite gasoline vapors in an ungrounded
fuel container.
Do not remove the fuel cap when the engine is hot or
running.
Do not smoke while handling gasoline.
Do not overfill the fuel tank. Fill to 25 mm (1 in) below
the top of the tank.
Stop the engine before doing maintenance work.
CAUTION:Do not touch the engine,
exhaust, or hydraulic reservoir while the
engine is running or soon after. Hot
surfaces may cause burns.
Tow Vehicle Safety
WARNING:Always use a suitable tow
vehicle to move the ProPass, even for
short distances. An unsuitable tow vehicle
can damage the ProPass, or cause injury
or death.
A suitable tow vehicle must have a minimum towing
capacity of 1,405 kg (3,100 lb) or 1,530 kg (3320 lb) if
ProPass 11HP – Hydraulic Power Pack is fitted.
The maximum carrying load for the ProPass is 907 kg
(2,000 lb), with a resulting tongue weight of 113 kg
(250 lb). The tare weight (no load) is 499 kg (1,100 lb),
with a resulting tongue weight of 23 kg (50 lb).
The resulting tongue weight of the ProPass fitted with the
11HP – Hydraulic Power Pack when operating with a full
load is 145 kg (320 lb). The resulting no load tongue
weight is 48 kg (105 lb). The tare weight (no load) is
599 kg (1,320 lb).
Loading
WARNING:Ensure that the ProPass is
connected to the tow vehicle before
loading.
Do not carry loads that exceed the load limits of the
ProPass, or the tow vehicle or truck-mount vehicle (see
Specifications).
The stability of loads can vary—for example, high loads
will have a higher center of gravity. Reduce the maximum
load limits to ensure better stability, if necessary.
To avoid causing the ProPass to tip over (see safety decal
TY-411 on page 16):
•Carefully monitor the height and weight of the load.
Higher and heavier loads can increase the risk of
tipping.
•Distribute the load evenly, front to back and side to
side.
•Be careful when turning and avoid unsafe maneuvers.
Page 12 Safety Instructions

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
IMPORTANT:Do not put large or heavy objects into the
hopper. Material that is larger than the rear gate
opening may damage the belt and rear gate assembly.
Also ensure that the load has a uniform texture. Small
rocks in sand can become projectiles.
WARNING:Do not carry passengers in the
hopper.
Unloading
Do not stand behind the ProPass when unloading or
spreading. The Twin Spinner and the Vortex Brush
attachments eject particles and dust at a high speed.
Do not unload the ProPass while it is on a slope.
WARNING:Ensure that the ProPass is
connected to the tow vehicle before
unloading. Otherwise, the load may shift
and the ProPass may tip over.
Traveling
The ProPass is designed only for off-road use. The
maximum recommended speed without a load is 24 km/h
(15 mi/h).
Maintain safe control of the ProPass. Do not attempt sharp
turns, abrupt manoeuvres, or other unsafe driving actions.
Slow down before turning, especially on wet, sandy, and
slippery surfaces. Turning clearances are limited if you
have an attachment mounted on the ProPass.
CAUTION:Be aware of your surroundings
when turning or backing up. Ensure that
the area is clear and keep all bystanders
away. Proceed slowly.
Turn off the attachment when approaching people,
vehicles, vehicle crossings, or pedestrian crossings.
Note: Heavy loads and wet or rough surfaces increase the
time it takes to stop, and reduce the ability to turn quickly
and safely.
Hills
WARNING:Do not drive the ProPass on
slopes over 12 degrees. Use extreme
caution when traveling on hills with
slopes under 12 degrees, especially when
turning.
Always travel straight up and down hills—do not travel
sideways or on a diagonal. Stopping distance increases
when traveling down a hill.
Reduce the weight of the load when traveling on hills.
Avoid piling the load high—a higher center of gravity
increases the risk of the ProPass tipping over on hills.
If you have an attachment on the ProPass, be aware of the
ground clearance when traveling on hills. When the
ProPass begins to travel up a slope, the ground clearance
decreases.
Parking
Always park the ProPass on a firm, horizontal, and level
surface. Place blocks on two tires at the front and back.
WARNING:Do not disconnect the
ProPass from the tow vehicle on a slope.
Ensure that the front jack is in the support
position.
To rotate the jack stand (located on the hitch tube; see
Figure 9) from a down support position to a traveling
horizontal position, pull out the jack stand support pin and
swivel the jack. Ensure that the jack stand is attached to
the ProPass and in the correct position during operation.
Safety Instructions Page 13

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
Figure 9: Jack stand
Safety Attire
Every time you operate the ProPass:
•Wear safety glasses or safety goggles with side
shields.
•Wear hearing protection.
•Wear sturdy footwear that fully covers your feet.
•Avoid loose clothing or jewellery that may get caught
in moving parts.
WARNING:Avoid serious injury by
keeping your hands, body, and clothing
away from moving parts.
Safety Decals
Important safety decals on your ProPass indicate potential
safety hazards. These decals are located near areas of
potential danger. Replace any decal that is damaged or
lost.
TY-414: Consult
Operator’s Manual
TY-395: Lift point
TY-396: No maintenance
while machine is in use
TY-397: Do not operate
with guards removed
TY-401: Two people
required to lift
TY-409: Consult
maintenance section of
Operator’s Manual
Page 14 Safety Instructions

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
C
TY-400: No passengers
C
TY-415: Do not lift
machine when loaded
TY-416: Do not step here
2004 TY-CROP MANUFACTURING LTD. TY-398
TY-398: High-pressure
fluid hazard—avoid high-
pressure hydraulic lines
2004 TY-CROP MANUFACTURING LTD. TY-430
TY-430: Burn Hazard –
Avoid contact with hot
surface
2004 TY-CROP MANUFACTURING LTD. TY-405
TY-405: Shear hazard—
avoid rotating shaft
C
2004 TY-CROP MANUFACTURING LTD.TY-406
TY-406: Crush hazard—
avoid rotating conveyor
belt
2004 TY-CROP MANUFACTURING LTD. TY-407
TY-406: Shear hazard—
avoid chain and gears
2004 TY-CROP MANUFACTURING LTD. TY-408
TY-408: Shear hazard—
avoid rotating spinner
disks
C
2004 TY-CROP MANUFACTURING LTD.TY-413
TY-413: Abrasion and
entanglement hazard—
avoid rotating vortex
brush
TY-4022004 TY-CROP MANUFACTURING LTD.
TY-402: Projectile hazard—stay a safe distance from
the machine
Safety Instructions Page 15

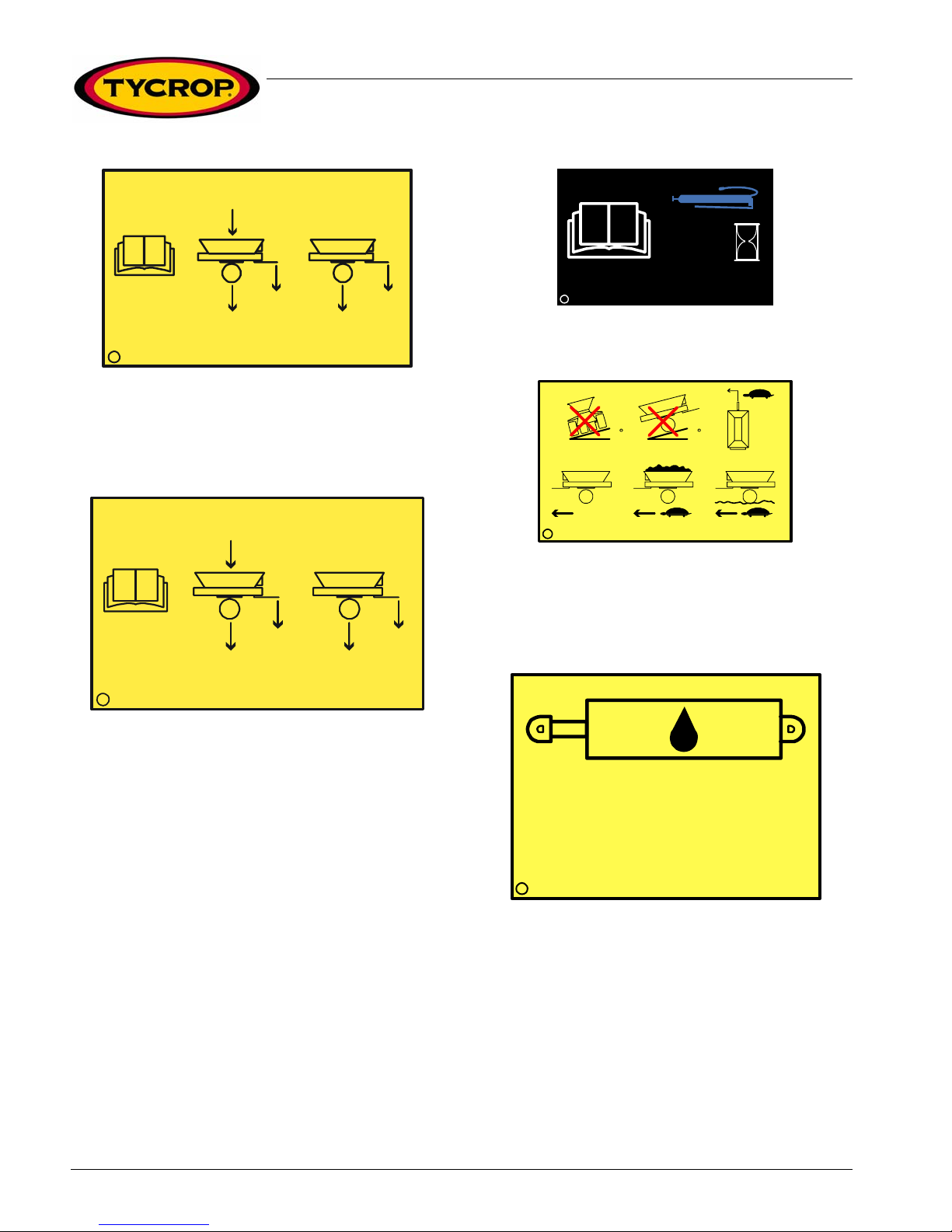

TYCROP Manufacturing Ltd. ProPass 180 Top Dresser Operator’s Manual
TY-3992004 TY-CROP MANUFACTURING LTD.
C
2,000 lbs(907 kg)
3,100lbs(1,406kg)
250 lbs
(113 kg) 1,100 lbs(499 kg)
50 lbs
(23 kg)
TY-399: Consult Operator’s Manual
(Left) Maximum carrying load is 907 kg (2,000 lb), with
a resulting maximum tongue weight of 113 kg (250 lb);
GVWR is 1,406 kg (3,100 lb)
(Right) Tare weight (no load) is 499 kg (1,100 lb), with
a resulting tongue weight of 23 kg (50 lb)
TY-4452005 TY-CROP MANUFACTURING LTD. C
2,000lbs(907kg)
3320lbs(1530 kg)
320 lbs
(145 kg) 1,320lbs(599 kg)
105 lbs
(48 kg)
TY-445: Machine Weights with 11HP Hydraulic Power
Pack. Consult Operator’s Manual. (Left) Maximum
carrying load is 907 kg (2,000 lb), with a resulting
maximum tongue weight of 145 kg (320 lb);
GVWR is 1,530 kg (3,320 lb)
(Right) Tare weight (no load) is 599 kg (1,320 lb), with
a resulting tongue weight of 48 kg (105 lb)
C
2004 TY-CROP MANUFACTURING LTD. TY-410
25
TY-410: Grease every 25 hours—
consult Operator’s Manual
>12 >12
< 24 KPH
< 15 MPH
TY-4112004 TY-CROP MANUFACTURING LTD. C
TY-411: (Clockwise) Tip over hazards—do not drive
the ProPass on slopes over 12 degrees
Slow down and turn gradually
Do not exceed 24 km/h (15 mi/h)
Drive slowly over rough surfaces or when carrying a
full or heavy load
TY-4292004 TY-CROP MANUFACTURING LTD. C
ISO VG-68
32.9 L (8.7 US GAL.)
Ty-429: Hydraulic Fluid Capacity – 32.9L (8.7 U.S. gal)
Use ISO VG-68 hydraulic fluid
Page 16 Safety Instructions
