Operation Instruction
1. Brief introduction............................................................................................1
2.Main technical specifications.............................................................................1
3. Preparation ....................................................................................................1
4. Installing the machine head................................................................................1
5. Installing the motor.........................................................................................2
6. Connecting the cluth lever to the pedal ..............................................................2
7. Installing the oil reservoir................................................................................2
8. Installing the knee control lifter........................................................................3
9. Selection of sewing thread ...............................................................................3
10. Installing the needle......................................................................................3
11. Winding the bobbin thread .............................................................................4
12. Threading....................................................................................................4
13. Installing the bobbin and the bobbin case .........................................................4
14. First sewing .................................................................................................5
15. Sewing ending ..............................................................................................5
16. Adjusting the stitch length ..............................................................................5
17. Adjusting the tension of bobbin thread and needle thread ....................................6
18. Adjusting the swing range and the tension of the thread take-up spring ..................6
19. Adjusting the tension of the roller foot ..............................................................7
20. Removing and installing the rotating hook .........................................................7
21. Position between the rotating hook and the needle ..............................................8
22. Adjusting the position of the needle bar.............................................................8
23. Adjusting the position of the hook point ............................................................8
24. Adjusting the clearance between the hook point and the needle .............................9
25. Relationship between the hook and the hook position stud ...................................9
CONTENTS
Parts Manual
1. Arm and bed..............................................................................................10-11
2. Thread tension parts..................................................................................12-13
3. Upper shaft and thread take-up lever parts ...................................................14-15
4. Needle bar vibrating parts ...........................................................................16-17
5. Feed mechanism parts ..............................................................................18-19
6. Presser bar lift parts .................................................................................20-21
7. Upper roller feed parts...............................................................................22-23
8. Rock shaft and thread looping parts.............................................................24-25
9. Lubrication parts ......................................................................................26-27
10. Thread winding parts...............................................................................28-29
11. Accessories ...........................................................................................30-31

3. Preparation (Fig.1)
1. Brief introduction 2. Main technical specifications
1
1
Application
Max.sewing speed
Presser foot lift volume
Max.stitch length
Needle bar stroke
Needle
Rotating hook
Lubrication
Motor power
2500r.p.m
7mm by hand,9mm by knee
5mm
Medium and heavy duty materials
Oiling by hand
370W
38mm
DP 5 14 20～
##
Horizontal hook
A
C
B
GC20616 adopts link thread take-up,driven roller poresser
foot, and timing feed of roller and needle. Vertical hooks
for threading looping forms lockstitch seam. The upper
shaft and rock shaft are driven by teeth-type synchronic
belt. In addition, the main working parts adopt needle or
ball bearing. Knob - type stitch length regulator makes the
operation easy.
This model is widely used in manufacturing arc products
as high-quality leather shoes, packing and gloves.
Before delivery, the machine parts are coated with rust preventive gerase, which may be hardened and contaminated by dust
during storage and shipment. The grease must be removed by clean cloth with gasoline.
Though every machine is confirmed by strict inspection and test before delivery, the machine parts may be loosened or
deformed after long distance transportation with jolt. A thorough examination must be performed after cleaning the machine.
Turn the balance wheel to see if there is running obstruction, parts collision, uneven resistance or abnormal noise. If these
exist, adjustment must be made accordingly before running.
1. Cleaning the machine
2. Inspection
4. Installing the machine head (Fig.1)
Put the cushion A and B into the table cutout, and set the
connectinghookConthecushionB,thenturnthemachine
head freely till it is seated on the frame of table cutout.

5. Installing the motor (Fig.2)
6. Connecting the clutch lever to the pedal(Fig.3)
7. Installing the oil reservoir(Fig.4)
2
3
4
2
CB
A
20 ~30
E
D
C
B
A
F
G
B
A
10~12mm
Align the machine balance wheel belt groove A with the
motor pulley groove B by moving the motor C leftward
and rightward. Be sure the belt is not touch with the table.
1. The optimum tilt angle of the pedal with floor is approx.
20-30 degree;
2. Adjust the clutch of the motor so that the clutch lever C
and draw bar B run in line as Fig3, which could assure
smooth running and long using of the machine.
3. The machine balance wheel should rotate counter
clockwise for normal sewing when viewing from
opposite side of the balance wheel. The rotation can be
reversed by reversing the plug of the motor.(turn over
180deg)
4. Adjust the tension of the V-belt F by moving the motor
vertically. The proper tension of V - belt is a slack of
10-12mm when the belt is depressed (at the belt pan) by
finger.
Put the oil reservoir A into the table cutout evenly, and
adjust the position of the right knee control lifter, then
tighten the two wood screws on both sides of the oil
reservoir.

8. Installing the knee control lifter (Fig.5)
9. Selection of sewing thread (Fig.6)
5
7
3
6
10.Installing the needle(Fig.7)
C
A
B
A
Long groove leftward
Insert the assembled knee control lifter mechanism into the
bottom connector A of the machine head, then tighten the
stud screw C. Position of the bell could be adjusted by the
operator to ensure easy operation,slight tension and proper
swing range.
1. High-quality sewing thread must be applied;
2. Thread must be left-twisted;
3. Hold the thread, twist the thread by right hand in the
direction as the arrow shows, if the thread becomes
tighter, it is left-twisted thread; on the contrary, it will
be right-twisted thread.
Needle DP 5 14#-20# should be applied. The selection of
htread should be in accordance with the nature of the
material.
1. Lift the presser foot lever and turn the balance wheel to
lift the needle bar to its highest position;
2. Press down as shown in the Fig to open the roller foot A;
3. Loosen the needle screw B;
4. As the Fig shows, turn the long groove of the needle to
left, and then insert the needle into needle bar as far as it
goes.
5. Tighten the needle screw.

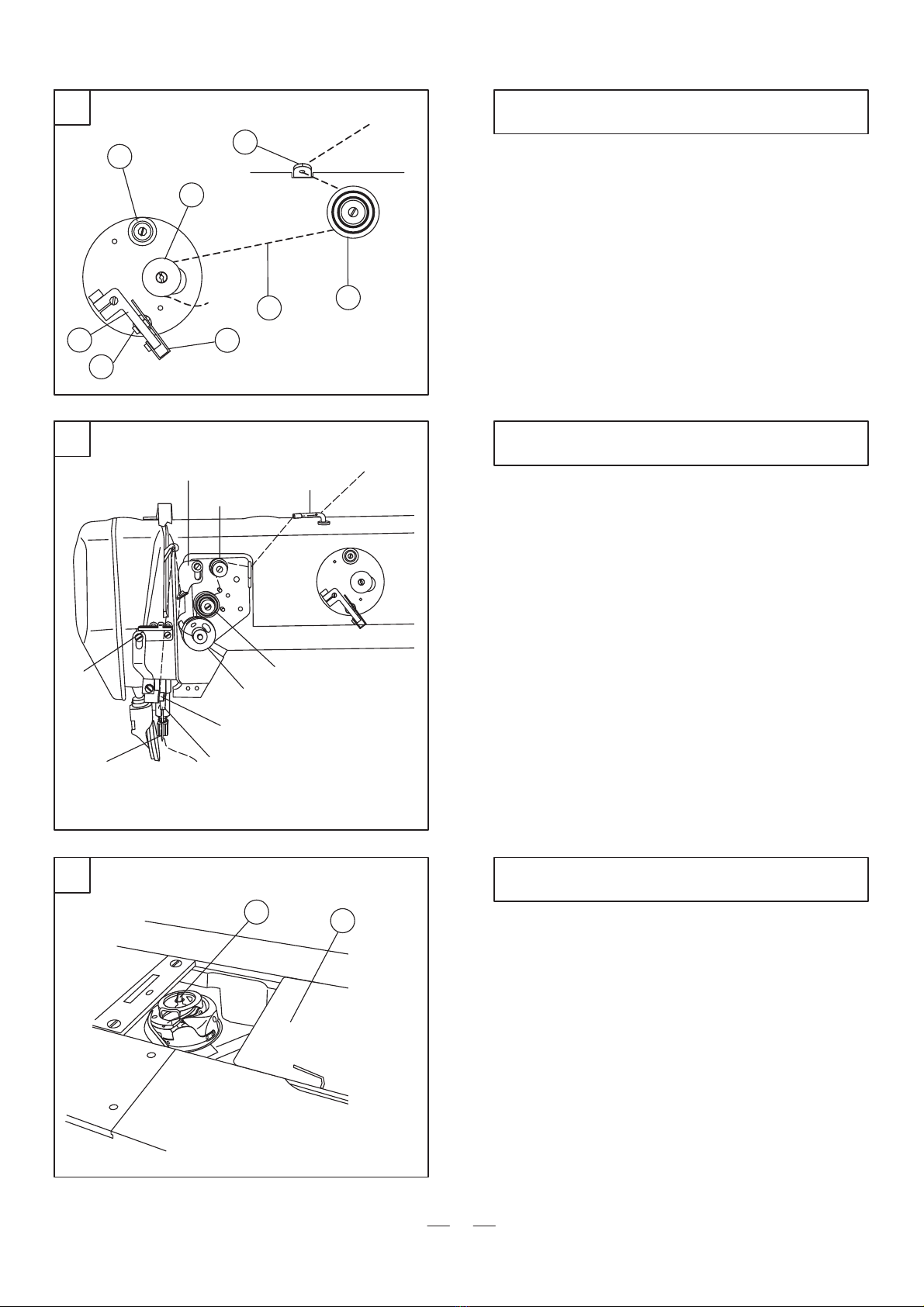

11. Winding the bobbin thread (Fig.8)
12. Threading (Fig.9)
13. Installing the bobbin and the bobbin case(Fig.10)
8
9
10
4
E
DC
B
A
F
G
H
①
②
③
④
⑤
⑥
⑦
⑧
⑨
BA
Install the bobbin B to the winder shaft. Thread A should
pass through the center of the two tension discs E, then
wind the tip of the thread a few turns around the bobbin B.
Open the stop latch thumb lever D vertically so that the
spring plate C is pressing upon the bobbin B. Thus when
sewing, the machine is able to wind automatically. (The
presser foot must be lifted when winding without sewing.)
The bobbin should not be overfilled.The thread capacity is
an optimum 80% of the outside diameter. The thread
capacity can be adjusted by spring tension plate adjusting
screw H.
When the bobbin is full, the bobbin thread could be cut by
trimming blade as shown in the Fig. Wind the bobbin
thread F two turns around the blade G, then pull it with a
sudden force. Thus the trimming is finished.
When threading the needle thread, the needle bar should be
lifted to its highest position. Lift the presser foot, open the
roller foot, and then thread the tip from the spool stand in
the following numerical order.
1. Pass through the two holes of the upper thread guide 1;
2. To left pass through the tension adjusting set plate right
thread guide hole, then ip through between the small
tension plate 2;
3. Down through the separating pin, and pass through
between the tension plate 3;
4. To left pass through the thread control complete 4;
5. Up through the upper thread guide 5, then to left
through the thread take-up lever threading hole;
6. Down through the middle thread guide 6, lower thread
guide 7 and needle bar threading hole 8, then pass
through the needle hole 9 and draw out the thread
approx 100mm from the needle hole.
1. Open the right slide plate A;
2. Open the stop latch thumb lever B;
3. Draw out the bobbin thread 50mm from the bobbin case,
insert the tip of the bobbin thread into the slit of the
bobbin , and then pull the bobbin thread so that the
bobbin will rotate clockwise.
4. Put the bobbin case into the bobbin;
5. Close the stop latch thumb lever B;
6. Hold the needle thread by left hand, and turn the balance
wheel by right hand to put the bobbin thread aside;
7. Close the right slide plate A.

13
D
C
B
A
100mm
100mm
100mm
14. First sewing (Fig.11)
15. Sewing ending(Fig.12)
11
5
12
16. Adjusting the stitch length(Fig.13)
1. Lift the presser foot lever;
2. Close the rooler foot;
3. Lay down the material;
4. Turn the balance wheel to make the needle pass through
thematerialtobesewn;
5. Lower the presser foot lever.
When first sewing, the needle must be drawn out approx
100mm.
1. When the sewing is finished, lift the thread take-up lever
to its highest position;
2. Lift the presser foot lever;
3. Pull out the material slantingly;
4. Cut off the needle thread and the bobbin thread.
When pulling out the material, the needle thread and the
bobbin thread should be left about 100mm for the
convenience of next sewing operation.
Press d wn the stitch length regulating button B slightly by
left forefinger, meanwhile turning the balance wheel A by
right hand until the button pin is imbedded into the groove
of the nether parts.
Keep on pressing the botton B and turning the balance
wheel, when the stitch length required on the regulating
scale ring D aligns with the white mark C on the arm,
release the button. Thus the adjustment is finished.
o

17.Adjusting the tension of bobbin thread and needle
thread(Fig.14)
Normal stitch form should be as shown in Fig.14 A.
When abnormal stitches occur with puckering or thread
breakage,the tension of bobbin thread and needle thread
should be adjusted accordingly.
1.If the stiches are as shown I Fig.14 B,which means
that the tension of the needle thread is too strong or
the tension of the bobbin thread is too weak,turn the
tension regulating thumb nut counter clockwise to
weaken the tension of the needle thread, or tighten the
bobbin case tension regulating screw with small
screwdriver to strengthen the tension of the bobbin
thread.
2.If the tension of the needle thread is too weak or the
tension of the bobbin thread is too strong as shown in
Fig.C,turn the tension regulating thumb nut clockwise
to strengthen the tension of the needle thread,orloosen
the bobbin case regulating screw with small screwdriver
to weaken the tension of the bobbin thread.
18.Adjusting the swing range and the tension of the
thread take-up spring(Fig.15)
14
15
6
Loosen
Tighten
Strengthen
Weaken
Tension of
needle thread
B
A
B
A
C
B
Generally,before delivery,the thread take-up spring should
have been adjusted properly. Therefore, it should be
re-adjusted only when sewing with special material or
special thread.
Loosen the thread take-up spring shaft adjusting nut B,
then turn the thread take-up spring shaft A to adjust its
tension. Turn the thread take-up spring shaft couter
clockwise to strengthen the tension of the thread take-up;
on the contrary,to weaken the tension of the thread take-up.
Tighten the adjusting nut B.
Loosen the position plate screw, turn the thread take-up
position plate counter clockwise to widen the range of the
thread take-up spring;on the contrary,to narrow the range
of the thread take-up spring. After adjustment,tighten the
position plate screw.

19.Adjusting the tension of the roller foot Fig.16（）
20.Removing and installing the rotating hook(Fig.17)
7
17
16
Counter clockwise
Clockwise
①
②
③
C
BA
⑥
⑩
④
⑤
⑦
⑧⑨
A
The tension of the roller foot should be adjusted according
to the thickness of the material. If sewing heavy material,
strengthen the tension of the roller foot by turning the
adjusting screw on the back of the machine head clockwise
as shown in Fig.16; on the contrary, weaken the tension of
the roller foot.
The rotating hook must be adjusted or removed when it is
deformed or damaged.
1.Remove the rotating hook;
a.Turn the balance wheel by hand to lift the needle bar to
its highest position and remove the needle plate C;
b.Open the right slide plate 1, open the stop latch thumb
lever2, then take out the bobbin case 4 and bobbin 3.
c.Remove the thread guide 3;
d.Remove the rotating hook gib screw 6 and gib 7;
e.Turn the hook base and bobbin case base 8 slightly and
take it out;
f.Loosen the set screw 9 and take out the hook body 10.
2.Installing the rotating hook
a.Install the rotating hook in reverse process;
b.When in stalling the needle plate C, put the part A into
the groove B, then tighten the needle plate screw.

21.Position between the rotating hook and the needle
(Fig.18)
22.Adjusting the position of the needle bar(Fig.19)
33.Adjusting the position of the hook point(Fig.20)
18
19
20
8
1.6mm
0.05mm
Hook point
Lowerend of
the needle
B
A
D
CB
A
D
When the hook point is lifted by 1.8mm from its lowest
position, the position of the needle and the rotating hook is
as shown in Fig.18:
1.The upper end of the needle eye is 0.3mm lower than
the hook point 1;
2.The hook point aligns with the point hook groove
directly;
3.The clearance between the hook point and the needle
groove is approx 0-0.05mm.
When the needle bar is 1.8mm lifted from its lowest
position,adjust the position of the needle bar to make the
needle eye 0.3mm lower than the hook point 1.
1.Turn the balance wheel by hand until the needle bar is
1.8mm lifted form its lowest position;
2.Move the needle bar B up ward and downward as
required;
3.After adjustment, tighten the needle bar connecting
screw A.
1.Lay down the machine head;
2.Remove the front retaining plate of the bobbin case
bracket;
3.Loosen the bevel gear two screws B and the two set
screws A and D of the lower shaft;
4.Turn the balance wheel by hand until the needle is
1.8mm lifted from its lowest position;
5.Turn the hook shaft bevel gear C until the hook point
aligns with the center of the needle groove;
6.After adjustment, tighten the lower shaft bevel gear
screw B,and tighten the screw A and D until screw A,B,
and D run in one line;
7.Install the front retaining plate of the bobbin case
bracket.
Upper end of
the needle eye
Up 2.0mm
Needle center
Hook point

24.Adjusting the clearance between the
hook point and the needle (Fig.21)
25.Relationship between the rotating hood
and the hook position stud(Fig.22)
22
21
E
F
C
A
B
D
9
The clearance between the hook point and the needle
should be approx 0.05mm.The clearance has been adjusted
before delivery and it can only be re-adjusted when the
needle is changed.
1.Lay down the machine head;
2.Remove the retaining plate of the bobbin case bracket;
3.Loosen the bevel gear screw B and set screws A and D
of the lower shaft;(Fig.20)
4.Turn the balance wheel by hand until the needle is
1.8mm lifted front its lowest position;
5.Turn the rotating hook until the bobbin aligns with the
center of the needle groove;
6.Loosen the set screw E,move the bobbin case bracket F
leftward and rightward so that the clearance between the
hook point and the needle remains around 0.05mm;
7.After adjustment, tighten the set screw E, gear and set
screw;
8.Install the retaining plate of the bobbin case bracket.
Turn the balance wheel,and make a stop when the thread
take-up lever is lifted to its highest position.Check that
there is a certain amount of clearance C between the
rotating hook holder and the thread guide.In general, the
amount of C should be between 0.1mm and 0.3mm
(according to the thickness of the material).
Adjusting method:
1.Open the right slide plate A;
2.Lay down the machine head;
3.Loosen the eccentric shaft screw B;
4.Rotate the eccentric shaft D to adjust the clearance;
5.After adjustment,tighten the screw B.

1
2
3
4
5
9
10
11
12
36
13
14
15
19
6
7
8
20
1.Arm and bed
10
16
17
18
22
23
24
25
26
27 28
29 30 31
32
33
34
35
21

Name Qt. Remark
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
13WF2-004
13WF2-005
13WF2-006
13WF2-013
13WF2-014
13WF2-007
13WF2-008
72WF2-001
13WF2-012
72WF2-005
22WF2-004
13WF2-065
13WF2-068
13WF1-045
13WF2-011
72WF1-017
72WF2-006
72WF2-007
72WF2-002
13WF2-069
16WF2-053
72WF2-016
72WF5-019
72WF2-010
72WF2-017
72WF2-018
72WF2-010
72WF2019
72WF2-020
72WF2-021
7WF5-007
72WF2-022
13WF2-024
72WF2-003
72WF2-004
72WF2-024
13WF2-004
13WF2-005
13WF2-006
13WF2-013
13WF2-014
13WF2-007
13WF2-008
72WF2-001
13WF2-012
72WF2-005
22WF2-004
13WF2-065
13WF2-068
13WF1-045
13WF2-011
72WF1-017
72WF2-006
72WF2-007
72WF2-002
13WF2-069
16WF2-053
72WF2-016
72WF5-019
72WF2-010
72WF2-017
72WF2-018
72WF2-010
72WF2019
72WF2-020
72WF2-021
7WF5-007
72WF2-022
13WF2-024
72WF2-003
72WF2-004
72WF2-024
φ2.5 5 GB827-86φ2.5 5 GB827-86
1.Arm and bed
11
1
1
1
1
2
1
2
1
1
1
1
1
1
5
1
1
1
4
1
1
1
1
2
2
1
2
2
1
1
1
2
1
1
1
2
1
1
1
1
1
2
1
2
1
1
1
1
1
1
5
1
1
1
4
1
1
1
1
2
2
1
2
2
1
1
1
2
1
1
1
2
1
Part Number
Face plate
Screw(big)
Screw(small)
Rear fitting cover
Screw
Rear cover
Screw
Arm
Screw
Support
Screw(big)
Base holder
Rubber plug
Screw
Safety guard
Screw (small)
Trade mark plate
Trade mark plate(English)
Rivet
Base
Rubber plug
Trade plate
Adjusting plate
Screw
Spacer
Spring
Nut
Spacer
Left slide plate
Right slide plate
Screw
Front slide plate
Screw
Needle plate
Screw
Seal ring
Face plate
Screw(big)
Screw(small)
Rear fitting cover
Screw
Rear cover
Screw
Arm
Screw
Support
Screw(big)
Base holder
Rubber plug
Screw
Safety guard
Screw (small)
Trade mark plate
Trade mark plate(English)
Rivet
Base
Rubber plug
Trade plate
Adjusting plate
Screw
Spacer
Spring
Nut
Spacer
Left slide plate
Right slide plate
Screw
Front slide plate
Screw
Needle plate
Screw
Seal ring
Right slide plate retaining plate

1
2
3
5
6
7
8
9
10 11 12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32 33
34
35
36
37
38
39
40
4
12
2.Thread tension parts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
13WF2-066
13WF2-067
13WF2-016
13WF2-006
13WF2-017
13WF2-023
13WF2-024
13WF2-018
13WF2-022
13WF2-021
13WF2-020
13WF2-019
13WF2-015
13WF2-053
13WF2-047
13WF2-046
13WF2-049
13WF2-050
13WF2-048
13WF2-070
153209
33T4-008C1
13WF2-055
13WF2-054
13WF2-056
36T2-006D4
13WF2-009
22T1-009E3
13WF2-051
13WF2-052
103693
1WF1-026
13WF2-062
1WF1-010J
13WF2-061
13WF2-059
13WF2-063
13WF2-060
13WF2-057
13WF2-066
13WF2-067
13WF2-016
13WF2-006
13WF2-017
13WF2-023
13WF2-024
13WF2-018
13WF2-022
13WF2-021
13WF2-020
13WF2-019
13WF2-015
13WF2-053
13WF2-047
13WF2-046
13WF2-049
13WF2-050
13WF2-048
13WF2-070
153209
33T4-008C1
13WF2-055
13WF2-054
13WF2-056
36T2-006D4
13WF2-009
22T1-009E3
13WF2-051
13WF2-052
103693
1WF1-026
13WF2-062
1WF1-010J
13WF2-061
13WF2-059
13WF2-063
13WF2-060
13WF2-057
5 GB95-85washer5GB95-85washer
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
13
Name Qt. RemarkPart Number
2.Thread tension parts
Thread guide pin
Nut
Middle thread guide
Washer
Screw
Connecting plate
Screw
Connecting screw
Spring
Guide bushing
Spacer
Lower thread guide shaft
Upper thread guide
Position pin
Screw
Set plate
Erecting plate
Screw
Erecting pin
Nut
Stop plate
Spring
Erecting plate
Thread tension plate
Tension releasing pin
Nut
Spring
Thread tension disc
Screw
Nut
Position plate
Screw
Adjusting screw
Thread control complete
Nut
Thread take-up spring
Screw
Screw
Thread guide pin
Nut
Middle thread guide
Washer
Screw
Connecting plate
Screw
Connecting screw
Spring
Guide bushing
Spacer
Lower thread guide shaft
Upper thread guide
Position pin
Screw
Set plate
Erecting plate
Screw
Erecting pin
Nut
Stop plate
Spring
Erecting plate
Thread tension plate
Tension releasing pin
Nut
Spring
Thread tension disc
Screw
Nut
Position plate
Screw
Adjusting screw
Thread control complete
Nut
Thread take-up spring
Screw
Screw
Thread take-up spring shaft

1
23
4
5
67
8910
11 12
14 15
161718
1920
21
22
23
24 25
6
26
27 28
29
33
34
31
13
32
31
32
14
30
3
4
35
36
37 38
39
40
41
42
3.Upper shaft and thread take-up lever parts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
13WF1-030
13WF1-031
13WF1-032
7WF5-048
13WF1-033
13WF1-075
13WF1-035
72WF1-034
13WF1-037
13WF1-039
13WF1-041
13WF1-042
13WF1-040
13WF1-038
13WF1-044
13WF1-018
33T1-006C2
61-04-01/B2
13WF1-045
72WF1-033
13WF6-026
JO.O.40
72WF1-035
13WF1-004
13WF1-048
13WF1-047
13WF1-050
72WF1-036
13WF1-052
13WF1-077
13WF1-078
13WF1-056
13WF1-036
13WF1-030
13WF1-031
13WF1-032
7WF5-048
13WF1-033
13WF1-075
13WF1-035
72WF1-034
13WF1-037
13WF1-039
13WF1-041
13WF1-042
13WF1-040
13WF1-038
13WF1-044
13WF1-018
33T1-006C2
61-04-01/B2
13WF1-045
72WF1-033
13WF6-026
JO.O.40
72WF1-035
13WF1-004
13WF1-048
13WF1-047
13WF1-050
72WF1-036
13WF1-052
13WF1-077
13WF1-078
13WF1-056
13WF1-036
W GB97.1-85
29241/7 7 1 0 8
80024 4 1 3 5
8 894.1-84
80018 8 2 2 7
57941/10 10 14 10
150204 20 47 14
204212
asher
Retainer
W GB97.1-85
29241/7 7108
80024 4135
8894.1-84
80018 8227
57941/10 10 14 10
150204 20 47 14
20 4212
φ1.8
asher
Bronze
Retainer
1
2
2
2
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
3
1
2
2
2
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
2
1
2
2
1
1
1
1
1
1
1
1
1
3
15
3.Upper shaft and thread take-up lever parts
Name Qt. RemarkPart Number
Thread take-up link
Washer
Needle bearing retainer
Thread take-up link needle bearing
Thread take-up pin
Screw
Bushing for thread take-up pin
Screw
Position ring
Thread take-up bearing(small)
Thread take-up crank retainer
Thread take-up bearing(big)
Screw
Thread take-up crank
Needle bar link needle bearing
Needle bar link
Needle bar connector
Screw
Seal ring
Needle bar link retainer
Needle bar crank
Screw
Screw
Screw
Screw
Upper shaft
Upper shaft front bearing complete
Driving wheel
Screw
Synchro pulley
Set screw
Screw
Upper shaft rear bearing complete
Bushing for upper shaft rear bearing
Spacer
Timing belt
Balance wheel
Screw
Set screw
Stitch length regulating scale ring
Thread take-up complete
Rivet

1
23 4 567
8
910 11
12
1314 15
16
17
18
1920
21
22
23
24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
543
14
18
5
4
3
19
818 12
34
35
16
543
42
43
44
45
46
47
45 46
47
4.Needle bar vibrating parts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
13WF3-001
13WF3-002
13WF1-073
13WF1-072
13WF1-009
13WF1-059
13WF3-004
13WF3-007
13WF3-005
13WF3-008
13WF1-045
13WF2-035
72WF3-001
13WF3-009
13WF3-006
13WF1-062
13WF1-063
13WF1-045
13WF1-059
13WF1-009
72WF1-037
13WF1-060
13WF1-069
13WF1-076
13WF1-028
13WF1-029
13WF1-061
13WF1-066
13WF1-067
13WF1-064
13WF1-068
13WF1-043
13WF1-065
13F1-001
13WF1-048
72WF1-038
72WF1-039
13WF2-008
13WF3-001
13WF3-002
13WF1-073
13WF1-072
13WF1-009
13WF1-059
13WF3-004
13WF3-007
13WF3-005
13WF3-008
13WF1-045
13WF2-035
72WF3-001
13WF3-009
13WF3-006
13WF1-062
13WF1-063
13WF1-045
13WF1-059
13WF1-009
72WF1-037
13WF1-060
13WF1-069
13WF1-076
13WF1-028
13WF1-029
13WF1-061
13WF1-066
13WF1-067
13WF1-064
13WF1-068
13WF1-043
13WF1-065
13F1-001
13WF1-048
72WF1-038
72WF1-039
13WF2-008
Retainer GB89.1-86-24Retainer GB89.1-86-24
9241/24 24 28 109241/24 24 28 10
39241/8 8 11 1039241/8 8 11 10
Pin2.5 12 GB117-86Pin2.5 12 GB117-86
Pin3 15 GB117-86Pin3 15 GB117-86
Single needleDP 5 14#Single needleDP 5 14#
φ4 360mmLengthφ4 360mmLength
φ6 450mmLengthφ6 450mmLength
GB848-85-4
1
1
8
4
4
1
1
2
1
1
1
2
1
2
1
1
1
3
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
3
2
1
1
1
2
1
1
1
1
1
2
2
2
1
1
8
4
4
1
1
2
1
1
1
2
1
2
1
1
1
3
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
3
2
1
1
1
2
1
1
1
1
1
2
2
2
17
Upper feed shaft
Spacer
Needle bearing retainer
Upper feed shaft bearing
Needle bearing bushing
Screw
Collar
Connector
Needle vibrating link
Retainer
Bearing
Connecting pin
Needle vibrating cam
Set screw
Rubber plug
Connecting shaft
Spacer
Bearing
Pin
Connecting pin
Needle vibrating crank
Screw(big)
Screw
Collar
Screw
Needle bar vibrating shaft
Pin
Oil felt
Rubber plug
Needle bar
Screw
Felt
Set bracket
Screw
Slide block groove
Felt
Slide block
Screw
Needle
Screw
Oil wick
Oil nozzle
Oil wick
Clamp
Screw
Washer
Upper feed shaft
Spacer
Needle bearing retainer
Upper feed shaft bearing
Needle bearing bushing
Screw
Collar
Connector
Needle vibrating link
Retainer
Bearing
Connecting pin
Needle vibrating cam
Set screw
Rubber plug
Connecting shaft
Spacer
Bearing
Pin
Connecting pin
Needle vibrating crank
Screw(big)
Screw
Collar
Screw
Needle bar vibrating shaft
Pin
Oil felt
Rubber plug
Needle bar
Screw
Felt
Set bracket
Screw
Slide block groove
Felt
Slide block
Screw
Needle
Screw
Oil wick
Oil nozzle
Oil wick
Clamp
Screw
Washer
Name Qt. RemarkPart Number
4.Needle bar vibrating parts
Needle bar vibrating bracket
