Compound Feed / Binding Sewing MachineCompound Feed
OPERATION INSTRUCTION / PARTS MANUAL
TW1-1245/1245V
Long Arm Compound Feed Lockstitch Sewing Machine
TW1-1245HL14/1245HL30

ADD: WANPING TOWN, WUJIANG CITY, JIANGSU
PROVINCE, CHINA
TEL: [phone]
FAX: [phone]
POST. CODE: 215223
Http://www.typicalwpchina.com
E-mail:[email protected]
TYPICAL SEWING MACHINE WANPING MACHINERY CO.,LTD.
Please don't adjust and repair the machine by non-professionals,except adjusting stitch.
Specifications subject to change without notice

CONTENTS
1. Brief intuoduction 1
2. Main technical specifications 1
3. Feed adjustment/reverse stitching 1
4. Adjusting upper feed stroke 1
5. Winding bobbin thread 2
6. Adjusting the bobbin thread tension 2
7. Threading the needle thread/adjusting the tension of needle thread 2
8. Maintenance 3
9. Oiling 3
10. Lubricating the hook 4
11. Lubricating the machine head 4
12. Lubricating upper feed driving eccentric 4
13. Adjusting the feed dog 5
14. Pre-adjusting the needle height 6
15. Centering the needle in the needle hole 6
16. Adjusting the bottom feed dog position 6

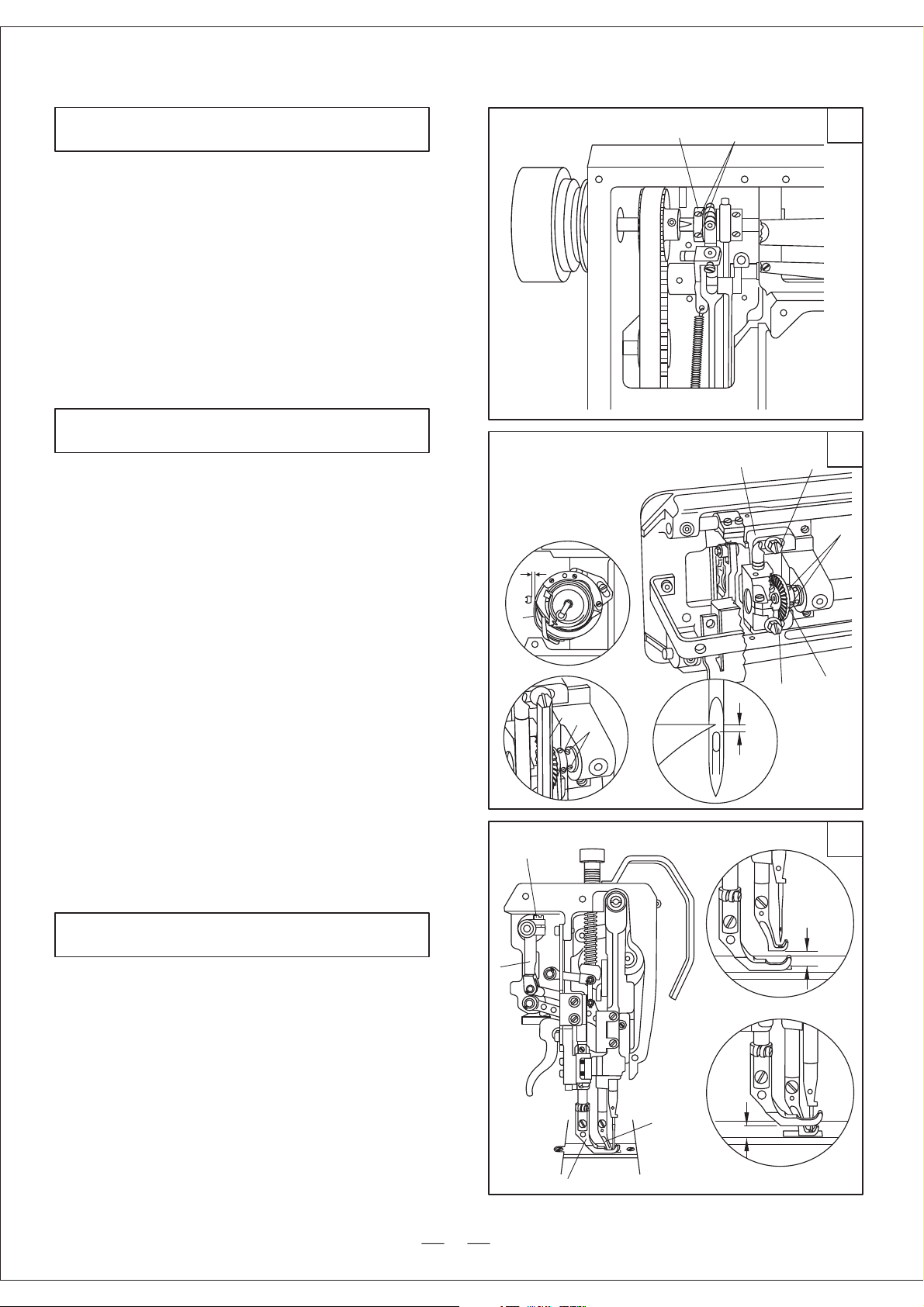

17. Lower feed adjustment 7
18. Position of needle and rotating hook 7
19. Adjusting the lifting amount of alternating presser foot. 7
20. Top feed adjustment 8
21. Adjusting the bobbin case opener 8
22. Safety clutch 8
23. Needle thread tension release 9
24. Bobbin thread winder 9
13. Automatic presser foot lifter components 36-37
4 Binder Components
15. 40 41
………………………………………………………………………
…………………………………………………………
……………………………………………………
……………………………………………………………
…………………………………………………………………
……………………………………………………
…………………
………………………………………………………………………………
……………………………………………………………………………………
……………………………………………………………………
…………………………………………………………
………………………………………………
…………………………………………………………………
……………………………………………………
……………………………………………
………………………………………………
…………………………………………………………………
…………………………………………………
……………………………
……………………………………………………………………
……………………………………………………
……………………………………………………………………………
………………………………………………………
…………………………………………………………………
1.Machine casting components………………………………………………………10-11
2.Needle and presser foot components……………………………………………12-15
3.Presser foot lifting components……………………………………………………16-17
4.Thread take-up and thread tension components…………………………………18-19
5.Feed adjustment components………………………………………………………20-21
6.Upper shaft and rocking shaft components…………………………………………22-23
7.Timing belt components………………………………………………………………24-25
8.Rotating hook saddle components……………………………………………………26-27
9.Needle plate and hook components………………………………………………28-29
10.Lower feed components……………………………………………………………30-31
11.Lower shaft components……………………………………………………………32-33
12. Knee lifter components………………………………………………………………34-35
………………………………………
1 . …………………………………………………………………38-39
Accessories………………………………………………………………………… -
Operation instruction
Parts manual

OPERATION INSTRUCTION

1
2
R
1
1
2
1
2. Main technical specifications2. Main technical specifications
1. Brief introduct oni1. Brief introduct oni
This machine adopts compound feed mechanism with
synchronous top, bottom and needle feed and the
max amount of alternating presser foot lifter reaches
7 mm, which guarantees the high sewing quality of
different materials. Besides, it adopts the large
auto-lubricating horizontal rotating hook, 4-link
thread take-up lever and timing belt, which assures
its lower noise and high speed.
This machine is widely used in manufacturing
suitcase, tents, cushions, lenther products, clothes
bamboo matting, etc.
This machine adopts compound feed mechanism with
synchronous top, bottom and needle feed and the
max amount of alternating presser foot lifter reaches
7mm, which guarantees the high sewing quality of
different materials. Besides, it adopts the large
auto-lubricating horizontal rotating hook, 4-link
thread take-up lever and timing belt, which assures
its lower noise and high speed.
This machine is widely used in manufacturing
suitcase, tents, cushions, lenther products, clothes
bamboo matting, etc.
2000s.p.m
TW1-1245 TW1-1245V TW1-1245HL14 TW1-1245HL30TW1-1245 TW1-1245V TW1-1245HL14 TW1-1245HL30
8mm
36mm
DP 35 Nm110 150～DP 35 Nm110 150～
370W
Max. Sewing speedMax. Sewing speed
Model
Needle bar strokeNeedle bar stroke
Max. Stitch lengthMax. Stitch length
Needle
Foot liftingFoot lifting
Motor powerMotor power
Lubrication
By hand(partly)By hand(partly)
3. Feed adjustment/reverse stitching(Fig.1)3. Feed adjustment/reverse stitching(Fig.1)
1. Adjusting the stitch length by turning Nut 1;
2. When backward stitching, push Nut 1to Mark R
as much as possible.
1. Adjusting the stitch length by turning Nut 1;
2. When backward stitching, push Nut 1to Mark R
as much as possible.
4. Adjusting upper feed stroke(Fig.2)4. Adjusting upper feed stroke(Fig.2)
Open the rear cover 1; loosen the screw2, and as
required, move it up and down.
Open the rear cover 1; loosen the screw2, and as
required, move it up and down.
1800s.p.m 1500s.p.m
By hand/kneeBy hand/knee By hand/solenoidBy hand/solenoid
550W
