U-Line SS1095 Configuration guide

FEATURES
8900 NORTH 55TH STREET MILWAUKEE, WISCONSIN 53223 414.354.0300 FAX 414.354.7905 U-LINE.COM
SS1095
mARinE / RF
• High output daily ice rate of up to 23 lbs and storage of up to 12 lbs of
crescent ice (1/2" W x 3/4" H x 2-1/2" L)
• Conserves energy by using less electricity than a 75-watt light bulb
• Conserves water by using 2-3/4 gallons of water to produce approximately
23 lbs of ice
• No drain required makes it easy and inexpensive to install and requires only a
1/4" outside diameter water line
• Manual defrost maximizes ice making potential
• 220 volt model available with a 4 – 6 week order lead time
• Full stainless steel cabinet helps withstand tough marine environments
• Corrosion resistant marine grade hardware provide better product longevity in
harsh environments
• Aluminum framed door with stainless steel panel and durable stainless handle
weathers outdoor elements
• Travel latch included for optimized, hygienic and safe at-sea travel and storage and
for single-handed operation
• Fieldreversibledoorwithzeroclearancedoorswingsimpliesinstallation
• Multipleangeoptionsincludenoange,1/2"angeushtocabinetand1/2"ange
ushtodoorallowforoptimizedinstallationexibility
• No additional clearance around sides, top or rear of unit is needed for ventilation
• Sleek and contemporary look provides a very clean, high-end aesthetic
• Donotobstructfrontgrilleairow
• For proper installation and cut-out dimensions, see backside for details
SS1095
SS1095NFSS1095FD
SS1095FC
inTEGRATiOn inTERiOR / ExTERiOR PERFORmAnCE
DIMENSIONS AND SPECIFICATIONS
Please visit www.u-line.com for installation guide.
All specifications are subject to change without notice.
OVERALL DIMENSIONS
8900 NORTH 55TH STREET MILWAUKEE, WISCONSIN 53223 414.354.0300 FAX 414.354.7905 U-LINE.COM
SS1095
MARINE / RF
*Add 1-1/2" For Water Line Clearance
24-3/4”"
13-15/16" 17" *
9"
Height 24-3/4" (62.8)
Width 13-15/16" (35.5)
Depth 17" (43.2)
Shipping weight:
Black and white models 67 lbs (30.4 kg)
Running amps 2.5
Maximum start-up amps 18.0
Amps pertain to voltage rating 110/115 volt, 60 Hz
Approximate daily ice production Up to 23 lbs
Ice storage Up to 12 lbs
Optional in 220/230 voltage, 50/60 Hz
On the 220/230 volt models, amps are decreased
by approximately 50 percent.
SS1095 NF Model
* Add 1-1/2" for water line clearance
SS1095
Stainless 110V ULN-SS1095NF-03
Stainless 220V ULN-SS1095NF-20
Stainless 110V ULN-SS1095FC-03
Stainless 220V ULN-SS1095FC-20
Stainless 110V ULN-SS1095FD-03
Stainless 220V ULN-SS1095FD-20
Cut-Out
Height
25"
Filler Panel (Not Provided by U-Line) –
Needed to Attach Mounting Flange on Unit
18-1/2" Minimum
14-3/16"
Cut Out Width
3/4"
Minimum Flange
Mounting Area
3/4"
Minimum Flange
Mounting Area
W
E
1-15/16” 3-1/2” 1-1/4”
1-9/16”
Legend: E - Electrical W - Water

Other manuals for SS1095

3

This manual suits for next models

3

Other U-Line Refrigerator manuals

U-Line U-1024WCS-00B Installation manual

U-Line

U-Line U-1024WCS-00B Installation manual

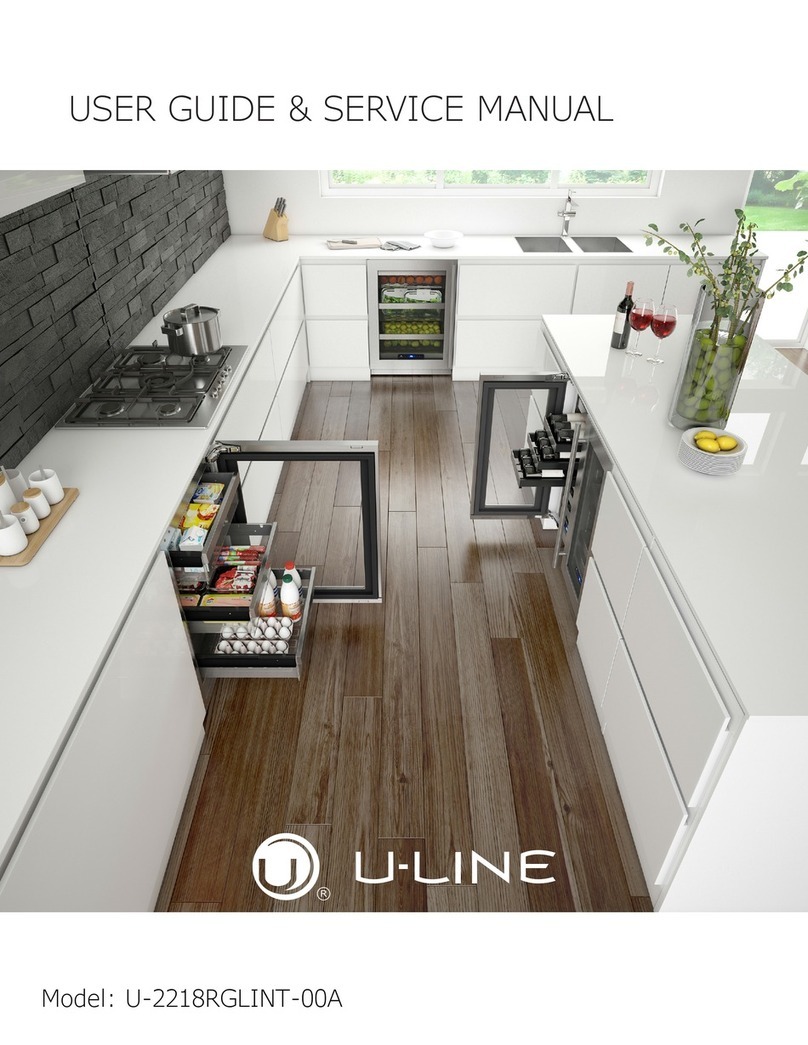

U-Line U-2218RGLINT-00A User manual

U-Line

U-Line U-2218RGLINT-00A User manual

U-Line 3000 SERIES Installation manual

U-Line

U-Line 3000 SERIES Installation manual

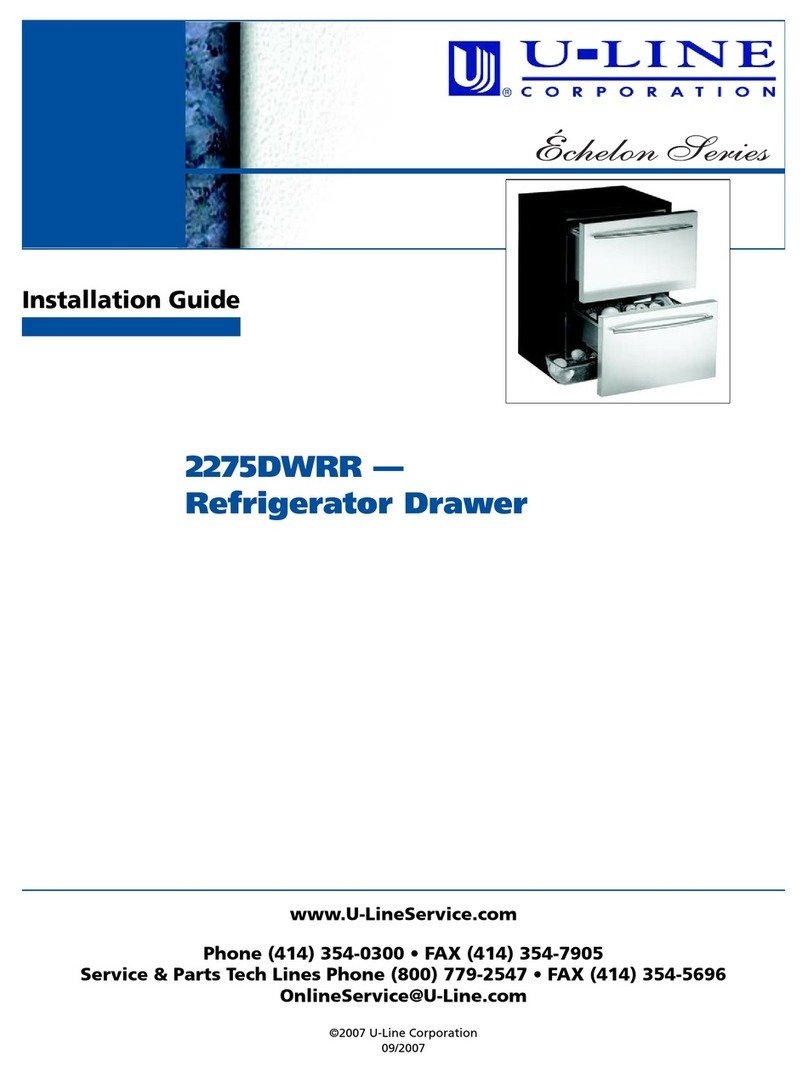

U-Line Echelon 2275DWRR User manual

U-Line

U-Line Echelon 2275DWRR User manual

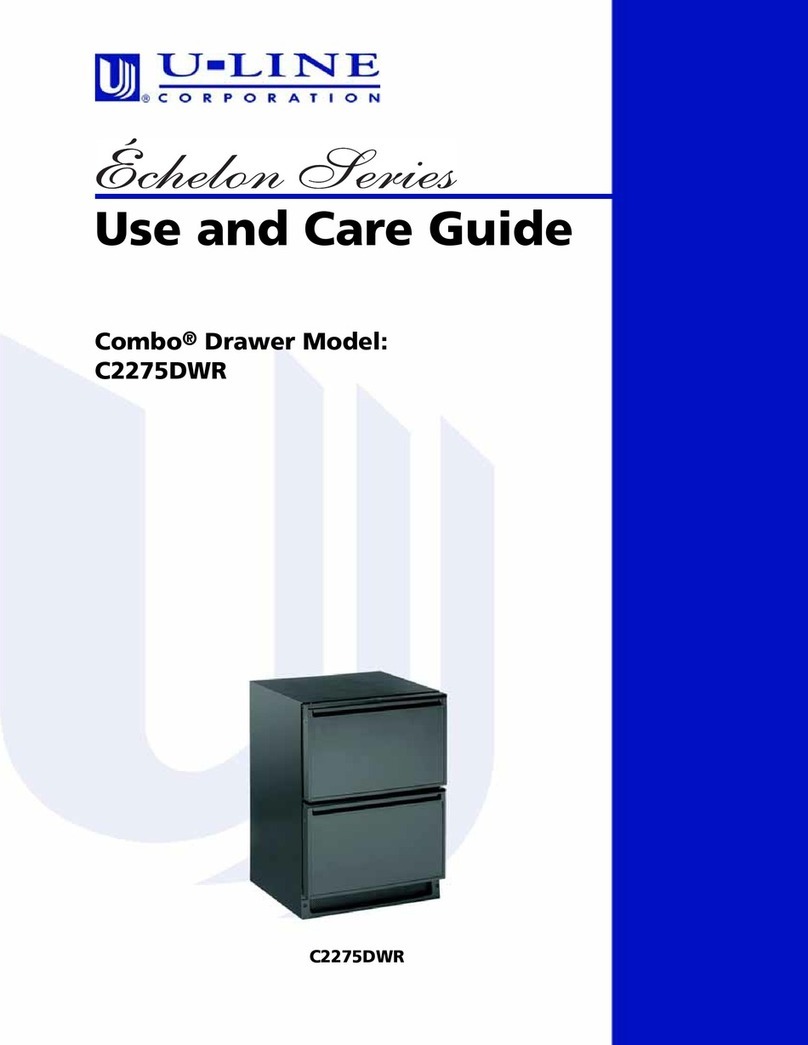

U-Line Echelon Combo C2275DWR User manual

U-Line

U-Line Echelon Combo C2275DWR User manual

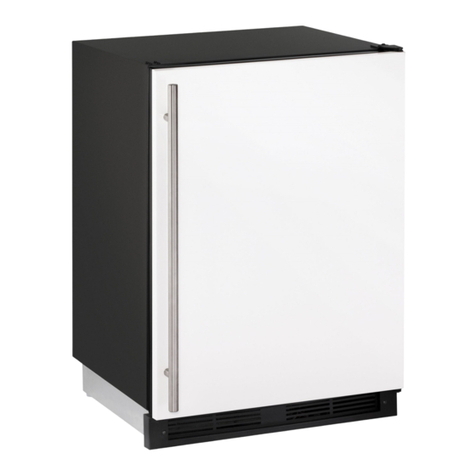

U-Line 1000 SERIES Installation manual

U-Line

U-Line 1000 SERIES Installation manual

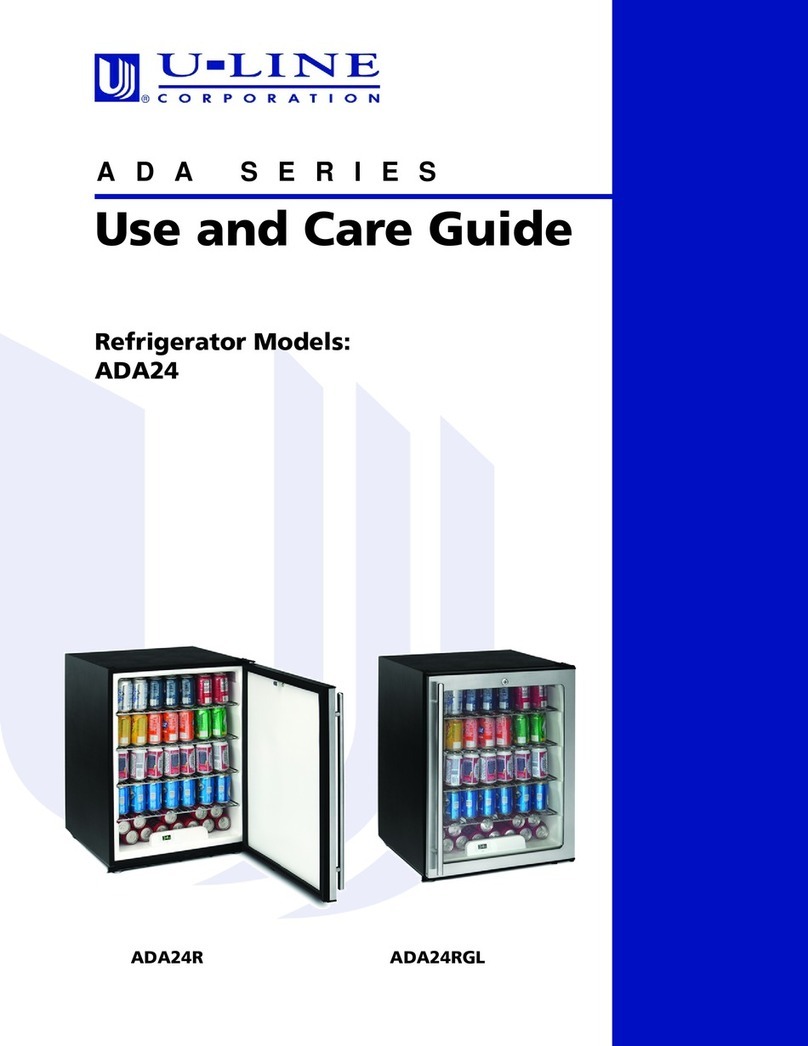

U-Line ADA24R User manual

U-Line

U-Line ADA24R User manual

U-Line Echelon CLRCO2175S41 Manual

U-Line

U-Line Echelon CLRCO2175S41 Manual

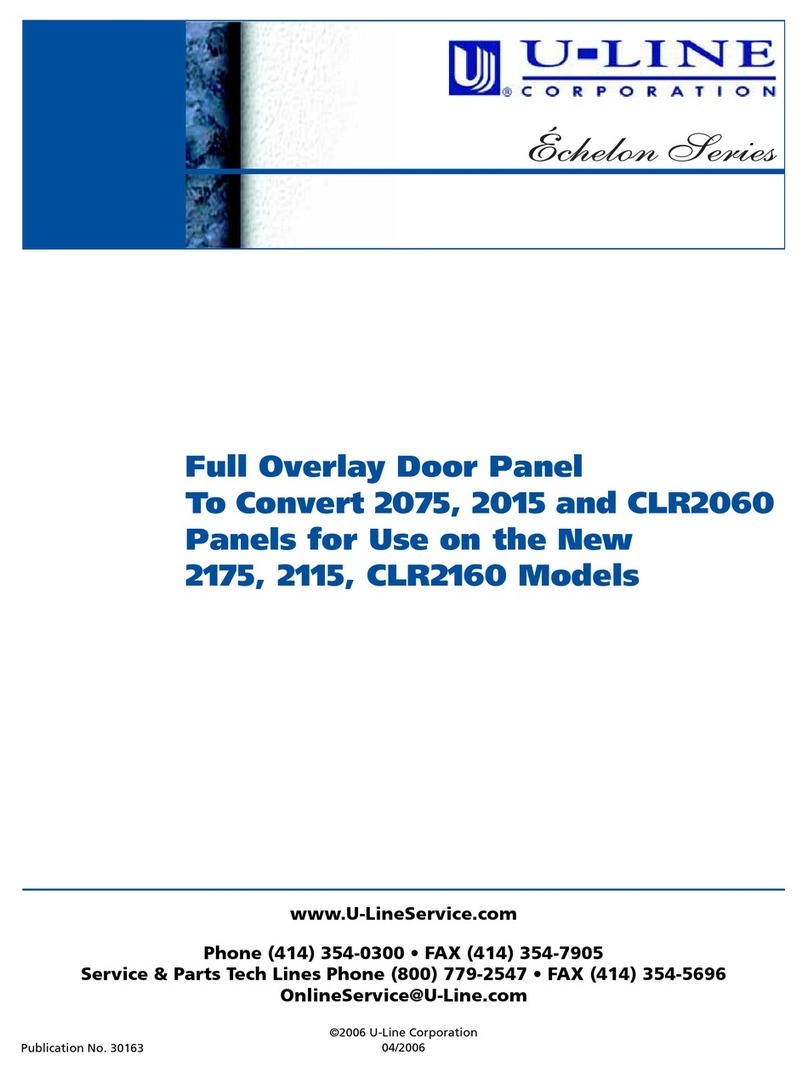

U-Line Echelon CO2075FF Manual

U-Line

U-Line Echelon CO2075FF Manual

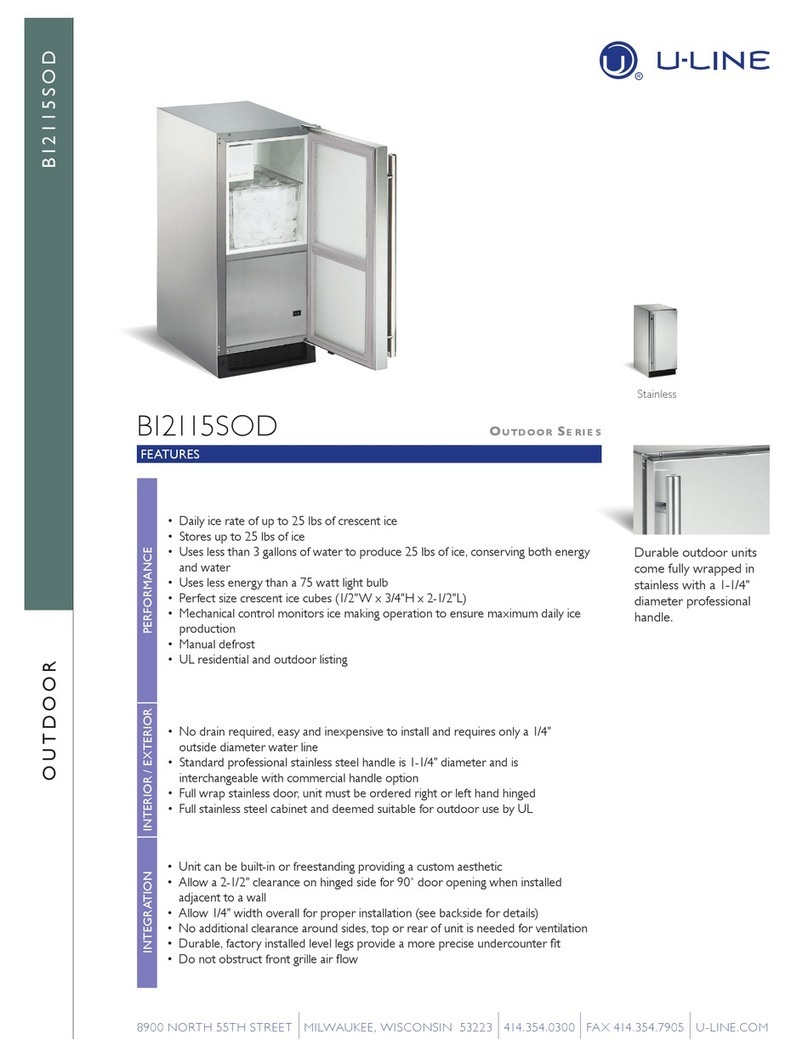

U-Line BI2115SOD Configuration guide

U-Line

U-Line BI2115SOD Configuration guide

U-Line 2175BEVOL User manual

U-Line

U-Line 2175BEVOL User manual

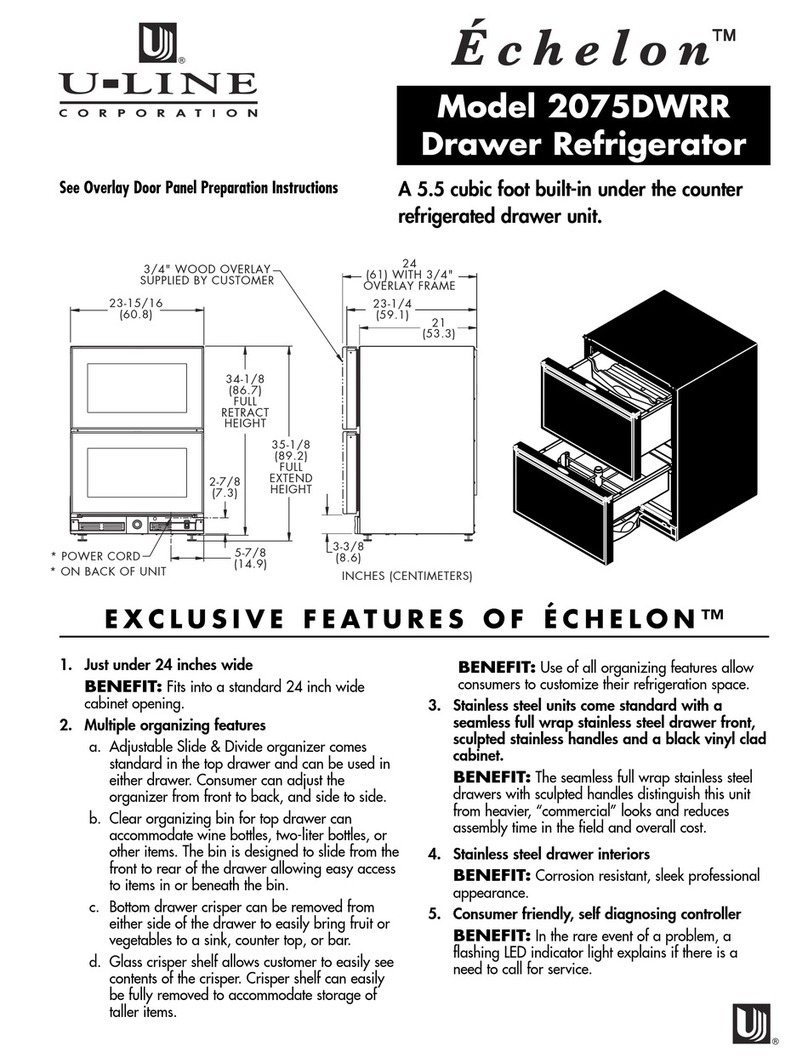

U-Line Echelon 2075DWRRSS User manual

U-Line

U-Line Echelon 2075DWRRSS User manual

U-Line U-1215RINT-00B Installation manual

U-Line

U-Line U-1215RINT-00B Installation manual

U-Line UHRE518IS01A Installation manual

U-Line

U-Line UHRE518IS01A Installation manual

U-Line UHBV124-SG01A Installation manual

U-Line

U-Line UHBV124-SG01A Installation manual

U-Line 3000 SERIES Installation manual

U-Line

U-Line 3000 SERIES Installation manual

U-Line U-2224RGLS-00A Installation manual

U-Line

U-Line U-2224RGLS-00A Installation manual

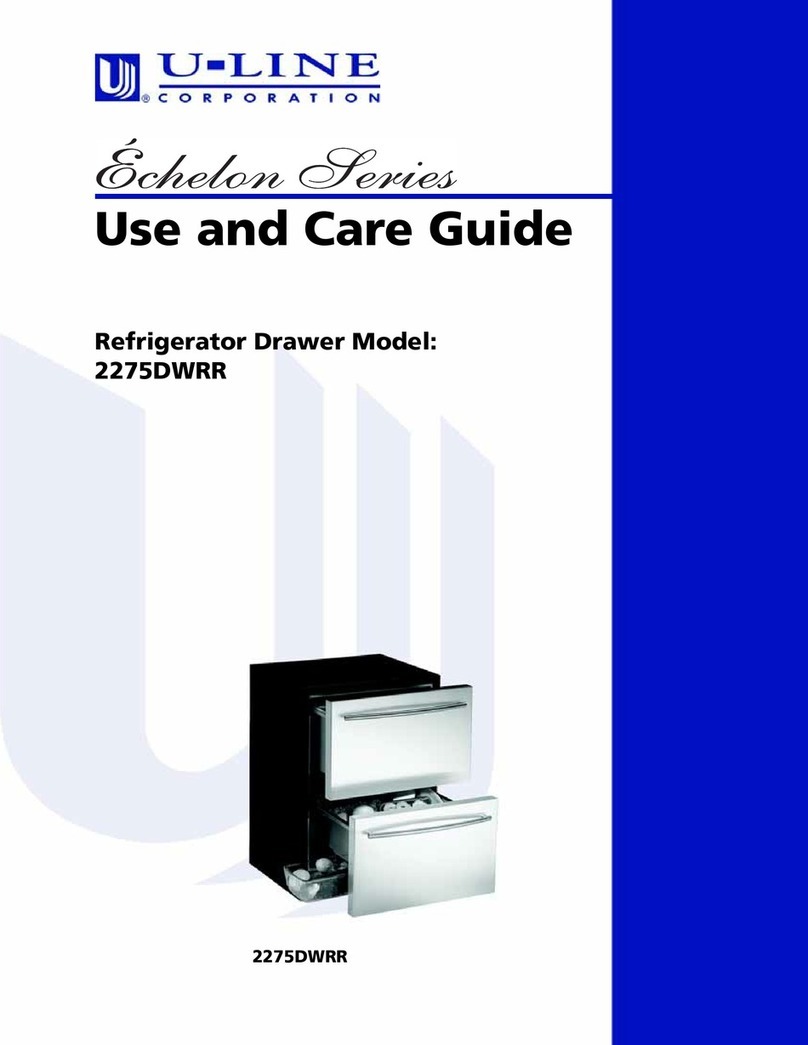

U-Line Echelon 2275DWRROL User manual

U-Line

U-Line Echelon 2275DWRROL User manual

U-Line CO2175F User manual

U-Line

U-Line CO2175F User manual

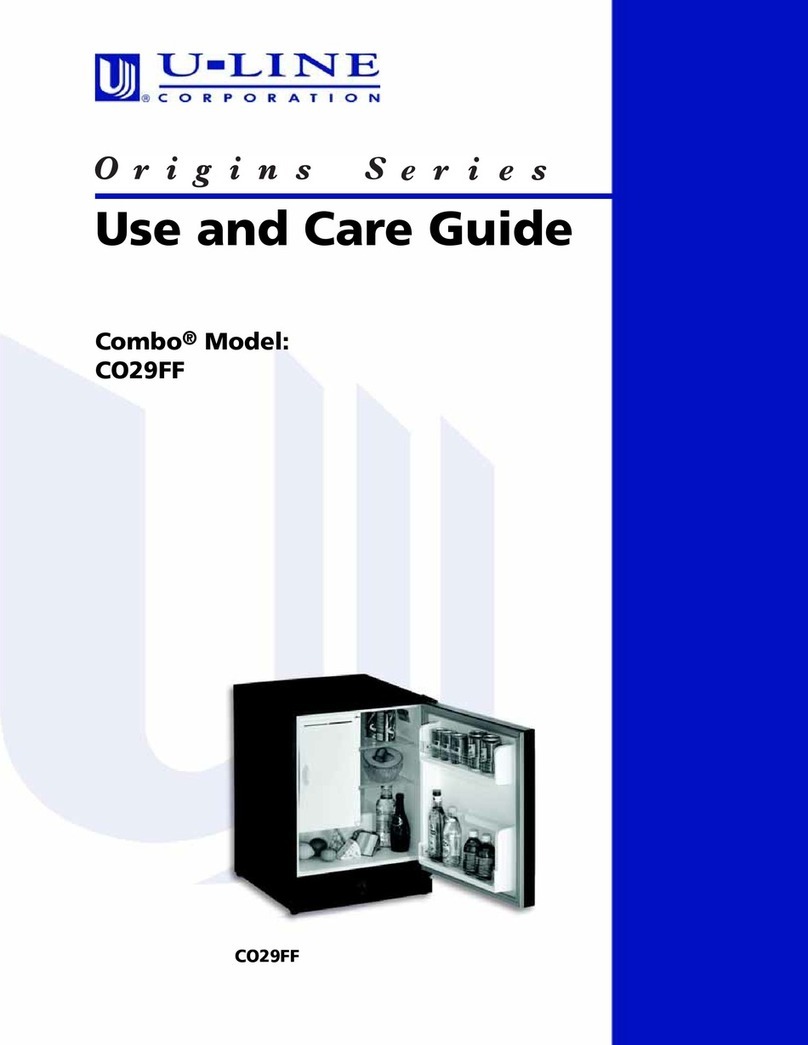

U-Line Origins CO29FF User manual

U-Line

U-Line Origins CO29FF User manual

U-Line UARI121WS01A User manual

U-Line

U-Line UARI121WS01A User manual

U-Line CLRCO2075 User manual

U-Line

U-Line CLRCO2075 User manual

U-Line UHRE524-SG81A Installation manual

U-Line

U-Line UHRE524-SG81A Installation manual

U-Line 2175R User manual

U-Line

U-Line 2175R User manual

Popular Refrigerator manuals by other brands

Panasonic INVERTER NR-BX471W operating instructions

Panasonic

Panasonic INVERTER NR-BX471W operating instructions

LG SXS Refrigerator user guide

LG

LG SXS Refrigerator user guide

NEFF K49..X Series Operating and installation instructions

NEFF

NEFF K49..X Series Operating and installation instructions

GE Profile PSC25PSSSS Dimensions and installation information

GE

GE Profile PSC25PSSSS Dimensions and installation information

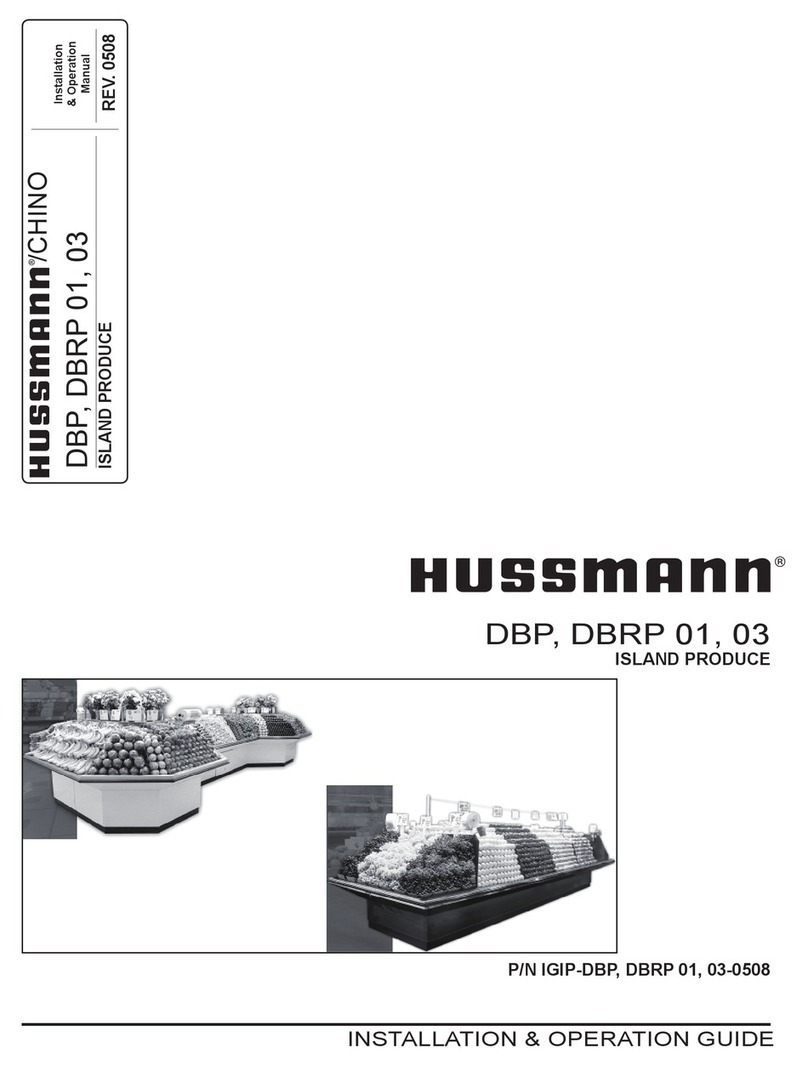

Hussmann DBP-01 Installation and operation guide

Hussmann

Hussmann DBP-01 Installation and operation guide

Electrolux SB330NIMS user manual

Electrolux

Electrolux SB330NIMS user manual

IKEA FROSTIG manual

IKEA

IKEA FROSTIG manual

Sharp SJ-WM322T Operation manual

Sharp

Sharp SJ-WM322T Operation manual

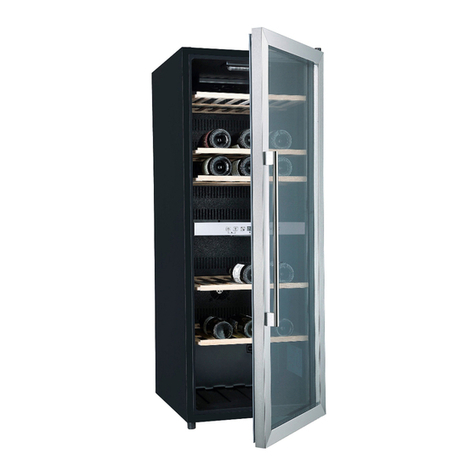

Hanseatic HWC77GCIA user manual

Hanseatic

Hanseatic HWC77GCIA user manual

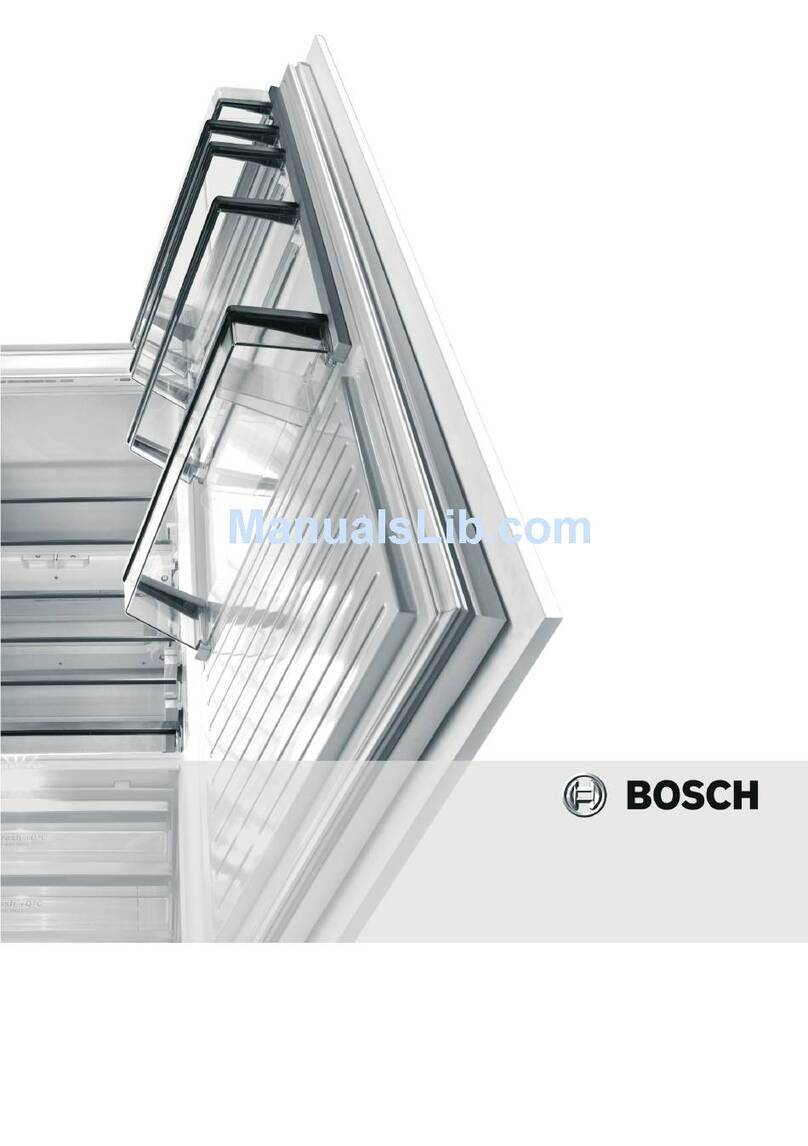

Bosch KGV39VW31G Instructions for use

Bosch

Bosch KGV39VW31G Instructions for use

Westpoint Westpoint WNK 340.G instruction manual

Westpoint

Westpoint Westpoint WNK 340.G instruction manual

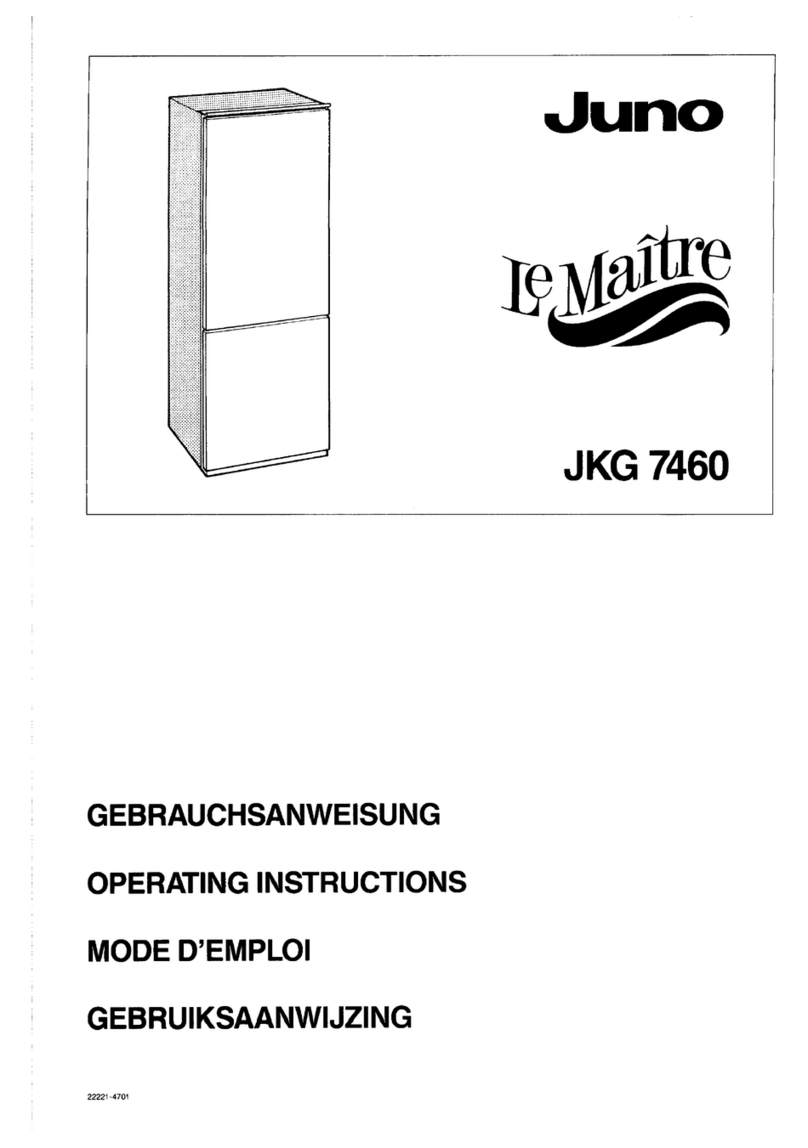

JUNO Le Maitre JKG7460 operating instructions

JUNO

JUNO Le Maitre JKG7460 operating instructions

Panasonic NR-BE647ASAE operating instructions

Panasonic

Panasonic NR-BE647ASAE operating instructions

Dometic RM 4203 manual

Dometic

Dometic RM 4203 manual

Maytag MFI2269VEQ3 User instructions

Maytag

Maytag MFI2269VEQ3 User instructions

Hoshizaki HRFW-77MS4 Service manual

Hoshizaki

Hoshizaki HRFW-77MS4 Service manual

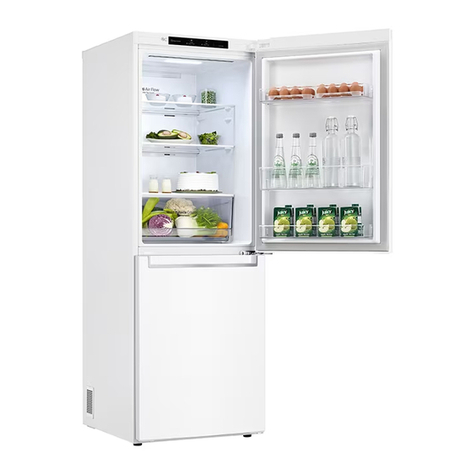

LG LRDNC1004 Series owner's manual

LG

LG LRDNC1004 Series owner's manual

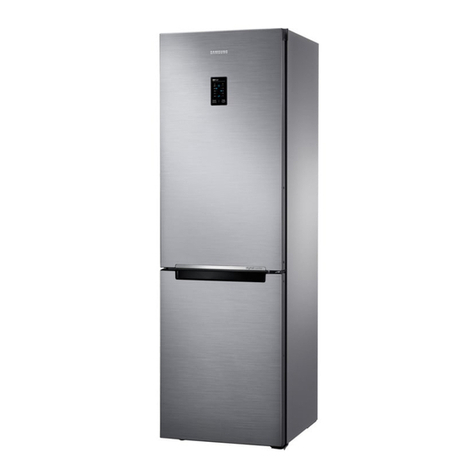

Samsung Refrigerator owner's manual
