U-Media WST-375L User manual

U-MEDIA Communications, Inc.
ProprietaryandConfidential 1
2.4GHz Wireless 802.11n Bridge
Model: WST-375L
User’s Guide
Version Date Description
01 11/07/2008 Draft rev. 01

U-MEDIA Communications, Inc.
ProprietaryandConfidential 2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
 Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination. The

U-MEDIA Communications, Inc.
ProprietaryandConfidential 3
firmware setting is not accessible by the end user.
Country Code Statement
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection
of other channels is not possible.
European Union Notice:
Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC), the EMC
Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission
of the European Community.
Compliance with these directives implies conformity to the following European Norms:
 EN 60950 Product Safety
 EN 300 328 Technical requirement for radio equipment
 EN 301 489-1/-17 General EMC requirements for radio equipment
Trademark recognition
All product names used in this manual are the properties of their respective owners and are
acknowledged.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 4
Table of Contents
Table of Contents...................................................................................................................................... 4
1.Getting Started with the WST-375L................................................................................................... 6
1.1. Package Contents............................................................................................................ 6
1.2. Minimum System Requirements.................................................................................... 6
2.Introduction........................................................................................................................................... 7
2.1. Features............................................................................................................................. 7
3.Hardware Overview.............................................................................................................................. 8
3.1. LED Indications................................................................................................................. 8
3.2. Rear Panel......................................................................................................................... 9
3.3 Top View ............................................................................................................................ 9
3.4 Bottom View...................................................................................................................... 9
3.3 Installation Considerations............................................................................................ 10
3.4 Getting Start .................................................................................................................... 11
4.Using the Configuration Menu.......................................................................................................... 12
4.1. Network............................................................................................................................ 13
4.1.1 LAN Setting................................................................................................. 13
4.2 Wireless........................................................................................................................... 14
4.3.1 Profile.......................................................................................................... 14
4.3.2 Site Survey.................................................................................................. 15
4.3.3 Statistics...................................................................................................... 16
4.3.4 Advance...................................................................................................... 17
4.3.5 QoS............................................................................................................. 18
4.3.6 WPS............................................................................................................ 19
4.3 Administrator................................................................................................................... 20
4.3.1 Management............................................................................................... 20
4.3.2 Upload Firmware......................................................................................... 21
4.3.3 Setting Management................................................................................... 22
4.3.4 Status.......................................................................................................... 24
5.Glossary................................................................................................................................................ 25
A........................................................................................................................................................... 25
B........................................................................................................................................................... 26

U-MEDIA Communications, Inc.
ProprietaryandConfidential 5
C........................................................................................................................................................... 26
D........................................................................................................................................................... 27
E............................................................................................................................................................ 28
F............................................................................................................................................................ 28
G........................................................................................................................................................... 29
H........................................................................................................................................................... 30
I............................................................................................................................................................. 30
J............................................................................................................................................................ 32
K........................................................................................................................................................... 32
L............................................................................................................................................................ 32
M........................................................................................................................................................... 33
N........................................................................................................................................................... 33
O........................................................................................................................................................... 34
P............................................................................................................................................................ 35
Q........................................................................................................................................................... 36
R........................................................................................................................................................... 36
S............................................................................................................................................................ 37
T............................................................................................................................................................ 38
U........................................................................................................................................................... 39
V............................................................................................................................................................ 39
W.......................................................................................................................................................... 40
X............................................................................................................................................................ 41
Y............................................................................................................................................................ 41
Z............................................................................................................................................................ 41
#............................................................................................................................................................ 41
1............................................................................................................................................................ 41

U-MEDIA Communications, Inc.
ProprietaryandConfidential 6
1. Getting Started with the WST-375L
Congratulations on purchasing the WST-375L! This manual provides information for setting up
and configuring the WST-375L. This manual is intended for both home users and professionals.
1.1. Package Contents
 WST-375L 2.4GHz Wireless 802.11n(DRAFT) Bridge
 CD-ROM (User’s Guide)
 Multi-Language Quick Installation Guide
 CAT-5 Ethernet Cable
 Power Adapter (12V, 0.5A)
Using a power supply with a different voltage than the one included with your
product will cause damage and void the warranty for this product.
1.2. Minimum System Requirements
Installation Requirements
 Web Browser: Internet Explorer (6 or higher) Mozilla or Safari.
 A computer with a network adapter or wireless adapter properly installed.
 CD-ROM drive
 A router with an available network LAN port.
 A RJ-45 network cable.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 7
2. Introduction
The WST-375L 2.4GHz Wireless 802.11n(DRAFT) Bridge is an high-performance, supports
high-speed wireless networking at home, at work or in public places.
Unlike most routers, the WST-375L provides data transfers at up to 300Mbps in 11n receiving
mode. This bridge is also back compatible with 802.11g or 11b devices. This means that you do
not need to change your entire network to maintain connectivity. You may sacrifice some of
11n’s speed when you mix 11n and 11b/g devices, but you will not lose the ability to
communicate when you incorporate the 11n standard into your 11b/g network. You may choose
to slowly change your network by gradually replacing the 11b/g devices with 11n devices.
2.1. Features
 Compact form factor design
 Affordable 11n product for easily migrating current 11b/g network to 11n network with
higher data rate benefit
 Supports IEEE 802.11n (draft 2.0) & 11b/g 2.4GHz wireless Local Area Network (WLAN)
application
 2.412~2.472GHz frequency band operation
 Compliant with IEEE 802.3 & 3u standards
 Support OFDM and CCK modulation
 Delivers data rate up to 300 Mbps in 11n receiving mode.
 Support one LAN port
 Support WEP & WPA security
 Support two printed antennas

U-MEDIA Communications, Inc.
ProprietaryandConfidential 8
3. Hardware Overview
3.1. LED Indications

U-MEDIA Communications, Inc.
ProprietaryandConfidential 9
3.2. Rear Panel
3.3 Top View
3.4 Bottom View

U-MEDIA Communications, Inc.
ProprietaryandConfidential 10
3.3 Installation Considerations
The TEW-638APB AP lets you access your network, using a wireless connection, from
virtually anywhere within its operating range. Keep in mind, however, that the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the WST-375L and other network
devices to a minimum - each wall or ceiling can reduce your wireless product’s range
from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or
ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5
meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a
2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the
signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building Materials can impede the wireless signal - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless devices and
computers with wireless adapters so that the signal passes through drywall or open
doorways and not other materials.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or
appliances that generate extreme RF noise.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 11
3.4 Getting Start
1 You will need broadband Internet access (a Cable or DSL-subscriber line into your home or
office)
2 Consult with your Cable or DSL provider for proper installation of the modem.
3 Connect the Cable or DSL modem to the WRT-390L Wireless Broadband Router (WAN
port).
4 Ethernet LAN ports of the WRT-390L are Auto MDI/MDIX and will work with both
Straight-Through and Cross-Over cable.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 12

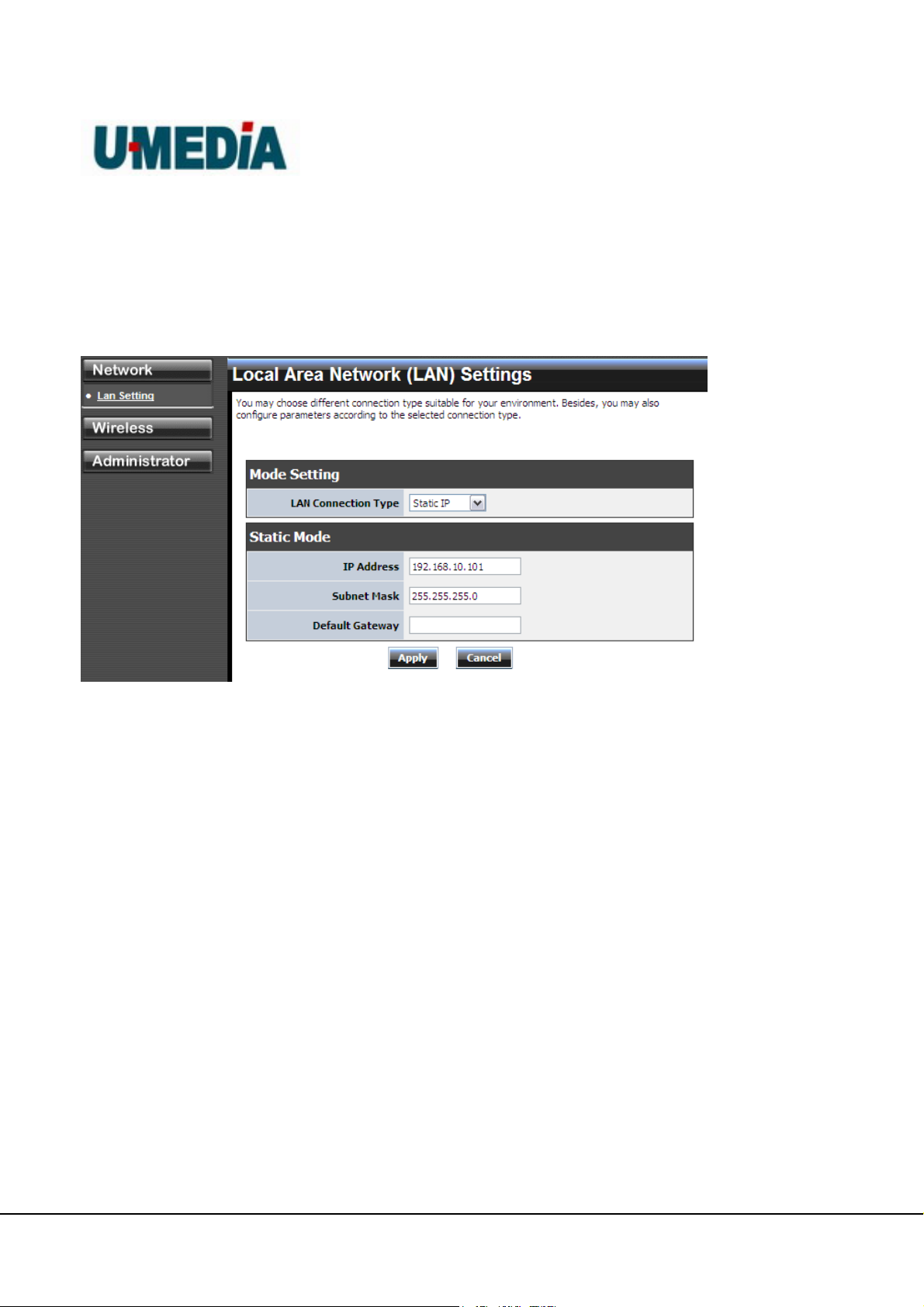

4. Using the Configuration Menu
Whenever you want to configure your WST-375L, you can access the Configuration Menu
through your PC by opening the Web-browser and typing in the IP Address of the WST-375L.
The WST-375L’s default IP Address is http://192.168.10.101
 Open the Web browser.
 Type in the IP Address of the Bridge (http:// 192.168.10.101)
If you have changed the default IP Address assigned to the WST-375L, make sure
to enter the correct IP Address.
 Select admin in the User Name field.
 Leave the Password blank.
 Click Login In.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 13
4.1.Network
4.1.1 LAN Setting
LAN Connection Type
Choose "Static IP (fixed IP)" if your router does not support DHCP or if for any other reason
you need to assign a fixed address to the AP. In this case, you must also configure the
following fields.
IP Address
The IP address of the AP on the local area network. Assign any unused IP address in the
range of IP addresses available for the LAN. For example, 192.168.10.100.
Subnet Mask
The subnet mask of the local area network.
Default Gateway
The IP address of the router on the local area network.
Choose “DHCP (Auto Config)” if your router supports DHCP and you want the router to
assign an IP address to the AP.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 14
4.2Wireless
4.3.1 Profile
Create a custom connection to a specific wireless network. Use this option to make custom
profiles and store new profile for later use.
Configure the setting to connect to a wireless network, selection option for network type, SSID,
and wireless security. The profile can be edited, deleted and made active from this option.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 15
4.3.2 Site Survey
Use the Site Survey tool to search for wireless networks in the WST-375L area. Click on the
Scan button to search for wireless networks to join. From this window, you can also add your
profile to use with theWST-375L. Click on the Connect button to join a wireless network from
this site survey window.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 16
4.3.3 Statistics
View the current operating status of the WST-375L, see the Transmit and Receive data.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 17
4.3.4 Advance
Use this setting to adjust the wireless environment.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 18
4.3.5 QoS
WMM (Wireless Multi-Media)
use this feature allows wireless devices to take advantage of the wireless environment over
other wireless devices.
WMM Power Saving
An option that allows wireless clients such as notebooks or Laptops to save battery life by
sending less transmission during idle times. Add a check mark to enable this option.
PS Mode
Used for specific application when using WMM Power Saving mode is enabled, use this
feature to help with Quality of Service (QoS) settings; these settings are polled by the priority
given to the option in this section.
AC_BE=Best Effort
AC_BK=Background
AC_VI=Video
AC_VO=Voice

U-MEDIA Communications, Inc.
ProprietaryandConfidential 19
4.3.6 WPS
You can setup security easily by choosing PIN or PBC method to do Wi-Fi Protected Setup.

U-MEDIA Communications, Inc.
ProprietaryandConfidential 20
4.3Administrator
4.3.1 Management
At this page, you can configure administrator account and password.
