U.S. Products OASIS-PLUS 120V Operating instructions

READ ALL INSTRUCTIONS BEFORE OPERATING
OZONE IS A POWERFUL OXIDIZER AND MUST BE USED WITH CARE
WARNING: USE IN UNINHABITED AREAS ONLY. CONSULT MSDS SHEET BEFORE
USE. Ozone attacks organic matter. Limited exposure can cause irritation to eyes, throat, and
nose, and it may cause nausea. Do not re-inhabit a treated area until it has been well
ventilated. Prolonged exposure can also affect certain organic materials such as rubber, plastic,
wire insulation. Do not get the machine wet.
December 15, 2005
OASIS-PLUS
120V
INFORMATION
&
OPERATING
INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
This machine is only suitable for commercial use, for example in hotels, schools,
hospitals, factories, shops and offices other than normal residential housekeeping
purposes.
When using any electrical appliance, basic precautions should always be followed,
including the following:
NOTE: Read all instructions before using this machine.
WARNING!
To reduce the risk of fire, electric shock, or injury:
•USE IN UNINHABITED AREAS ONLY.
•To avoid electric shock, do not expose to rain or snow. Store, and use, indoors.
•Do not allow to be used as a toy. Close attention is necessary when used near
children.
•Use only as described in this manual. Use only the manufacturer’s recommended
attachments.
•Do not use with damaged cord or plug. If the machine is not working as it should,
has been dropped, damaged, left outdoors or dropped into water, return it to a
service center.
•Do not pull by the cord, use the cord as a handle, close a door on the cord, or pull
the cord around sharp edges or corners. Do not run the machine over the cord.
Keep the cord away from heated surfaces. To unplug, grasp the plug, not the cord.
•Do not handle the plug, the cord or the machine with wet hands.
•Extension cords must be 12/3 and no longer than 50 feet. Replace the cord or
unplug immediately if the ground prong becomes damaged.
•Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce air flow.
•Connect to a properly grounded outlet only.

INSPECTION:
Carefully unpack and inspect the OASIS PLUS for shipping damage. Each unit is tested and inspected
before shipment. Any damage incurred is the responsibility of the carrier, who should be notified
immediately.
All cleaning and maintenance work should be completed before using the Ozone machine.
Ozone treatment should be the final step in room maintenance.
NOTE: the air flowing into the machine must be clean and dry.
NOTE: if the air intake filter is dirty or missing, warranty is voided.
OPERATION:
NOTE: Ozone is a toxic gas. Follow all safety precautions.
1. Make certain all people, pets, and plants are out of area. Close all windows and doors.
2. Make sure the filter in front of the cooling fan is installed and is clean.
3. Place the Oasis Plus unit on a shelf or tabletop as high as possible in the area to be treated.
4 Plug the power cord into a grounded, 3-prong outlet.
5. Set the timer to the desired length of time. Momentarily pressing the UP timer button for one
second will increase the time setting by one minute at a time. Hold the button for 1 -3 seconds to
change the time value by two minutes per second. Hold the button for longer than 3 seconds and
the time setting will change in 20 minutes increments. The maximum time setting is 29:59 hours.
After reaching the maximum time, the timer will wrap back to 00:00 and then continue increasing.
When the time is being decreased and reaches 00:00, it will wrap to 29:59 and continue decreasing.
6. Select the desired power level: 25%; 50%; 75% 100%. The Oasis Plus always defaults to 100%
when you plug it in. When the output level is set to 100%, the machine makes ozone
continuously until the timer runs out or the OFF button is pressed. At other power level
settings, the machine will produce ozone for the fraction of a minute the level is set at. For
example, if the output level is set to 75%, the machine will produce ozone for 75% (45 seconds) of
each minute. At 50%, ozone is generated for 30 seconds of each minute, and at 25%, the
ozone generation lasts for 15 seconds of each minute. On any setting other than 100%,
the ozone generator will be cycling the ozone ON and OFF.
7. Turn the unit on by pressing the ON button. Leave the area.
8. When treatment is complete, unplug the ozone machine and ventilate the area completely
until all smell of ozone is gone. Do NOT allow people, pets, or plants back into the area until
all smell of ozone is dissipated.
NOTE: This machine is only suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops and offices other than normal residential housekeeping purposes. Record the
serial number and model of your new extractor here: __________________________
(and be sure to mail your warranty card)
Serial Number: __________________ Model: Oasis-Plus
Purchase Date:_____________
Write the name and phone number of your distributor:
_____________________________________

TIME GUIDELINES:
This Oasis Plus unit will control biological contamination and odor in areas up to 40,000 FT3.
Use the following times as a guideline.
Hotel/Motel Room: 20 -- 60 Minutes
Automobiles: 20 -- 30 Minutes
Fire & Flood Restoration: 12 -- 72 Hours.
For Automobiles:

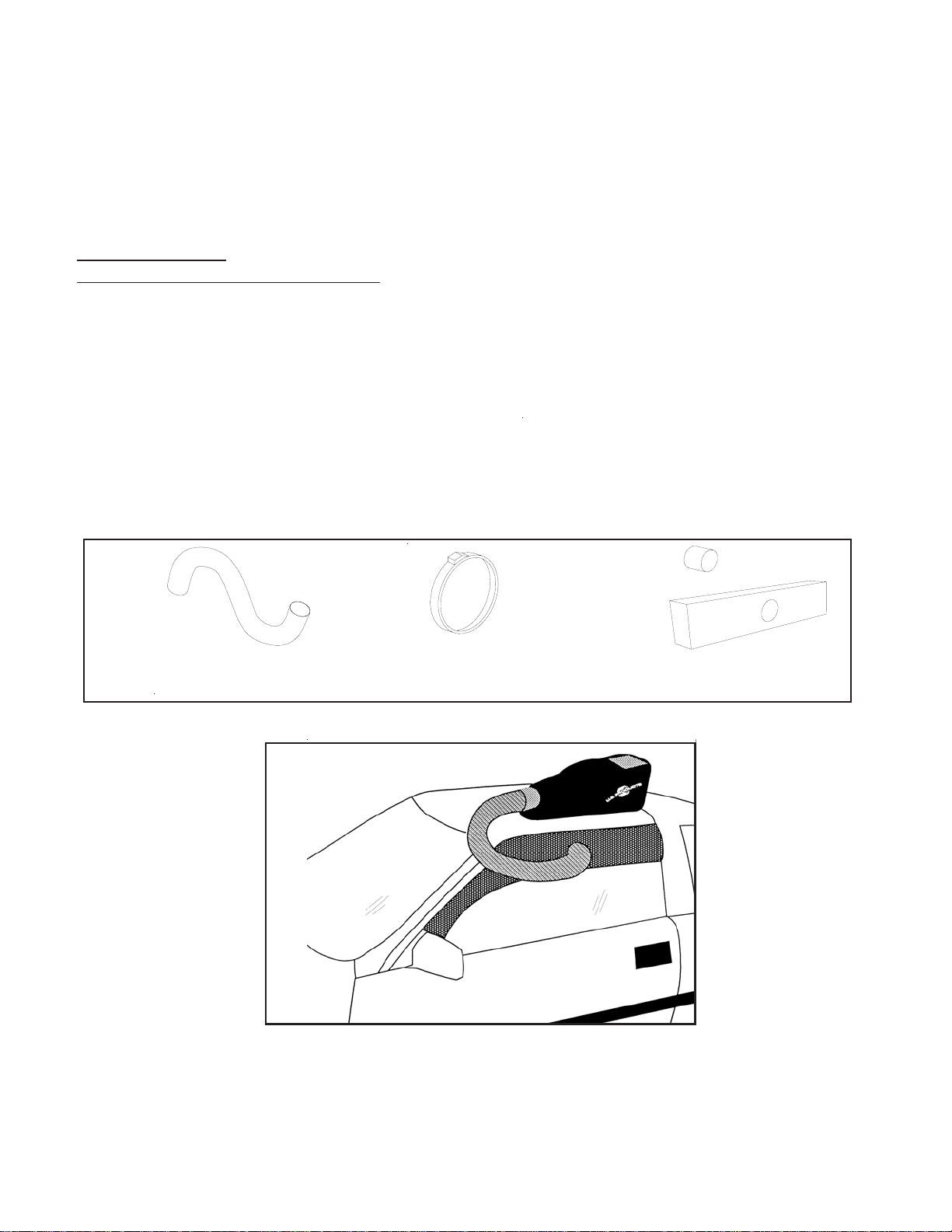

Refer to Figure 1 and Figure 2 below
1. Install the hose onto the electrode chamber. Secure the hose with the hose clamp.
2. Set the Ozone Plus on top of the car or on a cart or table next to the car.
3. Install the foam block into a partially closed car window, and insert the hose through the
hole in the foam.
4. Set the time and the output level.
5. Turn the ozone machine ON.
When treatment is complete, ventilate the car completely. Repeat treatment if necessary.
NOTE: Ozone destroys odor causing molecules, thus eliminating the source of the odor.
The length of time this process takes will vary depending on the amount of contaminants
the ozone has to work on, the amount of area being treated, temperature and humidity, the
amount and type of furniture in the area, etc.
NOTE: the process can produce a haze in the treatment area.
HOSE CLAMP FOAM
Figure 1
Figure 2

OZONE ACTUALLY SEEKS OUT AND DESTROYS THE BACTERIA AND
MOLECULES THAT CAUSE ODORS
Not a simple coverup or ionizer, the OASIS PLUS unit is an economical environmental odor
neutralizer that actually destroys the source of the odor and leaves pure, fresh oxygen in its place.
This large capacity ozone generator is ideal for commercial use. It is excellent for removing odors
from smoke damage, mold, mildew, pet and other sources commonly eccountered in building
maintenance and refurbishing.
The OASIS PLUS will eliminate odor in any indoor location, including basements, kitchens,
bathrooms, and more. It also provides rapid deoderizing or hotel/motel rooms, meeting rooms, and
used cars, boats and RVs.
NOTE: Ozone treatment should be the final step in cleaning or restoration.
NOTE: Do not allow people, pets, or plants back into the treated area until it has been well ventilated
and the smell of ozone has dissapated.
FEATURES AND SPECIFICATIONS
•DESTROYS THE SOURCE OF THE ODOR: not just a cover-up or ionizer
•REMOVES ODORS caused by smoke, pets, mold, mildew, etc.
•30 HOUR DIGITAL TIMER/PROGRAMMER
•VARIABLE OZONE OUTPUT SETTINGS
•HIGH DENSITY ceramic and stainless steel electrodes (patented)
•POWER SUPPLY OVERLOAD PROTECTION
•OUTPUT: 6.6 ppm or 2.2 gr/hr
•RUGGED CONSTRUCTION: Rotational molded hexane co-polymer body (lifetime warranty)
•DEMINSIONS: 8” H X 8”W X 22”L
•WEIGHT: 12-1/2 lb
•MADE IN THE U.S.A.
•No plates or UV tubes to maintain
•WARRANTY: 3 year with LIFETIME WARRANTY on the ozone electrodes (patented)

OASIS PLUS 120V
15
16
14
13
22
21
10
10A
11
6
1
2
3
12
4
5
7
8
9
8
8
9
8
9
9
23
24
25
26
10 20
18
19
17
27
ITEM No. DESCRIPTON PART No.
#1 Housing OZ-1
#2 MountingPlate,bottom OZ-18AB
#3 Bolt,3/8 X 1/2" 326
#4 Terminal Block OZ-10
#5 Stud,3/8 X 1-1/8" 327
#6 SafetySwitch OZ-8
#7 Circuit Breaker,1/2 amp OZ-5
#8 Bolt 364
#9 Lock nut,nylock 17
#10 Electrode Chamber FP242
#10A Electrode Assembly FP241
#11 Hose Clamp 198
#12 Fan 2014
#13 Lock nut 324
#14 Fan cover + filter 2015A
#15 Filter only 2015B
#16 Bolt,8/32 X 2-1/2" 323
#17 Screw,4-40 X 5/8" S/S 328
#18 Bracket,for safety switch OZ-22
#19 Lock nut 4-40,S/S 18
#20 Strap,holding OZ-19
#20A Transformer OZ-4PTI-1
#21 Power Cord,6 ft OZ-11
#22 CordRetainer 230 & 230A
#23 Control Board Assembly OZ-17
#24 Touch Pad OZ-20
#25 Gasket OZ-16A
#26 Bezel OZ-16
#27 Label OZ-23
SEPT. 2005
20A

208-772-0573 •800-257-7982 •FAX: [phone]
Coeur d’Alene, Idaho
VISIT US AT: http://www.usproducts.com
